FIBARO FGBHMS-001 User manual

CONTENTS
#1: Description and features 3
#2: Powering the accessory 4
#3: Pairing the accessory 5
#4: Physical installation 6
#5: Reset 7
#6: Functionality 8
#7: Congurable parameters 9
#8: Specications 11
#9: Regulations 12
OPERATING
MANUAL EN
FIBARO MOTION SENSOR
FGBHMS-001
v1.1

2
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
!
HomeKit technology
Apple HomeKit technology provides an easy, secure way to control
HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod
touch.
After installing your FIBARO Motion Sensor, congure it from a
compatible app with just a few simple steps.
You can even create your own custom scenes to control your home
settings. For example, you can create a scene to automatically turn
o the lights, lock your doors, close the garage door, and set the
thermostat to the desired temperature in just one step.
To control this HomeKit-enabled accessory, iOS 9.3.5 or later is
recommended.
Controlling this HomeKit-enabled accessory automatically and
away from home requires an Apple TV with tvOS 9.2 or later or
an iPad with iOS 9.3 or later set up as a home hub.
i

3
DESCRIPTION AND FEATURES
Main features of FIBARO Motion Sensor:
• compatible with Apple HomeKit technology
• Bluetooth® low energy technology for wireless communication
• detects motion using a passive IR sensor
• measures ambient temperature
• measures light intensity
• detects tampering using accelerometer
• easy installation
• may be installed anywhere - wall or any surface
• battery powered
• indicates state using multicolor LED diode

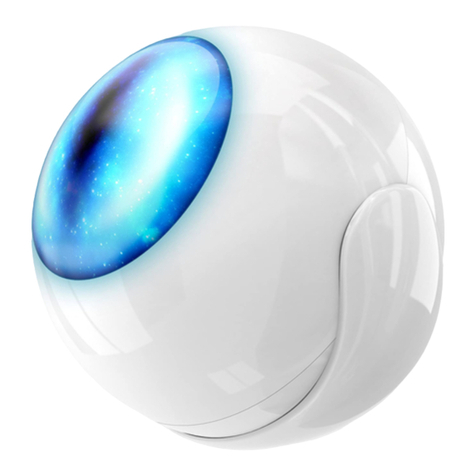

FIBARO Motion Sensor is a HomeKit-enabled multi-sensor using
Bluetooth® low energy technology.
Along with detecting motion, the accessory measures the ambient
temperature and light intensity.
The sensor has a built-in accelerometer to detect any tampering with
the accessory.
FIBARO Motion Sensor is battery powered and designed to be
installed quickly and easily on any surface.
The eye-shaped LED indicator signals motion, temperature level,
tampering and can be used to identify the accessory.
#1: Description and features

4
POWERING THE ACCESSORY
#2: Powering the accessory
1. Turn the cover counter-clockwise and open it.
2. Remove the battery blocker and check if the battery is placed cor-
rectly.
3. The accessory will glow red – it is ready to be paired.
4. Close the cover and turn it clockwise, dots on the casing should
align.
NOTE
Remember to use
only battery type
specied in the man-
ual and keep the right
polarity.
i
NOTE
If the accessory blinks
green after powering,
it is already paired and
has to be reset to pair
again.
i

5
PAIRING THE ACCESSORY
#3: Pairing the accessory
1. Open the Settings app on your iOS device.
2. Go to the Bluetooth® section, and turn the Bluetooth® on.
3. Place the accessory next to your iOS device.
4. Open a HomeKit compatible app of your choosing on your iOS
device.
5. Open pairing window in your HomeKit app to detect available
accessories.
6. Choose Motion Sensor you wish to pair.
7. You can identify it - Motion Sensor will triple blink blue 3 times.
8. Find HomeKit Setup Code on the last page of Quick Start Guide
included in the box that looks like this:
9. Start pairing with your HomeKit app.
10. Point your iOS device’s camera at the Setup Code to scan it or en-
ter the Setup Code manually.
11. If entered Setup Code is valid, the device will complete the setup
process.
12. Follow instructions displayed in the application.
XXX-XX-XXX
NOTE
Remember to keep
your HomeKit Setup
Code in safe place. You
may need it in case of
re-pairing.
i

6
PHYSICAL INSTALLATION
#4: Physical installation
Installing the Motion Sensor:
1. Install the holder (using an expansion bolt or a sticker).
2. Insert the device into the holder.
3. Test the operation - check whether the accessory indicates motion
detection.
Detection range:
Detection range of the Motion Sensor is shown below. Actual range
of the Sensor can be inuenced by environmental conditions.
0 m
5 m
5 m
7 m
Installation location and working conditions:
The Motion Sensor should be installed in a corner of the room or per-
pendicularly to the doors.
Moving objects such as trees blowing in the wind, cars passing by,
household fans and moving masses of air and heat within detection
area of the sensor can cause false motion detection.
Sticker
0 m
3 m
7 m

7
RESET
Resetting the Motion Sensor to factory defaults:
Reset procedure allows to restore the accessory back to its factory
settings including HomeKit pairing.
1. Open the cover.
2. Press and hold the button.
3. Wait for the LED indicator to glow yellow.
4. Release the button.
5. Click the button to conrm.
6. Accessory will glow red to conrm reset.
7. Delete the accessory from the app before pairing it again.
Button
#5: Reset

8
FUNCTIONALITY
#6: Functionality
Motion detection:
The Motion Sensor detects movement using PIR sensor and reports it
to your iOS device.
Blink of LED indicates detected motion. Color of blink is dependent on
current ambient temperature (smooth transition through blue, green
and red). Brightness of blink is adjusted by measured light intensity.
Tamper detection:
The Motion Sensor detects tampering when accessory is moved and
reports it to your iOS device. Tampering is indicated with an alternate
blinking in red, blue and white.
Temperature measuring:
The Motion Sensor measures ambient temperature every 5 min-
utes. If the measured temperature diers from previously reported
by at least 2°C (3.6°F), accessory reports it to your iOS device.
Battery level measuring:
The Motion Sensor measures battery level every 24 hours and reports
it to your iOS device. Additionally, if battery level is below 15%, the
accessory will report low level battery status to your iOS device.
Light intensity measuring:
The Motion Sensor measures light intensity. If the measured light in-
tensity diers from previously reported by at least 200 lux, accessory
reports it to your iOS device.
PIR sensor malfunction detection (Fault Code 1):
The Motion Sensor detects malfunction of PIR sensor (responsible for
motion detection) and reports it to your iOS device.
Getting Fault Code 1 warning means that the accessory is damaged
and should be returned to the distributor for the warranty (if still valid).
NOTE
The accessory mea-
sures light intensity
in the place of instal-
lation, not where the
sensor is pointed.
i
NOTE
The accessory mea-
sures temperature in
the place of installa-
tion. Remember that
temperature near
the ceiling may dier
from that on eye-level
or the oor.
i

9
CONFIGURABLE PARAMETERS
#7: Congurable parameters
1. Motion detection – sensor sensitivity
This parameter allows to set sensitivity of PIR sensor used for motion
detection.
The higher the value of this parameter, the higher the sensitivity.
Available settings: 1– low sensitivity
2– medium sensitivity
3– high sensitivity
Default setting: 2 (medium sensitivity)
2. Tamper – sensor sensitivity
This parameter allows to set sensitivity of tamper detection.
The higher the value of this parameter, the higher the sensitivity.
Available settings: 0– tamper disabled
1– low sensitivity
2– medium sensitivity
3– high sensitivity
Default setting: 2 (medium sensitivity)
3. Motion detection – LED indication
This parameter allows to choose how the LED indicator will behave
after detecting motion.
Available settings: 0– LED indications disabled
1– color dependent on temperature*
2– ashlight mode**
3– white, 4– red, 5– green, 6– blue, 7– yellow,
8– cyan, 9– magenta
Default setting: 1 (color dependent on temperature)
4. Tamper – LED indication
This parameter allows to choose if accessory will indicate tampering
using LED (alternate blinking in red, blue and white).
Available settings: 0– tamper indication disabled
1– tamper indication enabled
Default setting: 1 (tamper indication enabled)

10
CONFIGURABLE PARAMETERS
5. Motion detection - sustain time
This parameter allows to set how long the information about detect-
ed motion is sustained by the accessory. Each subsequent motion de-
tection causes time to be counted from the beginning.
Available settings: 1-32767 – sustain time in seconds
Default setting: 30 (30 seconds)

11
SPECIFICATIONS
#8: Specications
Power supply:
Battery type:
EU directives compliance:
Radio protocol:
Radio frequency:
Range:
Recommended
installation height:
Operating temperature:
Temperature measuring
range:
Temperature measuring
accuracy:
Light intensity measuring
range:
Dimensions (diameter):
3.0V DC battery
CR123A
RoHS 2011/65/EU
RED 2014/53/EU
Bluetooth® low energy
2.4 GHz
up to 50m (free range)
(164 feet)
2.4 meters (7.87 feet)
0-40°C (32-104°F)
0-40°C (32-104°F)
±0.5°C (±0.9°F)
0-32000 lux
46 mm (1.8 inch)
CAUTION
Using batteries other
than specied may
result in explosion.
Dispose of properly,
observing environ-
mental protection
rules.
!

12
REGULATIONS
#9: Regulations
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including inter-
ference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note
Changes and modications not expressly approved by the manufac-
turer or registrant of this equipment can void your authority to operate
this equipment under Federal Communications Commission’s rules.
Industry Canada (IC) Compliance Notice
This device complies with Industry Canada license-exempt RSSs. Oper-
ation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, in-
cluding interference that may cause undesired operation of the device.
Cet appareil est conforme aux normes d’exemption de licence RSS d’In-
dustry Canada. Son fonctionnement est soumis aux deux conditions
suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet
appareil doit accepter toute interférence, notamment les interférences
qui peuvent aecter son fonctionnement.
Radio frequency (RF) exposure statement
This equipment should be installed and operated keeping the radiator
at least 20 cm or more away from person's body.
Cet équipement doit être installé et utilisé en gardant une distance de
20 cm ou plus entre le dispositif rayonnant et le corps.

13
REGULATIONS
DGT Warning Statement
Article 12
Without permission, any company, rm or user shall not alter the frequen-
cy, increase the power, or change the characteristics and functions of the
original design of the certied lower power frequency electric machinery.
Article 14
The application of low power frequency electric machineries shall not
aect the navigation safety nor interfere a legal communication, if an
interference is found, the service will be suspended until improvement
is made and the interference no longer exists.
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性
電機設備之干擾。
Legal Notices
All information, including, but not limited to, information regarding the
features, functionality, and/or other product specication are subject
to change without notice. Fibaro reserves all rights to revise or update
its products, software, or documentation without any obligation to no-
tify any individual or entity.
FIBARO and Fibar Group logo are trademarks of Fibar Group S.A.
The Bluetooth word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Fibar Group S.A. is
under license.
Apple, iPhone, iPad, iPad Air, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries. HomeKit is a trademark
of Apple Inc.
All other brands and product names referred to herein are trademarks
of their respective holders.
Use of the Works with Apple HomeKit logo means that an electron-
ic accessory has been designed to connect specically to iPod touch,
iPhone, or iPad, respectively, and has been certied by the developer to
meet Apple performance standards. Apple is not responsible for the oper-
ation of this device or its compliance with safety and regulatory standards.
Warning
This product is not a toy. Keep away from children and animals!
Information according REACH
The included Panasonic CR123A battery contains 1,2-Dimethoxyeth-
ane substance. Normal use of the device does not expose the user to
a given substance.

14
REGULATIONS
Declaration of conformity
Hereby, Fibar Group S.A. declares that the device is in com-
pliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address:
www.manuals.baro.com
WEEE Directive Compliance
Device labelled with this symbol should not be disposed with
other household wastes. It shall be handed over to the appli-
cable collection point for the recycling of waste electrical and
electronic equipment.
