Fiio M11 Pro User manual

1
All the below illustrating pictures are for reference only.
M11 Pro Complete User Manual
Foreword:
Thank you for purchasing FiiO’s high resolution lossless music player M11 Pro. To
help you better utilize the M11 Pro to enjoy high-quality music, we have prepared this
complete user manual. We hope this manual could help you get to know the M11 Pro
and unleash its full potential.

2
Contents
●Introduction················································································································4
●Buttons and ports introduced·························································································· 4
1、Pictorial guide to buttons and ports········································································ 4
2、Buttons and ports explained················································································· 6
●Main interface and drop-down display···············································································8
●Setting interface···········································································································9
1、WiFi··············································································································· 9
2. Bluetooth········································································································· 10
Using M11 Pro as a Bluetooth transmitter:································································ 10
Using M11 Pro as a Bluetooth receiver···································································· 12
3、Audio············································································································13

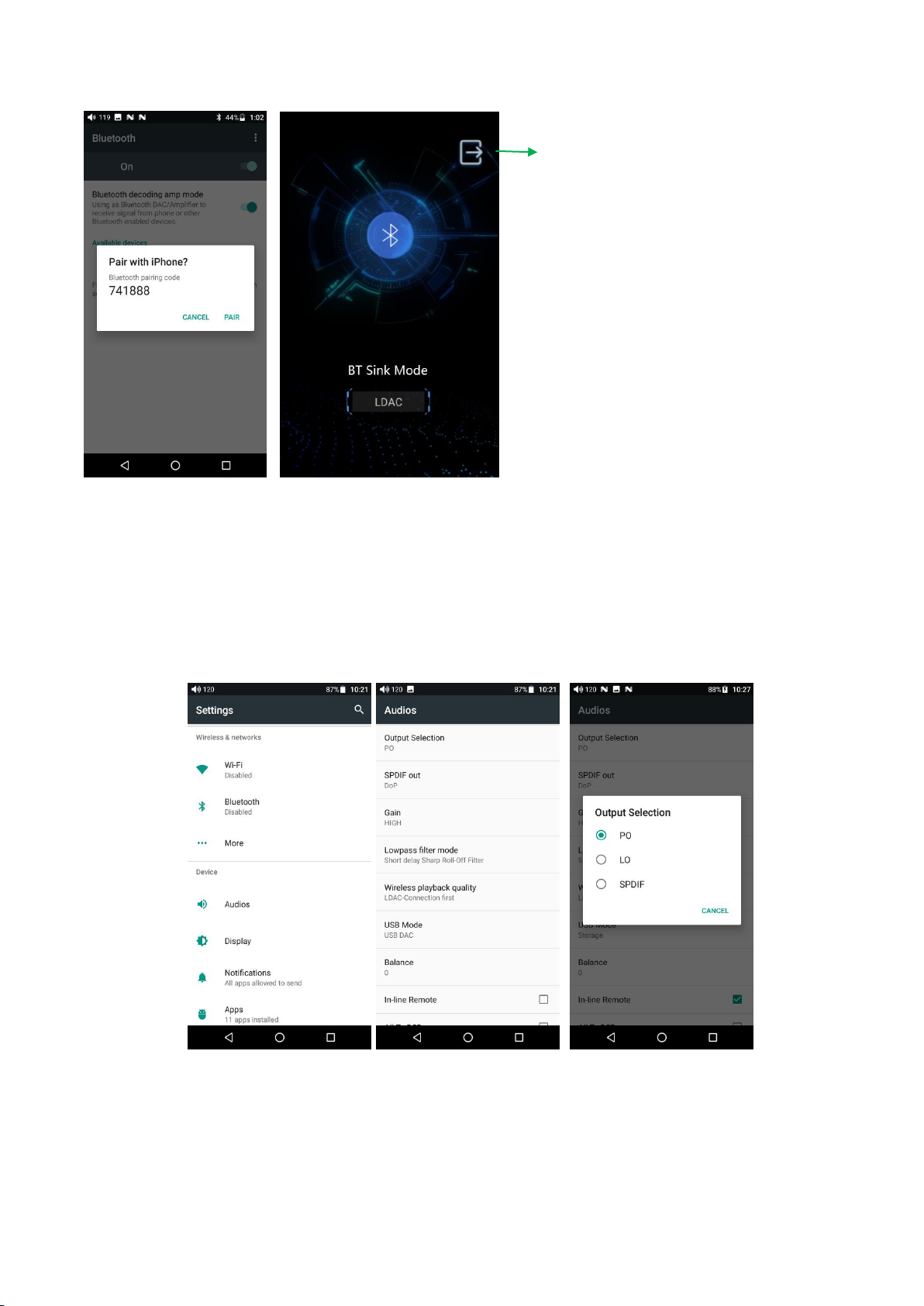

Multifunctional Output······················································································· 13
SPDIF Coaxial output:······················································································· 13
Gain·············································································································14

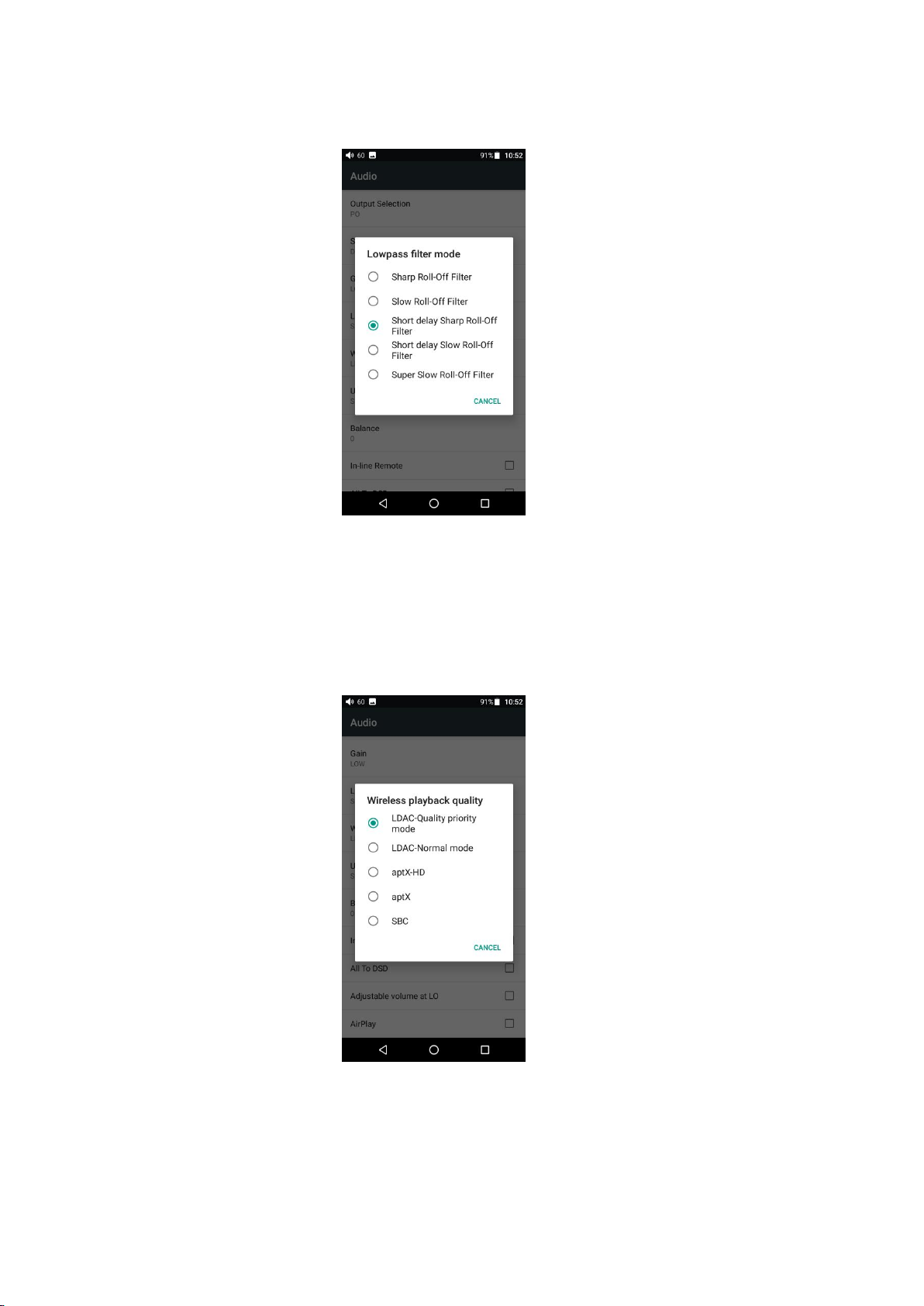

Digital filter mode··························································································· 14
Wireless playback quality············································································· 15

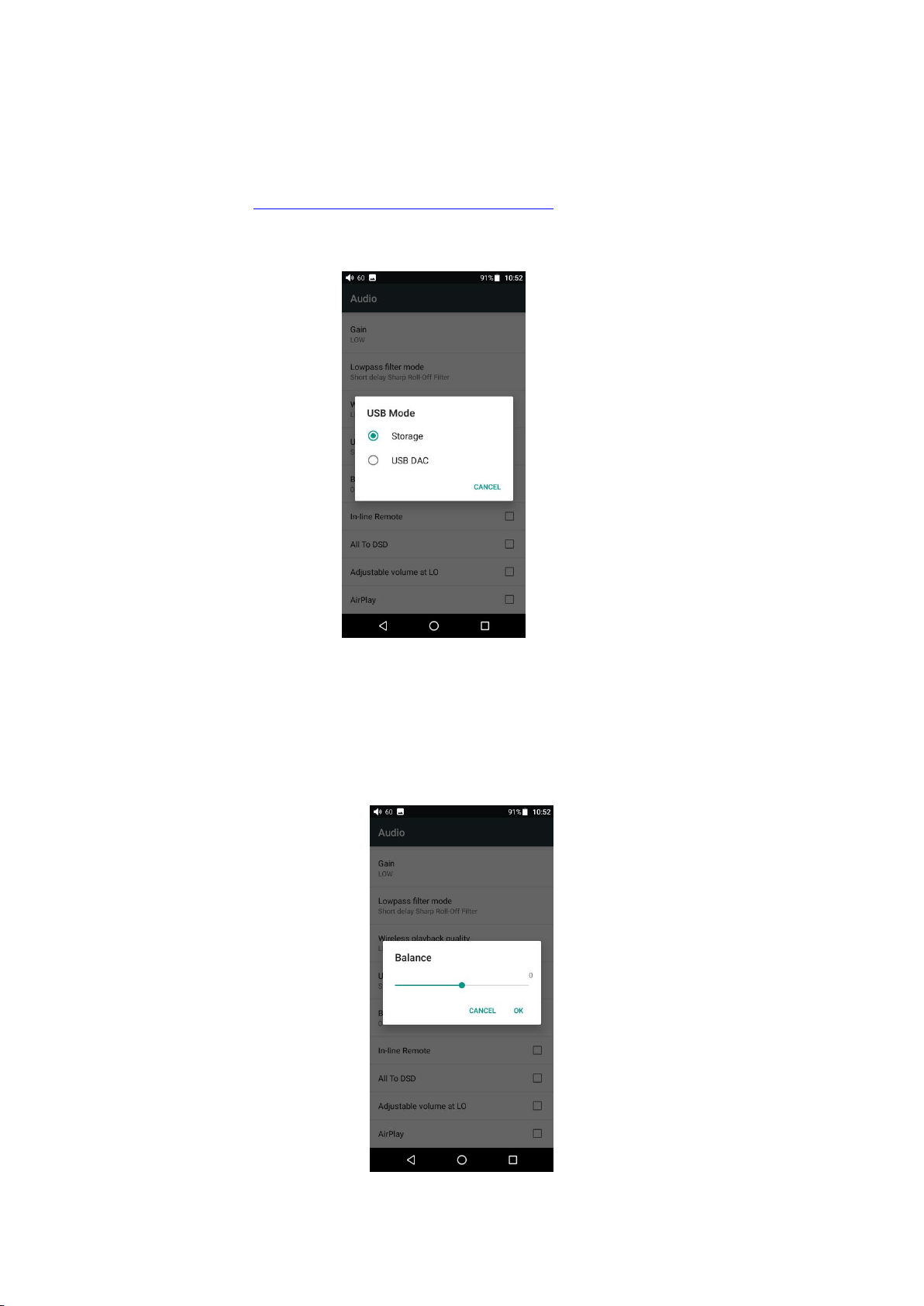

USB mode······································································································15
Channel balance····························································································· 16
In-line remote·································································································17
ALL to DSD···································································································17

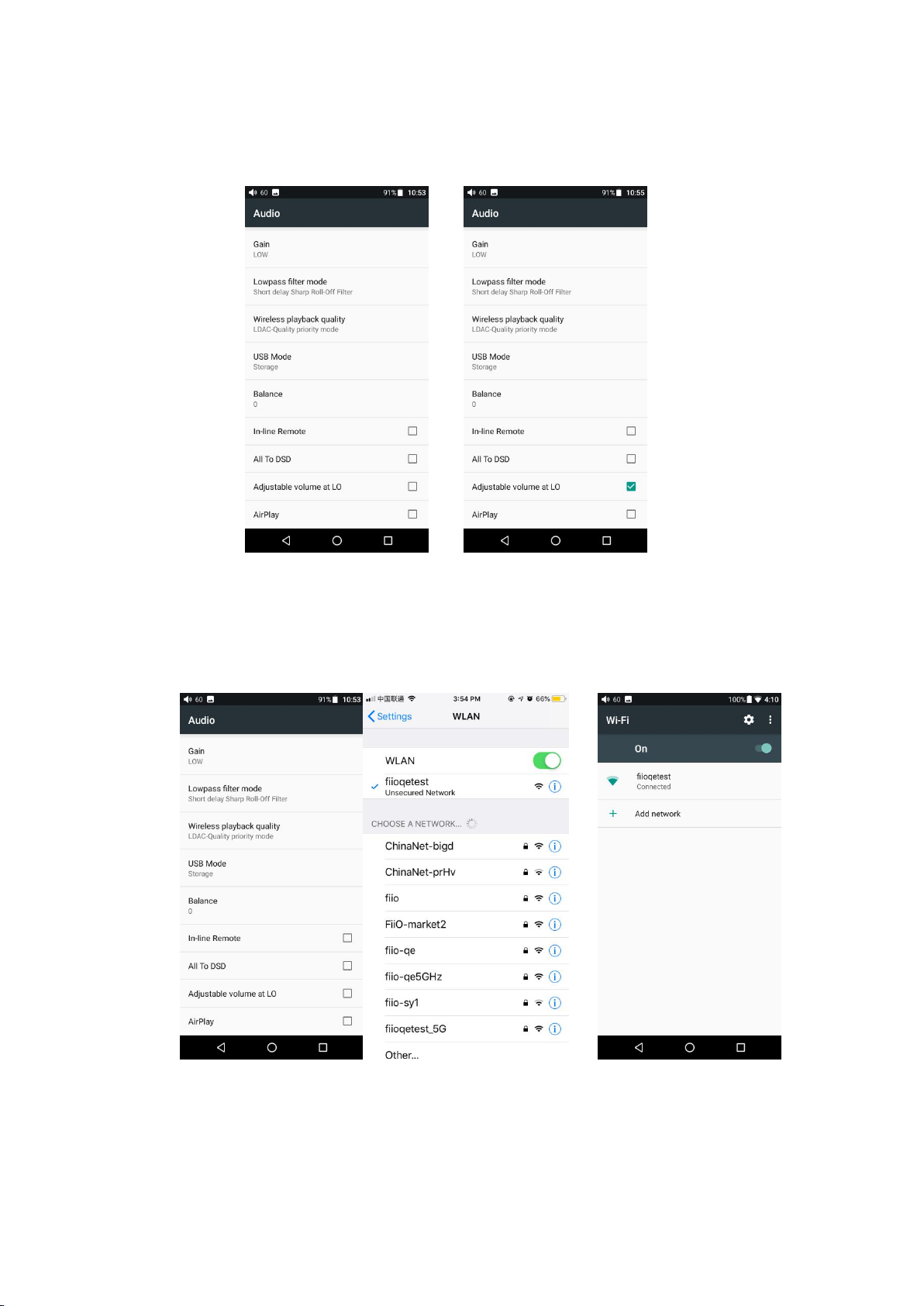

Adjustable volume at LO: on/off········································································· 17
AirPlay·········································································································18
4、General········································································································· 19
Operation method··························································································· 20
Gesture control introduction·············································································· 20
Power-off timers····························································································· 21
Lock key settings·····························································································22
Maximum volume settings················································································· 22
Fixed volume settings······················································································· 23
Double click to wake up···················································································· 23
5、Display··········································································································24
Sleep············································································································ 24
Font size······································································································· 24
Display size····································································································25
6、Language settings·····························································································25
7、Backup & reset································································································26
●Firmware update·····································································································27
●Status bar··············································································································· 29

3
●Technical support····································································································29
●FiiO Music···············································································································30
1. Homepage····································································································· 30
2、Quickly locate all the songs··················································································31
3、Functionalities corresponding to “all-songs” interface················································ 32
4、Now playing interface························································································ 33
5、Professional Equalizer······················································································· 35

4
●Introduction

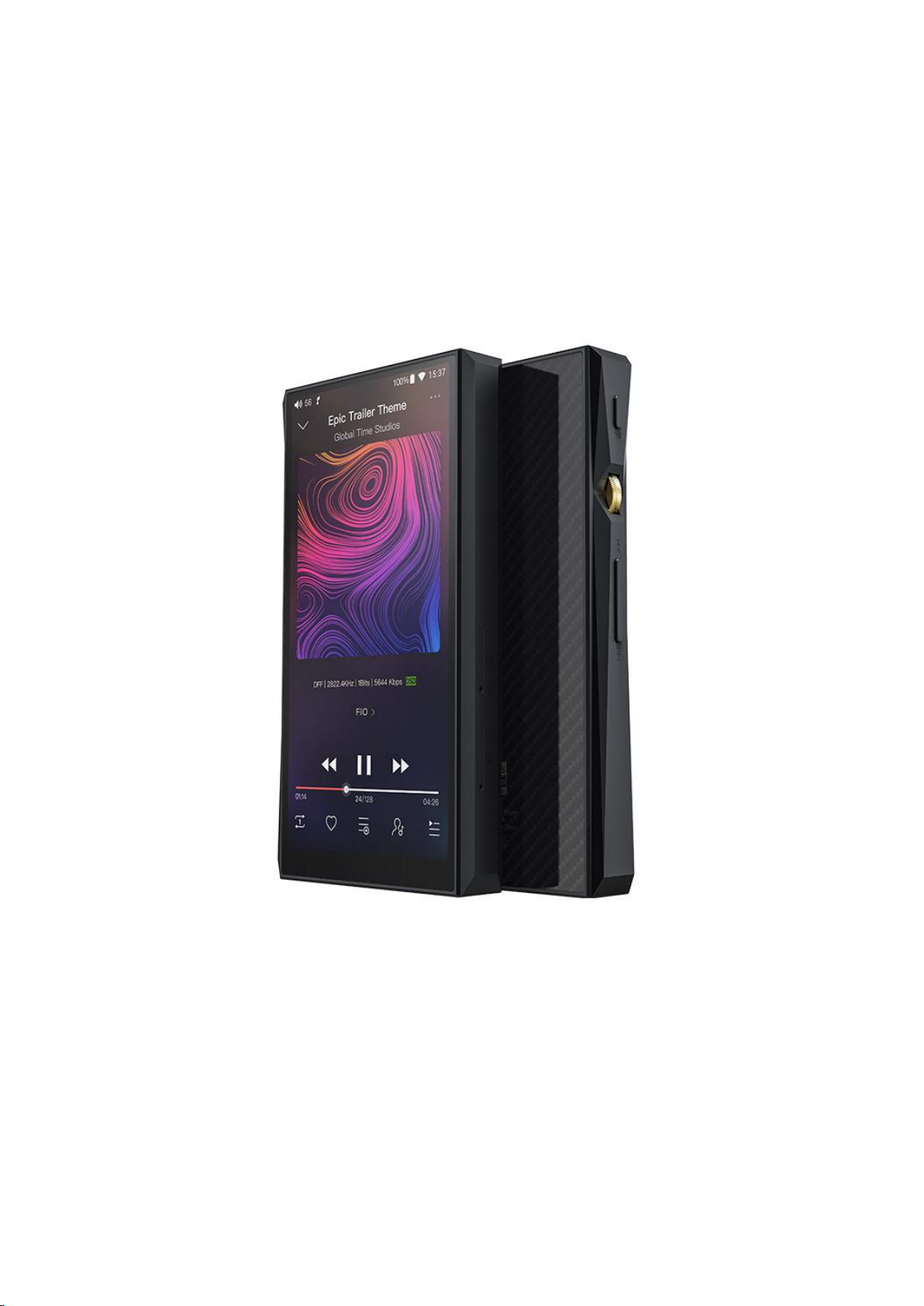

The M11 Pro is a high fidelity, high resolution digital audio player, featuring
Samsung 14nm Exynos 7872, dual AK4497EQ DACs, THX AAA-78 balanced
amplifier architecture, 3GB RAM, 64GB internal storage as well as external
storage via its micro SD slot (theoretically supporting up to 2TB). The digital
audio player is equipped with a 5.15-inch 18: 9 HD display, running on a deep
customized Android 7.0, coupled with an in-house developed professional music
playback APP, "FiiO Music". The result is an implementation which is
responsive and simple to operate. It supports PO / LO / BAL (both 2.5mm and
4.4mm) / SPDIF outputs and also supports USB Audio / USB DAC / Bluetooth
receiver functionalities. In the area of Wireless, The M11 Pro not only supports
dual-band WiFi and Bluetooth 4.2 protocol but also supports an array of high-
quality Bluetooth codecs not limited to aptX, aptX-HD, LDAC and HWA
(LHDC). One can play music continuously for at least 9.5 hours or let it go in
deep sleep mode for 55 days allowing one to enjoy it any time.
●Buttons and ports introduced

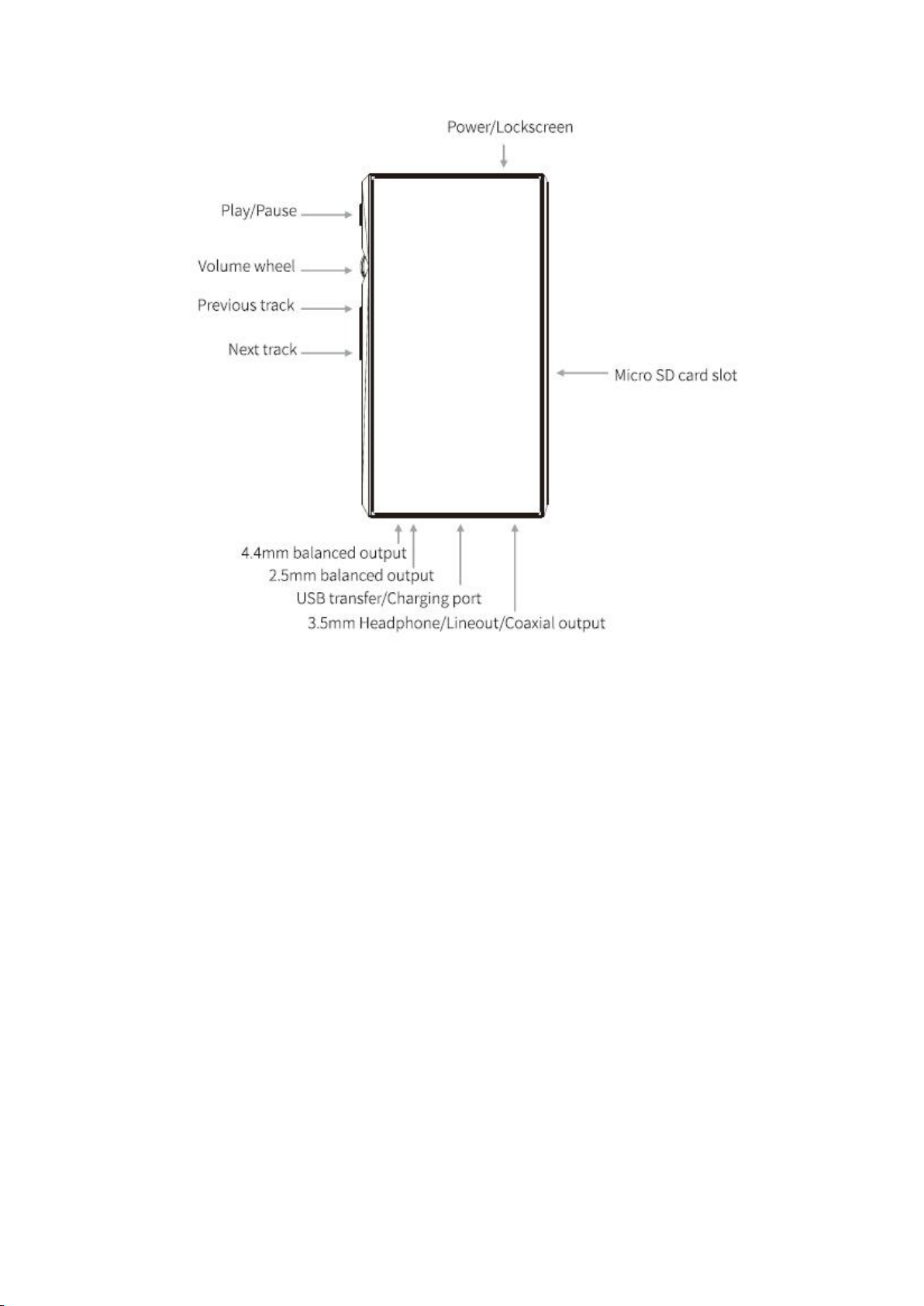

1、Pictorial guide to buttons and ports

5

6
2、Buttons and ports explained
1) 5.15 inches IPS Hi-Res incell screen (1440x720 pixels): displays the user
interface and other information; for operating the unit via screen touches in
conjunction with buttons on the unit.
2) Power / Lock:While M11 Pro is powered off, holding for 2s to turn on;
while powered on, hold to display power off / reboot menu; press briefly while
powered on to turn screen on / off; hold the power button for 10 seconds to reset.
3) Play / Pause:press while playing to pause, press while paused to continue
playback.
4) Volume knob:scroll up to turn up the volume, scroll down to turn down.
5) Previous track:short press to play the previous track; long press to rewind
the track quickly.
6) Next track:short press to play the next track; long press to fast forward the
track.
7) Micro SD card slot:supporting an external Micro SD card storage
(theoretically up to 2T extension).
8) Type C USB data/ charging port:used for charging, transmitting data, USB
Audio output. The QC2.0 adapter is recommended for charging and can be filled
in about 2 hours.
9) 4.4mm balanced headphone output:supports 4.4mm TRRS balanced
headphone.
10）2.5mm balanced headphone output:supports 2.5mm TRRRS balanced
headphone.
11) 3.5mm PO/LO/SPDIF coaxial output:shared phone/line/coaxial output
port. Switch between the three outputs in M11 Pro Settings ->Audio Settings ->
Multifunctional Output.
CTIA-spec headsets with in-line remote control supported with the

7
following remote control operation (single button remotes and main button of
multi-button remotes supported):
Volume Up/Down: click to turn up/down the volume by one step, hold to
turn up/down the volume continuously to Max volume/Mute;
Play / Pause: press main button once briefly to toggle between play and
pause;
Next track: double-click main button quickly;
Previous track: triple-click main button quickly.

8
●Main interface and drop-down display

9
●Setting interface
1、WiFi
The M11 Pro may connect to the Internet or other network resources to obtain music
resources or perform other Android functions;
To connect the M11 Pro to WiFi devices / hotspots:
1) Tap the WLAN in setting as shown in the picture below;
2) Slide the WiFi switch to the right (ON) and the M11 Pro will automatically search
for and display available WiFi connections;
3) Tap the name of the WiFi network you wish to connect to and enter the password if
prompted, then the M11 Pro will connect to the network:

10
2. Bluetooth
M11 Pro 蓝牙支持多种编码方式，且支持发射或接收，方便用户通过无线连接拓展 M11
Pro 功能。
M11 Pro supports multiple Bluetooth codecs and supports both transmission and
receiving, which is convenient for users to expand M11 Pro functions through wireless
connection.
Using M11 Pro as a Bluetooth transmitter:
To use the M11 Pro with new Bluetooth devices (e.g. Bluetooth earphones, speakers,
remote controls), the M11 Pro must first be paired with the device as follows:

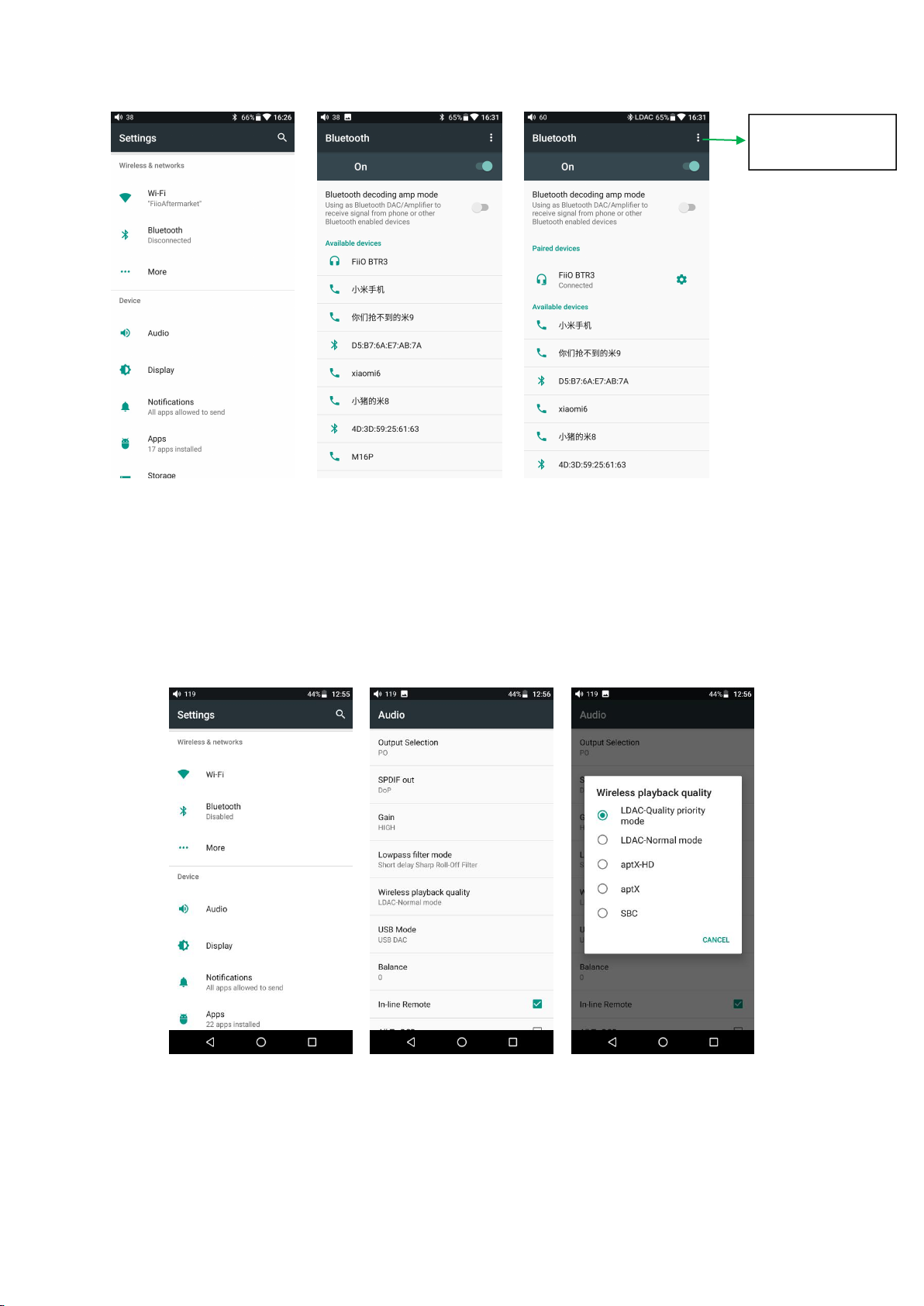

1) Tap the Bluetooth in setting as shown in the picture below;

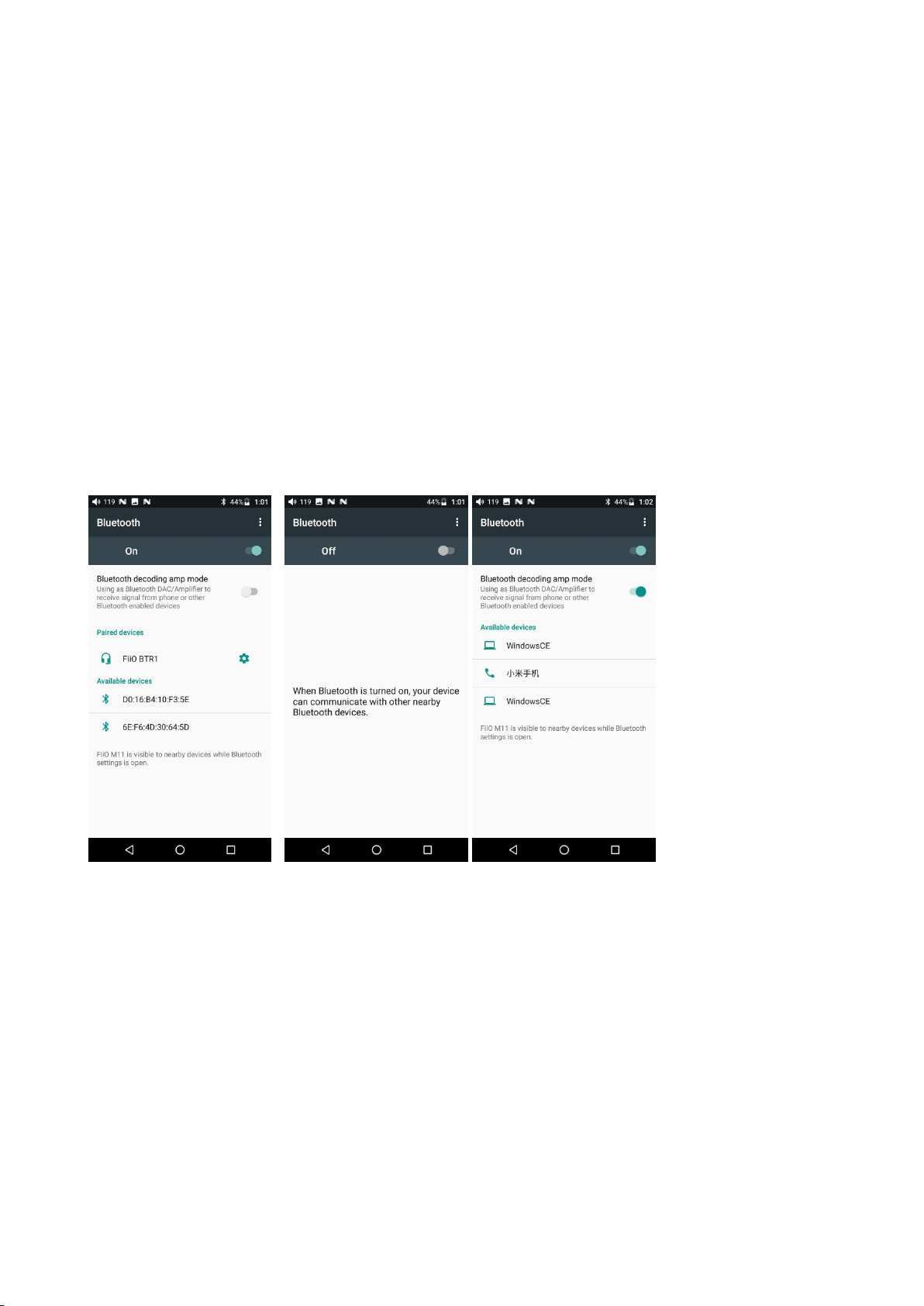

2) If Bluetooth on the M11 Pro is off, turn it on by flicking the switch on the upper
right to the “ON”position on the right;
3) Tap “SEARCH FOR DEVICES”at the bottom of the screen to have the M11 Pro
searched for and displayed nearby Bluetooth devices;
4) Tap the name of your Bluetooth device to pair with it. Successfully paired devices
will appear under the “PAIRED DEVICES”list.
