Fisher-Price BARBIE H4433 Use and care manual

Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For Model
For Model
H4433
H4433
Owner's Manual
with Assembly Instructions
For Model H4433
Product features may vary from the picture above.
Product features may vary from the picture above.
Product features may vary from the picture above.
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver,
Adjustable Wrench (or Pliers), Hammer and
Safety Scissors (all not included). Use only with
a Power Wheels®12 Volt Lead Acid
Rechargeable Battery and Power Wheels®12 Volt
Charger with Type 12V Connector (both included).
Requires three "AA" (LR6) alkaline
batteries for sound box operation.
/
.QMOT<M^`e
/

2
TABLE OF CONTENTS
A
H4433pr-0921
IMPORTANT INFORMATION
A
2
TABLE OF CONTENTS
H4433pr-0921
A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
G Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
H Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
J Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
K Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
L Sound Box Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
M Steering Wheel Cover, Seat Cover & Hair Tie Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
N Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
O FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
P Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Q Problems and Solutions Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
• Your new vehicle requires adult assembly. Please set aside at least
60 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use your
vehicle for the first time. We recommend that you start charging
your battery before beginning assembly. Please see Battery Charging
beginning on page 7 for detailed instructions.
• Read this manual carefully for important safety information and
operating instructions before using your vehicle. Keep this manual
for future reference as it contains important information.
• This vehicle is designed for use on: concrete, grass, asphalt and
other hard surfaces; on generally level terrain; and by children
3 years of age and older.
• This vehicle has been pre-set so it will only operate in low speed.
See the instructions on page 22 to remove the high speed
lock-out screw.
• Use this vehicle ONLY outdoors. Most interior flooring can be
damaged by riding this vehicle indoors. Fisher-Price®will not be
responsible for damage to the floor if the vehicle is used indoors.
• To prevent damaging the motors and gears, teach your child to
stop the vehicle before switching direction. Do not tow anything
behind the vehicle or overload it. Do not exceed the maximum
weight capacity of 130 lbs (59 kg).
• This vehicle has adjustable play seat belts. Please note that the
adjustable seat belts are designed to be a play feature and do not
function as protective safety restraints.
• If you have any questions about your Power Wheels®vehicle,
please call our toll-free service lines at 1-800-348-0751 from
9 AM to 7 PM (EST) Monday through Friday and 11 AM to 5 PM
(EST) Saturday. Trained customer service representatives are
available to take your call in English or French. Habla Español? Si
usted tiene alguna pregunta ó necesita asistencia llame gratis
1-800-348-0755 para los Estados Unidos. Tenemos representantes
que hablan español para atender su llamada.
• For your convenience, Power Wheels®maintains an independently
owned and operated Authorized Service Center Network with more
than 300 authorized service centers nationwide. Our authorized
service centers will repair or replace parts under warranty at no extra
charge, and can perform non-warranty repairs for a minimal charge.
To find the authorized service center nearest you, please visit us
on-line at www.powerwheels.com or call 1-800-348-0751.
• To register your vehicle, please visit us on-line at
www.powerwheels.com.

H4433pr-0921 3
WARNINGS AND CAUTIONS
B
H4433pr-0921
• In the unassembled state, this package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.
ELECTRICAL HAZARD
WARNING
CAUTION
WARNING
RIDING HAZARD
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 2 (two) riders at a time.
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only. A child
could be injured by the electricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.

H4433pr-0921
4
PARTS
C
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product
to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any
excess lubricant.
H4433pr-0921
Brush Guard
Vehicle Windshield
Dash
Seat
Sport Bar
Hood with
Flying Disc
Steering Wheel
Steering Column
Sport Bar Support - 2
Long Seat Belt Strap
Short Seat Belt Strap - 2
Seat Cover
Steering Wheel
Cover

5
TABLE OF CONTENTS
A
H4433pr-0921
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
5
PARTS
C
Part Not Shown: Label Sheet
H4433pr-0921
Hood Latch - 2
Key Assembly
Taillight Lens Set
12 Volt Charger
Taillight Housing Set
Lens Guard - 2 Headlight Lens - 2
12 Volt Battery
Light Cover - 2
Spacer - 2 Cap
#8 x 1" Screw - 6
#8 - 32 x 1.625" Screw – 2
#10 x 3/4" Screw - 16
#8 Acorn Lock Nut - 2
#8 x 4" Screw – 2
Water Bottle in
Drink Holder with
Decorative Hair Tie - 2
.354 Cap Nut - 2
.354"

6
TABLE OF CONTENTS
A
H4433pr-0921
6
PARTS PICTURE
D
5
21
23
19
22
18
8
7
8
14
6
11
24
17
14
9
1
15
29
2
20
12
13
3
4
3
Note: Some parts shown are assembled on both sides of the vehicle.
16
10
1 Vehicle
2 Steering Column
3 Hood Latch
4 12 Volt Battery
5 12 Volt Charger
6 Key Assembly
7 Taillight Lens
8 Taillight Housing
9 Hood with Flying Disc
10 Cap
11 Dash
12 Headlight Lens
13 Lens Guard
14 Short Seat Belt Strap
15 Windshield
16 Brush Guard
17 Steering Wheel
18 Seat
19 Long Seat Belt Strap
20 Spacer - 2
#8 x 1" Screw - 6
#10 x 3/4" Screw - 16
#8 x 4" Screw - 2
21 Sport Bar
22 Sport Bar Support - 2
23 Light Cover - 2
24 Steering Wheel Cover
25 Seat Cover
26 Steering Wheel Cap
27 Drink Holder - 2
28 .354 Cap Nut - 2
29 Water Bottle - 2
30 Hair Tie - 2
#8 - 32 x 1.625" Screw - 2
#8 Acorn Lock Nut - 2
Label Sheet
Parts Not Shown
26
25
28
30
27
28

H4433pr-0921 7
BATTERY CHARGING
E
H4433pr-0921
Use the charger in dry locations only.
ELECTRICAL HAZARD
WARNING CAUTION
• Battery can fall out and injure a child if
vehicle tips over. Always use battery
retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a fire resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting
in serious injury.
- Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating, fire
or explosion.
• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery
could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the elec-
tricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If
damage or excessive wear is detected, do
not use the charger or the battery until you
have replaced the worn or damaged part.
Important Notes
• Your new battery must be charged for at least 18 hours before
you use it in your vehicle for the first time.
• We recommend that you start charging your battery before beginning
assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• Before charging the battery, examine the battery case for cracks and
other damage which may cause sulfuric acid (electrolyte) to leak
during the charging process. If damage is detected, do not charge
the battery or use it in your vehicle. Battery acid is very corrosive and
can cause severe damage to surfaces it contacts.
• Do not charge the battery on a surface (such as a kitchen counter
top) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you charge
your battery.
• Use only a Power Wheels®12 volt charger with "12V" connector
(120 VAC, 60 Hz, 28W with an output of 12 VDC, 1200 mA) to
charge your Power Wheels®12 volt battery.
Adults Note: Regularly examine the charger for damage to the
cord, plug, housing or other parts that may result in the risk of fire,
electric shock or injury. In the event of any damage, do not use
the charger until the damage has been properly repaired. Please
call 1-800-348-0751.
• If your battery is old and will not accept a charge, do not leave it in
the vehicle. Always remove a dead battery from the vehicle.
About Thermal Fuses
Your Power Wheels®12 volt battery is equipped with a built-in
thermal fuse. The thermal fuse is a self-resetting safety device which
automatically “trips” and shuts down operation of the vehicle if the
vehicle is overloaded or the driving conditions too severe. Once a fuse
has “tripped”, remove your foot from the pedal and wait approximately
25 seconds before operating the vehicle again. To avoid repeated
automatic shut-downs, do not overload the vehicle by exceeding the
130 lbs (59 kg) maximum weight capacity or by towing anything behind
the vehicle. Avoid severe driving conditions, such as driving up slopes
or running into fixed objects, which can cause the wheels to stop
spinning while power is still being supplied to the motors and make
sure your child stops the vehicle before switching direction.
If a thermal fuse in a battery continually trips under normal driving
conditions, please contact your local Power Wheels®Authorized
Service Center. For the location of the Authorized Service Center
nearest to you, visit us on-line at www.powerwheels.com,
or call 1-800-348-0751.

8
Charger
Connector
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children should
not handle parts, including the battery, or
help in assembly of the vehicle.
WARNING
ASSEMBLY
BATTERY CHARGING
E
A
B
1
Dash
Sound Box
• Loosen and remove the three screws in the top of the sound box.
Remove the sound box from the dash.
H4433pr-0921
2
• Locate the battery compartment door on the back of the sound box.
• Loosen the screw in the battery compartment door.
• Remove the battery compartment door and lift to open.
• Insert three, new "AA" (LR6) alkaline batteries, as indicated inside
the battery compartment.
Hint: Use only alkaline batteries for longer battery life.
• To replace the battery compartment door, fit the tab on the door into
the slot in the back of the sound box. Tighten the screw.
Battery
Compartment
Door
F
12V Battery
• Plug the charger connector into the battery A.
• Plug the charger into a standard wall outlet B.
Notes:
- If power flow to the wall outlet is controlled by a switch, make sure
the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the charger into a
ceiling outlet.
• The power indicator on the charger does not indicate the charge
status of your battery. The power indicator allows you to see that
there is power from the wall outlet to the charger.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of your
vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, disconnect the battery connector from
the charger connector. Unplug the charger from the wall outlet. The
battery is now ready to be installed in your vehicle. Please see the
Battery Installation section on page 19 for detailed instructions on
installing your battery. If your battery is already installed in your
vehicle, simply re-connect the motor harness connector to the battery.
• Protect the environment by not disposing of this product
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities (Europe only).

4
3
9
ASSEMBLY
F
H4433pr-0921
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that can cause
a chemical burn injury or ruin your product. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove
exhausted batteries from the product. Dispose of batteries safely. Do
not dispose of product in a fire. The batteries may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.
1.5V x 3
"AA" (LR6) Dash
• Position the dash on the vehicle.
• Make sure the motor harness connector wire is through the groove
in the dash.
• Insert five #10 x 3/4"screws into the dash tabs and tighten.
Motor
Harness
Connector
Wire
Dash
Sound Box
• Replace the sound box in the dash.
• Replace the three screws and tighten them.

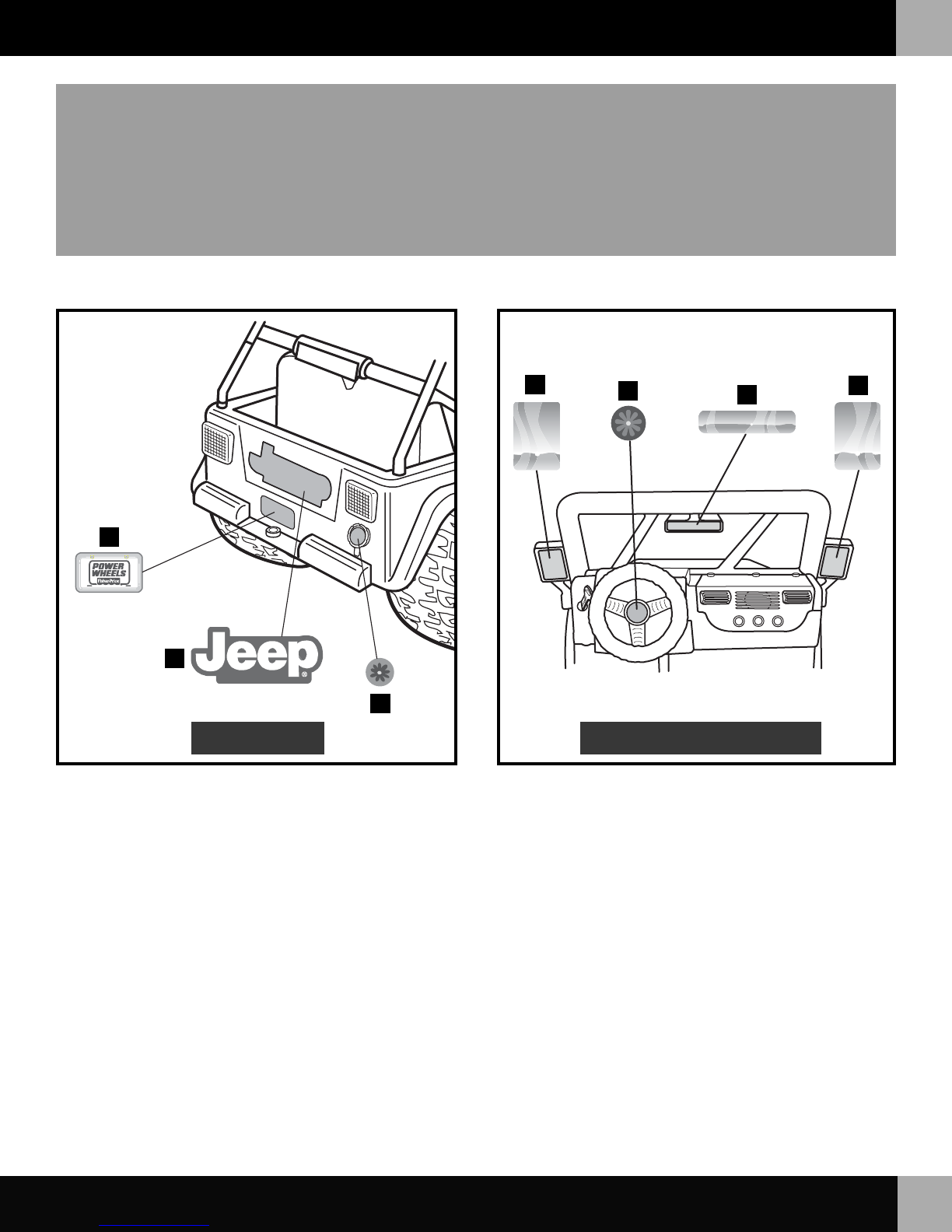

• Before applying the labels, wipe the surface of the vehicle with a
clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustration.
• For best results, avoid repositioning a label once it has been applied
to the vehicle.
5
11 4
19
10
18
HI LO KC
12

H4433pr-0921
10
ASSEMBLY
F
H4433pr-0921
6
Dash
Key
Assembly
• Insert and “snap” the key assembly into the opening in the dash,
as shown.
• Wipe the steering column with a paper towel to remove any
excess lubricant.
• Turn the vehicle on its side.
• Insert the straight end of the steering column up through the hole in
the vehicle and out through the hole in the dash.
• Insert the end of the steering column through the hole in the
steering rod.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column, tap the cap nut with a hammer
to secure it on the steering column.
Hint: You may want the help of another person to support the steering
column while you tap the cap nut with the hammer.
Steering
Rod
Cap Nut
8
End of
Steering
Column
9
Cap Nut
Steering
Column
Hole
Bottom View
7
Steering Wheel
Tab
Steering
Column
Large Opening UP
• Turn the vehicle upright.
• Position the steering wheel so that the large opening and the tab on
the steering wheel stem are both UP.
• Fit the steering wheel onto the steering column.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the steering column.
Hint: You may want the help of another person to support the steering
column while you tap the cap nut with the hammer.
Side View
.354"
.354"

H4433pr-0921 11
ASSEMBLY
F
H4433pr-0921
11

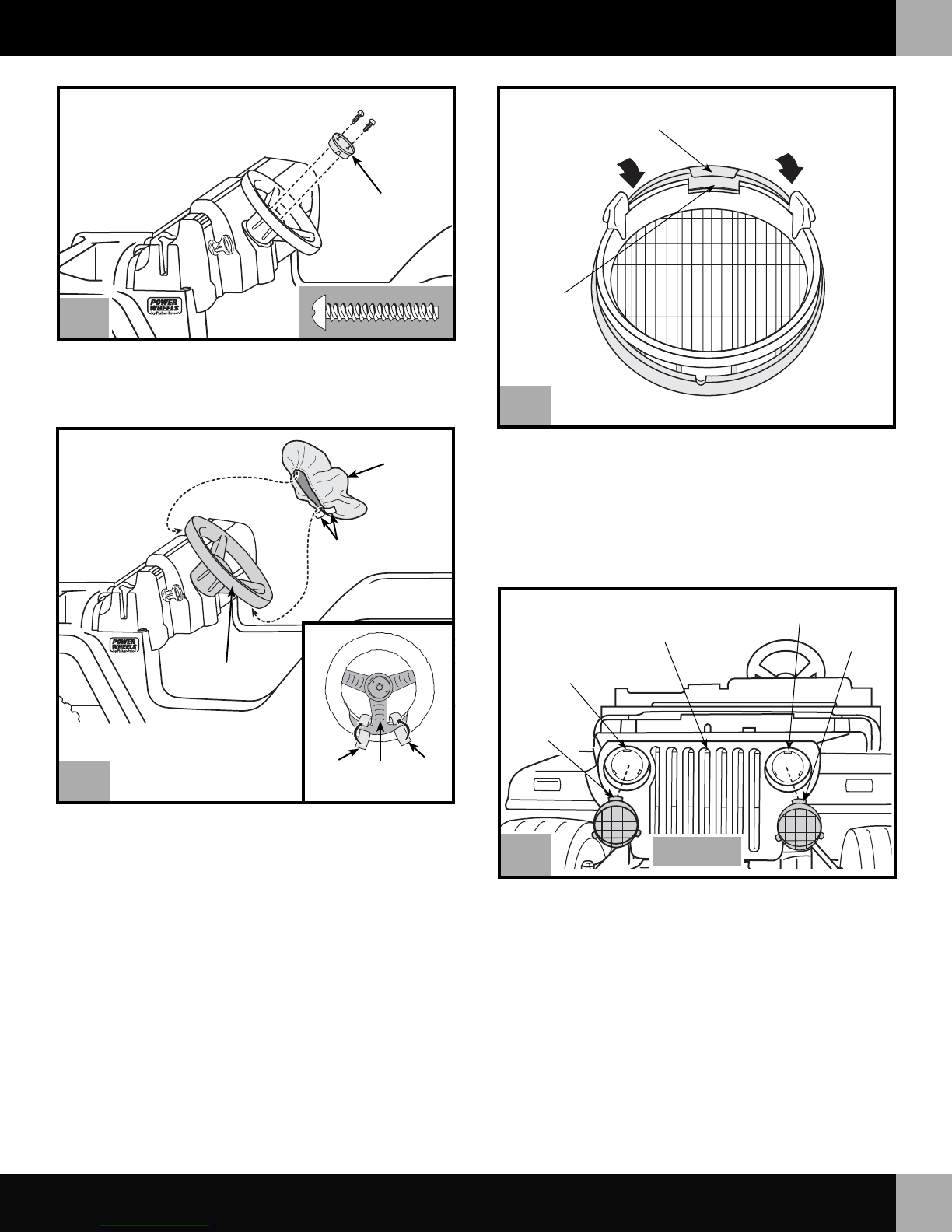

• Position the steering wheel cover so the fastener tabs are towards
the bottom of the steering wheel.
• Fit the steering wheel cover over the steering wheel.
• Press the fastener tabs together, around either side of the bottom
spoke of the steering wheel.
Steering
Wheel
Cover
Steering
Wheel
Bottom
Spoke
Tab Tab
Tabs
Lens
Wide
Notch
Lens Guard Wide Tab
• Fit the wide notch in the side of a headlight lens under the wide tab
on a lens guard.
• Press firmly on the inside of the headlight lens to snap it into the
lens guard.
• Repeat this procedure to assemble the other headlight lens to the
remaining lens guard.
12
• Fit the steering wheel cap into the center of the steering wheel.
• Insert two #8 x 1" screws and tighten.
10
Steering
Wheel Cap
Grille
Tab
Tab
Slot
Slot
• Fit the lens tabs on the back of a lens assembly into the headlight
slots in the grille.
• Press firmly to "snap" the lens assembly into the grille.
• Repeat this procedure to "snap" the other lens assembly into
the grille.
13
Front View

H4433pr-0921
12
ASSEMBLY
F
H4433pr-0921

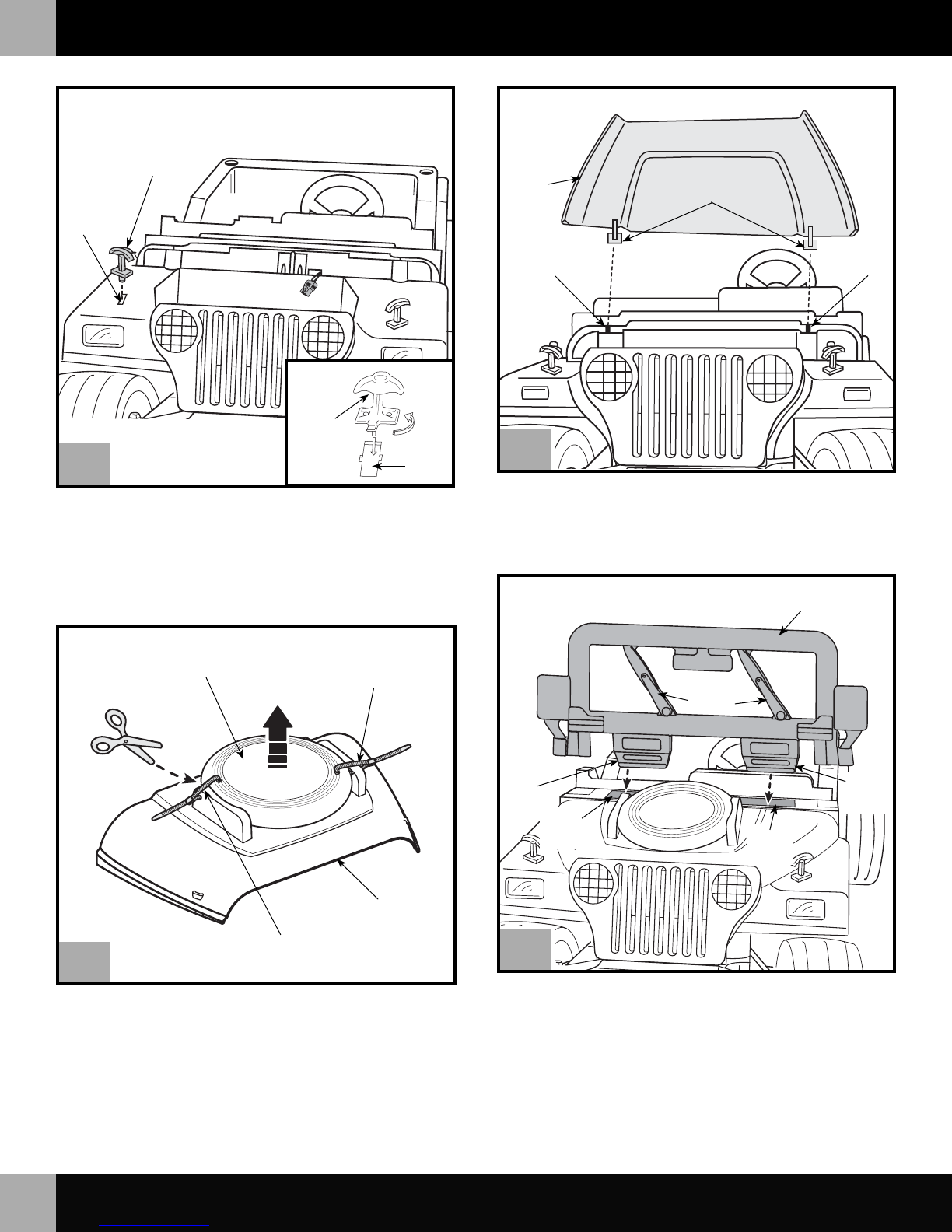

Hood
• Using safety scissors, cut the plastic ties holding the flying disc on
the hood. Dispose of the plastic ties properly.
Note to Retailer: Do not remove the plastic ties.
Plastic Tie
Flying Disc
15
Plastic Tie
14
Hood
Latch
Slot
Hood
Latch
Slot
• Insert a hood latch into one of the slots in the vehicle, near the
hood area.
• Twist the base of the hood latch 1/4turn to secure it in the vehicle.
• Repeat this procedure on the other side of the hood area to attach
the other hood latch to the vehicle.
Hood Tabs
• Insert the tabs on the hood into the slots in the front end of
the vehicle.
• Pull the hood forward and lower it closed.
Slot Slot
16
• Position the windshield so that the molded detail on the wipers
faces the front end of the vehicle.
• Insert and “snap” the two large tabs on the windshield into the
large slots in the dash.
• Pull up on the windshield to be sure it is secure.
Windshield
Wipers
Large
Tab Large
Tab
Large
Slot
17
Large
Slot

H4433pr-0921
Spacers
A
13
ASSEMBLY
F
H4433pr-0921
19
Brush Guard
18
20
• Turn the seat upside down.
• Insert the fastener end of a short seat belt strap through the slot
near the outer edge of the seat. Make sure the side of the seat belt
with the fastener faces the outer edge of the seat.
• Pull the short seat belt strap completely through the slot until the
last T-loop at the opposite end of the belt catches against the slot.
You will pull one T-loop through the slot.
• Repeat this procedure to assemble the other short seat belt strap.
Short Seat
Belt Strap
Fastener End
Seat
Slot
T-Loops
Slot
T-Loop (Pull through slot)

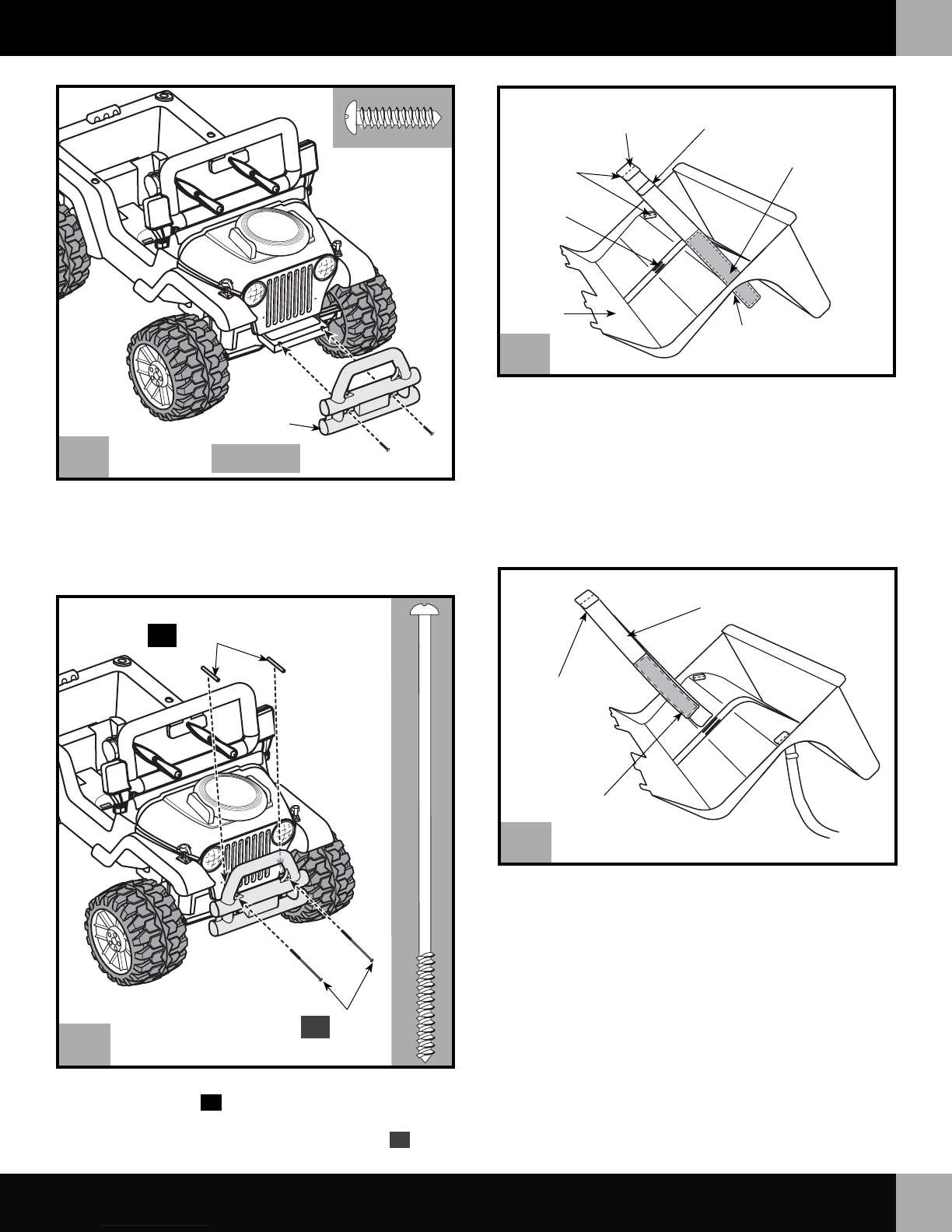

• Fit and hold the brush guard against the front end of the vehicle.
Hint: Using the end of a Phillips screwdriver, poke a hole in the thin,
plastic covering over the lower holes in the brush guard.
• Insert two #10 x 3/4" screws through the lower holes in the brush
guard and into the vehicle. Tighten the screws.
• Fit two spacers between the upper holes of the brush guard and the
front end of the vehicle A.
• Insert two #8 x 4" screws through the upper holes in the brush guard,
through the spacers and into the front end of the vehicle B.
Tighten the screws.
B#8 x 4"
Screws
Side View
21
• Insert each fastener end of the long seat belt strap through a slot in
the center of the seat. Make sure the fasteners face the outer edge
of the seat.
• Pull each side of the long seat belt strap evenly through the slots.
Make sure to pull each T-loop through a slot.
• Turn the seat upright.
T-Loop
Fastener End
Long Seat Belt Strap

14 H4433pr-0921
24
ASSEMBLY
F
23

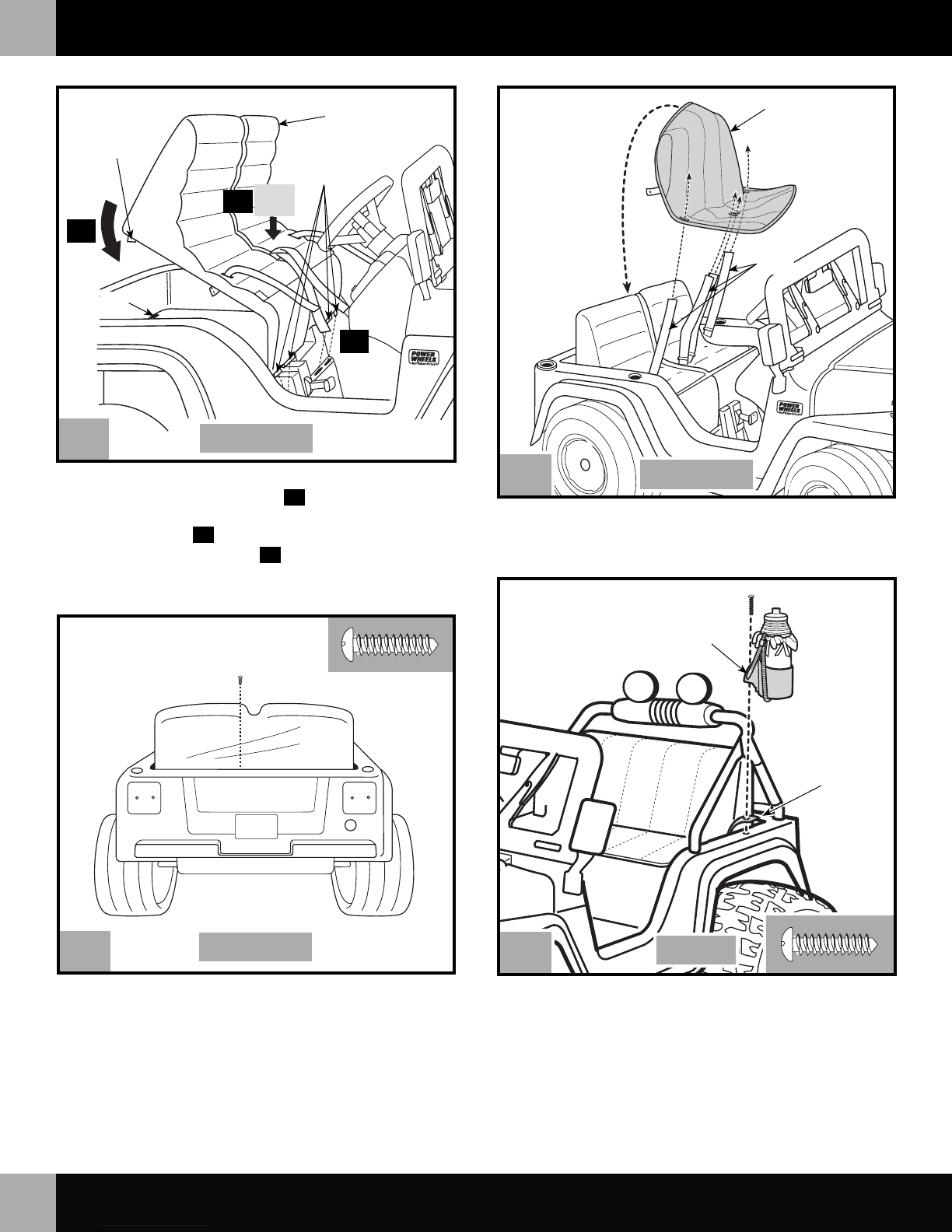

• Insert a #10 x 3/4" screw into the rear edge of the seat. Tighten
the screw.
• With the seat at an angle, insert the tabs on the front edge of the
seat into the slots in the foot-well wall A.
• Push down firmly on the edge of the seat above each tab to snap
the tabs into the slots B.
• Rotate the back of the seat down Cto snap the seat back tabs
into the slots in the vehicle. Push down firmly on the seat back.
Seat
Seat Back
Tabs
Slot
Tabs
A
B
C
Side View
PUSH
HERE
• Fit the seat belts through the slots in the seat cover.
• Fit the back edge of the seat cover over the back of the seat.
Seat Cover
Seat
Belts
Back View
Side View
22
• Place the tab on the side of the seat cover over the hole on the top
edge of the vehicle.
• Fit a water bottle with drink holder on top of the tab and the top edge
of the vehicle.
• Insert a #10 x 3/4"screw through the drink holder and into the vehicle.
Tighten the screw.
• Repeat this procedure to assemble the other water bottle with drink
holder to the other side of the vehicle.
Note: The water bottles are top rack dishwasher safe.
25
Water Bottle with
Drink Holder
Side View
Tab

28
27
• Fit the light covers to the top of the sport bar, as shown.
• Insert a #10 x 3/4"screw into each light cover. Tighten the screws.
Light
Covers
• Fit a support to one side of the sport bar.
• Insert a #8 - 32 x 1.625"screw through the support, the sport bar
and out through the support.
• Fit a #8 acorn lock nut to the end of the screw.
• While holding the acorn lock nut with an adjustable wrench
(or pliers), tighten the screw.
• Repeat this procedure to fasten the other support to the sport bar.
Sport Bar
Supports
• Using safety scissors, cut the plastic ties holding the water bottles to
the drink holders. Dispose of the plastic ties properly.
Note to Retailer: Do not remove the plastic ties.
26
Plastic Tie
Drink
Holder
Water
Bottle
15
H4433pr-0921
ASSEMBLY
F
Sport Bar Support
Side
Fender
PULL
HERE
PUSH
HERE
29
• Fit the sport bar assembly into the holes in the top side of
the vehicle.
• Push down firmly on a sport bar support while pulling up on the side
fender to fit the sport bar into the vehicle.
• Repeat this procedure on the other side of the vehicle.

16

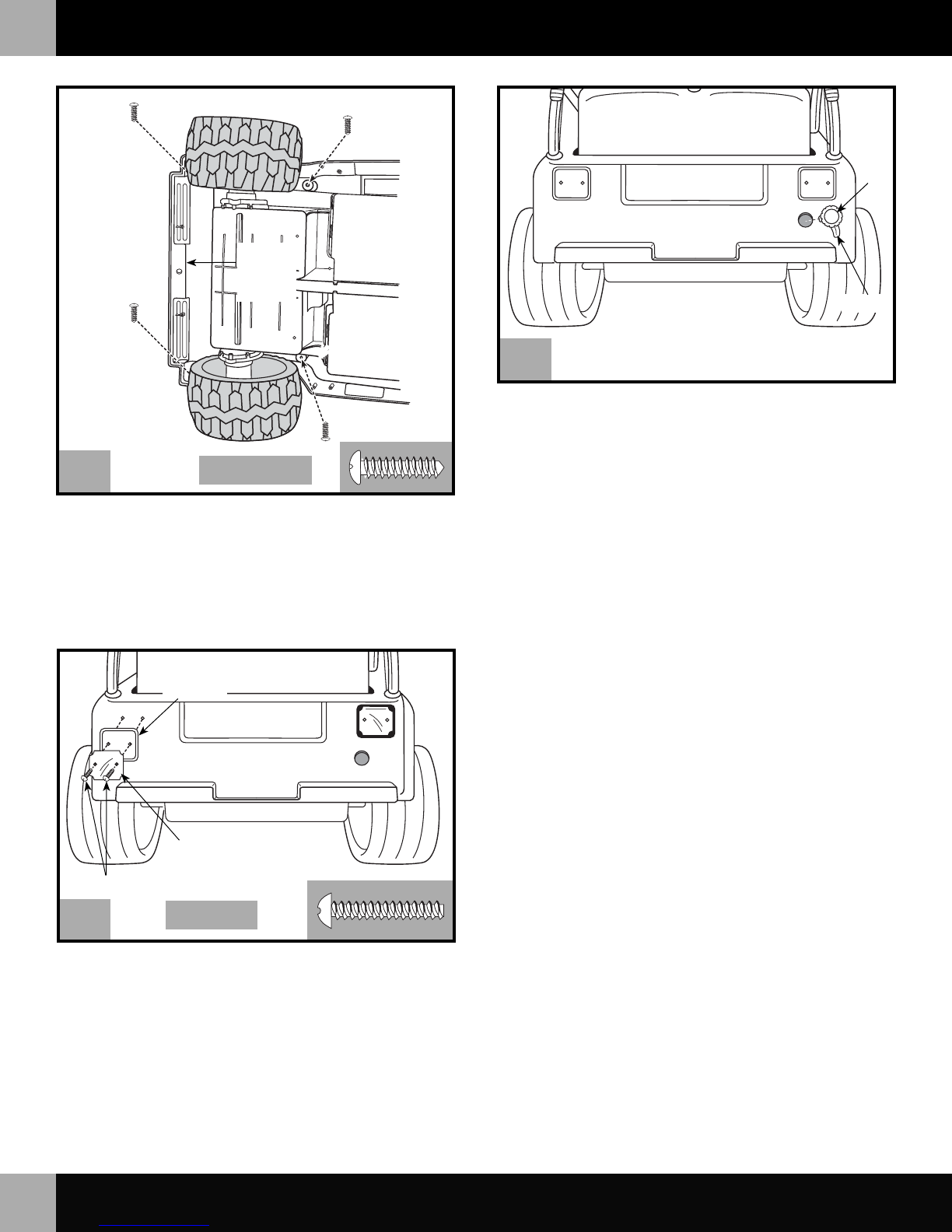

32
31
Taillight
Housing
Taillight Lens
#8 x 1" Screws
• Turn the vehicle upright.
• Using safety scissors, remove the taillight lenses and the taillight
housings from the plastic connectors. Dispose of the plastic
connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against the vehicle with the
screw holes aligned, as shown.
• Insert two #8 x 1" screws through the taillight lens, housing and into
the vehicle as shown. Tighten the screws.
• Repeat this procedure to attach the other taillight assembly.
Back View
30
Rear of
Vehicle
• Turn the vehicle on its side.
• Insert two #10 x 3/4" screws into the holes (behind the rear wheels)
in the underside of each rear wheel well, through the vehicle body
and into the ends of the sport bar. Tighten the screws.
• Next, insert two, 10 x 3/4" screws into the holes (in front of the rear
wheels) in the underside of each wheel well, through the vehicle
body and into the end of the sport bar. Tighten the screws.
Bottom View
• Position the cap so that the tether is down.
• Snap the cap into the hole under the right taillight.
Cap
Tether
H4433pr-0921
ASSEMBLY
F

TABLE OF CONTENTS
A
Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been applied to the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle.
Start at the center of a label, and smooth towards the outer edges to remove air bubbles.
REAR VIEW
DECORATION
8
5
14
17
INSIDE DASH VIEW
15
13
3
17
H4433pr-0921
G

FRONT LEFT SIDE
FRONT RIGHT SIDE
DECORATION
16
7
2
16
6
6
1
7
9
17
6
18 H4433pr-0921
6
9
G

4
3
2
1
IMPORTANT! Use only a Power Wheels®12 volt lead-acid
rechargeable battery. Use of any other battery will damage
your vehicle. Make sure that you charge the battery for at least
18 hours using the enclosed Power Wheels® 12 volt charger before
operating your vehicle for the first time. Charge the battery for at
least 14 hours after each use of the vehicle. Never charge the
battery longer than 30 hours. Failure to follow these instructions
may damage your battery and will void your warranty.
• Turn the hood latches a 1/4turn.
• Lift the hood to access the battery compartment.
• Lift and pull the battery retainer forward.
• Place the battery in the battery compartment and release the
battery retainer. Make sure the battery retainer slides over the top
of the battery.
Power Wheels®
12 Volt Battery
Motor Harness
Connector
• Plug the motor harness connector into the battery.
BATTERY INSTALLATION
H
Hood
Battery
Compartment
Hood
Hood Latches
• Lower the hood and secure the hood latches.
Hood
Latches
Battery Clamp
19
H4433pr-0921

BATTERY CARE AND DISPOSAL
I
20 H4433pr-0921
• Your Power Wheels®battery is a non-spillable, sealed lead-acid
battery. It must be recycled or disposed of in an environmentally
sound manner.
• Do not dispose of a lead-acid battery in a fire. The battery may
explode or leak.
• Protect the environment by not disposing of this product with
household waste (2002/96/EC). Check your local authority for
recycling advice and facilities (Europe only).
• Do not dispose of a lead-acid battery in your regular, household
trash. The incineration, landfilling or mixing of sealed lead-acid
batteries with household trash is prohibited by law in most areas.
• Return an exhausted battery to a federal or state approved lead-acid
battery recycler, such as a Power Wheels®authorized service center
or a local seller of automotive batteries. For the authorized service
center location nearest to you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751. Contact your
local waste management officials for other information regarding
the environmentally sound collection, recycling and disposal of
lead-acid batteries. If you live in the State of Florida or the State of
Minnesota, it is prohibited by law for anyone to throw away lead-acid
batteries in the municipal waste stream.
Care
If a battery leak develops, avoid contact with the leaking acid and
place the damaged battery in a plastic bag. See information below
for proper disposal.
If acid comes in contact with skin or eyes, flush with cool water for
at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia or egg
whites immediately. Never give emetics or induce vomiting. Call
a physician.
• Charge a new battery for at least 18 hours before first use.
Never charge the battery longer than 30 hours. Overcharging or
undercharging the battery may shorten battery life and decrease
vehicle running time.
• After the first charge, recharge the battery for at least 14 hours
after each use. Never charge the battery longer than 30 hours.
Charge the battery after each use, regardless of how long the
vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the vehicle has
not been used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle. Battery
leakage and corrosion can damage the vehicle.
• Do not store the battery on a surface (such as a kitchen counter
top) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you store
the battery.
• Do not store the battery in temperatures above 75° F or below -10° F.
• Use only a Power Wheels®12 volt battery. Remember to charge the
new battery for at least 18 hours before first use.
• Prevent the battery from moving freely inside the battery compart-
ment. Always use the battery retainer to secure the battery in
the battery compartment.
• Examine the battery, charger and their connectors for excessive
wear or damage each time you charge the battery. If damage is
detected, do not use the charger or the battery until you have
replaced the worn or damaged part.
Disposal
