Fisher Scientific 88861021 User manual

Multi Platform Shaker
Catalog Number:
88861021
88861022
Instruction Manual

ⅰ
Section 1 Inspection and Installation
Section Overview2
Section 3 Operation
Section 4 Safety Tips and Maintenance
Section 5 TroubleShooting
Section 6 Optional Accessories/Spare parts
Section 7 Warranty
Packing List
Connections
Structure Diagram
Specifications
Operations of the Control Panel
Settings
Installation of Accessories
Environmental Conditions
Safety Instructions
Capacity and Speed
1-1
1-1
1-2
1-2
2-1
2-1
2-2
2-3
2-6
7-1
6-1
5-1
4-1
3-5
3-2
3-3
3-1
3-1
Table of Contents
Alarm System
ⅰⅱ
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker
Important before using this product, read this entire operation
manual carefully. Users should follow all of the operational
guidelines contained in this manual and take all necessary safety
precautions while using this product. Failure to follow these
guidelines could result in potentially irreparable bodily harm
and/or property damage.
Caution all internal adjustments and maintenance must be performed by qualified
service personnel.
Material in this manual is for information purposes only. Fisher Scientific committed
to a continuing program of product development and improvement, and reserves
the right to change information, such as specifications, appearance, and
dimensions, described in this document without notice. Fisher Scientific makes no
representations or warranties with respect to this manual. In no event shall Fisher
Scientific be held liable for any damages, direct or incidental, arising out of or
related to the use of this manual.
No part of this manual may be reproduced or transmitted in any form or by any
means, including photocopying, recording, or using information storage and
retrieval systems, for any purpose other than the purchaser's own use, without the
express written permission of the manufacture.
Any other product names and services identified in this manual are trademarks or
registered trademarks of their respective owners. No such use, or the use of any
trade name, is intended to convey endorsement or other affiliation with Fisher
Scientific.
@2015 Fisher Scientific. All rights reserved.

Section 1 Inspection and Installation
1.1 Packing List
Table -1 Packing List
Section 1
Inspection and Installation
1-1
Fisher Scientific Fisher Scientific 1-2
Cat.No
88861021 88861022
Model
US Plug
CN Plug
EU Plug
UK Plug
11
N/A
N/A
N/A
N/A
1
1
1
1
1
General
Power Adaptor 1
Multi Platform
Shaker US plug
Multi Platform
Shaker
International plug
Universal
(Aluminum)
Platform
1 1
1.2 Connections
1.3 Structure Diagram
Main Body
Power Adaptor
Power Cable
House
Control Panel
Foot (4)
Platform
Sunken Screws
M4×8 (4)
Multi Platform Shaker Multi Platform Shaker
Figure
1. Inspect package and contents upon receipt of the instruments. If the
package is severely damaged or if there are any missing pieces, please
contact the manufacturer immediately.
2. Unpack the instrument, ensure all parts of the instrument and accessories
are not missing or damaged. Make sure to take out all the components before
discarding the packing. If there are any missing or damaged pieces, please
contact the manufacturer immediately.
3. Place the instrument on a level and firm surface to avoid vibration and
noise.
Screw Driver

ROHS, WEEE, cCSAus, CE Mark
Note: Maximum speed/tilt angle may vary with heavy or unbalanced loads.
0, 1min to 99h59min
14Kg(30.8lb)
18Kg(39.6lb)
415× × × ×293 120mm(16.3 11.5 4.7in)
310× ×284mm(12.2 11.2in)
536× × × ×501 346mm(21.1 19.7 13.6in)
4.5kg(10lb)
2.1 Specifications
Rotation Speed
Net Weight
Section 2 Overview
Load
Maximum Load
(Centered on tray)
Size
Weight
Gross Weight
￠10mm(0.4in.)
LED
1 rpm
±rpm(≤100rpm)
±1%(101~450rpm)
1
Speed Range
Orbit Diameter
Speed Accuracy
Display Mode
Display Accuracy
50 to 450 rpm (load weight ＜ 3 kg)
50 to 300 rpm (load weight :3 to 4.5 kg)
Time
Timing Range
Requirement
Overall Dimensions
Platform Dimensions
Package Dimensions
Others
Certificate
2-12-2
2.2 Environmental Conditions
Application Environmental Conditions: indoor use
Temperature
Humidity
Altitude
Altitude
≤2,000 m
≤2,000 m
Storage Environmental Conditions
Temperature
Humidity 20% to 90%, non-condensing
5 40℃ ℃~
20 85% to %,
0 60℃to ℃
Section 2
Overview
AC100~240V ,50Hz/60Hz,0.1A
Power Supply
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

Section 2
Overview
Section 2
Overview
Placement of Loads
Warning: It is recommended to place loads symmetrically.
Symmetrical Placement
2-32-4
Section 2
Overview
WARNING DO NOT use the in a hazardous
atmosphere or with hazardous materials for which the unit was not
designed. Also, the user should be aware that the protection provided
by the equipment may be impaired if used with accessories not
provided or recommended by the manufacturer, or are used in a
manner not specified by the manufacturer.
CAUTION ! To avoid electrical shock, completely cut off power to the
unit by disconnecting the power cord from the unit or unplug from the
wall outlet.
Disconnect unit from the power supply prior to maintenance and
service. Any spills should be removed promptly. Biohazard spills
should be cleaned using approved liquid promptly. Solvent spills are a
fire hazard. Stop the unit immediately, and DO NOT operate until
clean up is complete and vapors have dissipated.
Multi Platform Shaker
DO NOT immerse the unit for cleaning.
DO NOT operate the unit if it shows signs of electrical or mechanical
damage.
Please read the entire instruction manual before operating the
Multi Platform Shaker.
2.3 Safety Instructions
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

≤Capacity
(ml)
50
100
150
200
250
500
1000
2000
3000
5000
5
25
50
450
10
50
100
450
400
15
75
150
450
420
400
20
100
200
450
410
25
125
250
50
250
500
450
420
450
370
360
400
380
100
500
1000
450
330
320
200
1000
2000
450
300
320
300
1500
3000
330
290
450
500
2500
3500
450
270
Asymmetrical Placement
Warning: It may affect the normal operation of the instrument or even cause
damage if placing loads asymmetrically.
2.4 Capacity and Speed
Conical Flask Size
(ml)
Max Speed(rpm)
With Flask
Clamp With Sticky
Pad
2-52-6
Section 2
Overview
Section 2
Overview
Note: . Unit may have up to a +/- 5% RPM variability The ultimate speed maybe
different as the clamp is from different brand.
180
210
210
230
230
240
230
240
200
210
230
210
230
250
210
230
230
200
220
230
180
200
250
170
170
With Nonslip
Rubbet Mat
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker
1 6 0
170
170
160
160

The front panel contains all the controls needed to operate the unit.
TIME
①
②
③④
⑤⑥
This Chapter covers the control panel and its operation.
1.Start/Stop button: Start or stop the instrument.
2.RUN indicator light: The light is on when the instrument is running and
off when the instrument is in standby.
3.TIME display window: The window shows cumulative time (in continuous
mode) or remaining time (in timer mode). The range of time displayed is 0
to 99 hours and 59 minutes. The accuracy is 1 minute.
4.SPEED display window: The window shows set speed (when the instru
-ment is in standby) or current speed (when the instrument is running).
5.Set Time Buttons: UP/DOWN Arrow buttons are used to increase/
decrease the set time of the instrument.
.Set Speed Buttons: UP/DOWN Arrow buttons are used to increase/
decrease the set speed of the instrument.
6
1.Connect all the components according to the figures shown on page 1-
of this manual. Use grounded power outlet.
2.Press down the power switch on the back right side of the instrument and
put it to the “|” state and then the instrument is in standby.
3
Section 3 Operation
3.1 Operations of the Control Panel
Preparation
Section 3
Operation
3-13-2
3.2 Settings
Time Settings
1. Continuous mode
Press the “ ” or “ ” arrow button below the TIME display window. When
the number shown on the display window starts flashing, press “ ” arrow
button to decrease the time to 00:00 and then release the button. The time
setting is finished after the number shown on the display window has
flashed twice.
2. Timer mode
Press the “ ” or “ ” arrow button below the TIME display window. When
the number shown on the display window starts flashing, press “ ” or “ ”
arrow button to increase or decrease the time value. Release the button
when the time shown on the display window reaches the set value. The time
setting is finished after the number shown on the display window has
flashed twice.
Speed Settings
Press the “ ” or “ ” arrow button below the SPEED display window.
When the number shown on the display window starts flashing, press “ ”
or “ ” arrow button to increase or decrease the speed value. Release the
button when the speed shown on the display window reaches the set value.
The speed setting is finished after the number shown on the display window
has flashed twice.
Note: press the “ ” or “ ” arrow buton for a longer time to accelerate
the setting.
Run and Stop
1. Continuous Mode
Press button and the instrument will start running with the specified
settings and the RUN indicator light will be on. The TIME display window
will show the cumulative time and the SPEED display window will show the
current speed. Press “ ”button again and the instrument will slow down
until it stops. The instrument will then be in standby and the two display
windows will show the set values.
“ ”
2. Timer Mode
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

Section 3
Operation
Alarm Instructions
1. If the actual rotation speed is 0 or above 450 rpm when the instrument
has been in normal operation mode for 10 seconds, the instrument will alarm
immediately.
2. If the instrument is running steadily when the instrument has been in normal
operation mode for 10 seconds, the instrument will alarm immediately.
(Running steadily means the unit has been running at the actual speed which
is within±10 rpm of the set speed for 2 seconds.)
3. After the instrument alarms, LED RUN indicator light will go off, LED
SPEED window will show “ERR1”, and the instrument will stop running.
Press any botton to put the instrumet standby.
4. In timer mode, the instrument will stop running and the alarm will sound
when the timer goes off.
Section 3
Operation
(0，100)
(100，450)
Set Rotation
Speed Actual Rotation Speed Alarm Time
Lower than the set speed and
no more than 50% of the set speed
10 RPM After 10
seconds
After 10
seconds
After 10
seconds
After 10
seconds
After 2
seconds
After 2
seconds
After 2
seconds
After 2
seconds
More than 10 RPM than the set speed and
no more than 150% of the set speed
Lower
lower than 50% of the set speed
10 RPM than the set speed and
More than 10 RPM than the set speed and
more than 150% the set speedof
Lower 10 RPM than the set speed and
no more than 70% of the set speed
More than 10 RPM than the set speed and
no more than 130% of the set speed
Lower 10 RPM than the set speed and
lower than 70% of the set speed
More than 10 RPM than the set speed and
more than 130% of the set speed
1. Remove platform.
3.3 Installation of Accessories
Installation of Tray
3-33-4
Press button and the instrument will
The TIME display window
will show the remaining time and the SPEED display window will show the
current speed. Press button again and the instrument will slow down
until it stops. The instrument will then be in standby and the two display
windows will show the set values.
“ ”
“ ”
start running with the specified
settings and the RUN indicator light will be on.
Finish Operation
Note:
To ensure shaking operation smooth and steady, it may take 1 minute for
the microprocessor control system to accelerate the tray to the set speed.
After the operation is finished, please press the power switch on the back
right side the instrument and put it into the “O” state. Unplug the instrument
and store the instrument according to the storage guide.
Power Recovery
If the power supply is cut off suddenly while the instrument is in operation,
the unit will automatically run at the previously set parameter upon power
restoration. The display window will flash. Press any button to stop flashing.
Fisher Scientific Fisher Scientific

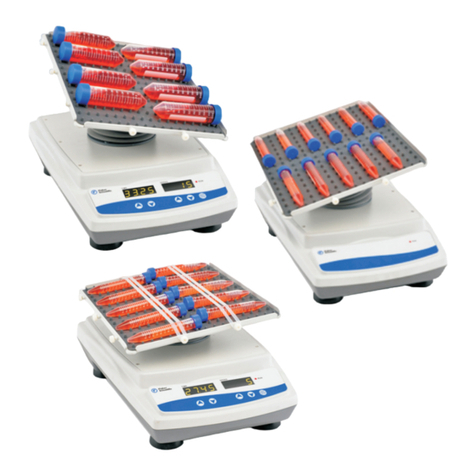

Multi Platform Shaker Multi Platform Shaker

Note: N is only used for low-speed shaking. In order to prevent
containers from moving during operation, it is recommended to use rubber
bands to fasten the container.
onslip rubber mat
2. Align counter bores and nut columns, and fasten the screws.
3. Place nonslip rubber mat onto the platform.
2. Vertically clamp the tube rack into the tube rack holder and make sure the
bottom of the tube rack is closely attached to the holder.
Installation of Test Tube Rack
1. Place the test tube rack holder at the corresponding position on the
aluminum platform and fasten the 4 sunk screws.
3. Insert test tubes.
Note: To prevent splashing, containers should not be full of liquid
during shaking. It is recommended to fill the container up to 2/3 of the
maximum capacity.
Installation of Flask Clamp and Infusion Bottle Clamp
1. Fasten flask clamp and infusion bottle clamp onto the platform with screws.
2. Put corresponding flask and infusion bottle into the clamp.
3-53-6
Section 3
Operation
Section 3
Operation
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

2. Place nonslip rubber mat onto the flat surface of Universal Platform with Adjust
-able Bars.
3. Install wheel and fixed handle. Do not fasten the screw to make sure the
wheel can move back and forth along the waist-shaped long hole on
Universal Platform with Adjustable Bars.
4. Place conical flask between the wheels, adjust the position of the wheels
to fasten the flasks, and tighten the fixed handle.
Installation of Universal Platform with Adjustable Bars
1. Fasten Universal Platform with Adjustable Bars onto the platform.
Note: The rotation speed is inversely proportional to the load. When the
instrument is used to shake test tubes, it is recommended to adjust the
rotation speed from low to high step by step and run the machine at an
appropriate speed.
3-73-8
Section 3
Operation
Section 3
Operation
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

Section 4 Safety Tips and Maintenance
Safety Tips
1. Use independent power supply.
2. Check if the local power supply voltage is suitable for use.
3. Do not drag the power supply cable when unplugging.
4. Do not use non-specified power cable nor damage cable.
5. Service should only be performed by a qualified professional.
6. The power supply must be unplugged under the following situations:
a. when the unit is moved
b. when the electrical cabinet or the moving component is opened
c. when the equipment is malfunctioning
d. when the equipment is not in use
Maintenance
Clean Spill
a. This instrument uses a brushless DC motor. It is maintenance free and
has a long service time, high quality, and low noise level.
b. Surface can be cleaned with a mild detergent and water.
Section 5 Troubleshooting
Error
No shaking of the tray
Loud noise
Other
Cause
Power disconnected
Switch off
Power adaptor failure
Over-weighted or
unbalanced load
Electrical
malfunction
Mechanical
malfunction
Keep record for maintenance
Solution
Connect the power
Switch on
Replace power adaptor
Adjust the weight and
position of load,
decrease rotation speed
Contact Fisher Scientific
Contact Fisher Scientific
Load moving
Tray loose
Machine case loose
Fasten tray screws
Fasten machine case
screws
Cannot start machine,
LED display window
off
Fix load position
4-15-1
If accidental spillage of liquids caused by mishandling or contained break
-age occurs on the surface of the instrument, please shut down the
instrument and clean up the liquid immediately.
If the liquid has already spilled into the unit, please cut off the power
supply first and immediately clean up the liquid at the surface of the
instrument. Then place the instrument in a ventilated and dry environment
for 24 hours before reuse. If the instrument is still not functioning after
drying for 24 hours, please contact the manufacturer.
Warning: Disassembling/Assembling without a qualified professional's
guidance may cause malfunctioning of the instrument.
Please refer to the following table to troubleshoot if any malfunction occurs.
If the problem still exists, contact your local sales representative.
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker

Section 6 Optional Accessories/Spare Parts
88861153
88861130
88861131
88861132
88861133
88861134
88861135
88861136
88861137
88861139
88861138
88861140
88861142
88861143
88861144
88861145
88861146
88861147
88861141
88861152
320 260 15mm× ×
313 254mm×
128 86 23mm× ×
310 284 56mm× ×
310 302 46.5mm× ×
306× ×303 135mm
310×284mm
Universal
(Aluminum)
Platform
96-
Microplate
Holder
well
Sticky Mat
Funnel Clamp
25ml flask
clamp
50ml flask
clamp
100ml flask
clamp
250ml flask
clamp
500ml flask
clamp
1000ml flask
clamp
2000ml flask
clamp
3000ml flask
clamp
5000ml flask
clamp
140 140× mm
Φ58 46mm×
Φ66 43mm×
Φ59 38mm×
Φ85 55mm×
Φ130 77mm×
Φ105 59mm×
Φ168 91mm×
Φ231 120mm×
Φ194 109mm×
Φ125 122.5mm×
Φ100 92.5mm×
90 90 150mm× ×
Description
Description Cat. No.
Cat. No.
Dimensions
Dimensions
Figure
Figure
6-16-2
Section 6
Optional Accessories/Spare Parts
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker
500ml Infusion
Bottle Clamp
1000ml Infusion
Bottle Clamp
Flat Platform
with Nonslip
Rubber Mat
Nonslip Rubber
Mat
Platform with
Clamps for
6 250ml
flasks
x
Platform with
Clamps for
12 0ml
flasks
x10
Universal
Platform with
Adjustable Bars

General
Power
Adaptor
US Plug
CN Plug
EU Plug
UK Plug
262× ×112 140mm
88861148
88861149
88861150
88861151
88861128
88861129
88861130
88861131
88861132
262× ×112 140mm
262× ×112 140mm
262× ×112 140mm
AC 100~240V
50/60HZ
250VAC,10A
1.8m
250VAC,10A
1.8m
250VAC,10A
1.8m
250VAC,10A
1.8m
Description Cat. No. Dimensions Figure
6-37-1
Section 6
Optional Accessories/Spare Parts
Fisher Scientific Fisher Scientific
Multi Platform Shaker Multi Platform Shaker
When used in laboratory conditions and according to these operation
instructions and maintenance, this product is warranted for 24 months
against defective materials or workmanship. The 24 month warranty
period begins from the delivery date of this product.
For product quality or performance issues, contact Fisher Scientific
Customer Service.
Section 7 Warranty
Adjustable
Tube Rack
Φ14×40
Adjustable
Tube Rack
Φ16×40
Fixed Tube
Rack
Φ16×40
Fixed Tube
Rack
Φ14×40
