FLIR DM284 User manual

USER MANUAL
FLIR MODEL DM284
True RMS Industrial Multimeter with IGMTM

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
2
Table of Contents
1. ADVISORIES 4
1.1 Copyright 4
1.2 Quality Assurance 4
1.3 Documentation 4
1.4 Disposal of Electronic Waste 4
2. SAFETY 4
3. INTRODUCTION 6
3.1 Key Features 6
4. METER DESCRIPTION AND REFERENCE GUIDE 7
4.1 Front and Back Meter Descriptions 7
4.2 Function Switch Positions 8
4.3 Function Buttons and Selector/Navigation Pad 9
4.3.1 MODE Button Operation 9
4.3.2 Selector/Navigation Pad Operation 10
4.4 Display Icons and Status Indicators 10
5. OPTIONS AND SETTINGS MENUS 12
5.1 Using the Options and Settings Menus 12
5.2 Options and Settings Details 12
5.2.1 Image Mode Menu 12
5.2.2 Thermal Settings Menu 12
5.2.3 VFD Mode 13
5.2.4 Advanced Menu 13
5.2.5 MIN-MAX-AVG Mode 13
5.2.6 Peak Mode 14
5.2.7 Relative mode 14
5.2.8 Multimeter Settings Menu 14
6. METER POWER 16
6.1 Powering the Meter 16
6.2 Auto Power OFF (APO) 16
7. MULTIMETER OPERATION 17
7.1 Auto/Manual Range Mode 17
7.2 Probe Connection Alert 17
7.3 Out of Range Warning (OL) 17
7.4 Data Hold and Auto Hold 17
7.4.1 Data Hold Mode 17
7.4.2 Auto Hold Mode 17
7.5 Status Bar and Menu Icons 18

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
3
7.6 Test Lead Holder Accessory 19
7.7 Voltage and Frequency Measurements 20
7.8 Non-Contact Voltage Detector 21
7.9 Resistance Measurements 22
7.10 Continuity Test 23
7.11 Classic Diode Test 23
7.12 Smart Diode Test 25
7.13 Capacitance Measurements 26
7.14 Type K Temperature Measurements 27
7.15 Current and Frequency Measurements (A, mA, µA) 28
7.15.1 Test Lead Current Measurements (A, mA, and µA) 28
7.15.2 FLEX Clamp Adaptor Current and Frequency Measurements 31
8. IGMTM (INFRARED GUIDED MEASUREMENT) OPERATION 32
8.1 Thermal Camera IGMTM Basics 32
8.2 Thermal Settings Menu 34
8.3 Image Mode Menu 35
8.4 Status Bar Display Icons 35
8.5 Using the Multimeter in the IGMTM mode 36
8.6 Emissivity Factors for Common Materials 36
8.7 Infrared Energy and Thermal Imaging Overview 37
9.MAINTENANCE 38
9.1 Cleaning and Storage 38
9.2 Battery Replacement 38
9.3 Fuse Replacement 38
9.4 Disposal of Electronic Waste 38
10. SPECIFICATIONS 39
10.1 General specifications 39
10.2 Thermal Imaging Specifications 40
10.3 Electrical Specifications 41
11. TECHNICAL SUPPORT 46
12. WARRANTIES 47
12.1 FLIR Test & Measurement Imaging Product 10-year/10-year Warranty 47

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
4
1. Advisories
1.1 Copyright
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software
including source code may be reproduced, transmitted, transcribed or translated into
any language or computer language in any form or by any means, electronic, magnetic,
optical, manual or otherwise, without the prior written permission of FLIR Systems.
The documentation must not, in whole or part, be copied, photocopied, reproduced,
translated or transmitted to any electronic medium or machine readable form without
prior consent, in writing, from FLIR Systems.
Names and marks appearing on the products herein are either registered trademarks or
trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or
company names referenced herein are used for identification only and are the property
of their respective owners.
1.2 Quality Assurance
The Quality Management System under which these products are developed and
manufactured has been certified in accordance with the ISO 9001 standard.
FLIR Systems is committed to a policy of continuous development; therefore, we reserve
the right to make changes and improvements on any of the products without prior
notice.
1.3 Documentation
To access the latest manuals and notifications, go to the Download tab at:
http://support.flir.com. It only takes a few minutes to register online. In the download
area you will also find the latest releases of manuals for our other products, as well as
manuals for our historical and obsolete products.
1.4 Disposal of Electronic Waste
As with most electronic products, this equipment must be disposed of in an
environmentally friendly way, and in accordance with existing regulations for
electronic waste.
Please contact your FLIR Systems representative for more details.
2. Safety
Safety Notes
Before operating the device, you must read, understand, and follow all instructions,
dangers, warnings, cautions, and notes.
FLIR Systems reserves the right to discontinue models, parts or accessories, and other
items, or to change specifications at any time without prior notice.
Remove the batteries if the device is not to be used for an extended period of time.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
5
Warning Statements
Do not operate the device if you do not have the correct knowledge. Incorrect operation
of the device can cause damage, shock, injury or death to persons.
Do not start a measuring procedure before you have set the function switch to the
correct position. Failure to do so can cause damage to the instrument and can cause
injury to persons.
Do not change to the resistance mode when measuring voltage. This can cause damage
to the instrument and can cause injury to persons.
Do not measure the current on a circuit when the voltage increases to more than 1000 V.
This can cause damage to the instrument and can cause injury to persons.
You must disconnect the test leads from the circuit under test before you change the
range. Failure to observe this warning can damage the instrument and cause bodily
injury.
Do not replace the batteries before you remove the test leads. This can cause damage to
the instrument and can cause injury to persons.
Do not use the device if the test leads and/or the device show signs of damage. Injury to
persons can occur.
Be careful performing measurements if the voltages are > 25 VAC rms or 35 VDC. There is
a risk of shock from these voltages. Injury to persons can occur.
Do not do diode, resistance or continuity tests before you have removed the power from
capacitors and other devices under test. Injury to persons can occur.
Be careful when performing voltage checks on electrical outlets. These checks are
difficult because of the uncertainty of the connection to the recessed electrical contacts.
You must not rely solely on this this device when determining if the terminals are not
“live”. There is a risk of electrical shock. Injury to person can occur.
Do not touch expired/damaged batteries without gloves. Injury to persons can occur.
Do not cause a short circuit of the batteries. This can cause damage to the instrument
and can cause injury to persons.
Do not put the batteries into a fire. Injury to persons can occur.
Use extreme caution when the laser pointer is on.
Do not point the beam toward anyone's eye or allow the beam to strike the eye from a
reflective surface.
Do not use the laser near explosive gases or in other potentially explosive areas.
Refer to the CAUTION statement label (shown below) for critical safety information.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
6
Cautions
Do not use the device in a manner not specified by the manufacturer. This can cause damage to
the protection provided.

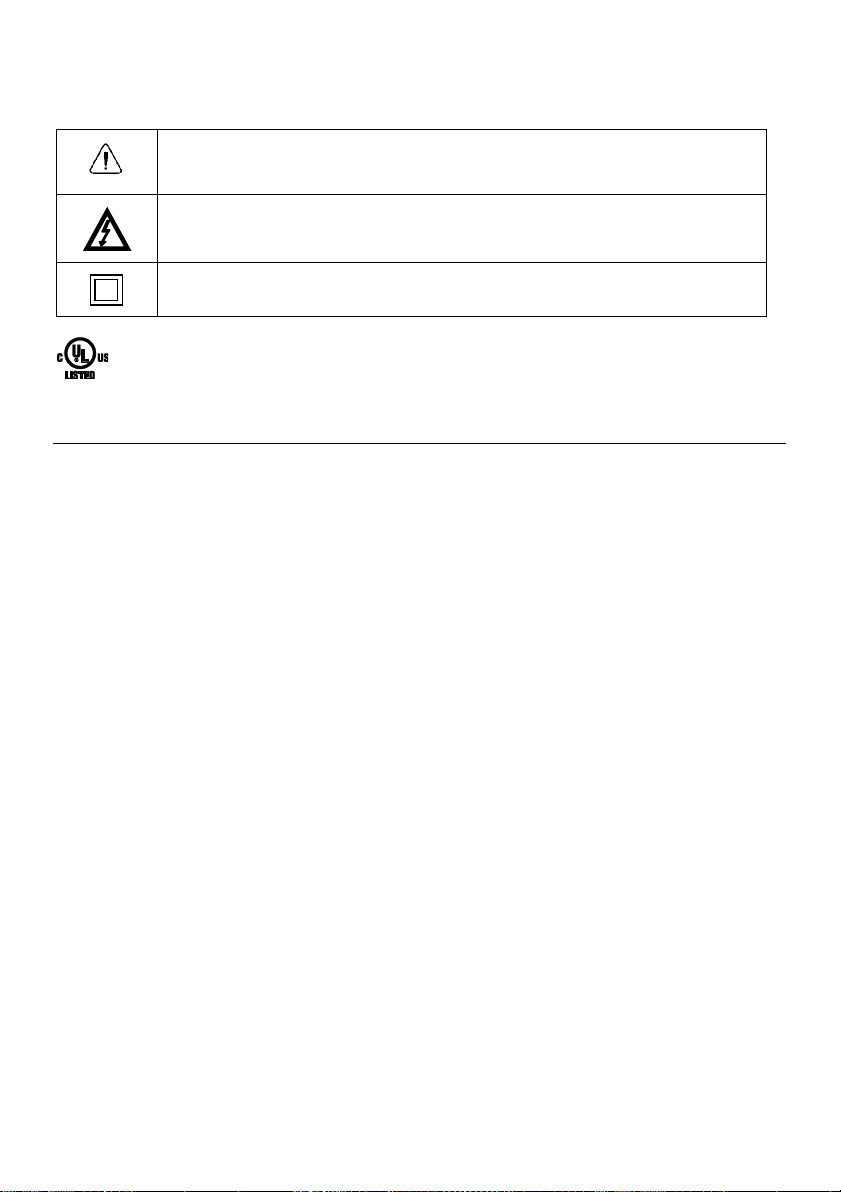

This symbol, adjacent to another symbol or terminal, indicates that the user
must refer to the user manual for further information.
This symbol, adjacent to a terminal, indicates that, under normal use, hazardous
voltages may be present.
Double insulation.
UL listing is not an indication or a verification of the accuracy of the meter
3. Introduction
Thank you for selecting the FLIR DM284 True RMS Digital MultiMeter with IGMTM
(Infrared Guide Measurement). The DM284 can measure voltage up to 1000V AC/DC and
includes Low-Z (low impedance), VFD (low pass filter), and offers Smart/Classic Diode
modes. This device is shipped fully tested and calibrated and, with proper use, will
provide years of reliable service.
3.1 Key Features
6000 count 2.8” digital TFT display with bargraph
Built-in IGMTM Infrared imager with laser pointer and crosshair targeting
Measures Voltage, Current (A, mA, µA), Frequency, Resistance/Continuity, Diode (Classic and
Smart modes), Capacitance, and Temperature
Built-in non-contact voltage detector (NCV)
Customizable via easy-to-use menu system
Automatic and Manual ranging
Input over-voltage warning
MIN-MAX-AVG memory
PEAK MIN and PEAK MAX
Flex Clamp direct input
On-screen programming menu navigation
Variable-frequency drive VFD mode (low-pass filter)
Low-Z (low impedance) mode
Relative mode
Data Hold and Auto Hold
Auto Power OFF
Safety Category Rating: CAT IV-600V, CAT III-1000V.
Equipped with batteries, test leads, alligator clips, test lead storage/holder attachment,
Type-K thermocouple, and Quick Start booklet.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
7
4. Meter Description and Reference Guide

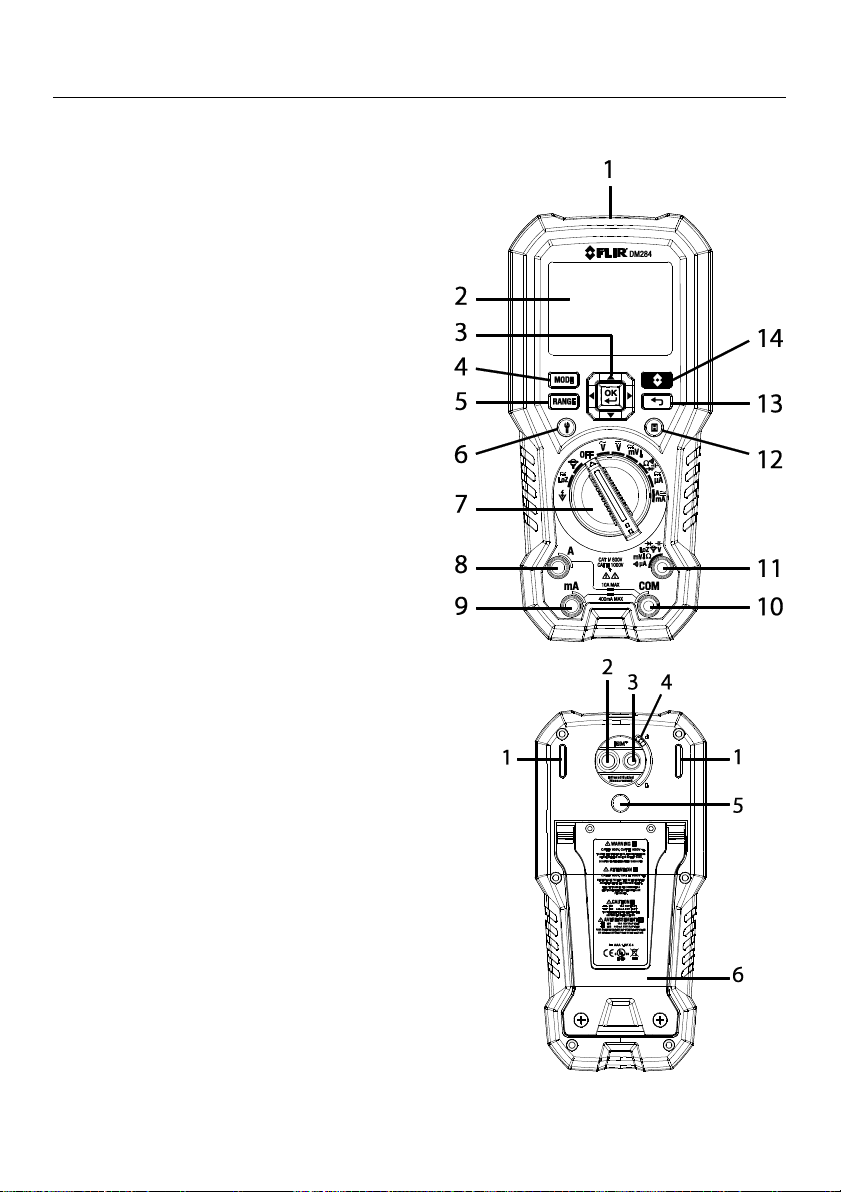

4.1 Front and Back Meter Descriptions
Fig. 4-1 Front View
1. Work Light and NCV detector area
2. LCD Display
3. Navigation/OK buttons
4. MODE Button
5. RANGE Button
6. Work light Button
7. Rotary Function Switch
8. Positive (+) Probe Input Jack for A
(Current).
9. Positive (+) Probe Input Jack for mA
(Current).
10. COM (-) Probe Input Jack
11. Positive (+) Probe Input Jack for all
inputs except Aand mA
12. Display ‘Hold’ (H) button
13. Cancel/Return Button
14. IGMTM Button
1. Test Lead holder attachment mounts
2. Thermal Imaging lens
3. Laser pointer lens
4. Lens cover slide control
5. Tripod mount (test lead holder attaches
here also)
6. Tilt Stand (Battery Compartment located
beneath the stand)
Fig. 4-2 Rear View

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
8
4.2 Function Switch Positions
Detect AC voltage through the non-contact sensor at the top of the meter.
Measure voltage through the probe inputs with a low-impedance load
positioned across the inputs that stabilizes the measurement.
Meter is switched OFF and in full power-saving mode.
FLEX Direct: Auxiliary channel for use with optional Flexible Current clamp or
standard clamp adaptors when > 600A measurements are required. In this
mode, the meter will display true rms ACA measurements from the connected
device. Frequency (Hz) can be displayed by pressing the MODE button.
Measure AC voltage (V) through the probe inputs.
Measure DC voltage (V) through the probe inputs.
Measure low voltage (mV) through the probe inputs. Use the MODE button to
select AC/DC voltage.
Measure temperature through the probe inputs using a thermocouple
adaptor. Use the MODE button to select Temperature (see Section 5.2.2,
Thermal Settings Menu, to select °C or °F unit of measure).
Measure resistance, continuity, capacitance, or diode through the probe
inputs. Use the MODE button to select the desired function.
Measure current through the probe inputs (A or mA). Use the MODE button to
select AC or DC.
Measure µA current through the probe inputs. Use the MODE button to select
AC or DC.
Fig. 4-3 Function Switch

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
9
4.3 Function Buttons and Selector/Navigation Pad
Use to select a sub-function of the primary function. See Section 4.3.1, MODE
Button Operation, for details
From Auto range mode, press to select Manual range mode.
From Manual range mode, quick press to change the range (scale). Long press to
activate Auto range mode
Press to activate the Thermal Camera IGMTM (Infrared Guide Measurement)
Use the selector/navigation pad to enable extended functionality modes and to
navigate mode menu options
Press to return from a menu screen (no function in normal mode).
Press to enter the Hold mode (display hold or auto hold as selected in the Settings
Menu see Section 5.2.8, Multimeter settings Menu)
Press to enable/disable the work light.
4.3.1 MODE Button Operation
Rotary Switch Position
Switch Sequence
NCV
No operation
LoZ
ACV → DCV → Frequency
Flex
ACA → Frequency
ACV
ACV → Frequency
DCV
No operation
mV (Temperature)
ACmV → DCmV → Frequency → Temperature
Resistance
Resistance → Continuity → Capacitance → Diode
µA
ACµA → DCµA
A (ATerminal)
ACA → DCA → Frequency
mA (mA Terminal)
ACmA → DCmA → Frequency

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
10
4.3.2 Selector/Navigation Pad Operation
There are five (5) buttons arranged in a square that make up the Selector/Navigation
pad, as shown in Figure 4-4.
Fig. 4-4 Selector Navigation Pad
OK button (center) is used to access the main menu and select/change menu
options.
LEFT/RIGHT buttons: The left/right buttons are used to navigate the menus.
UP/DOWN buttons: The up/down buttons are used to navigate the menus.
4.4 Display Icons and Status Indicators
Low Impedance mode
Sensed voltage is > 30 V (AC or DC)
Non-Contact Voltage detector (low sensitivity mode) for 160~1000V range
Non-Contact Voltage detector (high sensitivity mode) for 80~1000V range
MAX (Maximum) reading value displayed
MIN (Minimum) reading value displayed
AVG (Average) reading value displayed
PEAK MAX value displayed
PEAK MIN value displayed

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
11
Auto range mode
Display Hold
Auto Hold
Relative mode
0000
Primary display (large digits)
0000
Secondary display (smaller digits)
PROBE
Test lead connection error
Ԑ
Emissivity setting
Battery voltage status
Auto power off function enabled
AC current or voltage
DC current or voltage
Flex Clamp Direct Input
Continuity function
Diode test function
Work light active
Bar Graph Measurement Indicator
Bar Graph OL (overload) Indicator

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
12
5. Options and Settings Menus
5.1 Using the Options and Settings Menus

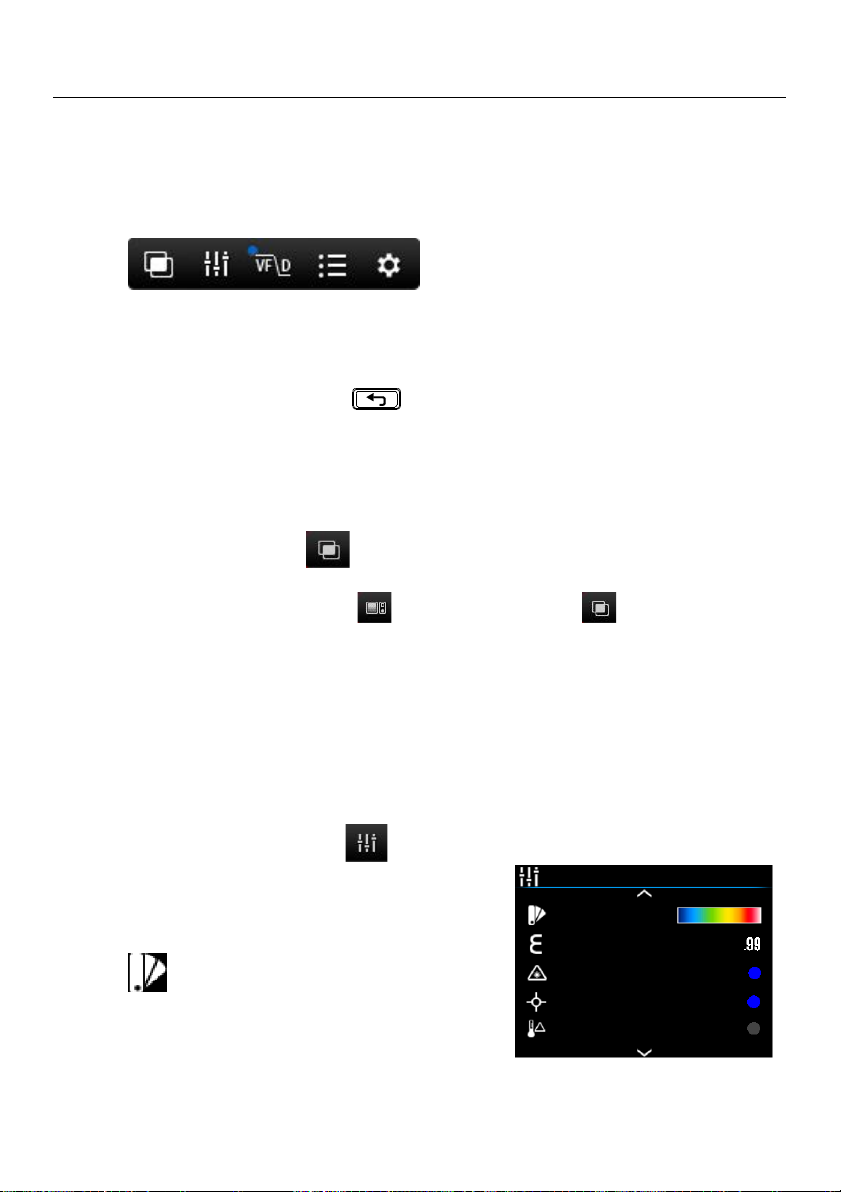

Press OK to open the main menu, Use the navigation pad arrows to step
through the menu icons. From left to right, as shown below, they are Image
Mode, Thermal Settings, VFD, Advanced Menu, and Multimeter Settings.
Press OK to open a menu item or to set an option ON or OFF. When an option is
switched ON, a blue dot will appear next to the menu icon. The navigation
arrows are sometimes used to select an option.
Use the Return/Exit button to exit menu levels and to return to the
normal display mode.
The icons that are available differ in the Multimeter and IGMTM modes. The
following information will detail this and other menu operations.
5.2 Options and Settings Details
5.2.1 Image Mode Menu
This icon is only available in the IGMTM mode. The Image Mode has two sub-menu
selections: Image + DMM mode and Image Only mode :
●Image + DMM (default option): Display will show all IR data and DMM data.
●Image Only: Display will show IR data only.
●For both options, the status bar will show Battery, APO, Work Light, and Laser
icons when applicable.
●Image Mode option is disabled (grayed out) in DMM mode.
Press OK on the Image Mode icon and use the arrows to select IGM + DMM or
IMAGE.
5.2.2 Thermal Settings Menu
The following options are available in the Thermal
Settings menu. More in-depth information may be
found in the dedicated IGM section of this manual.
IGM Color Palette selection. Press OK
to select one of the display color palettes
(Iron, Rainbow, or Gray).

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
13
ԐEmissivity: Press OK then use the up/down arrows to scroll to the desired
preset (0.95, 0.85, 0.75, 0.65) or to the
fine tuning icon. To fine tune, press OK at
the fine tuning icon and then use the
arrow buttons to make a selection, press
OK to confirm. The available range is 0.10
to 0.99 in 0.01 steps.
Laser pointer: Press OK at this icon to switch the laser pointer ON (blue
circle icon) or OFF (empty circle icon).
Cross hairs: Press OK at this icon to switch the cross hairs ON or OFF.
Temperature Differential: Only available when you select DMM IGM in the
Image Mode Menu (above) and mV/Temp on the rotary switch. Press OK to
switch this mode ON (blue dot) or OFF. When ON, the display shows the Type
K Thermocouple temperature and IGM mode temperature differential (delta).
5.2.3 VFD Mode
In VFD (variable-frequency drive) mode, high-frequency noise is eliminated from the
Multimeter voltage measurement through the use of a low-pass filter. VFD mode is
available when measuring AC voltage or AC current.
1. Press the OK button to access the menu. Press OK at the VFD icon to select.
2. The blue dot next to the icon and the VFD display icon will appear.
3. De-select the VFD mode by pressing OK again. The blue dot and VFD display icon
will switch OFF when de-selected.
5.2.4 Advanced Menu
Press OK to open the Advanced Menu. Three selections are available: MAX-MIN-AVG,
PEAK, and Relative Mode. The next three sections cover these features in detail.
5.2.5 MIN-MAX-AVG Mode
This mode is accessed through the Advanced Menu , see previous section. The
meter captures and displays the minimum, maximum, and average readings, updating
only when a higher/lower value is registered. The meter also averages the total sum of
all recorded values.
Press OK to show the maximum , minimum , and average readings on the
display.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
14
5.2.6 Peak Mode P
This mode is accessed through the Advanced Menu, see above. In Peak mode, the
meter captures and displays the positive and negative ACA and ACV peak values. The
Peak display values changes only when higher/lower values are registered.
1. Press OK to show the Peak Max and Peak Min readings on the display.
2. Press OK to switch this mode OFF.
5.2.7 Relative mode
This mode is accessed through the Advanced Menu, see above.
1. Press OK on this icon to capture a reference reading that subsequent
measurements can be compared with.
2. A blue dot is shown next to the icon when this mode is selected.
3. The reference value will be displayed next to the Relative icon.
4. The primary display will show the difference between the measured value and
the stored reference.
5. Press OK at this icon to switch the Relative mode OFF.

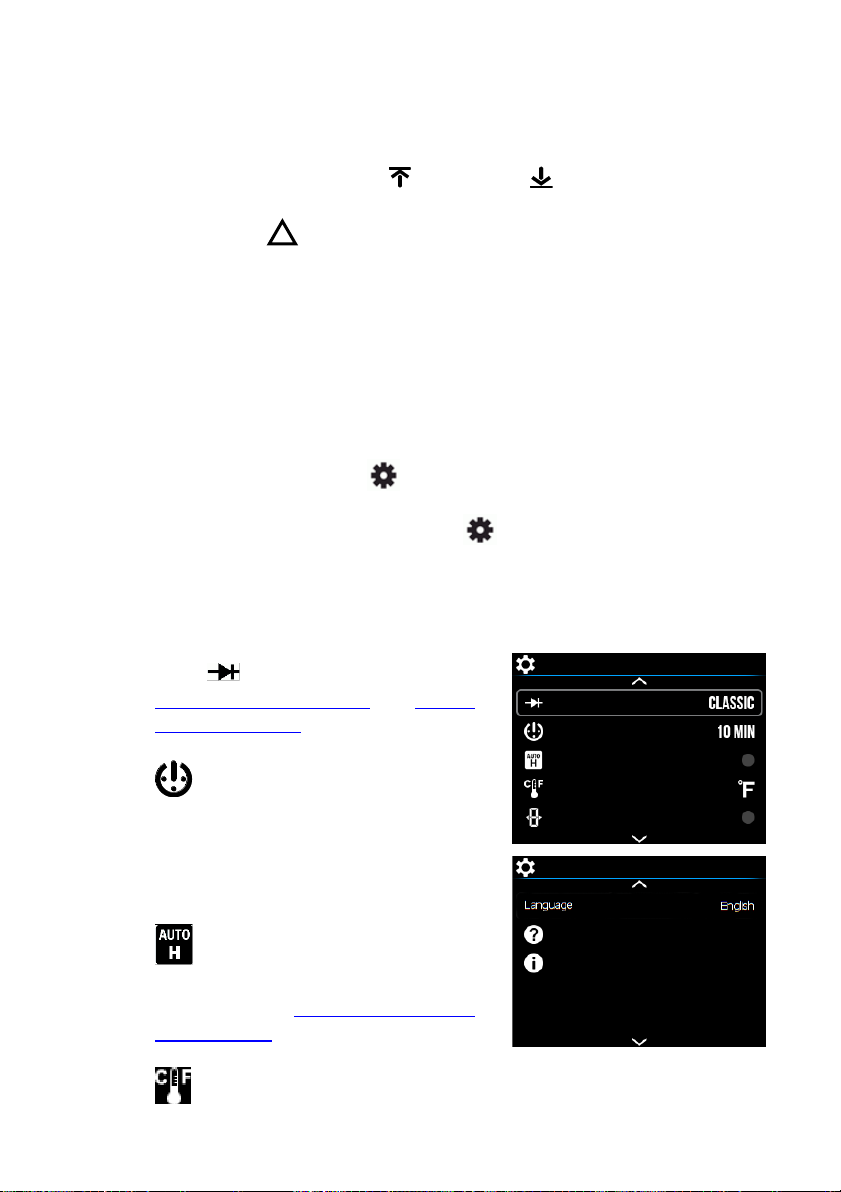

5.2.8 Multimeter Settings Menu
1. Press OK to open the main menu
2. Navigate to the Multimeter Settings icon using the arrow buttons
3. Open the Settings menu by pressing the OK button.
4. See the Settings menu example below. The items in the example may differ
from the meter that you have depending on the firmware version. Customize
the settings as described below:
Diode (Smart or Classic modes); see
Section 7.11, Classic Diode, and Section
7.12, Smart Diode. Use the OK button to
choose the desired setting.
Auto power off (APO): Press OK to
open the sub-menu. Use the arrow
buttons to choose the time period after
which the meter enters sleep mode.
Press OK to confirm the selection (a blue
dot will appear next to the selection).
Auto hold: Use the OK button to
toggle ON (blue dot) and OFF. For more
information, see Section 7.4, Data Hold
and Auto Hold.
Temperature units. Use the OK button to toggle oC and oF.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
15
Coarse Resolution (C.r. ON/OFF). Use the OK button to toggle ON (blue
dot) and OFF. This function is for Voltage function only. The range and
resolution for the Voltage function will change as follows when Coarse
Resolution is enabled:
o600.0mV → 600mV
o6.000V → 6.00V
o60.00V → 60.0V
o600.0V → 600V
o1000V → 1000V
oDefault: OFF
Language: Scroll to the desired language and press OK.
Help Screen: View the FLIR Customer Care contact information.
Information: View DMM, IGM, and Laser technical information.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
16
6. Meter Power
6.1 Powering the Meter
1. Set the function switch to any position to switch on the meter.

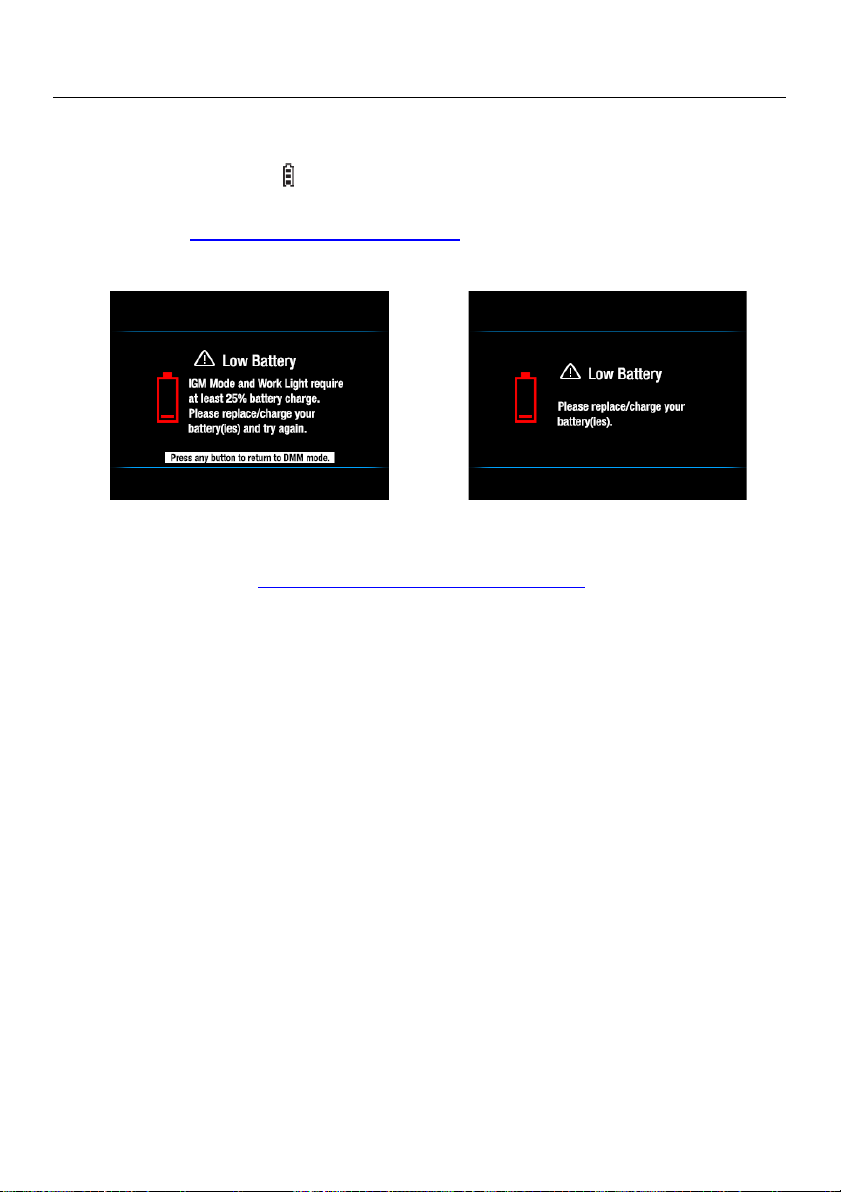

2. If the battery indicator shows that the battery voltage is low, if one of the Low
Battery screens appears (shown below), or if the meter does not power on, replace the
batteries. See Section 9.2, Battery Replacement. If using the Model TA04 charging
system, please recharge the rechargeable battery.
6.2 Auto Power OFF (APO)
The meter enters sleep mode after a programmable period of inactivity, to customize
this setting please see Section 5.2.8, Multimeter Settings Menu. The default time-out is
10 minutes. The time can be set from 1 ~ 10 minutes (select OFF to disable the APO).
20 seconds prior to entering APO mode, the meter beeps; at this point, press any
button or turn the Rotary Switch to reset the APO timer.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
17
7. MultiMeter Operation
Caution: Before operating the device, you must read, understand, and follow all
instructions, dangers, warnings, cautions, and notes.
Caution: When the meter is not in use, the function switch should be set to the OFF
position.
Caution: When connecting the probe leads to the device under test, connect the COM
(negative) lead before connecting the positive lead. When removing the probe leads,
remove the positive lead before removing the COM (negative) lead.
7.1 Auto/Manual Range Mode
In Auto range mode, the meter automatically selects the most appropriate measurement
scale. In Manual range mode, the desired range (scale) can be adjusted by the user.
Auto range mode is the default mode of operation. When a new function is selected with
the function switch, the starting mode is Auto range and the indicator is displayed.
1. To enter Manual range mode, short press the button. To change the
range, press the button repeatedly until the desired range is displayed.
2. To return to the Auto range mode, long press the button until the Auto
Range indicator is again displayed.
7.2 Probe Connection Alert
For current measurements, when the probe leads are not plugged into the correct jacks
for the measurement selected by the function switch, the probe display alert ‘PROBE’ is
shown.
7.3 Out of Range Warning (OL)
If the input is over/under the full-scale range in Manual range mode, or if the signal has
exceeded the maximum/minimum input in Auto range mode, ‘OL’is displayed.
7.4 Data Hold and Auto Hold
The meter has two HOLD modes: classic Data Hold and Auto Hold. To select Data Hold or
Auto Hold as the default, please use the Settings menu (see Section 5.2.8, Multimeter
Settings Menu).Refer to the paragraphs below for instructions on using the Hold modes.
7.4.1 Data Hold Mode
In Data Hold mode, the primary meter display freezes the last reading. To enter/exit
Data Hold mode, press the button. In Hold mode, the indicator is displayed.
7.4.2 Auto Hold Mode
In Auto hold mode, the secondary display freezes the last reading and the icon is
displayed. The real-time reading is displayed on the primary display.

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
18
The held reading will not change unless the difference between the held reading and
any new reading is > 50 digits.
The Auto hold function will capture a reading if the reading is > 1% full scale (trigger
level) for Voltage, Current, and Capacitance. For Resistance, Diode, and Temperature
the trigger is active as long as OL (over range).
To enter/exit Auto hold mode, press the button.

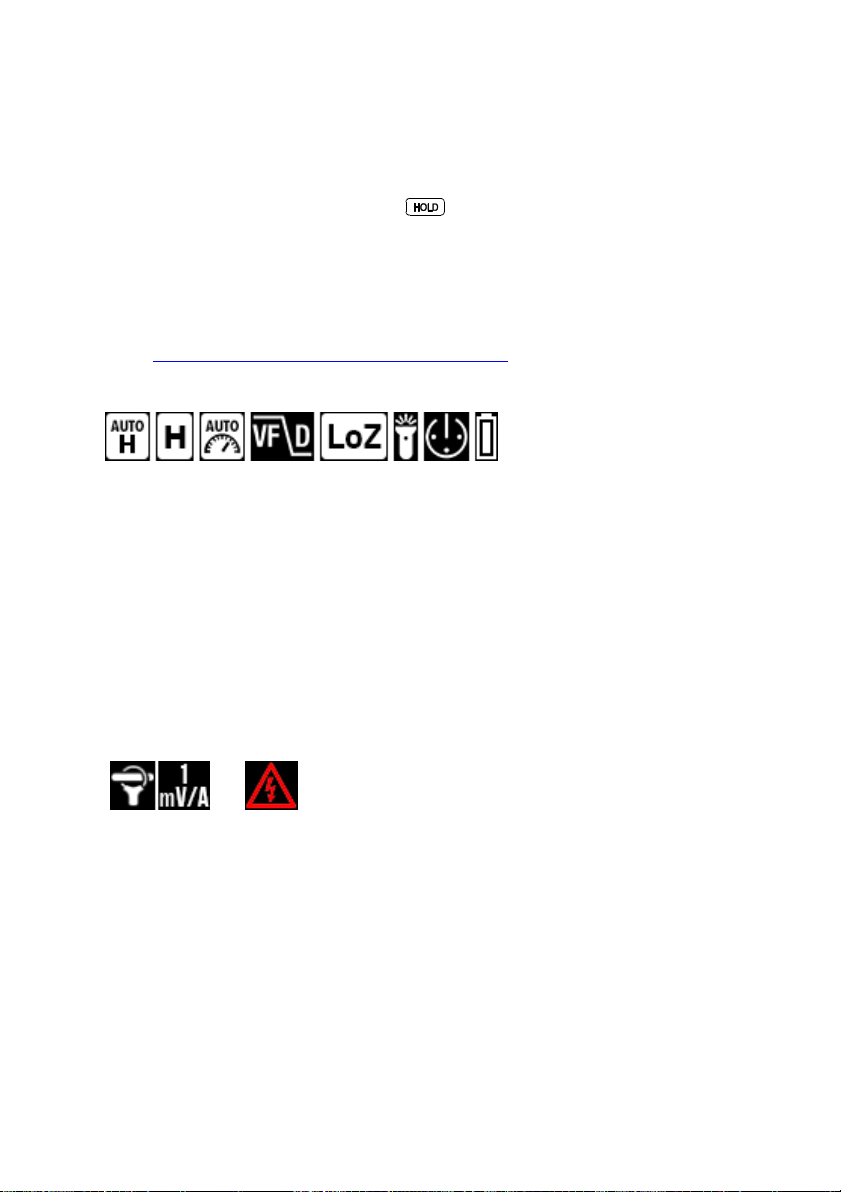

7.5 Status Bar and Menu Icons
The Status Bar is located at the top of the display and separated into two groups: Right
and Left side groups.
The Right side group is located at the top right of the display. The icons are shown
below, in Section 4, Meter Description and Reference,and other relevant areas of this
manual when applicable.
Auto Hold
Data Hold
Auto Range
VFD mode
Low Impedance mode
Work light
Auto Power OFF (APO)
Battery status
The Left side group is located at the top left of the display. The icons are shown below
and other relevant areas of this manual when applicable.
FLEX Clamp Adaptor icon
FLEX Clamp Adaptor range
Hazardous voltages present icon

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
19
There are 5 main options in the Menu bar. These are explained in some detail in
Section 5, Options and Settings Menus.
oImage Mode (available in IGMTM mode only)
oThermal Settings (available in IGMTM mode only)
oVFD (low pass filter)
oAdvanced Features Menu
oMultimeter Settings
Use the Left / Right button to move the cursor
Press the OK button to select an option.
Up / Down buttons are not used for Menu bar operation.
If an option is disabled (grayed) it is not available for the currently active mode.
7.6 Test Lead Holder Accessory
If desired, connect the supplied Test Lead Holder to the rear of the meter. The Test
Lead Holder connects to the back of the meter (to items 1 and 5 as shown in Fig. 4-2 in
Section 4, Meter Description and Reference Guide).

FLIR DM284 USER MANUAL Document Identifier: DM284-en-GB_AA
20
7.7 Voltage and Frequency Measurements
1. Set the function switch to one of the following positions:
(VDC) or (VAC) for high voltage measurements.
(milli-volts) for low voltage measurements (use MODE to select AC or DC).
for voltage measurements using the meter’s low input impedance mode.
The LoZ indicator will be displayed (use MODE to select AC or DC).
2. Insert the black probe lead into the negative COM terminal and the red probe lead
into the positive terminal.
3. For mV and LoZ measurements use the button to select AC or DC
measurement:
The indicator will be displayed for AC measurements.
The indicator will be displayed for DC measurements.
4. Connect the probe leads in parallel to the part under test.
5. Read the voltage value on the display.
6. The Frequency (Hz) of the measured voltage is shown on the smaller, secondary
display digits above the primary voltage reading. Press the button to view
only the Frequency reading.
7. Refer to Section 5, Options and Settings Menus, for customizing the meter and
using the VFD, MIN-MAX-AVG, Peak, and Relative modes of operation.
Fig. 7-1 Voltage and Frequency Measurements
