Introduction
Fluke 712B RTD Calibrator (the Product) is a handheld,
battery-operated instrument that measures and sources a
variety of RTDs. It also has an isolated channel to
measure 4-20 mA. See Table 1.
www. .com [e-mail]1.800.561.8187

712B
Users Manual
2
Table 1. Summary of Source and Measure Functions
Function Measure Source
Resistance 0 Ωto 4000 Ω1 Ωto 4000 Ω
RTD
(Resistance-Temperature Detector)
Pt100 Ω(385)
Pt100 Ω(3926)
Pt100 Ω(3916)
Pt200 Ω(385)
Pt500 Ω(385)
Pt1000 Ω(385)
Ni120 Ω(672)
Pt10 Ω(385)
Pt50 Ω(385)
Cu10 Ω(427)
Cu50 Ω(427)
Cu100 Ω(427)
YSI400
Other functions Step, Ramp, Isolated mA channel for 4-20 mA measurement
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Safety Information
3
Safety Information
A Warning identifies conditions and procedures that are
dangerous to the user. A Caution identifies conditions
and procedures that can cause damage to the Product or
the equipment under test.
International electrical symbols used on the Product and
in this manual are explained in Table 2.
Safe Working Practices
Review the safety information and comply with all safe
working practices.
Warning
To prevent possible electrical shock, fire, or
personal injury:
•Carefully read all instructions.
•Read all safety Information before you
use the Product.
•Use the Product only as specified, or the
protection supplied by the Product can
be compromised.
•Do not use the Product around explosive
gas, vapor, or in damp or wet
environments.
•Never apply more than 30 V between any
two terminals, or between any terminal
and earth ground.
•Do not connect any test leads to
voltages above 30 V when used with the
product, even if ratings above 30 V
appear on the test leads.
•Do not use the Product if it is damaged.
•The battery door must be closed and
locked before you operate the Product.
•Remove all probes, test leads, and
accessories before the battery door is
opened.
•Remove the input signals before you
clean the Product.
•Have an approved technician repair the
Product.
•Replace the batteries when the low
battery indicator shows to prevent
incorrect measurements.
For safe operation and maintenance of the
Product:
•Repair the Product before use if the
battery leaks.
•Remove the batteries if the Product is
not used for an extended period of time,
or if stored in temperatures above 50 °C.
If the batteries are not removed, battery
leakage can damage the Product.
www. .com [e-mail]1.800.561.8187

712B
Users Manual
4
Table 2. International Electrical Symbols
Earth Ground Battery
Conforms to relevant Australian
Standards. Risk of danger. Important information. See Manual.
Inspected and licensed by TÜV Product
Services. Conforms to European Union directives.
CAT II
MEASUREMENT CATEGORY II is
applicable to test and measuring circuits
connected directly to utilization points
(socket outlets and similar points) of the
low voltage MAINS installation.
CAT III
MEASUREMENT CATEGORY III is applicable to test and
measuring circuits connected to the distribution part of the
building’s low-voltage MAINS installation.
CAT IV
MEASUREMENT CATEGORY IV is
applicable to test and measuring circuits
connected at the source of the building’s
low voltage MAINS installation.
Conforms to relevant North American Safety Standards.

This product complies with the WEEE Directive (2002/96/EC) marking requirements. The affixed label indicates that you
must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the
equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control
Instrumentation" product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling
information.
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Standard Equipment
5
Standard Equipment
The items listed below and shown in Figure 1 are included with your Product. If the Product is damaged or something
is missing, contact the place of purchase immediately. To order replacement parts or spares, see the user-
replaceable parts list in Table 7.
•AC175 alligator clips (2 sets)
•TL75 test leads (2 sets)
•754-8016 alligator clips (1 set)
•Stackable test leads (1 set)
•4 AA alkaline batteries
•Magnet Strap TPAK
•712B/714B Safety Sheet
•712B Quick Reference Guide
•712B Users Manual (available on Fluke’s website)
www. .com [e-mail]1.800.561.8187

712B
Users Manual
6
Fluke-75X-Stackable
Test Leads
(1 set)
AC175
Alligator Clips
(2 sets)
TL75
Test Leads
(2 sets)
754-8016,
Alligator Clips
(1 set)
hqu01.eps
Figure 1. Standard Equipment
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Input and Output Terminals
7
Input and Output Terminals

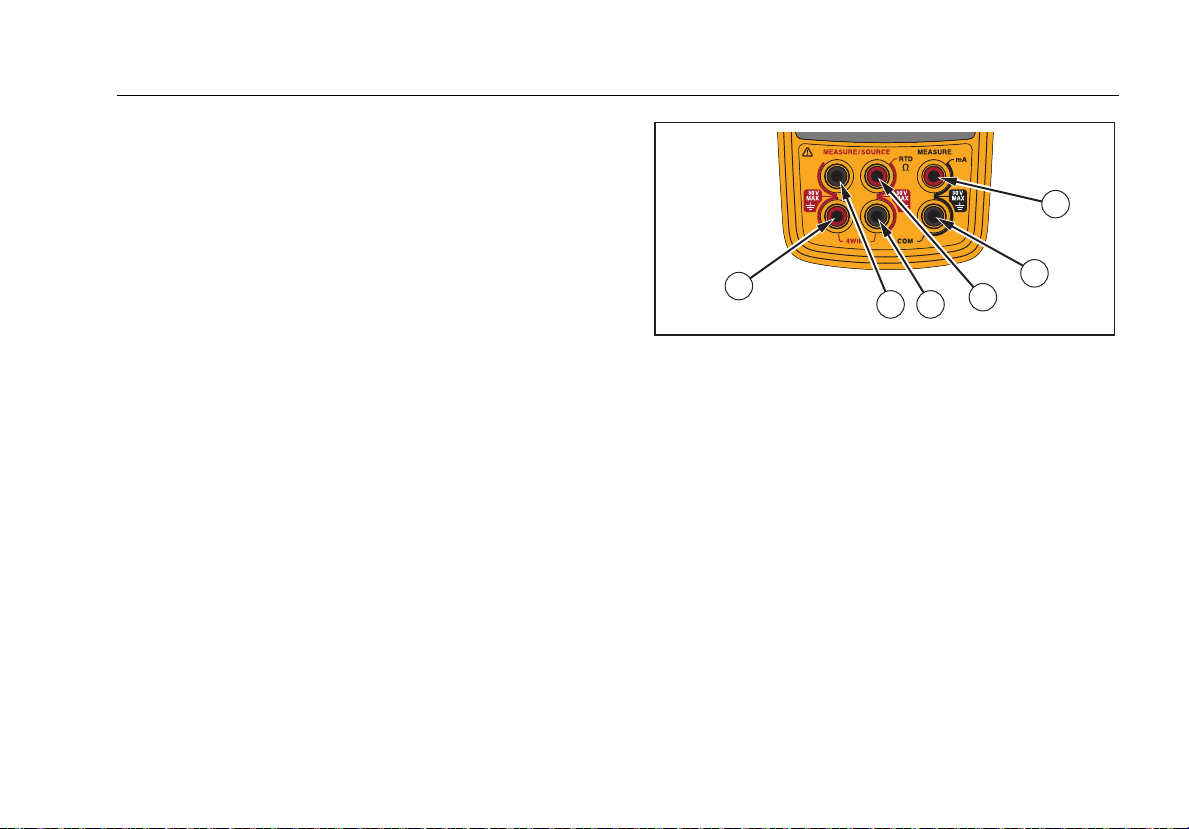

Figure 2 shows the input and output terminals on the
Product. Table 3 explains their use.
1
2
3
4
5
6
hqu02.eps
Figure 2. Input/Output Terminals and Connectors
www. .com [e-mail]1.800.561.8187

712B
Users Manual
8
Table 3. Input/Output Terminals and Connectors
No. Name Description
, Measure, mA terminals Input terminals for measuring current.
, Source/ Measure, RTD, Ω
terminals
Terminals for sourcing or measuring 2W resistance and RTDs.
, Measure 3W, 4W Terminals for performing 3W and 4W RTD measurements.
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Keys
9
Keys
The Product has keys for different purposes. Some keys
have secondary functions that are available when SHIFT
already shows on the display.
Figure 3 shows the Product keys. Table 4 explains their
use.
1
9
10
2
3
4
7
3
5
6
8
hqu03.eps
Figure 3. Keys
www. .com [e-mail]1.800.561.8187

712B
Users Manual
10
Table 4. Key Functions
No. Name Description
Turns the power on or off.
Shifts to secondary function when pushed before other keys (Shift mode).
Turns backlight on or off.
Toggles through the 2-, 3-, and 4-wire RTD measurement mode.
Increments output by 25 % of span. Secondary function: toggles between temperature units (°C or
°F.).
Decreases output by 25 % of span.


Up/down arrow increases or decreases the source level. Cycles through different options.
Secondary functions: Enters Ramp or Step mode.
Left/right arrow cycles through and highlights the field to be edited.
In contrast adjustment mode; left- lightens contrast, right- darkens contrast.
Secondary functions: Left arrow enters mA measurement; right arrow enters temperature measurement
.


Enables automatic value span of 100 % or 0 %.
Secondary function: Sets a source value to 100 % or 0 % of span.
Shifts between Measure and Source modes.
Selects RTD (resistance temperature detector) type for measurement and sourcing functions.
Secondary function: Confirms selection.
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Display
11
Display
Figure 4 shows the elements of a typical display. Table 5 describes the elements.
9
10
11
12
13
1
2
3
4
5
6
7
8
14
hqu19.eps
Figure 4. Elements of a Typical Display
www. .com [e-mail]1.800.561.8187

712B
Users Manual
12
Table 5. Elements on the Display
Item No. Description
100 % of value span
Source or Measure mode
Selected digit that can be edited
Excitation current from the measuring device under test is too low.
Battery usage status
Excitation current from your device under test exceeds the limits of the Product.
Unit of temperature
RTD wire type
Selected RTD type
mA reading
Ωreading
Temperature reading
RTD type list
Display contrast bar
www. .com [e-mail]1.800.561.8187

RTD Calibrator
Auto Power-Off
13
Auto Power-Off
The product provides an auto power-off function to save
power. When the auto power-off mode is enabled, the
Product automatically powers off after 15 minutes of
inactivity.
To enable the auto power-off mode:
1. Push .
2. When SHIFT shows on the display, push .
3. In the displayed setting list, highlight the Auto
poweroff option, and then use to select this option.
To disable the the auto power-off mode:
1. Push .
2. When SHIFT shows on the display, push .
3. In the displayed setting list, highlight the Auto
poweroff option, and then use to deselect this
option.
Auto Backlight-Off
The Product provides an auto backlight-off function to
save power. When the auto backlight-off mode is enabled,
the backlight automatically turns off after 2 minutes of
inactivity.
To enable the auto backlight-off mode:
1. Push .
2. When Shift shows on the display, push .
3. In the displayed setting list, highlight the Auto
backlight off option, and then use to select this
option.
To disable the the auto backlight-off mode:
1. Push .
2. When Shift shows on the display, push .
3. In the displayed setting list, highlight the Auto
backlight off option, and then use to deselect this
option.
www. .com [e-mail]1.800.561.8187

712B
Users Manual
14
Contrast Adjustment
The Product allows you to adjust the display contrast, as
shown in Figure 5.
To adjust the contrast:
1. Push until Measure shows on the display.
2. Push to darken contrast, or to lighten contrast.
hqu18.eps
Figure 5. Adjust the Contrast
www. .com [e-mail]1.800.561.8187
