Fluke 715 User manual

715 English Instruction Sheet
Page 1
®
715
Volt/mA Calibrator
Instruction Sheet
Introduction
The Fluke 715 Volt/mA Calibrator is a source and measurement
tool for 0 to 24 mA current loop testing and dc voltage from 0 to
10 V. The calibrator does not source and measure
simultaneously.
Your calibrator is supplied with a Flex-Standholster, a set of
test leads, an installed 9 V alkaline battery, and this instruction
sheet.
Summary of Calibrator Capabilities
Function Range Resolution
dc mV input 0 to 100 mV 0.01 mV
dc mV output
dc V input 0 to 10 V 0.001 V
dc V output
dc mA input 0 to 24 mA 0.001 mA
dc mA output
Loop power
output 24 V dc output N/A
PN 650314 July 1997 Rev. 2, 11/98
1997, 1998 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

715 English Instruction Sheet
Page 2
If the calibrator is damaged or something is missing, contact the
place of purchase immediately. Contact your Fluke distributor for
information about accessories. To order replacement parts or
spares, see “Replacement Parts.”
To contact Fluke, call one of the following telephone numbers:
USA and Canada: 1-888-99-FLUKE (1-888-993-5853)
Europe: [phone]
Japan: [phone]
Singapore: +65-*-276-6196
Anywhere in the world: [phone]
Address correspondence to:
Fluke Corporation Fluke Europe B.V.
P.O. Box 9090, P.O. Box 1186,
Everett, WA 98206-9090 5602 BD Eindhoven
U.S.A. The Netherlands
Visit us on the World Wide Web at: www.fluke.com
International Symbols
Symbol Meaning
JEarth ground
IFuse
MBattery
WRefer to this instruction sheet for information about
this feature.
TDouble insulated
Conforms to relevant Canadian Standards
Association directives.
PConforms to European Union directives

715 English Instruction Sheet
Page 3
Safety Information
Use the calibrator only as specified in this sheet, otherwise the
protection provided by the calibrator may be impaired.
A Warning identifies conditions and actions that pose hazard(s)
to the user; a Caution identifies conditions and actions that may
damage the calibrator or the equipment under test.
WWarning
To avoid possible electric shock or personal injury:
•Never apply more than 30 V between any two
jacks (terminals), or between any jack and earth
ground.
•Make sure the battery door is closed and
latched before you operate the calibrator.
•Remove test leads from the calibrator before
you open the battery door.
•Do not operate calibrator if it is damaged.
•Do not operate the calibrator around explosive
gas, vapor, or dust.
•When servicing the calibrator, use only
specified replacement parts.
Caution
Use the proper jacks, function, and range for your
measurement or output application.
Turning the Calibrator On
Press the green Opushbutton to turn the calibrator on and off.
For longest battery life:
•For mA output, use current simulate mode instead of source
mode when an external 24 to 30 V loop power supply is
available. (See Simulating a Transmitter.)
•Turn off the calibrator when not in use.

715 English Instruction Sheet
Page 4
Measuring dc Volts
V
mV mA
%
mV or V depending
on range
Press so that
INPUT is on
the display
INPUT
Press to toggle
100 mV and
10V ranges
V
mV
it01i.eps
Sourcing dc Volts
V
mV mA
%
mV or V depending
on range
Press so that
OUTPUT is on
the display
OUTPUT
V
mV
Press to toggle
100 mV and
10V ranges
it02i.eps

715 English Instruction Sheet
Page 5

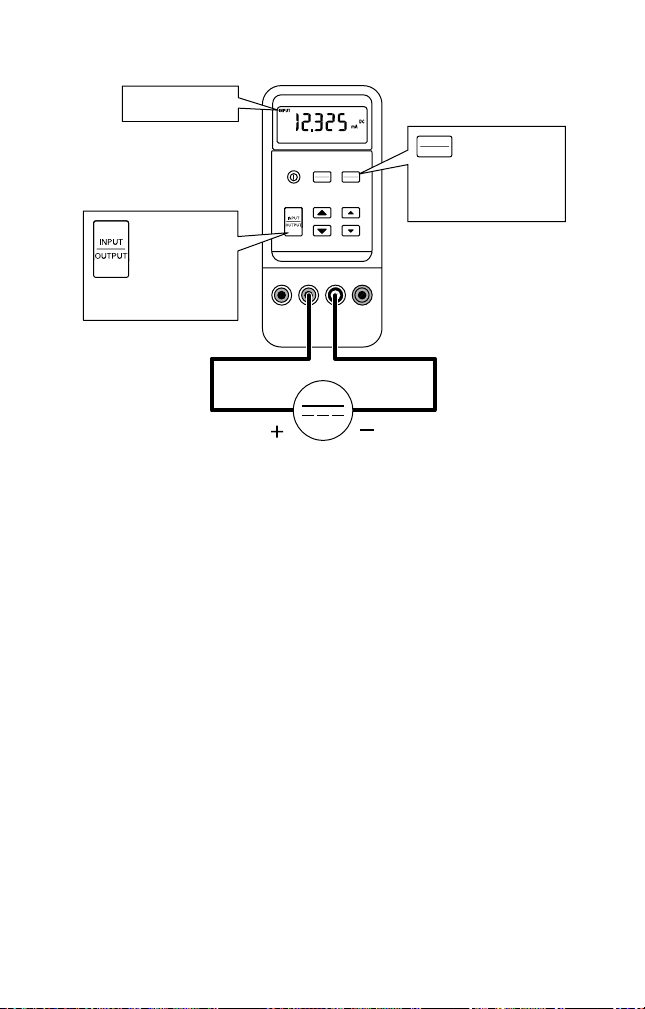

Measuring dc mA
V
mV mA
%
Press to toggle
mA and % of
4-20 mA scale
mA
%
Press so that
INPUT is on
the display
INPUT
it03i.eps

715 English Instruction Sheet
Page 6

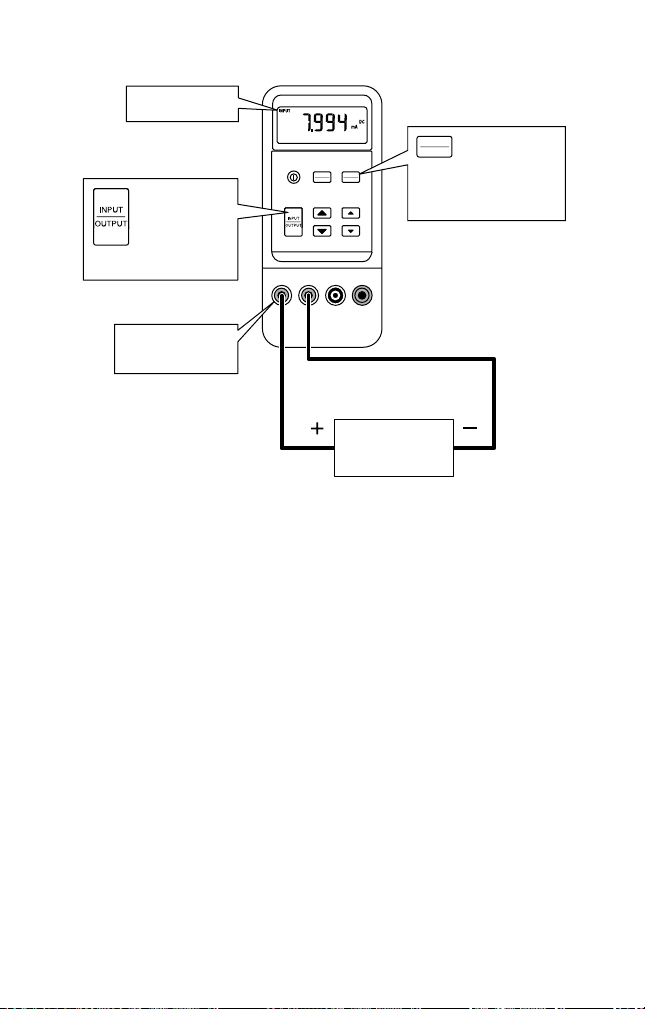

Measuring dc mA with Loop Power
V
mV mA
%
Press so that
INPUT is on
the display
INPUT
Two-wire
transmitter
%
+24V output
Press to toggle
mA and % of
4-20 mA scale
mA
%
it06i.ep

715 English Instruction Sheet
Page 7
Using the Current Output Modes
The calibrator provides current output in mA or percent display.
Percent is -25.00 to 125.00%, where 0% is 4 mA, and 100% is 20
mA.
In source mode, the calibrator supplies the current. In simulate
mode, the calibrator simulates a two-wire transmitter in an
externally-powered current loop.
Sourcing mA
Use source mode whenever you need to supply current into a
passive circuit such as a current loop with no loop supply. Insert
the test leads into the OUTPUT +and −mA jacks as shown
below.
Note
A path must exist for current to flow between the
OUTPUT + and −mA jacks, otherwise the display will
indicate an overload (OL) when you set an output value.
715
VOLT/mA CALIBRATOR
LOOP
+mA
- mA +
- mA SIMULATE, +
VOLTS
COM
INPUT
OUTPUT (30V MAX)
V
30V
MAX 30V MAX 30V MAX
V
mV mA
%
Press to scroll
up/down 0.001 mA.
Hold down to scroll
faster.
Press to step up/down
4 mA (25%)
Press so that
OUTPUT is on
the display.
OUTPUT
Press to toggle
mA and % of
4-20 mA scale
mA
%
it04i.eps

715 English Instruction Sheet
Page 8
Simulating a Transmitter
Use simulate mode when an external 24 to 30 V loop power
supply is available.
Insert the test leads into the mA SIMULATE −and +jacks as
shown below.
COM
V
mV mA
%
Power
supply
30V dc
max.
Press to scroll
up/down 0.001 mA.
Hold down to scroll
faster.
Press to step
up/down 4 mA (25%)
Press so that
OUTPUT is on
the display
OUTPUT Press to toggle
mA and % of
4-20 mA scale
mA
%
it05i.eps

715 English Instruction Sheet
Page 9
Maintenance
For maintenance procedures not described in this sheet, contact
a Fluke Service Center.
In Case of Difficulty
•Check the battery, fuses, and test leads. Replace as
necessary.
•Review this sheet to make sure you are using the correct
jacks and pushbuttons.
If the calibrator needs repair, contact a Fluke Service Center. If
the calibrator is under warranty, see the warranty statement
below for terms. If the warranty has lapsed, the calibrator will be
repaired and returned for a fixed fee. Contact a Fluke Service
Center for information and price.

715 English Instruction Sheet
Page 10
Cleaning
Periodically wipe the case with a damp cloth and detergent; do
not use abrasives or solvents.
Calibration
Calibrate your calibrator once a year to ensure that it performs
according to its specifications. A calibration manual is available
(PN 686540). Call 1-800-526-4731 from the USA and Canada. In
other countries, contact a Fluke Service Center.

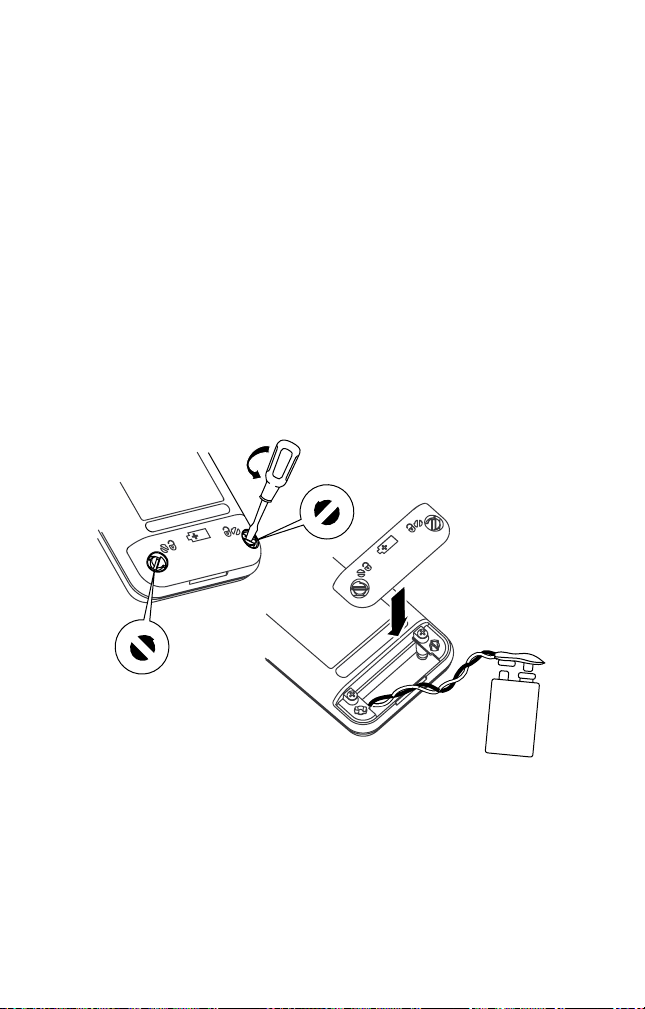

Replacing the Battery
WWarning
To avoid false readings, which could lead to
possible electric shock or personal injury, replace
the battery as soon as the battery indicator (B)
appears.
it07i.eps

715 English Instruction Sheet
Page 11
Replacing a Fuse
!Warning
To avoid personal injury or damage to the
calibrator, use only a 0.125A 250 V fast fuse,
Littelfuse®2AG.
Fuse F1 is probably blown if:
•in the mA input mode, the calibrator always reads 0.000,
even with a signal applied.
•in the mA output mode, with a short across the mA OUTPUT
jacks, OL is flashing on the display.
Fuse F2 is probably blown if:
•in the V output mode, with the test leads removed from the
calibrator, the display flashes OL.
•in the V input mode, the calibrator always displays OL, even
with a signal applied that is within the measurement range.

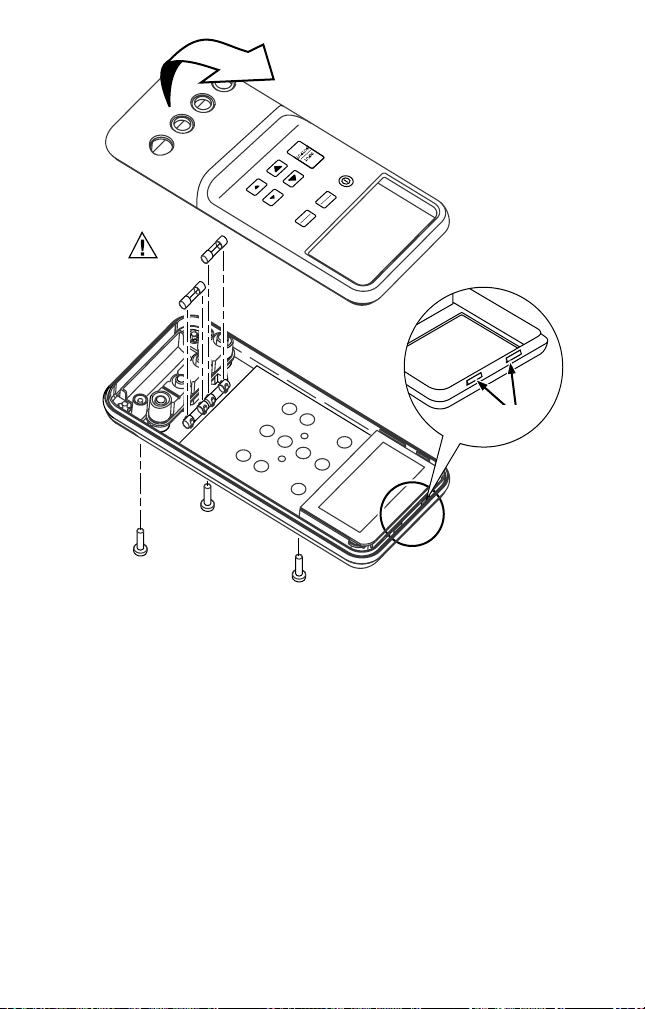

Replace a fuse as follows:
1. Remove the test leads and turn the calibrator off.
2. Remove the battery door.
3. Remove the three Phillips-head screws from the case
bottom and turn the case over.
4. Gently lift the top cover from the end nearest the input/output
jacks until it unsnaps from the bottom cover.
5. Replace the blown fuse with a 0.125 A 250 V fast fuse,
Littelfuse®2AG. Fuses F1 and F2 are the same type.
6. Fit the top and bottom covers together, engaging the two
snaps. Make sure that the gasket is properly seated.
Reinstall the three screws.
7. Replace the battery door.

715 English Instruction Sheet
Page 12
F1
F2
V
mV mA
%
Snaps
it08i.eps

715 English Instruction Sheet
Page 13
Replacement Parts and Accessories
Replacement Parts
Item Description PN or
Model
no.
Qty.
BT1 9V battery, ANSI/NEDA 1604A or
IEC 6LR61 614487 1
CG81Y Holster, Yellow CG81Y 1
!
F1, F2 Fuse, 125 mA, 250 V fast 686527 1
MP85 Case top 620200 1
MP86 Case bottom 620168 1
H2, 3, 4 Case screw 832246 3
MP89, 90 Non-skid foot 824466 2
MP8 O-ring for input/output receptacle 831933 1
MP92 Battery door 619947 1
H5, 6 Battery door fasteners 948609 2
S1 Keypad 687100 1
TL75 Test lead set TL75 1
- Instruction sheet 650314 1
AC70A Alligator clips AC70A 1
TL20 Industrial test lead set TL20 Option
- 71X Calibration Manual 686540 Option

715 English Instruction Sheet
Page 14
F2 F1
MP8
H2, 3, 4
AC70A
Alligator Clips
BT1
H5, 6
MP85
MP86
Holster
S1
MP92
Instruction
Sheet
TL75
Test Lead Set
MP89, 90
V
mV mA
%
it10c.eps

715 English Instruction Sheet
Page 15
Specifications
Specifications are based on a one year calibration cycle and
apply from +18°C to +28°C unless stated otherwise. “Counts”
means number of increments or decrements of the least
significant digit.
DC V Input and Output
Range Resolution Accuracy,
±(% of Reading + Counts)
100 mV 0.01 mV 0.02% + 2
10 V 0.001 V 0.02% + 2
Input impedance: 2 M Ω (nominal), < 100 pF
Overvoltage protection: 30 V
Voltage drive capability: 1 mA
DC mA Input
Range Resolution Accuracy,
±(% of Reading + Counts)
24 mA 0.001 mA 0.015% + 2
Overload protection: 125 mA, 250 V fast acting fuse
DC mA Output
Range: 0 mA to 24 mA
Percent display: 0% = 4 mA, 100% = 20 mA
Accuracy: ±(0.015% of reading + 2 counts)
Source mode:
Compliance: 1000 Ωat 20 mA for battery voltage ≥6.8 V (700 Ω
at 20 mA for battery voltage 5.8 to 6.8 V)
Simulate mode:
External loop voltage requirement: 24 V nominal, 30 V maximum,
12 V minimum
Loop Power
24 V ±10%

715 English Instruction Sheet
Page 16
General Specifications
Maximum voltage applied between any jack and earth
ground or between any two jacks: 30 V
Storage temperature: -40°C to 60°C
Operating temperature: -10°C to 55°C
Operating altitude: 3000 meters maximum
Temperature coefficient: ±0.005% of range per °C for the
temperature ranges -10 to 18°C and 28 to 55°C
Relative humidity: 95% up to 30°C, 75% up to 40°C, 45% up to
50°C, and 35% up to 55°C
Vibration: Random 2 g, 5 to 500 Hz
Shock: 1 meter drop test
Safety: Certified as compliant to CAN/CSA C22.2 No.
1010.1:1992. Complies with ANSI/ISA S82.01-1994.
Power requirements: Single 9 V battery (ANSI/NEDA 1604A or
IEC 6LR61)
Size: 32 mm H x 87 mm W x 187 mm L (1.25 in H x 3.41 in W x
7.35 in L);
With holster and Flex-Stand: 52 mm H x 98 mm W x 201 mm L
(2.06 in H x 3.86 in W x 7.93 in L)
Weight: 349 g (12.3 oz);
With holster and Flex-Stand: 601 g (21.2 oz)

715 English Instruction Sheet
Page 17
LIMITED WARRANTY & LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship
for three years from the date of purchase. This warranty does not cover
fuses, disposable batteries or damage from accident, neglect, misuse or
abnormal conditions of operation or handling. Resellers are not
authorized to extend any other warranty on Fluke’s behalf. To obtain
service during the warranty period, send your defective calibrator to the
nearest Fluke Authorized Service Center with a description of the
problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limitation of an implied
warranty or of incidental or consequential damages, this limitation of
liability may not apply to you.
Back to the Fluke 715 Product Info Page
Visit us at www.TestEquipmentDepot.com
Test Equipment Depot
99 Washington Street
Melrose, MA 02176-6024
www.testequipmentdepot.com
800-517-8431
781-665-0780 FAX
