Safety first, WWW! (Who, Where and When can fly it)
The "TRIKE FLASH CRUISER" with Powered Para Gliding (PPG) is the most exciting, least
expensive, safest and most accessible form of aviation available! However, it is still
aviation, and brings with it all the potential inherent dangers of aviation, which is why it
is imperative that prior to flying with this Para Trike it is necessary to receive adequate
training from qualified instructors and obtain a valid PPG license, then give at the Para
Trike the attention that all the aviation deserves, to respect the norms, the weather
conditions and to realize that in the end, it is the same pilot who is fully responsible for
his own safety and for the safety of fellow pilots and bystanders.
Depending on each national regulation, the Para Trike can only be used in authorized
areas and flights within the controlled airspace usually require an authorization issued
by radio, furthermore additional requirements such as a valid insurance must be met.
Due to the risks inherent in flying any Para Trike, no warranty of any kind can be made
against equipment failure, accidents and even fatal injuries.
This TRIKE FLASH CRUISER is not covered by product liability insurance.
Do not start it or fly it unless you are willing to assume all risks inherent in the sport of
Powered Paragliding and all responsibility for any property damage, injury, or death
which may result from the use of this product.
Notation Used
Certain special terms (NOTE, CAUTION, WARNING) will be used throughout this manual.
Their usage is defined below.
A NOTE provides supplemental information to help clarify a point being made in the
text. Generally, a NOTE is provided to help assembly, use, or maintenance of the
product.
Disregarding a NOTE could cause inconvenience, but would not cause damage or
personal injury.
A CAUTION provides supplemental information to help clarify an area where equipment
damage could occur. Disregarding a CAUTION could result in permanent and significant
mechanical damage, however personal injury is unlikely.
A WARNING provides supplemental information to help clarify an area where personal
injury or even death could occur from negligence. Disregarding a WARNING could result
in serious injury or even death.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
4
Congratulations on Your New “TRIKE FLASH CRUISER”
FLY PRODUCTS presents this lightweight paramotor Trike whose main feature is its great
versatility and easy disassembly and assembly
The FLASH CRUISER is designed to mount the RAIDER (DOUBLE RIM) paramotor series
and, by appropriately drilling the support as indicated below, it also allows the
installation of other paramotor models, preferably double rim.
OVERALL DIMENSIONS
TRIKE FLASH CRUISER IN THE STANDARD VERSION
AVAILABLE OPTIONALS:
oKit tandem x cradle and fork
oKit additional tank 16 Lt.
oComfort pilot harness
oLight passenger harness
oEmergency parachute
oTake-off assist rod
oInstrument dashboard
oTachometer/hour meter
oDigital altimeter

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
5
Drilling of the motor support
If the trike is required to mount a certain type of engine, we provide for the factory
preparation for drilling and preparation for the indicated motor housing.
To allow the purchaser to mount a different motor model, always preferably a double
circle, we omit the drilling of the frame and it is therefore necessary to proceed initially
with this operation as follows:
Necessary tools to operate:
-Drill
-Metal drill points mm Ø 8 - Ø 10 - Ø 12
-Hammer
-Rivet Ø 3 mm + riveter
The motor support column is supplied already pre-drilled based on the “STANDARD”
engine guard models, insert it in the special support until the holes of the desired size
mate and lock them with the riveting tool with a 3 mm rivet.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
6
At this point you can proceed to the side drilling to insert the special through pin,
thickened by the two teflon washers, to lock everything with the butterfly bolt.
NOTE:
Proceed with drilling by steps:
1 - Drill one side at a time with a
metal drill bit Ø 8
2 - Enlarge the hole
one side at a time
with a metal drill bit Ø 10
3 - Enlarge the hole
one side at a time
with a metal drill bit Ø 12
Side drill purpose is to fit there a through-pin, with two reinforcement washers, to
prevent crushing the tube when the upper cradle will lock in that point.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
7
Mounting / Setting of lower supports
To mount the paramotor onto the Trike, once it is hooked to the motor support, it is

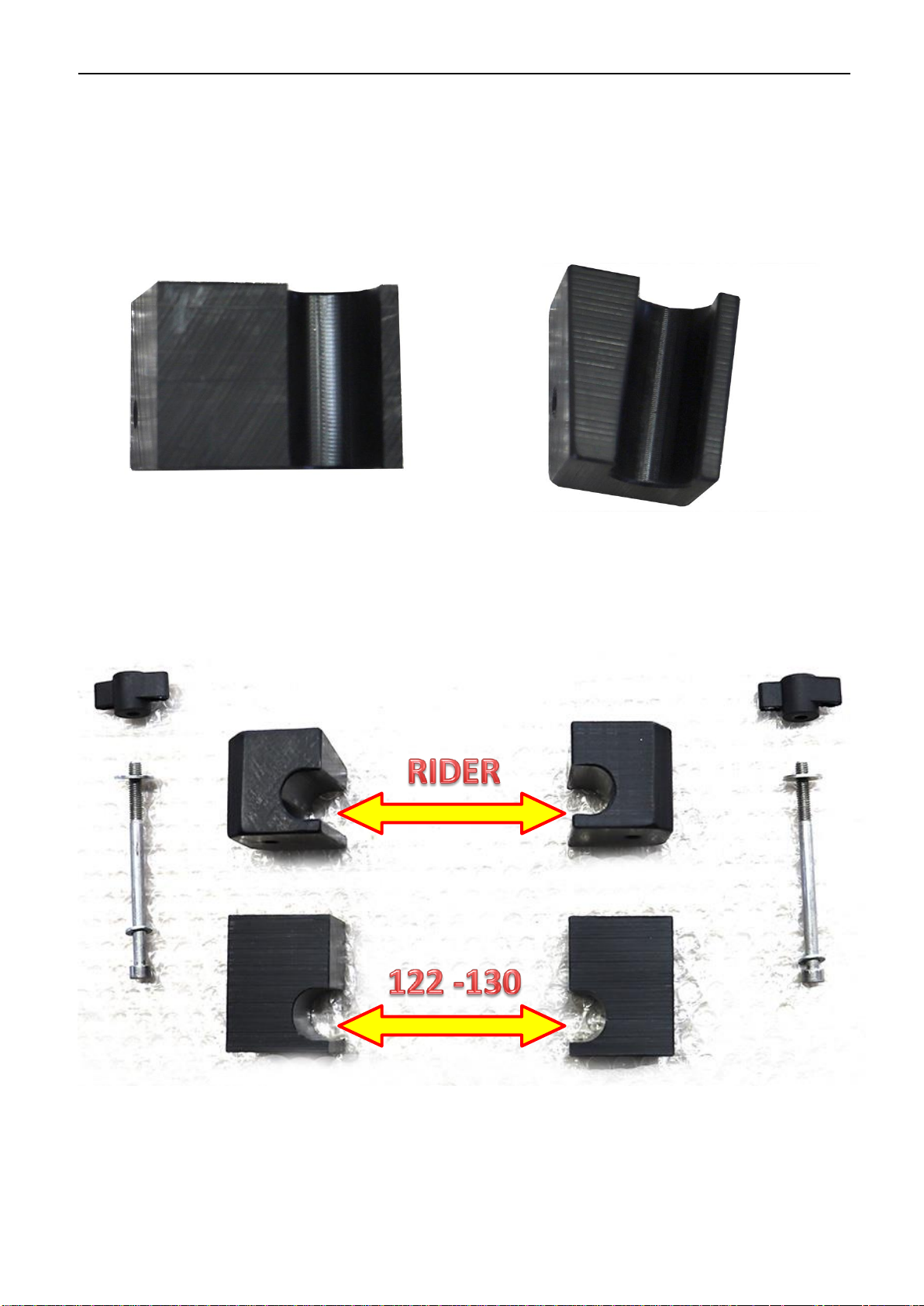

necessary to fix the two teflon supports which are of two sizes:
Support pair for paramotor
standard 122 –130
Support pair for paramotor
RIDER

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
8

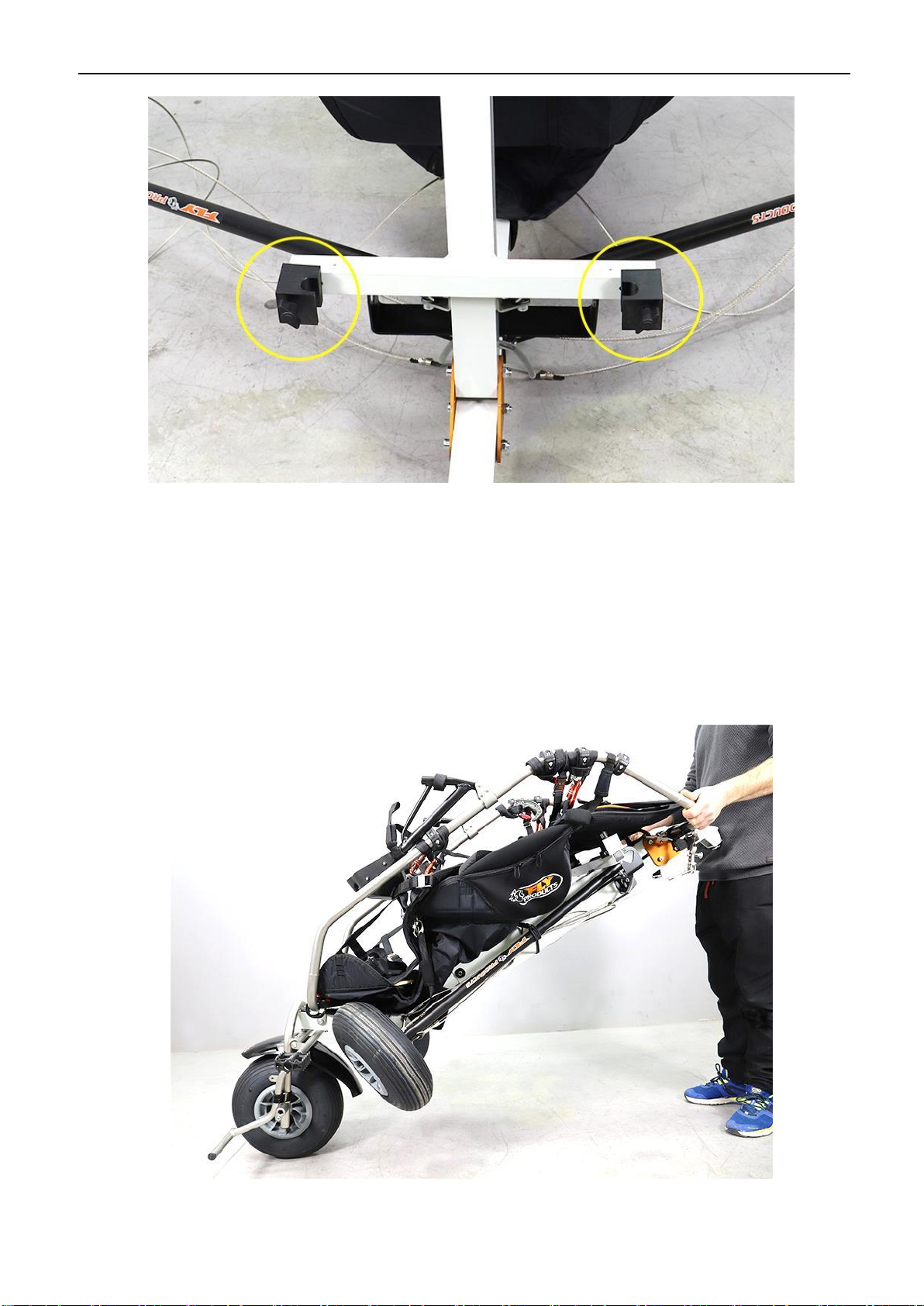

To speed up the assembly and disassembly of the paramotor you can operate on only
one of the two supports leaving the other one always mounted.
ASSEMBLING “TRIKE FLASH CRUISER”
To facilitate storage and transport, the TRIKE FLASH CRUISER can be folded to the
minimum size.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
9
Assembly instructions:

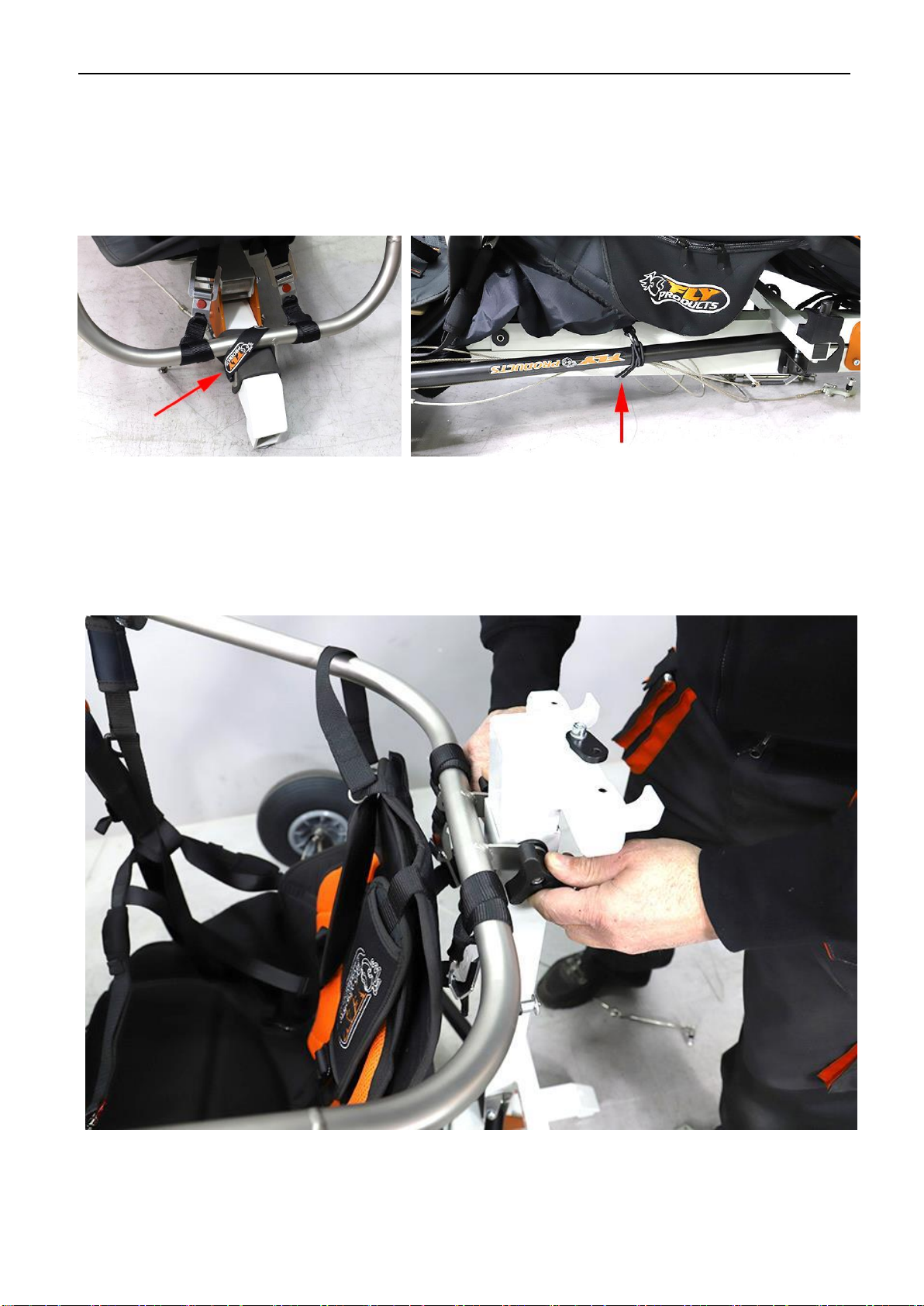

To assemble the trike, start by releasing it from the straps applied after folding:
Then lift the cradle and raise the paramotor's coupling support in a vertical position, join
the cradle to the support using the special butterfly screw:

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
10

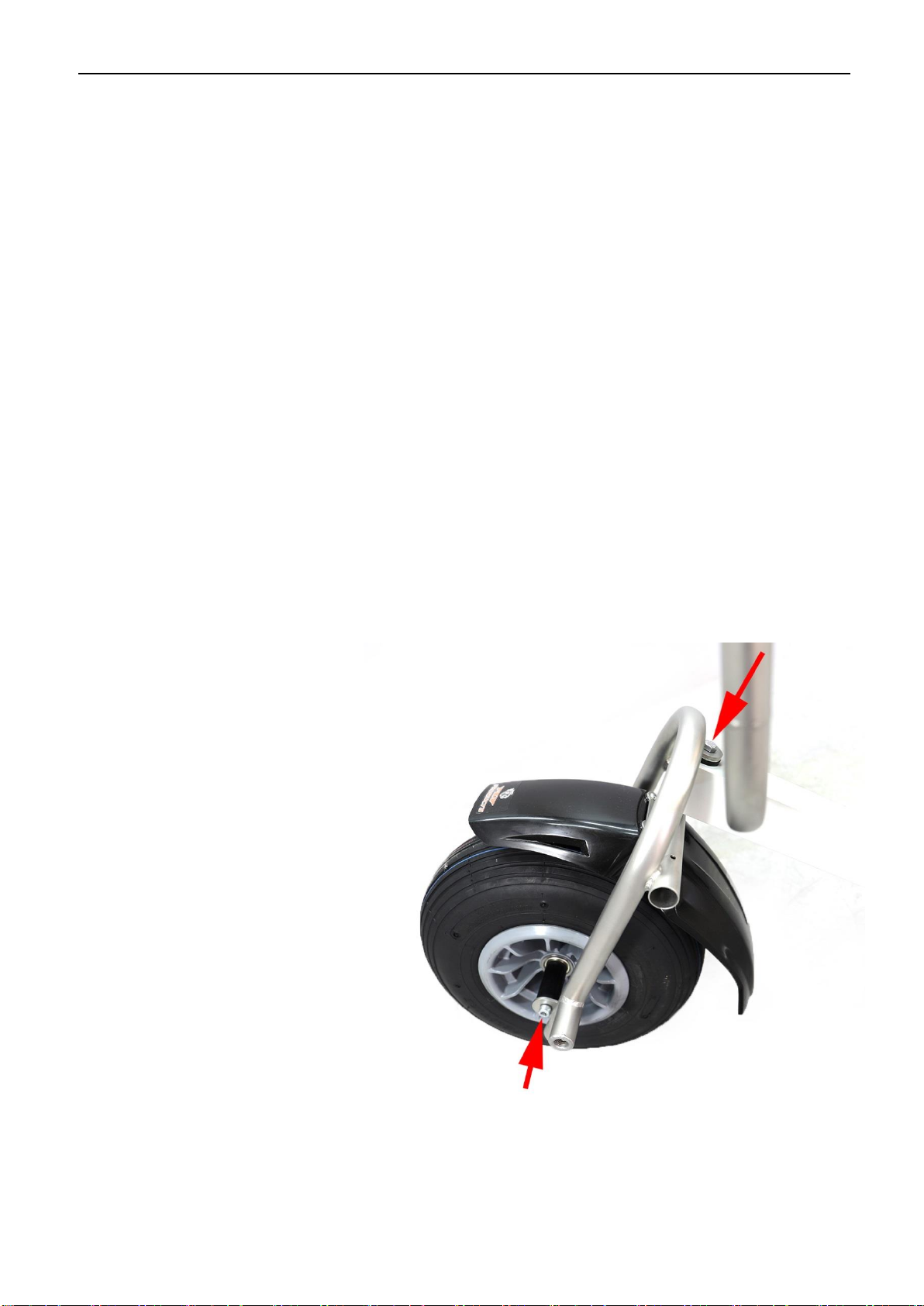

To put the wheels in position after opening them, we suggest that you lay the two
pulling cables back, place your feet on them to lock them and push the trike forward
until the wheels are in position:
Lock the wheels in place using the lower tie-rod with the elastic:

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
11
Hook the upper tie rods of the wheels to lock the motor support and the cradle:
Additional fuel tank (optional):
If the optional extra tank is present and you want to use it (we remind you that it is
possible ONLY for single flights), assemble the tank support (if removed) and house the
fuel tank by locking it with the appropriate strap:
Start with the right
rod locking it with
the push-pin and
then hook the left
tie-bar tightening
the lever until the
holes to be fitted
match the push-pin

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
12
Take-off assistance with or without dashboard (optional):
If the “take-off assistance option”is present, simply turn it to the vertical position and
then lock it with the special velcro straps:
Harness attachment points:
For the pilot, the harness of its own paramotor can be used with its own carabiners, or
the special harness can be mounted (optional), very light and ergonomic .It's also
available the optional for passenger's light harness.
Fix the saddles in the points as indicated:

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
13
Position the supplied special supports on the rim to hold up the paraglider's lines:
THIS COMPLETE THE ASSEMBLY OF THE TRIKE FLASH CRUISER
CHECK YOUR WORK BEFORE GOING FORWARD.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
14
SINGLE OR TANDEM VERSION
Transforming the TRIKE FLASH CRUISER from the single version to the double version is
very simple, just move the attachment positions of the harness carabiners and then
mount the second harness in the preset attachment positions.
SINGLE VERSION:
For the single-seat configuration, the plastic rings for the loops are set in the

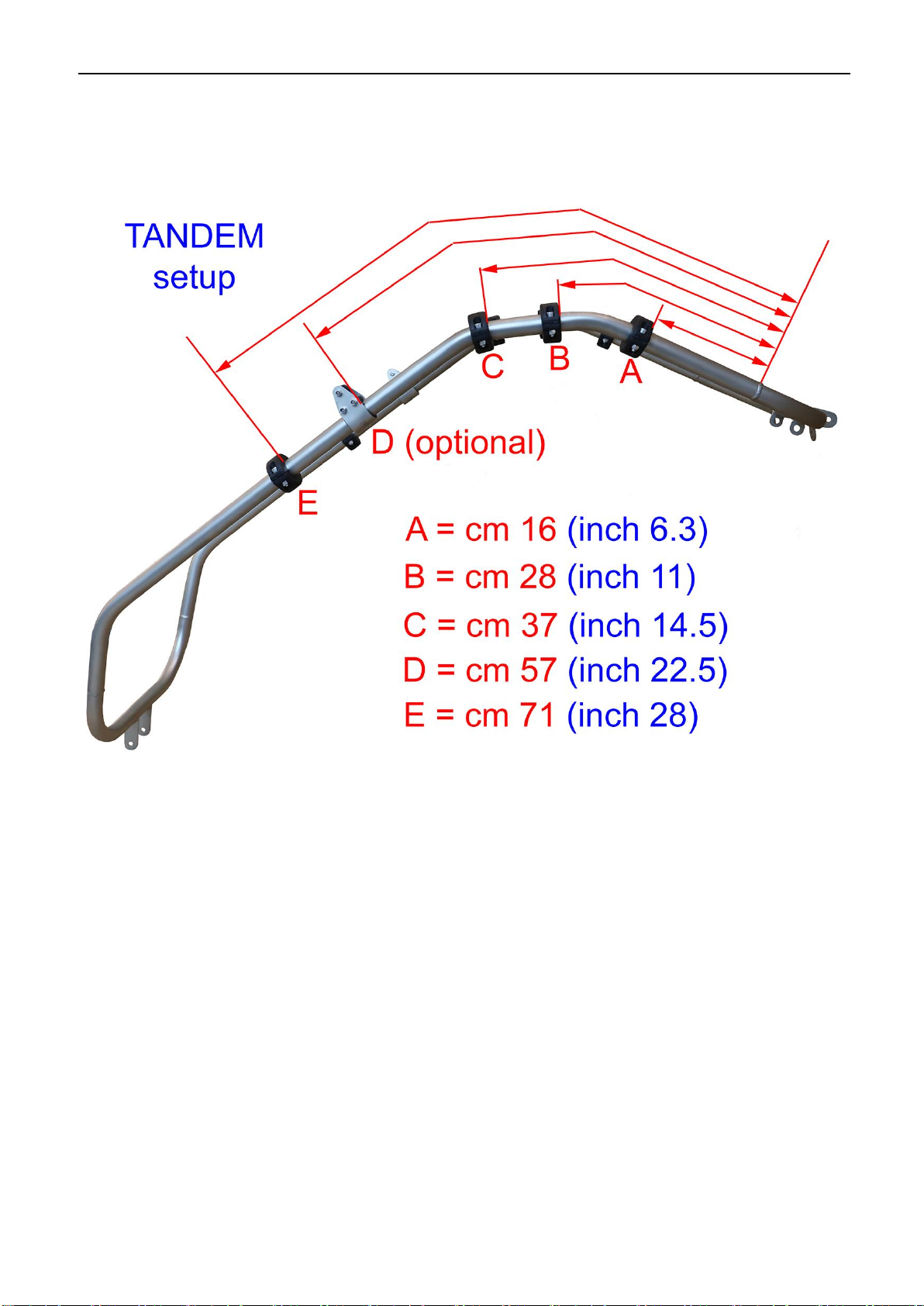

measurements shown in the figure and their function is as follows:
A= Hook for the paramotor cage tie strap
B= Hook for the paraglider
C= Hook for the harness
D= Hook for mounting take-off assistance (optional)

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
15
TWO-SEAT VERSION:
For the DOUBLE-SEAT configuration, the plastic rings for the loops are set in the
measurements shown in the figure and their function is as follows:
A= Hook for the paramotor cage tie strap
B= Hook for the PILOT harness
C= Hook for the paraglider
D= Hook for mounting take-off assistance (optional)
E= Hook for the PASSENGER harness

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
16
Example of setting in full optional MONO configuration:
Example of setting in full optional TANDEM configuration:

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
17
ASSEMBLY CHECK
It is essential to completely inspect the assembly of the FLASH TRIKE CRUISER to find and
resolve any potential problems before proceeding.
The inspection should cover the following elements:
Review each step of the assembly described above.
Examine all nuts, bolts and fasteners for safety.
Check that the harness is correctly fitted, that all the
straps are fixed, that there are no twists on any belt.
Examine the propeller cage and make sure it is secure and that the net is
correctly tensioned.
Check that the propeller turns freely at the same distance from the cage
in all points and that nothing can enter its range of action.
Check the fuel tank and the fuel supply system.
Check the correct installation of the propeller and the fixing of the
relative bolts.
PREPARATION FOR THE FIRST FLIGHT
The FLASH TRIKE CRUISER can mount different types of engine, it is necessary to follow
the procedures described in the installed paramotor's manual BEFORE TAKING OFF.
WE SUMMARY UPON THE MAIN POINTS.
WARNING! Use common sense when refueling. Do not refuel a hot or running engine,
do not smoke or allow on-lookers to smoke while refueling. Do not refuel near heat or
open flame.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
18
PRE-FLIGHT INSPECTION
Before your first flight, and before every flight, it is absolutely essential to perform a pre-
flight inspection on your aircraft.
WARNING! Failure to perform a sufficient pre-flight has been a contributing factor to
accidents in all kinds of aircraft. Equipment damage, bodily injury, even death can occur
due to equipment problems not caught in a pre-flight inspection.
As the saying goes, “Pre-flight as if your life depends on it, because it does!”
The essential items to check are:
TRIKE - All the wires well tensioned and tension rods tighten with nuts locked
- Check all the Velcro straps and all blockings.
PARAGLIDER –Check the lines and canopy integrity.
ENGINE - Silent-block integrity , muffler stability and integrity
- Gasoline mixture level.
PROPELLER –Blades integrity, bolts clamping.
RECOVERY SYSTEM (if installed) –ready and safety catch off.
HANG POINT OF PARAGLIDER –single seat or double seat
TAKE-OFF ASSISTANCE SYSTEM (if installed) –correct belts hooking
WARNING! If after having flown with only the paramotor, install it on the trike and use
the same wing, it is important to check the length of the brake lines which must be
lengthened by an average of at least 20 cm (8 inches).
NOTE! - An example of a pre-flight checklist is provided below for guidance only,
FLY PRODUCTS is not responsible for its use or for its completeness.
IT IS HIGHLY RECOMMENDED TO USE AN EXAMPLE OR TO CREATE A CUSTOMIZED
ONE, PRINT IT, PLASTIFY IT AND USE IT EVERY TIME YOU FLY.

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
19
Pre-Flight Checklist Example:
Site conditions
Current weather
Long-range (next few hours) forecast
Winds aloft
Takeoff/landing direction
Obstructions (especially Power lines)
Trike
Wheels well inflated and fixed
Wires well tensioned and tension rods locked
Webbing and straps for stress
Recovery system (if installed) ready and safety catch off
Prop Guard for alignment/stress/wear
All fasteners tight
Carabiners condition
Radio secured
Sufficient fuel
Paragliding
Lay wing out into wind (where is possible)
Lines straight and clear
Quick-links tight
Brake lines length if the wing was used before just in paramotor only
Take-off assist (if installed) well hooked
Hang point of paraglider for single seat or double seat
Strap In, Hook Up
Buckles secure and carabiners locked
Chest strap tight
Harness adjusted properly
Nothing loose to get in propeller
Radio for volume, clearness
Helmet on, tight, fastened

TRIKE FLASH CRUISER - USER MANUAL REL . 2.09-ENG
___________________________________________________________________________
© Copyright by FLY Products s.r.l. Page
20
MAINTENANCE
Regular checks
It is good practice to periodically carry out a thorough check, especially of the parts
subject to wear, at least once a year or after about 50 hours of flight!
The same goes for paraglider, in most cases the manufacturer recommends a periodic
revision or after a certain number of hours of use and exposure to sunlight.
Ordinary maintenance
Even if the TRIKE FLASH CRUISER don’t need important maintenance, we suggest to
proceed every 50 hours of use to an accurate inspection of following items:
- FORK PIN AND FRONT WHEEL PIN
Check the wear and oxidation
conditions of the fork pin and
the front wheel axle, if they
are not in good condition, do
not hesitate, replace them
immediately!
Check the tightening of the
bolts and tighten them if
necessary.
