FMS EMGZ309 User manual

Operating Manual
EMGZ309._.EIP
Tension Measuring Amplifier with EtherNET/IP Interface
Version 2.15 12/2018 NS
Firmware Version V2.20EIP
Diese Bedienungsanleitung ist auch in Deutsch erhältlich.
Bitte kontaktieren Sie Ihre nächstgelegene FMS Vertretung.
© by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.

Operation Manual EMGZ 309.EIP
20.12.2018 2
Table of contents
1 Safety Instructions ..................................................................................... 4
1.1 Description conditions 4
1.2 List of safety instructions 4
2 Product Description ................................................................................... 4
2.1 Product Range 4
2.2 Block Diagram 5
2.3 System Description EMGZ309 5
2.4 System Description EMGZ309._.EIP 6
3 Quick Installation Guide ............................................................................ 7
3.1 Preparations for Set-up 7
3.2 Installation Procedure 7
3.3 Installation and Wiring 7
3.4 Mounting the Force Sensors 8
3.5 Wiring the Amplifier 8
4 Configuring the Amplifier ........................................................................ 10
4.1 Power up the EMGZ 309._.EIP 10
4.2 Operating Panel 10
4.3 Change the Measuring Units 11
4.4 Change the Device Mode 11
4.5 Offset Compensation 11
4.6 Offset Compensation over the Operating Panel 11
4.7 Calibration 12
4.8 Calibration over the Operating Panel 13
4.9 Analytic Calibration Method 13
5 Network Connection over EtherNet/IP .................................................. 16
5.1 EtherNet/IP Specification: 16
5.2 Amplifier Functionality over EtherNet/IP 16
5.3 Integration of EMGZ309._.EIP in an Ethernet Network 16
5.4 Configuration of the Amplifier via EtherNet/IP 16
5.5 Calibration over EtherNet/IP 17
6 Integration in an Allen-Bradley PLC ....................................................... 17
6.1 Hardware Environment 17
6.2 IP Configuration 18
6.3 Integration in a Project 18
6.4 Access to the Tension Values 22
7 Operation .................................................................................................. 23
7.1 Operating the EMGZ309 via the operating panel 23
7.2 Display Value Selection State 23
7.3 Displaying of Overload, Over and Underflow 24
8 Parametrization via the operating panel .............................................. 25
8.1 Reset to Default Parameter Set 25
8.2 Parameter List 25
8.3 Description of Parameters 26

Operation Manual EMGZ 309.EIP
20.12.2018 3
9 Parameter Setting via a PC .................................................................... 32
9.1 Parameterization in an Ethernet Network via Web Browser 32
9.2 Offsetkompensation via the web browser 35
9.3 Calibration via the web browser 35
9.4 Connecting the EMGZ309 Amplifier with a PC (Peer-to-Peer) 37
10 Dimensions ............................................................................................... 41
11 Technical Specification ........................................................................... 43

Operation Manual EMGZ 309.EIP
20.12.2018 4
1 Safety Instructions
1.1 Description conditions
a) High danger of health injury or loss of life
Danger
This symbol refers to high risk for persons to get health injury or loss of life. It has
to be followed strictly.
b) Risk of damage of machines
Caution
This symbol refers to informations, that, if ignored, could cause heavy mecanical
damage. This warning has to be followed absolutely.
c) Note for proper function
Note
This symbol refers to an important information about proper use. If not followed,
malfunction can be the result.
1.2 List of safety instructions
Proper function of the Tension Measuring Amplifier is only guaranteed with the
recommended application of the components. In case of other arrangement,
heavy malfunction can be the result. Therefore, the installation instructions on the
following pages must be followed strictly.
Local installation regulations are to preserve safety of electric equipment. They
are not taken into consideration by this operating manual. However, they have to
be followed strictly.
Bad earth connection may cause electric shock to persons, malfunction of the
total system or damage of the electronic unit! It is vital to ensure that proper
earth connection is done.
Improper handling of the electronic boards may cause damage to the fragile
equipment! Don’t use rough tools such as screwdrivers or pliers! Operators
handling the electronic boards must wear a well earthed bracelet in order to
discharge static electricity.
2 Product Description
2.1 Product Range
The tension measuring amplifier series EMGZ309 is available in two versions:

Operation Manual EMGZ 309.EIP
20.12.2018 5
• EMGZ309._ with standard analogue outputs
• EMGZ309._.EIP with analogue outputs and integrated EtherNet/IP interface
Both versions are available in three different housing / mounting options:
• EMGZ309.R rail mount housing
• EMGZ309.S panel mount housing
• EMGZ309.W wall mount housing
For mechanical dimensions refer to charter 10.
2.2 Block Diagram
Fig. 1: Block diagram EMGZ309 Tension Measuring Amplifier E309011e
2.3 System Description EMGZ309
The digital tension measuring amplifiers EMGZ309 are suitable for tension
measurement with all FMS force sensors. The amplifier can handle 1 or 2 force
sensors. Three different analogue output modes can be selected (0…20mA,
4…20mA or 0…10 VDC). As a plug & play unit the setup through the operating
panel is straightforward and quickly accomplished. Alternatively, more advanced
users can access all the internal parameters through a laptop or local PC via a web
browser. That allows a fine tuning of the amplifier even to the most demanding
system requirements.

Operation Manual EMGZ 309.EIP
20.12.2018 6
Fig. 2: System Configuration EMGZ309 Amplifier using the analogue output
E309019e
2.4 System Description EMGZ309._.EIP
The amplifier EMGZ321._.EIP offers in addition to his standard features the
possibility to be used as an EtherNet/IP device in a corresponding network.
EtherNet/IP bases on the Ethernet TCP/IP and the UDP technology as well as on
the CIP (Common Industrial Protocol). The amplifier can be embedded in a
standard Ethernet infrastructure. The EMGZ309.EIP offers a EtherNET/IP data
transfer rate with ≥2ms. It allows the measurement of web tension and its
transmission over Ethernet to a controller in real time. Configuration of the
amplifier takes place either over the EtherNet/IP, a web browser or over the
operating panel.
Fig. 3: System Configuration EMGZ309.EIP integrated in EtherNet network E309020e

Operation Manual EMGZ 309.EIP
20.12.2018 7
3 Quick Installation Guide
In a Plug & Play configuration the set-up of the EMGZ309 and force sensor is limited
to only the offset compensation and the calibration.
3.1 Preparations for Set-up
1. Read the Operation Manual of your force measuring sensors
2. Check your requirements such as:
– Display unit of nominal force
– additional output configuration 0…10V or 0/4… 20mA on display
3. Draw the wiring diagram for your configuration (ref. to 3.5 “Wiring the Amplifier“)
4. If required, determine special parameters (ref. to 8.2 “Parameter List”)
3.2 Installation Procedure
1. Mount your force maesuring sensors to the machine frame
2. Wire the Force Measuring Sensor(s) (ref. to Fig. 4)
3. Connect the amplifier to the power supply. The power supply voltage must be in
the range 18 to 36V DC.
4. Perform offset compensation and calibration (ref. to chapter 4.5 to 4.9)
5. If required, do additional settings (ref. to 8“ Parameterization over Operating
Panel”)
6. Integration of amplifier in an Ethernet network and PLC (see chapters 5.3 and 6)
3.3 Installation and Wiring
Caution
In order to improve the natural convection and keep the temperature of the
amplifiers that are mounted in a cabinet, to a minimum, a distance of at least
15mm (0.6”) between the devices must be kept.

Operation Manual EMGZ 309.EIP
20.12.2018 8
Caution
Proper function of the Tension Measuring Amplifier is only guaranteed with the
recommended application of the components. In case of other arrangement, heavy
malfunction can be the result. Therefore, the installation instructions on the
following pages must be followed strictly.
Caution
Local installation regulations are to preserve safety of electric equipment. They are
not taken into consideration by this operating manual. However, they have to be
followed strictly.
3.4 Mounting the Force Sensors
Mounting of the force sensors is done according to the FMS Installation manual
which is delivered together with the force sensors.
3.5 Wiring the Amplifier
One or two force sensors can be connected to the measuring amplifier. When
using two force sensors, the sensors are internally connected in parallel. The
output signal of the measuring amplifier will then correspond to the average value
of the two sensors. The connection between force sensors and measuring
amplifier has to be done using a 2x2x0.25mm2[AWG 23] shielded twisted-pair
cable

Operation Manual EMGZ 309.EIP
20.12.2018 9
Fig. 4: Wiring Diagram EMGZ309.EIP EMGZ_309_BA_Manual.ai
Ethernet connectors EMGZ_309_BA_Manual.ai
Caution
Bad earth ground connection may cause electric shock to persons, malfunction of
the total system or damage of the electronic unit! It is vital to ensure that proper
earth connection is done. The cable must be installed separate from power lines
Note
The shield should be connected only to the electronic unit. On the force sensor side
the shield should stay open.

Operation Manual EMGZ 309.EIP
20.12.2018 10
4 Configuring the Amplifier
The amplifier EMGZ309._.EIP can be configured over the operation panel (chapter
8), over a PC (web interface, chapter 9) or over EtherNet/IP. The basic
configuration is performed over the operation panel.
4.1 Power up the EMGZ 309._.EIP
1. Connect the first force sensor (see Fig. 4 Wiring Diagram EMGZ309)
2. Check whether applying a force in measuring direction (in the direction of the red
point) on the first sensor results in a positive output signal. If not, exchange the
two signal wires of the corresponding force sensor (terminals 12/13).
3. If applicable, connect the second force sensor.
4. Check whether applying a force in measuring direction on the second sensor
results in a positive output signal. If not, exchange the two signal wires of the
corresponding force sensor in the terminal block (terminals 22/23)
4.2 Operating Panel
Fig. 5: Operating Panel EMGZ309.W.EIP E309007e
The keys on the operating panel have the following functions:
Key Key Function
Change the selections or increase / decrease the values
Enter
>0< + PARA Enter Offset Compensation Procedure. Press the two keys at
the same time for longer then 3 sec.
Cal + PARA Enter Calibration Procedure. Press the two keys at the same
time for longer then 3 sec.
PARA Enter the Parameter Setting Mode. Press the key at the
same time for longer then 3 sec.

Operation Manual EMGZ 309.EIP
20.12.2018 11
4.3 Change the Measuring Units
The default tension measuring units is N (Newton). The user can, however, select
another unit before the calibration process. To select the units of measure, follow
the steps below:
1. Hold the PARA key until the display changes to [Dis. Filt]
2. Scroll the menu by pressing the key until the display shows [Unit]
3. Press the and the word [Unit] will start flashing indicating that the unit of
measure can now be changed.
4. With every press of the keys the display will change from N, kN, then
to lb, g, kg.
5. Stop at the desired unit and press the again to confirm the selection.
6. Press the PARA key for longer then 3 sec. to save the setting and return to the
Operating State. Or if no action is taken after 30 seconds, the value will be
stored in the system automatically.
4.4 Change the Device Mode
The EMGZ309 amplifiers have two Device Modes:
● Display of Force Gauge: Tension data are displayed in a force unit
● Display of Voltage Gauge: Tension data are displayed in Volt (V)
1. Go to Parameter Selection Mode (press PARA key longer than 3 sec).
2. Go to Parameter [DevicMod]
3. With the key select desired Device Mode [ForcGaug] or [VoltGaug] and
confirm selection with the key .
Note
Each change of the Device Mode requires a re-calibration of the system (see
chapter 4.8).
4.5 Offset Compensation
With the Offset Compensation you can compensate the roller weight. It is always
performed before the calibration. The Force Measuring Sensor should not be
loaded while the Offset Compensation is being done. There are two possible ways
performing the offset compensation.
A) Offset compensation over the operating panel (see chapter 4.5)
B) Offset compensation via EtherNet or a Web Browser.
For this method proceed to chapter 9.1 (Fig. 23).
4.6 Offset Compensation over the Operating Panel
1. Make sure the measuring roller is unloaded.

Operation Manual EMGZ 309.EIP
20.12.2018 12
2. Press the two keys >0< and PARA at the same time for longer then 3 seconds.
3. The display will show [Offset Complete] when the process is finished (see Fig. 6
State diagram offset compensation).
Fig. 6: State diagram offset compensation EMGZ309014e
4.7 Calibration
By calibrating (setting the Gain), amplifier and
load cells are adjust so that the display gives
the actual tension value. There are two
methods of calibrating the system. The first
method uses a defined weight (see Fig. 7). This
method is the preferred one since it delivers the
most accurate results. The second method is
based on a calculation method in conjunction
with the FMS Calculator. This Calculator can be
down loaded from the FMS web page. Please
consult the factory for this option.
Note
If the Device Mode is set to [VoltGaug], the force corresponding to the calibration
weight must be input in Volt (V) in the following calibration procedure. The
parameters System Force [SysForce] and Force at maximum output [F@OutMax]
won’t be requested (see also chapter 9.3, section B).
Fig. 7: Calibrating the
measuring amplifierC431011e

Operation Manual EMGZ 309.EIP
20.12.2018 13
4.8 Calibration over the Operating Panel
1. Load a rope with a defined weight corresponding to your calibration force on
the roller. The roller configuration must correspond to the real configuration in
the machine (wrap angle, distance of the rollers etc.).
2. The calibration mode can be entered by pressing the two keys Cal and PARA at
the same time for longer than 3 seconds. Display changes to
The System Force [SysForce] determines the measuring
capability of your measuring roller. E.g. if two 500 N sensors are
installed in the measuring roller, enter 1000N. If only one 500N sensor is
used, enter 500N (see 8.3 “Descriptions of Parameter”, [SysForce]).
3. The parameter [SysForce] flashes indicating that the force can now be
changed. Use keys to enter the system force.
4. Press the key to confirm your input. Display will change to
5. Enter the force corresponding to your calibration weight with the
keys.
6. Press the key to confirm your input. Display will change to
7. With the parameter [F@OutMax] the force corresponding to the maximum
amplifier output (10V or 20mA) can be assigned (see 6.3 “Descriptions of
Parameter”, [F@MaxOut]). Enter the value with the keys.
8. Press the key to confirm your input. Display will change to
The calibration procedure has been completed successfully.
Fig. 8: State diagram calibration EMGZ309015e
1) The display shows the unit of measure that was previously selected.
3) Permanent key pressing expedites the changing speed.
4) If the Device Mode [VoltGauge] is set, these parameters are deactivated
4.9 Analytic Calibration Method
Determining the gain by means of the FMS-calculator:
SysForce
1000.0 N
Calibra.
1000.0 N
F@OutMax
1000.0 N
Calibra.
Com
p
lete

Operation Manual EMGZ 309.EIP
20.12.2018 14
This method is used when the traditional calibration method with a weight is
difficult or impossible at all due to machine accessibility, weight adequateness etc.
This calculation method requires the FMS-calculator V2.1 or higher.
If necessary download and install FMS-calculator from the FMS homepage at:
http://www.fms-technology.com/en/technical-information.php
Gain-calculation-tool
The gain calculator is an optional feature of the FMS-calculator. It delivers the gain
factor for easy weightless calibration of FMS amplifiers.
1. First, the application related parameters must be entered in the FMS-calculator
e.g. min./max. force values, wrap angle and other sensor specifications. Follow
the instructions of the FMS-calculator manual.
2. Choose the appropriate sensor type.
3. If the sensor evaluation is correct, the gain calculation tool can be started with
a click on the corresponding symbol. The date will be taken over from the
previous input (field (1) Fig. 9). The gain calculation tool will only start-up, if all
data have been entered and the appropriate sensor defined.
4. Choose the amplifier type (field (2) Fig. 9).
5. The calculated gain factor is available in field (3) (see Fig. 9)

Operation Manual EMGZ 309.EIP
20.12.2018 15

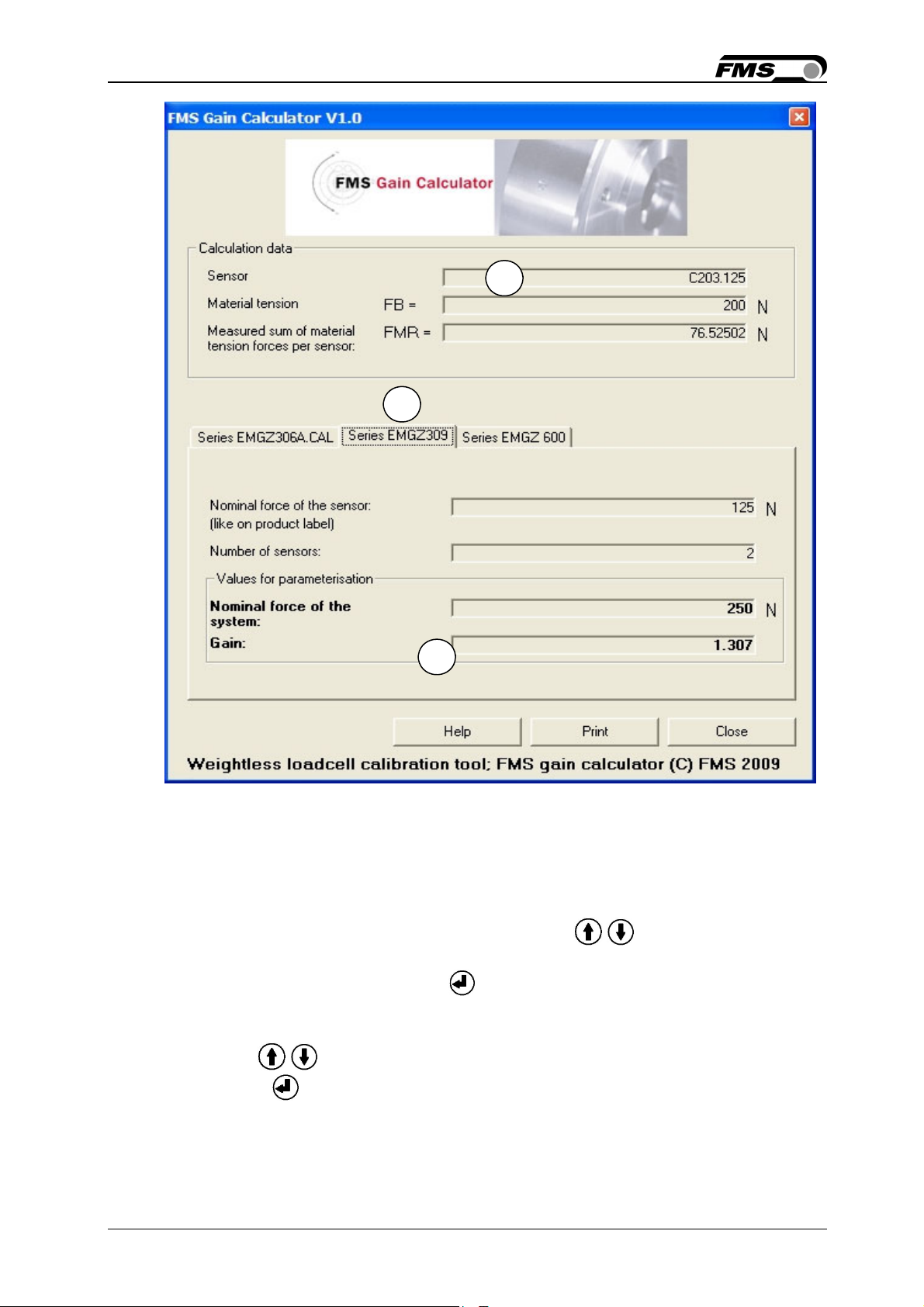

Fig. 9: Gain calculation tool E309_gain_e.jpg
Calibration Procedure:
1. Calculate the gain factor with the FMS-calculator as described.
2. Press the PARA key for longer then 3 seconds to entered the parametrisation
mode.
3. Scroll up or down the parameter menu with the keys until the display
show [Gain].
4. Confirm the parameter with the key
5. The display will start flashing indicating that the gain factor can now be
entered.
6. Use the keys to enter the calculated value.
7. Press the key to confirm the input. Or if no action is taken after 30
seconds, the value will be stored in the system automatically.
1
2
3

Operation Manual EMGZ 309.EIP
20.12.2018 16
5 Network Connection over EtherNet/IP
The amplifier EMGZ309._.EIP is able to communicate with other devices over an
Ethernet network. CIP (Common Industrial Protocol) is used as the protocol for the
data link. The amplifier acts as a so called “Producer” and the machine control (or
PLC) as the “Consumer”.
5.1 EtherNet/IP Specification:
Physical layer: Ethernet IEEE 802.3.
Transport protocol: TCP/IP und UDP
Standard: CIP IEC 61158
Conformity: CPF 2 (Communication Profile Family 2) IEC 61784-1
5.2 Amplifier Functionality over EtherNet/IP
Basically all functions for configuration and calibration can be performed over
EtherNet/IP. Furthermore, the measured tension values are cyclically propagated
over the network and made available to the Consumer (PLC).
5.3 Integration of EMGZ309._.EIP in an Ethernet Network
In order to integrate the amplifier in an Ethernet network and enable data transfer
over it following conditions must be fulfilled:
✔ An EMGZ309 amplifier with the option EtherNet/IP (EIP) must be used.
✔ The IP-Address must be assigned in the fix address block and must be
unambiguously. It may only exist once in the network.
✔ The network mask must correspond with the used device configuration.
If these prerequisites are given, the controller will recognise the amplifier as an
EtherNet/IP device in the network and be able to communicate with it. The
interface information for EMGZ309._.EIP is defined in an EDS-file. The EDS file is
only used as documentation and cannot be imported into RSLogix 5000.
EDS-files for EMGZ309._.EIP can be downloaded from the FMS webpage.
Note
The device does not support the import of the EDS files. The import with
development software e.g. RSLogix5000 will generate error messages.
Utilize “Messages” to change parameter values of the device. Details are explained
in the sample file which is available for download on the FMS website.
5.4 Configuration of the Amplifier via EtherNet/IP
EMGZ309._.EIP may, but need not be configured via EtherNet/IP. The Amplifier
can be configured by means of a machine control unit. This unit is integrated in

Operation Manual EMGZ 309.EIP
20.12.2018 17
the same network. The communication between machine control and amplifier is
carried out with dedicated software (e.g. RSLogix5000 from Rockwell). Please
refer to the operating manual of the controller.
There are three possibilities to configure the EMGZ309._.EIP. If the method over
EtherNet/IP is used, the other two options (operation panel or web interface) are
still possible but not meaningful. The EtherNet/IP method has then always priority
and overwrites any other configurations set by the other two methods.
If the configuration over EtherNet/IP is selected then messages from the PLC to
the EMGZ309 must be used.
How the messages are used is described in the example project.
The example project EMGZ309_EIP_Example_Project_Vx.xx is available for
download on the FMS website.
Note
The configuration of the amplifier via EtherNet/IP must be used as commissioning
procedure. Continuously writing parameters on a cyclic base is not allowed and
will lead to communication problems and reduced the lifetime of the device.
5.5 Calibration over EtherNet/IP
Usually the calibration procedure for amplifier and load cells is carried out at the
commissioning of the machine. The two commands Offset and Calibration are
available for the calibration of the amplifier over EtherNet/IP. From case to case it
is to consider whether a calibration via web interface or operation panel is more
favourable. With difficult accessibility of the amplifier it might make sense to do
the calibration over EtherNet/IP.
6 Integration in an Allen-Bradley PLC
Following chapters deal with the integration and operation of the EMGZ309._.EIP
amplifier with an Allen-Bradley PLC. The project software RSLogix5000 from Allen-
Bradley is required to program the PLC. Furthermore, it is assumed that a
development system with PC and corresponding development software RSLogix
from Rockwell Automation is available and the programmer is familiar with these
tools..
6.1 Hardware Environment
The EMGZ309._.EIP must be connected to an Ethernet switch which in turn is in
the same network as the PLC. Only in this way a communication between
amplifier and PLC can take place. Several EMGZ309._.EIP amplifiers or other
ErtherNet/IP devices can be connected to the same network.
.

Operation Manual EMGZ 309.EIP
20.12.2018 18
6.2 IP Configuration
In an industrial environment the IP addresses are normally assigned fix to the EIP
devices. This holds also for the EMGZ309._.EIP amplifier that needs a fix IP
address in the network. The IP address configuration must take place before the
amplifier is integrated in a network. This is done over the operation panel or over
the web interface.
The procedures are described in the state diagrams chapter 8 (Fig. 18; 19) and
chapter 9 (Fig.31)
6.3 Integration in a Project
Before starting the development system RSLogix5000 the PLC and amplifier need
to be connected to the network and powered-up. Now a new project or an existing
project can be opened in RSLogix5000. Search in the tree structure Controller
Organizer for the listing Ethernet and make a right mouse click (see Fig. 10).

Operation Manual EMGZ 309.EIP
20.12.2018 19
In this example CompactLogixL23E-QB1B is used. If a different hardware is used,
one may find the listing Ethernet in another place.However, the principal approach
is always the same. After a right mouse click on Ethernet a dialog window will
open up. Left mouse click on New Module…and a new window will open up (see
Fig.11).
Fig. 10: Controller Organisation E309021

Operation Manual EMGZ 309.EIP
20.12.2018 20
Open plus-sign [+] in front
of Communications to
see all the other listings.
Select ETHERNET-
MODULE Generic
Ethernet Module and
confirm with OK.
Following window opens
up in which the Name
EMGZ309_91, the
Comm Format
Input Data - DINT and the
IP-Address (eg.
192.168.0.91) need to
be entered. On the
Connection Parameters
side the values
Input=100 with Size 5,
Output= 101 and
Configuration= 102 with
Size 48 must be entered.
Confirm with OK
Fig. 11: Module Selection E309022
Fig. 12: : Module Selection open E309023
Fig. 13: New Module E309024
