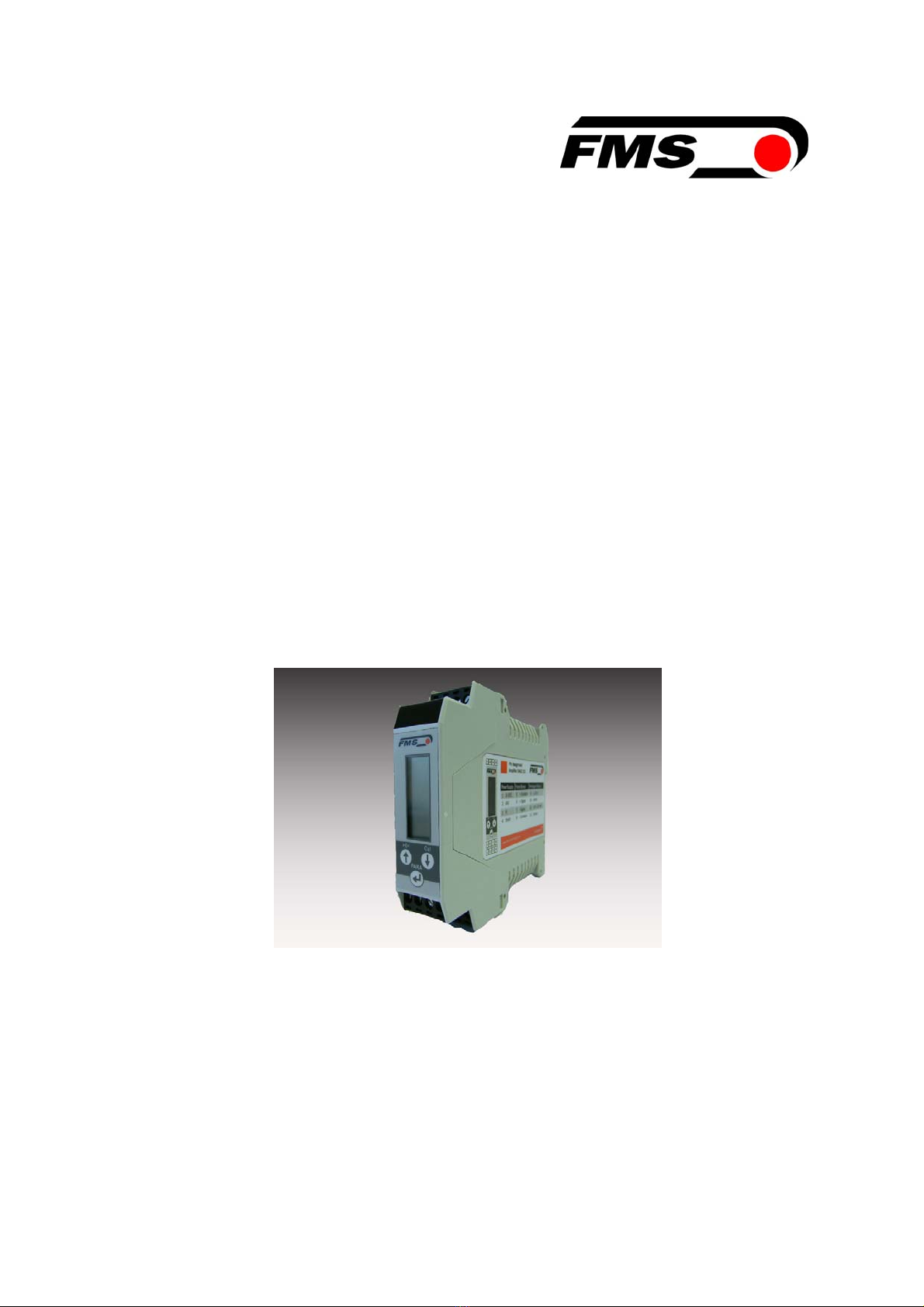

FMS EMGZ310 User manual

Operating Manual
EMGZ310
Digital Microprocessor Controlled Tension Amplifier
EMGZ310.ComACT
Digital Microprocessor Controlled Tension Amplifier
with intuitive operation via FMS ComACTTM app
Version 2.10 10/2016 NS
Firmware Version EMGZ310 V1.14
Firmware Version EMGZ310.ComACT V2.10
This operation manual is also available in German.
Please contact your local FMS representative.
Diese Bedienungsanleitung ist auch in Deutsch erhältlich.
Bitte kontaktieren Sie Ihren nächstgelegen FMS Vertreter.
© by FMS Force Measuring Systems AG, CH-8154 Oberglatt – All rights reserved.

Operating Manual EMGZ310 and EMGZ310.ComACT
28.06.2018 2
Table of contents
1 Safety Instructions ..................................................................................... 3
1.1 Description conditions 3
1.2 List of safety instructions 4
1.3 Regulatory Notices 5
1.4 Notes Réglementaires 6
2 Quick Installation Guide ............................................................................ 7
2.1 Preparations for Set-up 7
2.2 Installation Procedure 7
2.3 Mounting the Force Sensors 7
2.4 Installation and wiring 7
2.5 Block diagram 8
2.6 Wiring the Amplifier 8
2.7 Modify the wiring 9
3 Configuring the Amplifier ....................................................................... 10
3.1 Power up the EMGZ 310 10
3.2 Operating the EMGZ310 over the Operating Panel 10
3.3 Operating Panel 10
3.4 Change the Device Mode 11
3.5 Offset Compensation 11
3.6 Calibration 12
3.7 Calibration Procedure in the Force Gauge Mode 13
3.8 Calibration Procedure in Volt Gauge Mode 14
4 Configuration via operating panel ......................................................... 15
4.1 Reset to Default Parameter Set 17
4.2 Parameter List 18
4.3 Description of Parameters 19
5 Configuration via FMS ComACTTM app .................................................. 22
5.1 Screenshots 23
6 Dimensions .............................................................................................. 24
7 Technical Specification ........................................................................... 25
8 Your Settings ............................................................................................ 26
9 Notes ......................................................................................................... 27

Operating Manual EMGZ 310
28.06.2018 3
1 Safety Instructions
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to the equipment connected to it. If equipment is used in a
manner not specified by the manufacturer, the protection provided by the
equipment may be impaired. Do not stress the equipment over the specification
limits neither during assembly nor operation. To do so can be potentially harmful
to persons or equipment in the event of a fault to the equipment.
1.1 Description conditions
a) High danger of health injury or loss of life
Danger
This symbol refers to high risk for persons to get health injury or loss of life. It has
to be followed strictly.
b) Risk of damage of machines
Caution
This symbol refers to information, that, if ignored, could cause heavy mecanical
damage. This warning has to be followed absolutely.
c) Note for proper function
Note
This symbol refers to an important information about proper use. If not followed,
malfunction can be the result.

Operating Manual EMGZ310 and EMGZ310.ComACT
28.06.2018 4
1.2 List of safety instructions
Proper function of the Tension Measuring Amplifier is only guaranteed with the
recommended application of the components. In case of other arrangement,
heavy malfunction can be the result. Therefore, the installation instructions on
the following pages must be followed strictly.
Local installation regulations are to preserve safety of electric equipment. They
are not taken into consideration by this operating manual. However, they have to
be followed strictly.
Bad earth connection may cause electric shock to persons, malfunction of the
total system or damage of the control unit. It is vital to ensure a proper earth
ground connection.
Each change of the Device Mode requires a re-calibration of the system
Changes or modifications made to this equipment not expressly approved by FMS
AG may void the FCC authorization to operate this equipment.

Operating Manual EMGZ 310
28.06.2018 5
1.3 Regulatory Notices
NOTE:
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, including interference
that may cause undesired operation.
Fig. 1a: FCC labeling on device FCC_Label_EMGZ310ComACT.ai
NOTE:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

Operating Manual EMGZ310 and EMGZ310.ComACT
28.06.2018 6
NOTE:
Changes or modifications made to this equipment not expressly approved by FMS
Force Measuring Systems AG may void the FCC authorization to operate this
equipment.
Radiofrequency radiation exposure Information:
This equipment complies with FCC and IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance of [50] cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
1.4 Notes Réglementaires
NOTE:
Cet équipement est conforme à la section 15 du règlement de la Commission
fédérale américaine des communications (FCC) et au(x) Cahier(s) des charges sur
les normes radioélectriques (CNR) d’Industrie Canada exemptes de licence.
Son utilisation est soumise aux deux conditions ci-dessous :
• cet équipement ne peut pas causer d’interférences nuisibles, et
• cet équipement doit accepter toutes les interférences, y compris celles qui
pourraient provoquer un fonctionnement indésirable.
NOTE:
Cet équipement a été testé et déclaré conforme aux limites applicables aux
appareils numériques de classe A, selon la section 15 du règlement FCC. Ces
limites visent à garantir une protection raisonnable contre les interférences
nuisibles lorsque l’équipement est utilisé dans un environnement commercial.
Cet équipement produit, utilise et peut émettre une énergie de fréquence radio et,
s’il n’est pas installé ni utilisé conformément au manuel d’instruction, il peut
générer des interférences affectant les communications radio. L’utilisation de cet
équipement dans une zone résidentielle peut causer des interférences nuisibles,
auquel cas l’utilisateur sera tenu d’y remédier à ses frais.
NOTE:
Des changements ou modifications apportés à cet équipement sans l’autorisation
expresse de FMS Force Measuring Systems AG peuvent invalider l’agrément
d’utilisation de cet équipement accordé par la FCC.
Informations sur l’exposition aux rayonnements radioélectriques
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de
[50] cm de distance entre la source de rayonnement et votre corps.
Ce transmetteur ne doit pas etre place au meme endroit ou utilise simultanement
avec un autre transmetteur ou antenne. “

Operating Manual EMGZ 310
28.06.2018 7
2 Quick Installation Guide
In a Plug & Play configuration the set-up of the EMGZ310 and force sensor is limited to
only the offset compensation and the calibration.
2.1 Preparations for Set-up
1. Read the Operation Manual of your force measuring sensors
2. Check your requirements such as:
− Desired output configuration ±10V or 0/4… 20mA
− Devise Mode (Force Gauge or Volt Gauge)
− Cut off frequency of low-pass filter
3. Draw the wiring diagram for your configuration (ref. to 2.6 “Wiring the
Amplifier“)
2.2 Installation Procedure
1. Mount your force maesuring sensors to the machine
2. Wire the Force Measuring Sensor(s) (ref. to Fig. 1 and 2)
3. Connect the amplifier to the power supply.
4. The power supply voltage must be in the range 18 to 36V DC.
5. Perform offset compensation and calibration (ref. to chapters 3.4 to 3.7)
6. If required, do additional settings (ref. to 4“ Parameterization”)
2.3 Mounting the Force Sensors
Mounting of the force sensors is done according to the FMS Installation manual
which is delivered together with the force sensors.
2.4 Installation and wiring
Caution
Proper function of the Tension Measuring Amplifier is only guaranteed with the
recommended application of the components. In case of other arrangement,
heavy malfunction can be the result. Therefore, the installation instructions on the
following pages must be followed strictly.
Caution
Local installation regulations are to preserve safety of electric equipment. They
are not taken into consideration by this operating manual. However, they have to
be followed strictly.

Operating Manual EMGZ310 and EMGZ310.ComACT
28.06.2018 8
2.5 Block diagram
Fig. 1: Block diagram EMGZ310 EMGZ310_BA_Manual.ai
2.6 Wiring the Amplifier
One or two force sensors can be connected to the measuring amplifier. When
using two force sensors, the output signal of the measuring amplifier will then
correspond to the average value of the two sensors. The connection between force
sensors and measuring amplifier has to be done using a 2x2x0.25mm2[AWG 23]
shielded twisted-pair cable.
Fig. 2: Wiring of EMGZ 310 E310002e

Operating Manual EMGZ 310
28.06.2018 9
Caution
Bad earth connection may cause electric shock to persons, malfunction of the
total system or damage of the control unit. It is vital to ensure a proper earth
ground connection.
Note
The shield should be connected only to the electronic unit. On the force sensor
side the shield should stay open.
Note
Sensor cables must be installed separate from power lines.
2.7 Modify the wiring

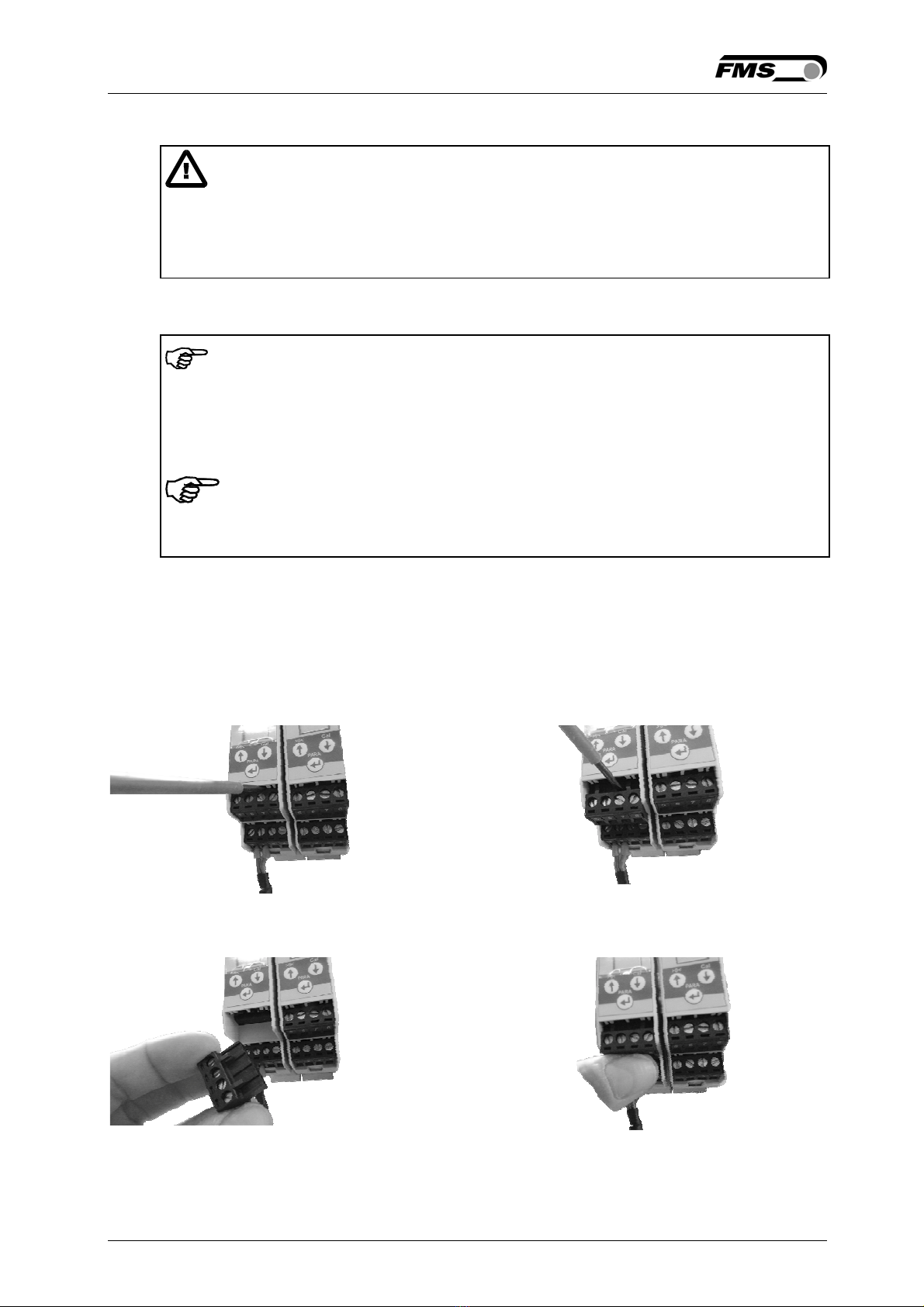

For an easy and quick exchange of an amplifier it is possible to exchenge the
single terminal blocks as assembly. You neither have to disconnect the wiring,
nore do you have to open the housing of the device.
Make sure that the amplifier is disconnected from the power supply.
Insert a screw driver with a small blade in
between the terminal block and the housing on
the top end of the block
Using the screw driver as a lever will loosen the
block from the housing. It will slide downwards
The block is now disconnected. You can slide it
out the device.
Insert the block on the desired position. Push
the block fully into the slot. You will hear a
“click” sound as the block interlocks

Operating Manual EMGZ310 and EMGZ310.ComACT
28.06.2018 10
3 Configuring the Amplifier
3.1 Power up the EMGZ 310
1. Connect the first force sensor (see Fig.2 Wiring Diagram EMGZ310)
2. Check whether applying a force in measuring direction (in the direction of the
red point) on the first sensor results in a positive output signal. If not, exchange
the two signal wires of this force sensor in the terminal block (terminals 6/7).
3. If applicable, connect the second force sensor.
4. Check whether applying a force in measuring direction on the second sensor
results in a positive output signal. If not, exchange the two signal wires of this
force sensor in the terminal block (terminals 6/7).

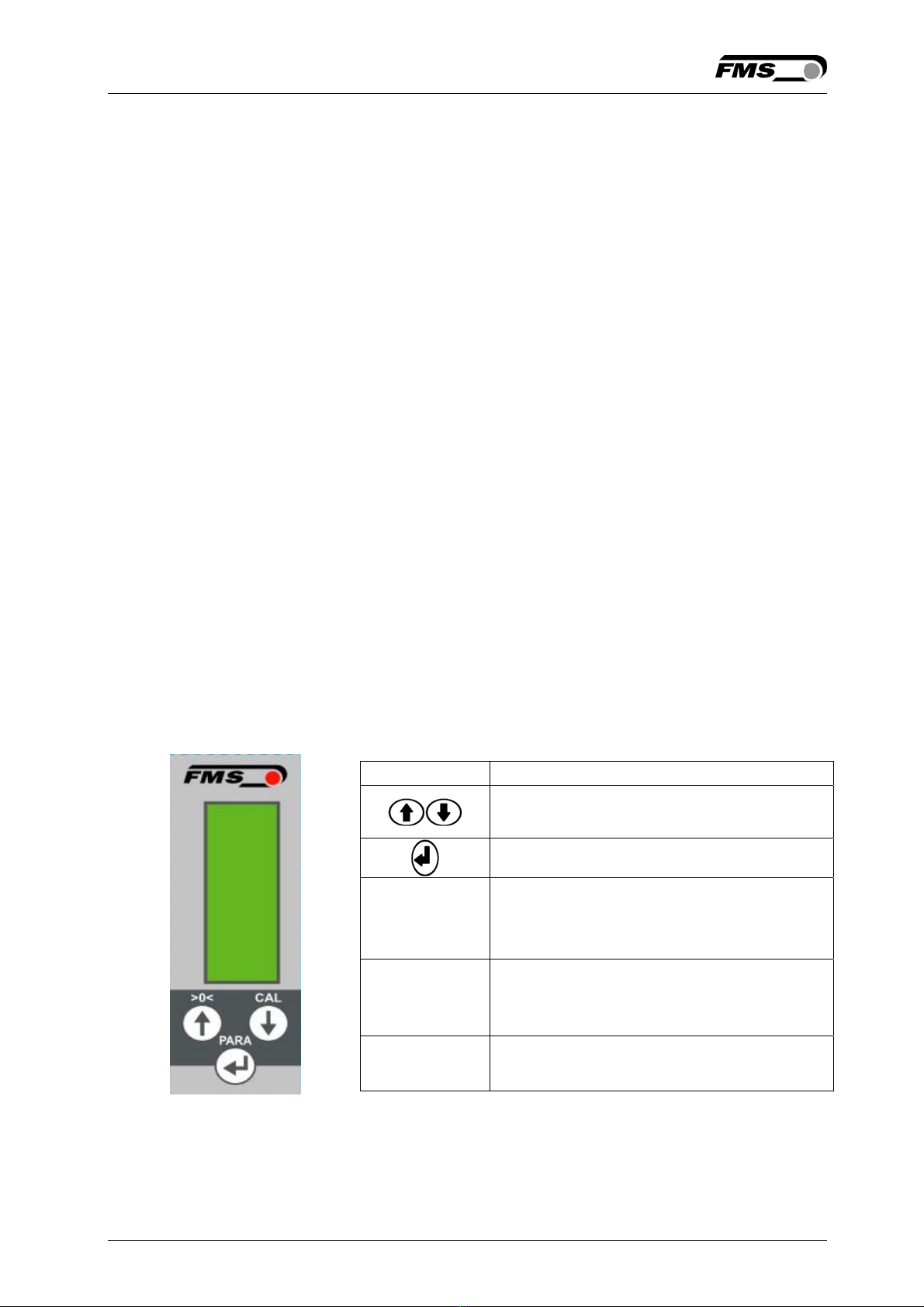

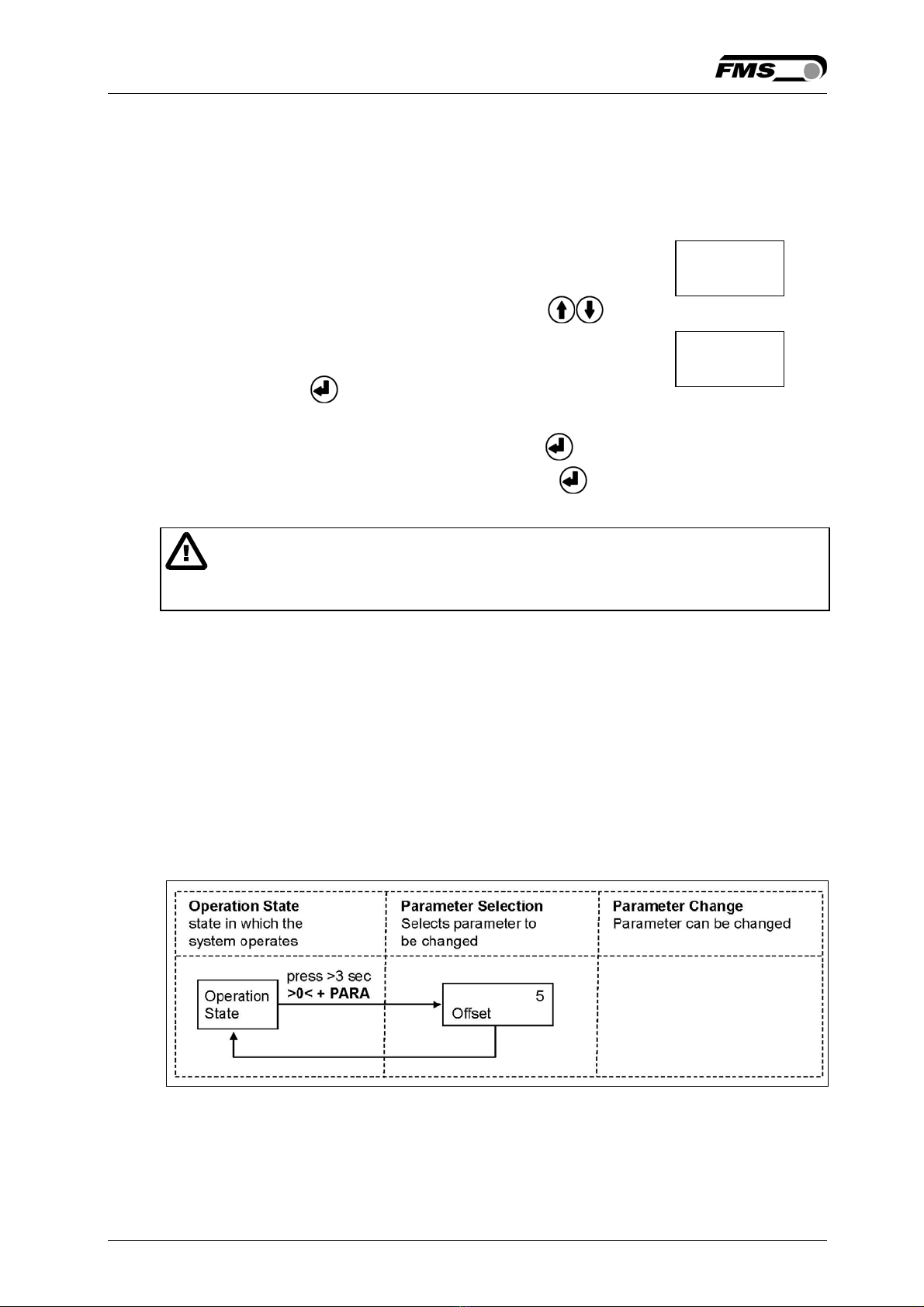

3.2 Operating the EMGZ310 over the Operating Panel

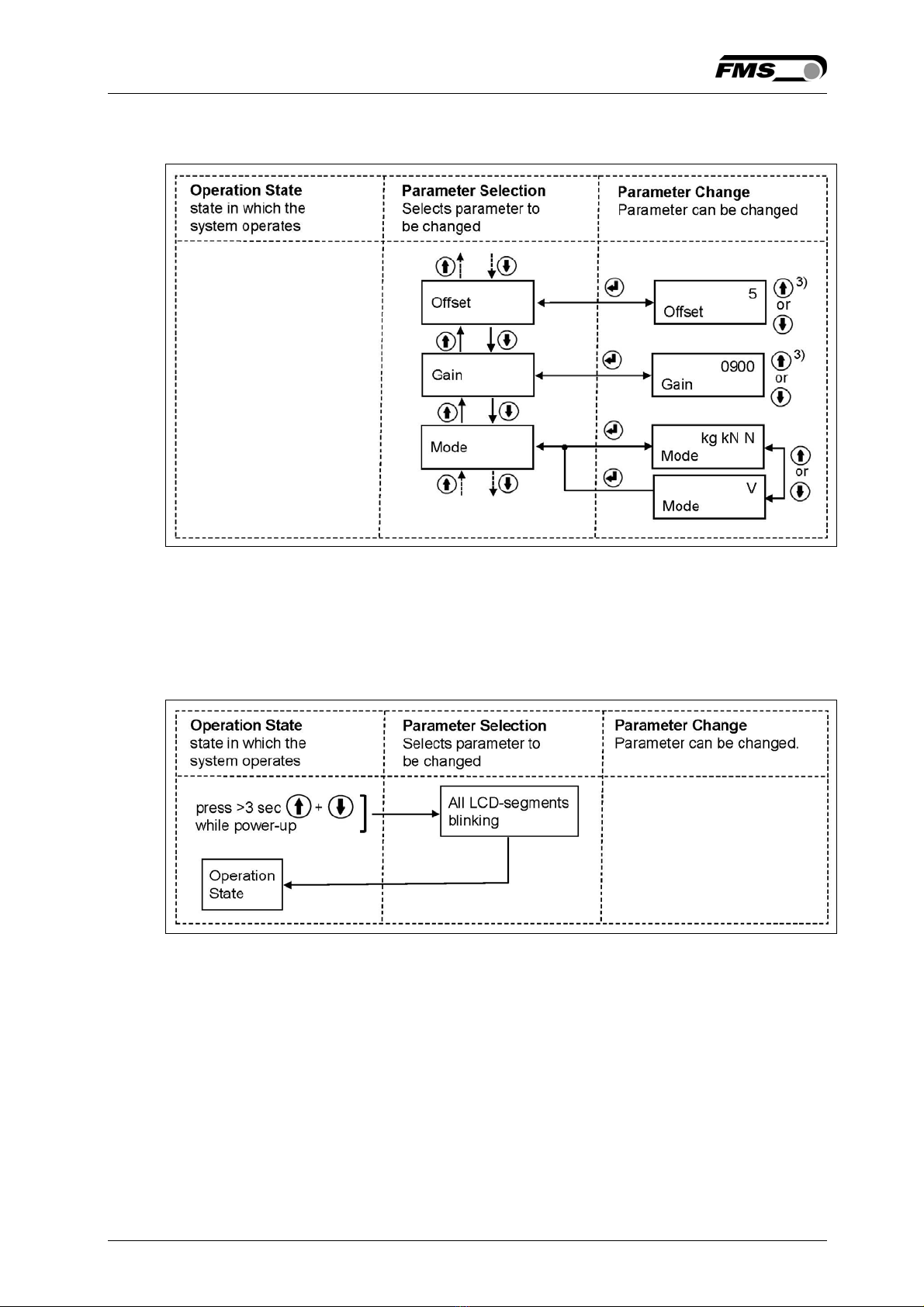

The EMGZ310 amplifier can go in 4 different states:
• Operation State: Amplifier operating
• Offset Compensation: Automatic procedure to offset the roller weight
• Calibration State: Procedure to calculate the amplifier gain
• Parameterisation State: Set or change parameters
When using the operating panel, the user can toggle between these modes by
pressing a key or a combination of keys.
3.3 Operating Panel
The keys on the operation panel have the following functions:
Fig. 3: Operating
Panel EMGZ 310
E310003
Key Key Function
Change the selections, increase /
decrease the values or choose
Enter
>0< + PARA
Enter Offset Compensation Procedure.
Press the two keys at the same time for
longer than 3 sec.
Cal + PARA
Enter Calibration Procedure. Press the
two keys at the same time for longer
than 3 sec.
PARA Enter the Parameter Setting Mode. Press
the key for longer than 3 sec.
