Horizon Elite™Ice Machine Installation Instructions
for Harmony™Top-mount Applications
HCD/HMD/HCF/HMF1810RHT, HCD/HMD/HCF/HMF2110RHT,
HCD/HMD1810NHT, HCD/HMD2110NHT
(See model number congurator on page 2 for details.)
Horizon top-mount ice machines
t most countertop dispensers manufactured by
Cornelius • Lancer • SerVend
01157916R01
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
remote condensing

2remote condensing HARMONY • TOP-MOUNT
CAUTION!
§This appliance should be connected by a qualied person in accordance with applicable codes.
§If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
§Connect to potable water supply only.
§This appliance can be used by children aged 8 years and above and persons with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
should be supervised to ensure that they do not play with the appliance.
§This appliance is intended to be used for household and similar applications such as staff kitchen areas
in shops, offices and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
§WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the
instructions.
ConfigurationApplication
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
425 up to
425 lbs
(193 kg)
710 up to
675 lbs
(306 kg)
1010 up to
1061 lbs
(482 kg)
1410 up to
1466 lbs
(665 kg)
1810 up to
1790 lbs
(812 kg)
2110 up to
2039 lbs
(925 kg)
V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager
diverter valve
system
P Cornelius Profile
PR150
CondenserSeriesVoltageIcemaker
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote. If remote
unit, high side is 208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet®
(425 Series)
HC Horizon
Chewblet
(710, 1010,
1410, 1810,
2110 Series)
HM Horizon
Micro Chewblet
HC 1810D SVA
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Chewblet®Ice Machine Model Number Configurations

HARMONY • TOP-MOUNT remote condensing 3
Front cover
8
Internal connection
7
Ice transport tube
5
External connection
6
Louvered docking assembly
4
Dispenser preparation
3
Site preparation
2
Unpack
1
Read and complete the following 8 installation steps

4remote condensing HARMONY • TOP-MOUNT
Carefully unpack and inspect the contents of your Follett ice machine. 1
Unpack
7/16"
7/16"
➊➋➌
➍➎
➏➐
DO NOT TILT ICE MACHINE
TO ACCESS BOLTS!
COMPRESSOR DAMAGE
WILL RESULT
Unpack ice machine
1. 1

HARMONY • TOP-MOUNT remote condensing 5
Prepare the installation site. 2
1" Stand pipe/Drain
3/4" MPT x 1" slip
➍
3/4" barb x 3/4" FPT
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
➌
1'
NEMA
5-15
➋➊
➌
1/4" per foot
(6,4 mm per 0,3 m)
➎
➍
3/8" ∅(9,5 mm)
7/8" ∅(22,4 mm)
Site preparation
Electrical ➊
• 120/60/1-5 amps
Potable water supply ➋ (3/8” push-in internal connection, 3/8” OD tubing required)
• 10-70 psi (69-483kpa)
• 45-90 F (7-32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
• This equipment is to be installed with adequate backow protection to comply with applicable
federal, state, and local codes
Drain ➌ (3/4” Barb)
• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least
1/4” per foot pitch (6,4mm/0,3m).
Refrigeration lines ➍
• 7/8” ∅ (22,4 mm) diameter suction line (insulated) ➍
• 3/8” ∅ (9,5 mm) liquid line ➎
2.1
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation of
low side is not recommended and will void warranty.
Installation site requirements
2.1

6remote condensing HARMONY • TOP-MOUNT
Prepare the dispenser. 3
Dispenser preparation
➊
➊

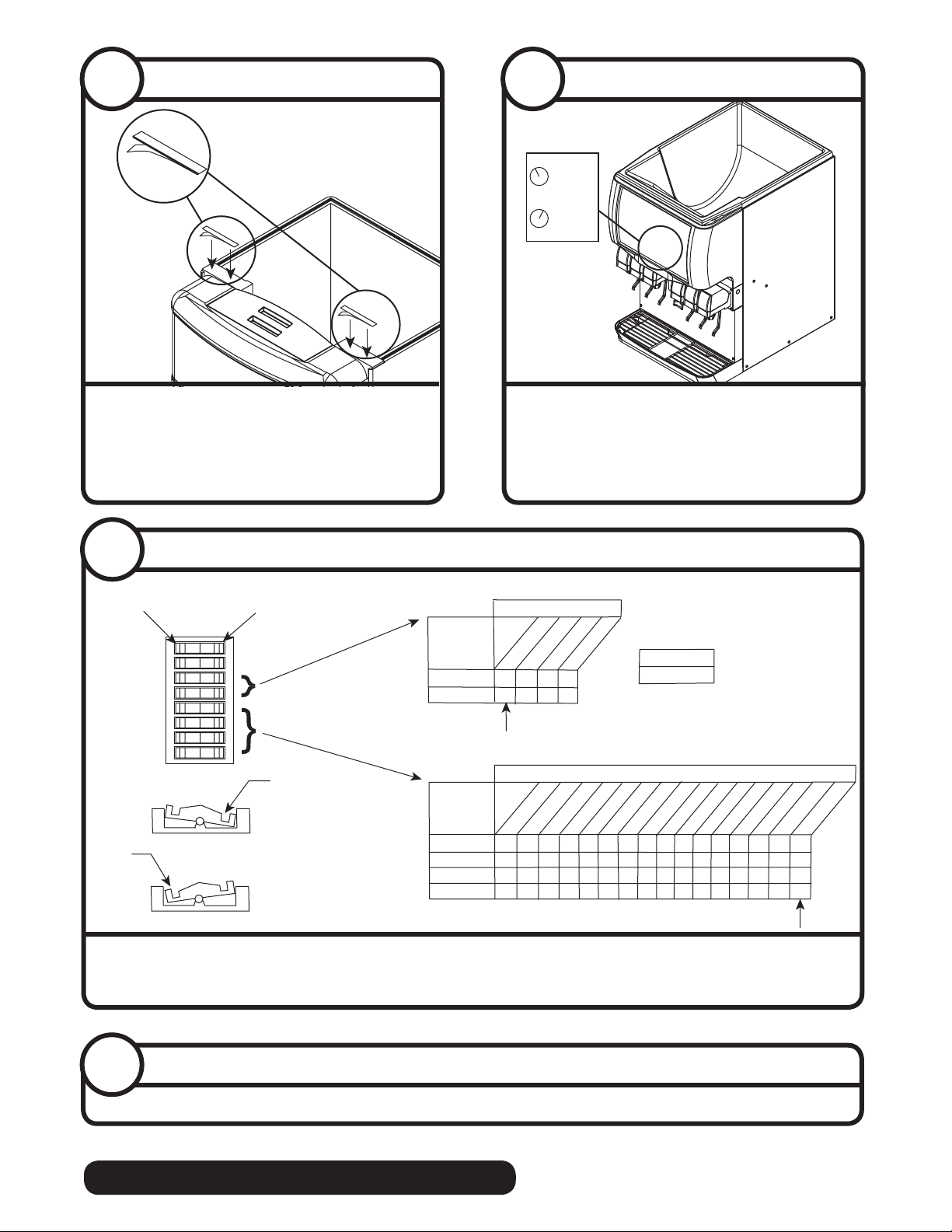

All models
• Remove protective tape from gaskets ➊
Top preparation – ALL
3.1
➋
➊
➊
➌
• Apply gaskets ➊
• Install shuttle actuator ➋ through bottom
of dispenser top and secure with locking
nut ➌
Top preparation – ALL
3.2
Note: The instructions below only apply to 22” & 30” wide dispensers.
44” wide dispenser instructions may be found with the top kit.
➋
➊
• Screw 4” (102mm) extension ➊ into
bottom of shuttle actuator ➋
Top preparation – ALL
3.3
➋
➊
Cornelius models only
• Remove protective tape ➊
• Apply gasket ➋
Top preparation – CORNELIUS
3.4

HARMONY • TOP-MOUNT remote condensing 7
➊
➋
➋
Lancer models only
• Remove protective tape ➊
• Apply gaskets ➋
Top preparation – LANCER
3.5
PRESS IN ON
THIS SIDE TO
TURN SWITCH
ON.
SWITCH
ON
SWITCH
OFF
PRESS IN ON
THIS SIDE TO
TURN SWITCH
OFF.
ROCKER
SWITCHES
(VIEW LOOKING
DOWN)
SIDE VIEW
SIDE VIEW
12345678
OFF
SWITCH
NUMBER
AGITATION FREQUENCY
NO AGITATION
10 MINUTES
20 MINUTES
30 MINUTES
40 MINUTES
50 MINUTES
60 MINUTES
70 MINUTES
80 MINUTES
90 MINUTES
100 MINUTES
110 MINUTES
120 MINUTES
130 MINUTES
140 MINUTES
150 MINUTES
5
6
7
8
O
O
O
O
O
O
O
X
O
O
X
O
O
O
X
X
O
X
O
O
O
X
O
X
O
X
X
O
O
X
X
X
X
O
O
O
X
O
O
X
X
O
X
O
X
O
X
X
X
X
O
O
X
X
O
X
X
X
X
O
X
X
X
X
SWITCH
NUMBER
AGITATION TIME
1 SECOND
2 SECONDS
3 SECONDS
4 SECONDS
3
4
O
O
O
X
X
O
X
X
X = ON
O = OFF
Lancer 4500 series only
Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes. See Lancer
manual for more information.
Agitation adjustments – LANCER 4500 SERIES
3.7
OFF
ON
Cornelius models ED, DB, DF, IDC and
FLAVOR FUSION
Adjust the agitation timer located on the Cornelius
PC board to 1 second on, 1 hour off. Note: See
Cornelius manual for more information.
Agitation adjust. – CORNELIUS
3.6
Agitation adjustments – LANCER Sensation and Touchpoint
3.8
No agitation adjustment required

8remote condensing HARMONY • TOP-MOUNT
Major/Minor
FS-16 Setup
Config Bonus Key
Soda/Plain Water
Config Dispense Only
PC Mode
PC Time
Ice Stir Off
Ice Stir On
Sold Out
Carb Sensors
Ice Bin Sensors
Valve Code Version
Number Of Valves
Reset Defaults No Ye s
Reload Defaults?
1 2 3 4
12 0.104 0.104
1000
Ice Bin Optic
Upper Lower
Sold Out #1
Selection Sold Out
05000
On Time (MSEC)
Off On
Set PC Mode Menu
V:1 B1 DLY1
Dispense Delay
V:2 1:S 2:W 3:S 4:W
V:1 T:F M:S B:W
Bonus Key Setup
Brands Per Side
V:1 L:2 R:1
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
Soda/Plain Water
OFF Time (MIN)
00150
On Time (MSEC)
01000
1000 500
34 0.104 0.104
On On On On
V:1 B:1
Sold Out #1
Off
Sold Out #1
Ver. 0.200

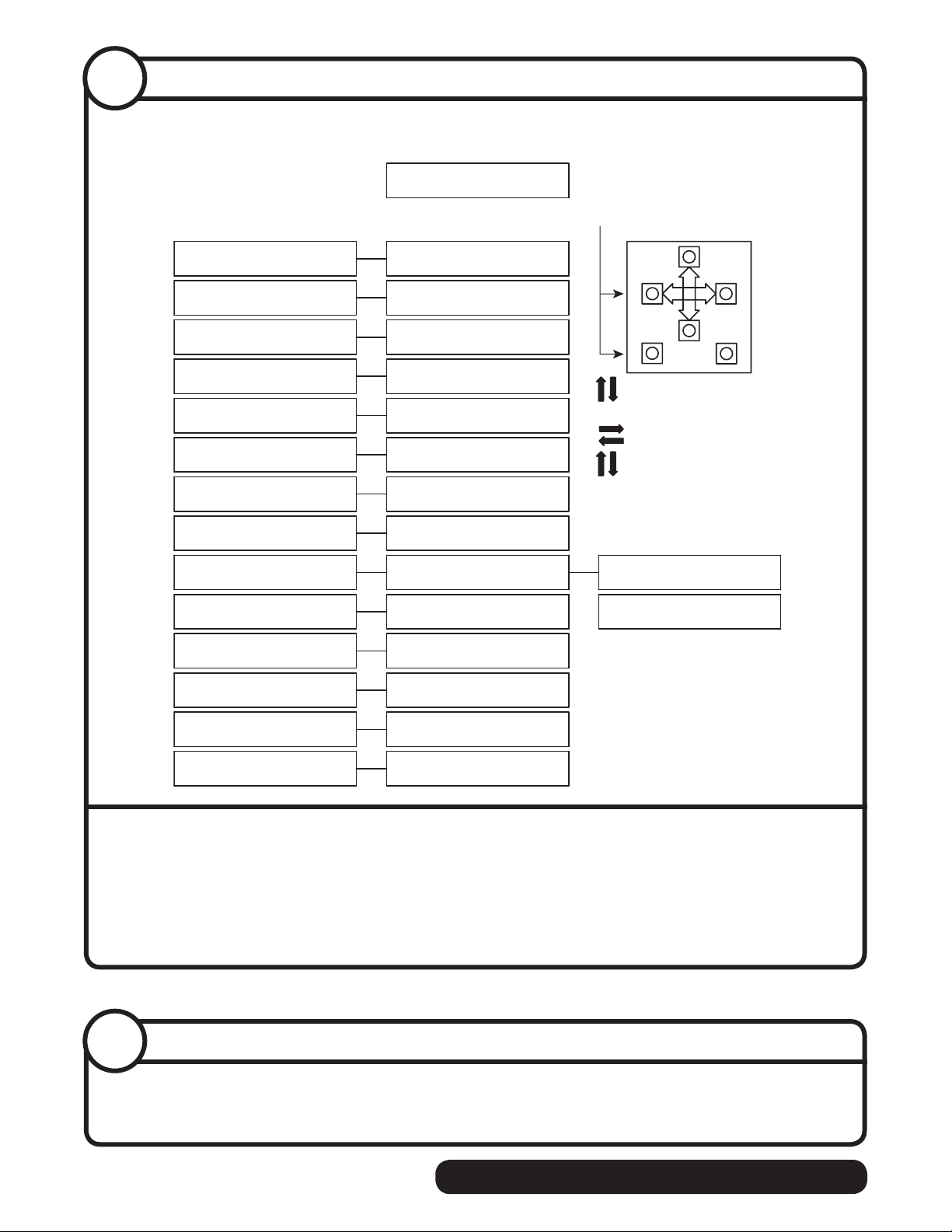

Lancer FS-16
Sub-CatagoryMain Menu
Initialization Screen
2nd Sub-Catagory
(Boot Up Only)
Cancel Enter
Scrolls through Main Menu
Press "Enter" to enter sub-catagory
Moves curser to right or left
Changes value (number/letter)
Press "Enter" to enter save changes
Press "Cancel" to exit menu
➊
Lancer FS series only
• Hold down “cancel” and “left button” to get to hidden menu ➊
• Type in code 6655
• Type in 150 minutes of off time and 1810 milliseconds (1 second of time) as the preferred
setting
Note: See Lancer manual for more information.
Agitation adjustments – LANCER FS SERIES
3.9
Agitation adjustments – SERVEND
3.10
SerVend models only
No agitation adjustment required.

HARMONY • TOP-MOUNT remote condensing 9
P/N 307277 — Diverter plate
(single agitator Cornelius
dispensers and left-hand
dispense chute on dual-agitator
Cornelius dispensers)
P/N 307277 — Diverter plate
(single agitator Cornelius
dispensers and left-hand
dispense chute on dual-agitator
Cornelius dispensers)
Single Agitator
Dual Agitator
P/N 00996207 — Diverter plate
(right-hand dispense chute on
dual-agitator dispensers)
Dispenser diverter plate overview (Installation on next page)
3.11

10 remote condensing HARMONY • TOP-MOUNT
ICE CHUTE
GATE MOUNTING PLATE
GASKET
STORAGE HOPPER
ICE DIVERTER
10-32 WASHER
10-32 NUT
FLANGE EXTENDS INTO
STORAGE HOPPER
THROUGH GATE
OPENING
APPLY RTV TO THIS
SURFACE TO SEAL
TO HOPPER GATE
MOUNTING PLATE
ICE CHUTE
COVER
Cornelius ED, DF and DB series only
These dispensers require the installation of an ice diverter at the dispenser opening.
• Disassemble chute assembly
• Discard factory restrictor plate
• Replace with alternate diverter plate (supplied)
Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES
3.12
Agitation adjustments – Cornelius IDC and Flavor Fusion
3.13
These dispensers require modications for compatibility with Chewblet ice. Agitation
times must be set to 1 second ON, 1 hour OFF and the ice restrictor plate must
be adjusted to the fully open position. See your beverage supplier for these
modications.
Prior to installing the louvered docking
assembly, ensure that the drain tting is oriented
(right or left) correctly for your installation. An
optional straight drain tting is also supplied.
You may need to remove the back panel of the
docking assembly in order to re-orient or change
the drain tting. Replace back panel prior to
mounting the docking assembly.
BEFORE PROCEEDING

HARMONY • TOP-MOUNT remote condensing 11
Install the louvered docking assembly.
Louvered docking assembly 4
➊
➊
2" (50,8 mm)
Stub Typ
1.81" (46 mm)
3.75" (95.3 mm)
2" (50,8 mm)
3/8˝ ∅
high pressure
line
7/8" ∅ low pressure line
➋
• Mount louvered docking assembly ➊
• “Rough-in” the refrigerant piping ➋
2.1 Louvered docking assembly
4.1

12 remote condensing HARMONY • TOP-MOUNT
Ice transport tube
Install the ice transport tube. 5
➋
➊
Hot Water
160 F (71 C)
➌
• Slide insulation onto ice transport tube
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➊
before making connection to ease assembly
• Connect ice transport tube to coupling on louvered docking station ➋
• Connect ice transport tube to shuttle actuator ➌
Ice transport tube
5.1

HARMONY • TOP-MOUNT remote condensing 13
Connect utilities to louvered docking assembly. 6
External connections
➊
• Braze supplied quick-connect lines onto
stub-ins ➊.
Refrigerant lines
6.2
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
➍
3/4" MPT x 1" slip
➎
➌
➋
➊
➏
• Rough-in ice machine potable water
supply ➊.
3/8” push-in connection will be made at
shut-off valve inside machine
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4” drain barb ➌.
• Assemble the 3/4” barb x 3/4” FPT to the
3/4” MPT x 1” slip. Connect the other end
of the silicone tubing to the 3/4” barb ➍.
• Connect the 1” slip tting to the 1” stand
pipe/drain ➎.
Note: Minimum 8” radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4” per foot pitch
(6,4mm/0,3m).
• Apply Petrol-gel to barbed drain tting ➏
• Replace access panel.
Water and drain
6.1

14 remote condensing HARMONY • TOP-MOUNT
Connect louvered docking assembly to ice machine. 7
Internal connections
Refrigeration lines
7. 3
• Slide ice machine into louvered docking
assembly ensuring that drain tube is fully
seated on barbed drain tting ➊
• Insert ice transport tube all the way into
coupling and tighten nut rmly ➋
Ice transport tube installation
7. 1
• Insert potable water line into valve ➊
Water line
7. 2
• Remove twist tie
• Carefully pass cord thru opening and plug
into wall outlet
Power cord
7. 4
➊
• Evacuate line set.
• Connect self-sealing liquid and suction
line ttings ➊
➊
➋
➊

HARMONY • TOP-MOUNT remote condensing 15
• Position plate into opening and secure
with supplied screw
Power cord
7. 5

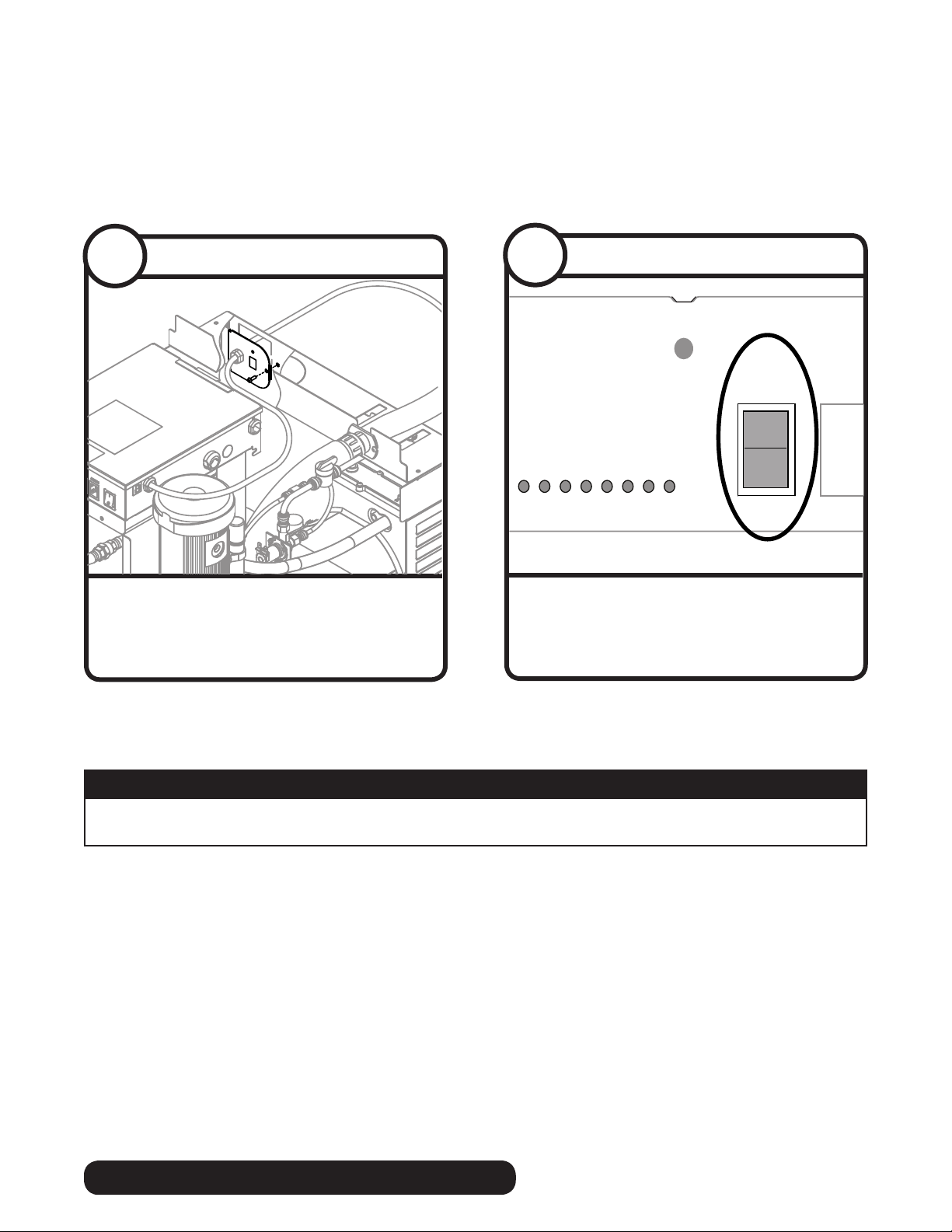

CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
7. 6
NOTICE
Ice machine MUST be sanitized prior to operation!
Consult Operation and Service Manual provided with ice machine for sanitizing instructions.

Front cover
Install front cover to ice machine. 8
Install condensing unit
8.1
➋➊
• Slide ice machine cover over machine
ensuring that tabs on back of cover
slip under louvers on back of louvered
docking assembly ➊
• Insert and tighten two screws through
cover and into louvered docking assembly
➋
Install ice machine front cover
8.2
01157916R01
© Follet LLC 1/18
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett LLC.
Chewblet, RIDE and Follett are registered trademarks of Follett LLC, registered in the US.
• Complete installation of condensing unit
or connection to rack system.
• Required rack system capacity at 0 F
(-18C) evaporator (EPR supplied by
installer).
1810N: 15,700 Btu/hr (3956 kcal/hr)
2110N: 18,200 Btu/hr (4586 kcal/hr)
