Forma Scientific 3911 User manual

~
a
ThermoOuest
Forma Scientific Division
Millcreek Road, P.O. Box 649
Marietta, Ohio 45750
U.S.A. Telephone: [phone]
Telefax: [phone]
Model: 3911/3913
Reach-In Incubator
11 cu ft capacity
Manual No. 7013911 Rev.S
IMPORTANT!
Read This Instruction Manual
Failure to read, understand and follow the instructions inthis manual may result in
damage to the unit, injury to operating personnel and poor equipment perfonnance.
Caution: All internal adjustments and maintenance must be performed by
qualifiedservice personnel.
Refer to the serial tag on the
rear cover of this manual

Forma® Mod~1391113913 ____________________ _
CAUTION
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
The material in this manual is for information purposes only. The contents andthe
product it describes are subject to change withoutnotice. ThermoQuest makes no
representations or warranties
'VV"iQ1~r~e~pect to this manuaL In no event shall ThermoQuest
or Forma Scientific Division be held liable for any damages, direct or incidental, arising
out of or related to the use of this manual.
This product is
not intended for any use(s) other than the use(s) described in the
labeling
or this user's manual.
MANUAL NO. 7013911
ccs
5 18764 Corrected water inlet fitting, added water source option
4 ated schematics per CSA
3 18192 4120/99 Updated Figure 5-1 wiring per
G. Smith
2 177251lN-2436 10/6/98
Add sections 2.9 and 3.5 perECR
1 IN-21
11
8/96 Productrelease (2) add Watlow 982
REV
ECN
DATE DESCRIPTION
11

-------------------------------------------------
Forma® Model 391113913 Service
Do You Need Information orAssistance on Forma®
Products?
If you do, please contact us 8:00 a.m. to 7:00 p.m. (Eastern Time) at:
1-740-373-4763
Direct
1-888-213-1790
Toll Free, U.S. and Canada
1-740-373-4189
FAX
http://www.forma.com Internet Worldwide Web Home Page
[email protected] Service E-Mail Address
Our Sales Support staffcan provide information onpricing and give you quotations. We
can take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our Service Support staffcan supplytechnical information about proper setup,
operation or troubleshooting of your equipment. We can fill your needs for spare or replacement
parts or provide you with on-site service. We can also provide you with a quotation on our
Extended Warranty for your Forma products.
Whatever Forma® products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist
you Monday through Friday from 8:00 a.m. to 7:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
ThermoQuest
Forma Scientific Division
Millcreek Road, PO Box 649
Marietta, OR 45750
International customers please contact your local ThermoQuest, Forma Scientific
Division distributor.
111

Fonna® Model 391113913 ___________________ Safety
General Safety Notes used in this Manual
Importantoperating and/or maintenance instructions. Read the accompanying text
carefully.
Ce symbole attire I'attention de I'utilisateur sur des instructions importantes de
fonctionnement et/ou d'entretien. II peut etre utilise seul ou avecd'autres symboles de
securite. Lire attentivement Ie texte d'accompagnement.
Wichtige Betriebs- und/oderWartungshinweise. Lesen Sie den nachfolgenden Text
sorgfaltig.
Importante instruccions de operacion y/o mantenimiento. Lea el texto acompanante
cuidadosamente.
Potential electrical hazards. Only qualified persons should perform procedures
associated with this symbol.
Ce symbo/e attire I'attention de I' utilisateur sur des risques electriques potentiels.
Seules des personnes qualifiees doivent appliquer les instructions et les procedures
associees ace symbole.
Gefahr von Stromschlagen. Nur qualifizierte Personen sollten die Tatigkeiten
ausfUhren, die mit diesem Symbol bezeichnet sind.
Potencial
de riesgos electricos. Solo personas das capacitadadas deben ejecutar los
procedimientos asociadas con este simbulo.
v

Fonna® Mod~1391113913 __________________ Safety
Equipment being maintained or serviced must be turned off and locked off to prevent
possible injury.
Risques potentiels lies aI'energie. L'equipement en entretien ou en maintenance doit
~tre eteint et mis sous cle pour eviter des blessures possibles.
Gerate,
an denen Wartungs- oder Servicearbeiten durchgefOhrt werden, mOssen
abgeschaltet und abgeschlossen werden, um
Verl~tzungen zu vermeiden.
EI equipo recibiendo servicio 0 mantenimiento debe ser apagado y segurado para
prevenirdanos.
Hotsurface(s) presentwhich may cause burns to unprotected skin
or to materials
which may be damaged
by elevated temperatures
Presence de surface(s) chaude(s) pouvantcauser des brOlures
sur la peau non
protegee, ou surdes matieres pouvant
~tre endommagees par des temperatures
elevees.
HeiBe Oberflache(n) konnen ungeschOtzter HautVerbrennungen zufOgen oder
Schaden an Materialien verursachen, die nicht hitzebestandig sind.
Superficias calientes que pueden causar quemaduras a piel sin proteccion 0 a
materiales que pueden estar danados
por elevadas temperaturas.
" Always use the proper protective equipment (clothing, gloves, goggles etc.).
" Always dissipate extreme cold or heat and wear protective clothing.
" Always follow good hygiene practices.
" Each individual
is responsible for his or her own safety.
VI
I

----------------------------------------
Forma® Model 391113913 Contents
Table of Contents
Section 1 - Receiving
1.1 Preliminary Inspection.................................................................................. 1-1
1.2 Visible Loss or Datnage................................................................................. 1-1
1.3 Responsibility for Shipping Datnage............................................................ 1-1
Section 2 - Installation and Start-Up
2.1 Location ......................................................................................................... 2-1
2.2 Water (Humidity System) and Drain Connections ........................................ 2-1
a. Connecting the Water Inlet for the Humidity System............................ .2-1
b. Alternate Water Supply for the Humidity System ................................. .2-1
c. Connecting the Drain Line........................................................................2-2
2.3 RS-232 Output Interface and Remote Alarm Connector...............................
2-3
a. RS-232 Data Output.................................................................................2-3
b. Remote Alarm Contacts...........................................................................2-3
2.4 Power Connection.........................................................................................2-4
2.S Start-Up Procedure.........................................................................................2-4
2.6 Setting the Overtemp Safety Thermostat......................................................2-4
2.7 Setting the Undertemp Safety Thermostat....................................................
.2-S
2.8 Preparing the Optional CoBex Recorder .....................................................2-6
a. Installing the Chart Recorder Battery.......................................................2-6
b. Changing the Chart Paper........................................................................2-6
c. Changing the Pen .....................................................................................2-7
d. Calibrating the Chart Recorder ................................................................2-7
2.9 Offset Calibration..........................................................................................2-8
2.10 Controller Configmation.............................................................................2-11
Temperature Configmation
Humidity Configmation
vii

Forma® Mody1391113913 ___________________ Contents

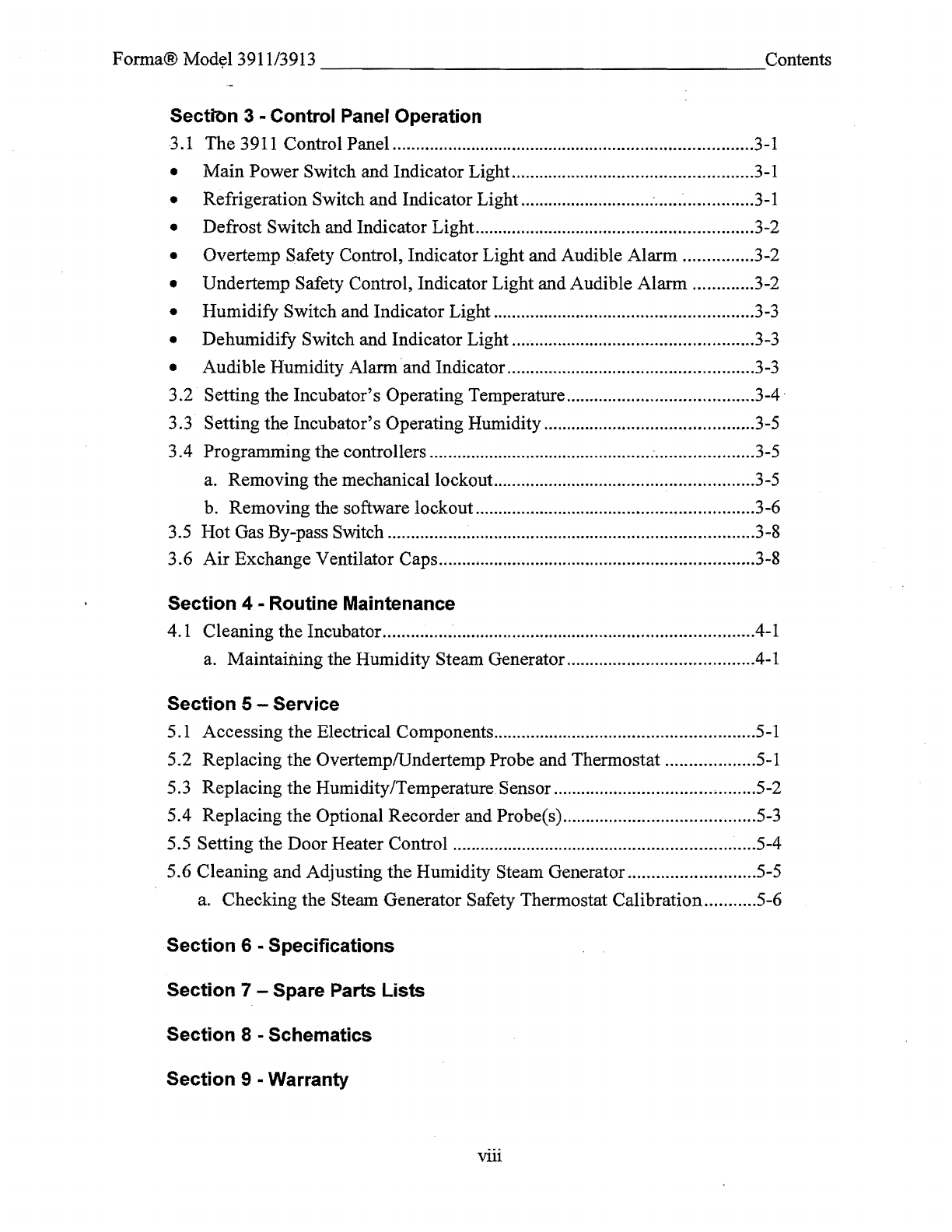

Sectton 3 ~ Control Panel Operation
3.1 The 3911 Control Panel .............................................................................. 3-1
• Main Power Switch and Indicator Light................................................... .3-1
• Refrigeration Switch and Indicator Light.............................-.................... .3-1
• Defrost Switch and Indicator Light............................................................3-2
• Overtemp Safety Control, Indicator Light and Audible Alarm ...............3-2
• Undertemp Safety Control, Indicator Light and Audible Alarm .............3-2
• Humidify Switch and Indicator Light........................................................3-3
• Dehumidify Switch and Indicator Light....................................................3-3
• Audible Humidity Alarm and Indicator.....................................................3-3
3.2 Setting the Incubator's Operating Temperature........................................3-4·
3.3 Setting the Incubator's Operating Humidity.............................................3-5
3.4 Programming the controllers......................................................................3-5
a. Removing the mechanicallockout........................................................3-5
b. Removing the software lockout............................................................3-6
3.5 Hot Gas By-pass Switch ...............................................................................3-8
3.6 Air Exchange Ventilator Caps....................................................................3-8
Section 4 - Routine Maintenance
4.1 Cleaning the Incubator................................................................................ 4-1
a. Maintaining the Humidity Steam Generator........................................4-1
Section 5 - Service
5.1 Accessing the Electrical Components........................................................ 5-1
5.2 Replacing the OvertemplUndertemp Probe and Thermostat ................... 5-1
5.3 Replacing the Humidity/TemperatureSensor...........................................5-2
5.4 Replacing the Optional Recorder and Probe(s).........................................5-3
5.5 Setting the Door Heater Control .................................................................5-4
5.6 Cleaning and Adjusting the Humidity Steam Generator...........................5-5
a. Checking the Steam Generator Safety Thermostat Calibration...........5-6
Section 6 - Specifications
Section 7 - Spare Parts Lists
Section 8 - Schematics
Section 9 - Warranty
Vlll

Forma® Model 3911/3913 _________________ Receiving
Section 1 - Receiving
1.1 Preliminary Inspection
This item was thoroughly inspected and carefully packed prior to shipment
and all necessary precautions were taken to ensure safe arrival
of the merchandise at
its destination. Immediately upon receipt, before the unit is moved from the
receiving area, carefully examine the shipment for loss
or damage. Unpack the
shipment and inspect both interior and exterior for any in-transit damage.
1.2 Visible Loss or Damage
If any loss or damage is discovered, note any discrepancies on the delivery
receipt. Failure to adequately describe such evidence
of loss or damage may result in
the carrier refusing to honor a damage claim. Immediately call the delivering carrier
and request that their representative perform an inspection. Do not discard any
of the
packing material and, under no circumstances, move the shipment from the receiving
area.
1.3 Responsibility for Shipping Damage
For products shipped F
.O.B. Marietta, Ohio, the responsibility
of Forma
Scientific 'ends when the merchandise is loaded onto the carrier's vehicle.
On F.O.B. Destination shipments, Forma Scientific and the carrier's
responsibility ends when your Receiving Department personnel sign a free and clear
delivery receipt.
Whenever possible, Forma Scientific will assist
in settling claims for loss or
in-transit damage.
1-1

Forma® Model 391113913 ______________ ----::InstallationiSet-Up
Section 2 - Installation and Set-Up
2.1 Location
Locate the unit on a firm, level surface in an area of minimum ambient temperature
fluctuation. A minimum of three (3) inches of clearance is required at the rear of the
incubator. This space is necessary to allow adequate airflow around the refrigeration
system.
2.2 Water (Humidity System) and Drain Connections
a. Connecting the Water Inlet for the Humidity System
Do not attemptto operate the humiditysystem withoutfilling it with
water. The humidification heater willoverheat,
and the overtemp safety
thermostat win
shut the humidiflCation system down.
The humidity reservoir will require approximately one quart (0.946 liter) of
water on the initial filling. Forbest operation of the incubator, sterilized distilled,
demineralized
or de-ionized water should be used in the humidity reservoir. Water purity
should be
in the resistance range ofSOK Ohm/cm to 1M Ohm/cm, or a conductivity range of
20.0 uS/cm to 1.0 uS/cm. Refer to ASTM Standard DS391-93 or D419S-88 for measuring
water purity.
Distillation systems,
as well as some types of reverse osmosis water purity systems, can
produce water in the qualityrange specified. Tap water is not recommended as it may
contain chlorine, which can deteriorate the stainless steel. Tap water may also have a high
mineral content,
which would produce a build-up of scale in the reservoir. High purity, ultra
pure or milli-q water is
not recommended as it is an extremely aggressive solvent and will
deteriorate the stainless steel. High purity water has a resistance
of above 1M Ohm to IBM
Ohm. Even
high purity water can contain bacteria and organic contaminants. Water should
always
be sterilized or treated with a decontaminant, safe for use with stainless steel as well
as safe for the product,
prior to being introduced into the humidity reservoir.
Distilled or de-ionizedwater used in the humidityreservoir must be
within a water quality resistance range
of 50K Ohm/em to 1M Ohm/em
toprotect
and prolong the life of the stainless steeL Use of water
outside the specifiedrange
win decrease the operatinglife of the unit
and may voidthe warranty.
2-1

Fonna® Model 391113913 ______________ ----'InstallationiSet-Up
The water inlet is"the 118" FPT connection located on the rear top left comer of the
incubator. Water inlet pressure mustnot exceed 40 PSI. A manual shut-off valve should
be installed between the main water supply and the incubator.
To preventmineralbuildup on heatercoils and humiditygenerator
walls,
it may be necessary to clean thehumiditygenerator and
immersion heaters with a non-metallic abrasive pad and flush
thoroughly every two or three months. Referto Section 5.6 Cleaning
and AdjustingtheHumidity Steam Generator.
b. Alternate Water Supply for the Humidity System
If an in-house water supply of the required purity range (50K to 1M Ohm) is not
available, an alternate water supply method can be used. A large carboy (5 gal.
minimum)
of distilled water can be placed on top of the unit. Connect it to the 1/8" FPT
water inlet fitting, located on the rear top left comer of the incubator.
IMPORTANT: The maximum water consumption of this incubator could be as high as
2 gallons
per day. When using an alternate water supply method, it is imperative that the
humidity reservoir not be allowed to run dry, as pennanent damage to the steam
generator will result.
c. Connecting the Drain Line
The cabinet's 3/8" MPT drain line connection is located on the rear (lower left side) of
the cabinet. A P-trap (Figure 2-1) is included with the unit and must be installed on the
connection. To install the drain connection:
1. Using Teflonpipe thread tape, tape the threads onthe cabinet drain connection.
2. Using an open end adjustable wrench, install the P-trap onto the connection. Make sure
that the trap is positioned down.
3. Push a piece of 3/8" ID tubing onto the trap and direct the tubing to a convenient drain.
Install a hose clamp
on thetubing, if desired.
To cabinet drain
Figure 2-1
CabinetDrain P-trap
~
2-2

Fonna® Model 391113913 _______________ --'InstallationlSet~Up
2.3 Remote Data Output
a. RS-232 Data Output
The Model 3911/3913 incubator is equipped with an RS-232 Serial Communication
Interface for the remote transmission
of temperature and humidity data. A tenninal strip is
located
on the back of the incubator for convenience. Refer to Figure 2~2 for tenninal pin
identification.
Terminal Strip Connections
o 0
1 2
10 0
-I
:::0
('")
-I
:::0
('") ('")
z z
m 0 m 0 0
~ ('") ~ ('")
P 9
s: s: s:
z m z m
en
s:
en
s: s:
s:
<:
0
s:
<:
0 0
m m
z z z
=i
I I
=i
I
Temperature Humidity RemoteAlarm
RS232 RS 232 (Shown in alarm)
Figure 2-2
IMPORTANT USER INFORMATION
Caution! Stored product should be
protected by an activated alarm system
capable
of initiating a timely response
24 hours/day. Forma Alarms provide
interconnect for centralized monitoring.
b. Remote Alarm Contacts
Remote alarm connections are also included on the tenninal strip (Figure 2~2) providing
Nonnally Open (N.O.) and Nonnally Closed (N.C.) contacts. C is the Common tenninal. The
remote
alarm will activate when either the incubator's temperature orhumidity go out of the set
alarm limits.
2-3

Forma® Model 391113913 ______________ ----:InstallationlSet-Up
2.4 Power Connection
The electrical junction box is located on the rear top section of the incubator. With
the junction box switch OFF, connect the incubator to an adequate power source. See
the electrical data plate mounted on the unit for electrical specifications. '
2.5 Start-Up
When the humidification system is operational, the incubator may be started. Preset
the controls as follows:
Overtemp Safety Thermostat......................... Fully Clockwise
Undertemp Safety Thermostat....................... Fully Counterclockwise
Main Power Switch........................................ ON
Humidity Controller...................................... Desired Setpoint
Temperature Controller.................................. Desired Setpoint
Door Heater................................................... 40% (factory set)
For best overall performance of the incubator, the refrigeration switch should be
turned on for most applications. When running Low or No humidity at high
temperatures, the refrigeration switch may be turned off.
The defrostswitch must be turnedon when the temperature
setpointis 10°C,
or below.
2.6 Setting the Overtemp Safety Thermostat
Allow the chamber temperature and humidity to stabilize, then set the overtemp
safety thermostat as follows:
1. Turn the overtemp control knob slowly counterclockwise until the audible alarm
sounds and the overtemp indicator lights.
2.
Turn the overtemp control knob clockwise approximately two units on the scale.
The alarm should be silenced and the overtemp indicator light should go out. The
overtemp safety thermostat is now set a few degrees above the control temperature
setpoint.
2-4

Forma® Model 3911/3913 _______________ ---:Installation/Set·Up
When
The chambertemperature rises to the overtemp control point, the alarm system will
activate, power to the heaters will shut off, and the chamber temperature will be maintained
at the overtemp control point.
When an overtemp condition occurs, the cause must be determined and corrected before
normal operation under the main temperature controller can be resumed.
Note: When the chamber temperature control setpoint is changed, the overtemp
safety thermostat must be reset to accommodate the change.
2.7 Setting the Undertemp Safety Thermostat
Allow the chamber temperature and humidity to stabilize, then set the undertemp
safety thermostat as follows:
1.
Tum the undertemp control knob slowly clockwise until the audible alarm sounds
and the undertemp indicator lights.
2.
Tum the undertemp control knob counterclockwise approximately two units on the
scale. The alarm should be silenced and the undertemp indicator light should go out.
The undertemp safety thermostat is now set a few degrees below
jhe~()ntrol
temperature setpoint. When the chamber temperature drops to the undertemp control
point, the alarm system will activate, power to the compressor will shut off, and the
chamber temperature will be maintained at the undertemp control point.
When an undertemp condition occurs, the cause must be determined and corrected
before normal operation under the main temperature controller can be resumed.
Note: When the chamber temperature control setpoint is changed, the undertemp
safety thermostat must be reset to accommodate the change.
2-5

Forma® Model 391113913 _______________ InstallationiSet-Up
slotted screws
2.8 Preparing the (Optional)
CoBex Recorder
(loosen only) -----------c
a. Installing the Battery
press to
The seven-day circular
change
chart
chartrecorder is located on the
front
of the incubator cabinet
and is protected by a glass
door. time line
groove
Figure2-3
To prepare the recorder for operation, open the glass door and snap the connector onto the
9-volt battery as shown
in Figure 2-3. If the unit is operating, the green LED lights steady. If
the unit is notturned on, the LED blinks.
If the battery is weak or not connected, the greenLED will flash. If power is lost to the
cabinet, the LED will also flash. When replacing the 9-volt battery, use only
an alkaline
style battery. Dispose
of the old battery following established environmental practices.
b. Changing the Chart Paper
1. Press the Change Chart button (#3) and hold it for 1 second until the pen begins to move
to
the left of the chart. See Figure 2-3.
2. Remove the existing chart by unscrewing the center knob securing it.
3. Install the
new chart, positioning it so that the correct time line coincides with the time
line groove
on the chartplate.
4. Replace the center knob and screw
it tightly againstthe chart.
2-6

Forma® Model 391113913 ________________ InstallationlSet-Up
c. Charrging the Pen
1. Using a small flat blade screwdriver, loosen the 2 screws
holding thepen arm and remove the penand arm as an
assembly.
2. Unsnap the plastic hinge securing the pen. Remove and
discard the old pen.
3. Install the new pen by snapping the hinge securely around
the pen arm. Figure 2-4
4. Re-install the pen assembly by sliding the pen arm under the screws, positioning the pen
tip inthe time line groove. Tightenthe screws.
5. Push the Chart Change button and hold it for 1 second until the pen begins to move
back onto the chart.
Note: Make sure that the penis marking on the chart. It may be necessary to
gently lift the pen onto the chart paper.
d. Calibrating the chart recorder
1. Place an accurate thermometer(s) in the chamber next to the recorder's probe(s). After
about three minutes, compare the thermometer with the chart recorder. For 2 pen
operations, also compare the second thermometer.
Note: For 2 pen operations, first select the pen you wish to calibrate. Hold down
the #1 arrow for the red (#1) pen or the #2 arrow for the blue (#2) pen,
until the light goes out. Refer to Figure 2-4. Then adjust as necessary.
If an adjustment is necessary, press eitherthe #1 or #2 button to move the pen left or
right. The button must be held about five seconds before the pen begins to move. Release the
button when the penmatches the thermometer.
2-7

Fonna® Modyl 391113913 ________________ InstallationlSet-Up
2.9 Offset 6alibration-
It may be necessary to calibrate the temperature or humidity controllers to match an
independent temperature
or humidity sensor. To do so, follow the next few steps.
1. Suspend an independent, calibrated sensor(s) in the center of the interior chamber.
2. Allow approximately 30 minutes for the incubator to stabilize.
3. Turn
off the main power switch.
4. Wear a grounding wrist strap to avoid damaging any
of the electrical components.
5. Remove the 982 controller module(s) by
Press Press
pressing in the four retaining tabs, two
on the right side, two on the left side.
Refer to Figure 2-5. Pull the controller Side View
module out
by gently rocking it from
Figure 2-5
side to side.
6. Looking
at the top and right side
of the controller module, locate
the red DIP switches indicated
in
Figure 2-6. Use your fingernail or
a small screwdriver, to turn off
SW 2 by moving the white toggle
towards the front
of the module as D
SW2
shown
in the illustration.
7. Return
the controller into its
ON~OFF
frame
and finnly press on the top
and bottom
of the bezel until all a
SW1
four locking tabs "click" into
place.
Figure 2-6
8. Turn on the main power switch.
9. Press the Up and Down Arrowkeys simultaneously for 3 seconds. The word "InPt" will
appear
in the upper display, and "set" will appear in the lower display.
10. Press
the Down Arrow once, then continue to press the Mode key until "LOC" appears
in the lower display. The upper display will show 2. Press the Down Arrowuntil 0
appears.
2-8

Forma® Mod~l 391113913 ______________ ---:InstallationiSet-Up
11. Press the Mode key once, then the Up Arrow once. "InPt" will appear
in the upper display,
and
"set" will be in the lower display. Press the Mode key until "CAL 1" appears inthe
lower display. Press the Up orDown Arrow key to either add or subtract an offset value.
This would bethe difference between the actual value shown
o~ the controller, and the
reference sensor value.
12. Press the Display key once.
To turn the hardwarelockoutback on:
1. Press the Up and Down Arrow keys simultaneously for 3 seconds. The word "InPt" will
appear in the upper display, and "set" will appear inthe lower display.
2. Press the Down Arrow once, then continue to press the Mode key until
"LOC" appears
in the lower display. The upper display will show
O. Press the Up Arrow until 2 appears.
3. Press the Display key once.
4. Turn
off the mainpower switch.
5. Wear a grounding wrist strap to avoid damaging any
of the electrical components.
6. Remove the 982 controller module(s) by pressing in the four retaining tabs,
two on the
right side, two on the left side. Pull the controller module out by gently rocking
it from
side to side.
7. Looking at the top and right side of the controller module, locate the red DIP switches.
Use your fingernail or a small screwdriver, to turnon SW 2 by moving the white toggle
towards the back
of the module.
8. Return the controller into its frame and press fumly onthe top and bottom ofthe bezel
until all four locking tabs "click" into place.
9. Turn
on the main power switch.
2-9

Fonna® Mod~l 391113913 ______________ ---'InstallationiSet-Up
2.10 Controller Configuration
The Watlow 982 Temperature and Humidity Controllers have been configured at the
factory. Copies
of the Watlow Configuration records are included onthe following pages.
The controller should not be re-configuredwithoutfirst
consultingForma Scientific Service Department at
1-888-213-1790.
Refer to Section 3 of this manual for operating instructions for the Watlow controllers.
The
Watlow factory manuals are included with this manual.
2-10

3911/3913 (WATlOW 982) CONFIGURATION RECORD
CUSTOMER:
JOB NUMBER:
UNT SERIAL NUMBER:
CONTROL TYPE: Temperature
PREPARED BY: DATE
COMPLETED BY: DATE
Switch Configuration:
Main Boards
In(2ut 1 Board
Out(2ut 3 O(2tion board
SWI ON SWI OFF Jumper switch setting:
SW2
ON
SW2 OFF
Form B
SW3 ON
Software Configuration:
Ogerations Menus
SYS:
EilS NA Ent4 NA A3LO -73.3 A4Hi
NA
Ei2S NA
A2LO NA A3Hi 34.0 Aut OFF
Ent3 NA A2Hi NA A4LO NA
PID: Pbl 2.0
dEl NA 1t2
NA dB 0.0
rEI 0.50
Ctl 5 rA2 0.25
Itl NA Pb2 1.0 dE2 NA
rAI
0.19 rE2 0.25 Ct2 30
PROG: See Programming Sheets if required.
Setug Menus
InPt:
Inl RT.D
CALI
**
rL2 NA CAL2 NA
dEC1 NA
rtdl
DIN rH2 NA
Hunt NA
rLi -20.0
Ftrl
2 LrnL NA
rHi 80.0 In2 NA LrnH NA
OtPt: Otl Ht
AL2 NA LAt3
nLA SIL4 NA
PrCI
NA LAt2 NA S1L3 OFF
Aout
NA
HySI 0.1
SIL2 NA Ot4
NA
PrC3 NA
0t2
CL Ot3 AL3 AL4 NA
ArL
NA
PrC2 NA AL3
Pr1 HyS4 NA ArH
NA
HyS2 0.1
HyS3 0.1 LAt4 NA
ACAL NA
gLbL: C F C Anun OFF PtyP
ti
PStr StPt
Err nLA
LoP -100 gSd 0
LOC
2 *
Eil NO HiP 100 POut
Cont
Ei2 NA AtSP
90
1dSP NA
*LOC should be set at 0 until factory testing and calibration is complete.
** This is a calibration factor and will vary from unit to unit.
COM: bAUd 9600 dAtA 70 PrOt
FULL Addr 0
IntF NA
3940CONFIGS.XLS
PAGE1
REVS 3/30/99
