Foscam FI8907W User manual

U
Us se er r M Ma an nu ua al l
Model: FI8907W
Indoor Wireless IP Camera
Color: Black Color: White

w
ww ww w. .f fo os sc ca am m. .c co om m
1
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 1
TableofContents
1 Overviews .................................................................................................................................2
1.1 Key Features.......................................................................................................................................................3
1.2 Read Before Use ................................................................................................................................................3
1.3 Packing Contents................................................................................................................................................4
1.4 Physical Description............................................................................................................................................4
2 Surveillance Software GUI ........................................................................................................7
2.1 Login Window .....................................................................................................................................................7
2.2 Surveillance Window...........................................................................................................................................9
3 Advanced Camera Settings ....................................................................................................15
3.1 Device Status ....................................................................................................................................................15
3.2 Alias Settings ....................................................................................................................................................17
3.3 Date & Time Settings ........................................................................................................................................17
3.4 User Settings.....................................................................................................................................................18
3.5 Multi-Device Settings ........................................................................................................................................19
3.6 Basic Network Settings.....................................................................................................................................25
3.7 Wireless Settings ..............................................................................................................................................28
3.8 ADSL .................................................................................................................................................................32
3.9 UPnP Settings...................................................................................................................................................33
3.10 DDNS Service Settings...................................................................................................................................33
3.11 Mail Service Settings.......................................................................................................................................38
3.12 MSN Setting....................................................................................................................................................40
3.13 FTP Service Settings ......................................................................................................................................42
3.14 Alarm Service Settings....................................................................................................................................45
3.15 Upgrade Device Firmware ..............................................................................................................................51
3.16 Backup & Restore Settings.............................................................................................................................53
3.17 Restore Factory Settings ................................................................................................................................53
3.18 Reboot Device ................................................................................................................................................54
3.19 Log ..................................................................................................................................................................54
3.20 Back ................................................................................................................................................................54
4 APPENDIX.............................................................................................................................. 55

w
ww ww w. .f fo os sc ca am m. .c co om m
2
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 2
4.1 Frequently Asked Questions.............................................................................................................................55
4.2 Default Parameters ...........................................................................................................................................59
4.3 Specifications ....................................................................................................................................................59
5 OBTAINING TECHNICAL SUPPORT.....................................................................................60
1
1 O Ov ve er rv vi ie ew ws s
FOSCAM FI8907W is an integrated wireless IP Camera with a color CMOS sensor. It combines
a high quality digital video camera, with a powerful web server, to bring clear video to your
desktop from anywhere on your local network or over the Internet.
The basic function of IPCAM is to provide remote video on the IP network. High quality video
images are transmitted at up to 30fps on the LAN/WAN by using MJPEG hardware compression
technology.
The WEB server within IPCAM supports various internet browsers including Internet Explorer.
Therefore the management and maintenance of your device is simplified, by using the network to
remotely configure, start-up, and upgrade the firmware of your IPCAM. You can use IPCAM to
remotely monitor your home or your office. Controlling the IPCAM and managing images is
simplified by using the provided web interface across the network utilising either wired or
wireless connectivity.

w
ww ww w. .f fo os sc ca am m. .c co om m
3
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 3
1
1. .1 1 K Ke ey y F Fe ea at tu ur re es s
●Powerful high-speed video protocol processor
●High Definition Color CMOS Sensor
●300K Pixels
●IR night vision (Range: 8m)
●Optimized MJPEG video compression for transmission
●Multi-level users’ management and passwords definition
●Embedded Web Server for users to visit by IE
●Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
●Embedded FOSCAM domain name
●Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
●Motion and Sound detection activates alarm
●Supports image snapshot
●Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
●Supports WPS
●Supports WEP/WPA/WPA2 encryption
●Supports Daylight Saving Time
●Supports MSN
●Supports Gmail as sender on mail service settings
●Supports audio on Firefox, Google Chrome and Safari
●Providing Central Management Software to manage or monitor multi-cameras
1
1. .2 2 R Re ea ad d B Be ef fo or re e U Us se e
Please first verify that all contents received are complete according to the Package Contents
listed below. Before the Network Camera is installed, please carefully read and follow the
instructions in the Quick Installation Guide to avoid damage due to faulty assembly and
installation. This also ensures the product is used properly as intended.

w
ww ww w. .f fo os sc ca am m. .c co om m
4
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 4
1
1.
.3
3 P Pa ac ck ki in ng g C Co on nt te en nt ts s
1
●IPCAM×1●IPCAM×1 ●CD×1●CD×1
1. .3 3 P Pa ac ck ki in ng g C Co on nt te en nt ts s
●DC Power Supply×1 ●Quick Installation Guide×1
●Mounting bracket×1(option) ●Warranty Card×1
●Network Cable×1
1
1. .4 4 P Ph hy ys si ic ca al l D De es sc cr ri ip pt ti io on n
Front Panel
Figure 1.1
Infrared LED: 2 IR LEDs
LENS: CMOS sensor with fixed focus lens. (2.8mm)
WIFI Antenna: Built-in Wireless Antenna
Microphone: Built-in microphone
Speaker: Built-in speaker
Antenna
Infrared LED
Lens
Speaker
Infrared LED
Microphone

w
ww ww w. .f fo os sc ca am m. .c co om m
5
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 5

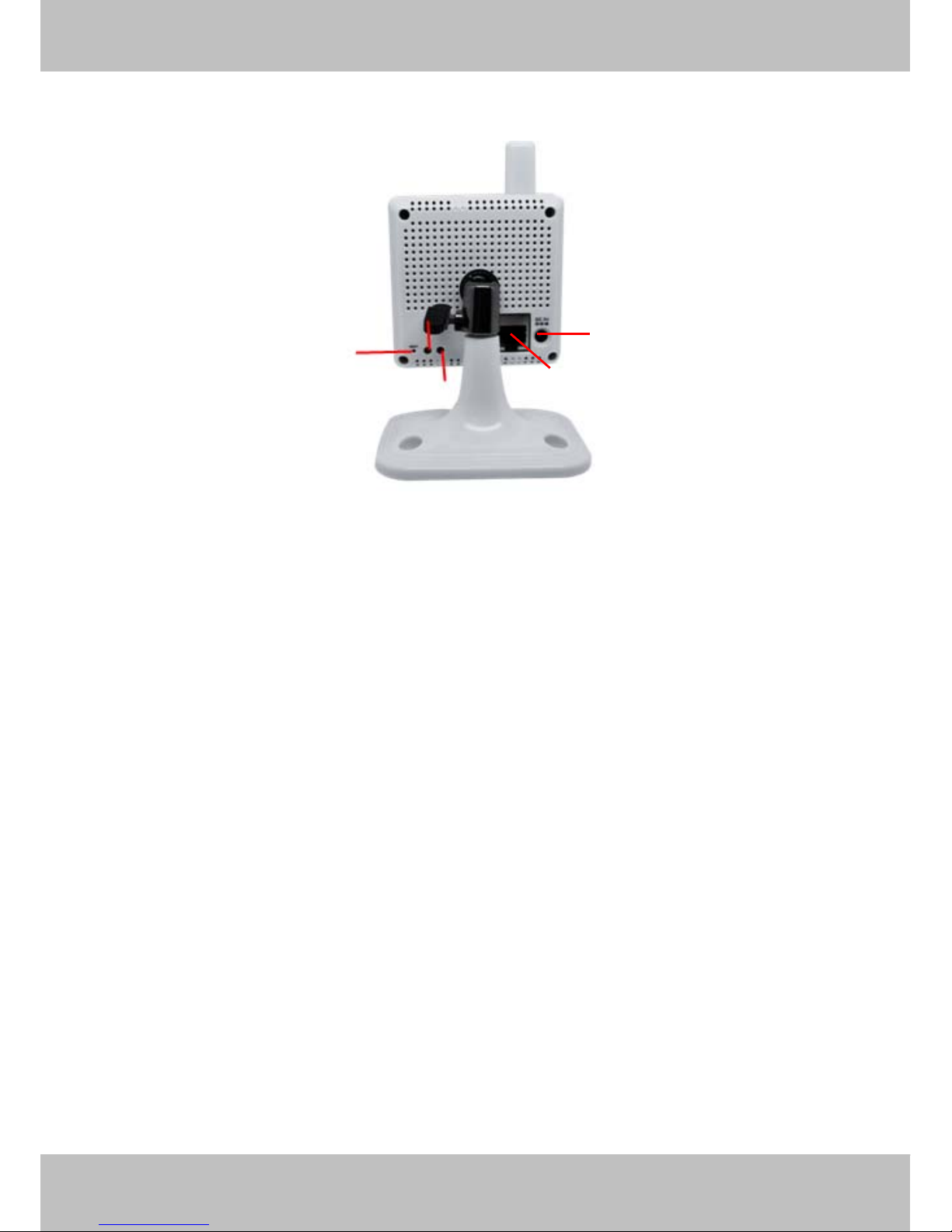

Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
Power: DC 5V/2A Power supply
Network Light: The LED will blink when plug the power
Power Light: If the power adapter works well, the light will turn on
Reset button:
1）Press and hold down the RESET BUTTON for 10 seconds, when released the IP camera will
be reset back to factory default settings. You must power on the camera before reset.
2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on
the router, then you can use the WPS function. (For more details: please read Wireless Settings
in the User Manual)
DC 5V Power Jack
RJ45 Port
Network light
Reset button
Power light

w
ww ww w. .f fo os sc ca am m. .c co om m
6
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 6

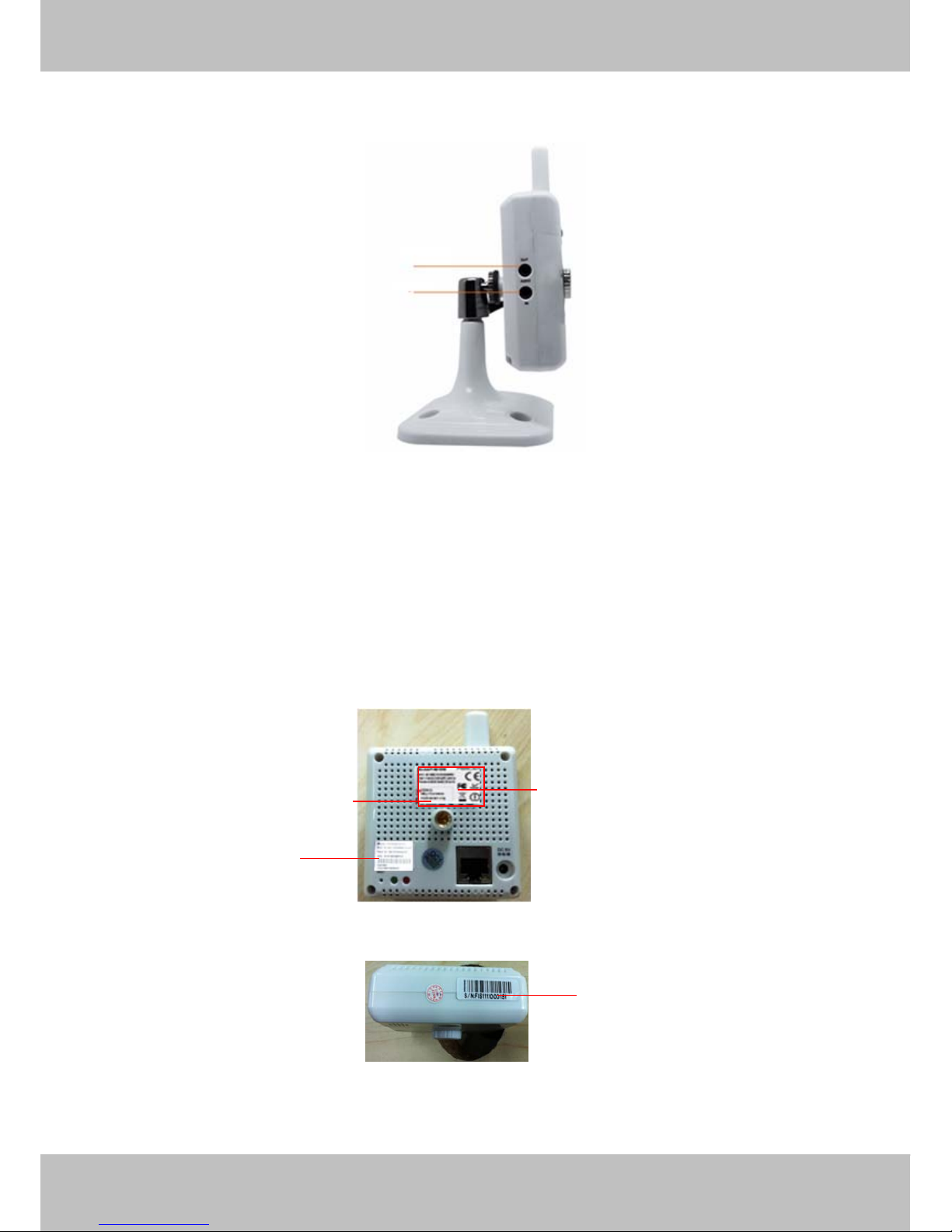

Side View
Audio input: The jack is used to plug in the external microphone
Audio output: The jack is used to plug in the external speaker
Bottom View
There are up to three labels located on the body of the camera; this is an important feature of
original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be
a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for
warranty or technical services.
Figure 1.3
FOSCAM domain name MAC address of wired
connection
MAC address of wireless
connection
S/N of FOSCAM
Output
Input

w
ww ww w. .f fo os sc ca am m. .c co om m
7
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 7
2
2
S
Su ur rv ve ei il ll la an nc ce e S So of ft tw wa ar re e G GU UI I
2
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
2
2. .1 1 L Lo og gi in n W Wi in nd do ow w
2
2 S Su ur rv ve ei il ll la an nc ce e S So of ft tw wa ar re e G GU UI I
2. .1 1
L Lo og gi in n W Wi in nd do ow w
Figure 2.1
Please check the login window above, it was divided to 6 sections from no. 1 to 6.
Section1 Select Language
FOSCAM camera supports up to multi-languages, such as English, Spanish, Deutsch and so on.
You can select the language you need via pull down the dropdown toolbar and click on the
language to switch.
12
3
4
5
6

w
ww ww w. .f fo os sc ca am m. .c co om m
8
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 8
Section2 FOSCAM Website Link
There is an access link to Foscam website homepage, if you need tech support you can contact
Foscam directly.
Section3 ActiveX Mode
If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are
using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode.
.
Section4 Server Push Mode
If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose
Server Push Mode mode.
Section5 Mobile Phone
If you are using the Mobile to access the camera, here you need to select Mobile Phone login
mode.
Section6 Note
Note that when you login the camera, please select the corresponding login mode.

w
ww ww w. .f fo os sc ca am m. .c co om m
9
S
Sh he en nz zh he en n F Fo os sc ca am m I In nt te el ll li ig ge en nt t T Te ec ch hn no ol lo og gy y C Co o. ., , L Li im mi it te ed d
T
Te el l: : 8 86 6 7 75 55 5 2 26 67 74 4 5 56 66 68 8 F Fa ax x: : 8 86 6 7 75 55 5 2 26 67 74 4 5 51 16 68 8 9

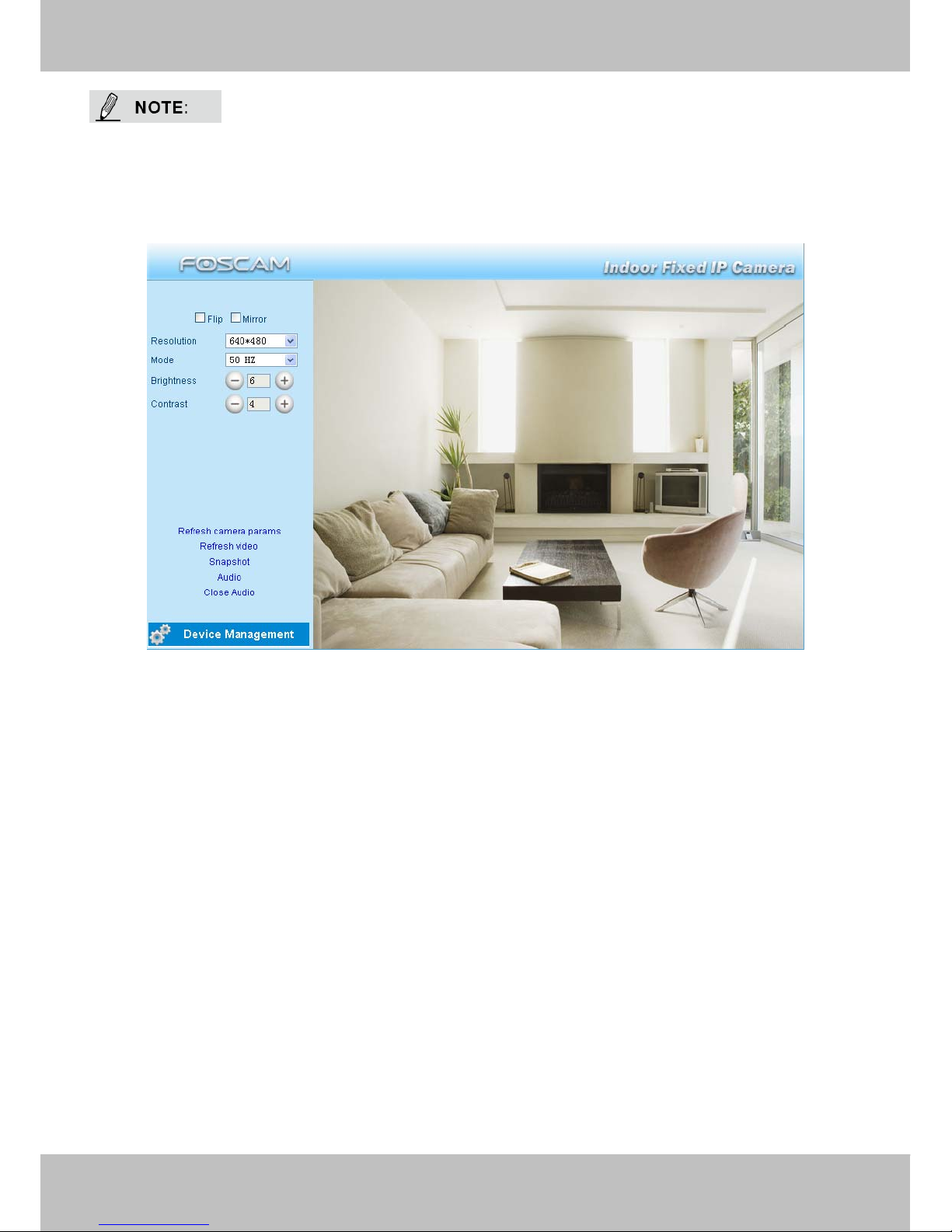

2.2 Surveillance Window
Select the ActiveX mode and you will enter the surveillance window.
Figure 2.2
Section1 Device Name
Default device name is Anonymous. You can define a name for your camera as you like (Please
go to chapter 3.1 and read how to set it)
Section2 Multi-Device Window
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the
same time. You can add other cameras in multi-device setting (read chapter 3.5).
1
2
3
5
4
6
