Fox F7860 User manual

1
PADDLE MIXER
FOX Model F7860
240V / 110V
ASSEMBLY AND OPERATING INSTRUCTIONS

2
Paddle Mixer
FOX MODEL F7860 240V / 110V
TABLE OF CONTENTS
Safety instructions……………………………………………………………………………………………Page 3
Specifications…………………………………………………………………………………………………Page 5
Environmental protection……………………………………………………………………………………Page 6
Symbols……………………………………………………………………………………………………….Page 6
Electrical connections………………………………………………………………………………………. Page 7
Earthing instructions…………………………………………………………………………………………Page 7
Starting operation and use…………………………………………………………………………………. Page 8
Maintenance…………………………………………………………………………………………………. Page 9
Parts diagram…………..…………………………………………………………………………………….Page 10
Parts list……………………………………………………………………………………………………….Page 11
DART Tool Group Guarantee……………………………………………………………………………… Page 12
Declaration of Conformity…………………………………………………………………………………...Page 13

3
ATTENTION :
- Read the instructions for use carefully before using the machine
- This device meets current safety standards for electrical machines.
- Incorrect use may result in injury. Anyone not familiar with the instructions for use should not use the
machine. Keep these instructions for use safe.
SAFETY INSTRUCTIONS
ALWAYS DISCONNECT THE MACHINE FROM THE POWER SOCKET BEFORE ATTEMPTING ANY
MAINTENANCE.
Keep a safe working zone for both staff and equipment. NO CHILDREN must be allowed in the
working zone under any circumstance.
The machine must be always disconnected when not in use. Use the on/off switches on the machine. Always
disconnect the machine by pulling the plug, do not pull the power cord.
Before using the machine, remove all tools used for setup and keep them away from your working zone. Reconnect
the machine. Check that the working zone is clear and that there is plenty room to work with the wood.
Ensure you are in good working position. If the work will produce dust or small pieces, wear safety gear, protective
glasses, gloves, a mask and ear defenders. If you have long hair, tie it up. Do not wear watches or bracelets. Wear
shoes with good grip and remember to never place your fingers too near the blade.
Do not use the machine if you are tired or distracted because you risk injury.
Do not use this machine anywhere containing flammable liquids and/or volatile gases.
1. Keep your working area clean. Untidy working zones and busy workbenches invite injuries.
2. Avoid a dangerous environment. Do not expose machines to rain and not use them in wet places. Ensure your
working zone is well lit. Do not use the machine where there is gas or flammable liquids.
3. Protect yourself from electric shocks. Avoid touching earthed surfaces.
4. Keep children and visitors well away from the working area.
5. Tidy up any tools not in use. When tools are not used, they should be kept in a dry, locked place, out of reach of
children.
6. Do not force the machine. It will work better when used with the pressure it was designed for.
7. Use the correct tools. Do not force a small tool to do the work of a bigger tool. For example, do not use a circular

4
saw to cut branches or logs.
8. Wear appropriate clothing. Avoid loose clothing, and remove jewellery which could become caught in moving parts.
Non-slip shoes are particularly recommended when working outside. Keep long hair tied up.
9. Always wear safety glasses. Also wear a mask if operating the machine creates dust.
10. Do not mistreat the power cord. Never use the power cord to pull out the plug. Keep the power cord away from
heat, oil and sharp edges.
11. Do not bend over the machine. Keep your balance at all times.
12. Hold the machine by both handles when in use and use a solid stance. Secure the vessel holding the substance
being mixed to avoid it moving while mixing.
13. Keep tools in good condition. Clean tools to obtain the best results with them. Follow instructions to grease and
change accessories. Regularly check the power cord and replace it if damaged. Keep handles dry, clean and free
from oil and grease.
14. Disconnect the tool when not in use, before the maintenance and while changing accessories such as blades,
drills, etc.
15. Remove all maintenance tools. Get used to checking that all maintenance tools are removed before using the
machine.
16. Avoid accidentally starting the machine. Make sure that the switch is in the "OFF" position before connecting the
power.
17. When the tool is used outside, use only extension leads designed for outdoor use.
18. Be observant. Use common sense when operating machinery. Do not use the tool when tired.
19. Inspect parts before use. Before continuing to use the tool, inspect any protective parts) which could be damaged
to make sure that they work well. Verify that the moving parts are properly aligned, and are not jammed or broken.
Check the assembly and any other conditions which may affect the correct functioning of the machine. Any
damaged part or guard must be repaired or replaced by an approved after-sales service centre. Do not use the
tool if the switch does not work correctly.
20. Warning: the use of any non-recommended accessory can present a health risk.
21. Have the machine repaired by a qualified person. This machine is built according to relevant safety requirements.
Repairs must only be made by a qualified person using original spare parts, otherwise it may be very dangerous
for the user.
22. Keep these instructions.

5
SPECIFICATIONS
Motor : 1300W –240V (1.75hp)
1300W –110V (1.75hp)
Speeds : 180-460rpm / 300-700rpm
Gears : 2
Paddle diameter : Max. 160mm
Dimensions (h x l x d) : 935x440x260mm
Weight : 6kg

6
ENVIRONMENTAL PROTECTION
The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at
the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not
dispose of these products as unsorted municipal waste.
The European directive DEEE concerning the environment, states that iIt is forbidden to dispose of used
electric or electronic devices in household waste.
They must be taken to a compatible recycling facility.
ATTENTION:
The manufacturer reserves the right to change specifications without notice.
Images are supplied for information purposes only. Actual machine and accessories may differ in appearance.
SYMBOLS
Always wear protective goggles when
using this machine.
Read and understand the instruction
manual before using the machine
Always wear a protective mask if the
operation is dusty.
Always wear ear defenders when using
the machine.
Heavy lift. Transporting the machine
requires two people.
Product meets relevant CE standards.

7
ELECTRICAL CONNECTIONS
EXTENSION LEADS
Before using any extension cord, make sure that the insulation is not cut or worn. Immediately repair or replace a
damaged or frayed cord.
ATTENTION :
Extension cords must be removed from the work area or located so that they will not get caught in parts, tools or other
objects while using the tool.
ELECTRICAL CONNECTION
Your paddle mixer contains a precision electric engine. It must be connected on an electrical supply of 240V or 110V,
depending on the model. If your machine does not work when it is connected please check your electrical supply.
EARTHING INSTRUCTIONS
In case of malfunction or short circuit, grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This tool is equipped with an electric cord having an earthing conductor and a grounding plug.
The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local
codes and regulations.
Do not modify the plug provided. If it does not fit into the outlet, have a proper outlet installed by a qualified electrician.
Improper connection of the conductor grounded equipment can result in a risk of electric shock. The conductor with
insulation is green with or without yellow stripes is the conductor of grounding. If the repair or replacement of the
power cord is necessary, do not connect the grounding conductor to a live terminal.
If the earthing instructions are not completely understood, check with a qualified electrician or a person responsible
for maintenance, or if there is doubt properly grounding the tool.
If the power cable is damaged, it must be replaced by the manufacturer, after sales service or similarly qualified
persons in order to avoid a hazard. Do not operate the tool with a damaged power cable.
This tool is intended for use on an electrical circuit with a wall outlet and earthing pin.

STARTING OPERATION AND USE
CAUTION
Check the data on the nameplate corresponds to the actual mains voltage. Use only mixing paddles up to the
specified diameter. Use the instrument in such a way that the motor is not put under undue strain.
Improper use may damage the instrument.
Attaching a mixing paddle
Screw the mixing paddle with thread M14 x 2 as far as possible into the spindle hold and tighten well with an open-
end wrench (included).
Switching on and off
Press the On/Off button to turn the paddle mixer on and off.
Permanent run
Pressing the On/Off button and the arresting pin turns on permanent run. Press the On/Off button again to turn off
the permanent run.
Removing the mixing paddle
Fit a flat open-end wrench on the spindle flats of the machine and unscrew the mixing paddle from the spindle by
turning it to the left.
Storage
The paddle mixer should be stored in a dry place where it is protected against freezing.

MAINTENANCE
ATTENTION !
- Before making any repairs or maintenance on the paddle mixer, disconnect the power cord from the power
socket. The power cord must be disconnected every time you make an adjustment or perform maintenance
on the machine.
- To avoid electric shocks and wounds, use only suitable spare parts.
- If the power cord is damaged, replace immediately.
This power tool normally requires no maintenance. From time to time the ventilation holes on the motor housing should
be cleaned out.
After approximately 100 hours of operation, check the motor brushes and replace if necessary. Clean the motor
housing.
After approximately 200 hours of operation, renew the grease filling in the gearbox.
To verify that the protective insulation remains intact after maintenance, the machine must be subjected to a technical
safety test. This work must only be performed by a qualified person or workshop.

PARTS DIAGRAM

PARTS LIST

DART TOOL GROUP GUARANTEE
DART TOOL GROUP takes pride in the quality of the power tools it supplies. The component
parts of our tools are inspected at various stages of production and each finished tool is subjected
to a final check before being packaged for shipment. Because of our confidence in our
engineering quality, DART TOOL GROUP agrees to repair or replace any part or parts of FOX
Power Tools and accessories which, upon examination, prove to be defective in workmanship or
material. The warranty period for the FOX branded products is one year for parts and labour and
three years for parts only. The guarantee does not include repair, labour or parts requiring
replacement because of misuse, abuse, or normal wear and tear. Repairs made by other than
the factory, DART TOOL GROUP service centre or authorised FOX service dealers relieves
DART TOOL GROUP of further liability under this guarantee. THIS GUARANTEE IS MADE
EXPRESSLY IN PLACE OF ALL OTHER GUARANTEES OR WARRANTIES, EXPRESSED OR
IMPLIED, WITH RESPECT TO QUALITY, MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE.

CE DECLARATION OF CONFORMITY OF THE MANUFACTURER
SERRACON
WHEATFIELD ROAD
DUNNIKIER BUSINESS PARK
KIRKCALDY, UK, KY1 3PD
Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854
Declares that the: PADDLE MIXER (F7860)
is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95
Person authorized to create the technical file: Robert Paterson
06.05.2011
The Director
Table of contents
Other Fox Power Tools manuals
Popular Power Tools manuals by other brands

Stanley
Stanley ProSert XTN20 instruction manual

HS-Technik

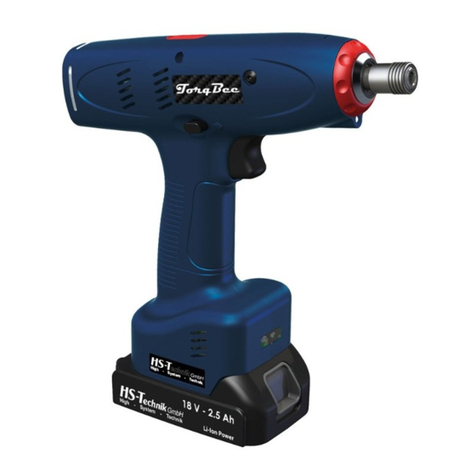

HS-Technik TorqBee TBP Series operating instructions

Bosch

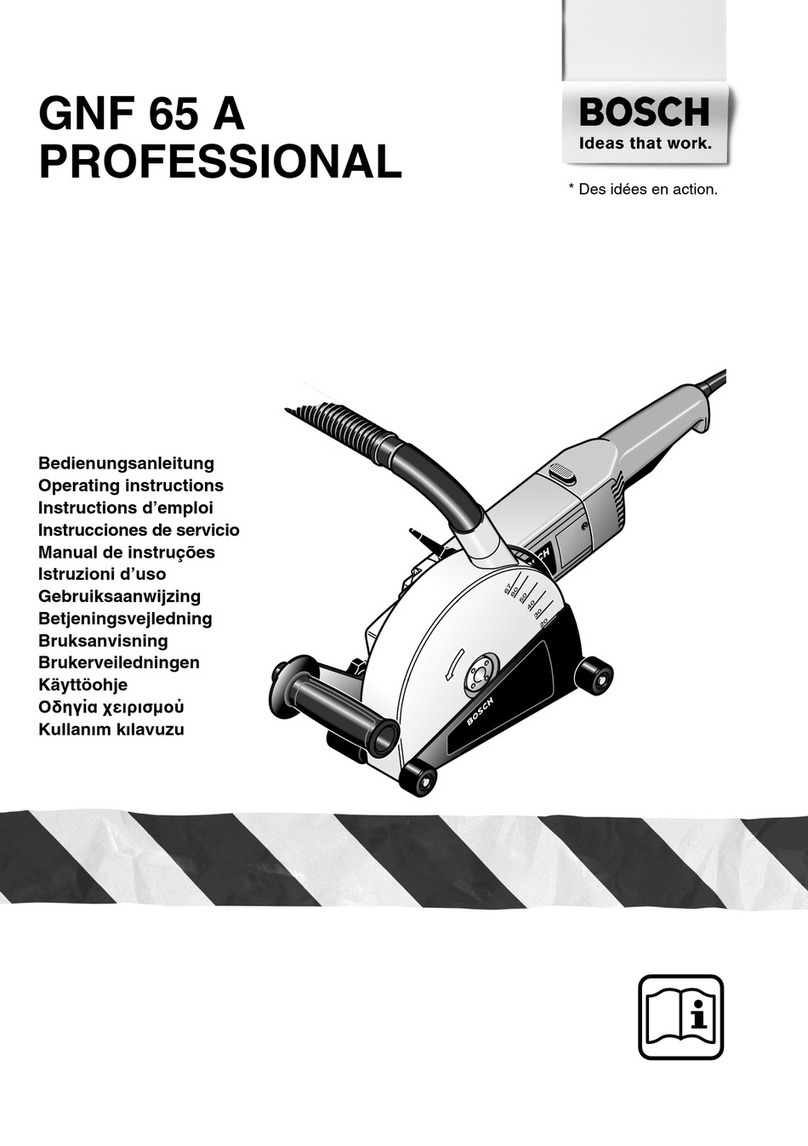

Bosch GNF 65 A PROFESSIONAL operating instructions

laguna

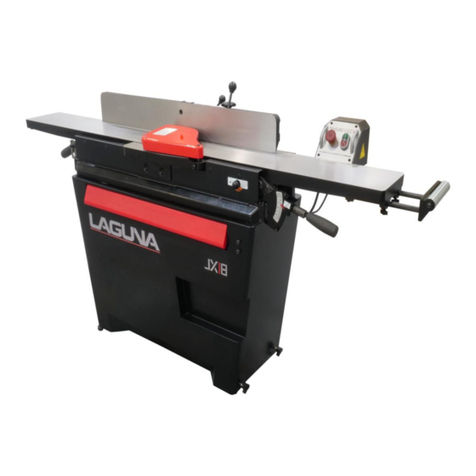

laguna Sheartec II JX 8 owner's manual

RIDGID

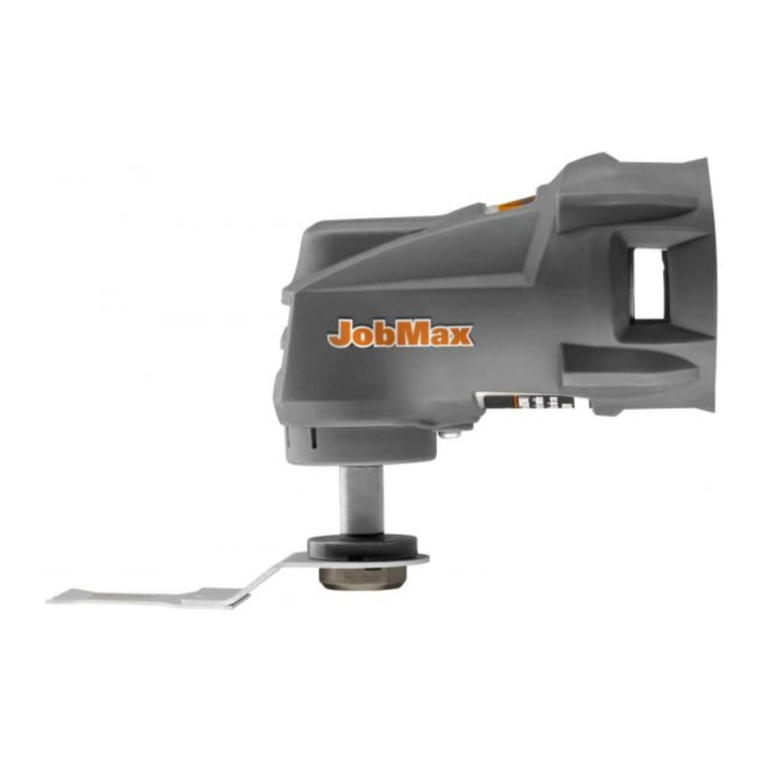

RIDGID JobMax R8223404 user manual
