RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor
hood is 650 mm (some models can be installed at a lower height, please
refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.

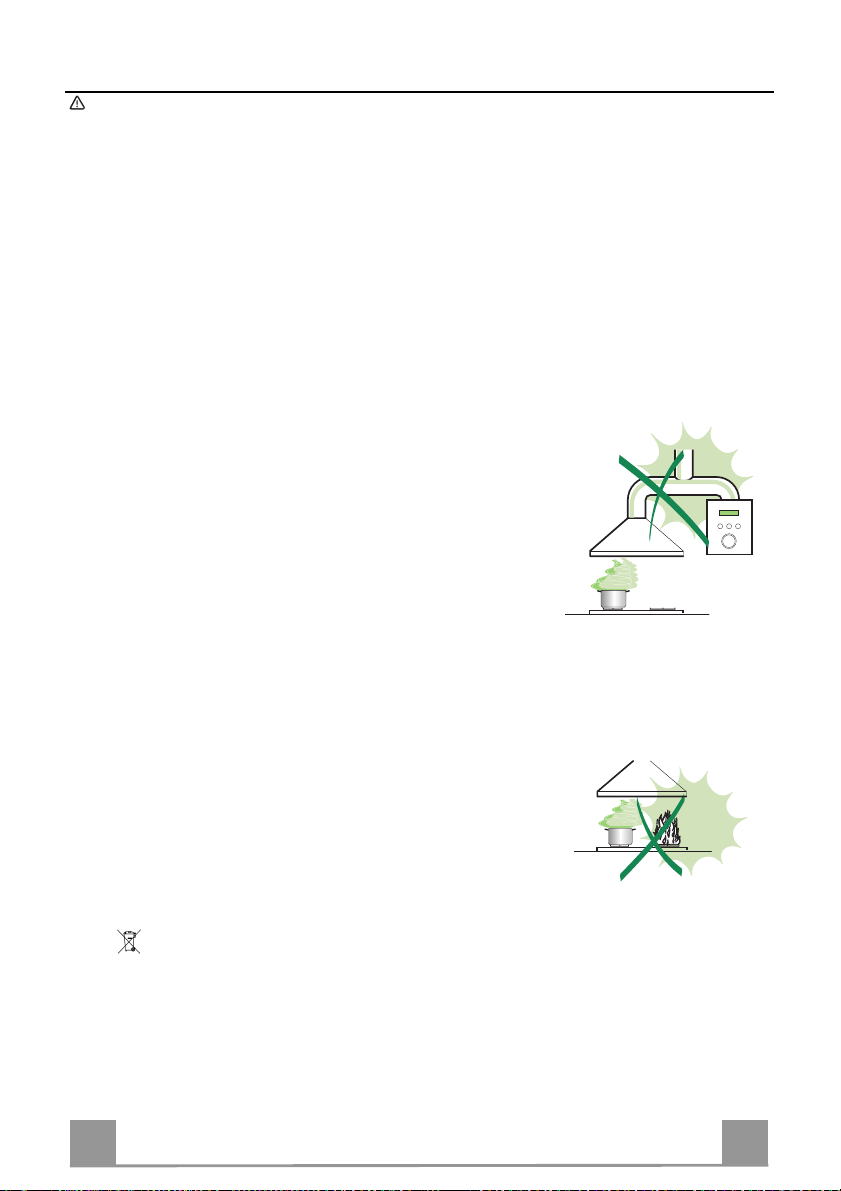

• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas
burning appliances), a sufficient degree of aeration must be guaranteed in
the room in order to prevent the backflow of exhaust gas. The kitchen must
have an opening communicating directly with the open air in order to
guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave highnaked flames under thehood whenit is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil
can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out
anymaintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.

EN
4
4
CHARACTERISTICS
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Chimney Upper
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
91 Reducer Flange ø150-120 mm
10 1 Flange ø 120 mm
15 1 Recirculation Air Outlet Connection
25 Pipe clamps (not included)
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 4 Screws 2,9 x 6,5
12f 4 Screws M6 x10
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c

EN
5
5
Dimensions
*
**
550 mm
* Dimensions ofthe hood in ducting version.
** Dimensions of the hood in recycling version.

EN
6
6
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN
7
7
PREPARATION OF THE FRAME FOR THE HOOD IN RE-
CYCLING VERSION
In case the hood is used in recycling version it is neces-
sary to prepare the frame with all the necessary connec-
tion pieces. In order to make the installation easier it is
necessary to lengthen the frame:
• Unscrew the two screws 2.1 fixing the upper chim-
ney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in
the frame separation area. (A).
• Unscrew the eight metric screws connecting the two
columns, placed on both sides of the frame (B).
Installation of components in recycling version:
• Fix the recycling air outlet piece 15 to the upper part
of the frame using four 12c screws supplied with the
hood.
• Fix the flange (ø120) 10 to the lower part of the recy-
cling air outlet 15.
• Put the reducer flange 9on the hood body outlet.
• At this point, join the flanges with a pipe. In order to
calculate the height of the pipe it is necessary to es-
timate the height of the hood (mm) and subtract 615
mm. (H pipe = H hood-615).
• Lengthen the frame so that the pipe can be inserted.
Place the pipe between the two flanges and block it.
Make sure that the height of the frame is correct con-
sidering the height of the cooker hood (H frame = H
hood – 184). Adjust the height of the frame and
tighten again the earlier removed screws. Tighten
again the safety screws in order to give more stability
to the structure.
• Fix the pipe with the pipe clamps 25 supplied with
the hood.
A
B
15
12c
10

EN
8
8
FIXING THE FRAME
• Lift the frame up, making sure that the index over the frame
plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceiling as
above, and turn until reaching the centre of the adjustment slot.
• Tighten the two screws and fasten the other two screws pro-
vided; before locking the screws completely, it is possible to
adjust the frame by turning it, making sure that the screws do
not come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the
weight of the Hood and the stress caused by occasional axial
pressure against the fitted Appliance. After fixing, make sure
that the base is stable even when the Frame is subjected to lat-
eral stress.
• If the Ceiling is not strong enough in the area where the hood
is to be fixed, the Installer must strengthen the area using suit-
able plates and counterplates anchored to resistant structures.
2
112
Ducted version air exhaust system Connection
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.
9
ø 120ø 150

EN
9
9
Installing of the chimney and fixing of the hood
When the hood is installed in recycling version the chimney has
to be positioned with the slots upwards. When the hood is in-
stalled in ducting version it has to be positioned in the opposite
way.
• Place the chimney on the frame and fix it to the upper part of it
with the earlier removed screws. When installing the hood in
recycling version make sure that the slots correspond to the air
outlet of the recycling air outlet piece 15.
• Open the lighting unit by slightly pulling the notch. Remove
the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood
unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws
12f in their seats. It is necessary to leave at least 4-5 mm gap
between the screw heads and the frame plate.
• Hook the hood canopy to the frame and turn it to the left until
it reaches the stop, then lock the screws immediately to prevent
the hood canopy from falling out accidentally.
2
1

EN
1
0
10
ELECTRICAL CONNECTION
• Connect the Hood to the Mains power supply, insert-
ing a two-pole switch with a contact gap of at least 3
mm.
• Make sure that the Power cable has been properly
inserted into the Suction fan socket.
• Fasten the commands connector Cmd.
• Fasten the Overhead lights connector Lux to the
socket provided behind the lighting unit cover.
• From the inside, open the Cover of Neon terminal
box by removing the screws.
• Fasten the remaining free connector to the one pro-
vided in the Neon terminal box, then close the cover
and fix it in the predisposed place.
• For the recirculation version, fit the Activated char-
coal odour filter.
• Replace the Grease filter and then the lighting unit.
Lux
Neon
Cmd

EN
1
1
11
USE
Control panel
Button Function Display
A Turns the suction motor on and off at the last
speed used. Displays the speed setting
B Decreases the operating speed.
C Increases the operating speed.
D Activates intensive speed from any other speed,
even with the motor stopped. Intensive speed is
timed to run for 10 minutes, after which the sys-
tem will return to the speed that was set previ-
ously. Suitable to deal with the highest level of
cooking fumes.
Displays HI and the spot at the bottom
right flashes once a second.
E Starts the motor at a speed that allows recircula-
tion of 100 m3/h for 10 minutes in every hour;
after which the motor stops.
When the filters alarm is triggered, the alarm can
be reset by pressing and holding this button for
approximately 3 seconds. These indications are
only visible when the motor is turned off.
Displays 24 and the spot at the bottom
right flashes, while the motor is running.
When the procedure has been completed,
the indication previously displayed will
turn off:
FF indicates the need to wash the metal
grease filters. The alarm is triggered af-
ter the Hood has been operating for 100
actual working hours.
EF indicates the need to change the acti-
vated charcoal filters, and also to wash
the metal grease filters. The alarm is
triggered after the Hood has been operat-
ing for 200 actual working hours.
F
Activates automatic shutdown with a 30' delay.
Suitable to complete elimination of residual
odours. It can be activated from any position, and
is deactivated by pressing the button or turning the
motor off.
Alternately displays the working speed
and the time remaining until the hood is
turned off. The spot at the bottom right
flashes.
G Turns the lighting system (overhead spotlights) on
and off. If pressed and held for 2 seconds it turns
the side lights (Neon strips) on and off.
H Turns the low intensity lighting system (overhead
spotlights) on and off.
A
BC
D
EF
GH

EN
1
2
12
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Metal grease filters
Filters can be washed in the dish machine. They need to be
washed when FF-sign appears on the display or in any case every
2 months, or even more frequently in case of particularly inten-
sive use of the hood.
Alarm reset
• Switch off the hood and the lights. If the 24h-function has been
activated this has to be deactivated.
• Press the E-key till the display is unlit.
Cleaning the filters
• Open the lighting unit by pulling on the nocth.
• Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The colour of the filter sur-
face may change throughout the time but this has no influence
to the filter efficiency).
• When fitting the filters into the hood pay attention that they are
mounted in correct position the handle facing outwards.
• Replace the lighting unit.

EN
1
3
13
Charcoal filter (recycling version)
• This filter cannot be washed or regenerated. It must be replaced when the EF appears on the
display or at least once every 4 months.
Activation of the alarm signal
• In the recycling version hoods the filter saturation alarm must be activated during the instal-
lation or later.
• Switch off the hood and the lights.
• Disconnect the hood from the mains supply.
• When restoring the connection press and hold B-key.
• When releasing the key two rotating rectangles appear on the display.
• Within 3 seconds press the B-key until a flashing confirmation appears on the dispaly:
• 2 flashes with EF - charcoal filter saturation alarm ACTIVATED
• 1 flash with EF - charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER
Reset of the alarm signal
• Switch off the hood and the lighting. If the 24h-function has
been activated this has to be deactivated.
• Press the E-key until the display is unlit.
Replacing of the filter
• Open the lighting unit by pulling on the nocth.
• Remove the metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing
hooks
• Fit the new filter and fasten it in its correct position.
• Put the metal grease filters in their seats.
• Replace the lighting unit.

EN
1
4
14
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Extract the lamp from the lamp holder by pulling
gently.
• Replace with another of the same type, making sure
that the two pins are properly inserted in the lamp
holder socket holes.
Lighting
CHANGING LAMPS
9 W Neon Lamp
• Unfasten the screws and remove the metal glass fix-
ing element, making sure you do not drop it.
• Remove the Glass.
• Replace the neon lamp from the inside, pulling it
downwards and fitting a new one with the same char-
acteristics.
• To reassemble, repeat the above operations in reverse
order.

IT
1
5
15
CONSIGLI E SUGGERIMENTI
Questo libretto di istruzioni per l'uso è previsto per più versioni dell' appare
c
chio.
É possibile che siano descritti singoli particolari della dotazione, che non
riguardanoilVostroapparecchio.
INSTALLAZIONE
• Il produttore declina qualsiasi responsabilità per danni dovuti ad installazione non
correttao non conformealle regoledell’arte.
• La distanza minimadi sicurezza tra il Piano di cottura e la Cappa deve essere di
650 mm, (alcuni modelli possono essere installati ad un’altezza inferiore, fare
riferimentoaiparagrafiingombroe installazione).
• Verificare che la tensione di rete corrisponda a quella riportata nella targhetta
posta all’interno della Cappa.
• Per Apparecchi in Classe Iaaccertarsi che l’impianto elettrico domestico
garantiscaun corretto scaricoa terra.
• Collegare la Cappa all’uscita dell’aria aspirata con tubazione di diametro pari o
superiore a 120 mm. Il percorso della tubazione deve essere il più breve
possibile.
• Non collegare la Cappa a condotti di scarico dei fumi prodotti da combustione
(caldaie,caminetti,ecc.).
• Nel caso in cui nella stanza vengano utilizzati sia la Cappa che apparecchi non
azionati da energia elettrica (ad esempio apparecchi utilizzatori di gas), si deve
provvedere ad una aerazione sufficiente dell’ambiente. Se la cucina ne fosse
sprovvista, praticare un’apertura che comunichi con l’esterno, per garantire il
richiamod’ariapulita.
USO
• La Cappa èstata progettata esclusivamente per usodomestico, per abbattere gli
odoridellacucina.
• Nonfaremai uso impropriodella Cappa.
• Non lasciarefiammeliberea forteintensità sotto laCappa in funzione.
• Regolare sempre le fiamme in modo da evitare una evidente fuoriuscita laterale
delle stesse rispetto al fondo delle pentole.
• Controllare le friggitrici durantel’uso: l’olio surriscaldato potrebbe infiammarsi.
• Nonprepararealimentiflambèsottolacappa da cucina;pericolo d'incendio.
• Questo apparecchio non deve essere utilizzato da persone (bambini inclusi) con
ridotte capacità psichiche, sensoriali o mentali, oppure da persone senza
esperienza e conoscenza, a meno che non siano controllati o istruiti all’uso
dell’apparecchioda personeresponsabilidella loro sicurezza.
• I bambini devono essere supervisionati per assicurarsi che non giochino con
l’apparecchio.
MANUTENZIONE
• Prima di procedere a qualsiasi operazione di manutenzione, disinserire la Cappa
togliendolaspina elettricao spegnendo l’interruttore generale.
• Effettuare una scrupolosa e tempestiva manutenzione dei Filtri secondo gli
intervalli consigliati (Rischio di incendio).
• Per la pulizia delle superfici della Cappa è sufficiente utilizzare un panno umido e
detersivoliquidoneutro.
Il simbolo sul prodotto o sulla confezione indica che il prodotto non deve essere considerato
come un normale rifiuto domestico, ma deve essere portato nel punto di raccolta appropriato per
il riciclaggio di apparecchiature elettriche ed elettroniche. Provvedendo a smaltire questo
prodotto in modo appropriato, si contribuisce a evitare potenziali conseguenze negative per
l’ambiente e per la salute, che potrebbero derivare da uno smaltimento inadeguato del prodotto.
Per informazioni più dettagliate sul riciclaggio di questo prodotto, contattare l’ufficio comunale, il
servizio localedi smaltimento rifiuti o ilnegozioin cui èstato acquistatoil prodotto.

IT
1
6
16
CARATTERISTICHE
Componenti
Rif. Q.tà Componenti di Prodotto
11 Corpo Cappa completo di: Comandi, Luce, Filtri, Cami-
no Inferiore
21 Camino superiore
7.1 1 Traliccio telescopico completo di Aspiratore,formato da:
7.1a 1 Traliccio superiore
7.1b 1 Traliccio inferiore
91 Flangia diriduzione ø150-120 mm
10 1 Flangia ø 120 mm
15 1 Raccordo Uscita Aria Filtrante
25 Fascette stringitubo (non incluse)
Rif. Q.tà Componenti di Installazione
11 4 Tasselli ø 10
12c 4 Viti 2,9 x 6,5
12f 4 Viti M6 x 15
12g 4 Viti M6 x 80
12h 4 Viti 5,2 x70
21 1 Dima di foratura
22 4 Rondelleø 6,4
23 4 Dadi M6
Q.tà Documentazione
1 Libretto Istruzioni
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c

IT
1
7
17
Ingombro
*
**
550 mm
*Dimensioni per cappa in versione aspirante.
** Dimensioni per cappa in versione filtrante.

IT
1
8
18
INSTALLAZIONE 6
Foratura Soffitto/Mensola e Fissaggio Traliccio
FORATURA SOFFITTO/MENSOLA
• Con l’ausilio di un Filo a piombo riportare sul Soffitto/Mensola di supporto il centro del
Piano di Cottura.
• Appoggiare al Soffitto/Mensola la Dima di Foratura 21 in dotazione, facendo coincidere il
suo centro al centro proiettato e allineando gli assi della Dima agli assi del Piano di Cottura.
• Segnare i centri dei Fori della Dima.
• Forare i punti seguenti:
• Soffitto in Calcestruzzo massiccio: secondo Tasselli per Calcestruzzo impiegati.
• Soffitto in Laterizio a camera d’aria, con spessore resistente di 20 mm: ø 10 mm (inserire
subito i Tasselli 11 in dotazione).
• Soffitto in Travatura di Legno: secondo Viti per Legno impiegate.
• Mensola in Legno: ø 7 mm.
• Passaggio del Cavo elettrico di Alimentazione: ø 10 mm.
• Uscita Aria (Versione Aspirante): secondo diametro del collegamento alla Tubazione di
Evacuazione Esterna.
• Avvitare, incrociandole e lasciando 4-5 mm dal soffitto, due viti:
• per Calcestruzzo massiccio, Tasselli per Calcestruzzo, non in dotazione.
• per Laterizio a camera d’aria, con spessore resistente di 20 mm circa, Viti 12h, in dotazio-
ne.
• per Travatura di legno, Viti per legno, non in dotazione.
• per Mensola in Legno, viti 12g con Rondelle 22 e Dadi 23, in dotazione.

IT
1
9
19
PREPARAZIONE DEL TRALICCIO PER LA CONNESIONE
FILTRANTE
Nel caso in cui si installi la cappa in versione filtrante
bisogna predisporre nel traliccio tutti i raccordi necessa-
ri per tale versione. Per facilitare l’installazione dei par-
ticolari per la versione filtrante è necessario allungare il
traliccio, procedere come segue:
• Svitare le due viti che fissano il camino superiore 2.1
al traliccio e sfilare il camino.
• Svitare le quattro viti di sicurezza poste in alto nella
zona di separazione del traliccio. (A)
• Svitare le otto viti metriche che uniscono le due co-
lonne, poste ai lati del traliccio. (B)
Installazione dei componenti per versione filtrante:
• Fissare il raccordo filtrante 15 alla parte superiore del
traliccio utilizzando le 4 viti 12c in dotazione.
• Agganciare con movimento rotativo la flangia (ø120)
10 alla parte inferiore del raccordo filtrante 15.
• Inserire la flangia di riduzione 9sull’uscita dell’aspi-
ratore.
• A questo punto bisogna collegare le due flangie con
un tubo, per calcolare l’altezza del tubo occorre sti-
mare l’altezza della cappa (mm) e sottrarre 615 mm.
(H tubo = H cappa-615).
• Allungare il traliccio tanto da permettere l’inseri-
mento del tubo e riposizionarlo bloccando il tubo tra
le due flangie. Verificare se l’altezza del traliccio è
adeguata all’altezza desiderata della cappa (H tralic-
cio = H cappa – 184). Regolare l’altezza desiderata
del traliccio e riavvitare le viti precedentemente tolte.
Per garantire una maggiore stabilità al traliccio riav-
vitare le quattro viti di sicurezza sull’ultimo foro di-
sponibile.
• Fissare il tubo con le fascette stringitubo 25 in dota-
zione.
A
B
15
12c
10

IT
2
0
20
FISSAGGIO TRALICCIO
• Sollevare il traliccio facendo attenzione che l’indice posto so-
pra la piastra del traliccio sia nella parte anteriore.
• Incastrare le asole del traliccio sulle due viti predisposte prece-
dentemente al soffitto e ruotare fino al centro dell’asola di re-
golazione.
• Stringere le due viti e avvitare le altre due in dotazione; prima
di serrare definitivamente le viti è possibile effettuare delle re-
golazioni ruotando il traliccio, facendo attenzione che le viti
non escano dalla sede dell’asola di regolazione.
• Il fissaggio del Traliccio deve essere sicuro in relazione sia al
peso della Cappa sia alle sollecitazioni causate da occasionali
spinte laterali all’Apparecchio montato. A fissaggio avvenuto
verificare quindi che la base sia stabile anche se il Traliccio è
sollecitato a flessione.
• In tutti i casi in cui il Soffitto non fosse sufficientemente robu-
sto sul punto di sospensione, l’Installatore dovrà provvedere a
irrobustirlo con opportune piastre e contropiastre ancorate a
parti strutturalmente resistenti.
2
112
Connessione Uscita aria Versione Aspirante
Per installazione in Versione Aspirante collegare la Cappa alla
tubazione di uscita per mezzo di un tubo rigido o flessibile di
ø 150 o 120 mm, la cui scelta è lasciata all’installatore.
• Per collegamento con tubo ø 120 mm, inserire la Flangia di
riduzione 9sull’Uscita del Corpo Cappa.
• Fissare il tubo con adeguate fascette stringitubo 25(non incluse).
• Rimuovere eventuali filtri al carbone attivo.
9
ø 120ø 150
