1. Read all instructions in this manual before
using the strength machine. Use the strength
machine only as described in this manual.
2. It is the purchaser’s responsibility to ensure
that there is enough space around the
strength machine for the intended exercise.
Do not crowd the strength machine.
3. Using the two 9/16” anchor holes to provide
maximum stability, the strength machine
must be anchored to the floor where required
or whenever possible.
4. Use the strength machine only on a level sur-
face. Cover the floor beneath the strength
machine to protect the floor.
5. It is the responsibility of the owner to ensure
that all users of the strength machine are
adequately informed of all precautions, have
read and understood all warning and caution
labels, and are informed of how to use the
strength machine properly.
6. Keep children under 12 and pets away from
the strength machine at all times.
7. Keep hands and feet away from moving
parts. Do not lean on or rest your hands on
the strength machine when it is in use.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. All users of the strength machine should be
instructed to report any injury or strength
machine irregularity to facility staff immedi-
ately.
10. Make sure the weight pin is completely
inserted into one of the weight plates.
11. Make sure the handles are attached securely
before each use of the strength machine.
12. Check all cables, cable connections, and pul-
leys before each use of the strength machine.
Make sure all parts are properly tightened.
Replace any worn parts immediately.
13. Make sure the cable remains on the pulleys
at all times. If the cable binds while you are
exercising, stop immediately and make sure
the cable is on the pulleys and nothing is
interfering with the cable or pulleys.
14. The strength machine is designed to support
amaximum user weight of 160 kgs. (350 lbs.).
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the strength machine.
IMPORTANT PRECAUTIONS

WARNING DECAL PLACEMENT
4
The decals shown below have been placed
on the strength machine in the indicated
locations. If a decal is missing or illegible,
see HOW TO CONTACT CUSTOMER CARE on
the back cover of this manual. Apply the decal
in the location shown.
Decal 1
Shown at 70%
PN GZ7003
Decal 2
Shown at 85%
Decal 3
Shown
at 50%
Decal 3
(Inside the
access cover)
Decal 4
PN GZ7026
Decal 4
Decal 2
Decal 1

Assembled Dimensions:
Height: 72 in./183 cm
Width: 36 in./91 cm
Depth: 78 in./198 cm
5
Base
Weights
Swivel Arm
Handle
Weight Pin
Foot Plate
Tower
BEFORE YOU BEGIN
Thank you for selecting the FREEMOTION®STEP
strength machine. With unrestricted motion, you can
work your body’s muscle groups together—the same
way you do in real life—and train more specifically and
efficiently. Whether your goal is to tone your body,
build dramatic muscle size and strength, improve your
cardiovascular system, or train muscles for precise
patterns of movement, the STEP strength machine will
help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the strength machine. If you have questions
after reading this manual, see HOW TO CONTACT
CUSTOMER CARE on the back cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number is GZFM6014.3. The serial number can be
found on a decal attached to the strength machine
(see the front cover of this manual).

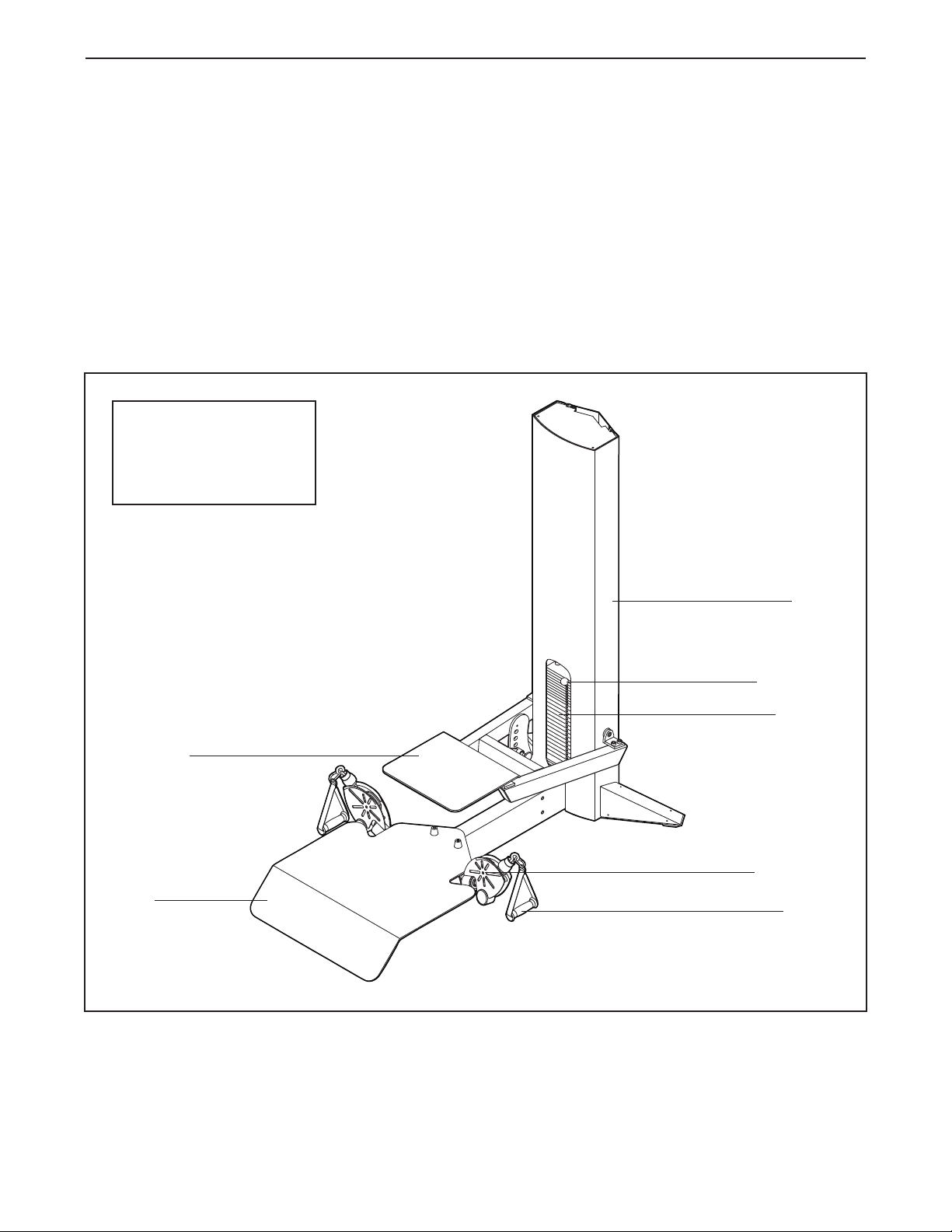

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

This section explains how to adjust the strength machine. Make sure all parts are properly tightened each time
the strength machine is used. Replace any worn parts immediately.
6
ADJUSTING THE RESISTANCE
To change the amount of resistance for your workout,
insert the weight pin into the desired weight. Make
sure that the weight pin is fully inserted into the
weight stack.
ADJUSTMENTS
Weight
Stack
Weight
Pin
ADJUSTING THE FOOT PLATE
Tochange the height of the foot plate, hold the foot
plate with one hand while pulling the adjustment knob
out. Move the foot plate to the desired height and
reengage the knob into the adjustment bracket. Adjustment
Knob
Foot
Plate
Adjustment
Bracket
WARNING: Always make sure that
the adjustment knob is fully engaged into the
adjustment bracket before using the foot plate.

7
MAINTENANCE
For safe and trouble-free operation of your FreeMotion Fitness®strength equipment, it is important to perform
routine preventative maintenance on a regular basis. Make sure that all parts are properly tightened each time
the strength machine is used. Replace any worn parts immediately. The strength machine can be cleaned with a
damp cloth and a mild, non-abrasive detergent. Do not use solvents.
Note: Instruct all personnel to perform equipment inspection and maintenance requirements. Personnel must
record and report any accident. For any questions or concerns, see HOW TO CONTACT CUSTOMER CARE
on the back cover of this manual.
Use only original FreeMotion Fitness parts for repair or replacement to maintain your machine’s warranty.
FreeMotion Fitness recommends the following procedures:
SCHEDULED MAINTENANCE
DAILY
1. Towers and Frames:
•Wipe with a light solution of mild soap and warm
water.Rinse and dry thoroughly.
Important: Do not use abrasive cleaners
because they may scratch the equipment. Strong
cleansers and abrasives will damage decals. Use
caution around decals. Do not use solvents such
as lacquer thinner, kerosene, gasoline, or similar
liquids.
CAUTION: When using any cleaning product, try
it first in an inconspicuous place to ensure there
is no damage to the material. Follow directions
and adhere to safety precautions of each manu-
facturer of cleaning agent used. FreeMotion
Fitness and its vendors cannot be held liable for
damage or injuries resulting from the use or mis-
use of cleaning products.
2. Stainless Steel Covers:
•Wipe with a light solution of mild soap and warm
water. Rinse and dry thoroughly.
•If desired, or to remove corrosion, use available
commercial stainless steel polishing com-
pounds. Follow manufacturers’ instructions.
3. Handles:
•Check all straps for wear.
•Visually check each strap along the full length
for signs of wear such as cuts, tears, or nicks.
Replace the strap immediately if necessary.
•A “fuzz” will appear on straps over time and is
not a concern unless it appears to be worn
through strands of the weave.
4. Straps with Rings:
•If a ring is pulling through the strap or tearing
away from the edge of the strap, replace the
strap immediately.
•Check stitching points on straps for tears, worn
spots or separation. Replace the strap if neces-
sary.

WEEKLY
1. Hardware:
•Check all nuts and bolts. Tighten them as
required.
2. Cables:
•Check all cables for proper tension.
•Check the entire length of the cable by pulling
each handle individually to its fully extended
position and inspecting the cable that is
exposed on the exterior of the machine, as well
as the cable inside of the cut stack tower.
•Run your fingers along the cable, paying close
attention at the bends and attachment points.
•Watch for the following conditions, which may
indicate a worn cable in need of replacement:
A. Torn or split cable sheath that exposes the
cable
B. Kinked or severely bent cable
C.Curled or twisted sheath
D.Stretched cable sheath, showing a thinning
cross-section
MONTHLY OR AS REQUIRED
1. Grips:
•Check and replace as needed.
2. Weight Stack Guide Rods:
•Clean and lubricate the full length by wiping
using a soft cloth containing automotive engine
oil. Only a light coating over the entire length is
needed.
CABLE TENSION CHECK
1. Insert the weight pin into the top weight plate.
2. Slowly raise and lower the top weight by normal
machine use. The top weight should come to rest
just on top of the second weight when the handle
is returned to the resting position.
•If there is too much tension on the cable, the top
weight will not rest on the second weight, and it
may be difficult to insert the weight pin into the
weight plates.
•If there is not enough tension on the cable, the
top weight will not be lifted immediately when
one of the handles is pulled. Ideally,the han-
dle/cable should not move more than 1.3 cm
(1/2 in.) from the resting position before the top
weight begins to be lifted.
3. If there is too much or not enough tension on the
cable, adjust the cable as described in CABLE
ADJUSTMENTS on page 9.
8
A
B
D
C

CAUTION: After making any cable adjustment, pull
the handle using a light load and have someone make
sure that the cable is not derailed from a pulley or rub-
bing on a guard (see CABLE GUARDS on page 10).
INITIAL ADJUSTMENT
Top Weight Pulley Adjustment—All machines.
Tools required: 9/16" open or box-end wrench, 5/16"
Allen wrench
Note: This is the primary adjustment for all
machines. If this adjustment does not remove the
excess slack, see ADDITIONAL ADJUSTMENTS on
this page.
1. Remove the access cover by pulling it free at the
bottom and then sliding it up until the two sets of
tabs release.
2. Using a 5/16" Allen wrench and a 9/16" open or
box-end wrench, loosen the nut holding the pulley
in the bracket on the top weight.
3. Toincrease the tension, slide the pulley down in
the slot. To decrease the tension, slide the pulley
up.
4. Tighten the nut and check the tension as
described in CABLE TENSION CHECK on page
8. If necessary,readjust the pulley.
5. Replace the access cover.
ADDITIONAL ADJUSTMENTS
Handle End Adjustment—All machines with a
strap and handle
Tools required: 1/8" Allen wrench, cable cutters, util-
ity knife, torque wrench
Note: Make this adjustment only if the pulley in the
top weight has been fully adjusted to the bottom of
the slot and the cable requires more tension.
Note: This adjustment is only for increasing the
cable tension because it requires shortening the
cable. Only one end of the cable should be short-
ened.
1. Create slack in the cable by removing the weight
pin and pulling the handle out 15–20 cm (6–8 in.).
Insert the weight pin into the third weight plate
and the tube on the bottom of the top weight.
2. Push the black rubber cover offthe aluminum
coupler and slide the cover up the cable to con-
tact the wide pulley.
3. Loosen the four oval-point, 1/4-20-unc set screws
in the coupler and pull the cable free.
4. Cut off2.5 cm (1 in.) of the cable end using cable
cutters. Note: Using any other tool may flatten
or disrupt the end strands so that it may be
difficult to reinsert the cable into the hole of
the coupler.
5. Cut off 2.5 cm (1 in.) of the black cable sheath
from the end of the cable.
6. Reinsert the cable and the sheath into the cou-
pler so that all of the bare cable is in the hole.
7. Retighten the four set screws into the threaded
holes. Tighten the set screws equally until they
contact the cable. Then, tighten each screw alter-
nately 1/4 turn, until all are set to 85 inch-pounds
(9.6 Newton-meters).
8. Slide the rubber cover over the coupler,remove
the weight pin, and lower the handle.
9. Check for proper tension on the cable as
described in CABLE TENSION CHECK on page 8.
CABLE ADJUSTMENTS
9
Pulley
Slot
Top Weight

CABLE GUARDS
Check for alignment periodically to ensure that guards
are not dragging on the cable and that they are per-
forming their intended duty. If the alignment is not prop-
er, loosen the bolt slightly and readjust as necessary.
SERVICING THE WEIGHT STACK
For required parts, see HOW TO CONTACT CUS-
TOMER CARE on the back cover of this manual.
1. Remove the access cover by pulling it free at
the bottom and then sliding it up until the two
sets of tabs release.
2. Loosen the top bolt or nuts on each guide rod.
Remove the bolts or nuts and let the guide rods
slide down to the floor.
3. To remove the top weight, first unbolt the pul-
ley(s) to release the cable using a 5/16" hex
wrench and a 9/16" open-end wrench.
4. Slide the top weight off the top of the guide
rods. Note: Pull the guide rods toward the back
of the machine for increased clearance.
5. Servicing the weight stack involves replacing the
three bushings in the top weight. First, use a
punch to drive the three existing bushings out of
the top weight.
6. To insert the new bushings, hold each bushing
square to the face of one of the holes in the top
weight, place a protective piece of wood on top
of the bushing, and lightly tap the bushing into
place. The bushings should be flush with the
surface. Note: There are two sizes of bushings.
The slightly larger bushing is for the single hole
in the top weight; the smaller bushings are for
the top and bottom of the cylindrical standoff.
7. Clean and lubricate the guide rods by wiping
them using a soft cloth containing automotive
engine oil. Apply only a light coating over the
entire length.
8. Replace the top weight on the guide rods. Bolt
the pulley, cable, and cable guards back into
place.
9. Reattach the guide rods to the top of the frame.
10. Insert the weight pin into the top weight. Pull the
handle, lifting the top weight all of the way to the
top. Slowly return the handle to the resting posi-
tion. If the top weight sticks, loosen one of the
guide rod bolts or nuts. Lift the top weight to the
top again. Retighten the guide rod bolt or nuts.
Check the full travel again and readjust the
guide rods if necessary.
11. While slowly pulling the handle, have someone
check the top weight pulley guard to ensure that
it is not dragging or rubbing on the cable.
12. Replace the access cover.
10
Large
Bushing
Small
Bushings
Top
Weight
Correct Alignment
Incorrect Alignment
Rubbing Contacts
Cable
Out of
Alignment
Guards Guards
Cable
Cable
Pulley

11
CABLE DIAGRAM
The cable diagram at the right shows the proper route
of the cable. Use the diagram to make sure that the
cable and the cable guards have been assembled
correctly. If the cable has not been correctly routed,
the strength machine will not function properly and
damage may occur. The numbers show the correct
route of the cable. Make sure that the cable guards
do not touch or bind the cable.
1
2
3
4
5
6
7
89

12
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
If replacement parts are needed, or if parts are missing or damaged, see HOW TO CONTACT CUSTOMER
CARE on the back cover of the owner’s manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
21 Tower
3 1 Access Cover
41 Frame Arm
5 2 Swivel Arm
6 1 Foot Plate
7 1 Counterweight
8 15 Large Weight
9 1 Top Weight
10 2 Weight Guide Rod
11 1 Right Stabilizer
12 1 Left Stabilizer
13 1 Left Stabilizer Cover
14 1 Right Stabilizer Cover
15 1 Adjustment Bracket
16 1 Adjustment Pin
17 1 Spring
18 1 Adjustment Knob
19 3 Floor Bumper
20 9 4 1/2” Pulley
21 8 Large Single Cable Guide
22 3 Large Double Cable Guide
23 2 Weight Bumper
24 2 Small Weight Guide Bushing
25 4 5/8” Lock Washer
26 1 Weight Pin
27 1 Top Weight Bumper
28 4 Pivot Pulley Bearing
29 2 Rubber Cover
30 2 Aluminum Coupler
31 2 Eyebolt
32 2 3/8” x 1 3/4” Bolt
33 2 3/8” x 4 1/2” Bolt
34 1 Large Weight Guide Bushing
35 1 3/8” x 3 1/2” Bolt
36 2 3/8” x 1” Screw
37 6 3/8” x 1/2” Screw
38 1 3/8” x 2 1/4” Bolt
39 2 Spring Clip
40 2 1/2” x 4 1/2” Bolt
41 8 1/2” x 1” Bolt
42 10 3/8” Nut
43 2 3/8” Serrated Lock Washer
44 2 1” Retainer Ring
45 2 1” Washer
46 2 1” Wave Washer
47 8 Rivet
48 9 Small Weight
49 2 Handle w/Strap
50 8 Cable Set Screw
51 2 1 1/8” Retainer Ring
52 1 Cable
53 4 5/8” Nut
54 2 Trunnion
55 2 Cable Bearing
56 4 3/8” Jamnut
57 4 3/4” x 1/2” Shoulder Bolt
58 1 Small Bumper
59 1 Pivot Bracket
60 2 Large Bumper
61 2 3/8” x 1 1/4” Bolt
62 4 3/8” x 2” Bolt
63 2 Bungee Clip
64 2 #10 x 1/2” Screw
65 2 Bungee Cord
66 4 Bungee Tie
67 4 3/4” Nylon Washer
68 2 1/2” x 4” Bolt
69 2 1/2” Nylon Locknut
70 2 3/8” Washer
71 1 Tie Rod
72 2 1/2” Nut
73 2 Rod End
74 2 1/2” x 1 3/4” Bolt
75 4 1/2” Washer
76 1 1/2” Nylon Jamnut
77 1 5/16” Nut
78 1 5/16” x 1” Bolt
# 1 Owner’s Manual
PART LIST—Model No. GZFM6014.3 R0305A

EXPLODED DRAWING—Model No. GZFM6014.3 R0305A
3
20
20
21
21
35
42
26
8
9
10
20
22
23
34
24
27
38
42
43
43
48
53
53
25
24
53
53
25
12
13
19
37
41
41 40
41
19
37
20
21
22 62
42
62
20
21
22
42
44
46
4528
28
54
44
46
45
28
28
54 5
5
11
14
19
41
37
2
21
21
20
20
20
42
20
42
42
62
62
32
42
68
15 58
78
36
59
18
17
16
7
33
4
6
57
32
1
60
61
52
49
39
31
51
55
56
50 50
29
30
52
49
39
31
51
55
56
50 50
29
30
57
57
47
47
47
47
47
47
47
67
67
67
67
70
69
77
42
42
64 65
66
65
66
64
63
63
71
72
72
73
73
75
74
75
74
76
13

14
NOTES

15
NOTES

Part No. GZ7205 R0305A Printed in USA © 2005 ICON IP, Inc.
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at
the address and phone number listed below. Please be prepared to give the following information:
• The MODEL NUMBER of the product (GZFM6014.3)
• The NAME of the product (FREEMOTION®STEP strength machine)
• The SERIAL NUMBER of the product (see the front cover of this manual)
When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING on pages 12 and 13 of this manual).
HOW TO CONTACT CUSTOMER CARE
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Drive, Suite 600 • Colorado Springs, CO 80907
