Frizzlife MS99 User manual

Model: MS99
OWNER’ S MANUAL

Refrigerator Angle Valve
1.BEFORE INSTALLATION
2.PRODUCT INTRODUCTION
3.INSTALLATION TIPS
4.INSTALLATION METHODS
5.FILTER CARTRIDGE REPLACEMENT
6.MAINTENANCE
7.LIMITED PRODUCT WARRANTY
11
12
12
1
2
2
3
4
8
Under Sink Water Valve
CONTENT

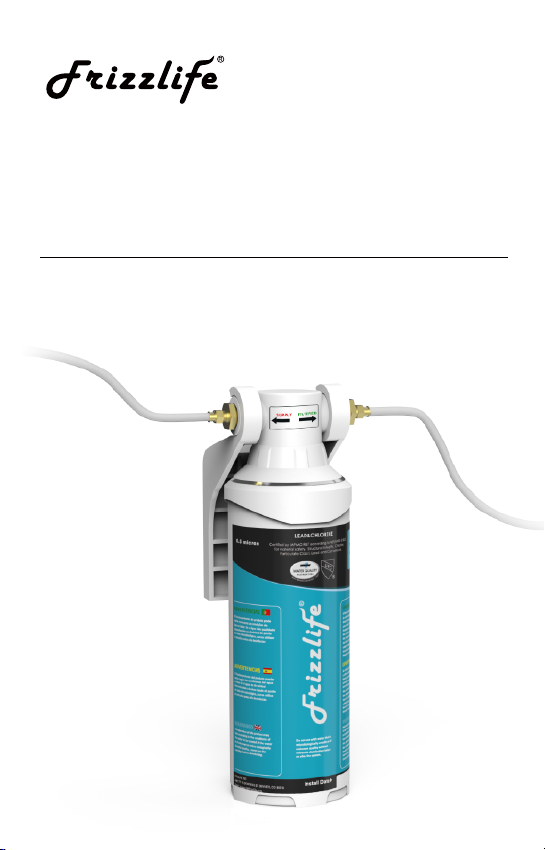

Thank you for purchasing Frizzlife MS99 refrigerator water filter system.
If you have any questions or need any assistance, please contact:
[email protected]
Register to get 150% warranty
1. Email us your order ID and full name at
[email protected].
2. Scan the QR code to register.
Open the box and take out the system and all the components.
Inspect them carefully according to ' Product Introduction' and
make sure nothing is missing or damaged during shipping. If any
parts are cracked or broken, please do not proceed with the
installation and contact Frizzlife for an exchange or diagnosis.
1.Before installation
Inspect box
Technocal Parameters
Required Tools
Feed Water Pressure
Feed Water Temperature
Applicable Water Source
Min.41ºF, Max.122ºF
Municipal water
20-80psi
Model
Adjustable wrench
Cross screw head Variable speed drill Towel
Screw driver Utility Knife
MS99
Flow Rate 1.5 GPM
Model: MS99
Page 1
Search 'Frizzlife MS99 Installation' on www.YouTube.com
Installation video

2. Product Introduction
3. Installation Tips
Water Filter System
FZ-2 filter cartridge
Wrench *2
Feed water valve
15 feet 1/4" PEX tubing
1.5 feet 1/4" PEX tubing
1/4" quick fitting
1/2"-1/4’ straight fittings *2
1/4’ straight fitting
Elbow fitting
Plumber Tape
Blade
1. What if the PEX tubing is too long?
Please cut the tubing into two sections in proper length, make sure
cut them squarely and cleanly.
please push the tubing into the fitting and make sure it is fully inserted.
Then put the blue lock clips on the fitting, it will lock the tubing in place.
To connect:
Use the 1/4" quick fitting to connect two sections.
Model: MS99
Page 2

The system can either connect to under sink water supply or refrigerator
water valve. It is competible with both PEX tubing (provided in the
package) and flexible copper tubing (not included).
Installation Method 1
Under Sink Water Valve +
PEX Tubing(included)/Copper Tubing(not included) ------ Page 4
Installation Method 2
Refrigerator Water Valve +
PEX Tubing(included)/Copper Tubing(not included) ------ Page 8
4. Installation Methods
Model: MS99
Page 3
2. What is the use of elbow fitting?
1. Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection.
2. Testing was performed under standard laboratory conditions, actual
performance may vary.
3. For cold water use only.
5. Do not allow children under 3 years of age to have access to small
parts during installation.
6. The installation must comply with all applicable state and local
regulations.
4. This filter must be protected from freezing, which can cause cracking
of the filter and water leakage.
Precautions:
Please choose an appropriate installation method before proceeding.
Choose the most appropriate method and skip to the correlated page directly.
Note:
If the tubing is not fulling inserted, water leakage
may occur. Pulling out the tubing directly will damage
the fitting, which may also cause water leakage. water leakage.
please remove the blue lock clips from the fitting, push in the lock sleeve,
and then pull out the tube from the fitting
If the space too narrow, please replace the
1/2" straight fitting on the filter system with
elbow fitting provided for more convenient installation.
To disconnect:

Model: MS99
Page 4
Installation method 1:
Connect to under sink cold water line
PEX Tubing - Under Sink Water Valve
Step 1: Install the bracket onto a wooden plate
MS99
Hot Cold
Take off the bracket from the
system.Mark the spots of three
screws on the wooden plate.
Mount the bracket with provided
screws.

Model: MS99
Page 5
Shut off the water supply disconnect
the cold water line from angle valve.
Twist the Feed Water Valve onto
the angle valve and make sure
O ring is loaded.Connect cold water
line onto the feed water valve.
Twist off the filter cap from the system.
Remove the nuts and compression
inserts from the Feed Water Valve.
Attach the 1/4" PEX tubing
(provided in the package) to the
valve by screwing up the hex nut.
Attach the 1/2" straight fittings on
both of the "supply" &"filtered" side
of the filter cap.
If the space is
too narrow
Step 2: Connect the under sink water valve with hoses
Step 3: Connect the filter with tubings

Model: MS99
Page 6
Remove the nuts and compression
inserts from the copper fittings.
Attach another 1/4" PEX tubing
to the "filtered" straight fitting
by screwing up the hex nut.
Sit the cap onto the bracket
(It is common to observe black particles as carbon fines for the first time flush.)
Put the other end of outlet tubing into
the sink or proper place for draining.
Attach the other end of the 1/4" PEX
supply tubing to the fitting at the
"supply" side of the cap.
Open the water valve. Check for leaks
and flush the filter for 5-10 min.
Twist back the filter catridge to the cap.
Step 4: Sit the system firmly
Step 5: Flush the system

Model: MS99
Page 7
Copper Tubing(not included) - Under Sink Water Valve
MS99
Cold
Step 6: Connect the system to your refrigerator
Step 7: Check the leaks
Shut off the water supply.
Connect the other end of outlet
tubing to your refrigerator.
Open the water valve. Connection
complete.
1
2 3 4

Model: MS99
Page 8
Installation method 2:
Connect to refrigerator angle valve
MS99
PEX Tubing - Refrigerator Water Valve
Step 1: Install the bracket onto a wooden plate
Take off the bracket from the
system.Mark the spots of three
screws on the wooden plate.
Mount the bracket with provided
screws.
Shut off the water supply. Remove the nut and compression
insert from the 1/4"Straight Fitting.
Step 2: Connect the refrigerator water valve with inlet tubing

Step 3: Connect the filter with tubings
Model: MS99
Page 9
Directly attach the 1/4" PEX tubing
(provided in the package) to the fitting
by screwing up the hex nut.
Twist off the filter cap from the system. Attach the 1/2" straight fittings on
both of the "supply" &"filtered" side
of the filter cap.
If the space is
too narrow
Remove the nuts and compression
inserts from the copper fittings.
Attach another 1/4" PEX tubing
to the "filtered" straight fitting
by screwing up the hex nut.
Attach the other end of the supply
tubing to the fitting at the "supply"
side of the cap by screwing up the
hex nut.

Model: MS99
Page 10
23
MS99
Sit the cap onto the bracket
(It is common to observe black particles as carbon fines for the first time flush.)
Put the other end of outlet tubing into
the sink or proper place for draining.
Open the water valve. Check for leaks
and flush the filter for 5-10 min.
Twist back the filter catridge to the cap.
Step 4: Sit the system firmly
Step 5: Flush the system
Step 6: Connect the system to your refrigerator
Shut off the water supply.
Directly connect the other end of
outlet tubing to your refrigerator
Open the water valve. Connection
complete.
Step 7: Check the leaks
1
4

Filter
2-in-1 Composite Filter FZ-2
Model Number Recommended Replacement Period
6-8 months
All the service life of the filter cartridge listed are based on actual laboratory test
with the provided water. The actual service life of filter cartridge depends on
source water quality and daily water usage.
Replacement Instruction:
Twist the housing counter clockwise and use
a wrench to unscrew the housing body.
Use the wrench to unscrew the housing body.
Take out the old cartridge and load with the
new one, then install back in the same way.
Please flush the new cartridge for 5-10 minutes
before starting to use.
You don't need to cut off the water supply, since the system adopts auto
shut off design.
Change
5. Filter Cartridge Replacement
Model: MS99
Page 11
Copper Tubing(not included) - Under Sink Water Valve

Frizzlife is not liable for anything that we deem as abuse of the units, including but not
limited to, misuse of product outside of intended use, equipment modifications,
unauthorized repairs, improper installation, damage from freezing, hot water, fire or
other acts of God outside of Frizzlife control. This warranty will be void if defects occur
due to failure to observe the following conditions:
• Incoming water to the the system cannot exceed 100°F.
• Do not use outdoors or in a location that is subjected to direct sunlight or freezing.
1.
Filter Cartridges are considered as disposable items , thus are not covered by warranty.2.
Customer is responsible for proper operation, which includes complete and continual
leak inspection.
Most of the unit components are made of plastic and eventually can break or crack
from stress.
Frizzlife cannot be held liable for any damage caused by leaks.
There are no other warranties which extend beyond what is described above.
To receive warranty service, please contact Frizzlife at [email protected]
3.
This warranty will not be effective unless and until the Frizzlife is shown to have been
used in accordance with the installation and maintenance instructions accompanying
the product.
Model: MS99
Page 12
To be free of defects in material and workmanship by Frizzlife INC, Frizzlife will replace
or repair components of the unit that Frizzlife has deemed to be broken within the limits
of the warranty without charge. The customer is not responsible for any freight involved
with shipping the item back for inspection and shipment of replacement items.
Frizzlife is not liable for cost of removal, installation, transportation or any other charges
in connection with a warranty claim.
6.Maintenance
Do not use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection.
Please replace the filter cartridges regularly to ensure optimal filtration performance.
The testing was performed under standard laboratory conditions, actual performance
may vary depending on the source water quality and water usage. In case of premature
blockage and failure of the filters, it is recommended to replace the filter in accordance
with actual usage.
Check the system and water pipe fittings regularly for water leakage to avoid any
property damage.
7. Limited Product Warranty
TWO YEAR LIMITED FRIZZLIFE WARRANTY
The Frizzlife MS99 Refrigerator Water Filter Systems are warranted to the original
purchaser.
MS99 Refrigerator Water Filter System Warrantor: FRIZZLIFE INC

1. Email us your order ID and full name at
[email protected].
2. Scan the QR code below to register
150% Extended Warranty
Model: MS99
Page 13
