Frizzlife PD800-TAM4 User manual

Model: PD800-TAM4
OWNER'S MANUAL

1. BEFORE INSTALLATION 1
2. PRODUCT INTRODUCTION 2
3. SAMPLE CONNECTION 2
4. INSTALLATION TIPS 3
5. INSTALLATION STEPS 3
6. FIRST TIME USAGE 9
7. USER INTERFACE 9
8. REPLACEMENT OF FILTER CARTRIDGE 11
9. FILTER REPLACEMENT INSTRUCTION 12
10. MAINTENANCE 13
11. TROUBLE SHOOTING 14
12. FREQUENTLY ASKED QUESTIONS 16
13. LIMITED PRODUCT WARRANTY 17
CONTENT

Model: PD800-TAM4
Search "Frizzlife PD800-TAM4 installation" on www.youtube.com
1. Before Installation
Inspect Box
Technical Parameters
Open the box and take out the system and all the components. Inspect them carefully
according to "Product Introduction" and make sure nothing is missing or damaged
during shipping. If any parts are cracked or broken, please do not proceed with the
installation and contact Frizzlife for an exchange or diagnosis.
1. BEFORE INSTALLATION 1
2. PRODUCT INTRODUCTION 2
3. SAMPLE CONNECTION 2
4. INSTALLATION TIPS 3
5. INSTALLATION STEPS 3
6. FIRST TIME USAGE 9
7. USER INTERFACE 9
8. REPLACEMENT OF FILTER CARTRIDGE 11
9. FILTER REPLACEMENT INSTRUCTION 12
10. MAINTENANCE 13
11. TROUBLE SHOOTING 14
12. FREQUENTLY ASKED QUESTIONS 16
13. LIMITED PRODUCT WARRANTY 17
Thank you for purchasing Frizzlife PD800-TAM4 reverse osmosis undersink filter
system with 800G RO membrane. If you have any questions or need any
assistance, please contact: [email protected]
Find the installation video
Register to get 150% warranty
INSTALLATION INSTRUCTION
FRIZZLIFE INC. www.frizzlife.com
Page1
1. Email us your order ID and full name at [email protected].
2. Scan the QR code to register.
Model
Min.39ºF,Max 100ºF
110-240VAC
800 gallons
120W
Operating temp
Rated Power
Rated Voltage
Daily Production Rate
PD800-TAM4
50-60HZ
0.56 gallons/m
Min.20psi Max. 80psi
Municipal water
Rated Frequency
Flow rate
Working pressure
Applicable Water Source
Scan the QR code to direct to video page

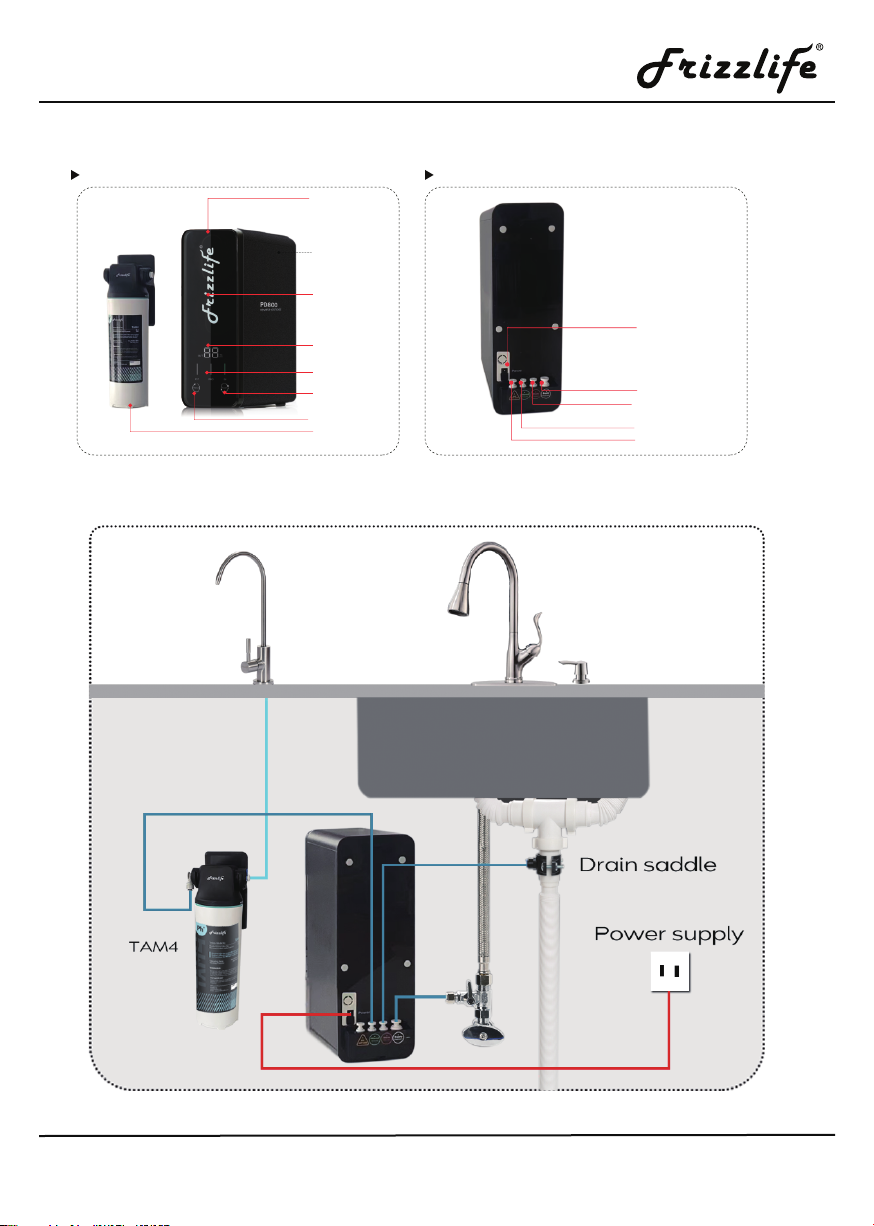

2. Product Introduction
3. Sample Connection
Front Back
FRIZZLIFE INC. www.frizzlife.com
Page 2
PD800-TAM3
ASR211
(CP filter)
OUT TDS
Filter life
Flush button
Filter life reset
TAM4
ASR212
(RO filter)
Power supply
Connect to water supply
Connect to drain pipe
Connect to drinking faucet
Do not use this plug
Model: PD800-TAM4

!
Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection.
Testing was performed under standard laboratory conditions, actual
performance may vary.
For cold water use only.
This filter must be protected from freezing, which can cause cracking of the
filter and water leakage.
Do not allow children under 3 years of age to have access to small parts
during installation.
The installation must comply with all applicable state and local regulations.
4. Installation Tips
5. Installation Steps
Precautions:

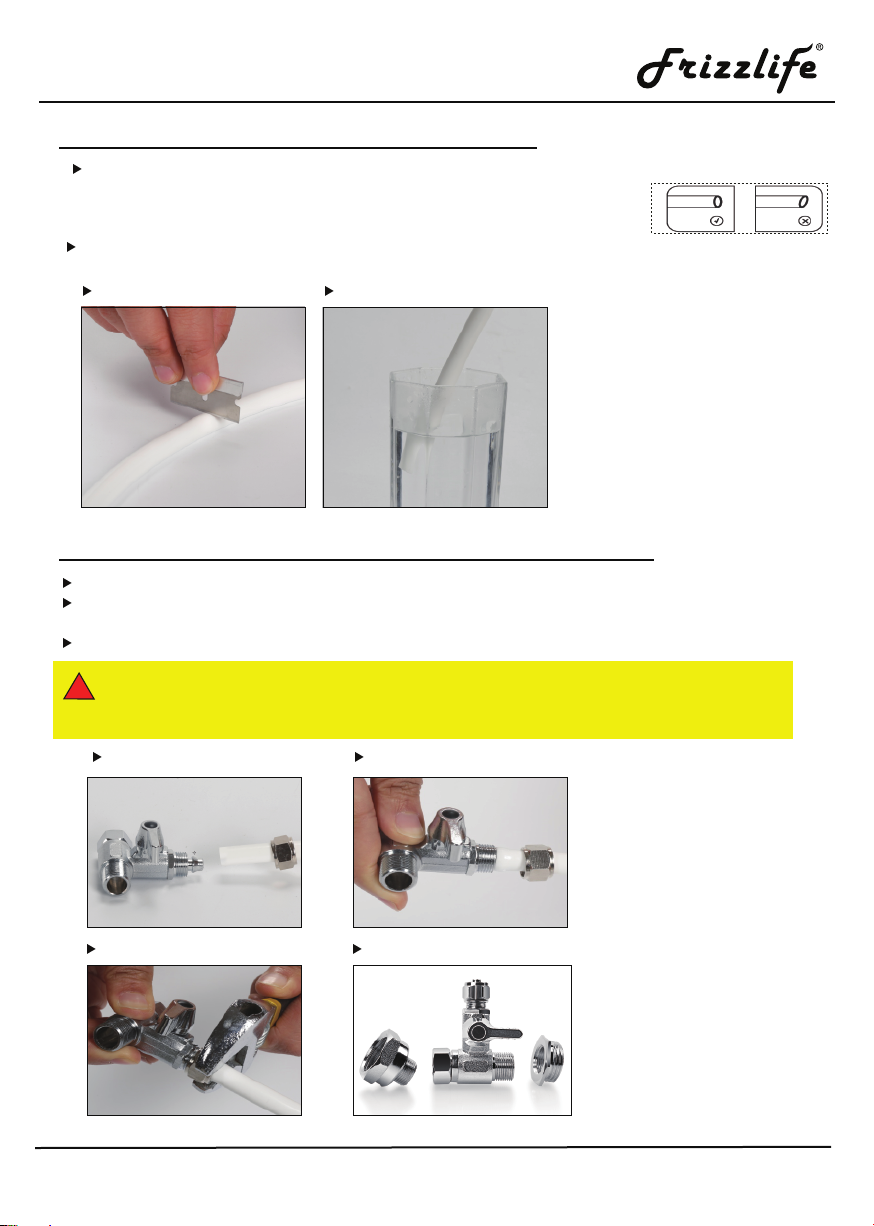

How to cut the tubing?
Please cut the tubing into two sections in proper length, make sure cut
them squarely and cleanly.
How to drill a hole on my sink (Optional)
Note：Please remember to wear safety glasses to protect your
eyes before proceeding.
Use a metal bit to drill. The recommended diameter of the hole is 1.2"
How to connect/disconnect the tubing?
To connect: please push the tubing into the fitting and make sure it is fully
inserted. Then put the blue lock clip on the fitting, it will lock the tubing in
place.
To disconnect: please remove the blue lock clip from the fitting, push in the
lock sleeve, and then pull out the tube from the fitting
Note: If the tubing is not fully inserted, water leakage may occur. Pulling
out the tubing directly will damage the fitting, which may also cause water
leakage.
FRIZZLIFE INC. www.frizzlife.com
Page 3
0.5 inch.5
Press
Remove
Remove
blue clip
Model: PD800-TAM4

Fig.1 Fig.2
Fig.3 Fig.4
Fig.6
!
Note: If the cold water pipe is 1/2", please connect one part of converter
to the angle valve and connect another part of converter to the pipe
before proceeding to the next step. (see Fig.6)
Please cut the 3/8" tubing in proper length, make sure cut them squarely
and cleanly. (Fig.1)
Put one end of the tubing into boiled water for 5 seconds to soften itself.(Fig.2)
Load the 3/8" tubing through the nut. (Fig.3)
Connect the end of 3/8" tubing that has been softened into the 3-way feed
water valve. Make sure push and squeeze the tubing to the very end.(Fig.4)
Use a wrench to tighten the nut, please do not over tighten. (Fig.5)
Step 1: Cut and Soften the 3/8" tubing
Step 2: Connect three-way feed water valve (3/8" or 1/2")
FRIZZLIFE INC. www.frizzlife.com
Page 4
Fig.5
Model: PD800-TAM4

Fig.7 Fig.8Fig.9
Fig.10 Fig.11 Fig.12
Shut off the water supply. (Fig.7)
Disconnect the cold water pipe from angle valve.
Twist the feed water valve onto the angle valve and make sure the O ring
is loaded. (Fig.8)
Connect cold water pipe onto the feed water valve. (Fig.9)
Valve installation complete.
Remove all the plugs by pressing the fitting sleeves (Fig.10)
Connect the other end of 3/8" tubing into "Supply" port on the back of the
system, make sure to insert the tubing about 0.8 inch to the end of the
fitting, ( Fig.11)
Put the lock clip on the fitting to secure the connection. (Fig.12)
Step 3: Connect the water supply (COLD WATER ONLY)
Step 4: Connect the "SUPPLY" water tubing
FRIZZLIFE INC. www.frizzlife.com
Page 5
Model: PD800-TAM4

Fig.13 Fig.14 Fig.15 Fig.16 Fig.17

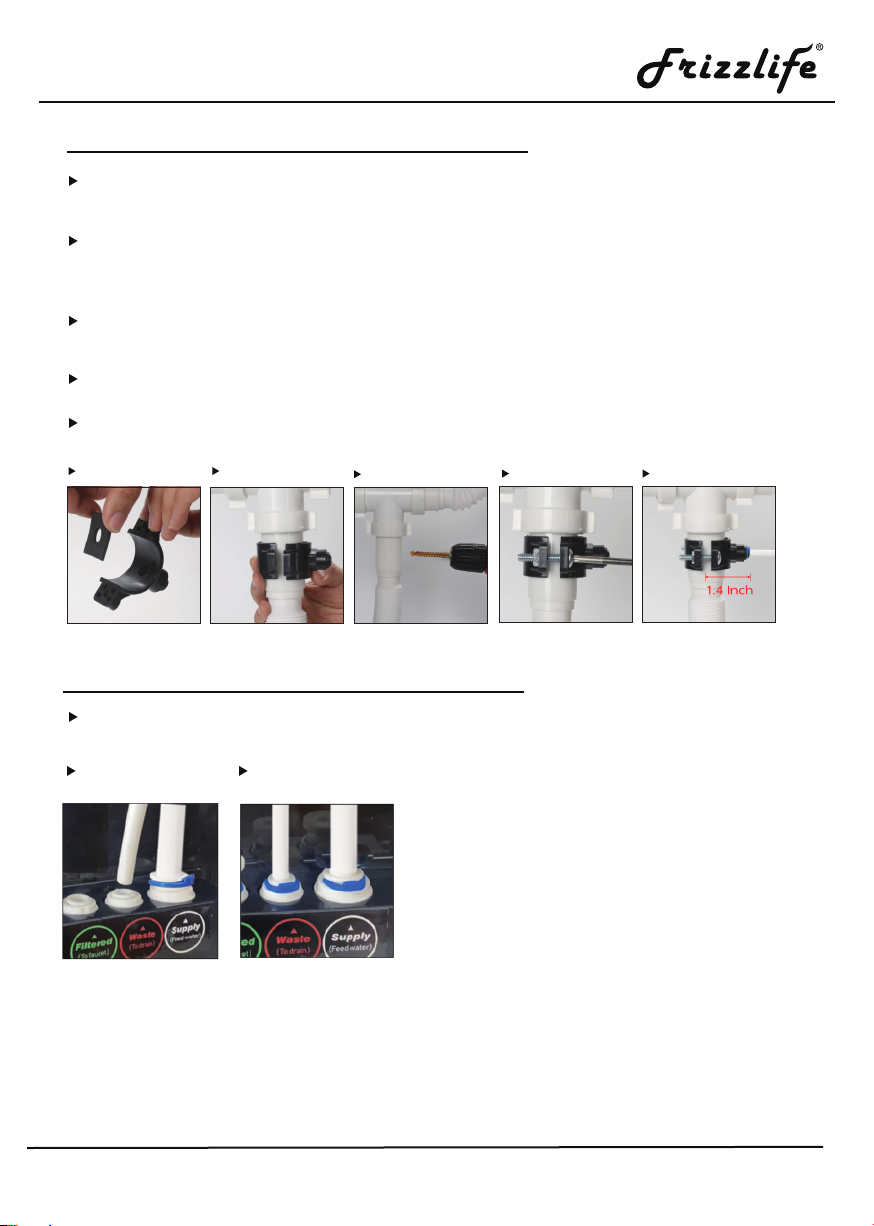

Disassemble the drain saddle, and peal off the black sticker and stick to
saddle valve (Fig.13)
Choose a spot on the drain pipe that is convenient for installing the drain
saddle. It is recommended to install the drain saddle on the vertical drain
pipe. (Fig.14)
Drill a 1/4" hole in the drain pipe. Make sure not to penetrate the opposite
side of the pipe. (Fig.15 )
Mount the drain saddle and tighten the screws with a screw driver (Fig.16)
Insert the 1/4" tubing to the drain saddle about 1.4", and lock the fitting
with a blue clip (Fig.17)
Step 5：Install the drain saddle
FRIZZLIFE INC. www.frizzlife.com
Page 6
Fig.18 Fig.19
Insert the other end of 1/4" tubing into the "Waste" port on the back of the
system.（Fig.18, Fig.19）
Step 6: Connect the "WASTE" water tubing
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 7
Fig.20
!
Note: Please make sure the tubings are fully
inserted, otherwise may result in water
leakage.
Cut another 1/4" tubing in proper length. Insert one end into the "Filtered"
port on the back of the system and connect the other end to the TAM4
filter.(Fig.20)
Step 7: Connect the "FILTERED" water tubing
Fig.21 Fig.22 Fig.23
!
Note：Please note that the elbow fitting is not a must for the installation,
you don't have to use the elbow fitting if it's not necessary
!
Note: If your counter top or granite does not have an existing hole,
please drill one (1/2") before proceeding.
Remove the small blue clip on the "INLET" end and connect the 1/4"
tubing on it, make sure it hits the bottom of the fittings. (Fig.21)
Put back and lock the blue clip. (Fig.22)
Cut a 1/4" tubing again. Connect the "OUTLET" end with another 1/4
tubing in the same way. (Fig.23)
Follow the steps below and mount the faucet onto the sink top.
(Fig.24, Fig.25, Fig.26)
Mount the rubber and fasten the hand fixture underneath (Fig.27, Fig.28, Fig.29)
Connect the other end of 1/4" tubing from the "OUTLET" of TAM4 into the
1/4" quick fitting. (Fig.30, Fig.31, Fig.32)
Step 8: Connect TAM4 filter
Step 9: Install the drinking faucet
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 8
Fig.33 Fig.34
!
Note: It is important to turn on the water supply first then connect the
power supply!
Turn on the angle valve and 3-way feed water valve. Check for leaks. (Fig.33)
Insert the DC head of the power adapter into the "POWER" port on the back
of the system. (Fig.34)
Step 10: Connect the power cord
Fig.24 Fig.25 Fig.26 Fig.27
Fig.29 Fig.30 Fig.31 Fig.32
Fig.28
Model: PD800-TAM4

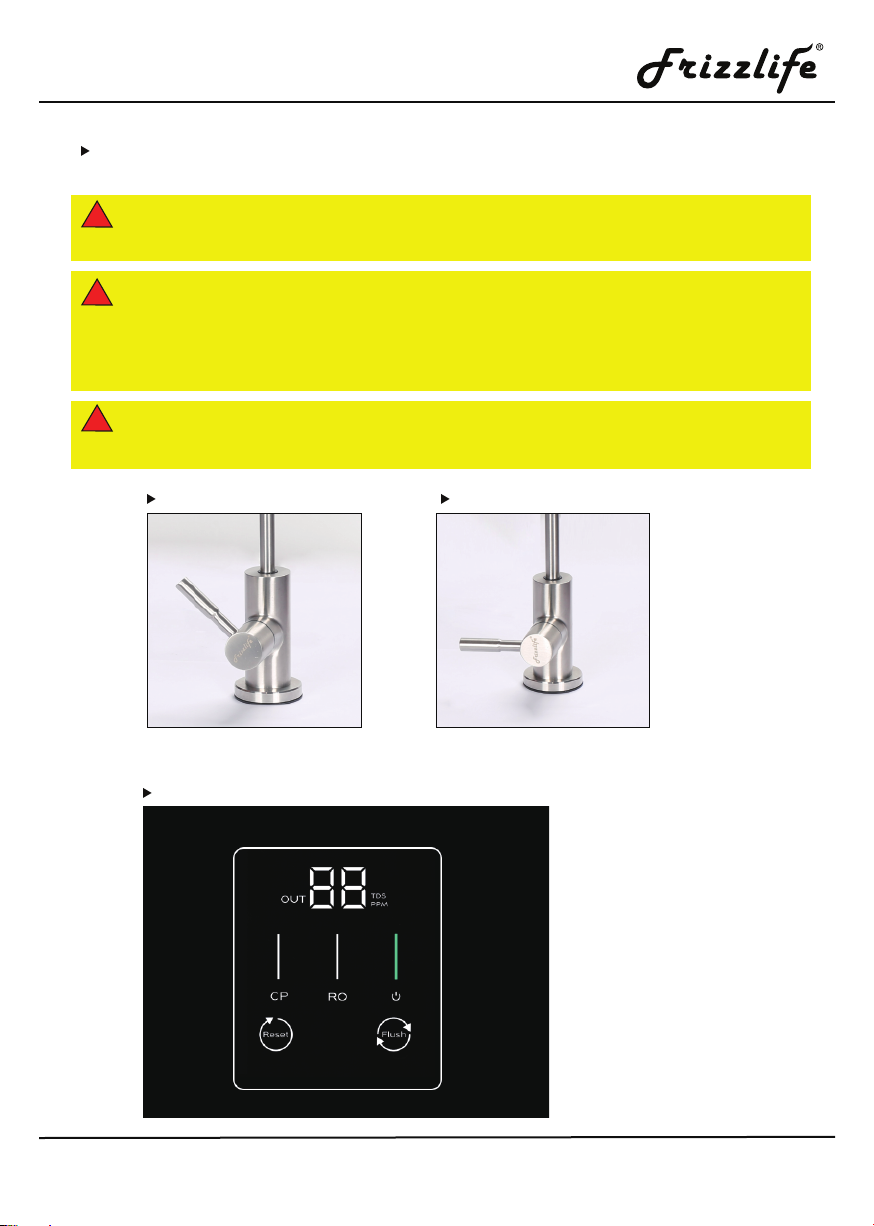

6. First time usage
Fig.35
Fig.37
Fig.36
!
Note: For the first time usage,TDS result will not show up until the
system has kept producing water for 1 minute.
!
Note: Please fully open the drinking faucet when dispensing water.
Otherwise, it may cause system to malfunction（Fig.35, Fig.36）
!
Note: When the system keeps producing water continuously for 30
minutes, the system will enter into protection status and all
the components stop working.The indicators will flash in red.
In this condition, please unplug the power for 10 seconds and
then power on again.
The system will automatically flush for 30 seconds after the power
supply is plugged
7. User Interface
FRIZZLIFE INC. www.frizzlife.com
Page 9
×√
Model: PD800-TAM4

!
Note: If the filter is expired, the buzzer will keep beeping when producing
water to remind users of replacing filter. Filter life may vary
depending on source water quality and water usage.
When the system is powered on, you will hear a beep. All indicators will
be on for 3 seconds, and then the system will automatically flush for 30
seconds. After flushing, if there is no water production, it will turn into
standby status.
Power-on
Water production
When the system is producing water, the power indicator will flash in blue.
TDS display
When the system is powered on and keeps producing water for 1 minute,
the system will automatically test the TDS of RO water. The TDS reading
will be unchanged if the system is in standby status or is being flushed.
Filter life indicator
Different colors suggest different remaining lifespan:
A. Indicator constant lit in white: the filter is normally working
B. Indicator flashed in red: the filter lifetime is about to be expired
(remaining lifespan <5%)
C. Indicator constant lit in red:the filter is expired
Long-time operation reminder
When the system keeps producing water continuously for 30 minutes, the
system will enter into protection status and all the components stop working.
The indicators will flash in red. In this condition, please unplug the power for
10 seconds then power on again.
Automatic flushing
A. Flushing when powered on: when powered on, the system will be
automatically flushed for 30 seconds.
B. Flushing when cumulative water production reaches 10 minutes:
If the cumulative water production reaches 10 minutes, after returning
into standby status, it will be automatically flushed for 10 seconds.
FRIZZLIFE INC. www.frizzlife.com
Page 10
Model: PD800-TAM4

!
Note: All the service life of the filter cartridge listed are based on actual
laboratory test and the provided water. The actual service life of
filter cartridge depends on source water quality and daily water usage.
The replacement filer cartridges are: PP+CB 2-in-1 filter and RO membrane
Please replace filter cartridges regularly according to the recommended
replacement period shown below.

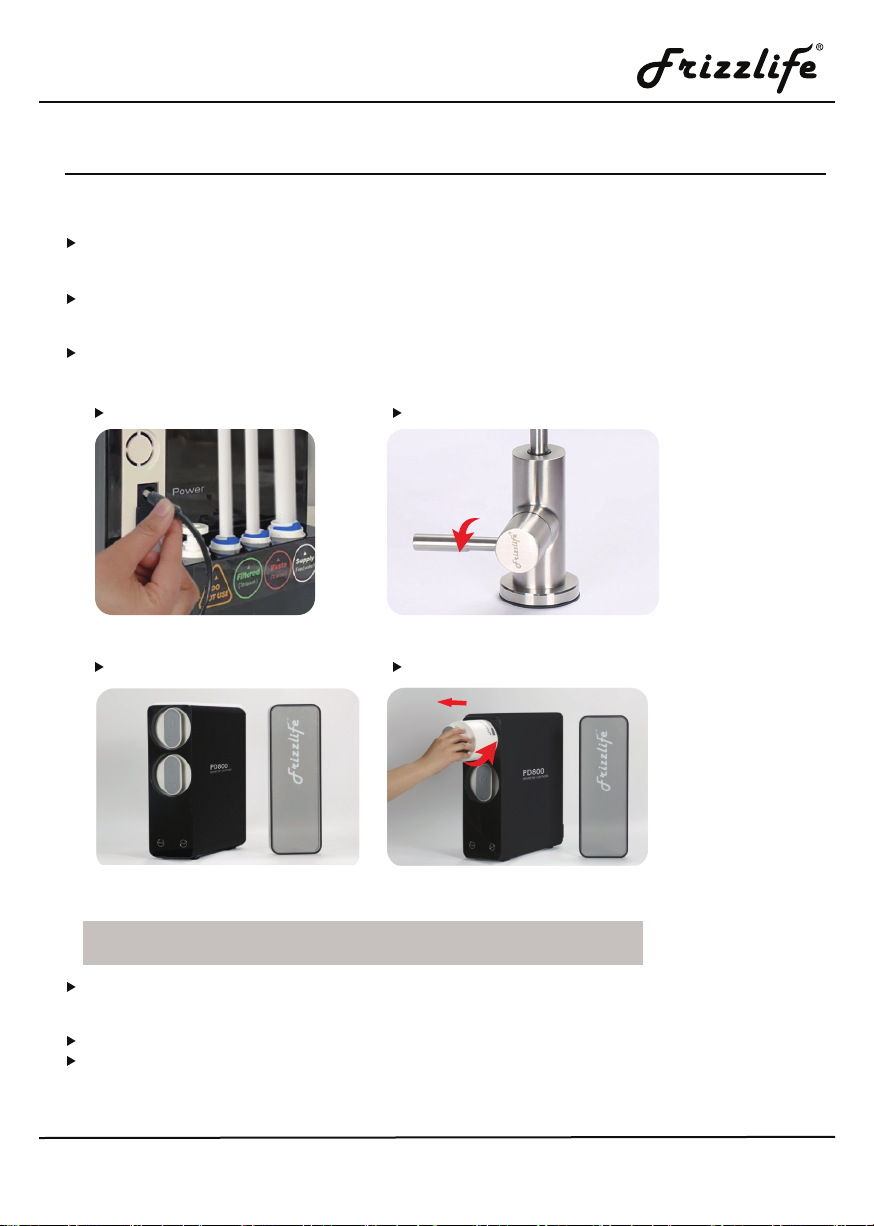

8. Replacement of Filter Cartridge
Filter Life Reset
!
Manual flushing
When the system is in standby status, press the "Flush" button, the system
will start flushing. Press the "Flush" button again to stop.
Note: When the system is being flushed, the indicatior will flash in blue.
Select filter: when the system is powered on, long press the "Reset"
for 3 seconds, the buzzer will beep and you can start to select the filter
you want to change. Press "Reset"button to change between the filters
and the selected filter lifetime indicator will flash.
Reset: after selecting the filter, long press "Reset" button for 3 seconds.
You will hear a beep. The selected filter's indicator will return to white light,
which means the filter is successfully reset. If you do not operate within
10 seconds, it will automatically exit this mode and resume normal display
Revocation of reset: select the wrong-operated filter, long press "Reset"
and "Flush" buttons for 3 seconds. The buzzer will beep for 3 times. The
filter indicator will return to the color status before reset. (Note: the reset
can be revoked within 5 minutes. If the system is powered off after the
reset, the revocation will be invalid.).
1
FRIZZLIFE INC. www.frizzlife.com
Page 11
C. Flushing when constant water production: if the system constantly
keeps producing water for 10 minutes, it will be automatically flushed
for 15 seconds.
Position
Recommended
Replacement Period
One year or cumulative
water production for 60
hours(around 900-1000gal)
Two years or cumulative
water production for 120
hours(around 1800-2000gal)
around 900-1000gal
Model Number
ASR211
ASR212-800G
TAM4
Filter
PP+CB 2-in-1 filter
RO membrane
Alkaline remineralization filter
1st stage
2nd stage
3rd stage
Model: PD800-TAM4
2
3

Fig.38 Fig.39
Fig.40 Fig.41
Step 1: Cut off the power and turn on the water faucet to release water pressure
Cut off the water supply and power when start to replace the
filter. (Fig.38, Fig.39)
Remove the front cover（Fig.40)
Unscrew the cartridge needs to be replaced counter clockwise.（Fig.41）
Screw the new cartridge clockwise into the system.
9. Filter Replacement Instruction
FRIZZLIFE INC. www.frizzlife.com
Page 12

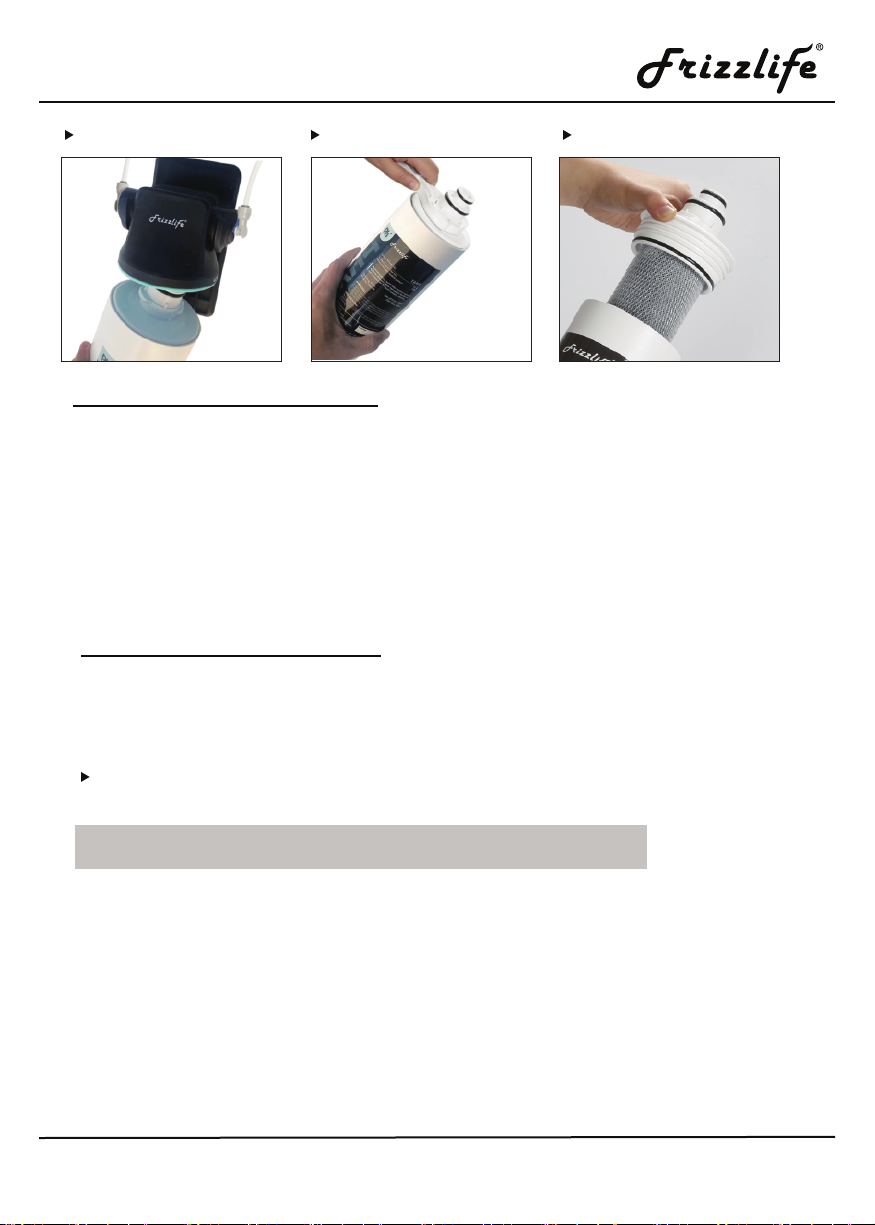

If you are going to replace TAM4 filter:
You don't need to cut off the water supply, since it adopts auto shut off design.
Twist the housing counter clockwise and use a wrench to unscrew the housing
body. (Fig.42)
Use a wrench to unscrew the housing body. (Fig.43)
Take out the old cartridge and load with the new one, then install back in the
same way.(Fig.44)
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 13
Fig.42 Fig.43 Fig.44
Long press the "Reset" button for 3 seconds, the buzzer will beep and you
can start to select the filter you want to change.
Press "Reset"button to change between the filters and the selected filter
lifetime indicator will flash.
After selecting the filter, long press "Reset" button for 3 seconds. You will hear
a beep. The selected filter's indicator will return to white light, which means the
filter is successfully reset. If you do not operate within 10 seconds, it will
automatically exit this mode and resume normal display.
Step 2: Reset the filter lifetime
Turn on the faucet to discharge the filtered water. If you replace the RO
membrane, please do not use the water in the first 20 minutes. If you
replace other cartridges, please do not use the water in the first 10 minutes.
Step 3: Flush the filter
If you don't use the system for a long time:
A. If the system has not been used for more than 2 days, please turn on the
faucet and discharge the filtered water at least 5 minutes before usage.
B. If the system will not be used for more than 1 week, please seal the filter
cartridges and store them in the refrigerator but do not put them in the
freezer. Discharge filtered water for at least 10 minutes before next time
usage.
C. If the system will be not used for a long time, please cut off the water supply,
cut off the power and turn on the handle of the faucet to release the internal
pressure and avoid damage to the system.
10. Maintenance
Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection.
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 14
11. Trouble Shooting
Fault Solution
Please check if the adapter is connected
properly.
Please open the valves.
Please replace the filter cartridge or contact
customer service team.
Please check the pipelines and make sure
the connection is correct.
Possible Cause
The system is not connected
to the power adapter or the
connection is loose.
Cold water valve, 3-way feed
water valve or the faucet is off.
Lifetime of the filter cartridge
is expired.
Connection of pipeline is incorrect.
No water out
of faucet
Please replace the filter according to the
instruction.
Please contact customer service team.
Please check PE pipes.
Filter is blocked.
Water pressure is low, or water
supply is insufficient.
PE pipes are bent.
Low water
flow
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 15
The circuit board is boken.
The high pressure switch
is broken.
Please contact customer service team.
Please contact customer service team.
Please contact customer service team.Electronic controller or display
panel is damaged.
Unchanged filter
lifetime indicator
Check the system, water pipe fittings and
connections, or contact customer service
team.
The “FILTERED water” tubing
is mistakenly inserted into
“WASTE” port.
Filter is blocked.
Please disconnect the power and wait for
water supply recovery.
Feed water is cut off.
Please check if the “FILTERED” tubing and
“WASTE” tubing were in the right place.
System is
unstoppable for
a long time after
turning off the
faucet
11. Trouble Shooting
Please replace the filter according to the
instruction.
Lifetime of the filter
cartridge is expired.
Please discharge water for 5 minutes
before usage.
The system has been off
work for more than 2 days.
Please ensure the water source is municipally
treated water or has been properly disinfected
prior use.
Quality of feed water
is too bad.
Filtered water
in poor quality
Please reinstall the system according to the
instruction or contact customer service team.
Pipes or filters are not
installed properly.
Please contact customer service team.
Other components are damaged
Please contact customer service team.
The O rings are missed.
Water leakage
Please contact customer service team.
Check the system, water pipe fittings and
connections, or contact customer service
team.
Leakage detection system
is abnormal.
System is leaking.
Examination
indicator lights
or flashes in red,
or the beezer
keeps beeping
Please operate the button according to
the instruction.
Please contact customer service team.
The button is misoperated.
The button is damaged.
Button failure
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 16
Please check if the adapter is connected
properly.
Please contact customer service team.
Maybe you have plugged the power cord into
the socket specially designed for garbage
disposal, please change another socket.
The system is not connected
tothe power adapter or the
connection is loose.
The panel is damaged or it’ s
cable is loose.
Wrong power source
Indicators on
user interface
disappear
System is not
turn on after
power on
Why there are many white bubbles in the water?
Why TDS is higher at the beginning, but back to normal range after about
one minute?
Normally for the first time use of the RO system, the water seems to have
white bubbles in it, which is normal and totally drinkable. It is because
when the pump is pressurizing the water, it will pressurize the air at the
same time. It will make the air molecules smaller, thus the solubility further
increases. The air can’ t be released at that time because of the pressure
in the RO system. However, when you turn on the tap to get a cup of water,
the pressure of air is released. So you will see a huge number of bubbles in
the water. It looks cloudy and white, but they are just bubbles. After you put
the water still for a while, all bubbles will be gone, the water is totally good
for drinking.
Osmosis is a natural phenomenon happens in all RO system, no matter if you
have a conventional RO system or tankless RO system. When the RO system
starts to work, pressure from the pump overcomes natural osmotic pressure,
forcing feed water through the RO membrane that removes the impurities.
When the RO system stops working, the pump stops offering pressure as well.
At that time, because of different concentrations, a small fraction of ions will
enter into pure water and cause TDS to rise by a small amount. However,
even if the TDS reading is a little high at the beginning, the quality water is still
unbeatable by any other filtration methods including carbon, KDF, ceramic,
UF, UV, etc.. The water is totally good to drink and you don’ t have to wait for
about 1 minute to get the water, since the whole system will not release any
harmful substances to the water. The TDS removing rate for PD800 is about
94-95%, if your incoming TDS is high, the outlet TDS will be high too.
12. Frequently Asked Questions
Q:
Q:
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 17
Why does TDS tester pen show higher result than the TDS number
displayed on the PD800?
How does the TDS display on the machine work?
It is because the TAM4 filter, the post filter, adds the minerals to the water.
Normally the TAM4 will increase the TDS by 10-30 ppm. If the system hasn’ t
been used for a while, the TAM4 will restore more minerals to the water, and
at that time the water is very good, the PH level will be more than 9.
When the system is running, the TDS sensor in the PD800 will keep testing the
water quality every 1 minute. Therefore, the TDS result you see from the machine
is from the last test memory. If you want to have the real-time TDS result, please
let the machine run for about 1 minute.
Q:
Q:
13. Limited Product Warranty
Reverse Osmosis Undersink Water Filter System
Warrantor: FRIZZLIFE INC
ONE YEAR LIMITED FRIZZLIFE WARRANTY
The Frizzlife PD800-TAM4 undersink reverse osmosis units are warranted to
the original purchaser.
To be free of defects in material and workmanship by Frizzlife INC, Frizzlife
will replace or repair components of the unit that Frizzlife has deemed to be
broken within the limits of the warranty without charge. The customer is not
responsible for any freight involved with shipping the item back for inspection
and shipment of replacement items. Frizzlife is not liable for cost of removal,
installation, transportation or any other charges in connection with a warranty
claim.
If I don’ t want to use the TAM4, how should I disconnect it?
You don’ t have to disconnect the tubing and the fittings on the TAM4. You
only need to unscrew the TAM4 filter and the water still can go through.
Q:
My granite is thicker than 1.5 inch and the faucet stem is not long enough,
what should I do?
Please feel free to contact us to claim for a longer thread stem. Simply email
us your order ID, full name, shipping address and contact phone number for
delivery. We will arrange the shipment for you ASAP.
Q:
Why the system does not work after connecting the power cord?
Maybe you have plugged the power cord into the socket specially designed
for garbage diposal, please change another socket.
Q:
Model: PD800-TAM4

FRIZZLIFE INC. www.frizzlife.com
Page 18
1. Frizzlife is not liable for anything that we deem as abuse of the units, including
but not limited to, misuse of product outside of intended use, equipment
modifications, unauthorized repairs, improper installation, damage from
freezing, hot water, fire or other acts of God outside of Frizzlife control.
This warranty will be void if defects occur due to failure to observe the
following conditions:
Incoming water to the the system cannot exceed 100°F.
To receive warranty service, please contact Frizzlife at [email protected]
150% Extended Warranty
1. Email us your order ID and full name at [email protected]
2. Scan the QR code below to register
Most of the unit components are made of plastic and eventually can break or
crack from stress.
There are no other warranties which extend beyond what is described above.
2. Filter Cartridges are considered as disposable items, thus are not covered
by warranty.
3. Customer is responsible for proper operation, which includes complete and
continual leak inspection.
Do not use outdoors or in a location that is subjected to direct sunlight or freezing.
This warranty will not be effective unless and until the Frizzlife is shown to have
been used in accordance with the installation and maintenance instructions
accompanying the product.
Model: PD800-TAM4
