Front Runner SLIMLINE II TRAY User manual
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
slimline ii tray
universal assembly
instructions
RRSTUNI
ENG
1
Thank you for purchasing a Front Runner Slimline II Tray.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
front runner
RRSTUNI
_REV_A05
2
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
1
10
6
5
6
4
3
2
8
5
8
2
6
7
9
7
9
5
10
TOOLS NEEDED
1 32 X M8 Nyloc Nut
2 4 X M8 x45 Button Head Bolt
3 2 X Thick Joiner Piece
4 2 X Thin Joiner Piece
6 4 X Corner
7 2 X Combined Slat
8 28 X M8 x 25 Button Head Bolt
9 12 X Standard Slat
10 4 X M6 x 10 Button Head Bolt

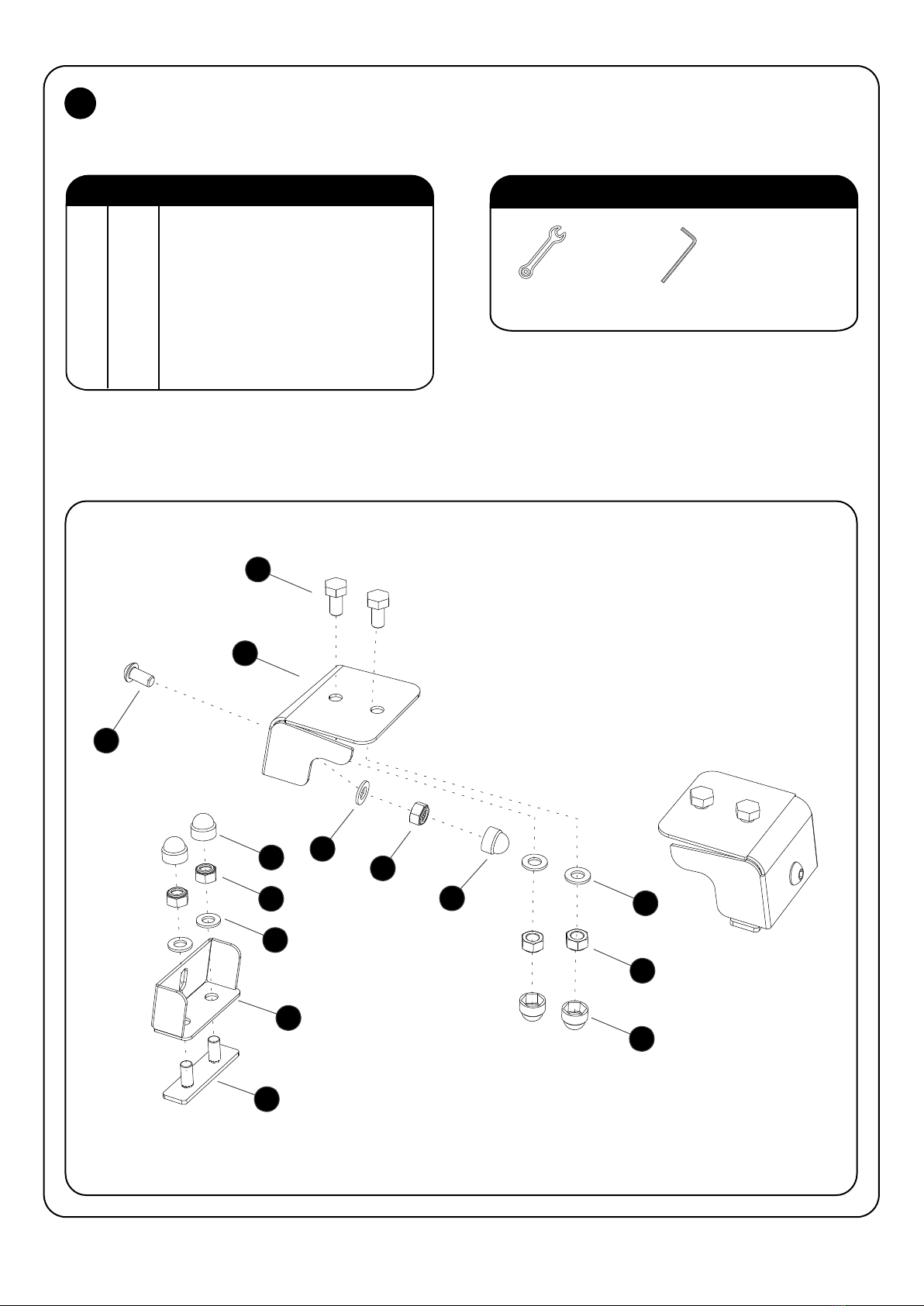

IN THE BOX
FIGURE 1.1
5mm
4mm
GET ORGANIZED1
Depending on which size Slimlime II Tray you order, quantities may vary from those pictured.
Here is what you are looking at for RRSTUNI:
RRSTUNI
_REV_A05
3
5
Joiner Hole
T-slot Channel
U-Channel
RACK ASSEMBLY - SIDE PROFILES
2
and one long (Except for the 2772mm long
be equal length. Even though both pairs
are the same length it is still important that
that at one end there is a hole that goes
through the top and bottom of the
"U" Channel.
Joiner Holes that you will be using.
4MM
"T-slot", followed by a Nyloc Nut.
The Nyloc Nut should sit on top of the
Thin Joiner with the "Dome" of the
Nyloc Nut facing up. Line up the outer
hole of the Thin Joiner and Nyloc Nut with
the Joiner Hole and loosely fasten it all
together using a M8 x 45 Button Head Bolt
Joiner pieces, remembering to insert a
Nyloc Nut, and fasten once again using a
M8 x 45 Button Head Bolt. Repeat the above
steps for the other side.
2.1
2.2
once the Tray is assembled.
is not required.
5MM
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
2
3
4
1
5MM
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
4
RACK ASSEMBLY - COMBINED SLATS AND STANDARD SLATS
7
Nyloc Nut
3
3.1
3.2
3.3

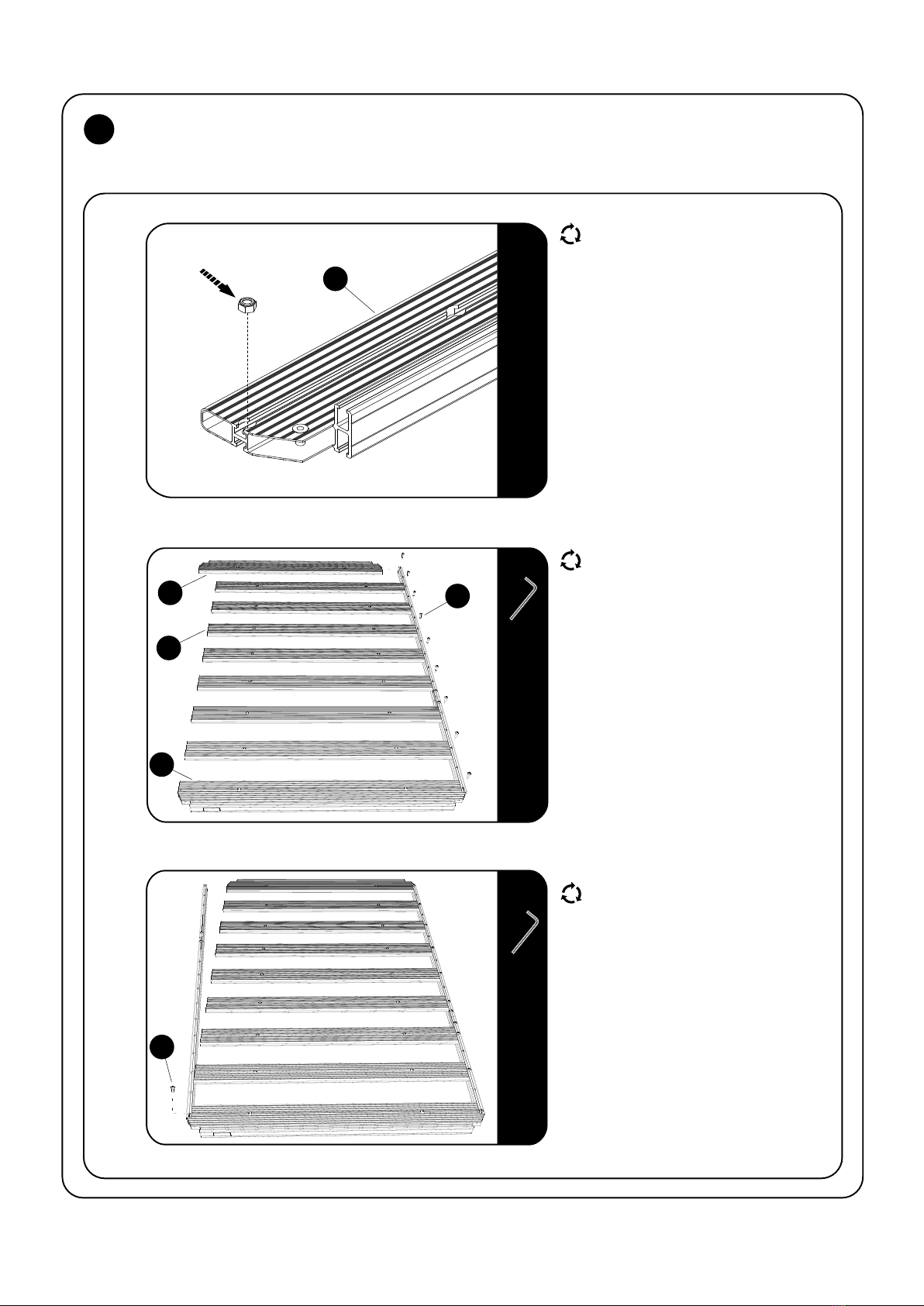

Look at the Combined Slats and Standard
Nyloc Nut inserted into each machined end
pocket. If the Nyloc Nut has fallen out
during shipping, insert it back into the
pocket as shown.
that the nut in the Combined Slat is at the
bottom. Push the one end of the Combined
align the holes.
loosely tighten using a 5mm Allen Wrench.
Do the same with the second Combined Slat
the Combined Slat, slide the one end into the
the nut is at the bottom.
and loosely fasten the Standard Slat to the
Repeat the process for the remaining
Standard Slats making sure that there
each slat.
7
9
7
8
over the ends of the Combined Slat and
Standard Slats, aligning the holes and loosely
inserting the M8 x 25 Button Heads as you
work your way to the Combined Slat
at the other end.
8
5MM
5MM
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
5
10
6
RACK ASSEMBLY - STANDARD SLATS
3
3.4
fully tightening all the fasteners.
Using a tape measure, measure from the one
corner across to the other corner. Do the
same on the opposite corners, if the two
measurement are the same the rack will be
square.
Fully tighten all the M8 x 25 Button Head Bolts.

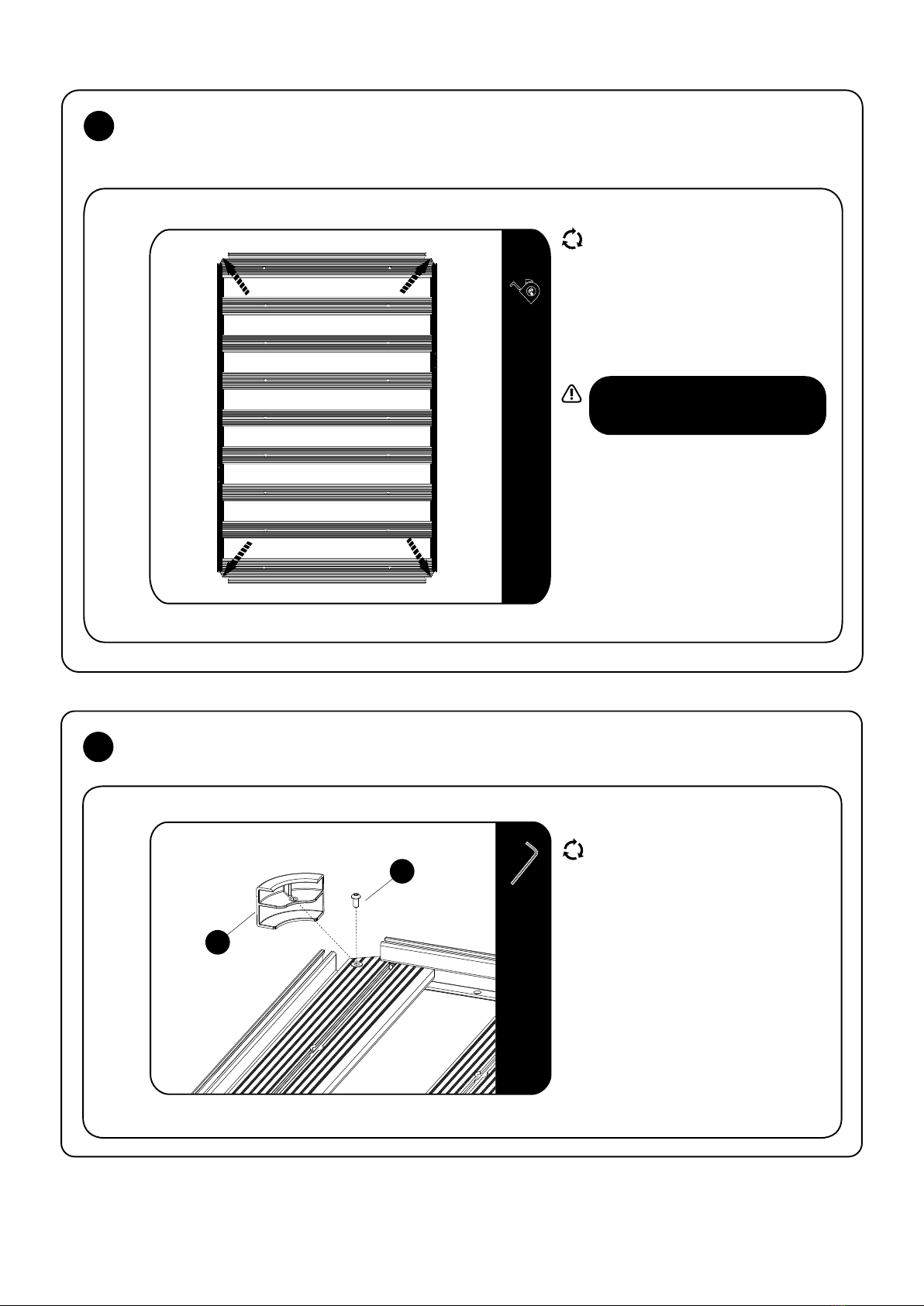

RACK ASSEMBLY- CORNERS
4
Flip the tray right side up.
Push the Corner into position as shown,
aligning the hole in the Corner with the
Rivnut already inserted in the Combined Slat.
and fasten the Corner in position.
4.1
4MM
The recommended torque setting for the
M8 Button Head Bolts is 20 Nm or
15 ft lb.
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
6
TOOLS NEEDED
1 1 Slimline II Tray
2 4 M8 Half Nut
4 4 Schnorr Washer
5 4 M8 x 12 Button Head Bolt
IN THE BOX
FIGURE 1.2
5mm
RACK ASSEMBLY - WIND DEFLECTOR 5
5
4
3
21
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
7

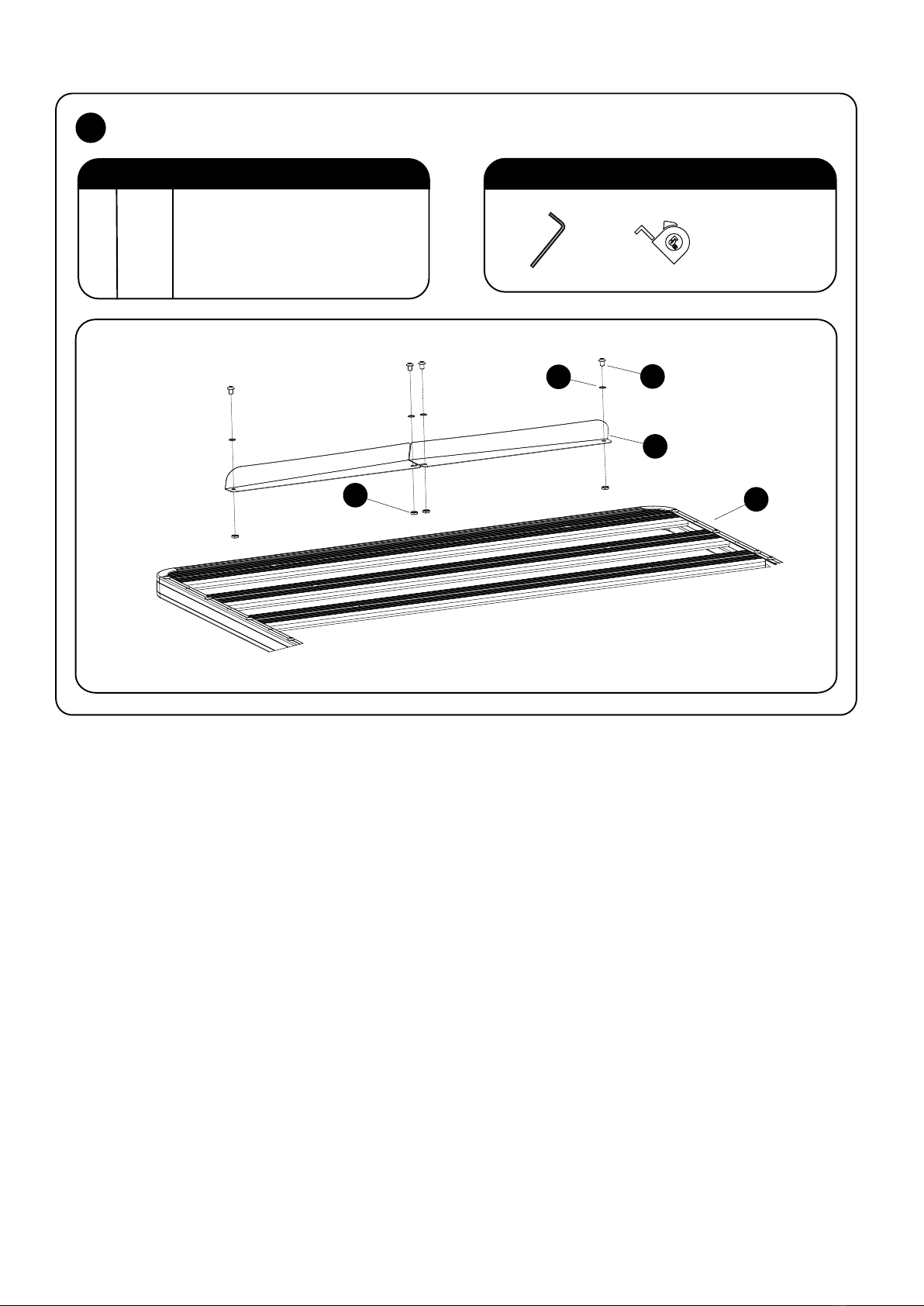

RACK ASSEMBLY - WIND DEFLECTOR
6
Insert two Button Head Bolts, M8 Half Nuts
assemblies into the Combined Slat
as shown. Slide them to the center of the
Combined Slat making sure that the
Schnorr Washer is above the T-slot Channel.
Ensure that your Slimline II Tray is upside
down. Check by looking at the product
sticker. It should be upside down as shown.
6.2
6.3
Assemble Items 2, 4 & 5 to both LH & RH
9MM
6.1
5
4
2
5
4
2
3
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
8
RACK ASSEMBLY - WIND DEFLECTOR
6
5MM
move the bolt assemblies from Figure 8.2
into the slots as shown in Figure 8.5.
Insert the nut assembled to the
Pocket and slide to the side as shown in
Figure 8.4.
Repeat for the other half of the
6.5
6.4
USEFULL TIP - PRE-LOAD TIE DOWN RINGS
Insert the Tie Down Rings into the machined
slots and position them in the center of the
rack.
RRSTUNI
_REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
9
HOW TO CARE FOR YOUR FRONT RUNNER GEAR
8
CHECK YOUR VEHICLE INSTALLATION GUIDE
7
7.1
Now that your Slimline II Tray is assembled, get your Rack Kit Installation Guide out and follow the instructions
FRONT RUNNER RACKS AND ACCESSORIES ARE HAPPIEST COVERED IN MUD
But in order to maintain full functionality of the rack slots and any moving parts, you may want to give
your gear a bath now and again.
It's easy! Take care of your Front Runner gear the same way you do the exterior of your vehicle:
WHETHER YOU LIKE TO ROLL DIRTY OR CLEAN, YOUR FRONT RUNNER GEAR WILL GIVE YOU MANY YEARS OF SERVICE!
Rinse with clean water and wipe down with a soft dry cloth. For stubborn spots, use a soft brush and mild soap.
In salty coastal climates, or snowy regions where salt is used to clear roadways, applying a silicone based oil
or spray to nuts and bolts will help prevent corrosion.
If you really want to baby your gear, feel free to lightly wax the surfaces or use a protective spray with UV
inhibitors. Just be sure not to use compound waxes that contain abrasives.
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
9
Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
ENG
1150mm - 45.2 inch
Universal Track
TRCA003_REV_A03 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
1
IMPORTANT WARNING!
Don’t be a hero and muscle through this without first reading these fitting instructions! Improper installation of this gear may void certain aspects of
your warranty.
Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.
A complete kit will contain:
1. A Front Runner Mounting System specific to your vehicle
2. A Front Runner Rack Tray or Load Bar Slats
This document will guide you through the assembly of the mounting system and assist you in fitting the roof rack tray or load bars to your specific
vehicle.
Please refer to the next page for a list of all the components, quantities and tools required.
TRCA003
READ ME FIRST
START HERE!
FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL
THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN
AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS
TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
TRCA003_REV_A03 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
2
IN THE BOX
FIGURE 1.1
1 8 X M6 x 30 Button Head Bolt
2 8 X M6 x 20 Button Head Bolt
3 4 X Track End Cap
4 2 X 1150mm Canopy Track
5 2 X 1150mm Protective Trim
6 8 X M6x30x1 Flat Washer
7 8 X M6x12x1 Stainless Steel Flat Washer
8 8 X M6 Nyloc Hex Nut
9 8 X M6 Nut Cap
10 8 X M6 Clinch Nut (Alternative Fitment)
IN THE BOX TOOLS NEEDED
10 mm
4mm
Allen Key
Measuring
Tape
IN THE BOX
4
3
2
1
6
5
8
9
10
7
1GET ORGANIZED
Here is what you are looking at for TRCA003
Sealant
Hacksaw
Marker
6.5mm
9mm
4mm
Utility
Knife
Chinch Nut Tool
4
3
2
1
5
6
8
9
10
7
© COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS
3
TRCA003_REV_A03
2.1
Remove the canopie's roof rails if fitted. Determine the best possible position for mounting the tracks.
Take care not to drill into or through any reinforcements.
FIT AND SECURE
2
2.8
2.6
Fit and secure the tracks with a
combination of Items 1/2, 6, 7, 8 & 10.
Depending on the thickness of the
material you are bolting through you can
use either M6x20 Button Head or M6x30
Button Head (Items 1 or 2). The bolt
needs to go through the
Nyloc Nut (Item 8).
Install the End-Caps and Protecive Trim
(Items 4 & 5) before you do the final
fitment of the tracks.
Check that all the fasteners are fully
tightened.
Place M6 nut caps (item 9) on all the M6
Nyloc Nuts (item 8) to finish of the
fitment .
10mm
2.3
Once you are happy with the placement of the track, mark all the holes using a suitable marking pen.
2.4
Drill a 4mm pilot hole on all the marks you have made. If you are using the M6 Nyloc nuts (Item 8) for
the fitment, open the pilot holes to 6.5mm. Always take care when drilling.
2.2
Measure and trim the tracks to the desired length.
2.7
Apply a bead of suitable sealant to each hole drilled in step 2.4.
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or Online.
COMPLETION
3
Congratulations. You did it. Take a step back and admire your work!
4mm
2.5
When using the Clinch Nuts (item 10) you will need a Clinch nut Tool to crimp and secure the Clinch
nuts.
Should any of the mount points be inaccessible to use nuts, open the hole to 9.5mm and use
the Clinch Nut (Item 10). ONLY TO BE USED WITH METAL CANOPY / CAPS AND TRAILER TOPS.
ENGFoot
(40mm -50mm, 60mm -70mm)
(Angled 65mm & Angled 75mm)
FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
1
FASSUNI
Thank you for purchasing a Front Runner Foot Set.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
2
IN THE BOX
FIGURE 1.1
IN THE BOX TOOLS NEEDED
IN THE BOX
13MM
5
1 2 X Cover
2 2 X Base
3 2 X Stud Plate
4 4 X M8 x 16 Hex Bolt
5 2 X M8 x 16 Button Head Bolt
6 10 X M8 x 16 x 1.6SS Flat Washer
7 10 X M8 Nyloc Nut
8 10 X M8 Nut Cap
3
2
1
4
5
8
7
6
8
7
6
6
7
8
1GET ORGANIZED
5mm
4
4
FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE
2
2.2
2.3
2.4
2.1
2.1
2.2
2.3
Before fitting the Feet to the rack, remove
the Stud Plates (Item 3).
Refer to Figure 1.1.
Loosely fit the Feet to the Rack using
M8 x 16 x 1.6SS Flat Washers and M8 Nyloc
Nuts (Items 6 & 7) as shown.
The fasteners will be fully tightened after
the rack has been fitted to the vehicle.
7
6
2
1
While your Rack is flipped make sure that
the wind deflector is installed on the
first slat.
Place your Front Runner Roof Rack onto
your vehicle and find the best position.
The Rack should sit level to the ground, not
the vehicles roof line. Or slanting slightly
down toward the front.
Find the best position for the Feet, using the
first or second Slat.
Flip the Rack so that the bottom of the
Rack faces up. Insert two M8 x 16 Hex Bolts
(Item 4) into the Slats machined slots that
you have identified.
Wind Deflector
3
3
Track
FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE
2
2.2
2.3
2.4
2.1
2.4
2.5
2.6
With the help of a friend, flip the Rack right
side up.
Lower the Rack onto the tracks while
aligning the Feet with the Stud Plates in the
Tracks.
Loosely secure the Feet to the track using
M8 x 16 x 1.6SS Flat Washers and M8 Nyloc
Nuts (Items 6 & 7).
5MM
13MM
Before tightening the Feet to the tracks,
position the Rack so that it sits level to the
ground, not the vehicles roof line, or
slanting slightly down toward the front.
First tighten the Feet to the tracks, then
center the rack left to right and
fully tighten the fasteners from 2.3.
Lastly set the height and fully tighten the
M8 x 16 Button Head Bolts and M8 Nyloc
Nuts (Items 5 & 7).
Check clearance with sunroof operation and
any accessories fitted.
25mm clearance is needed between roof and
table bracket, if fitted.
Place M8 Nut Caps (Item 8) over all of the
Nyloc Nuts.
Before placing the Rack onto the vehicle,
slide the Stud Plates (Item 3) removed in
2.3 into the track.
6
7
FINISH
3
Congratulations! You did it. Take a step back and admire your work!
FASSUNI_REV_A01 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
5
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or Online.
Other manuals for SLIMLINE II TRAY
1
Table of contents
Other Front Runner Automobile Accessories manuals
Front Runner
Front Runner SSDS115 User manual
Front Runner
Front Runner SLIMLINE II User manual
Front Runner
Front Runner RRAC203 User manual
Front Runner
Front Runner RRAC190 User manual
Front Runner
Front Runner SSDS126 User manual
Front Runner
Front Runner SSDR012 User manual
Front Runner
Front Runner RRAC018 User manual
Front Runner
Front Runner TRAC003 User manual
Front Runner
Front Runner BPTH007 User manual
Front Runner
Front Runner SSDS109 User manual
Front Runner
Front Runner TBRA039 User manual
Front Runner
Front Runner FAMG001 User manual
Front Runner
Front Runner KSVT001 User manual
Front Runner
Front Runner TRCA005 User manual
Front Runner
Front Runner Pro Water Tank with Strap User manual
Front Runner
Front Runner SSDR005 User manual
Front Runner
Front Runner MKIII Small User manual
Front Runner
Front Runner RRAC202 User manual
Front Runner
Front Runner LAVT003 User manual
Front Runner
Front Runner LASS026 User manual
