FujiFilm Fujinon-Mariner 7x50WP-XL User manual

FUJI~ILM
FUJI
NON-MARINER
WATERPROOF BINOCULARS
~!(~@\'!A'!l~c~[L
~!(~@
\'!A'!l~©c
~[L
{with
Built-in
Compass)
Operation Manual
-Specifications
-Instructions
-Care
-Accessories
FUJIFILM Corporation

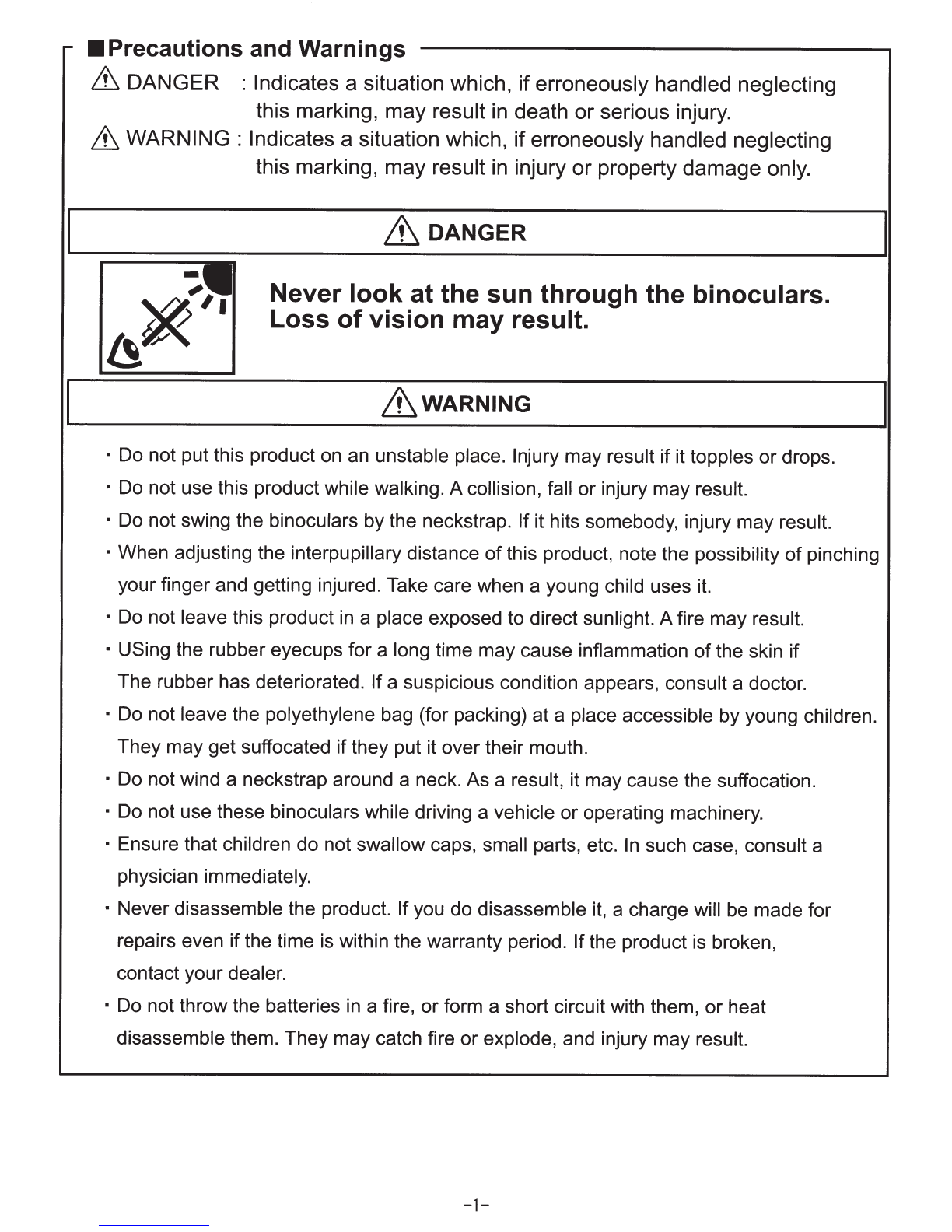

-• Precautions and Warn1ngs
&
DANGER : Indicates a situation which, if erroneously handled neglecting
this marking, may result
in
death or serious injury.
&
WARNING: Indicates a situation which, if erroneously handled neglecting
this marking, may result
in
injury or property damage only.
&
DANGER
Never look at the sun through the binoculars.
Loss
of
vision may result.
&wARNING
• Do not put this product on
an
unstable place. Injury may result if it topples or drops.
• Do not use this product while walking. A collision, fall or injury may result.
· Do not swing the binoculars by the neckstrap. If it hits somebody, injury may result.
· When adjusting the interpupillary distance
of
this product, note the possibility
of
pinching
your finger and getting injured. Take care when a young child uses
it.
• Do not leave this product
in
a place exposed to direct sunlight. A fire may result.
· USing the rubber eyecups for a long time may cause inflammation
of
the skin if
The rubber has deteriorated. If a suspicious condition appears, consult a doctor.
• Do not leave the polyethylene bag (for packing) at a place accessible by young children.
They may get suffocated if they put it over their mouth.
· Do not wind a neckstrap around a neck. As a result, it may cause the suffocation.
· Do not use these binoculars while driving a vehicle or operating machinery.
· Ensure that children do not swallow caps, small parts, etc.
In
such case, consult a
physician immediately.
• Never disassemble the product. If you do disassemble
it,
a charge will be made for
repairs even if the time is within the warranty period. Ifthe product is broken,
contact your dealer.
• Do not throw the batteries
in
a fire, or form a short circuit with them, or heat
disassemble them. They may catch fire or explode, and injury may result.
-1-

II

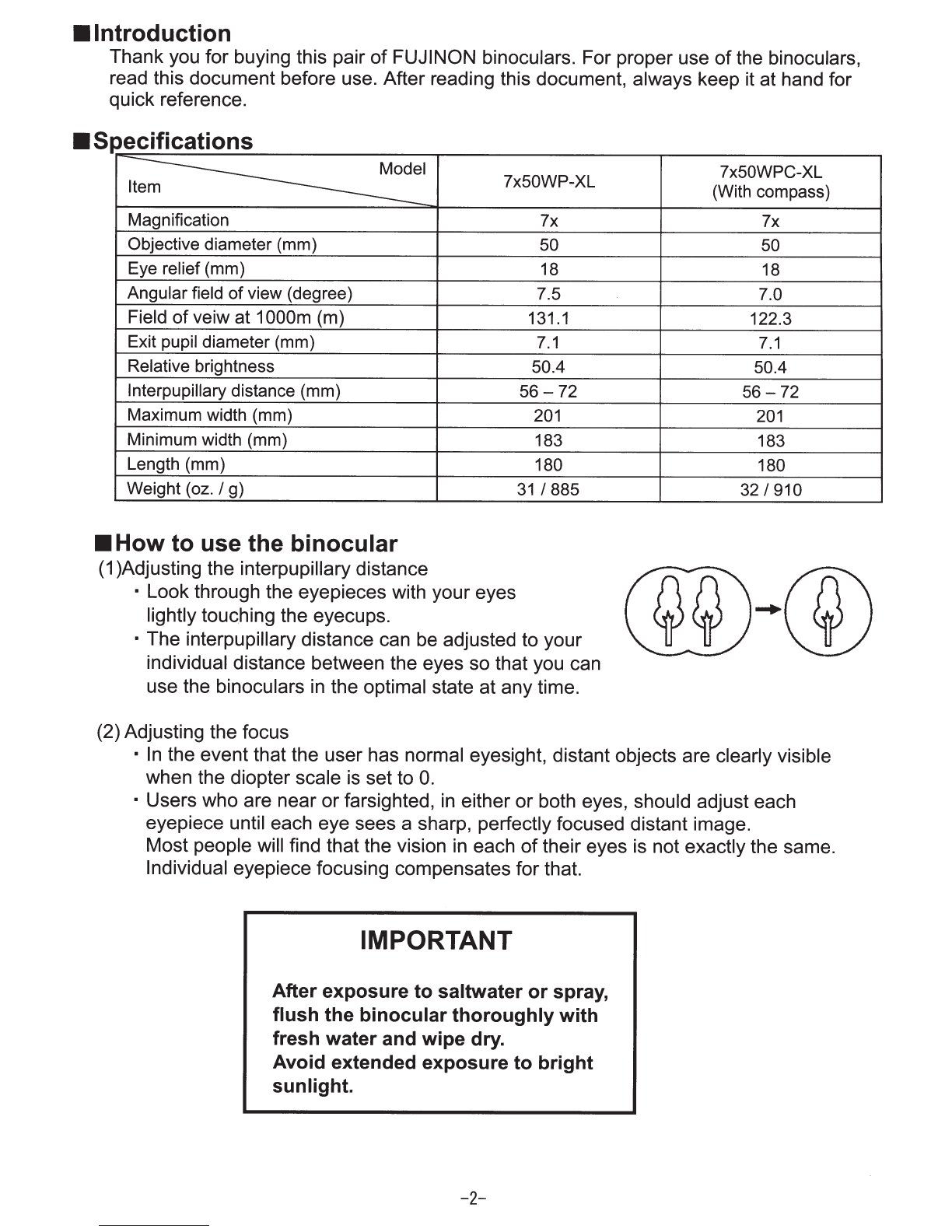

Introduction
Thank you for buying this pair
of
FUJINON binoculars. For proper use
of
the binoculars,
read this document before use. After reading this document, always keep it at hand for
quick reference.
II
S~ecifications
~
m 7x50WP-XL
Magnification
Objective diameter (mm)
Eye relief (mm)
Angular field
of
view (degree)
Field
ofveiwat
1000m (m)
Exit pupil diameter (mm)
Relative brightness
Interpupillary distance (mm)
Maximum width (mm)
Minimum width (mm)
Length (mm)
Weight (oz. I g)
• How to use the binocular
(1
)Adjusting the interpupillary distance
• Look through the eyepieces with your eyes
lightly touching the eyecups.
7x
50
18
7.5
131.1
7.1
50.4
56-72
201
183
180
31
I 885
• The interpupillary distance can be adjusted to your
individual distance between the eyes so that you can
use the binoculars
in
the optimal state at any time.
(2) Adjusting the focus
7x50WPC-XL
(With compass)
7x
50
18
7.0
122.3
7.1
50.4
56-72
201
183
180
32
I 910
•
In
the event that the user has normal eyesight, distant objects are clearly visible
when the diopter scale is set to
0.
· Users who are near or farsighted,
in
either or both eyes, should adjust each
eyepiece until each eye sees a sharp, perfectly focused distant image.
Most people will find that the vision
in
each
of
their eyes is not exactly the same.
Individual eyepiece focusing compensates for that.
IMPORTANT
After exposure to saltwater
or
spray,
flush the binocular thoroughly with
fresh water and wipe dry.
Avoid extended exposure to bright
sunlight.
-2-

• Neck strap installation
The FUJINON-MARINER comes with a one-piece rubber cap designed to protect both
ocular lenses when the binocular is not
in
use. For maximum convenience, it is designed
to be permanently attached to your binocular as
an
integral part
of
the neckstrap.
To
install the cap and strap, please follow these steps:
(1) Remove one buckle and two keepers from the neckstrap and replace them as shown.
(2) Place the one-piece ocular cap
on
the binocular so that
the slot
on
the cap aligns with the slot
on
the left side
of
the binocular. Insert one end
of
the strap through the
slot
on
the ocular cap and pass it through the slot
on
the
binocular.
*NOTE
If the strap does not come to a clean pointed end,
cut it with a scissors and use a match or lighter to
singe off any loose or frayed ends.
(3) Pass the strap through the keeper and the keeper and
the buckle.
(4) Repeat the procedure for the other end
of
t~e
strap on the
other side
of
the binocular, the strap is passed directly
through the binocular slot ( the ocular cap is equipped with
only one slot (the ocular cap is equipped with only one slot).
-3-

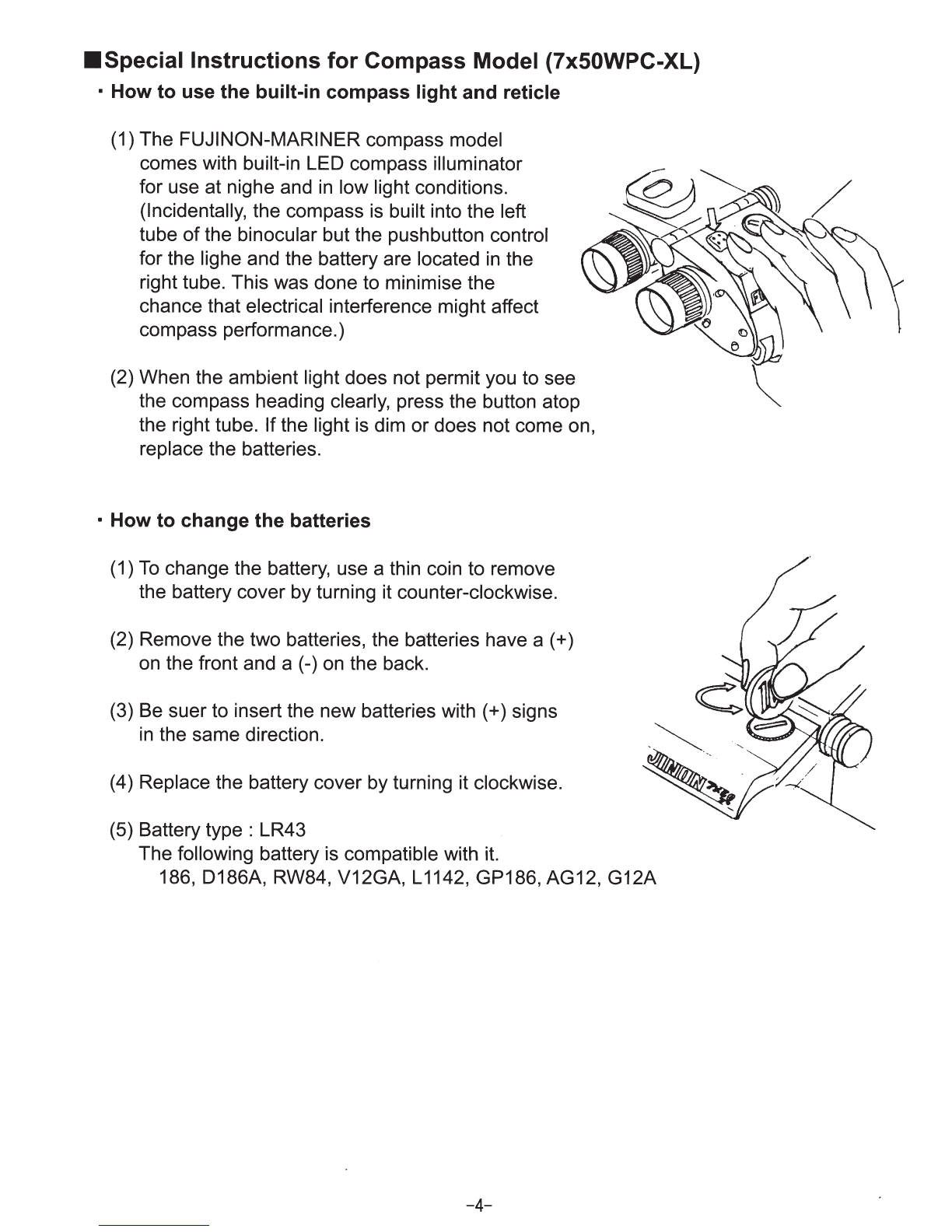

IISpeciallnstructions for Compass Model {7x50WPC-XL)
· How to use the built-in compass light and reticle
(1) The FUJINON-MARINER compass model
comes with built-in LED compass illuminator
for use at nighe and
in
low light conditions.
(Incidentally, the compass is built into the left
tube
of
the binocular but the pushbutton control
for the lighe and the battery are located
in
the
right tube. This was done to minimise the
chance that electrical interference might affect
compass performance.)
(2) When the ambient light does not permit you to see
the compass heading clearly, press the button atop
the right tube. If the light is dim or does not come on,
replace the batteries.
· How to change the batteries
(1)
To
change the battery, use a thin coin to remove
the battery cover by turning it counter-clockwise.
(2) Remove the two batteries, the batteries have a (+)
on the front and a (-)
on
the back.
(3) Be suer to insert the new batteries
with(+)
signs
in
the same direction.
(4) Replace the battery cover by turning it clockwise.
(5) Battery type : LR43
The following battery is compatible with it.
186, D186A, RW84, V12GA, L1142, GP186, AG12, G12A
-4-

· How to use the reticle
(1) The vertical scale (reticle) visible through the left half
of
the binocular, above the
compass display, allows you to calculate to
an
object ifyou know its height, or to
calculate the height
of
an
object ifyou its distance from you.
(2) Each mark
on
the vertical scale has a value
of
5 MIL
(1
MIL is equivalent to
an
angle
that can determine
an
object one meter
in
height at a distance
of
1000 meters).
Therefore, if a navigation chart gives the height
of
an object, by sighting on it and
counting the number
of
MILs, you can determine how far away it
is.
Here are
the two formulas:
To
measure distance when the height
si
known:
Object height (m)
Scale Reading X 1000 (m) = Distance
in
meters
To
mesure object height when the distance is kown:
Distance (m)
X
Scale Reading
1000 X 1000 (m)
=Object
height
in
meters
-5-

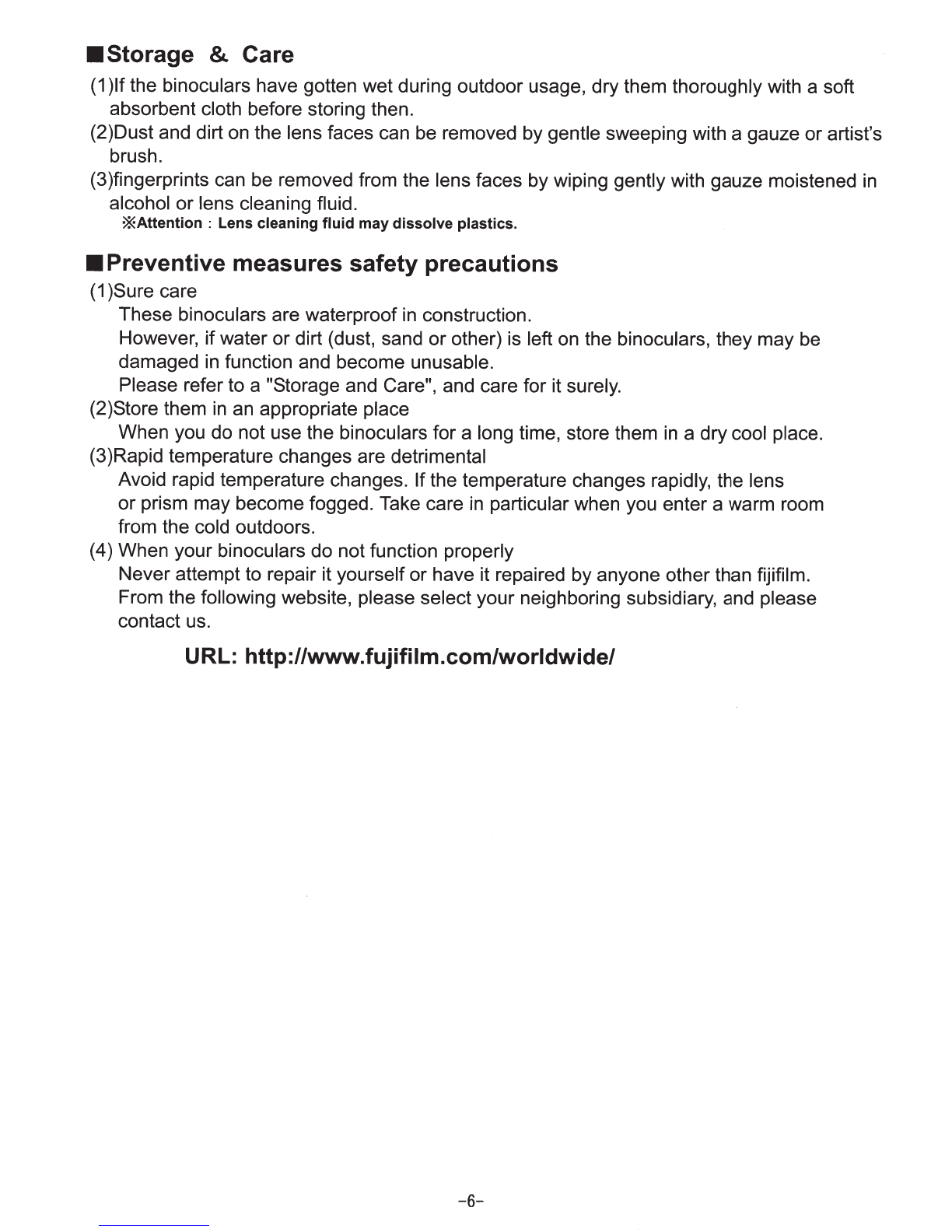

• Storage & Care
(1
)If the binoculars have gotten wet during outdoor usage, dry them thoroughly with a soft
absorbent cloth before storing then.
(2)Dust and dirt on the lens faces can be removed by gentle sweeping with a gauze or artist's
brush.
(3)fingerprints can be removed from the lens faces by wiping gently with gauze moistened
in
alcohol or lens cleaning fluid.
*Attention:
Lens cleaning
fluid
may
dissolve
plastics.
• Preventive measures safety precautions
(1
)Sure care
These binoculars are waterproof
in
construction.
However, ifwater or dirt (dust, sand or other) is left on the binoculars, they may be
damaged
in
function and become unusable.
Please refer to a "Storage and Care", and care for it surely.
(2)Store them
in
an appropriate place
When you do not use the binoculars for a long time, store them
in
a dry cool place.
(3
)Rapid temperature changes are detrimental
Avoid rapid temperature changes. If the temperature changes rapidly, the lens
or prism may become fogged. Take care
in
particular when you enter a warm room
from the cold outdoors.
(4) When your binoculars do not function properly
Never attempt to repair it yourself or have it repaired by anyone other than fijifilm.
From the following website, please select your neighboring subsidiary, and please
contact
us.
URL:
http://www.fujifilm.com/worldwide/
-6-

FUJIFILM
FUJIFILM Corporation
Optical Device Business Div.
1-324 Uetake, Kita-ku, Saitama City, Saitama 331-9624, Japan
TEL. [phone] FAX. [phone]
URL: http:/ I www. fujifilm.com/products/binoculars/
202811954661

Precautions
and
Warnings
In
orderto protect you
and
third
partiesfrom possible injury and/
orpropertydamage orloss, you
are
kindly requested to payclose
attentionto all instructions, danger
and
warningregarding
the
use
and
care ofthis product.
~
DANGER: High level warningagainstsevere personal
harm
or
serious product damage.
~
WARNING:Precautions
that
should befollowed
in
order
to
prevent damage to
the
productorinjury
to
those
to those usingit.
~DANGER
Neverlook directly
at
the
sun
or
anybrightthrough
the
binocular.
Serious harm, includingloss of
vision, canresult.
~WARNING
\__
· 'lb
help preventimpact damagefrom droppingorfalling, do not
place
the
binocularon slippery or unstable surlace.
· Injurycanresult
if
a finger is caughtbetween
the
binocularbarrels
duringeye width adjustment. Be aware ofthis
if
a youngchild uses
the
binoculars.
·
Avoid
leaving
the
binocular unattended and exposed
to
direct
sunlight. Sunlight.
ray
passingthrough
the
lenses could cause a fire.
· Never
t:ry
to walk
and
use
the
binocular
at
the
sametime; accident
and
injurycould result.
· Do not swing
the
binoculars by
the
neck strap;
the
·binoculars might
strike
and
injure someone orbe damaged byhittinga solid object.
· Please dispose of
any
plastic bags
that
may
come with
the
binoculars
;suchbags could suffocate or choke a small child.
· Prolonged usewithcontact of
the
rubbereyepieces against
the
skin
cancause irritation . Ifsuch a condition persists, consult your doctor.
•
That
smallchildren do not inadvertentlyswallow
the
cap oreyecup.
If
it
dose happen, consultyour doctor.

w
(l,
w
~
~
ffi
a..
en
::x::
c::
0
·-
tn
·s:
c
(I)
>
tn
·c:
0
.
....,
c 1'-
,.,
0
~
~::::J...,r-...
Z-cc::o
-
o·-
z
~o-,
o..o..z
0-
..c
~
z
-~
C)~
- 0
·-
~
..,
(I)
J:
~
::)
c.o>
II.UJ~>

Fujinon Inc. warrants the Fujinon binocular
identified herein against all defects in
workmanship and material, subject
to
the
conditions below, for a period
of
five
(5)
years from the original purchase date.

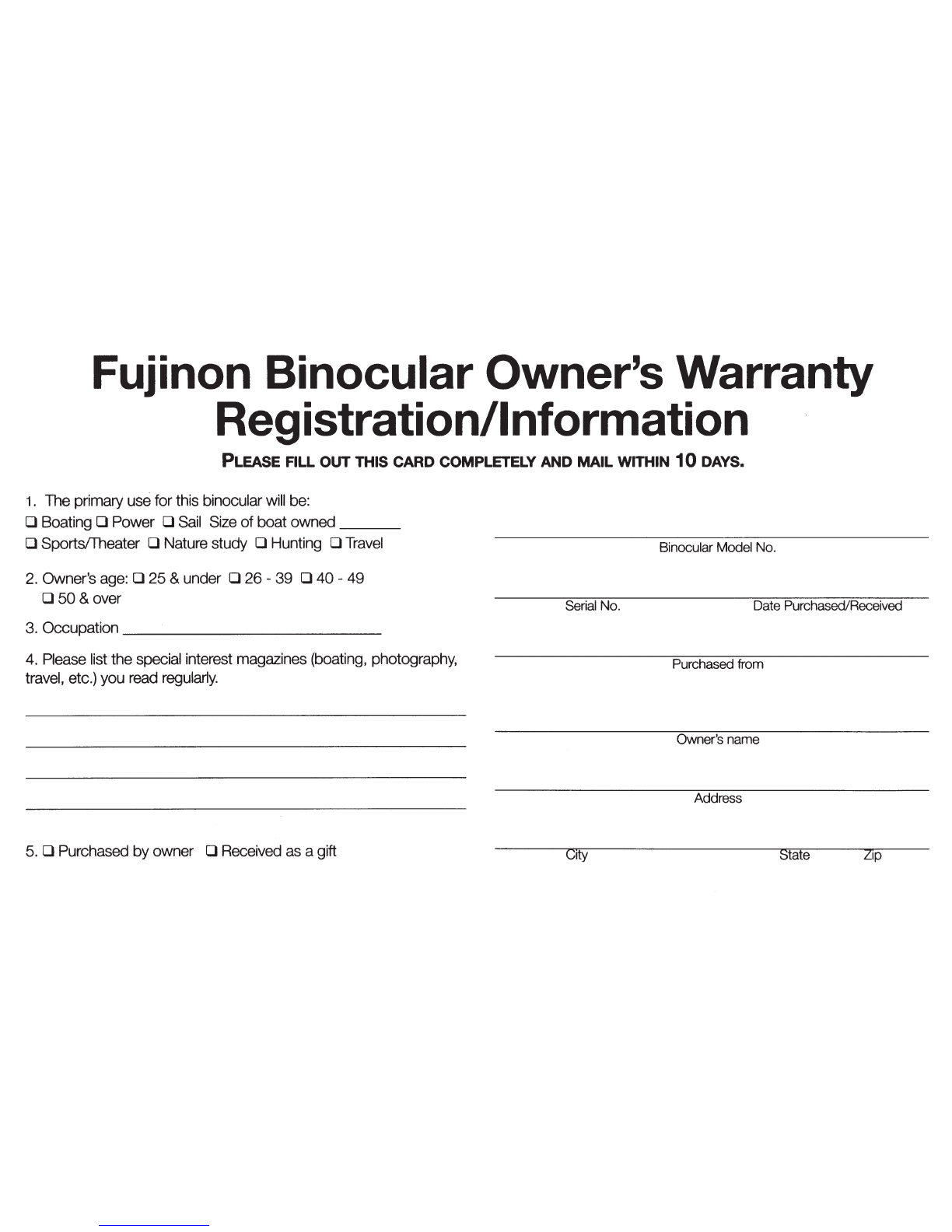

Warranty registration starts when the
owner returns the completed registration
form (below) within ten
(1
0)
days from the
date
of
purchase
or,
in
the case
of
a gift,
from the date
of
receipt.
To
obtain warranty service, please
return the binocular, freight prepaid, to:
Service Manager
Special Products Division
Fujinon Inc.
10 High Point Drive
Wayne, NJ 07470
Important!
To
cover the costs
of
return
packing, shipping and insurance, your
binocular must be sent with either a check
to
Fujinon Inc. for
$1
0
or
a valid major
credit card account number/expiration
date with satisfactory proof
of
purchase,
such as a sales slip
or
receipt, and a brief
note describing the problem(s).
Manufacturing and material defects will
then be remedied without further cost,
and the binocular will be returned
to
you.
If Fujinon service personnel determine the
problem is not the result
of
manufacturing
or
material defects, a cost estimate will be
Fuji
non
Binocular
5-Year
Limited
Warranty
Model#
______________
_
Serial#
----------------
FUJINON
INC.
1
0 High Point Drive
Wayne, NJ 07470
[phone]
FAX[phone]
~
FUJI
NON
sent
to
you and no work will be performed
without your prior approval.
This warranty is void ifthe binocular is
modified
or
altered, is subjected
to
mis-
use, abuse, damage during transit
or
lack
of
reasonable care, is dropped
or
ifrepairs
available without charge underthis
warranty are made
by
persons not autho-
rized
by
Fujinon.
Rubber coatings on Fujinon binoculars
are not covered
by
this warranty, nor are
straps, lens caps and any other accessor-
ies.
In
no event shall Fujinon be liable for
incidental, consequential or other dam-
ages,
or
have any liability with respect
to
defects pursuant
to
any express or im-
plied warranty
of
merchantability, fitness
for a particular purpose
or
otherwise,
otherthan as set forth above.
Some states
do
not allow limitations on
how
long an implied warranty lasts and
some states
do
not allow the exclusion
or
limitation
of
incidental
or
consequential
damages, so the above limitations may
not apply
to
you.
In
addition, this warranty
gives you specific legal rights, and you
may also have other rights which may vary
from state
to
state.
Make sure
your
warranty registration
is in effect. Please detach
the
card
below, fill
it
out
and mail
it
promptly.
Printed
in
Hong Kong.

Fujinon Binocular Owner's Warranty
Reg istration/1nformation
PLEASE FILL OUT THIS CARD COMPLETELY AND MAIL WITHIN 10 DAYS.
1. The primary use for this binocular will be:
0 Boating 0 Power 0 Sail Size
of boat owned __ _
0 Sports/Theater 0 Nature study 0 Hunting 0
Travel
2. Owner's age: 0 25 &under 0 26 -39 0 40 -49
0 50 & over
3. Occupation
____________ _
4. Please list the special interest magazines (boating, photography,
travel, etc.) you read regularly.
5. 0 Purchased
by owner 0 Received as a gift
Binocular Model No.
Serial No. Date Purchased/Received
Purchased from
Owner's name
Address
City State
Z1p
