Document conventions 1
Nederlands
SonoSite Edge, SonoSite S Series, SonoSite
M-Turbo User Guide Supplement
Introduction ..................................................................................................................................................... 1
Document conventions ........................................................................................................................................................................... 1
Getting Help .................................................................................................................................................................................................. 2
Supplemental information (SonoSite Edge) ............................................................................................... 2
Cable diagnostics ........................................................................................................................................................................................ 2
Errata ............................................................................................................................................................... 3
Patents ............................................................................................................................................................................................................. 3
Hazardous materials (SonoSite Edge) ............................................................................................................................................ 4
Electrical safety ............................................................................................................................................................................................ 4
Unexpected data loss .............................................................................................................................................................................. 5
Measurements ............................................................................................................................................................................................. 5
Measurement references ....................................................................................................................................................................... 6
Cleaning and disinfecting ....................................................................................................................................................................... 7
Introduction
The content in this document includes new features, as well as corrections and updates to the user guide.
Document conventions
The document follows these conventions:
A WARNING describes precautions necessary to prevent injury or loss of life.
A Caution describes precautions necessary to protect the products.
A Note provides supplemental information.
Numbered and lettered steps must be performed in a specific order.
Bulleted lists present information in list format but do not imply a sequence.
For a description of labeling symbols that appear on the product, see "Labeling Symbols" in the user guide.

2GettingHelp
Getting Help
For technical support, please contact FUJIFILM SonoSite as follows:
Printed in the U.S.
Supplemental information (SonoSite Edge)
The following section provides information supplementing the SonoSite Edge system user guide only.

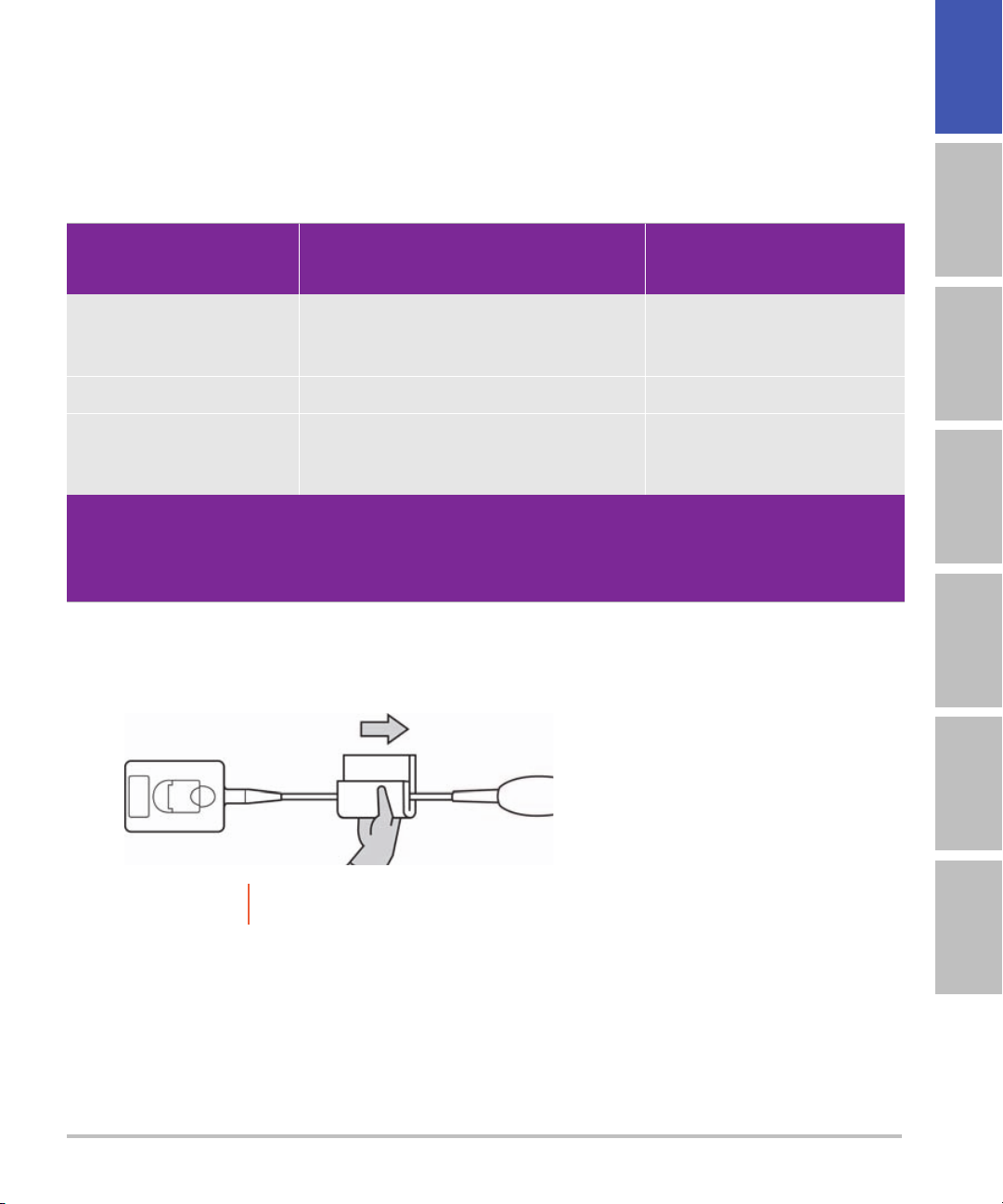

Cable diagnostics
A cable diagnostic feature has been added to the SonoSite Edge system to prevent malfunctioning
transducer cables from damaging the system. The feature returns one of two different error messages
depending on whether damage has been detected to the system or transducer. Contact FUJIFILM SonoSite
Technical Support for further assistance.
Testing transducer cables for damage
All transducers should be tested after performing a system software upgrade, or after receiving a repaired
system back from SonoSite. This should be done before the system is put back into use.
Phone
(U.S. or Canada)
877-657-8118
Phone
(outside U.S. or
Canada)
425-951-1330, or call your local representative
Fax [phone]
Email [e-mail]
Web www.sonosite.com
Europe Service Center Main: [phone]
English support: [phone]
French support: [phone]
German support: [phone]
Italian support: [phone]
Spanish support: [phone]
Asia Service Center [phone]

English Deutsch Español Français Italiano Português
Patents 3
Nederlands
The order in which you test transducers is important. Test transducers in the following order:
To test transducer cables for damage
1Any transducer (except the following)
2P21x
3HFL38x
4C60x
5L38x
Errata
The following section provides corrections and updates to the user guide.
Patents
SonoSite Edge system
Patents: US 9,151,832; US 8,956,296; US 8,861,822; US 8,858,436; US 8,834,372; US 8,805,047; US
8,439,840; US 8,398,408; US 8,355,554; US 8,216,146; US 8,213,467; US 8,147,408; US 8,137,278; US
8,088,071; US 8,066,642; US 8,052,606; US 7,819,807; US 7,804,970; US 7,740,586; US 7,686,766; US
7,604,596; US 7,591,786; US 7,588,541; US 7,534,211; US 7,449,640; US 7,169,108; US 6,962,566; US
6,648,826; US 6,575,908; US 6,569,101; US 6,471,651; US 6,416,475; US 6,383,139; US 6,364,839; US
6,203,498; US 6,135,961; US 5,893,363; US 5,817,024; US 5,782,769; US 5,722,412; AU: 730822; AU:
727381; CA 2,372,152; CA: 2,371,711; CN103237499 B; CN101231457 B; CN 98108973.9; CN
98106133.8; CN 97113678.5; DE 69831698.3; DE 69830539.6; DE 69730563.5; DE 602004027882.3; DE
602004023816.3; DE 60034670.6; DE 60029777.2; EP 1589878; EP 1552792; EP 1180971; EP
0875203; EP 0815793; EP 1180970; EP 0881492; ES 2229318; ES 159878; ES 1552792; ES 0881492;
FR 158978; FR 1552792; FR 1180970; FR 0881492; FR 0875203; FR 0815793; GB 158978; GB 1552792;
GB 1180971; GB 1180970; GB 0881492; GB 0875203; GB 0815793; IT 1589878; IT 1552792; IT
0881492; IT 0815793; JP5782428 (B2); JP 4696150; KR 532359; KR 528102; NO 326814; NO 326202.

4Hazardous materials (SonoSite Edge)
SonoSite M-Turbo system
Patents: US 9,151,832; US 8,956,296; US 8,861,822; US 8,858,436; US 8,834,372; US 8,805,047; US
8,398,408; US 8,355,554; US 8,216,146; US 8,213,467; US 8,164,011; US 8,137,278; US 8,088,071; US
8,066,642; US 7,804,970; US 7,740,586; US 7,686,766; US 7,591,786; US 7,588,541; US 7,534,211; US
7,449,640; US 7,169,108; US 6,962,566; US 6,648,826; US 6,569,101; US 6,471,651; US 6,416,475; US
6,383,139; US 6,371,918; US 6,364,839; US 6,135,961; US 5,893,363; US 5,817,024; US 5,782,769; US
5,722,412; US D538,432; US D509,900; AU 727381; AU 730822; CA 2,371,711; CA 2,372,152; CA
2,373,065; CN103237499 B; CN101231457 B; CN 97113678.5; CN 98106133.8; CN 200830007734.8;
EP 0875203; EP 0881492; EP 1175713; EP 1180970; EP 1180971; EP 1552792; EP 1589878;
JP5782428 (B2); JP 4696150; KR 528102; and KR 532359.
SonoSite S Series system
Patents: US 9,151,832; US 8,956,296; US 8,861,822; US 8,858,436; US 8,834,372; US 8,805,047; US
8,376,103; US 8,216,146; US 8,213,467; US 8,137,278; US 8,066,642; US 7,978,461; US 7,804,970; US
7,740,586; US 7,686,766; US 7,591,786; US 7,588,541; US 7,534,211; US 7,449,640; US 7,169,108; US
6,962,566; US 6,648,826; US 6,569,101; US 6,471,651; US 6,416,475; US 6,383,139; US 6,371,918; US
6,364,839; US 6,135,961; US 5,893,363; US 5,817,024; US 5,782,769; US 5,722,412; USD592,750;
USD591,423; AU 727381; AU 730822; CA 2,371,711; CA 2,372,152; CA 2,373,065; CN103237499 B;
CN101231457 B; CN 97113678.5; CN 98106133.8; CN 200830007734.8; EP 0875203; EP 0881492; EP
1175713; EP 1180970; EP 1180971; EP 1552792; EP 1589878; JP5782428 (B2); JP 4696150; KR
528102; and KR 532359.
Hazardous materials (SonoSite Edge)
Disregard the following warning for the SonoSite Edge ultrasound system only:
Electrical safety
The following warning was added to the other electrical safety warnings in the Safety chapter of the user
guides.
WARNING The liquid crystal display (LCD) contains mercury. Dispose of the LCD properly
in accordance with local regulations.
WARNING Avoid patient contact with any part of the system other than the transducer or
the ECG leads.

English Deutsch Español Français Italiano Português
Unexpected data loss 5
Nederlands
Unexpected data loss
Patient exam calculations on ultrasound workflows can be lost without warning or indication if certain
settings change prior to ending any current (open) studies. See the following caution:
Measurements
To calculate Stroke Volume (SV) or Stroke Index (SI)
1Fill in the Height and Weight fields on the patient information form. The BSA is calculated automatically.
(SI only.)
2Measure from LVOT (2D).
a On a frozen 2D image, press the calcs key.
b From the 2D main menu, select AO/LA.
cFromtheCalculations menu, select LVOT D.
d Position the calipers.
e Save the calculation.
3Measure from LVOT (Doppler).
a On a frozen Doppler image, press the calcs key.
bFromtheCalculations menu, select AV, and then select LVOT VTI.
c Position the calipers.
d Save the calculation.
To calculate Aortic Valve Area (AVA)
The AVA calculation requires a measurement in 2D and two measurements in Doppler. After the
measurements are saved, the result appears in the patient report.
Caution Changes made to any of the following settings will cause analysis values in the
current (open) study to be cleared. These settings should not be changed before
ending any open study on the system.
Date and time
OB tables or custom measurements
Cardiac TDI labels
IMT labels
Doppler units

6Measurementreferences
1In 2D, measure from LVOT:
a On a frozen 2D image, press the calcs key.
bFromtheCalculations menu, select AV then LVOT D.
c Position the calipers.
d Save the calculation.
2In Doppler, select AV, measure LVOT, and then measure the AV.
Measurement references
Aortic Valve Area (AVA) by Continuity Equation in cm2
Oh, J.K., J.B. Seward, and A.J. Tajik. The Echo Manual. 3rd Edition., Philadelphia: Lippincott, Williams, and
Wilkins, (2007), p.73, 191-195.
A2= A1* V1/V2
where:
A2= Ao valve area
A1= LVOT area(CSA)
V1= LVOT velocity(VMax)
V2= Ao valve velocity (VMax)
LVOT = Left Ventricular Outflow Tract
Pressure Gradient (PGr) in mmHG
Oh, J.K., J.B. Seward, and A.J. Tajik. The Echo Manual. 3rd Edition, Philadelphia: Lippincott, Williams, and
Wilkins, (2007), p.63-66.
PGr = 4 * (Velocity)2
Peak E Pressure Gradient (E PG)
E PG = 4 * PE2
Peak A Pressure Gradient (A PG)
A PG = 4 * PA2
Peak Pressure Gradient (PGmax)
PGmax = 4 * PV2
Mean Pressure Gradient (PGmean)
Echocardiographic Assessment of Valve Stenosis: EAE/ASE Recommendations for Clinical Practice Journal
of American Society of Echocardiography, (January, 2009), 4-5.

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 7
Nederlands
PG mean = sum(4v2)/N
where:
v =peak velocity at interval n
N = the number of intervals in the Riemann sum
Qp/Qs
Qp/Qs = SV Qp site/SV Qs site = RVOT SV/LVOT SVOh, J.K., J.B. Seward, and A.J. Tajik. The Echo Manual.
3rd Edition, Boston: Philadelphia: Lippincott Williams and Wilkins, (2007), p.70-72.
where:
RVOT SV = RVOT CSA* RVOT VTI = π/4 * RVOT diameter2 * RVOT VTI
LVOT SV = LVOT CSA * LVOT VTI = π/4 * LVOT diameter 2 * LVOT VTI
Stroke Volume (SV) Doppler in ml
Oh, J.K., J.B. Seward, and A.J. Tajik. The Echo Manual. 3rd Edition, Boston: Philadelphia: Lippincott Williams
and Wilkins, (2007), p.69-71.
SV = (CSA * VTI)
where:
CSA = Cross Sectional Area of the orifice (LVOT area)
VTI = Velocity Time Integral of the LVOT
Cleaning and disinfecting
This section updates the instructions for cleaning and disinfecting the ultrasound system, transducers, and
accessories.
Use the FUJIFILM SonoSite recommendations when cleaning or disinfecting your ultrasound system,
transducer, and accessories. Use the cleaning recommendations in the peripheral manufacturer’s instructions
when cleaning or disinfecting your peripherals.

8Cleaning and disinfecting
See www.sonosite.com/transducers, for transducer images.
Before getting started
Follow the disinfectant manufacturer’s recommendations regarding appropriate personal protective
equipment (PPE), such as protective eyewear and gloves.
Inspect the system and transducer to determine that they are free of any unacceptable deterioration, such
as corrosion, discoloration, pitting, or cracked seals. If damage is evident, discontinue use,and contact
FUJIFILM SonoSite or your local representative.
Confirm that cleaning and disinfecting materials are appropriate for your facility’s use. FUJIFILM SonoSite
tests cleaners and disinfectants for use with the FUJIFILM SonoSite systems and transducers.
Disinfectants and cleaning methods listed in this chapter are recommended by FUJIFILM SonoSite for
efficacy and material compatibility with the products.
Ensure that the disinfectant type and the solution strength and duration are appropriate for the equipment
and application.
Follow manufacturer recommendations and local regulations, when preparing, using and disposing of
chemicals.
Determining the required cleaning and disinfecting level
Notes The system and transducers must becleaned and disinfected after each exam.
It is important to follow these cleaning and disinfecting instructions without
skipping any steps.
For cleaning the TEEx transducer, refer to the cleaning and disinfection
instructions in the TEEx User Guide.
WARNINGS Ensure that cleaning and disinfecting solutions and wipes are not expired.
Some cleaners and disinfectants can cause an allergic reaction to some
individuals.
WARNINGS Ensure that cleaning and disinfecting solutions and wipes are not expired
Some cleaners and disinfectants can cause an allergic reaction to some
individuals
Cautions Do not allow cleaning solution or disinfectant into the system connectors, or
transducer connector.
Do not use strong solvents such as thinner or benzene, or abrasive cleansers,
since these will damage the exterior surfaces. Use only FUJIFILM SonoSite
recommended cleaners or disinfectants.
WARNING The cleaning instructions contained in this section are based on requirements
mandated by the American Food and Drug Administration (FDA). Failure to
follow these instructions may result in cross contamination and patient infection.

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 9
Nederlands
The level of cleaning and disinfecting required for the system is dictated by the type of tissue it contacts
during use. Use Table 1
to determine the level of cleaning and disinfecting required.
Spaulding classifications
Spaulding classifications (non-critical, semi-critical) determine the approach for cleaning and disinfecting
medical equipment based on the device, the way it has been used, and the risk of infection. The system and
transducers are designed for use within the Spaulding classifications of non-critical and semi-critical uses.
Clean and disinfect system and transducer to a high level (semi-
critical uses)
Use this procedure to clean and high-level disinfect the ultrasound system and transducer whenever it has
come into contact with blood, broken skin, mucosal membranes, or bodily fluids.
Table 1: Choosing a cleaning and disinfecting method
Did any part of the system or transducer come in contact with broken skin, blood, mucosal
membranes, or bodily fluids?
YES Came in contact with broken
skin, blood, mucosal membranes,
or bodily fluids.
Go to “Clean and disinfect system and
transducer to a high level (semi-critical
uses)” on page 9
OR
NO Did not come in contact with
broken skin, blood, or bodily
fluids.
Go to “Clean and disinfect system and
transducer to a low level (non-critical
uses)” on page 15
Option A
B
Option
A
Option

10 Cleaning and disinfecting
Follow the manufacturer's instructions when using cleaners and disinfectants. The cleaners and disinfectants
listed in the procedure are both chemically compatible and have been tested for efficacy with the system
and transducers. Confirm that the cleaners and disinfectants are appropriate for your facility’s use.
To clean and disinfect the system and transducer
1 Turn off the system by pressing the Power button.
2Unplugthe power cord from the outlet.
3Remove the disposable transducer sheath, if applicable.
4 Disconnect the transducer from the system. Temporarily place it where it will not cross-contaminate
clean equipment or surfaces while you clean the ultrasound system.
5Cleanthe exterior surfaces of the ULTRASOUND SYSTEM to remove any debris or bodily fluids. Use the
following procedure:
WARNINGS To avoid electrical shock, before cleaning, disconnect the system from the power
supply.
Wear the appropriate personal protective equipment (PPE) recommended by
the chemical manufacturer, such as eyewear and gloves.
Cautions Do not skip any steps or abbreviate the cleaning and disinfecting process in any
way.
Do not spray cleaners or disinfectants directly on the system surfaces or on
system and transducer connectors. Doing so
may cause solution to leak into the
system, damaging it and voiding the warranty.
Do not attempt to disinfect a transducer or transducer cable using a method or
chemical that is
not included here. This can damage the transducer and void the
warranty.
Use only FUJIFILM SonoSite recommended cleaners and disinfectants. Using a
non-
recommended disinfecting solution or incorrect solution strength can
damage the System and transducer and void the warranty. Follow the
disinfectant manufacturer’s recommendations for solutions strengths.
Note You must clean and disinfect both the ultrasound system and the transducer
after each use, but only the transducer can be disinfected to a high level.

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 11
Nederlands
aUseeither a pre-moistened wipe or a soft cloth dampened with cleaner or disinfectant. Choose a cleaner
from the list of approved cleaners.
b Remove all gel, debris, and bodily fluids from the system.
c With a new wipe, clean the system, including the display, by wiping from clean areas to the soiled areas.
This method helps to avoid cross-contamination.
d Observe the minimum wet contact time recommended by the manufacturer. Monitor the system for
wet appearance. Re-apply with a new wipe if no longer wet.
e Allow the ultrasound system to air dry in a clean, well-ventilated space.
6Cleanthe ultrasound system STAND to remove any debris or bodily fluids. For information about cleaning
the stand, see the Edge Stand and H-Universal Stand User Guide.
Approved cleaners/disinfectants for the ultrasound system
Cleaner/disinfectant Compatible systems Minimum wet contact time1
SaniCloth AF3 (gray top)2Sonosite S Series 3 minutes
SaniCloth Plus (red top) SonoSite Edge
SonoSite M-Turbo
SonoSite S Series
3 minutes
PI-Spray II 10 minutes
1For maximum effectiveness, the component being cleaned must remain wet with disinfectant for a minimum
period of time.
2Qualified for use as an intermediate-level disinfectant for mycobacteria. For a more complete list, refer to the
cleaners and disinfection document available at www.sonosite.com.

12 Cleaning and disinfecting
7Cleanthe TRANSDUCER CABLE AND BODY to remove any debris or bodily fluids. Use the following
procedure:
aUseeither a pre-moistened wipe or a soft cloth dampened with cleaner or disinfectant. Choose a cleaner
from the list of approved cleaners.
b Remove all gel, debris, and bodily fluids from the system.
c With a new wipe, clean the cable and transducer, starting from the cable, wiping toward the scanhead.
This method helps to avoid cross-contamination.
d Observe the minimum wet contact time recommended by the manufacturer. Monitor the transducer
for wet appearance. Re-apply with a new wipe if no longer wet.
Approved cleaners for the SonoSite Edge, SonoSite M-Turbo, and SonoSite S Series transducers
Product Compatible Transducer Minimum wet contact
time1
SaniCloth AF3 (gray top)2C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, ICTx, L25x, L38x, L38xi, P10x,
P11x, P21x, SLAx
3 minutes
SaniCloth Plus (red top) HFL50x, L52x 3 minutes
PI-Spray II C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, L25x, L38x, L38xi, L52x, P10x,
P11x, P21x, SLAx
10 minutes
1For maximum effectiveness, the component being cleaned must remain wet with disinfectant for a minimum
period of time.
2Qualified for use as an intermediate-level disinfectant for mycobacteria. For a more complete list, refer to the
cleaners and disinfection document available at www.sonosite.com.
Caution Do not allow moisture near the electronic components of the connector.

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 13
Nederlands
8Verifythat all gel, debris, and bodily fluids have been removed from the system and transducer. If
necessary, repeat steps 5, 6, and 7 with a new wipe.
9Examine the system, transducer, and cable for damage, such as cracks or splitting where fluid can enter.
If damage is evident, discontinue use, and contact FUJIFILM SonoSite or your local representative.
10 Prepare the disinfectant for use.
a Choose a high-level disinfectant from the list of approved disinfectants.
b Check the expiration date on the bottle to ensure the disinfectant has not expired.
c Mix or check that the disinfection chemicals have the concentration recommended by the manufacturer
(for example, a chemical strip test).
d Check that the temperature of the disinfectant is within the manufacturer’s recommended limits.
11 Perform a high-level disinfection of the transducer. Use the following procedure:
a Immerse the transducer in a high-level disinfectant solution.
WARNING Failure to remove all gel, debris, and bodily fluid could leave contaminants on
the probe.
High-level disinfectants compatible with SonoSite Edge, SonoSite M-Turbo, and SonoSite S Series
transducers
Disinfectant Compatible transducers Temperature Disinfectant Soak Duration
Cidex C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, ICTx, L25x, L38x, L38xi,
P10x, P21x, P11x
25 °C (77 °F) 45 minutes
Cidex OPA C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, ICTx, L25x, L38x, L38xi,
L52x, P10x, P21x
20 °C (68 °F) 12 minutes
For a more complete list, refer to the cleaners and disinfection document available at www.sonosite.com.
WARNING High-level disinfectants can cause harm to the patient if not completely
removed from the transducer. Follow the manufacturer’s rinse instructions to
remove chemical residue.

14 Cleaning and disinfecting
b Ensure that the connector and most of the cable remain out of the fluid. You may submerge 2 inches
(5 cm) of the cable proximal to the transducer scanhead.
Figure 1 Transducer component names
12 Rinse the transducer 3 separate times using the following procedure:
a Rinse the transducer in clean, running water according to the disinfectant manufacturer’s instructions
(at least 1 minute).
b Ensure that the connector and at least 12-18 inches (31-46 cm) of the cable from the connector remain
dry.
c Repeat this step until the transducer has been rinsed 3 separate times.
13 Dry the transducer with a sterile lint-free cloth.
14 Dispose of the disinfectant according to the manufacturer’s guidelines.
Cautions Do not soak the transducer longer than recommended by the chemical
manufacturer.
Do not immerse the transducer connector in any disinfectant solution.
Use only FUJIFILM SonoSite recommended cleaners and disinfectants. Using a
non-
recommended disinfecting solution or incorrect solution strength can
damage or discolor the transducer and void the warranty.
Maximum
5 cm
(2 inches)
Do not submerge
Scan head
Cable
Connector

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 15
Nederlands
Clean and disinfect system and transducer to a low level (non-critical
uses)
Use the following procedure to clean and disinfect the ultrasound system and transducer if it has not come
into contact with blood, broken skin, mucosal membranes, or bodily fluids.
Follow the manufacturer's instructions when using cleaners and disinfectants. The materials listed in the
table below are chemically compatible with the system and transducers. Confirm that the cleaners and
disinfectants are appropriate for your facility’s use..
To clean and disinfect the system and transducer
1 Turn off the system by pressing the Power button.
2Unplugthe power cord from the outlet.
WARNING If the system or transducer has come into contact with any of the following,
use the high-level cleaning and disinfection procedure. See “Clean and
disinfect system and transducer to a high level (semi-critical uses)” on
page 9:
Blood
Broken skin
mucosal membranes
bodily fluids
WARNINGS To avoid electrical shock, before cleaning, disconnect the system from the
power
supply.
Wear the appropriate personal protective equipment (PPE) recommended by
the chemical manufacturer, such as eyewear and gloves.
Cautions Do not spray cleaners or disinfectants directly on the system surfaces or on
system and transducer connectors. Doing so
may cause solution to leak into
the system, damaging it and voiding the warranty.
Use only FUJIFILM SonoSite-recommended cleaners and disinfectants. Using
a non-
recommended disinfecting solution or incorrect solution strength can
damage the System and transducer and void the warranty. Follow the
disinfectant manufacturer’s recommendations for solutions strengths.
Do not attempt to disinfect a transducer or transducer cable using a method or
chemical that is not included here. Doing so can damager the transducer and
void the warranty.
B
Option

16 Cleaning and disinfecting
3Remove the transducer sheath, if applicable.
4 Disconnect the transducer from the system. Temporarily place it where it will not cross-contaminate
clean equipment or surfaces while you clean the ultrasound system.
5Cleanthe exterior surfaces of the ULTRASOUND SYSTEM to remove any debris or bodily fluids. Use the
following procedure:
aUseeither a pre-moistened wipe or a soft cloth dampened with cleaner and disinfectant. Choose a
cleaner from the list of approved cleaners.
b Remove all gel, debris, and bodily fluids from the system.
c With a new wipe, clean the system, including the display, by wiping from clean areas to the soiled areas.
This method helps to avoid cross-contamination.
d Observe the minimum wet contact time and refer to manufacturer’s instructions. Monitor the system
for wet appearance. Re-apply with a new wipe if no longer wet.
6Cleanthe ultrasound system STAND to remove any debris or bodily fluids. For information about cleaning
the stand, see the Edge Stand and H-Universal Stand User Guide.
Approved cleaners/disinfectants for the ultrasound system:
Cleaner/disinfectant Compatible systems Minimum wet contact time1
SaniCloth AF3 (gray top)2Sonosite S Series 3 minutes
SaniCloth Plus (red top) SonoSite Edge
SonoSite M-Turbo
SonoSite S Series
3 minutes
PI-Spray II 10 minutes
1For maximum effectiveness, the component being cleaned must remain wet with disinfectant for a minimum
period of time.
2Qualified for use as an intermediate-level disinfectant for mycobacteria. For a more complete list, refer to the
cleaners and disinfection document available at www.sonosite.com.

English Deutsch Español Français Italiano Português
Cleaning and disinfecting 17
Nederlands
7Cleanthe TRANSDUCER CABLE AND BODY to remove any debris or bodily fluids. Use the following
procedure:
aUseeither a pre-moistened wipe or a soft cloth dampened with cleaner or disinfectant. Choose a cleaner
from the list of approved cleaners.
b Remove all gel, debris, and bodily fluids from the system.
c With a new wipe, clean the cable and transducer, starting from the cable, wiping toward the scanhead.
This method helps to avoid cross-contamination.
d Observe the minimum wet contact time recommended by the manufacturer. Monitor the transducer
for wet appearance. Re-apply with a new wipe if no longer wet.
Approved cleaners/disinfectants for the transducer:
Product Compatible Transducer Minimum wet contact
time1
SaniCloth AF3 (gray top)2C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, ICTx, L25x, L38x, L38xi, P10x,
P11x, P21x, SLAx
3 minutes
SaniCloth Plus (red top) HFL50x, L52x 3 minutes
PI-Spray II C11x, C60x. C60xi, C8x, HFL38x,
HFL50x, ICTx, L25x, L38x, L38xi, L52x,
P10x, P11x, P21x, SLAx
10 minutes
1For maximum effectiveness, the component being cleaned must remain wet with disinfectant for a minimum
period of time.
2Qualified for use as an intermediate-level disinfectant for mycobacteria. For a more complete list, refer to the
cleaners and disinfection document available at www.sonosite.com.
Caution Do not allow moisture near the electronic components of the connector.

18 Cleaning and disinfecting
8Verifythat all gel, debris, and bodily fluids have been removed from the system and transducer. If
necessary, repeat steps 5, 6, and 7 with a new wipe.
9Allow the ultrasound system and transducer to air dry in a clean, well-ventilated space.
10 Examine the system, transducer, and cable for damage, such as cracks or splitting where fluid can enter.
If damage is evident, discontinue use, and contact FUJIFILM SonoSite or your local representative.
Storing the transducer
To store the transducer
1Make sure the transducer has been cleaned and disinfected as detailed in the previous section.
2Store the transducer so that it hangs freely and vertically, and observe the following precautions:
Store the transducer away from any contaminated transducers.
Store the transducer in an environment that is safe and has good airflow. Do not store the transducer
in closed containers or where condensation may occur.
Avoid direct sunlight and exposure to x-rays. Recommended storage temperature range is between
0°C (32 °F) and +45 °C (113 °F).
If using a wall-mounted rack for storage, ensure that:
It is securely mounted.
The storage slots do not mar the transducer or cause damage to the cable.
The rack is sized and positioned to prevent the transducer from inadvertently falling.
Make sure the connector is supported and secure.
Transporting the transducer
When transporting the transducer, you must take precautions to protect the transducer from damage and
avoid cross-contamination. Be sure to use a container approved by your organization.
To transport a soiled transducer for cleaning
A soiled transducer is one that has been contaminated and must be cleaned before using it in an exam.
WARNING Failure to remove all gel, debris, and bodily fluid could leave contaminants on
the probe.
