FujiFilm Pictrography 3500 User manual

取扱説明書/INSTRUCTION MANUAL
PICTROGRAPHY 3500 /4000II /4500
超高画質フルカラーデジタルプリンター
DIGITAL IMAGE PRINTER
NETWORK ADAPTER 用プリンタードライバー
PRINTER DRIVER for NETWORK ADAPTER
●MacOSXへのインストール
●InstallingtoMacOSX
第2版
033PC109B
追補編2
Second Edition
PP3-B501E2
SUPPLEMENT 2

LICENSING AGREEMENT
1. Copyright
The copyright for this software is owned by Fuji Photo Film Co., Ltd. ("FUJI").
2. Conditions of Use
You are licensed to use this software on only one PICTROGRAPHY 3500/4000II/4500 device.
3. Prohibitions
You may not (1) copy, modify or adapt any or all parts of this software; (2) provide this
software to a third party in the form of a copy, loan or gift; or (3) reverse engineer this
software.
4. After-Sale Service
Should the software fail to function properly due to a defect in the medium within 7 (seven)
days after the date of purchase, please return the software to the place of purchase for a
replacement.
5. Exemptions
(1) FUJI does not guarantee that this software will achieve the results intended by the
purchaser.
(2) FUJI is not liable for problems that arise from the quality or performance of this software.
(3) FUJI is not liable for damages incurred directly or indirectly by the purchaser or a third
party through the use of this software.

1
INTRODUCTION
This manual gives procedures for installing and using the PICTROGRAPHY 3500/4000II/4500 printer
driver for Mac OS X, as well as several precautions. For information that is not contained in this instruction
manual see the third edition (Ref. No.PP3-B483E3) of the instruction manual for Printer Driver Network
Adapter.
This software provides a means of making prints with the PICTROGRAPHY 3500/4000II/4500 that is
connected to a network via the PICTROGRAPHY Network Adapter.
Before installing the software, be sure to verify that the employed computer is networked and properly
operating.
For the use of the PICTROGRAPHY Network Adapter, see the supplied installation documentation and
online manual.
For issues directly involving Windows, Macintosh, or other operating systems, please refer to the manual
provided with the particular operating system.
The functions and screen contents presented in this manual are subject to change as software may be
upgraded at any time. Screen contents and set-up procedures may differ according to the operating
environment which is employed (e.g. type of the OS).
This manual may not be copied or transcribed in whole or in part without prior approval from the publisher.
• Adobe PhotoShop 7.0 is a trademark of Adobe Systems Inc. in several nations.
• Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corp. in the US and other countries.
• Macintosh, Mac OS, and AppleTalk are registered trademarks of Apple Computer Inc.
• PICTROGRAPHY is a registered trademark of Fuji Photo Film Co, Ltd.
• Other product and company names are registered trademarks of the respective companies.

2
1. PICTROGRAPHY 3500/4000II/4500 PRINTER DRIVER FOR MAC OS X................... 3
1.1 Operating environment .................................................................................................................. 3
1.2 Setting up AppleTalk...................................................................................................................... 3
2. INSTALLATION ............................................................................................................. 4
3. UNINSTALL ................................................................................................................... 8
4. USING PRINTER DRIVER............................................................................................. 9
4.1 Work flow through printing ............................................................................................................. 9
4.2 Print setup and printing.................................................................................................................. 9
4.3 Print Center.................................................................................................................................. 11
4.3.1 Print Center Outline.................................................................................................... 11
4.3.2 Checking the print status............................................................................................ 11
4.3.3 Canceling printing....................................................................................................... 12
5. RESTRICTIONS........................................................................................................... 13
CONTENTS

3
1. PICTROGRAPHY 3500/4000II/4500 PRINTER DRIVER FOR MAC OS X
1.1 Operating environment
The PICTROGRAPHY 3500/4000II/4500 Printer
Driver for Mac OS X runs in the personal
computer operating environments detailed
below:
Hardware
• Model: Power Macintosh G3 or greater
• Memory: 128MB or more of available space
• HDD: 96MB or more of available space
•Acomputer on which AppleTalk is usable.
Software
• OS: Mac OS X 10.1.3 or later
1.2 Setting up AppleTalk
You need to set up AppleTalk to enable network
(Ethernet) printing.
Perform setup so as to permit the use of
AppleTalk.

4
2. INSTALLATION
Install the printer driver by performing the following
procedure:
1. Insert the [PICTROGRAPHY 3500/4000II/4500
Network Adapter Printer Driver] CD-ROM into
the PC.
2. Open the following folders on the CD-ROM.
PICTROGRAPHY 3500:
[Driver]>[PG3500]>[Mac OS X]
PICTROGRAPHY 4000II/4500:
[Driver]>[PG4K2_4500]>[Mac OS X]
The following appears.
(Screen shot for PG3500)
3. Double-click the following file in the "Mac OS X"
folder.
PICTROGRAPHY 3500:
"PG3500AT Install.pkg"
PICTROGRAPHY 4000II/4500:
"PG4K2_4500AT Install.pkg"
The following dialog box appears.
(Screen shot for PG3500)
4. Click the lock mark.
The following dialog box appears.
5. Enter the administrator's name and password,
and then click the [OK] button.
The following dialog box appears.
(Screen shot for PG3500)
6. Click the [Continue] button.
The following dialog box appears.
(Screen shot for PG3500)

5
2. INSTALLATION
7. Select a destination volume to install the printer
driver and then click the [Continue] button.
The following dialog box appears.
(Screen shot for PG3500)
8. Click the [Install] button.
The following dialog box appears.
9. Click the [Continue Installation] button.
When installation is completed, the following
appears. (Screen shot for PG3500)
10.Click the [Restart] button to restart the
computer.
Installation of PICTROGRAPHY 3500/4000II/
4500 Printer Driver for Mac OS X is completed.
When the installation of PICTROGRAPHY 3500/
4000II/4500 Printer Driver for Mac OS X is
completed, perform settings for making prints with
the PICTROGRAPHY 3500/4000II/4500 that is
connected to a network via the PICTROGRAPHY
Network Adapter.
11.Confirm the PICTROGRAPHY 3500/4000II/
4500 and PICTROGRAPHY Network Adapter
are connected to the network correctly.
12.Turn ON the PICTROGRAPHY 3500/4000II/
4500 and wait until the "Self Check" message
appears on the LCD display.
13.Turn ON the PICTROGRAPHY Network
Adapter.
∗Be sure to turn ON the PICTROGRAPHY
Network Adapter after the "Self Check"
message appears on the LCD display on the
PICTROGRAPHY 3500/4000II/4500.
14.Select [System Preferences] from the Apple
menu.
The [System Preferences] window appears.

6
2. INSTALLATION
15.Double-click [Network].
The [Network] window appears.
16.Select [Built-in Ethernet] from the [Show] pop-up
menu and then click the [AppleTalk] tab.
The following appears.
17.Mark the [Make AppleTalk Active] box with a " √"
and close the [Network] window.
18.Open the [Applications]>[Utilities] folders on the
hard disk. The following appears.
19.Drag the [Print Center] file to Dock on the
desktop.
The [Print Center] icon is added as an item in
Dock.
20.Click the [Print Center] icon in Dock.
The [Printer List] window appears.
∗If the "You have no printers available"
message is displayed, press the [Add...]
button and then proceed to the next step.

7
2. INSTALLATION
21.Click the [Add Printer...] button.
The following appears.
22.Select [FUJIFILM PNA(AT)] from the upper
pop-up menu. If there are zones in the Apple-
Talk network, select a zone to which the PIC-
TROGRAPHY 3500/4000II/4500 is connected
from the lower pop-up menu.
When a PICTROGRAPHY 3500/4000II/4500 on
the network is found, its printer name is
displayed on the [Product] column. (Screen shot
for PG3500)
AppleTalk Printer Names installed in the PIC-
TROGRAPHY Network Adapter are displayed
on the [Product] column.
23.Select the PICTROGRAPHY 3500/4000II/4500
to be used and then click the [Add] button.
The selected PICTROGRAPHY 3500/4000II/
4500 is added to the printer list.
(Screen shot for PG3500)
24.Close the [Printer List] screen.
Settings for making prints with the PICTRO-
GRAPHY 3500/4000II/4500 are completed.

8
3. UNINSTALL
The printer driver uninstall procedure is shown
below.
∗Even if the uninstall procedure below is
performed, the installed printer driver files are
not deleted. The printer driver files cannot be
deleted in an ordinary way. Normally, there is no
need to delete the printer driver files.
1. Click the [Print Center] icon in Dock on the
desktop.
The [Printer List] window appears.
(Screen shot for PG3500)
2. Select the printer to be deleted and then click
the [Delete] button.
The selected printer is deleted.
3. Close the [Printer List] window.
Uninstall is completed.

9
4. USING PRINTER DRIVER
4.1 Work flow through printing
Launching an application (preparing print data)
Start the application software and create data to
be printed. If you have already created a data
file, open that file.
4.2 Print setup and printing
The specific steps involved in printing vary with
applications. For more information, see the
instruction manual for the application. The
procedure described below uses Adobe
Photoshop 7.0 as an example.
1. Setting a paper size
Open the print data file and then select [Paper
Setup...] from the [File] menu.
The [Page Setup] window appears.
(Screen shot for PG3500)
Format
Select a destination to print (printer name).
∗Be sure to select a destination to print. If
another printer (or volume) is selected in
this menu, printing may be performed
incorrectly. If [Any Printer] is selected,
printing is performed with the print size for
the default printer.
Paper Size
Select a paper size for printing.
Note that the printable paper size depends on
the type of paper currently loaded in the
PICTROGRAPHY 3500/4000II/4500.
Orientation
Select an orientation of printing.
2. Setting print conditions
Open the print data file and then select [Print]
from the [File] menu.
The [Print] window appears.
(Screen shot for PG3500)

10
4. USING PRINTER DRIVER
Printer
Select a destination to print (printer name).
Copies
Specify the number of copies you plan to
print. The maximum number of copies is 50.

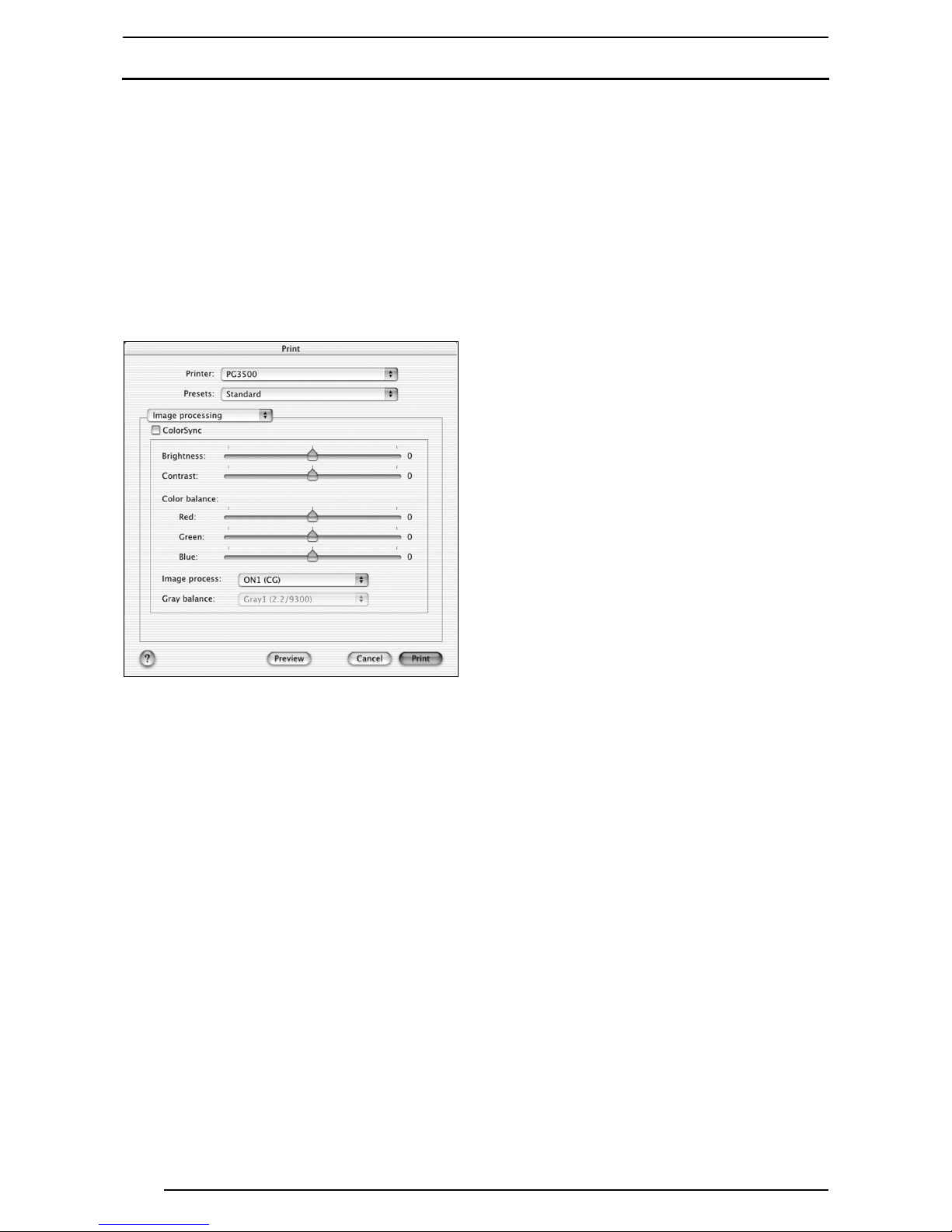

3. Setting image processing options
Click the pop-up menu displaying [Copies &
Pages] to select [Image Processing].
The following appears.
(Screen shot for PG3500)
Brightness
Adjust the print density. Settings toward the
right (plus direction) result in lighter prints,
while settings toward the left (minus direction)
result in darker prints.
Contrast
Adjust the print contrast. Settings toward the
right (plus direction) produce higher contrast,
while settings toward the left (minus direction)
produce lower contrast.
Color balance (Red/Green/Blue)
Adjust color balance for prints. Settings
toward the right (plus direction) result in
higher print density of the color specified,
while settings toward the left (minus direction)
result in lower print density of the color
specified.
Image process
Select a color-matching function. This color-
matching function refers to the one provided
with the PICTROGRAPHY 3500/4000II/4500,
which provides the following options:
ON1 (CG): Performs color conversions
suitable for printing high-
chroma images, including
computer graphics.
Intended for monitors having
color temperatures of 9300K
*1 and γ2.2*2.
ON2 (Photo): Produces somewhat softer
prints.
Intended for monitors having
color temperatures of 6500K
and γ1.8.
ON3 (sRGB): Suitable for printing with an
sRGB*3 monitor.
As compared with ON1
setting, ON3 setting enables
to print saturated colors lower
in brightness and higher in
saturation.
ON4: A color-matching function will
(PG3000 OFF) work that produces results
close to that obtained with
PICTROGRAPHY 3000 color
matching function set to
"OFF". (for PG3500)
ON4: A color-matching function will
(PG4000 OFF) work that produces results
close to that obtained with
PICTROGRAPHY 4000 color
matching function set to
"OFF". (for PG4000II/4500)
OFF: Disables printer color matching.
With this option selected, gray
reproduction is determined by
settings for [Gray balance].
Gray balance
Select gray gradation and color balance, if
Image process is set to OFF.
Gray1: Suitable for printing with
monitors having (2.2/9300)
color temperatures of 9300K
and γ2.2.
Gray2: Suitable for printing with
monitors having (1.8/6500)
color temperatures of 6500K
and γ1.8.
Gray3 (sRGB): Suitable for printing with an
sRGB monitor.

11
4. USING PRINTER DRIVER
*1 Color : The color of a light source is
indicated in temperature
[Kelvin degrees (K)]. The
higher the temperature is, the
more the color of a light
source is bluish. The lower the
temperature is, the more the
color of a light source is
reddish.
*2 g (gamma): This shows reproduction of
color tone using figures. The
larger the g rating is, the more
the color is contrasty. The
smaller the g rating is, the
more the color is softer.
*3 sRGB: This is adopted as the
standard RGB color base.
ColorSync
Check here to use the Mac OS color
management function (ColorSync).
Checking the ColorSync option displays the
following (Screen shot for PG3500):
Profile
Chooses an ICC profile for ColorSync.
PICTROGRAPHY 3500:
Select [Pictrography3500PG-D_ER V3.0].
PICTROGRAPHY 4000II:
Select [Pictrography4000IIPG-D_ER V3.0].
PICTROGRAPHY 4500:
Select [Pictrography4500PG-D_ER V3.0].
4. Click the [Print] button.
Printing is executed.
4.3 Print Center
4.3.1 Print Center Outline
Print Center is used to monitor the print status
or abort a printing process during printing. To
launch Print Center, click the [Print Center] icon
in Dock on the desktop. When Print Center is
launched, the following window opens.
(Screen shot for PG3500)
Status Display area (Upper part of the
screen)
The upper part of the Print Center screen
shows a document name and the print status
for that document, if a print job is currently
being processed.
Spool List Display area (Lower part of the
screen)
The lower part of the Print Center screen
shows a listing of document names and
various data for those documents, if the print
queue contains any jobs (spool files).
If another print job is executed when a print
job is underway, the new job is appended at
the bottom of this list.
4.3.2 Checking the print status
Click the [Print Center] icon in Dock on the
desktop. The [Print Center] window appears. If a
print job is currently in progress, the
corresponding document name and other data
are displayed in the Status Display area (upper
part of the screen).
Or, if the print queue contains other jobs to be
printed, document names and other data are
listed in the Spool List Display area (lower part
of the screen).

12
4. USING PRINTER DRIVER
4.3.3 Canceling printing
Click the [Print Center] icon in Dock on the
desktop. The [Print Center] window appears.
Click [Stop Queue] in the [Queue] menu. If a
print job is currently in progress, printing is
suspended.
Printing of the suspended print job is held if you
click the document name in the Spool List
Display area and then click the [Hold] button.
The held condition is canceled if you click the
[Resume] button. The suspended print job is
deleted from the Spool List if you click the
document name in the Spool List Display area
and then click the [Delete] button.
(The Screen shot below is for PG3500)
To resume printing, click [Start Queue] from the
[Queue] menu.

13
5. RESTRICTIONS
Error messages may not be displayed when the
PICTROGRAPHY 3500/4000II/4500 or the
PICTROGRAPHY Network Adapter is turned
OFF, or is not connected to a network. If printing
is not performed while "Printing job" or "Opening
printer connection" remains on the Print Center
screen for a long time, check whether or not the
PICTROGRAPHY 3500/4000II/4500 and the
PICTROGRAPHY Network Adapter are turned
ON, and are connected to a network correctly.
When printing is performed with the [Collated]
check box marked with a " √" (default setting) in
[Copies & Pages] of the [Print] screen, data
transfer to the printer is repeated for a number of
times equal to the designated number of copies.
Remove the " √" mark from the [Collated] check
box for higher efficiency when multiple copies
are made for a single-page document.
When printing an image from Photoshop 7.0, if
the size of the image is equal to the designated
paper size, the image edges may not be printed
for several lines.
When printing from Illustrator 10, collated
printing is not performed even if the [Collated]
check box is marked with a " √" in [Copies &
Pages] of the [Print] screen.
The print queue or print job in Print Center may
not be controlled by the user depending on the
timing of operation.
The positioning or scaling up/down function may
not work correctly depending on applications.

FUJI PHOTO FILM CO., LTD.
26-30, Nishiazabu 2-chome, Minato-ku, Tokyo 106-8620, Japan
Ref. No. PP3-B501E2 TD-02.12-FG Printed in Japan
033PC109B 営技-02.12-FG
富士写真フイルム株式会社
〒106-8620 東京都港区西麻布 2-26-30
ピクトロ部
Printed on Recycled Paper
この用紙は再生紙を使用しています.
