FujiFilm ApeosPro C810 User manual

March 2022 GM1035E-3 Edition1
FUJIFILM Business Innovation Corp.
Reference Guide
Optional Units
ApeosPro C810
ApeosPro C750
ApeosPro C650

Optional Units
2
Contents
1 High Capacity Feeder B1 4
LoadingPaper;PaperJams
2 High Capacity Feeder B1-S/C3-DS 9
LoadingPaper;PaperJams;CleaningMachine
3 Interface Decurler Module 25
CurlCorrection;PaperJams
4 Inserter 29
LoadingPaper;PaperJams
5 High Capacity Stacker 34
OutputtingPaper;PaperJams
6 Crease / Two-Sided Trimmer 42
WasteContainer;PaperJams
7 Folder Unit 52
PaperJams
8 Finisher C 55
StapleCartridge;PaperJams
9 Finisher D 66
OutputtingPaper;StapleCartridge;PaperJams
10 Square Back Fold Trimmer 84
WasteContainer;PaperJams

Preface 3
Preface
A guide describing the operations for optional units, such as the Finisher.
Refer
• Descriptions for the following optional products are provided in different guides.
-Offset catch tray, Simple catch tray: “Reference Guide- Main Unit”
-Wireless kit, Print / scan / FAX function-related products: “Reference Guide - Operations”
-Print server and related products: Manual included in the product
-Face authentication system, finger vein authentication system,
• This manual may not be edited, modified or copied in whole or part without the written con-
sent of the publisher.
• Some parts of this manual are subject to change without prior notice.
• The screen shots and the illustrations in this manual are used as examples. They may differ
from yours depending on the model, the software, or the OS.
In this manual, safety instructions are preceded by the symbol . Always read and follow the
instructions before performing the required procedures.
Regarding the notations and trademarks in this document, see the “Reference Guide- Main Unit”.
Description in this manual such as feed capacity assumes J paper (82 g/m2).

Optional Units
4
1 High Capacity Feeder B1
Device Components
23 1
No. Component Function
1 Remaining Volume Display You can check the remaining paper volume.
2 High Capacity Tray (Paper Tray 6) Load paper here.
3 Top Cover Open this cover to clear paper jams.
Main Specifications
Item Specification
Paper size A4 , Letter (8.5 x 11") , JIS B5 , 7.25 x 10.5" (184 x 267 mm)
Paper weight (g/m2) 52 to 220
Tray capacity (sheets) 2,100
Dimensions (mm) Width 389 x Depth 610 x Height 377
Weight (kg) 29

High Capacity Feeder B1 5
Loading Paper
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in “Reference Guide - Operations”.
Images are printed on the face side of the loaded paper.

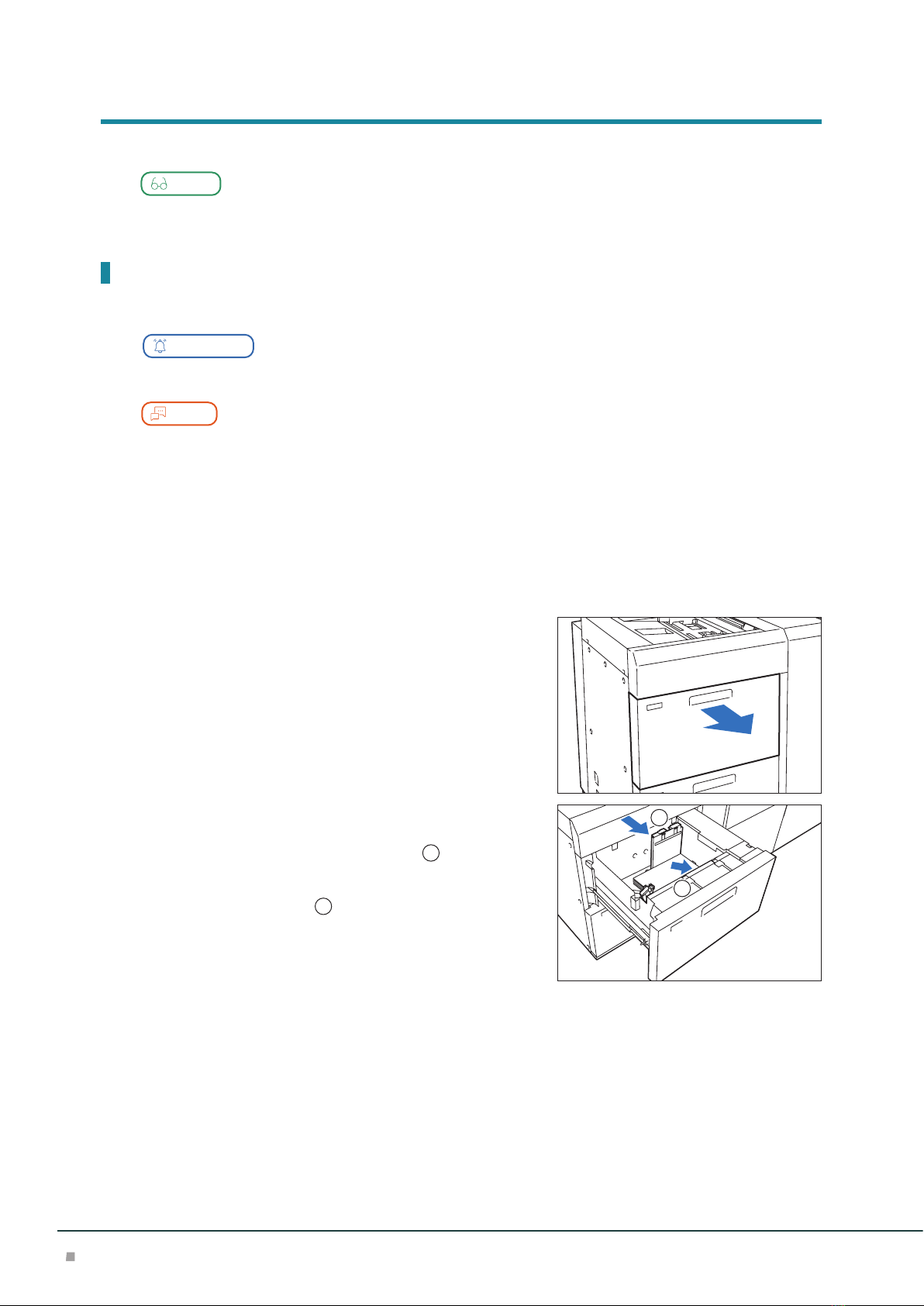

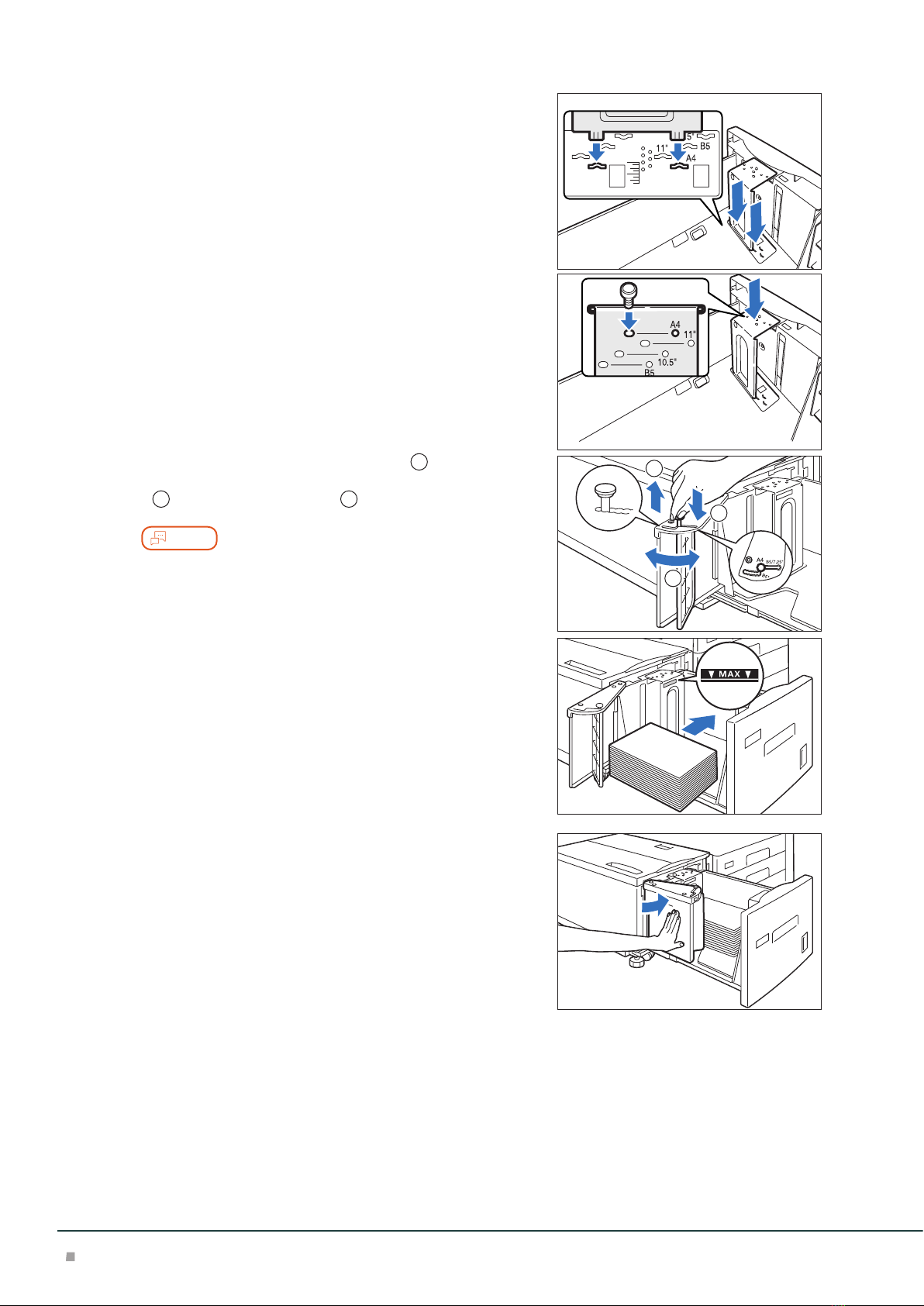

1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If changing the Paper Size, adjust the guide position.
(1) Open the end guide (
1
), remove the screw for the guide
in the back (
2
), and remove the guide from the Paper
Tray.
(2) Insert the protrusions under the guide into the Paper Size
holes.
(3) Insert the Paper Tray protrusions into the Paper Size
holes on top of the guide and tighten the screw.
(4) Remove the screw for the guide in front and remove the
guide from the Paper Tray.
1
2

Optional Units
6
(5) Insert the protrusions under the guide into the Paper Size
holes.
(6) Insert the Paper Tray protrusions into the Paper Size
holes on top of the guide and tighten the screw.
(7) Pull the handle for the end guide up (
1
), align with the
Paper Size while moving the handle along the groove
(
2
), and lower the handle (
3
).
Note
The groove on the left side of the end guide 8.5" is not used.
4. Fan the paper well and load sheets with the printed
side facing up, and the paper edges aligned in the di-
rection of the arrow.
5. Close the end guide completely.
6. Push in the Paper Tray.
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
3
1
2

High Capacity Feeder B1 7

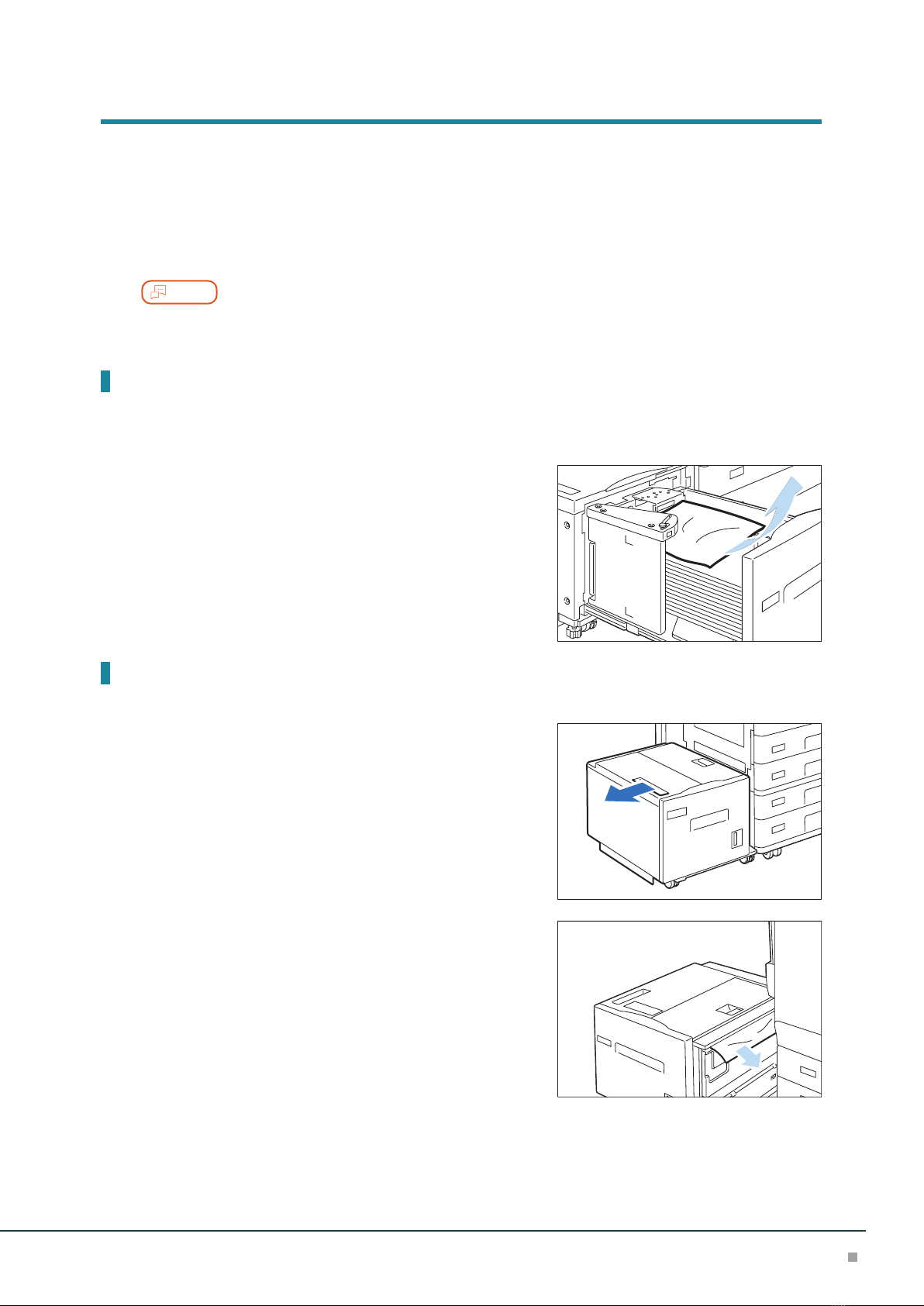

Paper Jams
If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on
the screen to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed
from the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the
paper jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed
from the state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Paper Tray
1. Pull out the Paper Tray toward you until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray.
Exit
1. Hold the handle and move the unit all the way to the
left.
2. Remove the jammed paper.
3. Move the unit to the right and connect it with the
main unit.

Optional Units

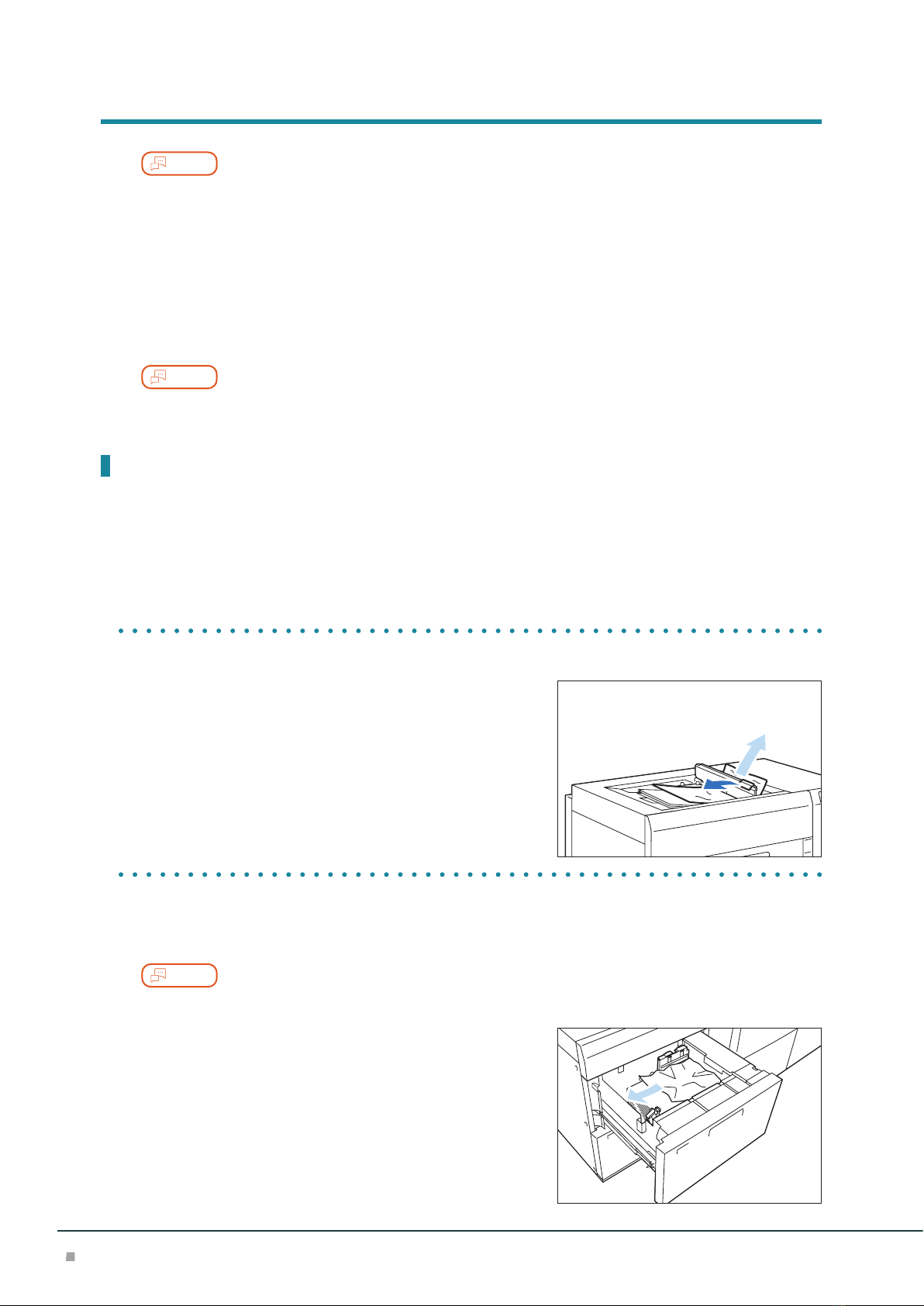

8
Inside of the Upper Cover
1. Hold the handle and move the unit all the way to the
left.
2. Pull the handle (
1
) and open the cover (
2
).
3. Remove the jammed paper.
4. Close the cover.
5. Move the unit to the right and connect it with the
main unit.
1
2

High Capacity Feeder B1-S/C3-DS 9
2 High Capacity Feeder B1-S/C3-DS
Device Components / Caution Labels
B1-S
7
654 3
1
2
C3-DS
6 5 4 3
1
2
7

Optional Units
10

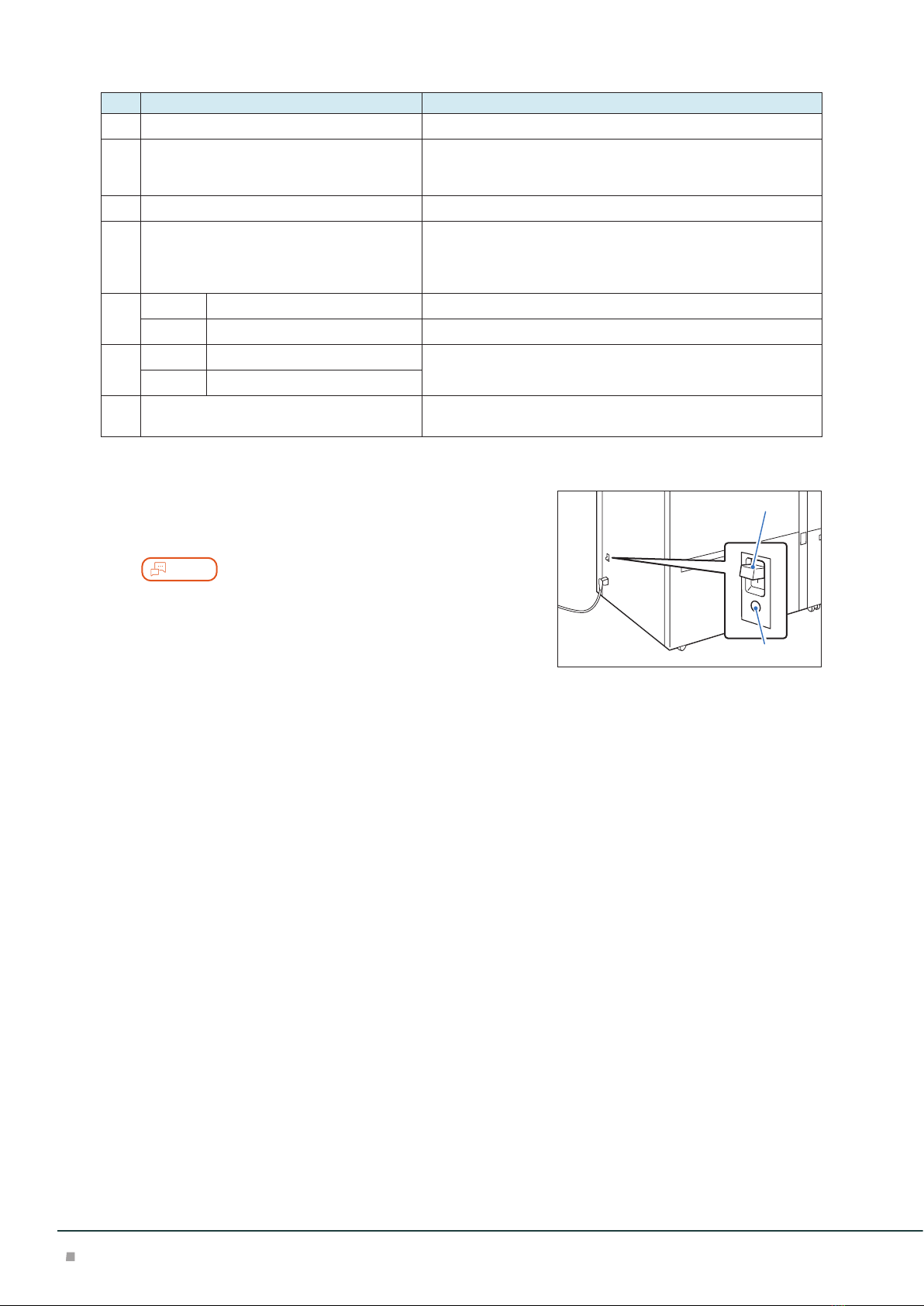

No. Component Function
1 Bypass Tray (Paper Tray 5) Load paper here.
2
Error Indicator When paper jam occurs, the indicator is turned on.
When the priority device indicator (top lamp) blinks, first of all
perform the paper jam operation.
3 Right Cover Open this cover to clear paper jams.
4
Remaining Volume Indicator When the Paper Tray is in operation, the top lamp is turned on.
You can check the remaining volume of paper with the 4 lamps
(each lamp indicates 25%) at the center.
When Paper Replenish Indicator is turned on, paper is empty.
5B1-S Consumables Storage Unit Stores papers and consumables.
C3-DS High Capacity Tray (Paper Tray 6) Load paper here.
6B1-S High Capacity Tray (Paper Tray 6) Load paper here.
C3-DS High Capacity Tray (Paper Tray 7)
7Ground Fault Interrupter A switch to automatically switch the machine off when a current
leakage is detected.
Ground Fault Interrupter
When not using for an extended period or when moving
the unit, set the switch to the lower position to turn the
machine power off.
Note
Do not operate the switch under normal circumstances because it
is turned off when a current leakage is detected.
For the current leakage, refer to “User's Manual”.
Switch
TEST button

High Capacity Feeder B1-S/C3-DS 11
Main Specifications
Item Specification
Paper size Standard
size
Max A3, 11 x 17"
Min Postcard (100 x 148 mm)
Custom size
(mm)
Width 100 to 330
Length 148 to 488 (when Bypass Tray for Long Paper is installed:
660)
Paper weight
(g/m2)
B1-S Bypass Tray Uncoated 52 to 300
Coated 106 to 300
High Capacity Tray Uncoated 52 to 300
Coated 106 to 300
C3-DS Bypass Tray Uncoated 52 to 300
Coated 106 to 300
High Capacity Tray Uncoated 52 to 350
Coated 106 to 350
Tray capacity
(sheets)
B1-S 2,100, Bypass Tray: 250
C3-DS 2,100 x 2 trays (Max 4,200), Bypass Tray: 250
Power supply B1-S AC 100 ± 10%, 2.5 A, 50/60 Hz common
C3-DS AC 100 ± 10%, 6 A, 50/60 Hz common
Maximum power
consumption
B1-S 250 W
C3-DS 600 W
Dimensions (mm) Width 988 x Depth 762 x Height 992
Weight (kg) B1-S 167 (with Bypass Tray)
C3-DS 206 (with Bypass Tray)

Optional Units
12
Loading Paper
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in “Reference Guide - Operations”.
Loading to High Capacity Tray
Images are printed on the face side of the loaded paper.
Important
Do not load paper above the maximum fill line. It may cause paper jams or machine malfunction.
Note
• If the amount of the loaded paper is 100 sheets or less, the guides apply more pressure to the paper. It may
cause the paper to be distorted, leading to paper jams.
• Position the guides correctly to match the paper size. Incorrectly positioned guides may cause misfeeding and
paper jams.
• In the event power is disconnected while the Paper Tray's bottom plate is rising, the plate may not move up
when the power is recovered. In this case, pull out the Paper Tray, make sure the plate is lowered, and then
push the Paper Tray into the machine slowly and firmly.
• When paper sheets are loaded or fed, the Paper Tray makes a sound of supplying air. This is caused by the Air
Assist function, and not an abnormal noise.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. Fan the paper well and load about 100 to 500 sheets
with the printed side facing up, and the paper edges
aligned in the direction of the arrow (
1
).
4. Pinch the long-side paper guide grip and adjust to
the correct paper size (
2
).
2
1

High Capacity Feeder B1-S/C3-DS 13
5. Load remaining sheets with the printed side facing
up, and align the paper edges in the direction of the
arrow (
1
).
6. Adjust the short-side paper guide to the correct pa-
per size (
2
).
To leave a space, pinch the paper guide grip to move.
To narrow, push the paper guide to move.
Note
Make sure that Paper Feed Precision Lever is set to the Normal position. If printed image is still skewed (mis-
alignment of image on prints) after you load paper in Paper Tray correctly, enable switching of paper feed
precision.
Refer
“Changing Paper Feeding Accuracy” (p.15)
7. Push in the Paper Tray.
Postcard Setting
Attach Postcard Kit to the Paper Tray to load paper with the width of 100 to 181 mm.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If the Kit is supplied with the Paper Tray, loosen the
screw (
1
) on the left side of the Paper Tray to re-
move the Kit (
2
).
Note
• The Postcard Kit of C3-DS is placed in the upper Paper Tray.
• The Postcard Kit of B1-S is placed in the lower Paper Tray.
4. Insert the small protrusion of the Kit into the notch
to the right side of the bottom of the Paper Tray
(
1
). Align the hole of the Kit with the front Paper
Tray hole and tighten the screw to fasten the Kit
(
2
).
1
2
2
1
12

Optional Units
14
5. Load about 100 to 500 sheets of paper with the
printed side facing up, and align the paper edges in
the direction of the arrow (
1
).
Note
• Be sure to set them in short edge feed.
• The right side short edge of the set postcard will be the front edge.
6. Pinch the long-side paper guide grip and adjust to
the correct paper size (
2
).
7. Load remaining sheets with the printed side facing
up, and align the paper edges in the direction of the
arrow (
1
).
8. Adjust the short-side paper guide to the correct pa-
per size (
2
).
To leave a space, pinch the paper guide grip to move.
To narrow, push the paper guide to move.
9. Push in the Paper Tray.
10. To remove the Kit from the Paper Tray, loosen the screw completely and then remove the
Kit.
11. Store the Kit in place by inserting it from the left side
of the Paper Tray (
1
) and tightening the screw (
2
).
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
■Precut Tab
Orientation: Place the tabs of paper on the left side when you face the front side of machine.
Loading Envelopes
■Before load
Check the envelopes.
• Are not the envelopes curled or their edges waved?
If there are envelopes strongly curl or edges waving, replace the envelopes or reform them
to improve.
• Are not the envelopes adhered to each other?
If applicable, remove glue and the overlap of bonding parts.
• Are not any glue protruded?
If applicable, wipe the glue away.
• Are not the envelopes folded?
1
2
2
1
1
2

High Capacity Feeder B1-S/C3-DS 15
■Load
• Loading side: Load sheets with the printed side facing
up.
• Direction with the flap open: Place the flap of Envelope
on the left side when you face the front side of machine.
• Direction with the flap closed: Place the flap of Envelope
on the right or near side when you face the front side of
machine.
• If printing is not possible with the paper loading orienta-
tion in the right figure due to the image orientation and
flap open/close state, keep the paper loading orientation as shown in the right figure, and
change the image orientation by the print server settings.
Important
Do not load too many sheets on the envelope. It may cause the envelope to tilt and the machine to malfunction.
Note
• If envelopes are loaded with the flaps unfolded, the size will not be automatically detected as standard size.
• Fold the flaps when loading self-seal envelopes.
• If you place the flap of envelope closed on this side, a failure in printing might occur on the rear edge of papers
depending on the arranged images.
• A multifeed may be detected if the weights of each envelope are different.
• Decurling is needed if paper is curled.
• Loosening paper well is needed if the cutting surfaces of paper have burrs (cutting surfaces of paper).
■Paper Settings
• Paper Type: Envelope
• Paper Weight: paper weight indicated on the paper
• Paper Size: Standard size if flaps closed, custom size if flaps opened
Paper Weight Change Button (B1-S)
Change by this button when using paper of 257 g/m2or
more.
Changing Paper Feeding Accuracy
Enabling this function may improve print displacement when images are skewed (print position
is displaced) even though plain paper with the paper weight of 220 g/m2or less is correctly load-
ed.
Note
• If this function is enabled when paper other than thick paper and plain paper is used, the machine cannot feed
the paper properly, resulting in paper jams.
• It is not effective when the Postcard Kit is used.

Optional Units
16

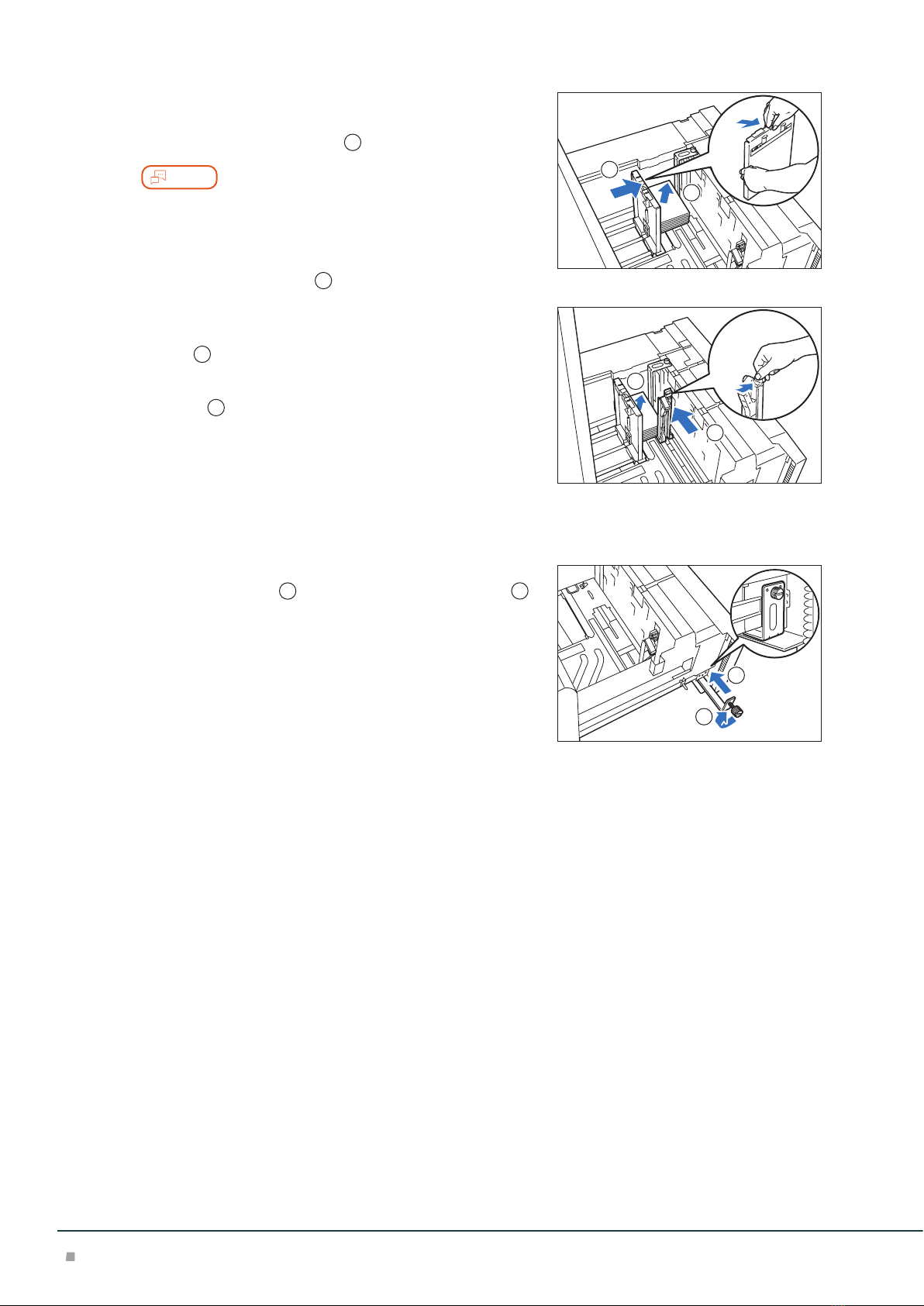

1. Pull out the Paper Tray until it stops.
2. Move the lever at the top of the long-side paper
guide to the rightmost position (<I> position) to en-
able the changing.
Note
To reset the setting, move the lever to the leftmost position.
3. If the accuracy of paper feeding is not improved even
if 2 is performed, move the lever at the right front to
the rearmost position (<I> position) to enable the
changing.
Note
To reset the setting, move the lever to the foremost position.
4. Push in the Paper Tray.
After using the paper in question, return the lever to the normal position <o>.
Loading to Bypass Tray
Images are printed on the face side of the loaded paper.
Important
Do not load paper above the maximum fill line. It may cause paper jams or machine malfunction.
Note
• If the paper guide width is narrower or wider than the paper, it may cause paper jams.
• In the case of coated paper, only one sheet can be loaded.
The image quality and paper feeding capability are not guaranteed when more than one sheet is loaded.

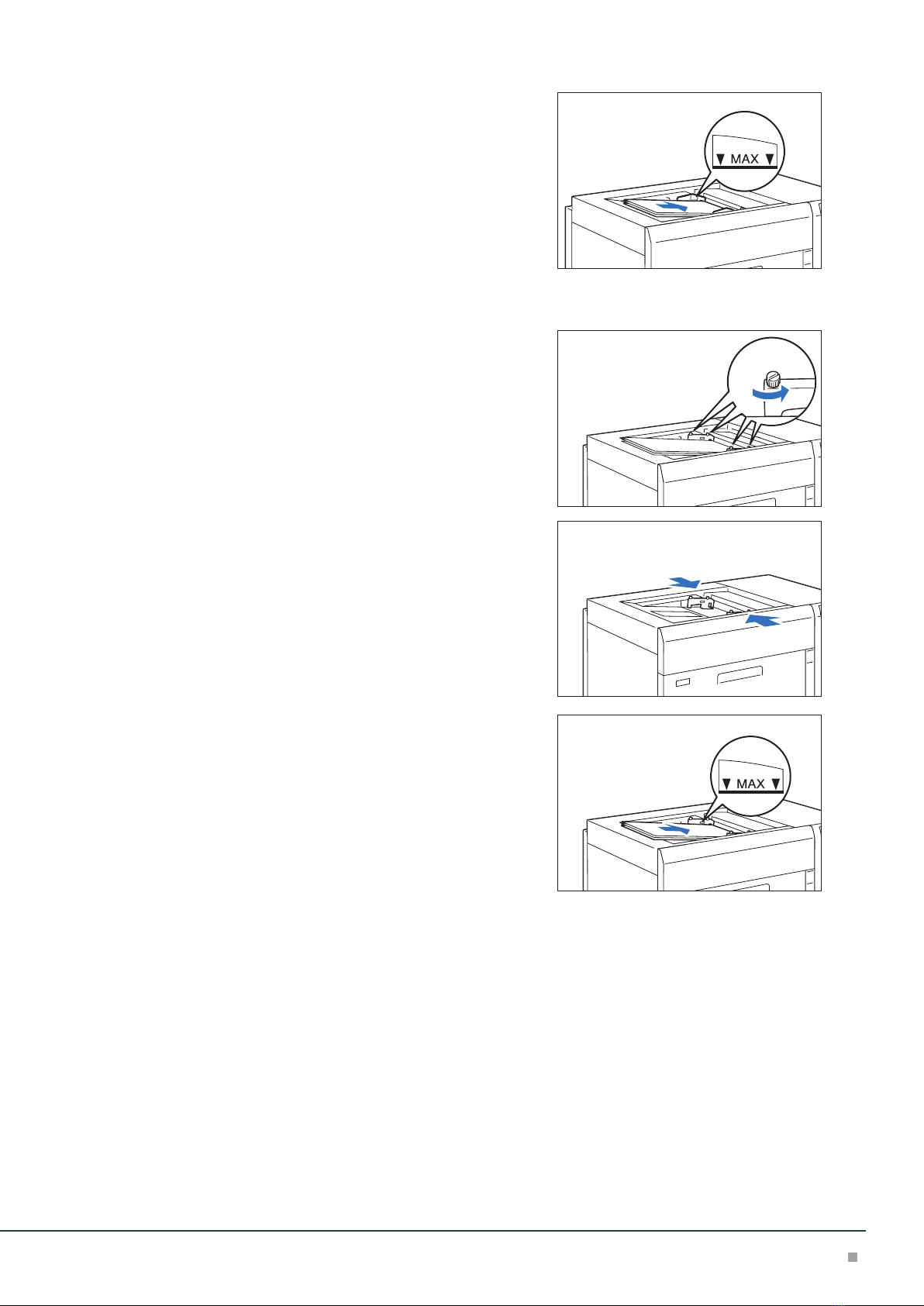

Slide Type
1. Adjust the paper guide to the size of loaded paper.

High Capacity Feeder B1-S/C3-DS 17
2. Fan the paper well and insert it along the paper
guide all the way until it touches the back, with the
printed side facing up.
3. When custom size paper is loaded, make fine-ad-
justment of the paper guide based on the paper size.
Flexible Type (for Long Paper)
1. Loosen the 4 screws of the paper guide.
2. Hold the center of the paper guide and adjust it to
the size of loaded paper.
3. Fan the paper well and insert it along the paper
guide all the way until it touches the back, with the
printed side facing up.
4. Secure the 4 screws of the paper guide.
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
■Precut Tab
Orientation: Place the tabs of paper on the left side when you face the front side of machine.
■Postcards
Orientation: SEF

Optional Units
18
Paper Jams
Note
The error indicator at the top of the machine is turned on. When the priority device indicator (top lamp) blinks,
first of all perform the paper jam operation.
If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on
the screen to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed
from the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the
paper jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed
from the state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Paper Tray
1. Remove the jammed paper.
When Indicator E5 is Turned on.................................................................................................p.18
When Indicator E6 is Turned on (C3-DS)..................................................................................p.18
When Indicator E6 is Turned on (B1-S), when Indicator E7 is Turned on (C3-DS)...............p.19
■When Indicator E5 is Turned on
(1) Open the Upper Cover and remove all the jammed papers
and papers loaded on the tray.
(2) Close the cover.
(3) Align the 4 corners of the removed papers and load them
again.

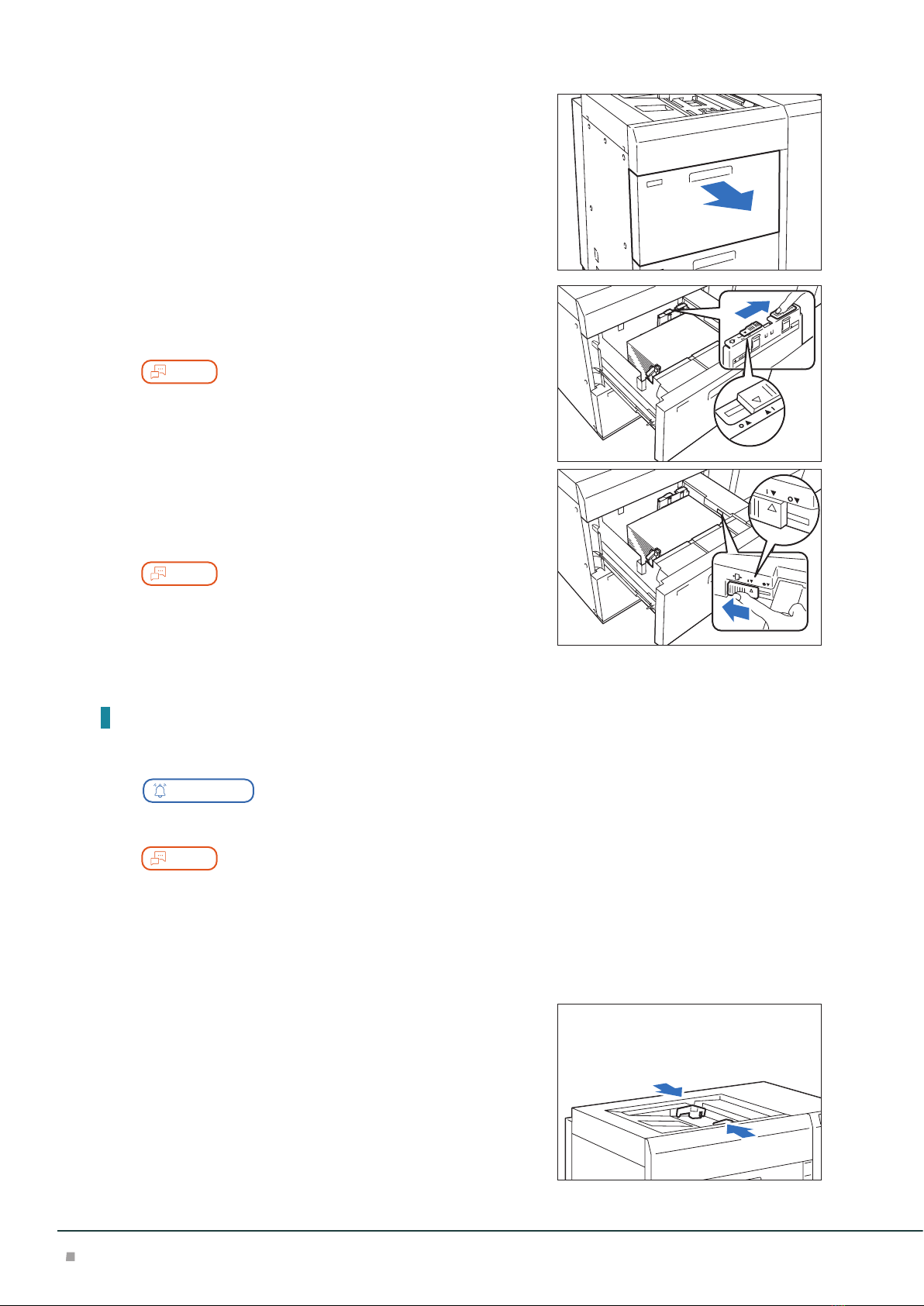

■When Indicator E6 is Turned on (C3-DS)
(1) Pull out the Paper Tray 6 toward you until it stops.
Note
Confirm that no paper is jammed inside the Right Cover before pulling it out.
(2) Remove the jammed paper.
(3) Confirm the paper guide position and push in the Paper
Tray.

High Capacity Feeder B1-S/C3-DS 19
■When Indicator E6 is Turned on (B1-S), when Indicator E7 is Turned on (C3-DS)
(1) Pull out the Paper Tray 6 (or 7) toward you until it stops.
Note
Confirm that no paper is jammed inside the Right Cover before pulling it out.
(2) Remove the jammed paper.
(3) Confirm the paper guide position and push in the Paper
Tray.
Inside of the Right Cover
1. Open the Right Cover.
2. Remove the jammed paper.
When Indicator E1 is Turned on.................................................................................................p.19
When Indicator E2 is Turned on.................................................................................................p.19
When Indicator E3 is Turned on.................................................................................................p.20
When Indicator E4 is Turned on.................................................................................................p.20
■When Indicator E1 is Turned on
(1) Open lever [1d] upward (
1
), turn knob [1c] clockwise
(
2
), and remove the jammed paper (
3
).
(2) Return lever [1d].
■When Indicator E2 is Turned on
(1) Open lever [1a] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
Note
Turn knob [1c] 3 times or more.
(2) Return lever [1a].
3
1
2
31
2

Optional Units
20

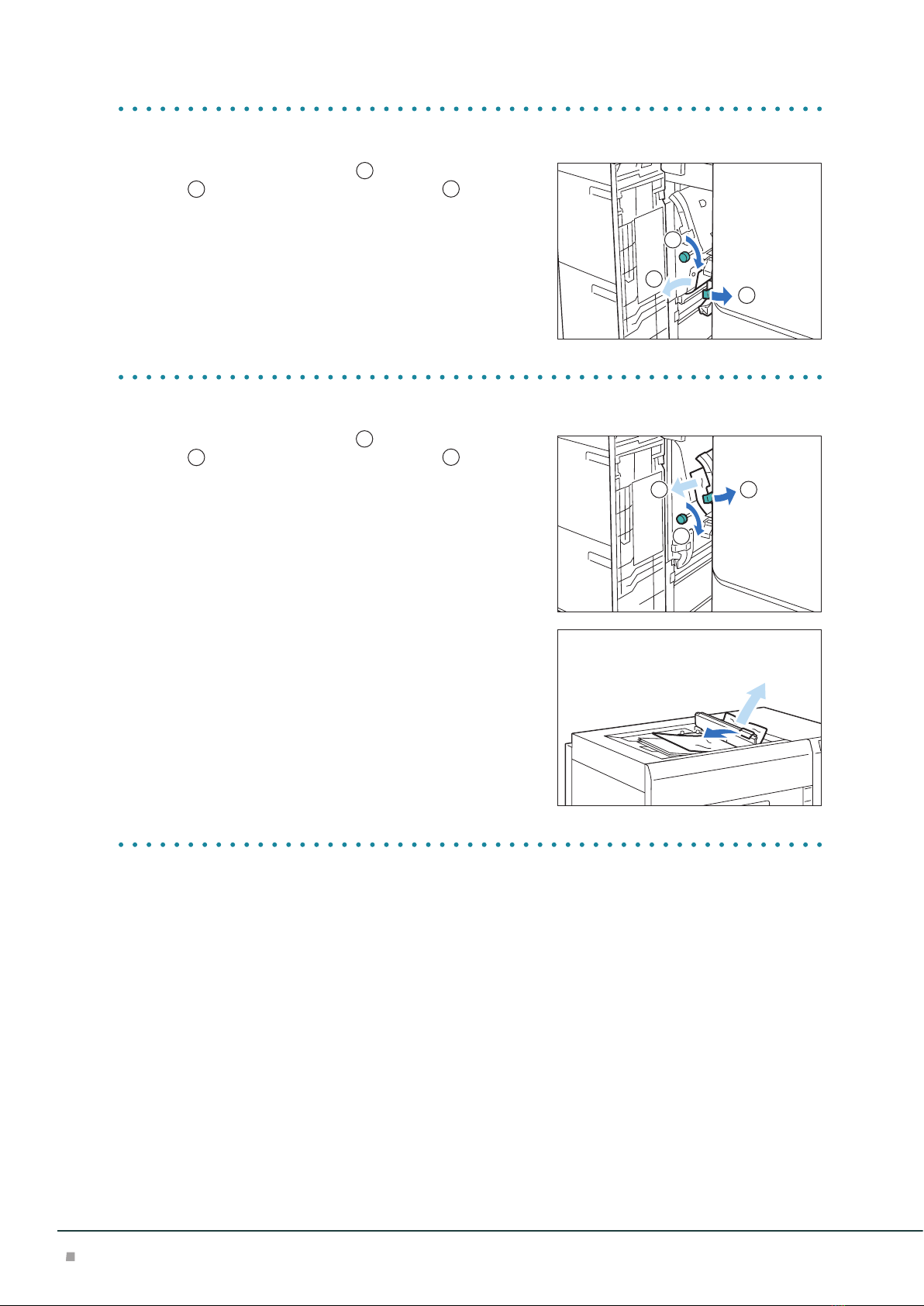

■When Indicator E3 is Turned on
(1) Open lever [1b] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
(2) Return lever [1b].
■When Indicator E4 is Turned on
(1) Open lever [1a] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
(2) If you have difficulty in removing the papers, open the
Upper Cover and remove the jammed paper.
(3) Return lever [1a].
3. Close the cover.
3
2
1
31
2
