Fujitsu MB2198-790-01-E User manual

Corporate names revised in the documents
The Fujitsu Limited reorganized its LSI business into a wholly owned subsidiary, the Fujitsu
Microelectronics Limited on March 21, 2008.
The corporate names “Fujitsu” and “Fujitsu Limited” described all in this document have been
revised to the “Fujitsu Microelectronics Limited”. Thank you for your cooperation and
understanding this notice.
Moreover, there are no changes in the related documents other than corporate names revised.
Customers are advised to consult with sales representatives before ordering.
March 21, 2008
Fujitsu Microelectronics Limited

FUJITSU SEMICONDUCTOR
SUPPORT SYSTEM SS01-71082-1E
DSU-FR EMULATOR
BGA-480P ADAPTER
CONFIGURATION BOARD
MB2198-790-01-E
OPERATION MANUAL

i
PREFACE
Thank you for purchasing the DSU-FR Emulator BGA-480P Adapter Configuration Board (MB2198-
790-01-E).
This product is used connected to the BGA-480P Adapter (MB2198-700-E) and configures the environ-
mental settings for developing and evaluating application products that use a Fujitsu FR family micro-
controller*. Be careful when using the BGA-480P, as the MB2198-790-01-E is required to be connected.
This document describes the handling and functionality of the DSU-FR Emulator BGA-480P Adapter
Configuration Board (referred to as the "configuration board" in this manual). Be sure to read this doc-
ument before using the product.
* : FR is an abbreviation of FUJITSU RISC CONTROLLER and is a product of Fujitsu Limited.
■Safe use of this Product
This manual contains important information regarding how to use this product safely. Read this manual
thoroughly before using this product, and always use this product in accordance with these instructions.
In particular, thoroughly read the "Cautions regarding the products described in this document" at the
start of this manual and perform a full safety check before using this product.
After reading the manual, keep it handy for future reference.
■Warranties and Liability
The specifications of the adapter are subject to change without notice.
Note that Fujitsu shall accept no responsibility for any consequences arising either directly or indirectly
from the use of this product.
■Product Operating Environment
This product has an operating temperature range of +5 °C to +35 °C and an operating humidity range of
20% to 80%. Use the product in an environment that is free of condensation and avoid high temperature
or humidity.
This product consists of a printed circuit board unit without a chassis with exposed electronic compo-
nents.
Accordingly, do not place other objects on top of the circuit board and do not allow the metal parts of the
unit to come into contact with people or materials that may have build up static electricity. Similarly,
keep any objects that are flammable, likely to cause a short circuit, or cause any other such problem well
away from the unit when the power to the unit is turned on. Keep the unit as horizontal as possible and
do not use the product in locations that are subject to vibrations, dust, explosive gases, or other such dan-
gers.
If the unit is used in an environment that does not satisfy the above guidelines, there is a risk of unex-
pected damage to property or injury to the user or other people in the vicinity.
You should also keep the packaging materials used for shipping the product. These are useful if the prod-
uct needs to be shipped again, for example, if it becomes faulty and needs to be repaired.
■Related Manuals
Refer to the following manuals in conjunction with this manual.
•DSU-FR Emulator BGA-480P Adapter MB2198-700-E Operation Manual
■European RoHS compliance
Products with a -E suffix on the part number are European RoHS compliant products.
■Notice on this document
All information included in this document is current as of the date it is issued. Such information is subject
to change without any prior notice.
Please confirm the latest relevant information with the sales representatives.

ii
■Cautions of the Products Described in this Document
The following precautions apply to the products described in this manual.
Warning Indicates a potentially hazardous situation which could result in death or serious injury
and/or a fault in the user's system if the product is not used correctly.
Electric
shock,
Damage
Before performing any operation described in this manual, turn off all the power sup-
plies to the system. Performing such an operation with the power on may cause an
electric shock or device fault.
Electric
shock,
Damage
Do not touch any metal parts of the product once the power has been turned on.
Doing so may cause an electric shock or device fault.
Caution
Indicates the presence of a hazard that may cause a minor or moderate injury, damag-
es to this product or devices connected to it, or may cause to loose software resources
and other properties such as data, if the device is not used appropriately.
Cuts The product contains sharp edges that are left unavoidably exposed, such as jumper
plugs. Handle the product with due care not to get injured with such pointed parts.
Damage Do not place anything on the product or expose the product to physical shocks. Do not
carry the product after the power has been turned on.
Doing so may cause malfunctions to due overloading or shock.
Damage
Since the product contains many electronic components, keep it away from direct sun-
light, high temperature, and high humidity to prevent condensation. Do not use or store
the product where it is exposed to much dust or a strong magnetic or electric field for
an extended period of time. Inappropriate operating or storage environments may
cause a fault.
Damage Use the product within the ranges given in the specifications.
Operation over the specified ranges may cause a fault.
Damage To prevent electrostatic breakdown, do not let your finger or other object come into con-
tact with the metal parts of any of the connectors. Before handling the product, touch a
metal object (such as a door knob) to discharge any static electricity from your body.
Damage Because the product has no casing, it is recommended that it be stored in the original
packaging. Transporting the product may cause a damage or fault. Therefore, keep the
packaging materials and use them when re-shipping the product.

iii
Copyright ©2008 FUJITSU LIMITED All rights reserved
•The contents of this document are subject to change without notice.
Customers are advised to consult with sales representatives before ordering.
•The information, such as descriptions of function and application circuit examples, in this document are presented solely
for the purpose of reference to show examples of operations and uses of FUJITSU semiconductor device; FUJITSU does
not warrant proper operation of the device with respect to use based on such information. When you develop equipment
incorporating the device based on such information, you must assume any responsibility arising out of such use of the in-
formation. FUJITSU assumes no liability for any damages whatsoever arising out of the use of the information.
•Any information in this document, including descriptions of function and schematic diagrams, shall not be construed as
license of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right of
FUJITSU or any third party or does FUJITSU warrant non-infringement of any third-party's intellectual property right or
other right by using such information. FUJITSU assumes no liability for any infringement of the intellectual property rights
or other rights of third parties which would result from the use of information contained herein.
•The products described in this document are designed, developed and manufactured as contemplated for general use, in-
cluding without limitation, ordinary industrial use, general office use, personal use, and household use, but are not de-
signed, developed and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless
extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury,
severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic con-
trol, mass transport control, medical life support system, missile launch control in weapon system), or (2) for use requiring
extremely high reliability (i.e., submersible repeater and artificial satellite).
Please note that FUJITSU will not be liable against you and/or any third party for any claims or damages arising in con-
nection with above-mentioned uses of the products.
•Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such
failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and
prevention of over-current levels and other abnormal operating conditions.
•Exportation/release of any products described in this document may require necessary procedures in accordance with the
regulations of the Foreign Exchange and Foreign Trade Control Law of Japan and/or US export control laws.
•The company names and brand names herein are the trademarks or registered trademarks of their respective owners.

1
1. Product Overview and Handling
■Overview
This product is an optional product that is used connected to the BGA-480P adapter (MB2198-700-E,
referred to as the "adapter" in this manual) that configures the environment settings for developing and
evaluating hardware and software that uses a Fujitsu FR family microcontroller. Take care as this product
is required to be connected when using the adapter.
This product configures the FPGA mounted on the adapter, and configures the FPGA with the internal
circuit that corresponds to the MCU targeted for emulation.
■Verifying the Contents of the Package
Verify that the following items are contained in the package before using the adapter.
•Configuration board (part number: MB2198-790-01-E) :1
•Operation manual (English: this manual) :1
•Operation manual (Japanese) :1
■Option Products
The option products for this product are listed in Table 1.
Table 1 Option Products
Name Part number
BGA-480P adapter MB2198-700-E

2
2. Product Description
■System Configuration
A schematic of the system configuration of this product is shown in Figure 1.
Figure 1 System configuration schematic
See the emulator hardware manual for details on connecting the emulator to a host computer or general-
purpose measurement device.
A host computer and emulator debugger software need to be purchased separately to use the emulator.
See the emulator hardware manual for details on the emulator specifications.
Host Computer
External Trigger/Program Execution
General-purpose
Measurement Device AC Adapter
(supplied with the
emulator)
Configuration
Board
(this product)
Adapter
Evaluation
MCU
(MB91V650)
Adapter Board
Header Board
User System
Header
DSU-FR EMULATOR
RS232C, USB, LAN
AC Adapter
(supplied with
the adapter)
Flat cable
(supplied with the adapter)
AC in
AC in

3
■External Appearance and Component Names
Figure 2 shows the external appearance and the names of each of the components of the configuration
board.

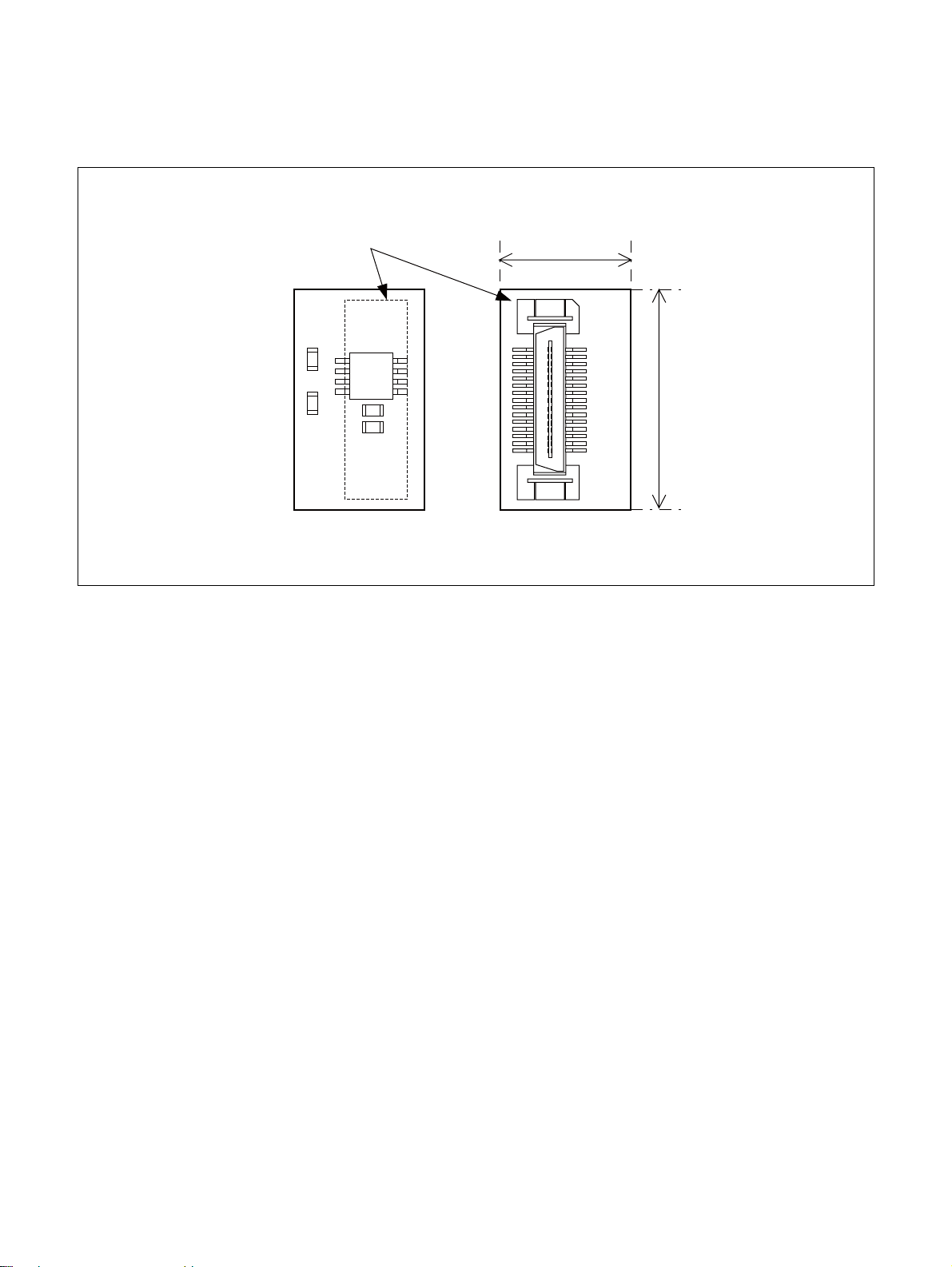

Figure 2 External appearance of configuration board
[Rear Side][Front Side]
Adapter connector
18 mm
30 mm

4
3. Specifications
■General Specifications
The general specifications of the configuration board are shown in Table 2.
Table 2 General Specifications
■Function Specifications
The function specifications of the configuration board are shown in Table 3.
Table 3 Function Specifications
Item Specification Comments
Product name DSU-FR EMULATOR
Configuration Board
Product model MB2198-790-01-E
Operating voltage VCC = 3.0 V to 3.6 V Supplied from the power supply
circuit on the adapter
Operating temperature
Storage temperature
+5 °C to +35 °C
0 °C to +70 °CNo condensation
Operating humidity
Storage humidity
20% to 80%
20% to 80% No condensation
External dimensions (D) 30 mm × (W) 18 mm × (H) 8 mm No chassis
Weight 3 g No chassis
Item Specification
Configuration function Mounted with a W25P16VSSIG (manufactured by WINBOND) that out-
puts configuration to the FPGA on the adapter.

5
4. Connection
■Mounting the Configuration Board
Use the following procedure to mount the configuration board in the configuration board connector on
the adapter board (see Figure 3).
1. Align the positions of the adapter connector mounted on the rear side of the configuration board with
the configuration board connector mounted on the adapter board.
2. Push the configuration board vertically down.
Figure 3 Mounting the configuration board
Warning: Support the rear of the adapter board while you are pushing on the board to avoid placing stress on the
emulator and adapter board while you are mounting the configuration board.
CN2 FLAT CABLE CN A
CN3 FLAT CABLE CN B
CN4 FLAT CABLE CN C
S18
CN1
Configuration board
Adapter connector (mounted on rear surface)
Configuration board
connector

SS01-71082-1E
FUJITSU SEMICONDUCTOR •SUPPORT SYSTEM
DSU-FR EMULATOR
BGA-480P ADAPTER
CONFIGURATION BOARD
MB2198-790-01-E
OPERATION MANUAL
January 2008 the first edition
Published FUJITSU LIMITED Electronic Devices
Edited Strategic Business Development Dept.
