Installation Manual
3D Sonar Visualizer F3D-S
(Option for FSV-25/FSV-25S)
IMPORTANT NOTICES.................................................................................................... i
SYSTEM CONFIGURATION ........................................................................................... ii
1. PREPARATION .......................................................................................................... 1
1.1 Necessary Parts....................................................................................................................1
1.2 Requirements for FSV-25 .....................................................................................................2
1.3 How to Connect the LAN Cable............................................................................................2
1.4 How to Setup the PC ............................................................................................................3
1.5 How to Install the Driver Install File.......................................................................................3
1.6 How to Install the F3D-S Software........................................................................................4
1.7 How to Start and Quit the Software ......................................................................................6
1.8 Initial Settings........................................................................................................................8
2. DISPLAY SCREEN, OPERATIONAL OVERVIEW .................................................. 11
APPENDIX 1 MENU TREE .......................................................................................AP-1

i
IMPORTANT NOTICES
• This manual has been authored with simplified grammar, to meet the needs of international us-
ers.
• The operator of this equipment must read and follow the instructions in this manual.
Wrong operation or maintenance can void the warranty or cause injury.
• Do not copy any part of this manual without written permission from FURUNO.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and the equipment specifications can change without notice.
• The example screens (or illustrations) shown in this manual can be different from the screens
you see on your display. The screens you see depend on your system configuration and equip-
ment settings.
• Save this manual for future reference.
• Any modification of the equipment (including software) by persons not authorized by FURUNO
will void the warranty.
• The following concern acts as our importer in Europe, as defined in DECISION No 768/2008/
EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
• Microsoft and Windows are registered trademarks or trademarks of the Microsoft Corporation
of the USA and other countries.
• Intel and Core are registered trademarks or trademarks of the Intel Corporation of the USA and
other countries.
• GeForce is registered trademark or trademark of the NVIDIA Corporation of the USA and other
countries.
• InstantAccess bar is a trademark of FURUNO Electric Co., Ltd.
• All brand, product names, trademarks, registered trademarks, and service marks belong to their
respective holders.

ii
SYSTEM CONFIGURATION
PC
(Local supply, program
installed in PC)
LAN cable
Color Scanning Sonar FSV-25/FSV-25S
Processor Unit
FSV-2503/2503S
IF Unit
FSV-8502
Control Unit FSV-2501
Hull Unit
FSV-253/254
Transceiver Unit
FSV-251
Junction Box
FSV-2550
Raise/Lower
Control Box
FSV-2530
Monitor
Power Supply Unit
FSV-252
100/110/115/220/230 VAC,
1ø, 50/60 Hz
Rectifier
RU-1746B-2
100/110/115/220/230 VAC,
1ø, 50/60 Hz
12-24
VDC
: Standard supply
: Local or optional supply
200-220 VAC,
3ø, 50/60 Hz

1
1. PREPARATION
1.1 Necessary Parts
Standard Supply
The 3D Sonar Visualizer contains the following items.
3D Sonar visualizer F3D-S (Code No.: 001-546-350)
Folder structure of the CD-ROM
*: For Microsoft®Windows®10 users, this file is usually unnecessary because this file
is already installed as part of the operating system.
PC requirements
Correct operation of the PC cannot be guaranteed unless the following are observed.
• Do not install any software other than F3D-S.
• Do not connect to the Internet.
• Do not perform windows update. This software is compatible with updates up to ver-
sion 1809.
Name Type Code No. Qty Remarks
CD-ROM CDR700S.WP.
S1P10S
000-177-025-10 1 For details, see "Folder
structure of the CD-ROM".
USB Protec-
tion Key
942-000058-
001 KQAKA
000-197-077-10 1
Installation
Manual
IMC-13442-x 000-196-806-1x 1
Folder File Remarks
F3D-S_setup 3DSonarVisualizer.msi F3D-S intallation file; in-
cludes Operator’s Manual
(See section 1.6.)
setup.exe* .NET Framework installation
file
OSS OSS.txt OSS declaration
Sentinel_LDK_Run-time_setup HASPUserSetup.exe Sentinel LDK driver installa-
tion file (See section 1.5.)
readme.html Instructions
OS Microsoft®Windows®10 Pro / Home (English or Japanese)
DirectX version 11.0 or later
CPU Intel®Core™i5 or better
GPU NVIDIA GeForce®GTX1060 or better
Memory Min. 4 GB
SSD / HDD Min. 250 GB
I / O Ethernet 100Base-T, USB 2.0 or better (for USB protect key)

1. PREPARATION
2
1.2 Requirements for FSV-25
The following updates of programs and printed circuit boards are required to use the
F3D-S. If your FSV-25 does not meet the following requirements, contact your dealer.
Program version requirements for FSV-25

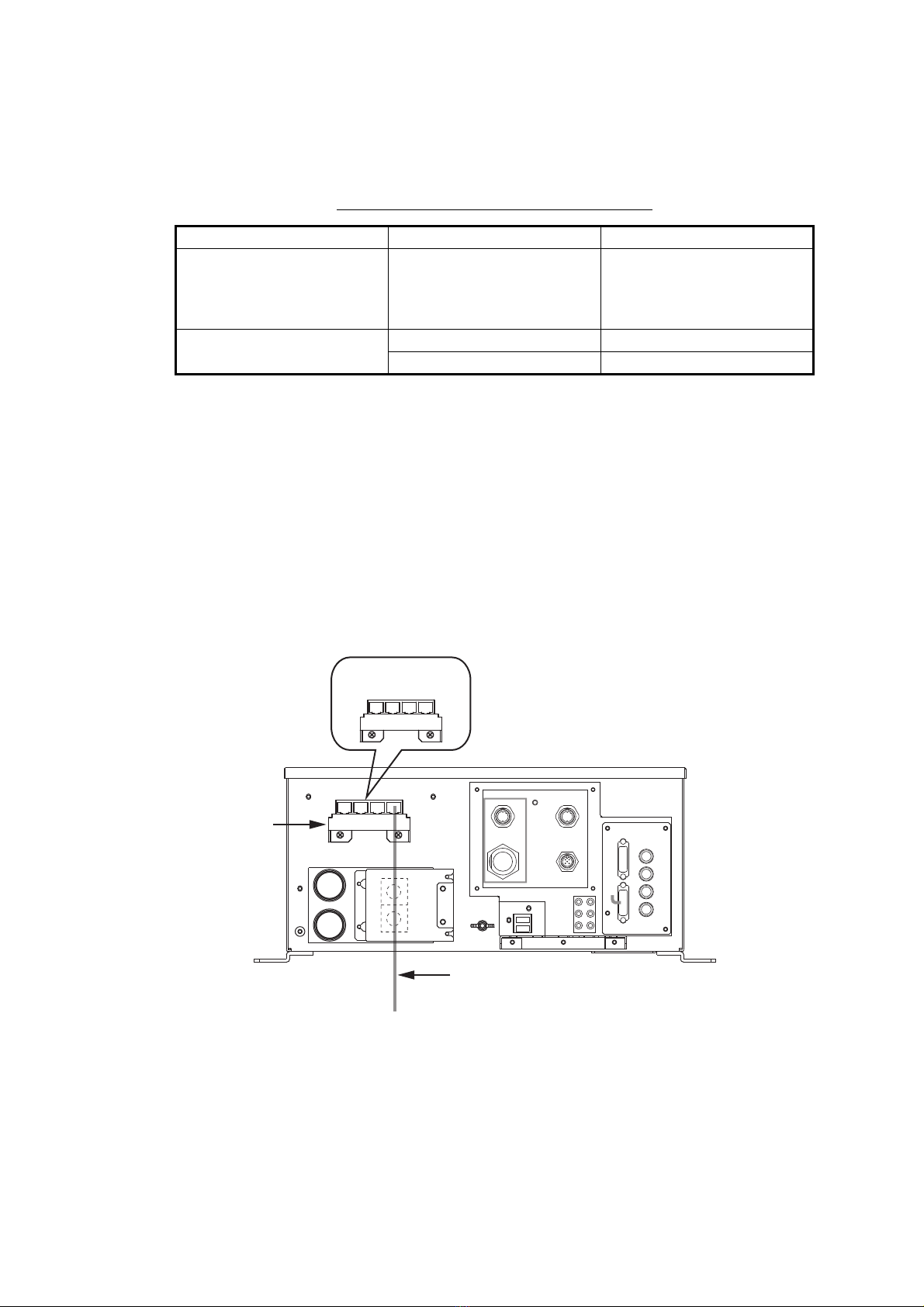

1.3 How to Connect the LAN Cable
Note: Before connecting the cable, post a notice indicating that the power should not
be applied while doing this procedure.
1. Connect the LAN cable at the back of the processor unit, to Port 3 or Port 4.
Note: Do not connect the cable to Port 1 or Port 2, because the system will auto-
matically shut down after boot up.
2. Use a cable tie to fasten the cable to the cable clamp on the processor unit.
3. Connect the other end of the cable to the LAN port on the PC.
Unit Name of operation test Program version
Processor Unit FSV-2503 FSV-2503 105-0896-02.07 or higher
105-0897-02.07 or higher
105-0926-01.01 or higher
105-0927-01.01 or higher
Transceiver Unit FSV-251 TRCPU 105-0894-02.04 or higher
TRX 105-0890-01.08 or higher
LAN cable
To PC
Cable gland
Port number
1 2 3 4

1. PREPARATION
3
1.4 How to Setup the PC
1. Turn the PC on.
2. Set the IP address and subnet mask in [Internet Protocol Version 4 (TCP/IPv4)
Properties].
• IP address: 172.31.10.10
• Subnet mask: 255.255.0.0
3. Acces the power and sleep settings then set [Sleep] and [Screen] to [Never].
4. Select [Disable] in [Personalization] - [Lock screen] - [Screen saver settings].
1.5 How to Install the Driver Install File
1. Turn the PC on.
2. Login as a user with administration rights.
3. Set the supplied CD-ROM in the CD drive.
4. Double-click [Sentinel_LDK_Run-time_setup] to open the folder.
5. Double-click [HASPUserSetup.exe].
6. Click [Next].
7. Confirm the contents and click [Next] with [I accept the license agreement] select-
ed.

1. PREPARATION
4

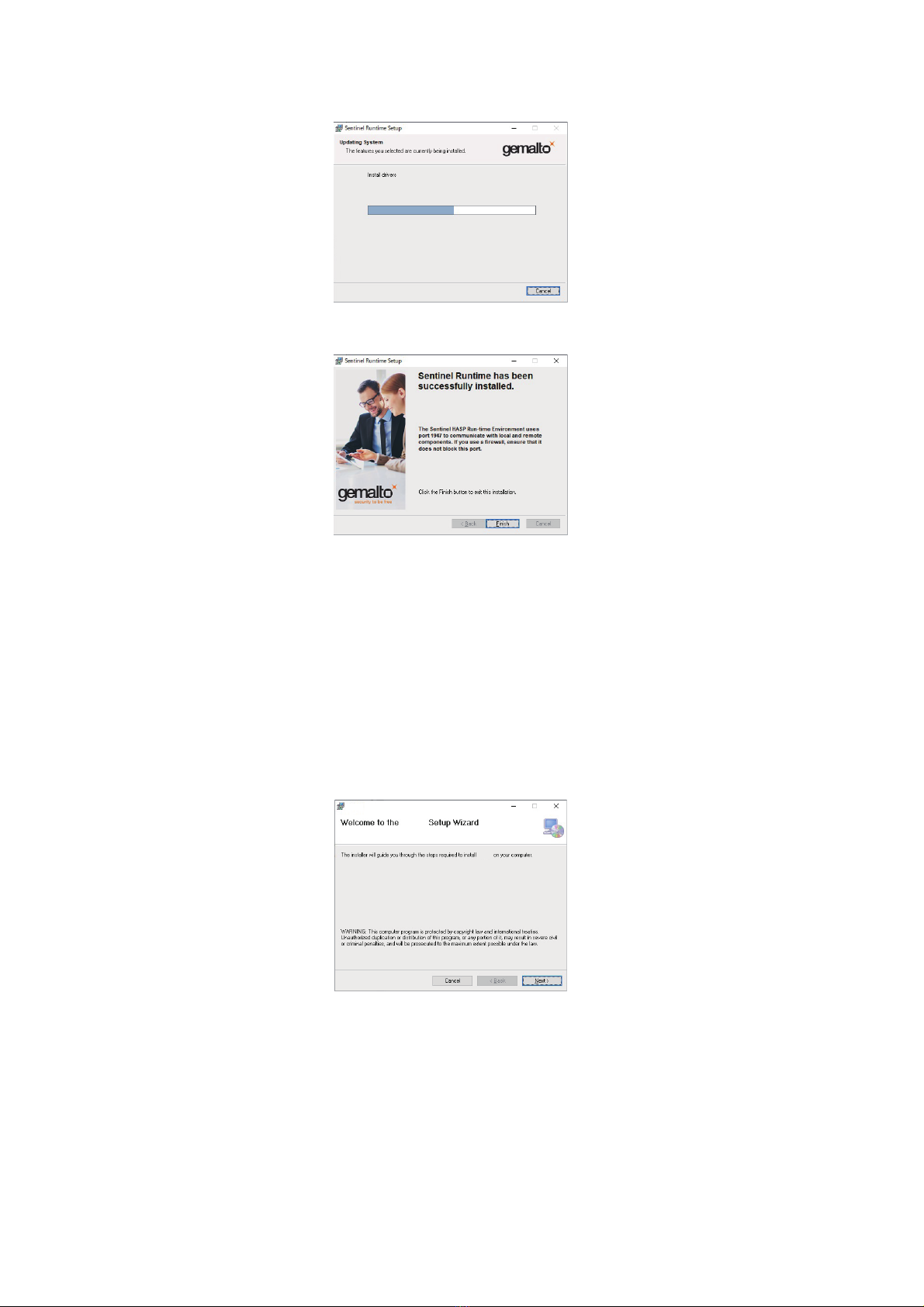

8. Click [Next] to start the installation.
When the installation is complete, the dialog box shown below appears.
9. Click [Finish] to finish.
1.6 How to Install the F3D-S Software
1. Turn the PC on.
2. Login as a user with administration rights.
3. Set the supplied CD-ROM in the CD drive.
4. Double-click [F3D-S_setup] to open the folder.
5. Double-click [3DSonarVisualizer.msi].
F3 D - S
F3D-S
F3 D - S

1. PREPARATION
5

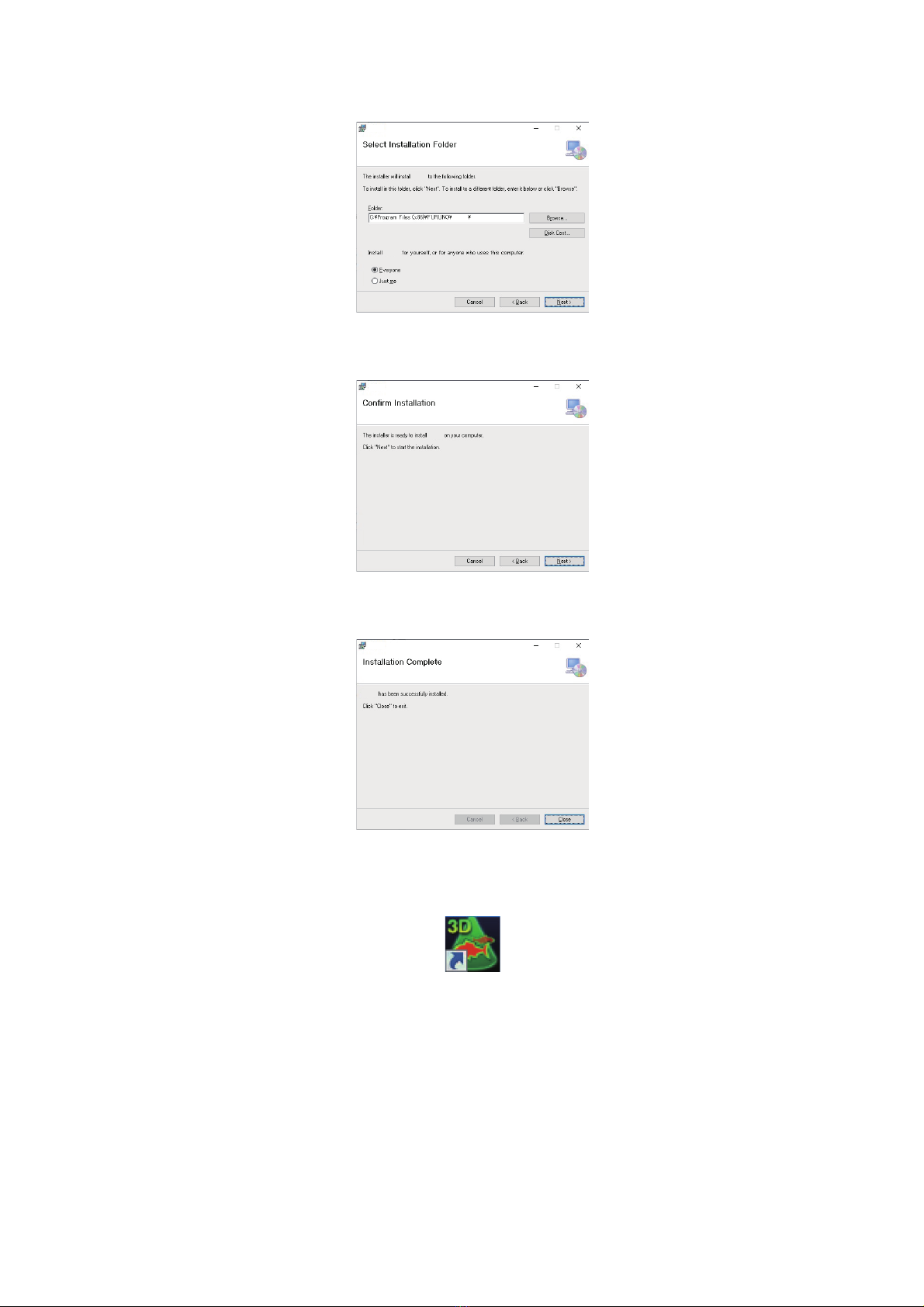

6. Click [Next].
7. Click [Next]. To change the installation folder, click [Browse] and select the folder
before clicking [Next].
8. Click [Next] to start the installation.
When the installation is complete, the dialog box shown below appears.
9. Click [Close] to finish.
Create a shortcut icon for “3DSonarVisualizer.exe” on the desktop.
A shortcut icon for the operator’s manual is automatically generated in the startup fold-
er.
F3 D - S
F 3D - S
F3 D - S
F3 D - S
F3 D - S
F3 D - S
F3 D - S
F3D - S

1. PREPARATION
6
1.7 How to Start and Quit the Software
1. Turn the FSV-25 on.
2. Turn the PC on.
3. Login as a user with administration rights.
4. Insert the USB dongle into a USB port on the PC. The LED in the dongle lights
red. The USB dongle is required to use this software. Take care not to lose it.
5. Double-click the “3D” shortcut icon on the desktop to start the software.

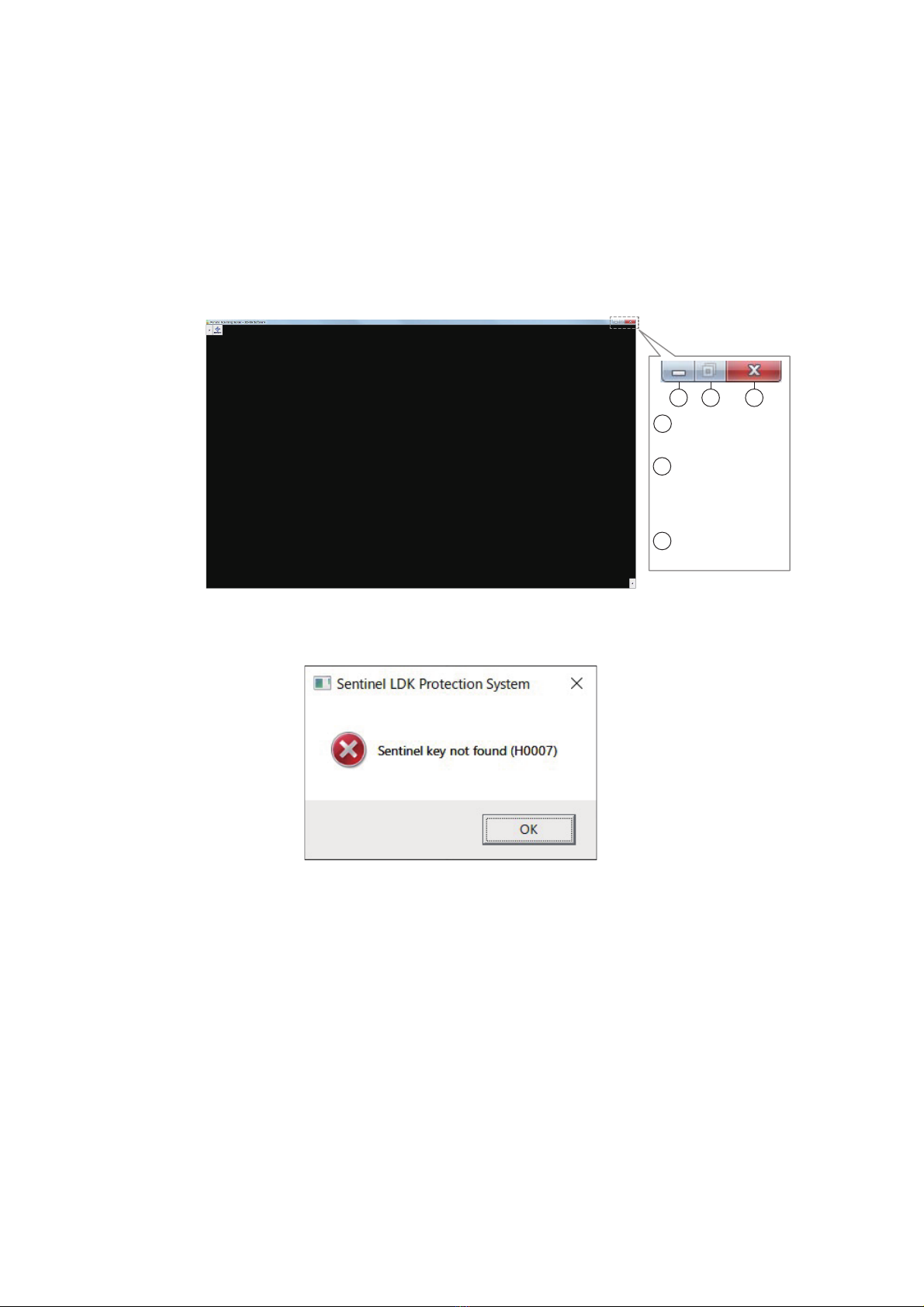

After the start up is completed, the following screen appears.
Note: If the following message appears, re-insert the USB dongle, or re-install the
USB dongle. See section 1.6.
6. To quit the software, click the close button (x) at the upper right-hand corner of the
screen. All setting information is saved to the folder “C: \ Users \ User name \ Doc-
uments \ FURUNO \ F3D-S”.
Note: If the information has not been saved, open the properties of the above-
mentioned files and check that they are not “read only”.
3
12
1: Minimize the
window.
2: Maximize the
window.
(Operation is
not available.)
3: Close the
window.

1. PREPARATION
7
How to deal with DLL error
If your Windows®OS version is other than the required version, the following message
may appear when you try to start the software.
Install the VCOMP140.DLL as follows:
1. Access the following URL.
https://support.microsoft.com/en-us/help/2977003/the-latest-supported-visual-c-
downloads
2. Run “vc_redist.x86.exe” of “Visual Studio 2015, 2017 and 2019”.
3. Check the box for “I agree to the license terms and conditions” and click [Install]
to start the installation. When the installation is completed, the dialog box shown
below appears.
4. Click [Restart] to restart the PC and complete the installation.

1. PREPARATION
8
1.8 Initial Settings
You can set the display of the marks from the technician menus.

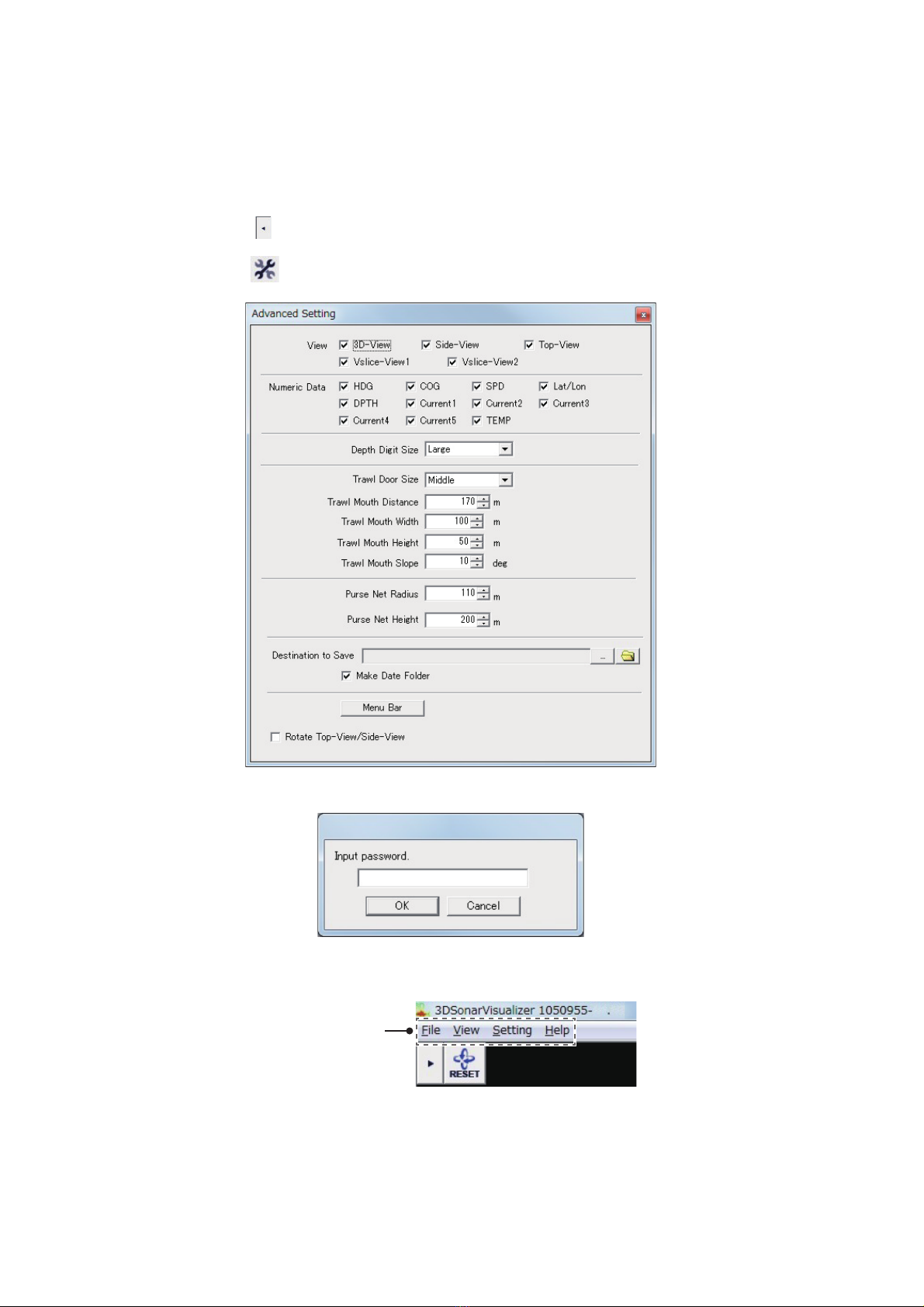

1.8.1 How to access the technician menus
1. Click on the lower InstantAcces bar™to open the lower user menu.
2. Click to open the [Advanced Setting] dialog box.
3. Click [Menu Bar] to show the dialog box for the password.
4. Enter the password “menuf1f3f5” and click [OK]. The menu bar for the technician
menus appears on the top left of the screen.
xx xx
Menu bar for the
technician menus

1. PREPARATION
9
1.8.2 [Display Setting] menu
The [Display Setting] menu sets the display of the marks.
1. Click [Setting] on the menu bar.
2. Click [Display …] to open the [Display Setting] dialog box.
3. Referring to the table below, set each menu item.
Menu item Description
[Range Ring Number] Set the number of range rings to display (setting range:
2 to 64).
[Vslice1: Top Left] Check the box to display the origin for Vslice-View1 at
the upper-left corner of the view.
[Vslice2: Top Left] Check the box to display the origin for Vslice-View2 at
the upper-left corner of the view.
[Vslice Grid Line Number] Set the number of grid lines to display on Vslice-View
(setting range: 2 to 64).
[Vslice Y Axis View Ratio(bp)] Set the aspect ratio of Vslice-View (setting range: 10 to
10000, unit: 0.01%).
[Side-View Depth Ratio(bp)] Set the depth ratio (vertical length vs range) on Side-
View (setting range: 10 to 10000, unit: 0.01%).
[Bearing Scale] Check the box to display the bearing scale.
[Own Ship Mark] Check the box to display the own ship mark.
[Heading Mark] Check the box to display the heading line.
[North Mark] Check the box to display the north mark.
[Ship’s Track Point Number] Set the maximum number of own ship position data to
be reflected in the track (setting range: 0 to 1000).

1. PREPARATION
10

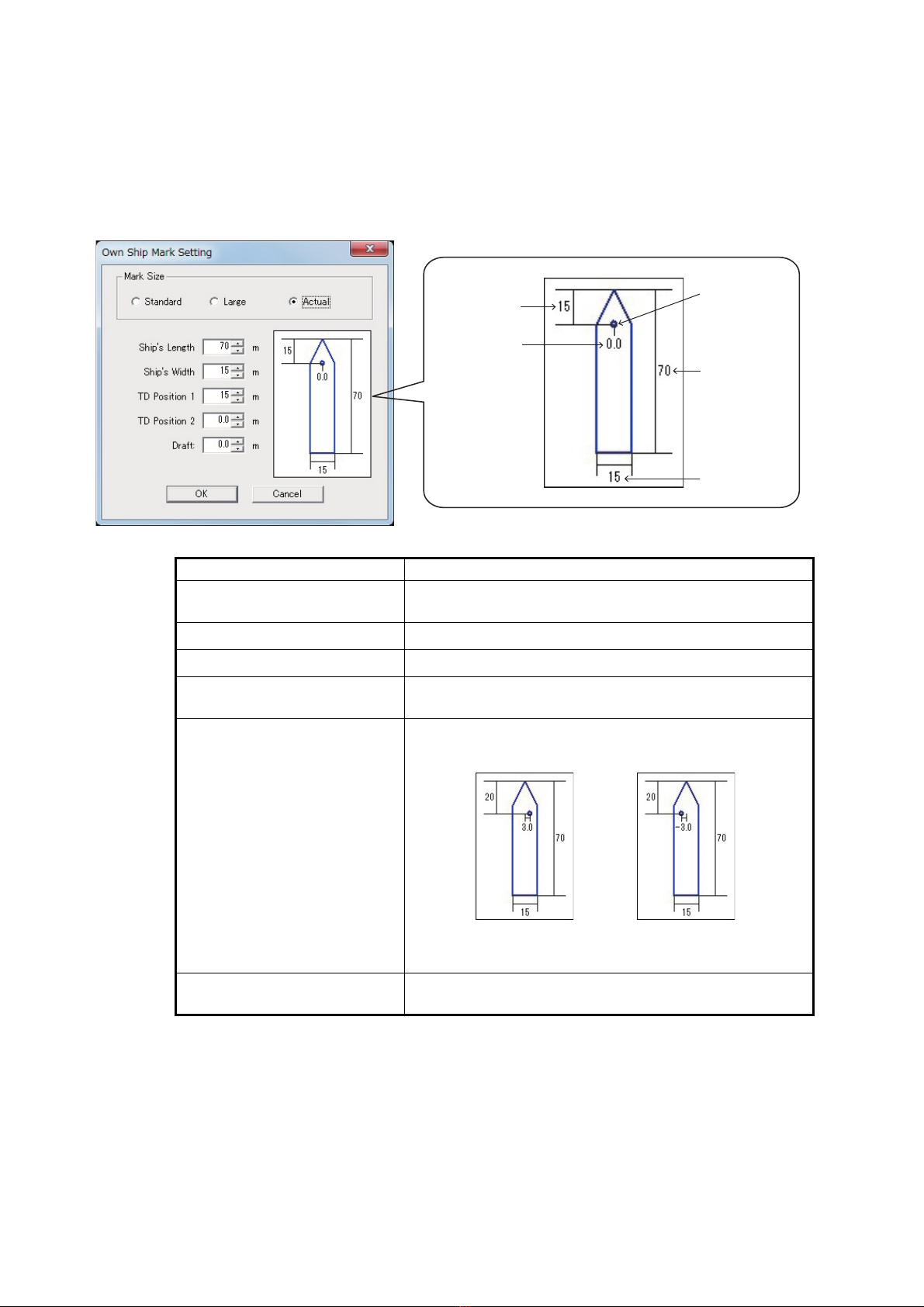

1.8.3 [Own Ship Mark Setting] menu
The [Own Ship Mark Setting] menu sets the size of the own ship mark, based on your
ship's actual dimensions and transducer location.
1. Click [Setting] on the menu bar.
2. Click [Own Ship Mark …] to open the [Own Ship Mark Setting] dialog box.
3. Referring to the table below, set each menu item.
*1: The ship mark is appears on the screen in the following manner:
[Standard] / [Large]: fixed size, does not change when the range is changed.
[Actual]: displayed in direct proportion to the selected range.
*2: These settings are required in order to prevent the transducer from protruding
excessively.
Menu item Description
[Mark Size]*1Select the size of the own ship mark among [Standard],
[Large] or [Actual].
[Ship’s Length]*2Set the length of your ship (setting range: 15 to 150 m).
[Ship’s Width]*2Set the width of your ship (setting range: 5 to 30 m).
[TD Position 1]*2Set the horizontal distance from the bow to the trans-
ducer (setting range: 5 to 50 m).
[TD Position 2]*2Set the horizontal distance from the center of the ship
to the transducer (setting range: -10.0 to 10.0 m).
[Draft] Set the vertical distance from the keel to the transducer
(setting range: 0.0 to 10.0 m).
Ship’s Length
Ship’s Width
TD Position 1
TD Position 2
Origin
TD Position 1: 20
TD Position 2: 3.0
TD Position 1: 20
TD Position 2: -3.0

11
2. DISPLAY SCREEN, OPERATION-
AL OVERVIEW
This section describes the display and operational overviews.
No. Name Description
1Upper InstantAccess bar™• Click to show the upper user menu.
• Click to hide the upper user menu.
2 “Side-View” echo • Shows a horizontal view from stern side. This is the de-
fault setting.
• When [Rotate Top-View/Side-View] is turned on, shows
a horizontal view from foreside of the screen. (See the
operator’s manual.)
3 “Top-View” echo Shows a “bird’s-eye-view” of the echoes around the ship.
4 “3D-View” echo Shows a diagonal 3D view of the echoes.
5 “Vslice-View” echo Shows vertical "slices" of echoes at the same orientation as
the vertical settings on the FSV-25.
6 Settings of sonar Shows the range, gain and user program number.
7 External input data Shows the data output from external equipment connected
to the FSV-25.
8 Echo volume Shows the volume calculated from the echo region mark
function.
9Lower InstantAccess bar™• Click to show the lower user menu.
• Click to hide the lower user menu.
-10.0°C
0.4kn 237°
0.4kn 255°
P 1
11
55
33
2244
99
66
77
88
33°50.245N
119°44.237W
xx xx

2. DISPLAY SCREEN, OPERATIONAL OVERVIEW
12
How to operate the menu
1. Click or on the upper or lower InstantAcces bar™to open the user menu.
2. Click an icon to execute the menu function. The selected icon is displayed in cyan.
The icons that have a at the bottom right have additional menus.
3. To deactivate a function, click the icon again. The color for the icon changes from
cyan to gray.
4. To hide the user menu, click or on the upper or lower InstantAcces bar™.
How to connect/disconnect the FSV-25/25S
1. Click on the lower InstantAcces bar™to show the lower user menu.
2. Click to start communication with the FSV-25.
3. To stop communication, click .
Operator’s manual
The supplied CD-ROM contains the operator’s manual. When installing the software,
the shortcut icon for the operator’s manual is generated in the startup folder.

AP-1
APPENDIX 1 MENU TREE
Upper User Menu
The upper InstantAccess bar™is on the top left side of the screen. Click to show the upper
user menu. Click to hide the upper user menu.
First level Second level User* Cont.**
Reset Viewpoint – No No
Move/Zoom – No No
Echo Region Mark 1 – No No
Delete No No
Echo Region Mark 2 – No No
Delete No No
Event Mark – No No
Delete No No
Right*** Delete No No
Purse Net Mark – No No
Delete No No
Right*** Move No No
Delete No No
Trawl Mark – No No
Trawl Filter Yes Yes
Delete No No
Right*** Reset No No
Move No No
Delete No No
Seabed Color – No No
Reset No No
Auto Depth No Yes

APPENDIX 1 MENU TREE
AP-2
*: This item can be registered as a user program (shortcut).
**: This item keeps the setting from when the software was last used.
***: This item appears when the appropriate mark is right-clicked.
Lower User Menu
The lower InstantAccess bar™is on the bottom right side of the screen. Click to show the lower
user menu. Click to hide the lower user menu.
User Program – No No
Save No No
User Program Number No Yes
Return No No
First level Second level User* Cont.**
View Setting – No No
Save No No
Reset No No
View Setting Number No No
Return No No
Connect – No No
Disconnect – No No
Replay – No No
Open No No
First No No
Previous No No
Reverse No No
Stop No No
Play No No
Next No No
Last No No
Jump No No
Replay Interval No Yes
Return No No
First level Second level User* Cont.**
-
-

APPENDIX 1 MENU TREE
AP-3
Bold: Default
*: This item can be registered as a user program (shortcut).
**: This item keeps the setting from when the software was last used.
Start Recording – No No
Capture No No
Stop Recording – No No
Advanced Setting – No No
View 3D-View Yes Yes
Side-View Yes Yes
Top-View Yes Yes
Vslice-View1 Yes Yes
Vslice-View2 Yes Yes
Numeric
Data
HDG Yes Yes
COG Yes Yes
SPD Yes Yes
Lat/Lon Yes Yes
DPTH Yes Yes
Current1 Yes Yes
Current2 Yes Yes
Current3 Yes Yes
Current4 Yes Yes
Current5 Yes Yes
TEMP Yes Yes
Depth Digit Size (Large, Middle, Small) Yes Yes
Trawl Door Size (Large, Middle, Small) Yes Yes
Trawl Mouth Distance (10 to 2000 m; 170 m)Yes Yes
Trawl Mouth Width (10 to 400 m; 100 m)YesYes
Trawl Mouth Height (10 to 400 m; 50 m)YesYes
Trawl Mouth Slope (0 to 45 deg; 10 degrees)Yes Yes
Purse Net Radius (10 to 1000 m; 110 m)YesYes
Purse Net Height (10 to 1000 m; 200 m)YesYes
Destination to Save No Yes
Make Date Folder No Yes
Menu Bar (For serviceman.) No No
Rotate Top-View/Side-View No Yes
First level Second level User* Cont.**

・
本書の無断複写複製(コピー)は特定の
場合を除き、当社権利侵害になります。
( YOTA) F3D-S(FSV-25)
Pub. No. IMC-13442-A1
Printed in Japan
・ 機器の修理・使用方法等に関するお問い合わせは、お買い上げの販売店・代理店、最寄りの
当社支店・営業所あてへお願いします。
(Elemental Chlorine Free)
The paper used in this manual
is elemental chlorine free.
FURUNO Authorized Distributor/Dealer お問い合わせは
: JUL. 2019
: DEC. 12, 2019
A
A1
00019680610
