Furuno LS-6100 User manual

6" ECHO SOUNDER
LS-6100

Your Local Agent/DealerYour Local Agent/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a, Ja
p
anNishinomi
y
a, Ja
p
an
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
Telefax :Telefax : 0798-65-42000798-65-4200
FIRST EDITION :FIRST EDITION : FEB.FEB. 20022002
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved. C :C : JUN.JUN. 10,200210,2002
PUB.No.PUB.No. OME-23690OME-23690
*00080926502**00080926502*
*00080926502**00080926502*
(( DAMIDAMI )) LS-6100LS-6100 * 0 0 0 8 0 9 2 6 5 0 2 ** 0 0 0 8 0 9 2 6 5 0 2 *
*OME23690C00**OME23690C00*
*OME23690C00**OME23690C00*
* O M E 2 3 6 9 0 C 0 0 ** O M E 2 3 6 9 0 C 0 0 *

TABLE OF CONTENTS
FOREWORD................................................iii
SYSTEM OVERVIEW...................................iv
1. OPERATION............................................1
1.1 Control Description ..........................1
1.2 Turning the Power On/Off ................1
1.3 Adjusting Display Contrast,
Brilliance..........................................2
1.4 Choosing a Display, Frequency........2
1.5 Menu Operating Procedure..............5
1.6 Automatic Operation........................5
1.7 Manual Operation ............................6
1.8 Choosing Picture
Advance Speed................................7
1.9 Measuring Depth..............................8
1.10 A-scope Display...............................8
1.11 Suppressing Interference.................9
1.12 Suppressing Low Level Noise..........9
1.13 Erasing Weak Echoes....................10
1.14 White Line......................................10
1.15 Waypoints......................................10
1.16 PROG Key.....................................12
1.17 Picture Color (Hue)........................13
1.18 Deep Gain......................................13
1.19 Alarms ...........................................13
1.20 Resetting Trip Distance..................15
1.21 Setting the Draft.............................15
1.22 Gain Compensation.......................15
1.23 Setting Up Nav Data Displays........16
2. SYSTEM & INSTALLATION MENUS....18
2.1 System Menu.................................18
2.2 Installation Menu ...........................20
3.MAINTENANCE,
TROUBLESHOOTING ............................22
3.1 Maintenance..................................22
3.2 Cleaning the Display Unit...............22
3.3 Transducer Maintenance...............22
3.4 Replacing the Fuse........................22
3.5 Battery Voltage Alert......................22
3.6 Troubleshooting.............................23
3.7 Diagnostics....................................23
3.8 Test Pattern...................................24
4. INSTALLATION.....................................25
4.1 Display Unit ...................................25
4.2 Thru-hull Mount Transducer...........25
4.3 Transom Mount Transducer...........27
4.4 Inside-hull Transducer ...................29
4.5 Optional Triducer...........................30
4.6 Optional Water Temperature/Speed
Sensor...........................................34
4.7 Wiring............................................34
4.8 IEC 61162-1 Data Sentences.........36
SPECIFICATIONS ..................................SP-1
OUTLINE DRAWING
INTERCONNECTION DIAGRAM

i
SAFETY INSTRUCTIONS
Safety Instructions for the Operator
WARNING
Do not open the equipment.
There are no uer-serviceable parts inside.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Immediately turn off the power at the
switchboard if the equipment is emitting
smoke or fire.
Continued use of the equipment can cause
fire or electrical shock. Contact a FURUNO
agent for service.
Do not maneuver the vessel based
on the depth indication alone.
Grounding may result.
Use the proper fuse.
Fuse rating is shown on the equipment.
Use of a wrong fuse can result in damage
to the equipment.
Do no turn on the equipment with the
transducer out of water.
The transducer may be damaged.
The picture is not refreshed when
picture advancement is stopped.
Maneuvering the vessel in this condition
may result in a dangerous situation.
Use the proper gain setting.
Incorrect gain may produce wrong depth
indication, possibly resulting in a dangerous
situation. See "Adjusting the gain" on page
7 for details.
CAUTION
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
Name: Warning Label (1)
Type: 86-003-1011-1
Code No.: 100-236-231
The high quality LCD shows 99.99% of
its pixels. The remaining .01% may drop
out or brighten, due to the property of
the LCD, however this is not a sign of
malfunction.
A warning label is attached to the equip-
ment. Do not remove the label. If the
label is missing or damaged, contact
a FURUNO agent or dealer.
NOTICE

ii
Safety Instructions for the Installer
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Be sure no water leaks in at the trans-
ducer or sensor mounting location.
Water leakage can sink the vessel. Also
confirm that the transducer and sensor will
not loosen by ship's vibration. The installer
of the equipment is solely responsible for
the proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Use the specified power cable.
Use of other power cable may result in
fire.
CAUTION
Do not install the equipment where
air bubbles and noise are present.
Performance will be affected.
The following are guidelines for
handling of the transducer cable.
- Do not locate near oils and fuels.
- Locate it in a safe place.
- Do no paint the cable.
The sheath of the cable is made of
chloroprene rubber (or polychloride
vinyl). For this reason do not paint
the cable.
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Display
unit
Standard Steering
compass compass
0.5 m 0.35 m

iii
FOREWORD
A Word to LS-6100
Owners
Congratulations on your choice of the
FURUNO LS-6100 6” Echo Sounder. We
are confident you will see why the
FURUNO name has become synonymous
with quality and reliability.
For over 50 years FURUNO Electric
Company has enjoyed an enviable
reputation for innovative and dependable
marine electronics equipment. This
dedication to excellence is furthered by our
extensive global network of agents and
dealers.
This equipment is designed and
constructed to meet the rigorous demands
of the marine environment. However, no
machine can perform its intended function
unless operated and maintained properly.
Please carefully read and follow the
recommended procedures for operation
and maintenance.
We would appreciate hearing from you, the
end-user, about whether we are achieving
our purposes.
Thank you for considering and purchasing
FURUNO equipment.
Features
The FURUNO LS-6100 is a dual frequency
(50 kHz, 200 kHz) monochrome LCD echo
sounder. Comprised of a display unit and a
transducer, the LS-6100 displays
underwater conditions on a bright 6-inch
monochrome LCD.
The main features of the LS-6100 are
• Compact design permits installation
where space is limited.
• Bright 6-inch monochrome LCD gives
excellent readability even in broad
daylight.
• Wide variety of display modes: single
frequency, dual frequency, bottom-lock,
marker-zoom, bottom-zoom, and nav
data.
• Automatic function permits unattended
adjustment of range and gain. The range
scale and gain automatically change to
display the bottom in the darkest gray
tone on the lower half of the screen.
• User-programmable nav data displays
provide analog and digital nav data.
• Alarms: Bottom, Fish (bottom-lock and
normal), Speed, Water Temperature and
Arrival. (Speed and arrival alarms require
appropriate sensor; water temperature
alarm requires water temperature data.)
• A-scope display helps discern echo
amplitude.
• White line feature helps discriminate fish
lying near the bottom.
• Destination waypoint feature provides
range, bearing, and time-to-go to
destination waypoint.
• Waterproof construction permits
installation on open bridge.

iv
SYSTEM OVERVIEW
System configuration
Equipment lists
Standard supply
Name Type Code No. Qty Remarks
Display Unit LS-6100 — 1
520-5PSD 000-015-204 Thru-hull mount
520-5MSD 000-015-212 Thru-hull mount
Transducer 520-5PWD 000-015-126 Transom mount
525ST-MSD 000-015-263 Thru-hull mount
Triducer (transducer
plus spd/temp sensor)
525ST-PWD 000-015-261
Select
one
Transom mount
Installation Materials
(CP02-07000)
• Tapping screw (4 pcs., 5 x 20 SUS304, 000-802-081)
• Washer head screw B (4 pcs., M4 x 20 SUS304, 000-804-742)
• Cable assy. (1 pc., MJ-A15A3F0003-030, 000-145-513)
Spare Parts
(SP02-04500) Fuse (1 pc., 61NM-125V, 1A, Code No. 000-145-864)
Template Type 02-139-1035-2, Code No. 100-298-502, 1 pc., for flush mount
Optional equipment
Name Type Code No. Qty Remarks
MJ-A15A7F0004-005 000-145-690 1 0.5 m, for wind sensor
NMEA Cable MJ-A15A7F0005-020 000-145-691 1 2 m, w/o +12V line
Conversion Cable 02S4147 000-141-082 1 For spd/temp sensor
ST-02MSB 000-137-986
Water Temperature &
Speed Sensor ST-02PSB 000-137-987
Select
one Thru-hull type
Inner Hull Kit 22S0191 000-802-598 1

1
1. OPERATION

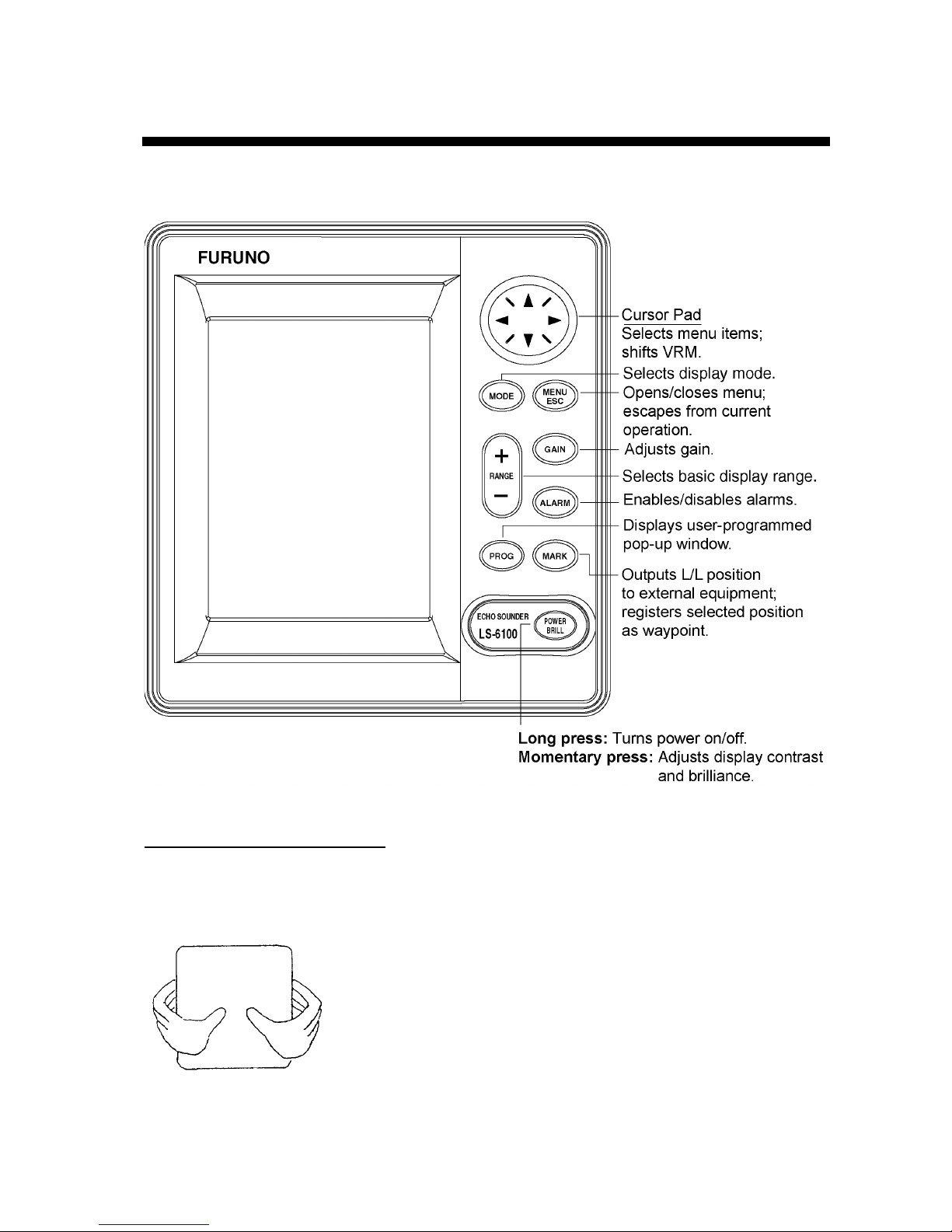

1.1 Control Description
Display unit
How to remove the hard cover
Place your thumbs at the center of the
cover, and then lift the cover while
pressing it with your thumbs.
1.2 Turning the Power
On/Off
Press the [POWER/BRILL] key more than
one second to turn on the power. The unit
beeps, the startup screen appears, and
then the equipment checks the ROM and
RAM for proper operation and displays
program number. (If “NG” (No Good)
appears, try to press any key except the
[POWER/BRILL] key to start operation.
However, the equipment may not work
properly. Contact your dealer.) You may

2
press any key after the completion of the
equipment check to start operation sooner.
** Program version no.
ROM : OK RAM : OK
Program No: 0252308-01.**
6" ECHO SOUNDER
LS-6100
FURUNO ELECTRIC CO., LTD.
Start-up screen
To turn off the power, press and hold down
the [POWER/BRILL] key until the screen
goes blank. The time remaining until power
is turned off is counted down on the screen.
Note: The example screens shown in this
manual may not match the screens you see
on your display. The screen you see
depends on your system configuration and
equipment settings.
1.3 Adjusting Display
Contrast, Brilliance
1. Press the [POWER/BRILL] key
momentarily to show the
brilliance/contrast adjustment window.
CONTST 4
Min Max
BRILL
Min Max
9
Brilliance/contrast adjustment window
2. For contrast, press the [POWER/BRILL]
key to adjust contrast cyclically. (You
may also use ◄or ►on the Cursor
Pad to adjust contrast.)
3. To adjust brilliance, use ▲or ▼.
4. Press the [MENU/ESC] key to close the
brilliance/contrast adjustment window.
Note 1 : Setting windows other than those
on menus are erased if there is no
operation within about seven seconds.
Note 2: When the power is reapplied after
turning off the equipment with minimum
brilliance, minimum brilliance will be set
after the equipment goes through its initial
start up. Adjust the brilliance as necessary.
1.4 Choosing a Display,
Frequency
Seven displays are available: single
frequency (50 or 200 kHz), dual frequency,
marker-zoom, bottom-zoom, bottom-lock,
and nav data (two displays).
1. Press the [MODE] key to show the
mode selection window.
MODE
SINGLE FREQ.
DUAL FREQ.
MARKER ZOOM
BOTTOM ZOOM
BOTTOM LOCK
NAV DATA-1
NAV DATA-2
50kHz 200kHz
Mode selection window
2. Press the [MODE] key again within
seven seconds to choose a mode. You
may also choose a mode with ▲or ▼.
3. For modes other than DUAL FREQ,
choose frequency; press ◄for 50 kHz;
►for 200 kHz.
4. Press the [MENU/ESC] key to close the
menu.

3

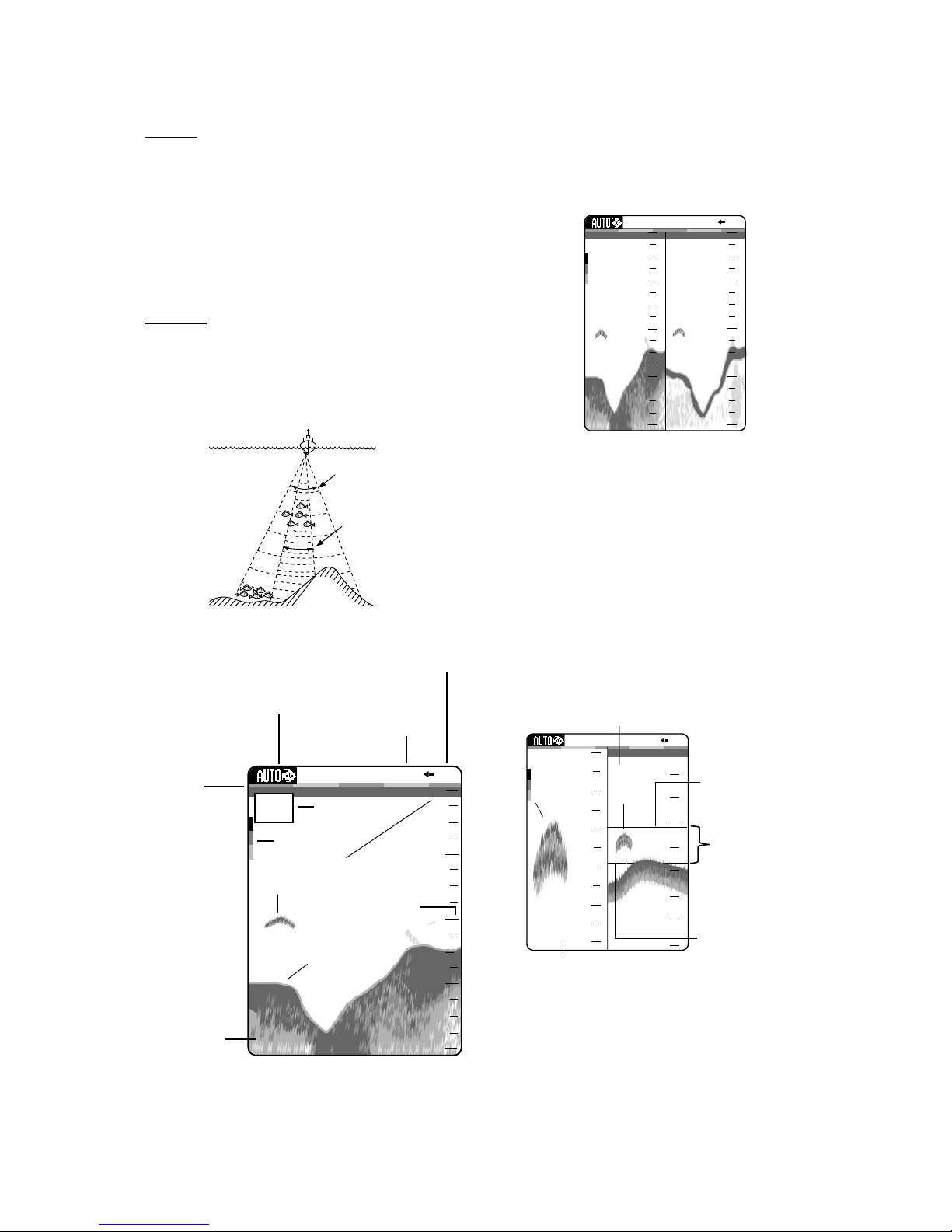

Single frequency display
50 kHz
The sounder uses ultrasonic signals to
detect bottom conditions. The lower the
frequency of the signal, the wider the
detection area. Therefore, the 50 kHz
frequency is useful for general detection
and judging bottom condition.
200 kHz
The higher the frequency of the ultrasonic
signal the better the resolution. For this
reason the 200 kHz frequency is ideal for
detailed observation of fish schools.
50 kHz
200 kHz
Frequency and coverage area
49.6
Fish
School
Bottom
0
20
40
60
80
50k 1/1
0.0
Level Bar
Depth
Frequency
Picture Advance Speed
Range Scale
Mode
(AUTO or MANUAL)
40.7°F
16.2kt
Nav Display
Minute
Marker
(Shows time.
Each bar
is 30 sec.)
Transmission
Line
Typical 50 kHz display
Dual frequency display
The 50 kHz picture appears on the left; the
200 kHz picture on the right. This display is
useful for comparing the same picture with
two different transmitting frequencies.
50 kHz 200 kHz
picture picture
49.6
40
0
20
60
80
0
20
40
60
80
0.0
50/200 1/1
Dual frequency display

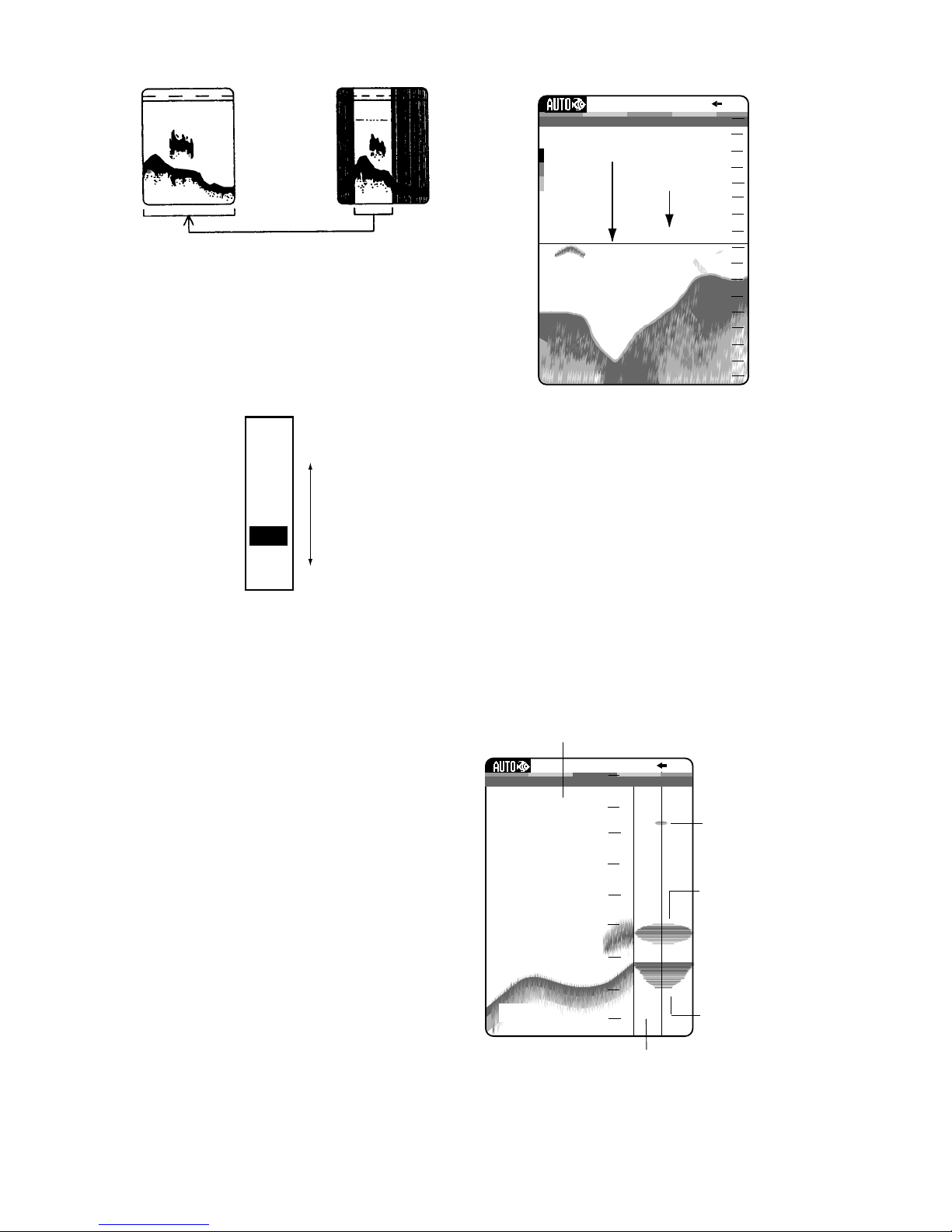

Marker-zoom display
This mode expands chosen area of the
normal picture to full vertical size of the
screen on the left-half window. You may
specify the portion to expand by operating
the VRM (Variable Range Marker), which
you can shift with ▲or ▼. The area
between the VRM and zoom range marker
is expanded.
Zoomed
fish
school
Single frequency display
Variable range
marker
This section
is zoomed
Zoom marker
Marker-zoom display
17.0
25.0
0
Fish
school
0
40
10
20
30
0.0
50k 1/1
21
20
19
18
17
22
Marker-zoom display
