Installation Manual
COLOR LCD SOUNDER
Model FCV-295
SAFETY INSTRUCTIONS ............................................................................ i
SYSTEM CONFIGURATION ...................................................................... iii
EQUIPMENT LISTS.................................................................................... iv
1. MOUNTING............................................................................................ 1
1.1 Display Unit ..................................................................................................................1
1.2 Transducer ...................................................................................................................2
1.3 Water Temperature/Speed Sensor ..............................................................................2
2. WIRING .................................................................................................. 3
2.1 Interconnection .............................................................................................................3
2.2 Cable Fabrication .........................................................................................................4
2.3 Input/Output Sentences................................................................................................6
3. INITIAL SETTING .................................................................................. 7
3.1 Language Setting .........................................................................................................7
3.2 Transducer Data...........................................................................................................8
3.3 Speed/Water Temperature Sensor Calibration ..........................................................14
3.4 NMEA Port Setting .....................................................................................................15
APPENDIX1 TRANSDUCER 82B-35R .................................................AP-1
APPENDIX2 INSTALLATION OF TEMPERATURE SENSORS...........AP-3
PACKING LIST........................................................................................ A-1
OUTLINE DRAWINGS............................................................................. D-1
INTERCONNECTION DIAGRAM ............................................................ S-1

i
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
Warning, Caution Mandatory Action
Prohibitive Action
SAFETY INSTRUCTIONS
The installer must read the applicable safety instructions before attempting to install the
equipment.
WARNING
WARNING
Be sure that the power supply is
compatible with the voltage rating
of the equipment.
Connection of an incorrect power
supply can cause fire or damage the
equipment. The voltage rating of the
equipment appears on the label
above the power connector.
Install the transducer according to
the installation instructions.
Failure to install the transducer
correctly may result in water leakage
and damage to the ship's hull.
For wooden or FRP vessel using a
steel tank, attach a zinc plate to the
hull to prevent electrolytic corrosion.
Electrolytic corrosion can, in the worst
case, result in loss of the transducer.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury
can result.
Turn off the power at the switchboard
before beginning the installation.
Connect to a dedicated breaker in
the power distributor.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage the
equipment.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel.
Also, confirm that the transducer will not
loosen by ship's vibration. The installer
of the equipment is solely responsible for
the proper installation of the equipment.
FURUNO will assume no responsibility
for any damage associated with improper
installation.
Use the proper cable and fuse.
Use of an incorrect cable and fuse can
damage the equipment and can cause
fire.

ii
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Ground the equipment to
prevent mutual interference.
Do not allow warm water or any other
liquid other than seawater or
freshwater to contact the transducer.
The transducer may become damaged.
Do not turn on the power when the
transducer is in air.
The transducer may become damaged.
Do not install the transducer where
noise or air bubbles is present.
Performance will be affected.
CAUTION
The transducer cable must be
handled carefully, following the
guidelines below.
•Keep fuels and oils away from the
cable.
•Locate the cable where it will not be
damaged.
•The cable sheath is made of chloro-
phrene or polychloride vinyl, which
are easily by damaged plastic
solvents such as toulene. Locate the
cable well away from plastic
solvents.
Standard
compass
Steering
compass
CV-295
0.80 m 0.50 m

iii

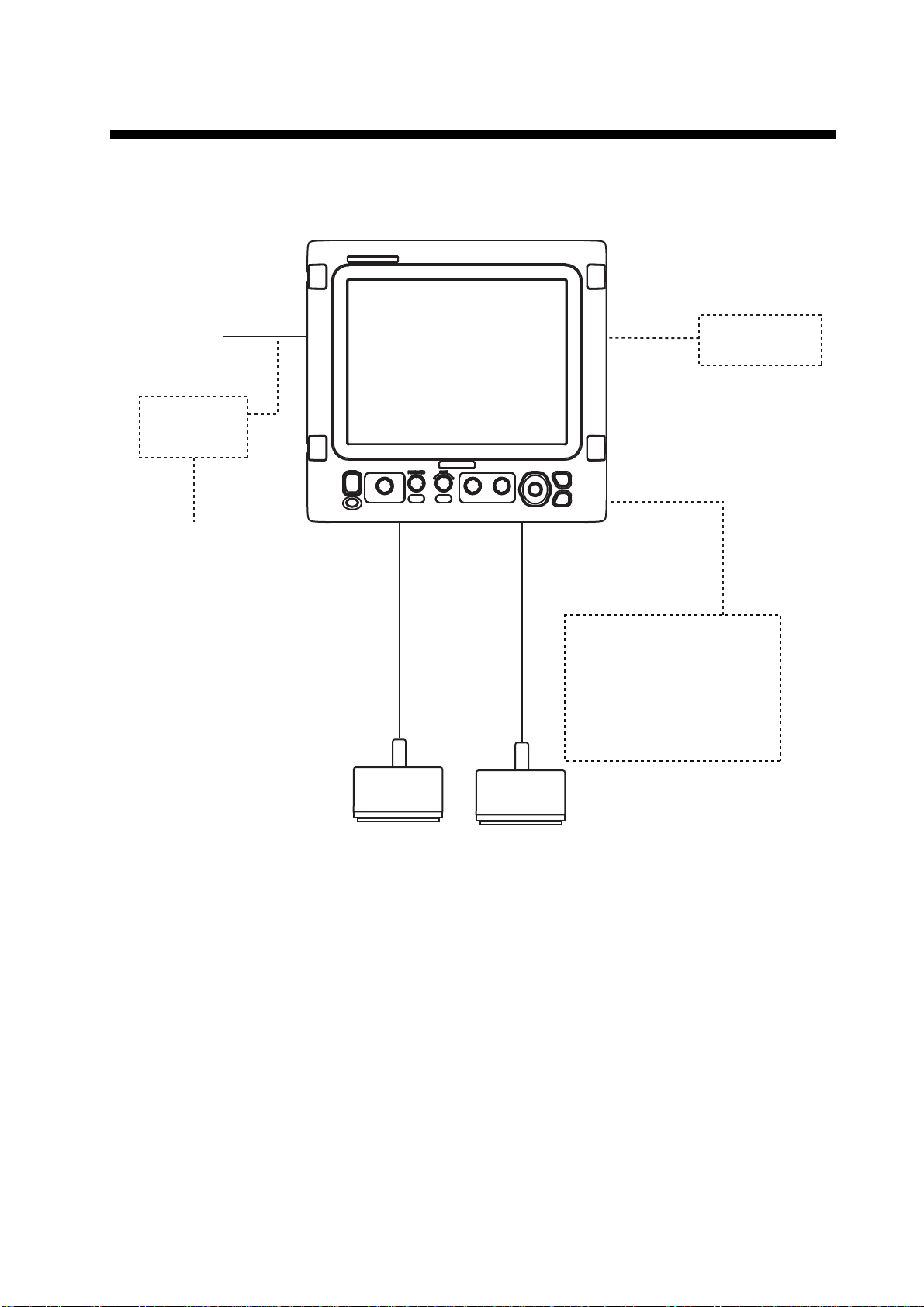

SYSTEM CONFIGURATION
Basic configuration is shown with solid line.
High Freq. Low Freq.
Transducer
Transducer
Navigator
Display unit
CV-295
12-24 VDC
Rectifier
PR-62
100/110/115/
220/230 VAC
1㱢, 50/60 Hz
Water Temperature Sensor
T-04MSB, T-04MTB
Water Temp.+Speed
Sensor
ST-02MSB, ST-02PSB

iv
EQUIPMENT LISTS
Standard supply
Option
Name Type Code No. Qty Remarks
Display Unit CV-295 - 1
Spare Parts SP02-05501 001-032-740 1 set
See packing list at back of this
manual.
Accessories FP02-05700 000-011-976 1 set
Installation Materials CP02-08401 001-032-750 1 set
Name Type Code No. Remarks
Transducer
See next several
pages.
-
Thru-hull pipe -
Tan k -
Cable MJ-A6SPF0003-050C 000-154-054-10 one end 6 pin, 5 m, for navigator
CO-SPEVV-SBC
2Px0.2SQ LF
000-111-680-10 5 m
000-120-792-10 10 m
000-120-793-10 15 m
Water temperature
sensor
T-04MSB 000-026-893 Thru-hull mount
T-04MTB 000-026-894 Transom mount
Speed/Tempera-
ture sensor
ST-02MSB 000-137-986-01 Thru-hull type
ST-02PSB 000-137-987-01 Thru-hull type
Rectifier PR-62 000-013-484 100 V AC
000-013-485 110 V AC
000-013-486 220 V AC
000-013-487 230 V AC

v
Combination of transducer, thru-hull pipe and tank
Output
(W)
Frequency
(kHz) Ship type Transducer Thru-hull pipe Tank
1k/1k 28/50 Steel 28F-8
50B-9B
TWB-6000(2) T-656
FRP --
28/88 Steel 28F-8
88B-8
TWB-6000(2) T-657
FRP - -
50/88 Steel 50B-9B
88B-8
TWB-6000(2) T-658
FRP - -
50/200 Steel 50/200-1T
50/200-1ST
TFB-5000(1) T-603
FRP - T-603F
Steel 50/200-12M - -
FRP - -
1k/2k 28/200 Steel 28F-8
200B-8/8B
TWB-6000(2) T-657
FRP - -
50/200 Steel 50B-9B
200B-8/8B
TWB-6000(2) T-658
FRP - -
88/200 Steel 88B-8
200B-8/8B
TWB-6000(2) T-659
FRP - -
2k/2k 28/200 Steel 28BL-6HR
200B-8/8B
TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
38/200 Steel 38BL-9HR
200B-8/8B
TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
50/200 Steel 50BL-12HR
200B-8/8B
TFB-7000(2) T-693
FRP TRB-1100(2) T-693-F
82/200 Steel 82B-35R
200B-8/8B
TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
88/200 Steel 88B-10
200B-8/8B
TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
3k/2k 68/200 Steel 68F-30H
200B-8/8B
TFB-7000(2) T-647
FRP TRB-1100(2) T-647-F
107/200 Steel 100B-10R
200B-8/8B
TFB-7000(2) T-649
FRP TRB-1100(2) T-649-F
3k/3k 28/38 Steel 28BL-12HR
38BL-15HR
TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
28/50 Steel 28BL-12HR
50BL-24HR
TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F
28/88 Steel 28BL-12HR
88F-126H
TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
28/150 Steel 28BL-12HR
150B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
28/200 Steel 28BL-12HR
200B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
38/50 Steel 38BL-15HR
50BL-24HR
TFB-7000(2) T-681
FRP TRB-1100(2) T-681-F

vi
3k/3k 38/88 Steel 38BL-15HR
88F-126H
TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
38/150 Steel 38BL-15HR
150B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
38/200 Steel 38BL-15HR
200B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
50/88 Steel 50BL-24HR
88F-126H
TFB-7000(2) T-682
FRP TRB-1100(2) T-682-F
50/150 Steel 50BL-24HR
150B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
50/200 Steel 50BL-24HR
200B-12H
TFB-7000(2) T-683
FRP TRB-1100(2) T-683-F
68/150 Steel 68F-30H
150B-12H
TFB-7000(2) T-646
FRP TRB-1100(2) T-646-F
68/200 Steel 68F-30H
200B-12H
TFB-7000(2) T-646
FRP TRB-1100(2) T-646-F
88/150 Steel 88F-126H
150B-12H
TFB-7000(2) T-685
FRP TRB-1100(2) T-685-F
88/200 Steel 88F-126H
200B-12H
TFB-7000(2) T-685
FRP TRB-1100(2) T-685-F
1k 28 Steel 28F-8 TFB-5000(1) T-604
FRP TRB-1000(1) T-604-F
50 Steel 50B-6/6B TFB-5000(1) T-605
FRP TRB-1000(1) T-605-F
Steel 50B-9B TFB-5000(1) T-603
FRP TRB-1000(1) T-603-F
68 Steel 68F-8H TFB-5000(1) T-621
FRP TRB-1000(1) T-621-F
88 Steel 88B-8 TFB-5000(1) T-606
FRP TRB-1000(1) T-606-F
200 Steel 200B-5S TFB-5000(1) T-605
FRP TRB-1000(1) T-605-F
2k 28 Steel 28BL-6HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
38 Steel 38BL-9HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
50 Steel 50BL-12HR TFB-5000(1) T-702
FRP TRB-1000(1) T-702-F
82 Steel 82B-35R TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
88 Steel 88B-10 TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
200 Steel 200B-8/8B TFB-5000(1) T-608
FRP TRB-1000(1) T-608-F
Output
(W)
Frequency
(kHz) Ship type Transducer Thru-hull pipe Tank

vii
3k 28 Steel 28BL-12HR TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
38 Steel 38BL-15HR TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
50 Steel 50BL-24HR TFB-4000(1) T-616
FRP TRB-1000(1) T-616-F
68 Steel 68F-30H TFB-5000(1) T-614
FRP TRB-1000(1) T-614-F
88 Steel 88F-126H TFB-4000(1) T-618
FRP TRB-1000(1) T-618-F
107 Steel 100B-10R TFB-5000(1) T-609
FRP TRB-1000(1) T-609-F
150 Steel 150B-12H TFB-5000(1) T-615
FRP TRB-1000(1) T-615-F
200 Steel 200B-12H TFB-5000(1) T-615
FRP TRB-1000(1) T-615-F
Output
(W)
Frequency
(kHz) Ship type Transducer Thru-hull pipe Tank

1
1. MOUNTING
1.1 Display Unit
Mounting considerations
• Locate the unit out of direct sunlight.
• Select a location where the display screen can be easily observed while operating the control
panel.
• Leave sufficient space around the unit for maintenance and servicing. Recommended mainte-
nance space appears in the outline drawings at the back of this manual.
• Observe the compass safe distances on page ii to prevent deviation of a magnetic compass.
The display unit can be mounted on the tabletop or on the panel (flush mounting). Mount the unit,
referring to the outline drawings at the back of this manual.
The power cable is connected to the terminal board in the display unit. Therefore the power cable
can not be disconnected easily like a connector. So connect the cable to a dedicated breaker in
the power distributor in the ship.
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
WARNING
Turn off the power at the switchboard
before beginning the installation.
Connect to a dedicated breaker in
the power distributor.
Fire or electrical shock can result if
the power is left on.

2
1.2 Transducer
The performance of the echo sounder depends upon the transducer position. A place least affect-
ed by air bubbles should be selected since turbulence blocks the sounding path. Further, select a
place least influenced by engine noise. It is known that air bubbles are fewest at the place where
the bow first falls and the next wave rises, at usual cruising speed.
Note: The face of the transducer must be facing the sea bottom in normal cruising trim of the boat.
1.3 Water Temperature/Speed Sensor
Through-hull mount water temperature/speed sensor ST-02MSB, ST02-PSB
Select a suitable mounting location considering the following:
• Select a mid-boat flat position. The sensor does not have to be installed perfectly perpendicu-
lar. The sensor must not be located where it might get damaged in dry-docking operation.
• Select a place apart from equipment generating heat.
• Select a place in the forward direction viewing from the drain hole, to allow for circulation of
cooling water.
• Select a place free from vibration.
1. Dry-dock the boat.
2. Make a hole of approx. 51 mm diameter.
3. Unfasten locknut and remove the flange of the sensor.
4. Apply high-grade sealant to the flange of the sensor.
5. Pass the sensor casing through the hole.
6. Face the notch on the sensor toward boat's bow and tighten the flange.
7. Set the sensor section to the sensor casing and tighten the locknut.
8. Launch the boat and check for water leakage around the sensor.
Water temperature/speed sensor ST-02MSB, ST-02PSB
Locknut
123
Face "notch"
toward bow.
Flange nut
Coat with
silicone sealant.
51
Brim
φ77

3
2. WIRING
2.1 Interconnection
Refer to the interconnection diagram at the back of this manual for detailed information.
Wiring diagram for FCV-295
Low
Transducer
Speed/
Water temperature
sensor
Navigator
12-24 VDC
DPYCY-1.5
DPYCY-1.5
Rectifier
PR-62
100/110/115/
220/230 VAC
1
φ , 50/60 Hz
*
Transducer *
*: This unit cannot accept transducers of
53 to 65 kHz, 111 to 139 kHz and 171
to 183 kHz.
IV-2.0sq
Display unit rear panel
(connector cover removed)
High
MJ-A6SPF0003-050C
(Connect to a dedicated
breaker in the power
distributor.)
Grounding wire:
As short as possible

4
2.2 Cable Fabrication
Power cable
This echo sounder is designed to be powered with 12-24 VDC. Use the cable DPYCY-1.5 (Japan
Industry Standard) or equivalent.
Transducer cable
Separate the transducer cable well away from power cables to prevent interference. Connect the
cable to the transducer port (for high frequency and/or low frequency) at the rear of the display
unit. Fabricate the cable as below.
Approx. 70 3
Armor
Sheath
Vinyl tape
6
Clamp armor with cable clamp.
Crimp-on lug
FV2-M4
30
Sheath
Conductor
S = 1.5 mm
Ǟ= 1.56 mm
(AWG16)
2
DPYCY-1.5
Armor
Sheath
Ǟ= 13.7 mm
Shield
Vinyl tape
Sheath
Wrap shield around sheath 30 mm and cut
excess shield. Clamp here with cable clamp.
Extract cores from here and cut inner materials.
Approx. 100
A
ttach WAGO
connector.
(See next page.)
[Composite transducer]
BLK, RED: L side
BLU, GRN: H side
Note: Never connect the shield to #2 of
the WAGO connector.
Shield
30
6
Vinyl tape

5
WAGO connector (for transducer and NMEA ports)
NMEA port
Connect a GPS navigator, etc. to NMEA port J2 #1 to #4. You can connect two sensors (for ex-
ample, GPS receiver GP-310B and smart sensor). One connects to NMEA port J2 #1 to #2 and
the other connects to the NMEA port J2 #3 to #4.
1. Twist conductors.
2. Insert opener and press it down.
3. Insert core to hole.
4. Release opener.
5. Pull the core to confirm that it is
tightly fastened.
Opener (big one: for transducer port
small one: for NMEA port)
Core
Twist.
Press
Wind vinyl tape on sheath.
30
6
Wrap shield about three turns
and cut excess shield.
Wind vinyl tape
on edge of shield.
Solder vinyl wire
to shield.
Extract cores from here and
cut inner materials.
Clamp this parts.
Attach WAGO connector.
Approx. 90 Sheath
Shield
Vinyl tape

6
2.3 Input/Output Sentences
Input sentences
Output sentences
Sentence Data Remarks
BWC Range/bearing to waypoint
GGA Time, position GPS position
GLC GRI, Time difference Loran C
GLL Latitude and longitude GPS position
GNS GNSS position fixing
GTD Time difference Loran C
HDG Ship's heading, deviation, variation
HDT True heading
MDA Weather information
MTW Water temperature
MWV Wind direction, wind speed (true or apparent)
RMA Latitude and longitude, TD, ground speed and course Loran C
RMB Recommended minimum navigation information
RMC Latitude and longitude, speed over ground and course over ground GPS
VHW True/magnetic bearing, speed through water
VTG Speed over ground and course over ground
XTE Cross track error
Sentence Data Remarks
DBT Depth below transducer Ver. 1.5
DPT Depth below transducer and offset Ver. 2.0
MTW Water temperature With connection of water
temperature sensor
TLL Marker line position Ver. 2.0
SDmrk Mark position (L&L) and its additional data
VHW Speed thru water
RMB Navigation information Ver. 1.5
DBS Depth below sea surface

7
3. INITIAL SETTING
This chapter provides the information necessary for initial setup of the equipment. First turn on the
power and set display language. Then, set transducer used, by model number (FURUNO trans-
ducer only) or by specifications.
3.1 Language Setting
1. Press [ /BRILL] key to turn on the power. The following display appears.
Language setting screen
2. Press Tor Sto select a desired language, and then press the ENTER key to set. The units
setting screen appears.
Unit setting screen
3. Set the units of measurement if necessary. For example, to set the distance unit, press Tto
select "Distance Unit" and press the ENTER key. The list of selectable distance units is dis-
played.

8
4. Press or to select necessary unit and then press the ENTER key to set.
• Depth: m, ft, fa, pb, HR (Japanese unit)
• Temp: °C, °F
• Speed: kt, km/h, mph
• Wind: kt, km/h, mph, m/h
• Distance: nm, km, sm
5. Press the MENU key. The following message appears.
6. Press any key. The transducer setting screen appears. Proceed to next section.
3.2 Transducer Data
3.2.1 How to enter transducer data by transducer model
The following table shows the transducers programmed in the FCV-295.
Type Output (kW) Tap Type Output (kW) Tap
28F-8 1 B 68F-30H 3 B
28BL-6HR 2 A 82B-35R 2 E
28BL-12HR 3 A 88B-8 1 D
38BL-9HR 2 B 88B-10 2 C
38BL-15HR 3 D 88F-126H 3 E
50B-6B 1 A 100B-10R 3 E
50/200-IT (50 kHz) 1 B 150B-12H 3 C
50/200-1ST (50 kHz) 1 B 200B-5S 1 D
50B-9B 1 A 50/200-1T (200 kHz) 1 C
50BL-12HR 2 B 50/200-1ST (200 kHz) 1 A
50BL-24HR 3 D 200B-8B 2 C
68F-8H 1 A 200B-12H 3 C
CAUTION
Set the transducer model number
properly.
Wrong transducer setting can
damage the transducer and void the
warranty.

9
Note: The “XDCR Setting” dialog box (see the illustration that follows step 1 below) only appears
when turning on the power after installation, after setting the desired language and the units of
measurement (see section 3.1). To open the “XDCR Setting” dialog box after completion of the
transducer setting, turn off the power, then turn on the power while pressing any key. Release the
key after the "XDCR Setting" dialog box appears.
1. At the transducer setting screen, confirm that "XDCR Select" is set to "XDCR Type" (default
setting).
Transducer setting screen
2. If a high frequency transducer is fitted, press Tto select "HF Connection" and then press the
ENTER key.
3. Press Sto select "Connected" and then press the ENTER key.
4. Press Tto select "Freq" and then press the ENTER key.
5. Press Tor Sto select the transducer frequency and then press the ENTER key.
Connected
Not connected

10
6. Press Tto select "Transducer" and then press the ENTER key. The list of programmed trans-
ducers appears.
7. Press Tto Sselect transducer connected and then press the ENTER key.
8. Jot down the alphabet which appears on the "Tap" line. You may need to change the tap set-
ting at the rear of the display unit depending on the transducer type which is connected. For
details, see below.
9. If a low frequency transducer is fitted, repeat steps 2 to 8.
Note: Leave the "Tx Power" setting at "Auto".
10.Press and hold down the [ /BRILL] key to turn off the power.

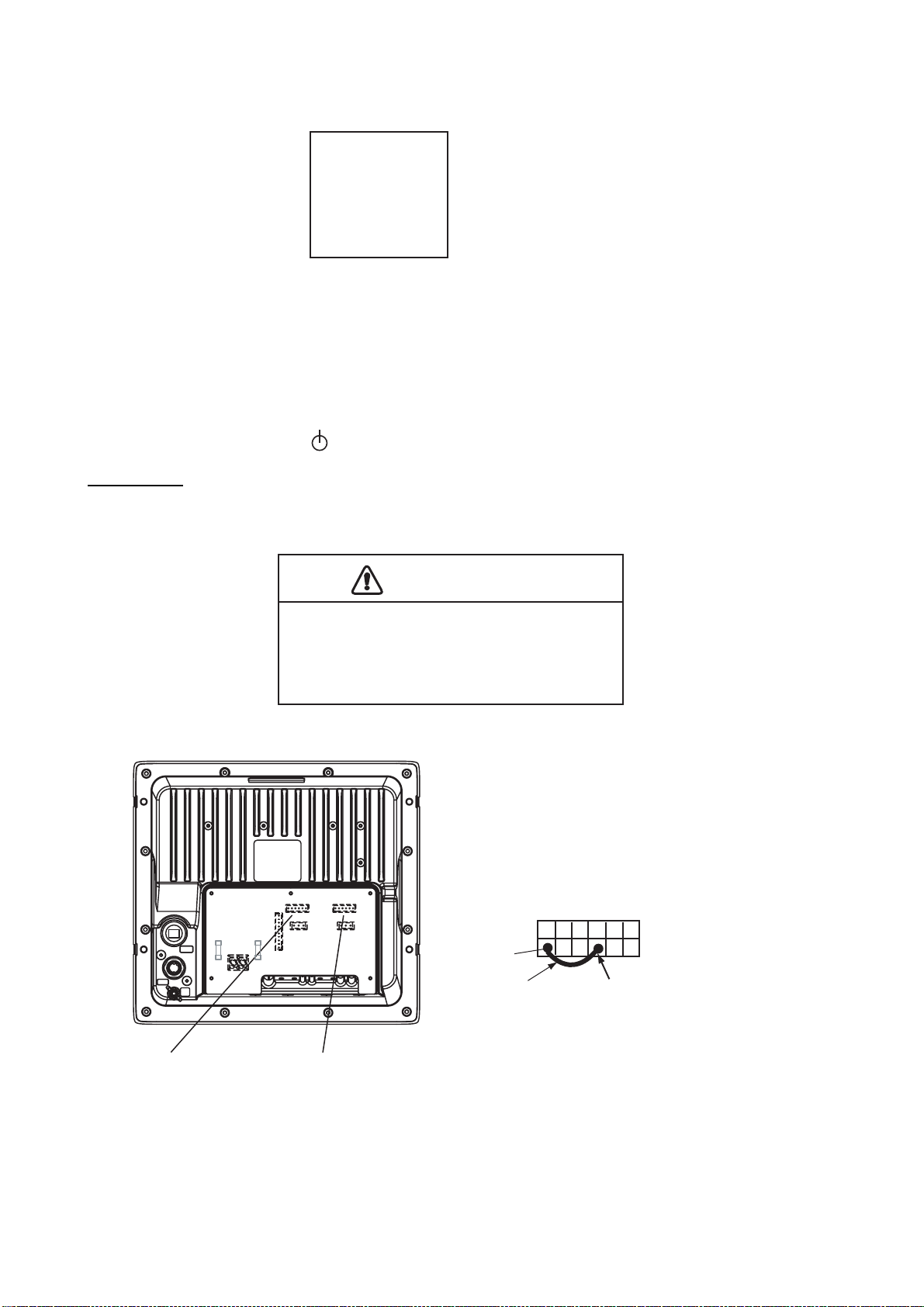

Tap setting
You may need to change the tap setting at the rear of the display unit depending on the transducer
type connected. Set the tap according to the alphabet shown when you selected transducer type.
200B-5S
50/200-1T
50/200-1ST
200B-8B
200B-12H
(Example: 200 kHz)
CAUTION
CAUTION
Turn off the unit to change the tap
setting.
Malfunction or electrical shock can result.
Display unit rear panel
(connector cover removed)
Tap setting connector
(for high frequency)
E D C B A
Common
line
Tap setting connector
(for low frequency)
Set this end in applicable
slot according to
alphabet indication.
Jumper
line

11
3.2.2 How to enter transducer data by transducer specifications
(manual setting)
To connect the transducers which are not programmed, do as follows:
Note: The transducers of 53 - 65 kHz, 111 to 139 kHz and 171 - 183 kHz cannot be connected to
the FCV-295 because of noise.
1. At the XDCR Setting dialog box, select "XDCR Select" and press the ENTER key.
The following screen appears.
2. Press Tto select "Manual", and then press the ENTER key.
3. If a high frequency transducer is fitted, press Tto select "HF Connection" and then press the
ENTER key.
4. Press Sto select "Connected" and then press the ENTER key.
5. Press Tto select "Freq" and then press the ENTER key.
6. Press Tor Sto set the frequency of the transducer which is connected and then press the
ENTER key.
7. Press Tto select "Band width" and then press the ENTER key.
8. Press Tor Sto set the value for the bandwidth and then press the ENTER key. If the band-
width is not entered manually, it is automatically set to 1/10 of the transducer frequency.
9. If a low frequency transducer is fitted, repeat steps 3 to 8.
Note: Leave the "Tx Power" at "Auto".
10.Press and hold down the [ /BRILL] key to turn off the power.
CAUTION
CAUTION
When you install the transducer whose
type is programmed, DO NOT select
“Manual” on the XDCR setting dialog box.
Wrong transducer setting can damage the
transducer and void the warranty.
XDCR Type
Manual
Connected
Not connected
--- kHz
