Furuno VR-7000 User manual

www.furuno.com
A
ll brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual
VDR
Model VR-7000
(VOYAGE DATA RECORDER)
SAFETY INSTRUCTIONS ........................i
SYSTEM CONFIGURATION ..................iii
EQUIPMENT LIST ..................................iv
1. MOUNTING......................................1-1
1.1 Data Collecting Unit VR-7010 .............1-1
1.2 Data Recording Unit (DRU) ................1-3
1.3 Junction Box VR-7022F....................1-11
1.4 Remote Alarm Panel VR-7017..........1-12
1.5 Microphone VR-7011 ........................1-14
1.6 Waterproof Microphone VR-7012W..1-17
1.7 Video LAN Converter IF-7100...........1-22
1.8 Sensor Adapter MC-3000S/3010A/
3020D ...............................................1-23
1.9 Intelligent HUB HUB-3000 ................1-24
1.10 Power Supply Unit PSU-011.............1-25
1.11 Switching HUB HUB-100 (Option) ....1-26
1.12 Junction Box IF-8530 (Option)..........1-26
1.13 Junction Box IF-8540 (Option)..........1-27
2. WIRING............................................2-1
2.1 Data Collecting Unit VR-7010 .............2-2
2.2 Data Recording Unit..........................2-10
2.3 Junction Box VR-7022F....................2-13
2.4 Remote Alarm Panel VR-7017..........2-15
2.5 Microphone VR-7011 ........................2-16
2.6 Waterproof Microphone VR-7012W ..... 2-17
2.7 Video LAN Converter IF-7100...........2-18
2.8 Sensor Adapters ...............................2-25
2.9 Intelligent HUB HUB-3000 ................2-40
2.10 Power Supply Unit PSU-011.............2-40
2.11 Junction Box IF-8530 (Option)..........2-41
2.12 IP Addresses of the Unit ...................2-44
3. SETTING UP THE EQUIPMENT .....3-1
3.1 System Time Adjustment ....................3-1
3.2 Recording Expiration Date of Parts.....3-2
3.3 DIP Switch Setting in Video LAN
Converter ............................................3-3
APPENDIX 1 JIS CABLE GUIDE.....AP-1
APPENDIX 2 CABLE
FABRICATION ...........AP-2
APPENDIX 3 ROD TERMINALS ......AP-7
APPENDIX 4 DIGITAL
INTERFACE .............AP-13
APPENDIX 5 CODING OF THE
FLOAT-FREE DRU ..AP-31
PACKING LISTS ................................. A-1
OUTLINE DRAWINGS ........................ D-1
INTERCONNECTION DIAGRAMS ..... S-1

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9 52 Ashihara cho,
Nishinomiya, 662 8580, JAPAN
A
:
JUL
2014
.
Printed in Japan
All rights reserved.
K1
:
APR
.
19, 2016
Pub. No.
IME-44850-K1
(
REFU
)
VR- 000
0 0 0 1 7 9 3 4 6 1 9

i
SAFETY INSTRUCTIONS
Mandatory Action
Prohibitive Action
WARNING
CAUTION
Warning, Caution
DANGER
WARNING
The installer of the equipment must read the safety instructions before attempting to
install the equipment.
Indicates a potentially hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
WARNINGWARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not open the equipment unless
you are well familiar with electrical
circuits.
Only qualified personnel should work
inside the equipment.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the
equipment.
Use only the specified power and
signal cable.
Fire or damage to the equipment
can result if a different cable is used.
Do not install the equipment
where they may get wet from rain
or water splash, or in a dusty
environment.
Water in the units can result in fire,
electrical shock, or damage the
equipment.
Ground the equipment to prevent
electrical shock and mutual
interference.

SAFETY INSTRUCTIONS
ii
CAUTION
Use the proper fuse.
Use of an incorrect fuse may damage
the equipment.
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Unit Standard
compass
Steering
compass
Data Collecting Unit
VR-7010
Remote Alarm Panel
VR-7017
Microphone
VR-7011
Waterproof Microphone
VR-7012W
Fixed Data Recording Unit
VR-7020
Float-free Data Recording Unit
VR-7021F
Video LAN Converter
IF-7100
Intelligent HUB
HUB-3000
Switching HUB
HUB-100
Sensor Adapter
MC-3000S
Sensor Adapter
MC-3010A
Sensor Adapter
MC-3020D
1.20 m 0.75 m
1.00 m 0.60 m
2.05 m 1.35 m
0.75 m 0.50 m
1.05 m 0.70 m
2.30 m 1.45 m
1.15 m 0.75 m
0.65 m 0.45 m
0.75 m 0.50 m
0.45 m 0.35 m
0.80 m 0.40 m
1.40 m*/
1.55 m
0.85 m*/
1.00 m
Junction Box
VR-7022F 0.80 m 0.50 m
Power Supply Unit
PSU-011 0.30 m 0.30 m
Junction Box
IF-8530 1.65 m 1.05 m
*: Compass safe distances for the unit whose
serial number (SER.NO.) is “200001” or
after.

iii
SYSTEM CONFIGURATION
Basic configuration is shown with solid line.
Environmental category
All units (other than VR-7021F, VR-7022F, VR-7012W and
VR-7020)
Protected from the weather
VR-7021F Portable
VR-7022F, VR-7012W and VR-7020 Exposed to the weather
Data
Collecting
Unit (DCU)
VR-7010
Fixed Data Recording Unit (Fixed DRU)
VR-7020
Float-free Data Recording Unit
(Float-free DRU)
VR-7021F
Video LAN Converter
IF-7100
24 VDC
PC
Live Player V5
VR-7030
Intelligent HUB
HUB-3000
100-230 VAC
Remote Alarm Panel
VR-7017*
1
Microphone
VR-7011
Waterproof Microphone
VR-7012W
Max. 8 units
Max. 2 units
Radar/ECDIS display 100-230 VAC
100-230 VAC
Max. 2 units
Radar, ECDIS, etc.
VHF Audio
- Serial Interface: Max. 2 ch
(IEC 61162-1/2)
- Serial Interface: Max. 6 ch
(IEC 61162-1)
Switching HUB
HUB-100
Sensor Adapter
MC-3000S
Sensor Adapter
MC-3010A
Sensor Adapter
MC-3020D
Serial Interface
Analog Interface
Digital IN Interface
Junction Box
VR-7022F
*
1
: Nominal viewing distance: 0.5 m
Network
Equipment
Power Supply Unit
PSU-011*
2
*
2
: For Russian vessel only
Junction Box
IF-8530
IF Signal
- Serial Interface: Max. 2 ch
(IEC 61162-1/2)
- Serial Interface: Max. 6 ch
(IEC 61162-1)
- Analog IN: Max. 16 ch
- Digital Contact IN: Max. 64 ch
Junction Box
IF-8540
or
IF Signal

iv
EQUIPMENT LIST
Standard Supply
Optional Supply
Name Type Code No. Qty Remarks
Data Collecting Unit VR-7010 - 1
Remote Alarm Panel VR-7017 - 1
Fixed Data Recording Unit VR-7020 - 1
Float-free Data Recording Unit VR-7021F - 1
Junction Box VR-7022F - 1
Microphone VR-7011 - 1-8
Waterproof Microphone VR-7012W -
Video LAN Converter IF-7100 - 0-2
Sensor Adapter MC-3000S - 0-1
Power Supply Unit PSU-011 - 1 For Russian vessel only
Installation Materials
CP03-31701 001-013-670 1 For PSU-011
CP24-02401 001-170-350 0-1 For MC-3000S
CP24-03301 001-279-040 1 For VR-7010
CP24-03401 001-279-100 1 For VR-7017
CP24-03501 001-279-130 1-8 For VR-7011
CP24-03601 001-279-140 For VR-7012W
CP24-03701 001-279-120 0-2 For IF-7100
CP24-03801 001-319-050 1 For VR-7020
CP24-03901 001-319-060 1 For VR-7022F
CP24-04001 001-321-640 1 For VR-7021F
Accessories FP24-01110 000-025-269 1 For VR-7010, w/program CD and
FP24-01112
Spare Parts SP24-01101 001-279-030 1 For VR-7010 SP24-01201 001-279-110 0-2 For IF-7100
SP24-00701 001-170-390 0-1 For MC-3000S
Name Type Code No. Remarks
Microphone VR-7011 -
Waterproof Microphone VR-7012W -
Video LAN Converter IF-7100 -
Junction Box IF-8540 -
Sensor Adapter
MC-3000S - Serial control unit
MC-3010A - Analog IN
MC-3010A-N - For IF-8540, analog IN
MC-3020D - Digital IN
MC-3020D-N - For IF-8540, digital IN
Intelligent HUB HUB-3000 -
Switching HUB HUB-100 -
Case Gasket OP24-28 001-169-970 For MC-3000S
OP24-29 001-169-960 For MC-3010A/3020D

EQUIPMENT LIST
v
SSD Kit OP24-43 001-279-170 For VR-7010
Microphone Replacement Kit OP24-44 001-279-180 For VR-7011
Installation Materials
for Microphone OP24-45 001-279-190
IF-8530 Version-up Kit OP24-48 001-326-380 w/IF-8530
Front Fixing Panel Kit OP24-49 001-360-980 For VR-7017
Cable Assy.
DVI-D/D S-LINK 5M 001-132-960-10 DVI-D cable, 5 m
DVI-D/D S-LINK 10M 001-132-980-10 DVI-D cable, 10 m
3COX-2P-6C 5M 001-077-230-10 D-SUB cable, 5 m
3COX-2P-6C 10M 001-077-220-10 D-SUB cable, 10 m
MC1.5-W-L600 001-187-470-10 Between sensor adapters,
0.6 m
MC1.5-W-L1000 001-187-480-10 Between sensor adapters,
1 m
MC1.5-W-L2000 001-187-490-10 Between sensor adapters,
2 m
MC1.5-W-L3000 001-187-500-10 Between sensor adapters,
3 m
AI.14-8AI.34-6L1000 001-430-110 For installingadditional unit
in IF-8540
Connector Assembly BNCX5-DSUB15-L400 001-235-030 D-SUB-BNC connector
cable, 400 mm
BNC Coaxial Cable Set CP24-01200 000-010-132 Coaxial cable (6 core) with
BNC connectors, 20 m
CP24-01210 000-010-133 Coaxial cable (6 core) with
BNC connectors, 30 m
Coaxial Cable ECX3C-2V-T *20M* 000-122-161-10 20 m
000-122-161-11
ECX3C-2V-T *30M* 000-122-162-10 30 m
000-122-162-11
Coaxial Connector BNC FB-SPM1D+ 000-153-757-11 For ECX3C-2V-T cable
Installation Materials
CP03-28900 000-082-658 LAN cable, 10 m
CP03-28910 000-082-659 LAN cable, 20 m
CP03-28920 000-082-660 LAN cable, 30 m
CP03-28930 000-084-368 LAN cable, 50 m
CP24-02900 001-208-050 LAN cable for HUB-3000,
10 m
CP24-02910 001-208-060 LAN cable for HUB-3000,
20 m
CP24-02920 001-208-070 LAN cable for HUB-3000,
30 m
Spare Parts SP03-15001 001-042-330 For HUB-100 SP24-00801 001-235-320 For HUB-3000
SP24-01201 001-279-160 For IF-7100
Crimping Tool CRIMPFOX 10S 001-206-920 For ferrule
Operator’s Manual OME-44850-* 000-179-342-1* For VR-7000
OME-44851-* 000-179-350-1* For Live Player V5
Instruction Manual OME-44852-* 000-179-352-1* For Maintenance Viewer
Name Type Code No. Remarks

EQUIPMENT LIST
vi
This page is intentionally left blank.

1-1
1. MOUNTING
1.1 Data Collecting Unit VR-7010
Mounting consideration
Select a mounting location, keeping in mind the following points:
• Locate the unit away from heat sources.
• Select a location where the shock and vibration are minimal.
• Locate the unit away from places subject to water splash and rain.
• Make the maintenance space shown in the outline drawing for maintenance and
checking purpose.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• Select a mounting location considering the length of the cables to be connected to
this unit.
The cables connected the units shown below should be 50 m or less.
• Select a location where the surface is flat. If it is not flat, insert a number of washers
between the unit and the mounting location as necessary.
• Select a location that is strong enough to support the weight of the unit.
• The cable entrance of the unit should face downward.
• Fixed DRU • Float-free DRU
• Microphone • Waterproof microphone
• Remote alarm panel
NOTICE
Do not apply paint, anti-corrosive sealant or contact
spray to coating or plastic parts of the equipment.
Those items contain organic solvents that can damage
coating and plastic parts, especially plastic connectors.

1. MOUNTING
1-2
Mounting
Install the data collecting unit (DCU) on a bulkhead.
1. Fasten the unit with four M10 bolts or 10 coach bolts (local supply).
2. Two eye bolts are attached at the top of the unit to hoist the unit onboard. Remove
them after the installation.
3. Attach two cosmetic caps (supplied) to eye bolt holes.
M10 bolt
or
Ø10 coach bolt
(4 pcs)
Eye bolt

1. MOUNTING
1-3
1.2 Data Recording Unit (DRU)
1.2.1 Fixed data recording unit VR-7020
The fixed DRU shall be sited in the vicinity of the bridge on the external deck area of
the vessel so as to maximize the probability of its survival and recovery following an
incident.
Mounting consideration
Select a mounting location, keeping in mind the following points:
• Select the mounting location considering the facilitation of underwater removal and
retrieval by both divers and ROVs. There should be a clear unobstructed space in
the vicinity of the capsule to allow an ROV or diver to work.
• Locate the unit as near to the center line of the ship as possible.
• Locate the unit away from fuel or other potential fire sources.
• Locate the unit away from probable sources of the mechanical damage.
• Make the maintenance space for maintenance and checking purpose.
Mounting
To install the fixed DRU, do the following:
1. Verify that the fixed DRU mounting base lines up with the hull mounting holes. Re-
fer to the figure on the next page for the fixed DRU mounting base template pat-
tern.
2. Ensure the paint around the bottom of the mounting holes on the fixed DRU and
hull mounting brackets is removed.
3. Apply the silicone sealant (S-8400W, supplied) around the mounting holes on the
fixed DRU and hull mounting brackets.
4. Install three lock washers (supplied).
5. Insert bolts through the hull mounting brackets.
6. Fix the fixed DRU with the supplied installation materials.
See the figure “Hull Grounding Technique“ on the next page.

1. MOUNTING
1-4
"Hull Ground Technique” and “Mounting Base Template Pattern”
Hull Grounding Technique
Mounting Base Template Pattern
6.901 inches
175.29 mm
2.988 inches2.988 inches
75.90 mm75.90 mm 5.976 inches5.976 inches
151.80 mm151.80 mm
3.451 inches3.451 inches
87.64 mm87.64 mm
1.725 inches1.725 inches
43.82 mm43.82 mm
3 ×120 Degrees3 ×120 Degrees
0.594 inches0.594 inches
15.0 mm
DIAMETER
DIAMETER
Hex. bolt
Hex. nut
Flat washer
Lock washer
Apply silicone sealant
Spring washer

1. MOUNTING
1-5
1.2.2 Float-free data recording unit VR-7021F
Mounting consideration
Select a mounting location, keeping in mind the following points:
• The float-free DRU should, with greatest possible probability, float-free and avoid
being caught in railings, superstructure, etc., if the ship sinks.
• The float-free DRU should be located so that it may be easily released manually and
brought to the survival craft by one person. It should therefore not be located in a
radar mast or any other places which can only be reached by vertical ladder.

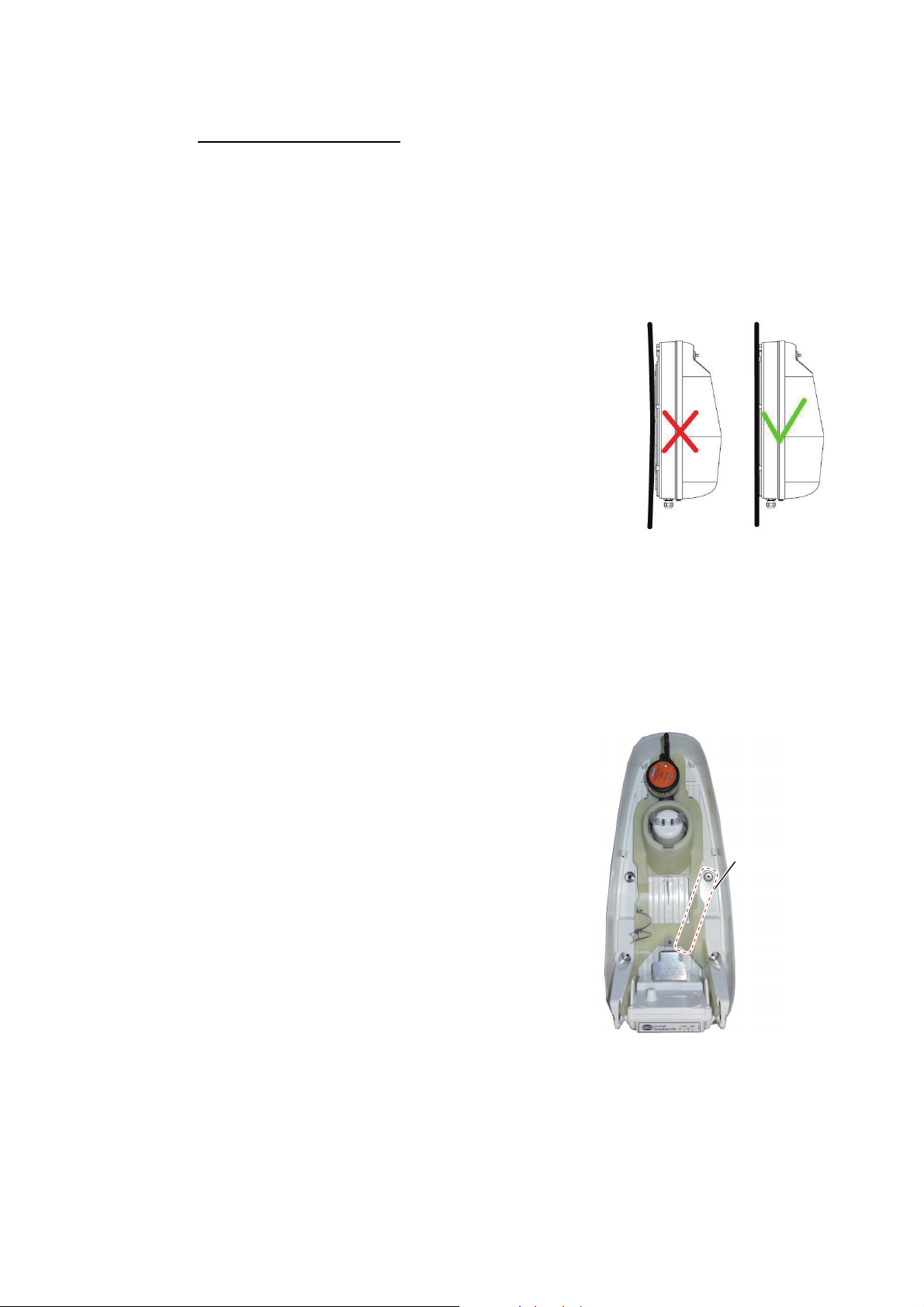

• Fix the float-free DRU vertically on the bulkhead or
handrail so that the cable entrance faces downward.
Ensure that the steel hull or plate where the bracket is
mounted is completely flat. If it is uneven, the capsule
may not make good contact with the docking module.
• Confirm that a buoyant lanyard is attached to the cap-
sule correctly. The buoyant lanyard (for tethering to life
craft) is attached to the capsule of the float-free DRU.
The buoyant lanyard must be attached to the capsule
correctly to prevent its being trapped in the ship’s struc-
ture when the capsule is released.
• The float-free DRU should be marked with the ship’s call sign, serial number, MMSI
number (if applicable), and 15 Hex ID before installation.
• The cable between the float-free DRU and junction box (VR-7022F) should be as
short as possible.
• Locate the unit 5m or more away from the VHF antenna.
• Locate the unit away from the equipment that generate the magnetic field.
• Ground the unit by connecting the ground plate
to the ship’s body with the hex. bolt.
• Apply the silicone grease between the docking
module and storage module to prevent water
from entering (see the figure on the next page).
After applying the silicone grease, do not release
the capsule from the bracket other than the main-
tenance. If you release the capsule, apply the sil-
icone grease again when reattach it.
Ground plate

1. MOUNTING
1-6

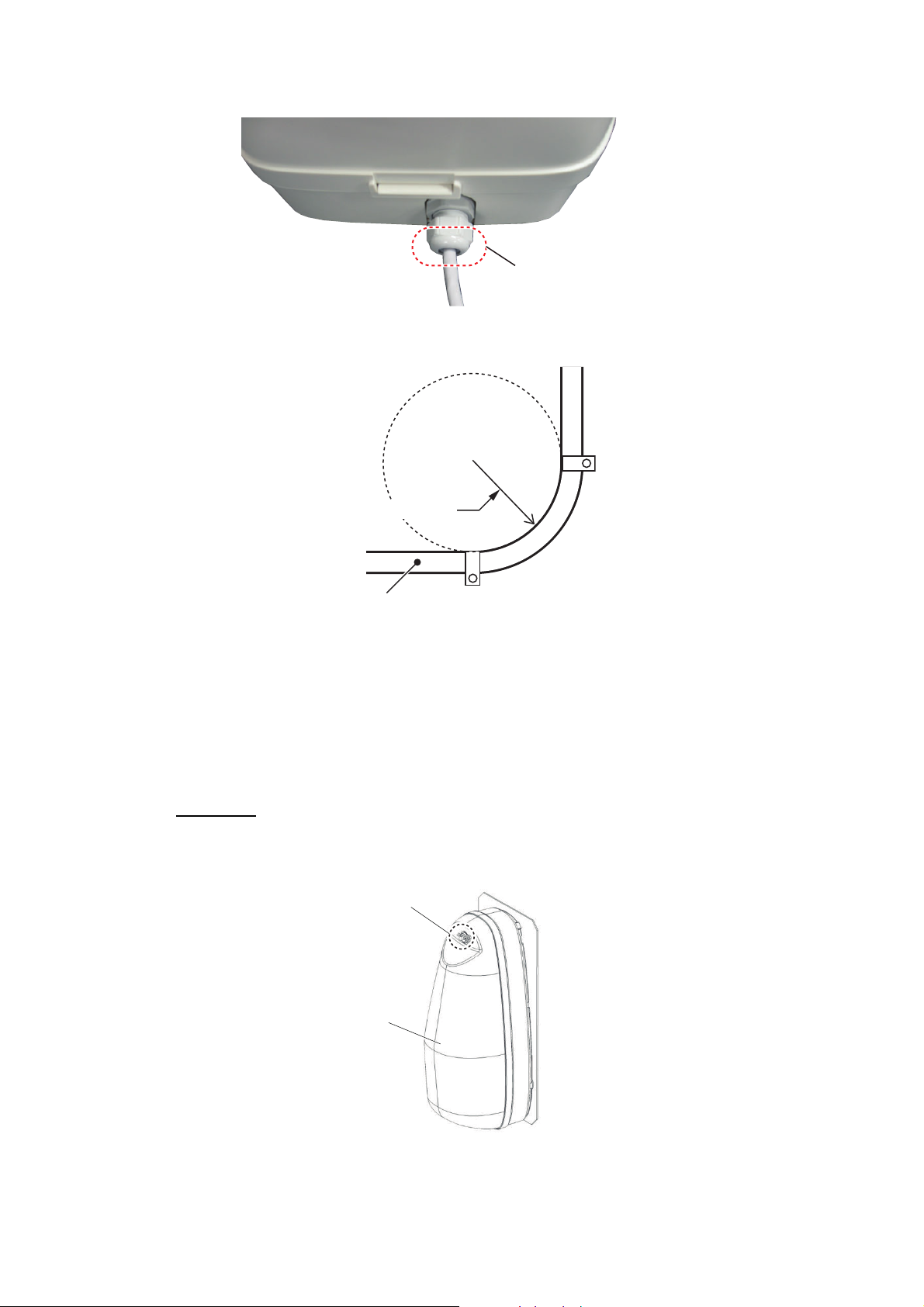

• Do not bend the cable base of the float-free DRU. Also, do not damage the cable.
• Do not bend and/or twist the cable excessively to secure the cable. Ensure a mini-
mum bend radius of 80 mm.
Note: The IMO obliges that VDR-equipped ships must carry a float-free DRU. The fol-
lowing is an excerpt from the regulation. Observe the following location/installation
conditions.
• The float-free DRU must be installed in the vicinity of the navigation bridge, i.e. on
the wings of the navigation bridge. Access via vertical ladder should not be accept-
ed. A location on the top of the wheelhouse may be accepted to fulfill the require-
ment if accessible by stairs.
Mounting
1. Release the snap pin and remove the cover and capsule from the mounting brack-
et.
Float-free DRU
Float-free DRU
Do not bend the cable base.
Bend radius ≥ 80 mm
Cable
Snap pin
Cover

1. MOUNTING
1-7
2. Fix the mounting bracket with the supplied installation materials.
3. Apply the supplied silicone grease between the docking module and storage mod-
ule, then reattach the capsule.
The silicone grease is supplied with the float-free DRU, “Item no.88237 Tron-
40VDR” is marked to the tube of the silicone sealant.
Note: Do not use the silicone grease other than the supplied silicone grease. The
silicone grease is used for the maintenance of the float-free DRU, so make a
space for storage around the DCU and store the grease on the vessel.
Fixing holes
(six places)
Detailed view
Socket head
bolt
Bracket
Flat washer
Spring washer
Hex. nut
Approx. 5 cm
Approx. 5 cm
Approx. 5 cm
Approx. 5 cm
Squeeze the grease by approx. 5 cm from the tube.
Apply the grease evenly to the areas surrounded by the line.
Docking module
Storage module
Storage module

1. MOUNTING
1-8
4. Confirm the following points;
• There is no space or foreign material between the storage module and docking
module.
• The notch on the docking module is placed in the groove of the storage module.
• The antenna of the capsule is placed in the antenna holder correctly.
5. Reattach the cover and snap pin to the mounting bracket.
Recording the expiration date of the battery and hydrostatic release unit
After installing the float-free DRU, confirm the expiration date of the battery (inside the
float-free DRU (capsule)) and hydrostatic release unit, then record them to the table
in section 3.2. The expiration date is recorded during coding (see page AP-31).
• Battery in the float-free DRU
The expiration date of the battery is indicated on the sticker attached to the side of
the capsule. According to the expiration date, the numbers on the sticker are cut out
or filled with a permanent marker. For example, when the expiration date is April
2019, “2019” and “4” on the sticker are cut out or filled with a permanent marker.
After confirming the expiration date, record it to the table in section 3.2.
OK
The notch on the docking module is placed
in the groove of the storage module.
No space or foreign material between the
storage module and docking module.
WRONG
The notch on the docking module is not
placed in the groove of the storage
module.
There is space between the storage
module and docking module.
Antenna holder
Hydrostatic release unit
Capsule:
The battery is built-in.
Bracket

1. MOUNTING
1-9
• Hydrostatic release unit
The expiration date of the hydrostatic release unit is indicated on the sticker at-
tached to the side of the unit or the sticker on the side of the bracket. For the sticker
attached to the side of the unit, the numbers on the sticker are cut out or filled with
a permanent marker according to the expiration date. For example, when the expi-
ration date is June 2016, the numbers below the “2016” and “JUN” on the sticker
are cut out or filled with a permanent marker.
For the sticker attached to the side of the bracket, the expiration date is recorded in
the field shown below.
After confirming the expiration date, record it to the table in section 3.2.
Note: If the expiration date is not recorded on the sticker, record it on the sticker,
referring to the sticker attached to the side of the hydrostatic released unit.
The expiration date is indicated on this sticker.
Example: When the expiration date is April 2019.
“2019” is cut out or filled
with
a permanent marker.
“4” is cut out or filled with
a permanent marker.
Example: When the expiration date is June 2016.
The number below “2016” is cut out or
filled with a permanent marker.
The number below “JUN” is cut out or
filled with a permanent marker.
The expiration date is inscribed here.

1. MOUNTING
1-10
Attaching the SOS placard
The SOS placard is supplied with the float-free DRU. The SOS placard provides the
procedure for how to remove the capsule from the float-free DRU manually. Attach the
SOS placard to the conspicuous bulkhead or handrail near the float-free DRU.
SOS placard
148.0
210.0
198
136
3 × Ø4.0
Thickness: 2 mm
(Unit: mm)

1. MOUNTING
1-11
1.3 Junction Box VR-7022F
Mounting considerations
Select a mounting location, keeping in mind the following points:
• Locate the unit away from heat sources.
• Select a location where the shock and vibration are minimal.
• Make the maintenance space shown in the outline drawing for maintenance and
checking purpose.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• Select a mounting location considering the length of the cables to be connected to
this unit.
• After fastening the unit, apply the supplied silicone grease (KE-347-W-100) to the
fixing holes to prevent corrosion.
Mounting
Fasten the unit with two bolts (M8, local supply) on a bulkhead.
Fixing holes (two places):
Apply the supplied silicone grease
after fastening the unit.

1. MOUNTING
1-12
1.4 Remote Alarm Panel VR-7017
Mounting considerations
Select a mounting location, keeping in mind the following points:
• Locate the unit away from heat sources.
• Select a location where the shock and vibration are minimal.
• Locate the unit away from places subject to water splash and rain.
• Make the maintenance space shown in the outline drawing for maintenance and
checking purpose.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• Select a mounting location considering the length of the cable to be connected to
this unit.
Mounting
The remote alarm panel is designed to be flush-mounted in a console.
1. Make a mounting hole in the mounting location and prepare four pilot holes, refer-
ring to the outline drawing at the back of this manual.
2. Remove two binding screws (M3x6) to detach the back cover of the unit.
3. Pass the cable through the mounting hole.
4. Connect the cable to the unit. For details of connection and wiring, see section 2.4
and interconnection diagram at the back of this manual.
5. After wiring, reattach the back cover.
Set the tabs on the back cover to the holes in the unit, then fix it with the screws.
Binding screw
(2 pcs)
Back cover
Remote alarm panel
Back cover
Back cover
