INSTALLATION MANUAL
COLOR DGPS/PLOTTER GP-1850WD
COLOR GPS PLOTTER GP-1850W
SAFETY INSTRUCTIONS
SYSTEM CONFIGURATION..................................................................................i
EQUIPMENT LISTS..............................................................................................ii
1. INSTALLATION.................................................................................................1
1.1 Installation of Display Unit...............................................................................................1
1.2 Installation of Antenna Unit..............................................................................................4
2. WIRING .............................................................................................................5
3. INITIAL SETTINGS...........................................................................................9
3.1 NMEA Setting..................................................................................................................9
3.2 Output Data Sentences.................................................................................................11
3.3Antenna Height..............................................................................................................12
3.4 DGPS Setting................................................................................................................13
4. INCORPORATION OF DGPS BEACON RECEIVER KIT
(for GP-1850W)...............................................................................................15
PACKING LISTS ............................................................................................... A-1
OUTLINE DRAWINGS...................................................................................... D-1
INTERCONNECTION DIAGRAM ......................................................................S-1
Back

SAFETY INSTRUCTIONS
Safety Instructions for the Installer
WARNING
Do not work inside the
equipment unless totally
familiar with electrical
circuits.
Hazardous voltage which can
shock, burn or cause serious
injury exists inside the equip-
ment.
Turn off the power at
the mains switchboard
before beginning the
installation.
Post a sign near the
switch to indicate it
should not be turned on
while the equipment is
being installed.
Fire, electrical shock or
serious injury can result if the
power is left on or is applied
while the equipment is being
Ground the equipment to
prevent electrical shock
and mutual interference.
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or equipment damage. The
voltage rating appears on the label at the
rear of the display unit.
Use the correct fuse.
Use of a wrong fuse can cause fire or
equipment damage.
Keep the following compass safe
distance.
Standard Steering
Display unit 0.5 m 0.3 m
CAUTION

This page is intentionally left blank.

i
SYSTEM CONFIGURATION
The GP-1850W/1850WD mainly consists of a display unit and a GPS antenna.ADGPS
beacon receiver is provided inside the display unit for GP-1850WD type. The mini chart
card drive in the display unit loads electronic charts. External equipment which may be
connected include an autopilot and a DGPS beacon receiver (GP-1850W).
Ship's mains
12–24 VDC
External equipment
(Autopilot, etc.)
DGPS beacon receiver
Antenna unit
Receives signal from
GPS satellite and beacon
reference station (GP-1850WD
only).
Display unit
Ship's position is
calculated in longitude
and latitude from signal
received from the an-
tenna unit and displayed
on the screen.
Antenna unit GPA-017
(GP-1850W)
Antenna unit GPA-019
(GP-1850WD)
Category of Units
Unit Category
Display unit
Antenna unit Exposed to weather Exposed to weather
: Option
: Local Supply
Rectifier
RP-62
Ship's mains
100/110/115/220/230 VAC
1 , 50/60 Hz

ii
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Display Unit GP-1850W-E - 1
GP-1850WD-E -
Antenna Unit GPA-017 -
-1for GP-1850W
GPA-019 for GP-1850WD
Fuse
Power cable, cable assy.
Spare Parts* SP14-02501 004-375-260
1
Installation
Materials* CP14-05200 000-041-496 1
Accessories* FP14-02410 000-041-535 1 FP14-02401, FP14-02403
*: Refer to Packing list at the end of this manual.
Optional equipment
Name Type Code No. Remarks
DGPS Beacon
receiver kit
GR-7000A-1650-10N-019 000-041-650 GPA-019, GR-7000A
GR-7000A-1650-15N-019S 000-041-653 GPA-019S, GR-7000A
Antenna cable assy. TNC-PS-3D-15 000-133-670 15 m, for antenna cable
extension
Antenna cable set
CP20-01700 004-372-110 8D-FB-CV *30M* and CP20-01701, for antenna
cable extension
CP20-01710 004-372-120 8D-FB-CV *50M* and CP20-01701, for antenna
cable extension
Cable Assy. MJ-A7SPF0003-050 000-136-730-01
Mast mount fixture CP20-0111 004-365-780
Right-angle antenna
base No.13-QA330 000-803-239 for antenna unit mounting
L-angle antenna base No.13-QA310 000-803-240
Antenna base
for rail mounting No.13-RC5160 000-806-114
GPA-019S
GPA-017S
GP-1850WD
GP-1850W
-
-
Antenna Unit

EQUIPMENT LISTS
iii
Optional equipment (con’t)
Name Type Code No. Remarks
Rectifier PR-62
000-013-484 for 100 VAC
000-013-485 for 110 VAC
000-013-486 for 220 VAC
000-013-487 for 230 VAC
for radar,
6P-4P, 5 m
for radar,
6P-4P, 10 m
for navaid or E/S, 6P-6P,
5 m
for navaid or E/S, 6P-6P,
10 m
Cable Assy.
MJ-A6SPF0011-050 000-132-244
MJ-A6SPF0011-100 000-132-336
MJ-A6SPF0012-050 000-134-424
MJ-A6SPF0012-100 000-133-817
RAM Card 00RAM02MC-004 004-371-790 2MB
Remote controller RMC-185-E 004-375-300 Conttoller, vinyl cover,
battery
C-MAP
modification kit 1650/1850-MAP 004-376-420

EQUIPMENT LISTS
i
v
This page is intentionally left blank.

1
1. INSTALLATION
1.1 Installation of Display Unit
Mounting considerations
The display unit can be installed on a tabletop, on the overhead or flush mounted in a
console or panel.
OverheadTabletopHard Cover
Tabletop, overhead mounting methods
When selecting a mounting location for the display unit keep the following in mind:
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away electromagnetic field generating equipment such as motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of
the unit and leave slack in cables.
• Amagnetic compass will be affected if placed too close to the display unit. Observe the
following compass safe distances to prevent disturbance to the magnetic compass:
Standard compass: 0.5 meters
Steering compass: 0.3 meters

1. INSTALLATION
2
• Rubber foot which absorb vibration (supplied) maybe attached as below if vibration is a
problem.
45 5mm
Aline with edge
of hanger.
Rubber foot
TM-166 No.18 black
Mounting procedure
Follow the procedure below to mount the display unit on a tabletop or the overhead.
Tabletop, overhead mounting
1. Fix the hanger by four tapping screws 5 X 16.
2. Screwknob bolts in display unit, set it to hanger, and tighten knob bolts.
3. Attach hard cover to protect LCD.
WARNING
Tabletop, overhead mounting of display unit

1. INSTALLATION
3
Flush mounting
Note: Use supplied pan head screws when the thickness of the bulkhead is from 11 to 14
mm. For bulkhead which exceeds 14 mm in thickness the length of the pan head
screws should be bulkhead thickness plus 7.3±1.5 mm.Also the length of B should
max. 7mm.
BA
1. Prepare a cutout in the mounting location whose dimensions are as shown on the next
page.
2. Fix the display unit by six pan head screws M4 X 20. Refer to the outline drawing on
page D-2.
Flush mount
Pan head screws
(Cutout for flush mount)
147 0.5
89 0.5
143 1
4.5
50
244 1
15 0.5
238 1
242 0.5
6-R2.25
Flush mounting of display unit

1. INSTALLATION
4
1.2 Installation of Antenna Unit
Mounting considerations
Install the antenna unit referring to the installation diagram on page D-3 or D-4. When
selecting a mounting location for the antenna unit, keep in mind the following points:
• Select a location out of the radar beam. The radar beam will obstruct or prevent reception
of the GPS satellite signal.
• The location should be well away from a VHF antenna.A GPS receiver is interfered by a
harmonic wave of a VHF antenna.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Mount the antenna unit as high as possible. Mounting the antenna unit as high as
possible keeps it free of interfering objects and water spray, which can interrupt reception
of GPS satellite signal if the water freezes.
• If the antenna cable is to be passed through a hole which is not large enough to pass the
connector, you may unfasten the connector with a needle nose pliers and 3/8-inch
open-end wrench. Refasten it as shown in the figure below after running the cable
through the hole.
Center pin (soldered)
Clamp nut
Connector shell
Gasket (reddish brown)Washer
Shield
How to assemble the connector

5

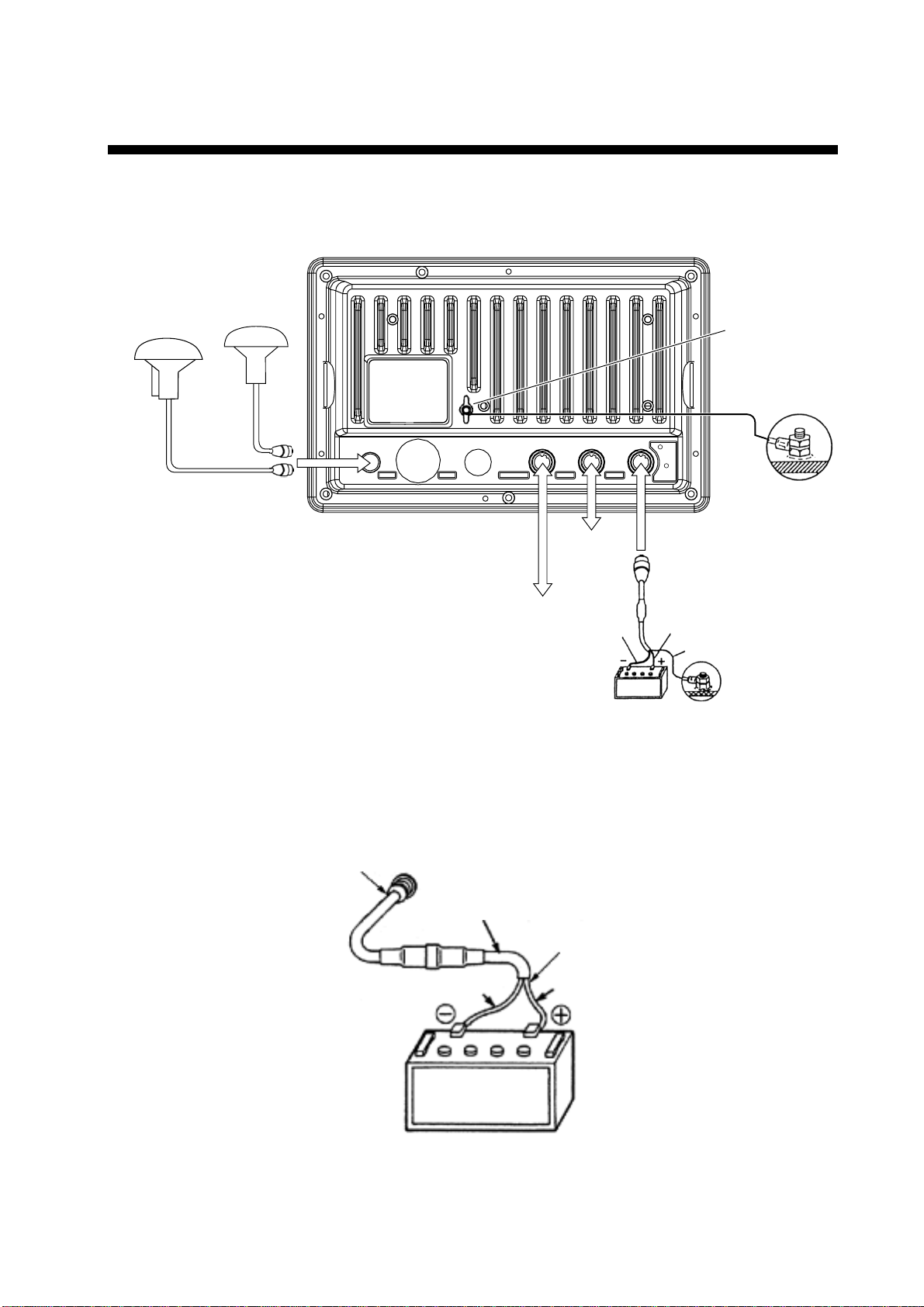

2. WIRING
All wiring are terminated at the rear of the display unit.
ANT XDR TEMP/SPD DGPS NMEA
+ GND
1 3
2
-
12 - 24
VDC
Display unit
Ground
Earth terminal
Antenna unit
GPA-017
(GP-1850W)
DGPS beacon receiver
(option for GP-1850W,
RS-232C only)
External
equipment
Black White
Shield
GPA-019
(GP-1850WD)
Display unit, rear view
Power cable
Connect the power cable to the power connector. Connect the leads to the battery (12 or 24
VDC); white to plus(+) terminal and black to minus(-) terminal.
Cable connector
Power cable
w/fuse (5A)
Lead wire
White
Black
BATTERY
Connecting the power cable to the battery

2. WIRING
6
Antenna unit
Connect the antenna cable to theANT connector.
Ground
The display unit contains several CPUs. While they are operating, they radiate noise, which
can interfere with radio equipment. Ground the unit to prevent interference. The grounding
wire should be 1.25 sq or larger and as short as possible. Connect the grounding wire to
ship's ground. On a fiberglass boat, it is best to install a ground plate that measures about
20 cm by 30 cm on the outside of the hull bottom to provide a ground point. If this is not
practical, the engine block can be used.
Ground the equipment to
prevent electrical shock
and mutual interference.
CAUTION
Note: Use a “closed” lug to make the ground connection at the display unit. Do not use an
“open-type” lug ( ).
Extending antenna cable length
The standard cable is 10 m long. For extension, in case of the GPA-019S or GPA-017S, an
antenna cable set of 15m, 30 m or 50 m is available. Extension cable cannot be used with
the GPA-017 or GPA-019.
Cable length Necessary parts Code No.
15 m TNC-PS-3D-15 000-133-670
30 m CP20-01700 004-372-110
50 m CP20-01710 004-372-120

2. WIRING
7

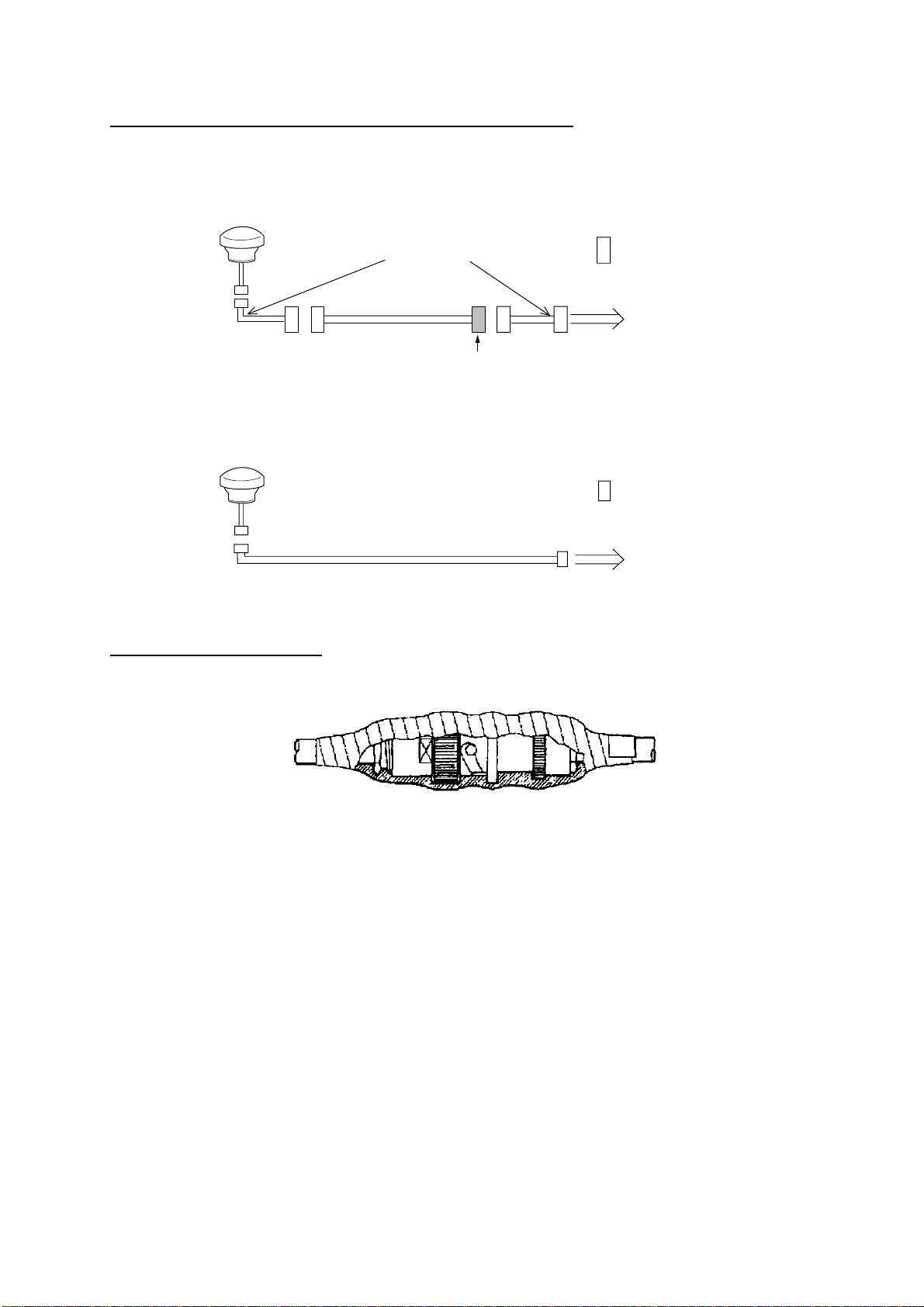

Extension cable line-up (in case of 15 m, 30 m or 50 m)
Fabricate the end of the antenna cable and attach the coaxial connector. Details are shown
on the page 8.
Antenna unit
GPA-019S/017S
1 m Antenna cable
30 m or 50 m 1 m
Fabricate locally. (See the page 8.)
To display unit
: Connector
Conversion
cable assy.
Cable extension (CP20-01700, CP20-01710)
Antenna unit
GPA-019S/GPA-017S
Antenna cable
15 m To display unit
: Connector
Cable extension (TNC-PS-3D-15)
Waterproofing connector
Wrap connector with vulcanizing tape and then vinyl tape. Bind the tape end with cable-tie.
Waterproofing connector

2. WIRING
8
How to attach the N-P-8DFB connector
Outer sheath Armor Dimensions in millimeters.
Inner sheath shield Remove outer sheath and armor by the dimensions
shown left.
Expose inner sheath and shield by the dimensions
shown left.
Cut off insulator and core by 10mm.
Twist shield end.
Ship on clamp nut, gasket and clamp as shown left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90°from one
another.
Fold back aluminum foil onto shield and trim.
Expose the insulator by 1mm.
Expose the core by 5mm.
Slip the pin onto the conductor. Solder them together
through the hole on the pin.
Insert the pin into the shell.Screw the clamp nut into
the shell.
(Tighten by turning the clamp nut. Do not tighten by
turning the shell.)
Cover with heat-shrink tubing and heat.
30 10
Clamp
nut Gasket
(reddish
brown)
Clamp
Aluminum foil
Trim shield here.
Trim aluminum
tape foil here.
Insulator
1
5
Clamp nut Pin
Shell
Solder through
the hole.
50 30
Fabrication of coaxial cable

9
3. INITIAL SETTINGS
3.1 NMEA Setting
NMEA port
This setting should be done when connecting with other equipment, autopilot, radar or
remote display.
1. Press the [MENU] key.
2. Press the CONFIGURATION soft key.
3. Press the SETUP NMEA PORT1 soft key.
4. Press the cursor pad to select FORMAT.
5. Press the EDIT soft key to display the following window.
OUTPUT FORMAT
▲
NMEA0183 Ver1.5
NMEA0183 Ver2.0
▼
DGPS 3D
SETUP
PORT1
ENTER
CANCEL
▲
Output format window (PORT 1)
6. Select NMEA version depending on the specification of the equipment connected. The
selected item is indicated by black button.
7. Press the ENTER soft key.
8. Press the [PLOT] key to return to the plotter display.

3. INITIAL SETTINGS
10
DGPS port
Set the following when connecting with DGPS beacon receiver GR-80 or the DGPS beacon
receiver is incorporated, PC to the DGPS port.
Note: Signal level for DGPS port is RS232C.
1. Press the [MENU] key.
2. Press the CONFIGURATION soft key.
3. Press the SETUP NMEA/DGPS PORT 2 soft key.
4. Select FORMAT, and then press the EDITsoft key.
The following window appears.
FORMAT NMEA 0183
VER 1.5▲▲▲
OUTPUT FORMAT
NMEA0183 Ver1.5
NMEA0183 Ver2.0
RTCM104 (EXTRN)
RTCM104 (INTRN)
DGPS 3D
SETUP
PORT2
ENTER
CANCEL
▼
▲
RTCM104 (OUTPUT)
▲
Output format window (PORT 2)
5. Select NMEA version. The selected item is indicated by black button.
NMEA0183 Ver1.5/2.0: Select one when connecting PC or RS-232C equipment.
RTCM104 (EXTERN): Select this when connecting external DGPS beacon receiver.
RTCM104 (INTRN): Select this for built in internal DGPS beacon receiver.
RTCM104 (OUTPUT): Select this when outputting differential data of the internal
DGPS beacon receiver to other GPS navigator.
Note 1: Note that you cannot setup sentences when you select RTCM104 at the format.
Note 2: For RS-422 format, the level converter (IF-1432) is required for connection of
external equipment.
6. Press the ENTER soft key.
7. Press the [PLOT] key to finish.

3. INITIAL SETTINGS
11
3.2 Output Data Sentences
Select output data sentences for external equipment as follows.
1. Press the [MENU] key.
2. Press the CONFIGURATION soft key.
3. Press the SETUP NMEA PORT1 soft key.
4. Press the SELECTSNTNC. soft key to display the SELECT SENTENCE window.
AAM
APB ON
BOD
BWR*
GGA
GLL ON
RMA
RMB ON
RMC ON
VTG ON
WPL
XTE
ZDA ON
DGPS 3D
SELECT
SNTNC.
ON/OFF
RETURN
SELECT SENTENCE
▲
▲
*: BWR for Rhumb line
BWC for Great circle
Select sentence window
5. Select data sentence you want to output.
6. Press the ON/OFF soft key. To output data, select ON.
7. Repeat to select other sentences.
8. Press the RETURN soft key.
9. Press the [PLOT] key to return the plotter display.

3. INITIAL SETTINGS
12
Input/Output data sentences
Port Format Data Remarks
NMEA
Input NMEA-0183
Ver. 2.0
Ver. 1.5
IEC1162
TLL*1, MTW, WPL*1, DBT/DPT WPL: GP only NMEA Ver 1.5: DBT
NMEA Ver 2.0: DPT
Output
AAM, APB, BOD, BWC/BWR,
GGA, GLL, RMA, RMB, RMC,
VTG, WPL, XTE, ZDA, MTW,
GTD*2
GREAT CIRCLE: BWC
RHUMB LINE: BWR
DGPS
Input NMEA-0183
Ver. 2.0
Ver. 1.5
RS232C
RTCM104
TLL*1, MTW, WPL*1, DBT/DPT ylnoPG:LPW TBD:5.1reVAEMN TPD:0.2reVAEMN
Output
AAM, APB, BOD, BWC/BWR,
GGA, GLL, RMA, RMB, RMC,
VTG, WPL, XTE, ZDA, MTW,
GTD*2
GREAT CIRCLE: BWC
RHUMB LINE: BWR
*1: Cannot be input consecutively.
*2: Output automatically when LC or LA is selected.
3.3 Antenna Height
Enter height of antenna above water. (Default setting: 5 m)
1. Press the [MENU] key.
2. Press the GPS/DGPS/TD OPTIONS soft key.
3. Press the GPS SETUP OPTIONS soft key.
4. SelectANT. HEIGHT.
5. Press the EDIT soft key.
ANT. HEIGHT
00 5 m
Ant. height window
6. Enter the height (3 digits) of the antenna above sea level using the numeric keys.
If you enter wrong antenna height, press the CLEAR soft key.
7. Press the ENTER soft key.
8. Press the [PLOT] key to return the plotter display.
