Furuno FAR-3210 Manual

The purpose of this guide is to provide the
basic operation for this equipment. For more
detailed information, see the Operator's Manual.
All brand and product names are trademarks,
registered trademarks or service marks of their
respective holders.
Radar Controls
1
See the next page.
Status LED
The color and state of the LED change
according to system or alert status.
Trackball module
Operates similar to a PC mouse.
USB port (under cover)
For connection of USB flash drive.
Power switch
Turns the system on or off.
(This switch does control
monitor on/off.)
UNDO
Undoes edit or text input
when creating a radar
map, route, user chart.
RANGE
Selects radar range (radar
and chart radar modes),
chart scale (chart mode).
ALARM ACK
Acknowledges alerts; silences the
audio alarm.
Rotary control for EBL
Adjusts the active EBL.
EBL1, EBL2
Activates or deactivates the respective EBL.
Rotary control for VRM Adjusts the diameter of the active VRM.
VRM1, VRM2 Activates or deactivates the respective VRM.
Model
CHART RADAR
English
Operator's Guide
FAR-3210/3220/3230S/3230S-SSD/3310/3320/3330S/
3330S-SSD/3320W/3330SW/3210-BB/3220-BB/
3230S-BB/3230S-SSD-BB/3220W-BB/3230SW-BB
BRILL
Rotate: Adjusts the
brilliance of a FURUNO
monitor.
Push: Selects a color
palette.
A/C RAIN
Rotate: Suppresses rain clutter.
Push: Toggles between manual
and automatic rain clutter
adjustment.
A/C SEA
Rotate: Suppresses sea clutter.
Push: Toggles between manual
and automatic sea clutter
adjustment.
GAIN
Adjusts the
sensitivity of the
radar receiver.
InstantAccess knob
Selects the buttons on the
InstantAccess bar.
ESC
Goes back one step in current
operating sequence on the
InstantAccess bar.
(Product Name: MARINE RADAR)
VIEW/HIDE
Radar mode, chart radar mode:
Shows or hides AZ box, Drop mark
boxes, Mark box, PI line box, Trial
box.
Chart mode: Shows or hides EBLs,
InstantAccess bar, [Overlay/NAV
Tools] box, [Route information] box,
VRMs.
ACQ/ACT
TT: Acquires cursor-selected target, for target
tracking.
AIS: Activates cursor-selected sleeping AIS
target.
TARGET DATA
Displays the detailed data for selected TT, AIS
target, in the TT/AIS information box.
TARGET CANCEL
TT: Stops tracking cursor-selected tracked
target.
AIS: Sleeps cursor-selected activated AIS target.
Long-press to erase all displayed TT target data.

Radar Controls (con’t.)
2
HL OFF
Temporarily erases everything except
radar echoes when pressed and held
down.
EBL OFFSET
Activates or deactivates the offset EBL.
MODE
Selects a presentation mode.
1
HL
OFF
2
EBL
OFFSET
3
MODE
STBY/TX
Toggles the radar between
standby and TX.
MENU
Opens, closes the menu.
CANCEL
Cancels the changes made on
the currently selected menu.
ENTER
Confirms selection on menu.
MENU
CANCEL
ENTER
STBY
TX
VECTOR TIME
Sets the vector time (length) for TT and AIS targets.
VECTOR MODE
Sets the vector mode (relative, true) for TT and AIS targets.
TARGET LIST
Displays AIS, TT data in the target list.
7
VECTOR
TIME
8
VECTOR
MODE
9
TARGET
LIST
TRAIL
Short press: Turns the echo trail display on or off.
Long press: Resets all trails.
PANEL
Adjusts the backlighting of the keys.
MARK
Inputs selected mark, at the position selected.
0
PANEL
TRAIL
MARK
OFF CENTER
Puts sweep origin at the cursor location.
CU/TM RESET
Course-up: Resets heading line to 000°.
True motion: Moves own ship position 75% of
the radius in stern direction.
INDEX LINE
Short press: Selects an index line.
Long press: Activates or deactivates selected
index line.
4
OFF
CENTER
5
CU/TM
RESET
6
INDEX
LINE

3
Radar Display Indications
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Status bar
(see page 5)
Cursor position box
This box shows
- Latitude and longitude of the
cursor position.
- Range and bearing to the
cursor position.
- TTG to the cursor position.
Sensor information, datum box
Shows your ship's heading, heading source, ship's speed, water tracking speed,
speed source, course over ground, speed over ground, course and speed source,
ship’s position, position source, chart datum.
Menu
Drop-down menu with various radar and chart radar functions.
NAV data/Route information box
Provides various navigation data and route information.
TT/AIS setting box
(see page 8)
Sets the parameters for TT
and AIS targets.
Past POSN, Trail box
Sets the parameters for the
past position display and
target trails.
Alert box
Shows alert messages by
alert name and alert number.
Acquisition zone box
Sets an acquisition zone for
TT, AIS.
Target List button
Displays the TT and AIS
target list.
Trial maneuver
box
Sets the parameters
for the trial maneuver.
Drop mark 2 box
Shows the bearing
and range to the drop
mark 2.
VRM1, 2 boxes
Shows the range and TTG* to VRM1, VRM2.
*: Function activated from menu.
EBL1, 2 boxes
Shows the bearing to EBL1, EBL2.
Drop mark 1 box
Shows the bearing
and range to the drop
mark 1.
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ACE
OFF
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ACE
OFF
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ACE
OFF
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ACE
OFF
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ACE
OFF
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Indication
area
ON
ON
InstantAccess bar (see page 6)
Quick access to often-used radar, chart radar functions.
PI line box
- Adjusts the direction and width of the parallel
index lines.
- Activates or deactivates the parallel index lines.
Watch box
Counts down the time remaining until the
buzzer sounds to alert the operator to view the
radar picture.
Mark box
Selects the mark to inscribe on the radar
display.
6
Tuning bar
Shows tuning status except for
solid state radar.
Range/Presentation
mode box
- Selects the radar range.
- Selects the presentation
mode.
REF point box
Selects the reference
point (antenna or CCRP)
for measurements
(range, bearing, etc.) and
markers (position, etc.)
6

4
Radar Display Indications (con’t)
Depth : 22.5 m
Water
TEMP : 10.5°C
REL : 006.3°R
Wind : 12.1 m/s
Current : 121.3°R
1.7 kn
NAV data Route 1 Route 2
N
E
S
W
0
10
20
30
40
50
-30 -20 -10 min m
Message
area
Heading line
Indicates ship's heading.
Bearing scale
The bearing scale provides an estimate of
the bearing to a target.
EBL1
Measures the bearing to a target.
EBL2
Measures the bearing to a target.
Own ship marker
(Blue horizontal line)
Marks your ship's position.
Stern marker
Marks location of stern.
North marker
Marks North.
VRM1
Measures the range to a target.
VRM2
Measures the range to a target.
Drop mark
Finds the range and bearing to drop
mark position.
Range rings
Provides an estimate of the range
to a target.
6

Status Bar (radar, chart radar mode)
5
Status Bar
RAIN
Reduces rain clutter.
SEA
Reduces sea clutter.
User profiles, Settings menu
Manages user profiles;
opens the Settings menu.
GAIN
Adjusts the gain of
the radar receiver.
Working indicator
Rotates clockwise if the
system is working properly.
Time
Displays the time.
Date
Displays the date;
selects the time to
use, local or UTC.
Operating mode
Selects a mode: radar or chart for radar.
STBY TX
Toggles the radar between
stand-by and transmit.
Antenna
Selects an antenna.
Customize Echo Presets the radar controls for specific navigation purpose;
for example, set up to use the radar in congested waters.
Chart database Selects the IMO chart database (base, primary, standard or all).
Available in the chart radar mode.

Instant Access Bar (radar, chart radar mode)
6
IR
OFF
ES
OFF
EAV
OFF
HL
OFF
CU/TM
reset
PULSE
M3
TUNE
MAN
MAP
ON
Chart
OFF
Chart
Disp
OWN
AIS
AIS
Day
88
MOB
Capture
Takes a screenshot.
MAP ON/OFF
Shows or hides the radar map marks on the radar display,
in the radar mode.
Chart ON/OFF
Shows or hides the electronic chart.
Chart Disp
Shows or hides various chart objects.
MAP
ON
Chart
OFF
Chart
Disp
Radar mode
Chart radar mode
Chart ON/OFF
Shows or hides the electronic chart.
Coast
Line
Only
Chart
Top
Layer
Chart
DISP
Menu
Sel
DISP
Object
Chart
Legend
Shows only the coastline when clicked.
Puts the chart objects on the top layer when clicked.
Shows chart legend.
Opens the [SEL DISPLAY OBJECT] menu.
Opens the [CHART DISPLAY] menu.
PULSE
M3
TUNE
MAN
PULSE
Selects the radar
pulse length.
TUNE (other than solid state radar)
Tunes the radar receiver.
IR
OFF
ES
OFF
IR
Activates or deactivates
the interference rejector.
ES
Activates or deactivates
the echo stretch.
EAV
Activates or
deactivates the
echo averaging.
OWN
AIS
AIS
Day
88
OWN AIS
Shows the [VOYAGE DATA] menu, to set your ship’s AIS data.
AIS message
Displays screen for “received AIS messages”.
Palette
Selects a color palette.
BRILL
Adjusts the brilliance of a FURUNO monitor.
UNDO
Restores previous condition in radar map and text input.
TX CH (for solid state radar)
Selects the transmit frequency.
CU/TM reset
Resets ship's position in
course-up and true motion
modes.
CU/TM
reset
HL OFF
Temporarily erases everything
but radar echoes.
HL
OFF
TX CH
1
Automatic Clutter Elimination
(ACE)
Automatic Clutter
Elimination (ACE) mode
The indication for the EAV
button is grayed out.
MOB
MOB
Enters a MOB mark at the current position.
MAP
OFF
Chart
ON
Chart
Disp
*1
*2
*1*1
*2*2
Activates or deactivates the Automatic Clutter
Elimination (ACE) function.
Automatic Clutter Elimination (ACE) automati-
cally sets the gain, rain and sea clutter
controls.
Automatic Clutter Elimination
(ACE) function is off
EAV
OFF
EAV
OFF
ACE
OFF
ACE
ON
ACE
OFF
ACE
OFF
Automatic Clutter Elimination
(ACE) function is on

Symbol Name
Sleeping AIS target
(green)
Activated AIS target
(green)
Association AIS target
(green)
Dangerous AIS target
(red)
Dangerous association
AIS target (red)
Lost AIS target (red)
Click the
radar echo.
TT symbol
(under acquisition)
Click the
TT symbol.
Right-click the
display area to
show the
context-sensitive
menu.
Select
[Target
Cancel]
then click
the TT
symbol.
FURUNO
Sleeping
target
TT symbol
(target acquired)
Click the AIS
target symbol.
Activated
target
Symbol Name
Target under automatic
acquisition (red)
Acquired target (green)
Dangerous target (red)
Lost target (green)
Click
7
Target under manual
acquisition (green)
AIS Operations
How to manually acquire a target for tracking
How to show a tracked target’s data
How to stop tracking a target
How to activate a sleeping target How to show an AIS target’s data
AIS symbols
TT symbols
TT Operations
When you convert a sleeping target to an activated target, the
activated target's course and speed are shown with a vector.
You can easily judge target movement by monitoring the vector.
Vector ROT
Heading line

TT/AIS
The TT/AIS setting box shows or hides the TT and AIS displays, and sets the CPA/TCPA alarm, the past position display, vector time and reference, etc.
Sets TT
acquisition
method; hides
TT display.
Shows or hides
AIS display.
Sets TT/AIS
vector reference.
Sets TCPA condition for
TT/AIS CPA/TCPA alarm.
Sets TT/AIS lost target filter
conditions.
Sets plot
interval for
TT/AIS
past
position
displays.
Disables or enables
TT/AIS CPA/TCPA
alarm.
Sets CPA condition
for TT/AIS CPA/TCPA
alarm.
Sets TT/AIS vector time.
Click to set association criteria (with arrow).
<: AIS symbol used for association target.
>: TT symbol used for association target.
No indication : Disables association.
8
Sets conditions for automatic
activation of AIS targets when
their CPA is within the CPA set.
Sets reference (true or REL) for
TT/AIS past position points.

EBL1 box,
EBL2 box
VRM1 box,
VRM2 box
Permanent warning box
Chart scale, presentation mode box Cursor position box
9
Chart Display Layout
Overlay/NAV
Tools box
Lower
section
InstantAccess bar
(see page 11)
Upper
section
Status bar (see page 10)
Sensor information box
Own ship functions box
Route information box
0.9 m
37
341.2°
Alert
box

Status Bar (chart for radar mode)
10
Operating mode Selects the operating mode: RADAR or CHART for RADAR.
NAVI Selects the Voyage navigation mode.
CHARTS Goes to the Chart maintenance mode.
PLAN Selects the Voyage planning mode.
OTHERS Sets system in standby.
CHART ONLY
Shows only the chart,
when left button is
pressed and held down.
STD DISP
Restores the IMO
standard display.
Chart database
Selects the pre-defined presentations
of ENC content: IMO BASE, IMO
STD or IMO ALL.
Displays the operator's
manual, chart program no.
and system information.
User profiles,
Settings menu
Manages user
profiles; opens
the Settings
menu.
Date
Displays the date; selects the
time to use, local or UTC.
How to open a drop-down list
Drop-down
list
Click button
Indicates a
drop-down list.
No use.
Time
Displays the time.
Working indicator
Rotates clockwise if
the system is working
properly.

Instant Access Bar
Voyage navigation mode Chart maintenance mode
Voyage planning mode
11
Upper section (by chart operating mode) Lower section
Record:
Records user/position
events to the event log;
accesses various logs.
Chart Legend:
Finds data about current
chart.
Viewing Dates:
Sets “display date” and
“approved until” dates.
Chart 1:
Provides overview of chart
symbols.
Adjusts the brilliance of a
FURUNO monitor.
SET:
Shows or hides chart
features; sets chart
alerts.
TWO DISP:
Splits the screen in
two, horizontally or
vertically.
AIO:
Displays Admiralty
Information Overlay.
Shows or hides
software eyboard.
Selects a color palette.
MOB:
Enters a MOB mark.
Takes a screenshot.
Restores previous
condition in route and
user chart creation.
Report:
See reports on waypoints and
voyage planning related routes
and user charts.
Guide Box:
Provides range and bearing information between the last
waypoint and the cursor position when creating a route.
Route: Creates a route (see page 12).
User Chart: Creates a user chart (see page 14).
AUTO Load:
Starts automatic installation of the
chart data (CD or DVD ROM).
Manage Charts:
Manages chart cells (grouping,
deleting, etc.).
Cell Status:
Shows the chart catalog to get info
about charts installed in the system.
License:
Manages chart licenses.
Public Key:
Manages public keys.
Manage Data:
Deletes, imports routes and user charts.
Sync Status:
Checks synchronization status.
Reconvert:
Reconverts outdated SENC charts to the
corresponding current ones.
Sync Config:
Selects ECDIS
units to synchronize.
Instant
Track
MSG:
Opens the
Message
dialog box to
manage AIS
Safety and
NAVTEX
messages.
Manual
Update:
Opens the
Manual
Update
dialog box to
insert chart
update
symbols
manually.
Mini Conning:
Shows or hides the mini conning display.
Instant Track:
Creates temporary track to return to or
deviate from monitored route.
Select:
Opens the Select Route dialog box to select
the route to follow.
Unselect:
Stops following a route.
Move to Plan:
Switches mode to Voyage planning mode to
edit route selected.
Route INFO:
Displays the Route Information dialog box.

Routes
Route
PLAN
12
Click [OK].
Enter name
for route.
Click [New].
Continue entering waypoints.
WPT1
Click a position
to mark a waypoint.
WPT3
25.8°
1470.2NM
WPT2
106.9°
1748.5NM
WPT6
WPT5
161.4°
353.3NM
WPT4
309.0°
971.4NM
WPT1
201.5°
2137.2NM
At last waypoint,
right-click and
select [Finish].
Delete WPT
Finish
Plan
-ning
How to create a route
1
2
Click [Save].

Routes (con’t.)
Manage
Data
13
Click [Select Route].
Select Route
Unselect
Move to Plan
Route INFO
Un
select
How to select a route to navigate
To stop navigating a route:
NAVI
Route
How to view route waypoint information
Click [Route Info].
Select Route
Unselect
Move to Plan
Route Info
How to delete a route
PLAN
Route
Right-click
[Route].
TC: MANUAL
TC: MANUAL
MANUAL
Right-click
[Route].
Click
[Waypoints]
tab.
Route32
AAAAAA
Route67
15 Nov 2013
15 Nov 2013
13 Nov 2013
Select a route.
Route32
AAAAAA
Route67
15 Nov 2013
15 Nov 2013
13 Nov 2013
Click
[Open].
Route selected.
Delete
Check route(s)
to delete.
1
Click [Delete].
2

User Charts
Click object to draw.
Area
Circle
14
(3) Click
(2) Click
(1) Click
(4) Right-click;
select [Finish].
How to create a line How to create a circle How to create an area
(1) Click
(2) Click
(4) Right-click;
select [Finish].
Click [Save].
Click [Save].
Click [New].
Enter name
for user chart.
Example objects
(1) Click
(2) Drag cursor;
double-click to set.
Tidal:
- Current - Predicted
Clearing line:
- NMT - NLT
Line:
- Coast - Route
- Nav - Depth
How to create a user chart
PLAN
Plan
-ning
User
Chart
(3) Click
1
2
Label:
- Label - Point
Right-click to
open options.

User Charts (con’t)
Edit
Delete
Plan
-ning
Circle or area Point on a line
Edit
DeletePoint
Select [Delete].
Select
[DeletePoint].
Manage
Data
User
Chart
Click [Mariner] tab.
Check item(s).
Right- click
Right- click the point
to delete.
15
Click [Select].
Click [Save].
UserChart1
Check chart(s)
to delete.
UserChart1
UserChart2
UserChart3
Click [User Chart]
tab.
Click.
Select user chart to link.
(Multiple selections
possible.)
Click [Save].
How to select objects to display in user chart How to link a user chart to a route
How to delete objects from a user chart
How to delete user charts
DISP SET
Symbol
DISP
1
2
3
PLAN Route
1
34
PLAN
2
1
3
3Click [Delete].
2
3
Route32
AAAAAA
Route67
15 Nov 2013
15 Nov 2013
13 Nov 2013
Route selected.
Click [Open].

Chart Operations
Control chart
objects
Control navigational
features
Control basic
chart settings
SET
Basic
Setting
DISP
Chart
DISP
Symbol
DISP
16
How to control visibility of chart objects

Chart Operations
Chart
INFO
Viewing
Dates
Manual
Update
Click object to add.
17
SET
DISP
Chart
Alert
Click [Approve All].
Click [Planning] tab.
Click
[Commit].
Select object from
Drawing type.
Click [Add].
Right-click
Select [Object INFO].
Ship on center
Clear RADAR Info
Object INFO
Chart Legend
Select an object.
Click [OK].
Right-click.
How to set safety contours and chart alerts
How to find chart object information (ENC chart)
How to manually insert a “new” chart object
How to set Display date and Approved until dates
NAVI
1
2
NAVI
1
2
Put cursor on location
where to insert object
then click.
Set safety
contours here.
Click to select chart alert type:
Red ( ): Audio+visual indications
Orange ( ): Visual indication
Yellow ( ): No indication

TT/AIS Operations
Click a target to show its information.
AIS symbols (main)
TT symbols (main)
Sleeping AIS
target
Activated AIS
target
Past position
point
(Green)
Name
Symbol
(Color)
(Green)
(Green)
Target under
acquisition
Past position
point
(Green)
Acquired
target
Name
Symbol
(Color)
(Green)
(Green)
18
Shows or hides TT display.
Shows or hides AIS display.
Sets past position
point interval (time).
Sets reference for
TT/AIS past position
display.
Vector
(ex. TT)
(ex. AIS)
Sets conditions for automatic
activation of AIS targets when
their CPA is within the CPA set.
Sets TT/AIS
vector time.
Sets TT/AIS
vector reference.
Sets CPA and TCPA conditions for
TT/AIS CPA/TCPA alarm.
Title bar
MMSI
Bearing
Range
Course over ground
Speed over ground
CPA
TCPA
Bow crossing range
Bow crossing time
Position
Scroll buttons
Heading
Navigation
status
Rate of
turn
Click to switch level of detail
Title bar
TT No.
Bearing
Range
Course over ground
Speed over ground
CPA
TCPA
Bow crossing range
Bow crossing time
Vessel name
Scroll buttons
Sets TT/AIS lost target alarm
conditions.
Disables or enables TT/AIS
CPA/TCPA alarm.
How to find target info
ABC
How to set up TT and AIS on the TT/AIS page in Overlay/NAV Tools box

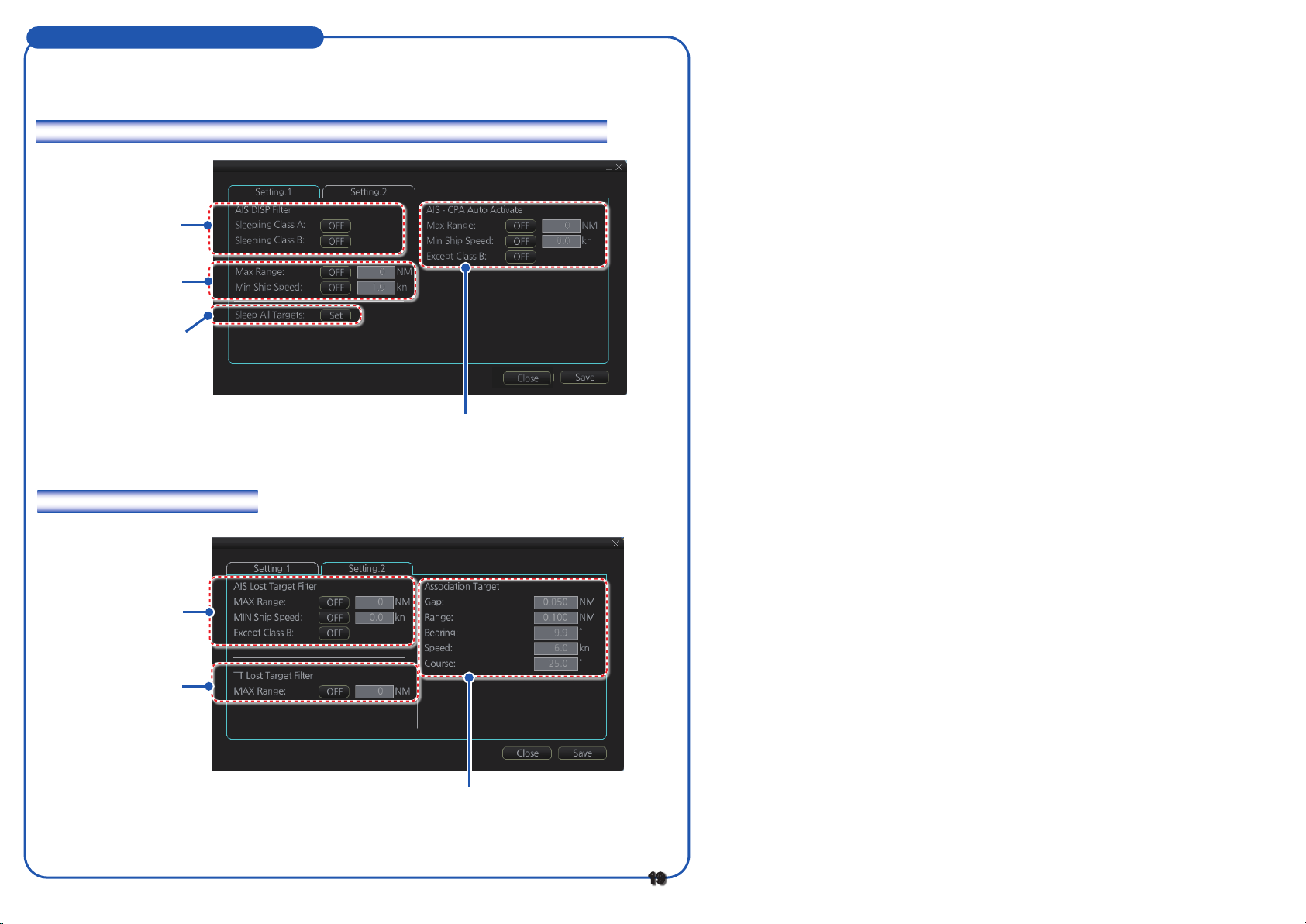

TT/AIS Operations (con’t)
Filters AIS targets
by target category.
Filters AIS targets
by range, speed.
Sleeps all activated
AIS targets.
Sets conditions to activate an AIS target
when its CPA is within the CPA alarm setting.
Sets conditions for
AIS lost target
filter.
Sets conditions for
TT lost target filter.
19
AIS filter, auto activation of AIS targets by CPA
Open the chart menu, select TT/AIS Setting and then Setting.1 or Setting.2 as appropriate.
AIS filter, how to sleep all AIS targets, auto activation of AIS targets by CPA
AIS and TT lost target filters

Sets conditions for association target filter.

PUB. NO. OSE-36160-A
(1404, YOTA) FAR-3000SERIES
www.furuno.com
00017802910
