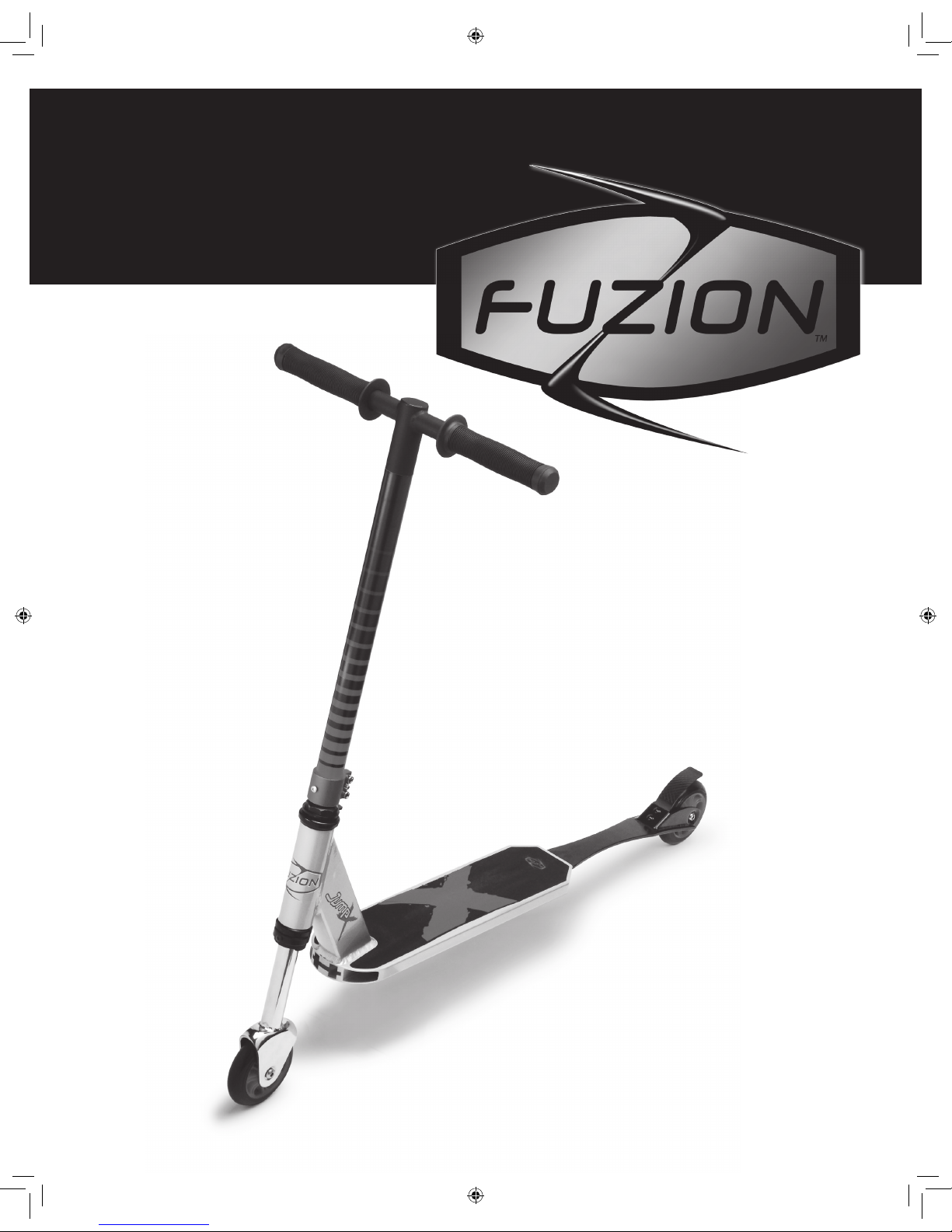

Fuzion JUMPX User manual

FUZION JUMPX
PATENT PENDING
Version: 1a-2013
JumpX
owner’s manual
FOR RIDERS AGE 8 AND OLDER

CONTENTS
BEFORE YOU START page 1
COMPONENTS page 2
ASSEMBLY page 3
ADJUSTMENT TIPS page 4
MAINTENANCE TIPS page 4
RIDING TIPS page 5
Product item number F0820
BEFORE YOU START
• Always wear proper protective equipment, such as a helmet, elbow, wrist, hand and kneepads. Always keep the
chinstrap securely buckled on the helmet. Long sleeve shirt, long pants, shoes and elbow and knee pads are mandatory.
• Wear athletic shoes (lace-up shoes with rubber soles). Don’t ride barefoot or in sandals. Keep shoelaces out of the way
of wheels or pivots.
• Use the scooter only on at, dry, level ground without loose debris like rocks or gravel. Ride on smooth, paved surfaces
away from motor vehicles. Avoid excessive speed associated with downhill rides.
• Never use the scooter at dusk or night, or in wet or icy conditions. Wet weather impairs traction, braking, and visibility.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Avoid water, speed bumps, sand, gravel, and
anything else that could cause the wheels to suddenly stop. When in doubt avoid the bumps.
• Do not exceed 140 lbs (64 kilograms) total weight on the scooter. For riders ages 8 years and older.
• Do not wear anything that obstructs hearing, visibility, or function when riding the scooter.
• Watch out for pedestrians. Avoid excessive speed.
• Never ride in trac or on the street, and watch your surroundings for pedestrians, bikes, and skateboard and scooter
riders. Use the scooter in areas free from xed or moving hazards such as poles, curbs, hydrants, walls, parked
automobiles, and trac.
• Keep hands and feet clear of steering mechanism at all times.
• Always check and secure all fasteners before every ride. Make sure the clamp is properly positioned and fully tight.
• Do not attempt to jump over large objects
• Always avoid excess speed associated with downhill rides. Avoid steep inclines and don’t ride too fast – you can lose
control and fall.
• Always replace worn or broken parts immediately. Call 1-510-550-8960 or e-mail us at [email protected]om.
AN IMPORTANT MESSAGE TO PARENTS
This manual contains important safety information. For your child’s safety, it is your responsibility to review this
information with your child and make sure that your child understands all warnings, cautions, instructions, and safety
topics. Nextsport recommends that you periodically review and reinforce the information in this manual with younger
riders, and that you inspect and maintain your child’s scooter to ensure their safety.
Read the instructions carefully and assemble the scooter accordingly to these instructions before you allow the child to
ride. This scooter requires assembly by an adult.
A CAUTION ABOUT SCOOTER RIDING
You will see people on various videos and maybe even people you know doing tricks, stunts and jumps.
These are people who have been practicing on scooters for an extended period of time. Build your skills gradually in
order to minimize risk and injury. Skateboard parks are not designed for scooters.
JumpX
owner’s manual
JumpX
owner’s manual
1
Read and understand this entire manual before using this product.
DO NOT RETURN PRODUCT TO STORE!
For assistance, contact [email protected].
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER
INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH
APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION.
RIDING TIPS
Please make sure to watch the following video
before you use your JumpX. It gives instruction
and tips on how to ride the product.
www.fuzionscooter.com/jumpxridingtips

ASSEMBLING YOUR JUMPX
For a video on how to assemble your new JumpX scooter please go to:
www.fuzionscooter.com/jumpxassembly
Sit in a chair and place the Deck
across your legs and hold the
T-Bar (Handlebar) with
one hand. Please replace 26mm
Bushing Plug when you need
stier front spring for harder
landing.
Push the T-Bar down to the top of
the Upper Headset and then twist
counter clockwise until the Three
Bolt Clamp is under and ush with
the Safety Bracket. Additional force
is required as the T-Bar gets closer to
the Upper Headset. This is required
to preload the internal spring.
Screw the three bolts through the
Safety Bracket and then through
the Three Bolt Clamp. Securely
tighten all three bolts.
Insert the Leaf Spring into the slot
at the rear of the Deck and line up
the two holes in the deck with the
two holes on the rear strut spring.
Insert the longer hex bolt through
the bottom of the Deck and insert
its hex mate through the top hole in
the Deck.
Tighten the bolt utilizing two
Allen Wrenches for the top and
bottom portions of the screw.
Repeat with the second both.
Tighten to strong pressure.
COMPONENT PARTS ASSEMBLY
JUMPX COMPONENTS LIST:
Aluminum Box Deck
T-Bar (Handlebar)
3 Screws to secure Safety Bracket & Clamp
Safety Bracket
Three Bolt Clamp
Chromed Fork
Rear Leaf Spring with Hex Bolts
6 mm Allen Wrench (2)
Upper Headset
Lower Headset
13mm and 26mm Bushing Plugs (13mm is pre-assembled)
JumpX
owner’s manual
JumpX
owner’s manual
1
2
3
4
5
7
7
7
6
8
9
9
10
11
10
8
1
2
3
4
5
6
2 3
1 2 3
654
Visit our website
www.fuzionscooter.com
for product support, replacement
parts & general help.
FAILURE TO PROPERLY ASSEMBLE AND TIGHTEN ALL BOLTS AND COMPONENTS MAY CAUSE LOSS OF SCOOTER
CONTROL AND INCREASE RISK OF FALLING. MAKE CERTAIN THAT YOU FULLY UNDERSTAND ALL THE ASSEMBLY AND
MAINTENANCE INSTRUCTIONS OR IF NOT CONTACT A QUALIFIED SCOOTER SERVICE DEPARTMENT.
13mm
26mm
Bushing Plugs
11

TIGHTENING THE CLAMP
For best tightening results, tightening all three bolts in stages. Tighten the rst bolt, then the
second bolt and then the 3rd. Repeat this process until all three clamps are very snug and tight. It
is essential that the t-bar is snug with the headset and a gap does NOT exist.
TIGHTENING THE REAR LEAF SPRING
Be sure that the bolts that attached the leaf spring to the body are tightening to strong pressure.
Maintenance Tips
It is the responsibility of the owner or guardian to periodically inspect the wheels, nuts, T-bar, leaf
spring and bearings for wear and tear, and check for proper tightness. Always make sure to tighten
bolts and nuts before you ride.
Eventually wheels, self locking nuts and bearings wear and need replacement. The life of these
components depends on the kind of riding done. Lots of braking will wear out wheels and riding
in dirty or wet conditions will prematurely shorten bearing and fasteners life. Worn wheels and
bearings are considered normal wear-and-tear and are not covered by the Nextsport Limited
Warranty. Wheels other than genuine Fuzion wheels may not be compatible with your scooter.
Always use genuine Fuzion replacement parts.
CLEANING YOUR SCOOTER
Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they
may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners as they
may damage or dissolve the plastic components or soften the decals or decal adhesives.
ADJUSTMENT TIPS
4
ALWAYS, BEFORE YOU RIDE
WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Proper inspection and
maintenance of your scooter can reduce the risk of injury. Check all fasteners before
every ride. Always inspect your scooter before riding, and maintain it regularly. Replace
worn or broken parts immediately. Adults must assist children in the assembly and initial
adjustment procedure.
WARNING: REGARDING USEE OF NON-NEXTSPORT PRODUCTS WITH YOUR FUZION
SCOOTER. Your scooter has been built to Nextsport’s design specications. All the original
equipment supplied at the time of sale was selected on the basis of compatibility with
the frame, wheels, pivots, and all other parts. Certain after-market products may or may
not be compatible with your FUZION scooter. Call Nextsport’s customer service prior to
modifying or replacing any component with non-factory specied parts.
WARNING: CHECK ALL LOCAL LAWS REGARDING SCOOTER USE.
Check all local laws and regulations to see where and how you may use your FUZION
scooter legally. In many states and local areas scooter riders are required BY LAW to wear
a helmet. Check and obey local laws and regulations regarding laws governing helmet use
and scooter operation in your area.
WARNING: BRAKE MECHANISM WILL GET HOT FROM CONTINUOUS USE. Do not touch
after braking.
WARNING: REMEMBER TO ALWAYS WEAR PROTECTIVE GEAR. This includes a helmet,
elbow and knee pads.
RIDING TIPS
Please make sure to watch the
following video before you use
your JumpX. It gives instruction
and tips on how to ride the product.
www.fuzionscooter.com/jumpxridingtips
JumpX
owner’s manual
5
JumpX
owner’s manual
RIDER’S CHECK LIST
Remember to check before riding:
Brake Check
Tight clamp
Tighten rear leaf spring bolts
Wheels and axles are tight & secure
Wheels spin freely
Safety gear in place

WE WANT TO HEAR FROM YOU
Visit us online at www.fuzionscooter.com for event information, product news, videos and much
more! Follow Team Fuzion online and share your riding videos with us on Facebook and YouTube.
LIMITED WARRANTY
This Limited Warranty is the only warranty for this Fuzion scooter. There is no other expressed or
implied warranty. This Limited Warranty will be void if the product is ever:
• Used in a manner other than for recreation or transportation
• Modied in any way
• Rented
The Manufacturer warranties this product to be free of manufacturing defects for a period of six
months from date of purchase. This Limited Warranty does not cover normal wear and tear, or any
damage, failure, or loss caused by improper assembly, maintenance, storage, or extreme use of the
scooter.
Check local laws and regulations to see where you can ride your scooter legally. The manufacturer
is not liable for incidental or consequential loss or damage due directly or indirectly from the use
of this product.
To obtain service under this warranty you must, within the warranty period, contact Nextsport
by email at [e-mail]. Purchase additional parts and replacements at www.
nextsportstore.com. Nextsport will provide warranty replacements at its sole discretion. Authorized
warranty services are ONLY available from Nextsport. Specications are subject to change without
notice.
FUZION SCOOTERS ARE PROTECTED BY
US AND INTERNATIONAL PATENTS AND TRADEMARKS.
© Copyright 2013 Nextsport
All rights reserved.
Nextsport, Inc.
2340 Powell Street, Suite 198
Emeryville, CA 94608
www.fuzionscooter.com
[e-mail]
www.facebook.com/fuzionjumpx www.youtube.com/fuzionjumpx
For assistance, contact
[email protected].
Do not return product to store!
