Fuzion V1000 User manual

Manual Version 1A-2015Maximum Weight: 220 lbs (100 kilograms)
FUZION V1000 LITHIUM POWERED
owner’s manual
500 W of Power
18 MPH
Full Suspension
Disc Brake

CONTENTS
WELCOME / BEFORE YOU START page 1
COMPONENTS & PARTS page 2
FOLDING & ADJUSTMENT / BASIC OPERATION page 3
FOLDING & STORAGE page 4
BRAKE USE page 5
MAINTENANCE TIPS & CLEANING YOUR SCOOTER page 6
BEFORE YOU RIDE & RIDER’S CHECKLIST page 7
BATTERY CARE & CHARGING page 8
SPECIFICATIONS page 9
COMPANY & WARRANTY INFORMATION page 10
Read and understand this entire manual before using this product.
DO NOT RETURN PRODUCT TO STORE!
we want to help you directly!
For assistance, contact [e-mail] or 510-550-8960
www.fuzionscooter.com
FUZION V1000 LITHIUM POWERED
owner’s manual

WELCOME!
Thank you for purchasing the Fuzion V1000, the most advanced electric scooter ever produced. The V1000 is designed for
a new world of transportation. It significantly reduces commuting time, transportation costs and also results in a smaller
carbon footprint. Above all, it also provides a super fun, fast, and safe riding experience.
Please read this manual in detail. It provides an overview of the operation, maintenance and warranty for the V1000.
It also provides important safety instructions and essential tips on dramatically extending the life of your product.
Reviewing proper maintenance for your battery care is very important and may extend its life significantly.
Please refer to our website www.fuzionscooter.com for additional information on safety, maintenance, trouble shooting
and customer service.
Be sure to always wear safety equipment including a helmet, pads, shoes and protective clothing.
We would love to hear from you. Please feel free to send your comments to [e-mail].
And above all – have fun!!
BEFORE YOU START
The Fuzion V1000 scooter is equipped with a safe start feature and must be kicked manually to approximately 2 MPH
before the motor will operate. Once moving you may begin to press down on the throttle and power will be applied from
the motor. The outlined procedure will need to be repeated during every start.
For safety please follow these basic guidelines:
• Alwayswearahelmetandappropriateprotectionwhenusingthisscooter.
• Beawareofyoursurroundingsandroadconditions.Donotrideinunsaferoadconditions.
• Donotridewith1handorattempttocarrycargoonthisscooter.
• Donotridethisproductonunpaved,rough,orunevenpavement.
• Checkallfoldingmechanismsforendplaybeforeriding.
• Ensurethatallthemechanismsaresolidlylockedandundamaged.
• Donotridethedevicethroughthewater,oil,andiceontheground.
• Avoidusingincoldconditionsasthesemayhaveadverseeectonbatterylife
• Donotplacethescooterinwater.Itcancauseashort-circuitfaultofthemotor,controller,andbattery.
• Trytoavoidridingthescooterinwetorpoorweatherconditions.
• Pleasechargethedeviceatleastonceevery30daysandafterEVERYuse.
• Checkallsuspensionandwheelboltsfortightnessperiodically.Inspectthescootersoverallcondition.
• Checkwithyourlocallawsandregulationsregardingtheuseofelectricscooters.
• Modicationsvoidmanufacturer’swarranty.
• Adultsupervisionrequiredforchargingandoperationofthescooter.
• Pleaserefertothebatterycaresectionforcharginginformation.
A CAUTION ABOUT SCOOTER RIDING
You will see people on various videos and maybe even people you know doing tricks, stunts, and jumps. These are people
who have been practicing on scooters for an extended period of time. Build your skills gradually in order to minimize risk
and injury. Skateboard parts are not designed for scooters.
1
RIDING ELECTRIC SCOOTERS INVOLVES A LEVEL OF RISK.
PLEASE BE SURE TO RIDE CONSERVATIVELY AND AWAY FROM TRAFFIC.
FUZION V1000 LITHIUM POWERED
owner’s manual

4
3
6
5
11
12
1
13
10
9
2
7
8

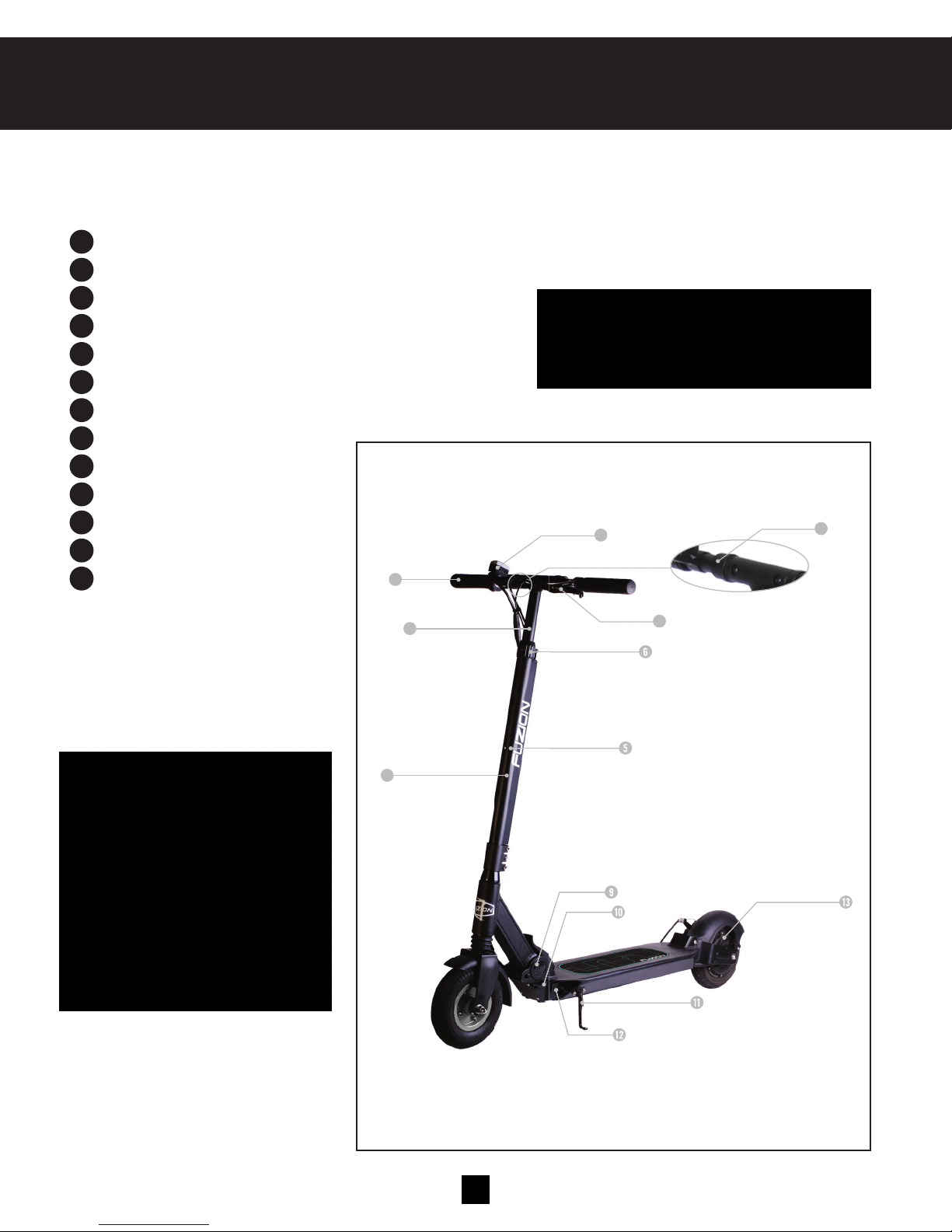

COMPONENTS & PARTS
V1000 COMPONENTS LIST:
Handle Bar
Sliding Sleeve
T-Bar
Front Tube
Position Button
Handlebar Adjustment
Display and Throttle
Brake Lever
Folding Clamp
Folding Latch
Kickstand
Charger Socket
Disc Brake
1
2
3
4
5
6
7
8
11
9
12
13
10
2
FAILURE TO PROPERLY
ASSEMBLE AND TIGHTEN ALL
BOLTS AND COMPONENTS
MAY CAUSE LOSS OF SCOOTER
CONTORL AND INCREASE RISK
OF FALLING. MAKE CERTAIN
THAT YOU FULLY UNDERSTAND
ALL THE ASSEMBLY AND
MAINTANENCE INSTRUCTIONS.
IF YOU ARE UNCERTAIN,
PLEASE CONTACT NEXTSPORT
CUSTOMER SERVICE.
Visit our website
www.fuzionscooter.com
for product support, replacement
parts & general help.
FUZION V1000 LITHIUM POWERED
owner’s manual

FOLDING & STORAGE BASIC OPERATION
3
1
5
4
2
3
Pull apart the locking collars.
The scooter will lock in the
folded position as shown.
Pull the grips down to fold.
Pull the locking mechanism
downard.
Firmly press down on the
locking latch and pull the
handlebar down to fold.
THROTTLE ASSEMBLY
1 POWER SWITCH
1.1 Gently press the
(1). The Idicator LEDs will
iluminate. The scooter is now
powered on.
1.2 In the state of power on,
press the (1) button to turn
the unit o.The LEDs will no
longer be iluminated.
2 THROTTLE OPERATION
2.1 With the power on lightly
depress the throttle lever
while simultaneously kicking
manually to approximately
2 MPH this will begin power
transfer to the motor.
2.2 Gently depress and hold
the lever in the downward
position to increase speed.
The throttle is variable.
Increase in downward travel
will apply additional power
and speed.
2.3 To decrease speed and
power of the scooter simply
release the throttle lever. The
unit will begin to slow.
CAUTION: KEEP
HANDS AND FINGERS
AWAY FROM
FOLDING LEVER
WHEN UNFOLDING
SCOOTER.
FUZION V1000 LITHIUM POWERED
owner’s manual
1
3
2

UNFOLDING & ADJUSTMENT
Push the locking collars
toward the center of the
handlebars.
Press the folding latch
downward.
Loosen the adjustment nut.
Unfold the bars and pull
upward on the locking
lever.
To raise or lower the T bar,
press the position button
and raise or lower to the
desired position. The
button will pop out at the
next available position.
Pull upward on the grips
to unfold the bars.
Lock the adjustment nut. V1000 shown unfolded
and ready to ride.
4
1
5
2
6
3
7 8
FUZION V1000 LITHIUM POWERED
owner’s manual
4

PROPER BRAKE USE:
To brake the Z1000, gradually pull the brake lever until the scooter begins to slow at the desired rate.
If the lever is pulled too hard it can lock the back wheel and cause a loss of stability and traction. It is
recommended to gently and gradually apply pressure to the brake lever. This will take some practice. Take
the V1000 out to a low trac area and practice proper braking to familiarize yourself with these methods
before heading into a high trac area. Noise from the disc braking system is normal and can vary in
frequency and level depending on conditions. This will not reduce braking performance.
HELPFUL HINTS: The disc brake is very powerful. Be sure to fully test and understand the force required by
your hand to eective brake the scooter.
The rear disc brake does require adjustment periodically. This can be done by your local Fuzion dealer or
you can attempt to adjust the brake yourself. This can be done by rotating the adjustment collar counter
clockwise to take up cable length. Please refer to the maintenance tutorials on our website for proper brake
adjustment. If additional adjustment is required contact a local FUZION V1000 dealer.
FUZION V1000 LITHIUM POWERED
owner’s manual
WARNING: AVOID INTENTIONALLY SLIDING THE REAR WHEEL BY RAPIDLY DEPRESSING THE
BRAKE. THIS MAY CAUSE FLAT SPOTS ON THE REAR CAUSING AN UNEVEN RIDE.
WARNING: AVOID RIDING THE SCOOTER IN WET OR SLIPPERY CONDITIONS AS THE BRAKE
WILL BE PRONE TO LOCKING AND BRAKING EFFECTIVENESS WILL BE GREATLY REDUCED.
ADDITION ITEMS TO AVOID INCLUDE MANHOLE COVERS AND PAINTED LINES ON THE ROAD
SURFACE. CAREFULLY AND SLOWLY RELEASE AND REAPPLY THE BRAKE IF LOCKING OCCURS.
5

6
MAINTENANCE TIPS
It is the responsibility of the owner or guardian to periodically inspect the wheels, nuts, T-bar,
tightness of T-bar and bearings for wear and tear, and check for proper tightness. Always make
sure to tighten all bolts and nuts before you ride. Eventually wheels, self-locking nuts and bearings
wear and need replacement. The lives of these components depend on the kind of riding done.
Lots of braking will wear out wheels, and riding in dirty or wet conditions will prematurely shorten
bearing and fasteners life. Worn wheels and bearings are considered normal wear-and-tear and
are not covered by the Nextsport Limited Warranty. Wheels other than genuine Fuzion wheels
may not be compatible with your scooter. Always use genuine Fuzion replacement parts.
CLEANING YOUR SCOOTER
Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they
may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners as they
may damage or dissolve the plastic components or soften the decals or decal adhesive.
FUZION V1000 LITHIUM POWERED
owner’s manual

7
Check the brake.
Tighten the clamp.
Tighten and secure the wheels and axles.
Make sure the wheels spin freely.
Be sure to wear all properly adjusted safety gear.
RIDER’S CHECK LIST
Before riding, remember to:
ALWAYS, BEFORE YOU RIDE
WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Proper inspection and
maintenance of your scooter can reduce the risk of injury. Check all fasteners before every ride.
Always inspect your scooter before riding, and maintain it regularly. Replace worn or broken
parts immediately. Adults must assist children in the assembly and initial adjustment procedure.
WARNING: REGARDING USE OF NON-NEXTSPORT PRODUCTS WITH YOUR FUZION
SCOOTER. Your scooter has been built according to Nextsport’s design specifications. All
the original equipment supplied at the time of sale was selected on the basis of compatibility
with the frame, wheels, pivots, and all other parts. Certain after-market products may or may
not be compatible with YOUR Fuzion scooter. Contact Nextsport’s customer service prior to
modifying or replacing any component with a non-factory specified part.
WARNING: CHECK ALL LOCAL LAWS REGARDING SCOOTER USE. Check all local laws and
regulations to see where and how you may use your Fuzion scooter legally. In many states and
local areas, scooter riders are required BY LAW to wear a helmet. Check and obey local laws
and regulations regarding helmet use and scooter operation in your area.
WARNING: BRAKE MECHANISM WILL GET HOT FROM CONTINUOUS USE. Do not touch
after braking.
WARNING: REMEMBER TO ALWAYS WEAR PROTECTIVE GEAR. This includes but is not
limited to helmet, elbow pads, and knee pads.
FUZION V1000 LITHIUM POWERED
owner’s manual

FUZION V1000 LITHIUM POWERED
owner’s manual
8
BATTERY CARE:
Be sure to charge the scooter after every use. Allow the light on the charger to turn green
indicating a full charge before disconnecting. Do not leave the charger sitting plugged into the
wall or scooter for extended periods of time (more than 24 hours). Not following these guidelines
can result in damage not covered under the manufacturer’s limited warranty.
CHARGING:
Before charging, ensure the scooter is switched o, then open the cover on the charging socket
near the front of the scooter on the kickstand side. Connect the charger plug to the charging
socket (see the section “component overview” for location of the charging socket on the V1000).
Now connect the charging unit into the wall outlet. The battery is charging while the charger LED
is red. The charger LED will become green when it is fully charged. To stop charging, remove the
plug from the power outlet, then remove the circular plug from the scooter’s charging socket.
WARNING: BE SURE TO FULLY CHARGE THE SCOOTER PRIOR TO LONG TERM STORAGE.
WHILE IN STORAGE IT IS MANDATORY TO FULLY RECHARGE THE BATTERY EVERY
MONTH. NOT RECHARGING THE BATTERY, WHEN NOT REUSING THE SCOOTER OVER
EXTENDED PERIODS (4 WEEKS) WILL CAUSE SEVERE DAMAGE TO THE BATTERY.
ATTENTION: AFTER CHARGING HAS COMPLETED REMOVE THE CHARGING UNIT FROM THE
WALL OUTLET AND SCOOTER CHARGING SOCKET. THIS MUST BE COMPLETED AFTER EVERY
CHARGING OPERATION. FAILURE TO REMOVE AND RECONNECT THE CHARGER FROM THE
WALL OUTLET WILL CAUSE A NO CHARGE CONDITION. THIS WILL BE A GREEN CHARGE
INDICATOR LIGHT WHEN CONNECTED BUT CHARGING FUNCTION IS NOT PREFORMED.
DISCONNECT THE CHARGING UNIT FROM THE WALL OUTLET FOR 1 MINUTE THEN
RECONNECT TO INITIATE CHARGING OPERATION.

FUZION V1000 LITHIUM POWERED
owner’s manual
9
V1000 TECHNICAL SPECIFICATIONS
PERFORMANCE SPECIFICATIONS
MECHANICAL SPECIFICATIONS
WEIGHT (LBS) 34
WHEEL SIZE (MM) 200X45
FRONT SUSPENSION TYPE COIL SPRING
REAR SUSPENSION TYPE COIL SPRING WITH LINKAGE
MOTOR TYPE BRUSHLESS HUB MOTOR 500 WATTS
THROTTLE TYPETHUMB THROTTLE WITH SAFE START
BATTERY TYPE LITHIUM ION
ESTIMATED RANGE (MILES) 10-15*
MAXIMUM SPEED (MPH) 20*
MAXIMUM POWER (WATTS) 500
ESTIMATED RECHARGE TIME (HOURS) 3-5
BATTERY SIZE (AMP HOUR) 7.4
*Estimated range and maximum speed using 180lbs rider on flat ground. Individual rider results
may vary by terrain, weight, and wind resistance.

10
LIMITED MANUFACTURER WARRANTY
Nextsport inc, expressly warrants that each of its products is free from defects in materials and
manufacturing under normal operating conditions for a period of 180 days from the date of
original purchase. The statutory warranty terms for the battery and motor shall be 12 months use
for the original purchaser/owner.
The product is designed for adults over 16 years old. Fuzion scooters are intended for operation
only on smoothly paved, safe, dry, non-oily surfaces in accordance with local regulations and
with proper safety equipment. Nextsport will repair or replace any part or component, other than
wear-and-tear parts such as cables, tires, or brake pad/wire/shoe, of the Fuzion scooter free of
charge during the standard warranty period of the original purchaser. Service can be obtained by
contacting Fuzion scooters @ nextsport.com
WARNING: READ AND UNDERSTAND THE OWNER’S MANUAL BEFORE RIDING. SERIOUS
INJURY OR DEATH CAN RESULT FROM IGNORING WARNINGS AND/OR IMPROPER USE.
Do not use the Fuzion scooter outside its intended use. Warranty will be void if any modifications
are made to the product or damage cause by abuse.
All incidents such as development of noise, vibrations, wear of the tires, brakes, or brake noise
etc., which do not significantly impair the riding and vehicle performance are not covered under
the above warranty. Damage caused my improper or untimely charging is not covered under the
above warranty. See battery care section for more information on proper charging.
FUZION PRODUCTS ARE PROTECTED
BY US AND INTERNATIONAL PATENTS
AND TRADEMARKS.
© Copyright 2015
Nextsport, Inc.
106 Linden Street
Suite 201
Oakland, CA 94607
[e-mail]
All rights reserved.
For assistance, contact
[e-mail]
if purchased in the united states,
do not return product to store!
we want to help you directly!
FUZION V1000 LITHIUM POWERED
owner’s manual
