Ganz NR4HL User manual

1

᧮
CONTENT
OVERVIEW PLAY
3 Before Installation 62 If you want to play
4 Key Features
6 Front Panel
7 Rear Panel
8 Remote ControlAt a Glance
INSTALLATION ARCHIVING
10 Basic Layout 65 To start the Archive menu
11 Connecting to an external devices
MONITORING WEB VIEWER
18 Start up/Shutdown 68 What is the Web Viewer?
20 Live ScreenAt a Glan 70 Live
74 Search
76 Setup
SYSTEM SETTING MOBILE VIEWER
26 To move to the System Setup menu 88 GanzView
27 Camera Setting
30 Display Setting
33 Audio Setup
34 User Setting
36 Network Setup
39 System Setting
43 Storage
45 Event Setup
RECORD SETTING ARCHIVE VIEWER
52 To start the Record Setup menu 99 Getting started with the Backup Play
52 Record Setup 100 Backup Player At a Glance
SEARCH APPENDIX
58 To move to the Search menu while 103 Specification
in monitoring
58 To move to the Search menu while
in playback mode
59 Search Settings

᧯
OVERVIEW
Before installation
Comply with the following instructions to prevent a fire, explosion, system failure shock. or electric
Remove the power supply module before proceeding.
Check the input voltage (AC100VದAC240V) to the power supply module before connecting it.
Keep the product away from humidity.
Ensure that all devices connected to the product should be properly earth-grounded.
In operation mode
Comply with the following instructions to prevent a fire, explosion, system failure or electric
If you need to open the cover, consult with a service person who could help you do what you
want to do.
Do not connect multiple devices to a single power socket.
Keep the product away from dust or too much combustible substances (ex: propane gas).
Do not touch it with wet hand.
Do not insert a conductor in the vent of the ventilation system.
Do not apply excessive force to unplug the power cord.
Disassembly & Cleaning
When cleaning on the surface, use a dry cloth.
Do not wipe the product using water, paint thinner or organic solvents.
Do never dismantle, repair or modify the product by your own.
During installation
To prevent an accident or physical injury and to operate NVR properly, please comply with the
followings
Secure at least 18 centimeter of distance between cooling fan and wall for a proper ventilation.
Install the product on a flat surface.
Keep it away from direct sunlight or excessive temperature.
While in use
Do not apply force to or shake it while using it.
Do not move, throw away or put excessive force to it.
Using any unrecommended HDD may cause a system failure. Check the compatibility list and
use only compatible HDDs.
{A system failure or data loss caused by an incompatible HDD will void your warranty.}

᧰
OVERVIEW
Key Features
This product allows you to receive audio and video signals from a max of 4/8 CH 1080p H.264
network camera before
saving them to the internal HDD. Besides, you can also transfer them to an external device that can
be monitored on your PC
or mobile phone remotely
Display the video from up to 4/8 CH 1080p network camera in real time (Max 120/240 fps)
Save the video from up to 4/8 CH 1080p network camera in a max of 32/64Mbps (8Mbps
per channel) (Max 120/240fps)
Play up to 4/8 CH 1080p video in real time (Max 120/240 fps)
H.264 BP/MP/HP network camera supported(BP: Baseline profile, MP: Main profile, HP:
High profile)
4/8 built-in port, PoE switching hub (40W/72W)
ಫPlug & Play’ camera connection
Protect the IP camera via secured closed circuit LAN environment
Auto notification with self diagnosis (HDD S.M.A.R.T, temperature, network connection
status,fan error, etc.)
Dual streaming supported for a remote display
Auto resolution & FPS adjustment for a remote service
External eSATAHDD supported – various search methods (time, event, bookmark and
thumbnail)
Mass storage backup via USB port or FTP server
Dedicated smart phone applications that can be used with iPhone and iPad or onAndroid
OS
1080p Full HD GUI

᧱
OVERVIEW
What's included
Mouse  RemoteControlx1 PowerCablex2
&Batteries(AAAx2)
DC 12V Adaptor DC 48V Adaptor Screws
Adapter cable retainer clip x2 User manual CD Quick Guide

᧲
OVERVIEW
Front Panel
Name Description
IR Remote
Control
Receiver
Receive the signal from the remote control
USB Used for connecting USB storage or mouse.
Status LED Show the status of power,recording or network connection
together with the corresponding alarm.

᧳
OVERVIEW
Rear Panel
NO Name Description
1CAM1~CAM8 Ethernet ports used for connecting the network camera video and
power.
2WAN(UPLINK) Network port for connection to the Internet, router or hub
3AUDIO IN Microphone connection port.
4ALARM OUT Alarm output device connection port.
5RS-485 Communications port for connecting peripherals such as system
keyboard.
6Power Switch NVR power switch.Plug the power cord and turn this switch on.
7DC 12V NVR power input port Connect to a 12V adaptor.
8RS-232C Signal connection port for POS and ATM.Scheduled to be
upgraded.
9ALARM IN Alarm input signal port.
10 AUDIO OUT Port for speaker connection.
11 eSATA Connection port for external SATAstorage.
12 HD MONITOR Port for connecting a full HD(1920x1080) supported monitor.
Use the HDMI cable to connect with a 1080p 60Hz monitor.
13 LAN(DOWNLINK) Port for connecting the dedicated network device. (Do not share with
other device.)
14 DC 48V Power input port for the camera (PoE compliant).
Connect to a 48V adaptor.

᧴
OVERVIEW
Remote Control At a Glance
LOGOUT
LOGOUT
POWER
Turn on or off the power. PANIC
Start the emergency recording.
SEARCH
Display the search window. ALARM
Show the alarm status with
a popup window.
ARCHIVE
Display the backup window. SETUP
Display the system setup menu.
Channel
Function as channel selection
button in live or playback mode.
Or used for entering the password. ID
Set the remote control ID.
DISPLA
Y
Switch the split mode.
SEQ
Switch to sequence mode.
SNAPSHOT
Turn on or off the power.
Used to change the direction
or adjust the play speed
in playback mode.
EXIT
Exit from the current screen
and return to the previous
screen.
ENTER
Select a menu item or apply
your settings.
LOG
Display the log list.
KEYLOC
K
Lock any operation on the unit.
AUDIO
Display the audio channel
Selection window.
RESERVE
Turn on or off the power.
MENU
Display the tool bar on the live
screen.
Use to move through the menus
PTZ/ZOOM
Enter the PTZ or digital zoom
Mode and control the operation.

᧵
OVERVIEW
Change the remote control ID
The remote control will be active only if the remote control ID matches with that specified on the
NVR.
If multiple NVRs are installed on one place and you have just a single remote control, use the ID
button to set the remote control ID. Only the ID-matching NVR can be controlled.
1. From <SYSTEM> - <CONTROL DEVICE> under the System Setup menu, set the
<REMOTE CONTROLLER ID> and press <Apply>.
Select between 00 and 99. For more details, refer to <SYSTEM SETUP>.
The remote control will be active only if the remote control ID matches with that of the
NVR's system ID.
2. Press the [ID] button on the remote control. The default remote control ID is 00.
3. Use the number buttons to provide a two-digit ID. If you want to enter 01, for instance,
enter the number 0 and 1 in sequence.
Check if the remote control ID is set properly by manipulating the remote control.
4. To reset the ID to 00, press and hold the [ID] button.

᧭᧬
INSTALLATION
Basic Layout
Precautions
To secure recording stability from an overloaded network traffic , hacking attempt or DoS (Denial
of Service) attack, only the direct cable connection between camera and NVR is allowed.
Any access from an outside PC to the IP camera will be strictly prohibited for the purpose of
secure operation.
9Signal connection for POS andATM is scheduled to be upgraded later.
Camera
Network
Attached
Storage
CMS
Web viewer
Mobile viewer
Full HD
monitor
eSATA
Stora
g
e
Speaker
MIC
Sensor Alarm
Control
Device
POS
ATM
Access
Controlle
r

᧭᧭
INSTALLATION
Connecting to an external device
Connecting to the monitor
This product supports only monitor models featuring 1080p 60Hz HDMI or DVI input.
Connect the HDMI cable between HDMI output port in the bottom rear panel and HDMI port of the
monitor, or use the
HDMI to DVI cable to connect to the DVI port of the monitor.
Power Connection
Two adaptors are provided: one for NVR operation (DC 12V), and the other for PoE (Power Over
Ethernet, DC48V).
NVR power connection
Plug the provided DC 12V adaptor in the rear power port of the NVR.
PoE Switching hub power connection
Plug the provided DC 48V adaptor in the rear power port of the NVR.
When done, attach the adaptor cable clip to the rear panel and insert the cable in.
Make connection when the power is not applied yet.
Arrange up the cables and be careful not to peel off the cable coating.
Do not place the power cord under the carpet or rug. The power cord is usually earth-
grounded. However, even
if it's not earth-grounded, do never modify it on your own for earth-grounding.
Do not insert multiple devices in a single power socket. Otherwise, it may cause a power
overload.
For stable power supply, this product provides two separate adaptors and two
correspondingAC cords by factory default. Make sure all cables are connected properly.
DC48V adapto
r
DC12V adaptor
Adaptor cable
retainer clip

᧭᧮
INSTALLATION

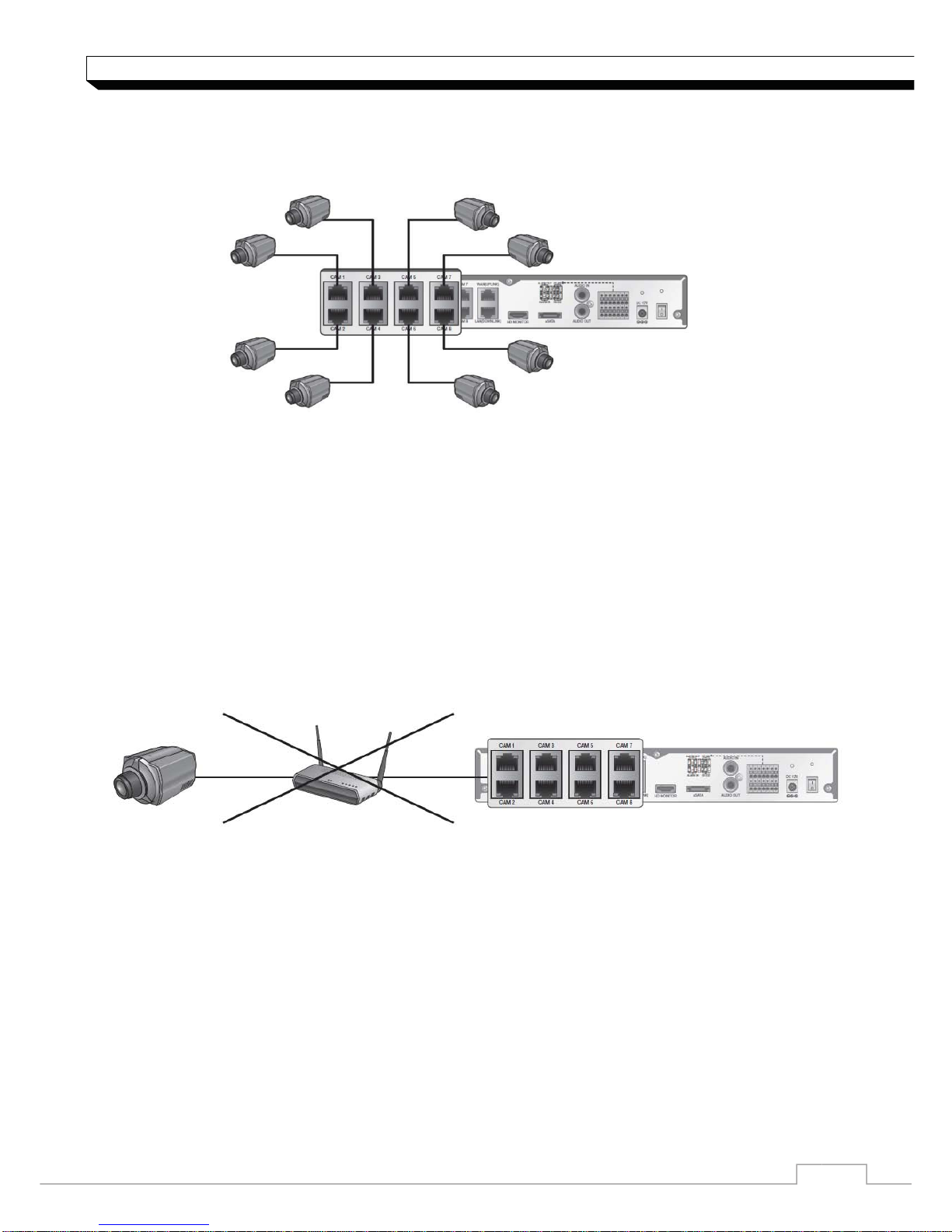

Connecting the camera
You can connect a PoE-featuring IP camera to the rear [CAM1]~[CAM8], RJ45 port using the CAT5
10/100Mb Ethernet cable without a separate power source.
Precautions
To secure recording stability from an overloaded network traffic , hacking attempt or DoS (Denial
of Service) attack, only the direct cable connection between camera and NVR is allowed.
9If the IP camera provides the alarm I/O port or Audio I/O port, you can make alarm or
audio connection. For more details, refer to the user manual of the IP camera.
The Ethernet connection is effective within 100 meter in distance. Beyond that, you may
encounter a data loss or failure to connect to the camera. If you need to make cable
connection of longer than 100 meters, use a separate PoE extender for cable extension.
The total power consumption of the IP cameras should not exceed the rated power capacity
of the 48V PoE adaptor. Beyond that, the video may not be played properly or no video will
be displayed at all. If this is the case, use a separate (additional) power source for supplying
power to the cameras.
For stable operation, a dedicated communication line is established for IP cameras in the
same network. This is why network router or hub connection is not allowed.
Camera HUB or Router NVR

᧭᧯
INSTALLATION
Alarm I/O Connection
connect the alarm input signal
1. While pressing and holding the [A1] or [A2] port button in the rear bottom of the NVR,
insert the alarm signal cable in the hole under the button.
2. Insert the grounding wire in the [GND] port.
3. To ensure secure connection, release the button and pull out the wire to check if it's not
pulled out.
4. To remove the wire, pull it out while holding the upper button.
To connect the alarm output signal
Connect the signal line of an alarm output device to the rear [ALARM OUT] port.
1. Check the relay output type of Normal Open or Normal Close before selecting a proper
type (N/O or N/C). While holding the [N/O] or [N/C] button, arrange the alarm signal cable
through the hole under the button.
9N/O(Normal Open) : normally Open but switching to Close if an alarm out occurs.
9GND : Insert the grounding wire.
9N/C(Normal Close) : normally Close but switching to Open if an alarm out occurs.
2. Insert the grounding wire in the [GND] port.
3. To ensure secure connection, release the button and pull out the wire to check if it's not
pulled out.
4. To remove the wire, pull it out while holding the upper button.

᧭᧰
INSTALLATION
Communication Port
RS-485 Connection
Connect the keyboard controller.
You can connect a text-in device such as POS or ATM. After connecting the control device, be sure
to match the connection settings between NVR and device. Make communication settings in
<Control Device>. (page 43)
1. Use the signal line to make connection between [D+] of the rear NVR and [D+] of the
keyboard controller.
2. Make connection between [D-] of the rear NVR and [D-] of the keyboard controller.
3. Connect [GND] on the rear of the NVR to [GND] of the keyboard controller.
9For RS-485 connection, refer to the user manual of the keyboard controller.
9Signal connection for POS andATM is scheduled to be upgraded later.
RS-232 Connection
You can connect a text-in device such as POS or ATM.
For connection of the text-in device, refer to the user manual of the text-in device.
9Signal connection for POS andATM is scheduled to be upgraded later.
Audio Device Connection
You can connect an audio output device such as speaker amplifier.
Connect the audio input device such as microphone to the rear Audio In port, connect the audio
output device such as speaker amplifier to the Audio Out port.

᧭᧱
INSTALLATION
eSATA Storage
If the internal storage space is insufficient, you can extend your storage capacity by adding an
eSATA storage device to the rear eSATAport.

9Recording may not be enabled with an incompliant eSATA storage. For the compatibility list,
contact the retailer of the eSATAstorage.
USB Device
You can connect a USB storage device for saving the video, updating the firmware,
importing/exporting user data or settings. You can also connect the USB mouse to control all
operations of the NVR.
If you need to connect a USB HDD with a high power consumption, it is recommended to
use a separate power source for that HDD.
External HDD
(For backup only) USB Stora
g
eMouse

᧭᧲
INSTALLATION
Network Connection
PC connection in the local network
You can connect NVR to a PC in the same network and control or manipulate it on the PC monitor.
1. Connect the [WAN(UPLINK)] port in the rear panel to the router or hub.
2. Connect the local PC to the router or hub.
3. Enter the address in the address bar (web browser) of the local PC or of the dedicated
software program in the format of ಯhttp://IP address:web service port ರ.(Ex : http://192.168.
1.23:8080) The web service port is set to 8080 by default. From the Network Setup screen,
you can change the port number.
4. Provide the ID and password before logging in. Then, you can view the monitoring screen.
5. Access ID (factory default) : ADMIN, P/W : 1234.
9For the security purpose, change the password right after you purchased the product.
Camera1 Camera2
Camera3
Camera4
Camera5
Camera6 Camera7Camera8
Local PC
Local PC
Broadband Router
Or
Hub
Broadband Router or Hub
Local PC Local PC

᧭᧳
INSTALLATION
PC connection from a remote network
You can connect NVR to a PC or mobile device in the same remote network and control or
manipulate it on the monitor of the PC or mobile device
1. Connect the [WAN(UPLINK)] port in the rear panel to the router.
2. Connect the [WAN(UPLINK)] port of the router directly to the fixed IP LAN cable, or
connect it to the ADSL modem.
3. If using the router, set the port forwarding and enter the DDNS address in the address bar
(web browser) of the remote PC, or of the dedicated software program or mobile phone.
For the IP and DDNS address settings, refer to “Network Setup”. (page 37)
4. If the MAC address of the NVR is 00-1C-B8-12-34-56 and the web port number is 8080,
enter "http://001CB8123456.dvrlink.net:8080" in the address bar of the web browser.If you
have renamed DDNS as “mydvr”, you can make network connection
athttp://mydvr.dvrlink.net:8080
Local PC
Local PC
Broadband Router
ADSL Modem
Direct Connection
Remote PC
Smart Phone
Broadband Router
Local PC
ADSL Modem

᧭᧴
Monitoring
Start Up/ Shutdown
START
You can connect NVR to a PC in the same network and control or manipulate it on the PC monitor.
1. Connect the adaptor to the 48V PoE power input
port in the rear panel of NVR.
9Make connection when the power is not applied yet.
2. Connect the adaptor to the 12V power input port in
the rear panel of NVR.
3. Turn on the power switch in the rear panel of NVR.
With a beep, the logo screen appears several
seconds after the front LED turns on.
4. When the booting process is completed, the live
screen then the login screen appears.
Log In
To manipulate or access the menus of NVR, you should have logged in.
1. When the system starts, the login screen appears.
2. Select a user and provide the password.
The default password of the "ADMIN" account is
"1234".
3. Click <OK>.
If the login information is correct and valid, you will
see the live screen.
9For the security purpose, change the password right
after you purchased the product.
.
Log Out
To prevent unauthorized access, it is recommended to log out when you leave the screen.
9Hover the cursor near the bottom of the screen to display the menu.
1. In the monitoring screen, click <MENU> in the
bottom left corner of the screen to <LOG OUT>, or
press the [LOGOUT] button on the remote control.
2. 2Access to Search / Backup / System Setup /
Record Setup / System Shutdown will be restricted.

᧭᧵
Monitoring
System Shutdown
You can connect NVR to a PC or mobile device in the same remote network and control or
manipulate it on the monitor of the PC or mobile device
1. In the monitoring screen, click <Menu> in the
bottom left corner of the screen to <SHUTDOWN>
the system, or press the [POWER] button on the
remote control.
2. Use the virtual keyboard to enter the password.
3. Be sure to turn off the power switch in the rear
panel.
9If you turn off the system in an abnormal manner
such as removing the power cord while the system
is in operation, the disk will have or increase the
bad sectors, causing data loss and shortened life cycle of the disk.

᧮᧬
Monitoring
Live Screen At a Glance
The live screen largely consists of three components: video window, status bar and timeline zone.
Video Window
Icons used in the video window.
ITEM Description
Camera ID Show the camera ID
Record Mode
Icons
Displayed if an event recording is reserved.
Display the status of the continuous recording.
Display the recording status when an alarm occurs.
Display the recording status when a motion event occurs..
Display the status of the emergency recording..
Audio
I/O Icons The audio signal of the connected camera is outputting.
The audio signal is transferring to the connected camera via the
microphone.
Motion
Detection
Icon A motion is detected by the connected camera.
Status Bar
Timeline
Q
uick Menu
Video Window
