Garland EdgeLens Focus User manual

EdgeLens® Focus
Inline Security Packet Broker
User Guide By Garland Technology
INT10G12MSBP / INT10G12SSBP / INT10G12ESBP
Garland Technology: Integrated Bypass System
Firmware Rev Level: 1.1.11
Office: 716-242-8500
garlandtechnology.com/support
garlandtechnology.com
1

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Copyright © 2020 Garland Technology, LLC. All rights reserved.
No part of this document may be reproduced in any form or by any means without prior written permission of Garland
Technology, LLC.
The Garland Technology trademarks, service marks ("Marks") and other Garland Technology trademarks are the property of
Garland Technology, LLC. EdgeLens Series products of marks are trademarks or registered trademarks of Garland
Technology, LLC. You are not permitted to use these Marks without the prior written consent of Garland Technology.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Garland Technology and the
customer. All or part of the products, services and features described in this document may not be within the purchase scope
or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this
document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this
document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not
constitute the warranty of any kind, express or implied.
Table of contents
1. INT10G12xxBP DashBoard ………………………………………………………………………………………….3
2. INT10G12xxBP System ………………………………………………………………………………………...……..4
3. INT10G12xxBP Port Info ………………………………………………………………………………………….…..9
4. INT10G12xxBP Bypass Taps ………………………………………………………………………………....……..12
5. INT10G12xxBP Packet Broker ………………………………………………………………………………..……..18
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 2

USER GUIDE
EdgeLens Focus | INT10G12xxBP
1. INT10G12xxBP DashBoard
IP Management Interface
Serial Interface
PS2 - Power Supply 2 LED
PS1 - Power Supply 1 LED
SYS - System LED
L/A1 - Link/Activity LED Network Port 1, TAP 1
L/A2 - Link/Activity LED Network Port 2, TAP 1
BP - Bypass LED Tap 1
Up Arrow SFP Port 3 - Link/Activity LED Bypass Port TAP 1
Down Arrow SFP Port 4 - Link/Activity LED Bypass Port TAP 1
Up Arrows SFP Ports 5-11 - Link/Activity LEDs
Down Arrows SFP Ports 6-12 - Link/Activity LEDs
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 3

USER GUIDE
EdgeLens Focus | INT10G12xxBP
2. INT10G12xxBP System
Select System to display or change the system options.
General -
Displays the current general system configuration.
General - select to display the current chassis name and key press
timeout
Edit Configuration - select to change the chassis name or key press timeout
Chassis Name - enter 1 to 32 characters
Key Press Timeout - enter 60 to 3600 seconds, default 300
Save - select to save any changes
Cancel - select to return to general system settings
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 4

USER GUIDE
EdgeLens Focus | INT10G12xxBP
User Settings -
Displays the current user configuration.
Username & Password - select to change the local GUI and serial port username
and password (default=admin/gtadmin1). Cannot change if
logged in via TACACS
Authentication Settings - select to change the login authentication settings
Local Authentication - enabled by default, may be disabled if TACACS authentication
is enabled
TACACS Authentication - select to enable TACACS authentication
IP Address - enter the TACACS server IP address
Secret Word - enter to use a key on the TACACS server (3-20 characters)
Save - select to save any changes
Cancel - select to return to user settings
TACACS Test - select to test the TACACS authentication
Username - enter the username defined in the TACACS server
Password - enter the password defined in the TACACS server
Test - select to verify username/password authentication to
the TACACS server
TACACS Ping - select to ping the TACACS server IP address
Network Settings -
Displays the current network configuration.
Edit Settings - select to change the network settings
Enable DHCP - select to enable DHCP
IP Address - displays the management IP address defined at turn up. If
desired a new management IP address may be entered
Mask - displays the mask defined at turn up. If desired a new mask
may be entered
Gateway - displays the gateway defined at turn up. If desired a new
gateway may be entered
DNS1 - enter the desired DNS1 server
DNS2 - enter the desired DNS2 server
Save - select to save any changes
Cancel - select to return to network settings
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 5

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Date & Time -
Displays the current date and time configuration.
Edit Settings - select to change the network settings
Timezone - displays the current timezone. May be changed by using
the pull down panel
UTC - displays the utc. May be changed by using the pull down panel
NTP - select to enable NTP timing
Use Pool - select to use a pool for NTP timing
IP Address - enter the IP address for the NTP server used for NTP timing
Save - select to save any changes
Cancel - select to return to date & time settings
Syslog -
Displays the current syslog configuration.
Edit Settings - select to change the syslog configuration
Enable Syslog Config - select to enable syslog
Unit ID - enter the unit ID for syslog messages, optional
Protocol - displays the current protocol, default UDP. May be changed to
TCP by using the pull down panel
IP Address - displays the current syslog server. If desired a new syslog
server may be entered
Port - displays the current udp/tcp port, default 514. If desired a new
port number may be entered
Save - select to save any changes
Cancel - select to return to syslog configuration
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 6

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Snmp -
Displays the current SNMP configuration.
Edit Configuration - select to change the snmp configuration
Enable SNMP Config - select to enable snmp
Access Port - displays the current access port, default 161. If desired a new
port number may be entered
Trap Port - displays the current trap port, default 162. If desired a new
port number may be entered
Trap IP Address - displays the current snmp server. If desired a new snmp
server may be entered
Protocol - displays the current protocol, default V2 Read/Write. If desired
the protocol may be changed to V2 Read Only or V3 by using
the pull down panel
V2 Community Password - the default is gtpublic, but not visible. If desired a new
V2 community password may be entered
If the protocol was changed to V3 the following options will appear. The unit supports
snmp V3 MD5 and DES.
V3 User - enter the snmp V3 username, 8-20 characters
V3 Auth Pass - enter the snmp V3 authentication password, 8-20 characters
V3 Priv Pass - enter the snmp V3 privacy password, 8-20 characters
Save - select to save any changes
Cancel - select to return to snmp configuration
Export Configuration -
Provides the ability to download the unit’s configuration. The date/time and network settings are
excluded. The download path is determined by the browser.
Export Configuration - select to to download the current configuration.
GREEN Export - select to start download
Import Configuration -
Provides the ability to upload a new configuration file to the unit. This will overwrite the unit’s current
configuration excluding the date/time and network settings.
Import Configuration - select to upload a configuration file to the unit
Choose File - select to choose the configuration file
Upload - select to upload the configuration file
Restart Import - select to choose a different configuration file or cancel
Configure - select to load the configuration file on the unit
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 7

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Software Upgrade -
Provides the ability to upgrade the unit’s firmware. All of the existing configurations will be saved to
the new firmware.
Software Upgrade - select to upgrade the unit’s firmware
Choose File - select to choose the firmware
Reset - select to choose a different firmware or cancel
Upload - select to load the firmware on the unit.
Reboot -
Provides the ability to reboot the unit. This will affect traffic for @ 15 seconds.
Reboot - select to reboot the unit
Reboot - select to reboot the unit
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 8

USER GUIDE
EdgeLens Focus | INT10G12xxBP
3. INT10G12xxBP Port Info
Select Port Info to display or change port configuration and display port statistics.
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 9

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Port Configuration -
Displays the current port configurations.
Port - displays the physical port number
Description - displays the current port descriptions, default port01 to port12
port01-port12 - select port 01-12 in the description column to change the
port’s description.
Edit Description - enter the new port description, (1 to 32 characters)
Set - select to save the new description
Cancel - select to cancel and return to port configurations
Link - displays the current port link status. GREEN port has
link. RED port does not have link.
Set Speed - displays the current port speed, default 10G. Use the pull down
panel to change the port speed to 1G.
Speed - displays current port speed
Mode - select the pull down panel to change the port mode,
default=Normal. The port mode options include: Nornal,
Loopback, Listen Only and Force Link.
SFP Data - displays the manufacturer and part number of a SFP
inserted into the unit. Not all SFPs support this function.
Split - N/A
Save - select to save any changes
Refresh - select to refresh the port configurations
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 10

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Port Statistics -
Displays the current port statistics. The statistics do not automatically refresh. Select Refresh to
update the statistics.
Port - displays the physical port number
Receive Packets - displays the number of receive packets
Receive Discards - displays the number of receive packets discarded
Receive Errors - displays the number of receive packet errors
Transmit Packets - displays the number of transmit packets
Transmit Discards - displays the number of transmit packets discarded
Transmit Errors - displays the number of transmit packet errors
Refresh - select to update the port statistics
Clear - select to clear and refresh the port statistics
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 11

USER GUIDE
EdgeLens Focus | INT10G12xxBP

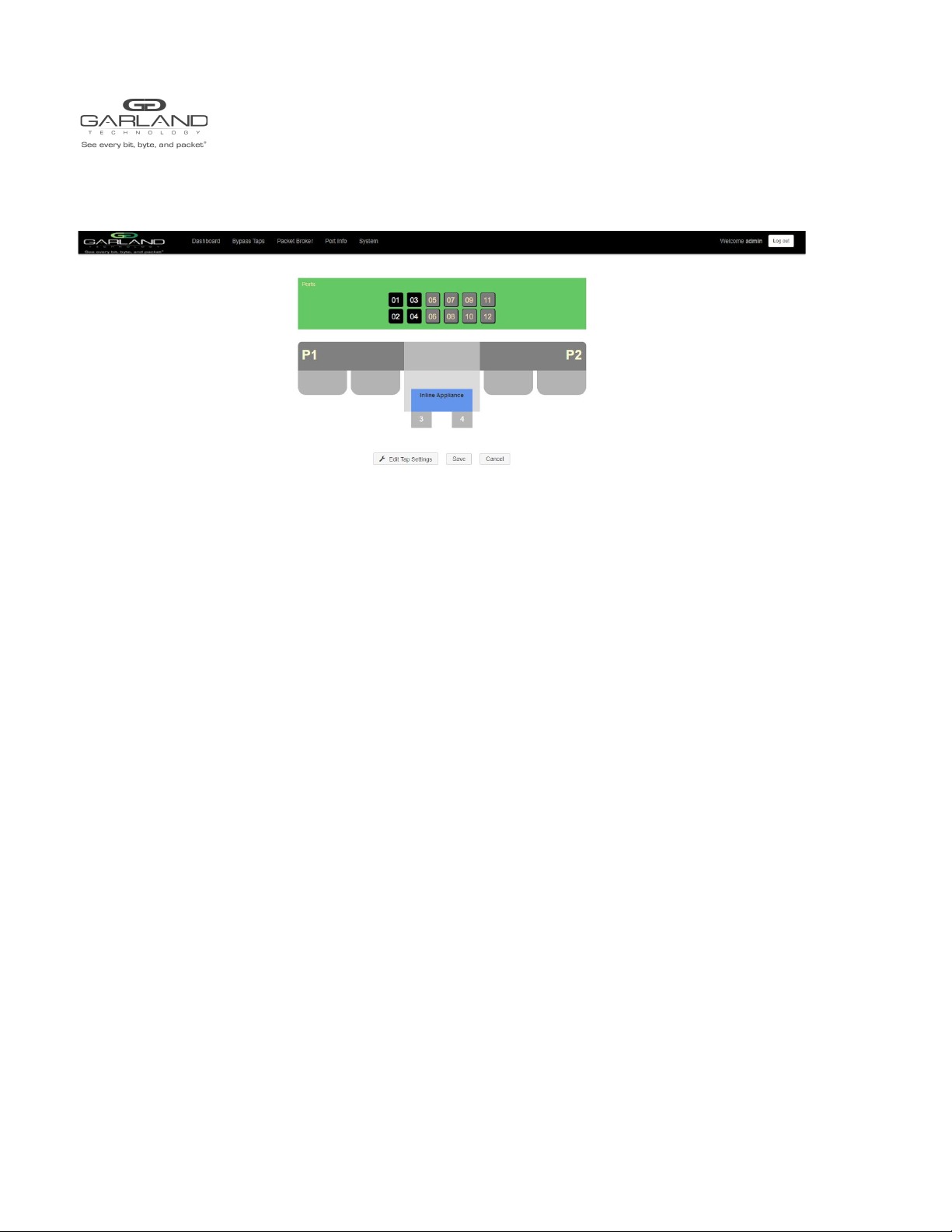

4. INT10G12xxBP Bypass Taps
Bypass Taps - select Bypass Taps
Provides access to display or change the bypass tap settings, the Heartbeat per second rate
and the number of lost heartbeats
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 12

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Displays the current tap status.
P1 - Network Port 1, Tap 1
P2 - Network Port 2, Tap 1
Tap 1 Colored Area - displays the current tap status. The tap status conditions
include, GREEN Inline, RED Bypass, GREEN Inline (Forced),
RED Bypass (Forced)
Edit Pencil - select to add a description for the tap
Description box - enter the desired tap description, 1-15 characters
Check - select to save the new tap description
No - select to discard changes and close tap description
Heartbeat Settings - select to display or change the heartbeat settings for the tap.
No. Of Lost HB Packets (10-500) - defines the number of heartbeats that must be lost for the tap
to switch from inline to bypass, default 10.
Heartbeats per second (10-500) - defines the number of heartbeats that are sent per second,
default 10.
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 13

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Tap Settings -
Changes to the tap may be made. The settings include:
Tap Modes Active, Force Bypass, Force inline
Fail Mode Open, Closed
LFP enable/disable
Reverse Bypass enable/disable
Change the tap’s settings, place the cursor on the tap and double press the left mouse
button.
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 14

USER GUIDE
EdgeLens Focus | INT10G12xxBP
The tap panel will appear.
P1 - Network Port 1, Tap 1
P2 - Network Port 2, Tap 1
3 - Inline Appliance (bypass) Port, Tap 1
4 - Inline Appliance (bypass) Port, Tap 1
Edit Tap Settings - select to display or change the current tap settings
Save - select to save changes to the tap settings
Cancel - select to disregard changes to the tap settings and
return to bypass tap
Edit Tap Settings - select to display or change the current tap settings
The default settings:
TAP Modes - Active
Fail Mode - Open
Enable LFP - disabled
Reverse Bypass - disabled
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 15

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Change the tap by selecting the new setting(s).
Accept - select to change the tap to the new settings. After selecting
accept the tap display will appear. Save must be selected
on tap display for the new tap settings to be saved
Cancel - select to disregard tap changes or keep original settings
and return to the tap display
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 16

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Monitor Ports -
Monitor ports may be added to the tap. The tap may have up to two monitor ports per network port, total of four
monitor ports. The monitor ports may be added to monitor the traffic on one or both network ports, to monitor the
ingress or egress.
Create a monitor port by placing the cursor on the desired port above the tap. Press the left mouse button and
hold to select the port. Drag the port to the desired network port. The default of any monitor port is ingress.
Change the monitor port traffic by placing the cursor on the ingress panel and press the left mouse button.
Additional monitor ports may be added using the same procedure.
Save - select to change the tap to the new settings. After selecting
save the tap display will appear. Save must be selected
on tap display for the new tap settings to be saved
Cancel - select to disregard tap changes or keep original settings
and return to the tap display
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 17

USER GUIDE
EdgeLens Focus | INT10G12xxBP
5. INT10G12xxBP Packet Broker
Packet Broker - select Packet Broker
Provides access to create, display or change, Filter Templates, Load Balance Groups, Load Balance
Policy, Config Maps, Filters, Egress Filters or Stats.
Displays the current packet broker configurations.
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 18

USER GUIDE
EdgeLens Focus | INT10G12xxBP
System Filters Resource -
Filters Max - displays the maximum number of filters for the unit, 900
Filters Used - displays the number of filters assigned to config maps, 0-900
Filters Available - displays the number of filters available for the unit, 900-0
Egress Filters Max - displays the maximum number of egress filters for the unit, 256
Egress Filters Used - displays the number of egress filters assigned to config maps,
0-256
Egress Filters Available - displays the number of egress filters available for the unit,
256-0
Configuration Map Options -
Save - select to save config maps in enabled/disabled state
Refresh - select the update filter match stats
Clear Counters - select to clear and update filter match stats. Also clears and
updates port stats
Create Config Map - select to create a new config map
Filter Templates - select to navigate to the Filter Templates display
Delete Selected - select to delete selected config map(s)
Enable - select to change a config map status, enable/disable. The save
must be selected to save the status
Priority - displays the config map priority. 1 is the highest priority.
Name - displays the config map name
Ingress Ports - displays the ingress port(s) for the config map
Filter Match - displays the numbers of packets that have matched the filter
applied to the config map
Egress Port - display the egress port(s) for the config map
View Counts - select to display the packet counts for the ingress port(s),
filter(s), egress port(s), egress filter(s) and load balance port(s)
for the config map
Set Priority - select the up arrow to change the config map to a higher
priority. Use the down arrow to change the config map to a
lower priority. Select the set to enter a priority number for the
config map
Edit - select to add/change/remove the config map name,
add/change/remove the config map description, add/remove
load balance group(s) on the config map, add/remove ingress
port(s) on the config map, add/change/remove filter(s) on the
config map, add/remove egress port(s) on the config map or
add/change/remove egress filter(s) on the egress port(s) on the
config map
Delete (select all) - select to delete selected config maps
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 19

USER GUIDE
EdgeLens Focus | INT10G12xxBP
Navigation Options -
Filter Templates - select to navigate to the filter template display
Load Balance Groups - select to navigate to the load balance display
Load Balance Policy - select to navigate to the load balance policy display
Filter Templates -
Any previously created filter templates will be displayed.
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2020 Garland Technology, LLC. All rights reserved. 20
