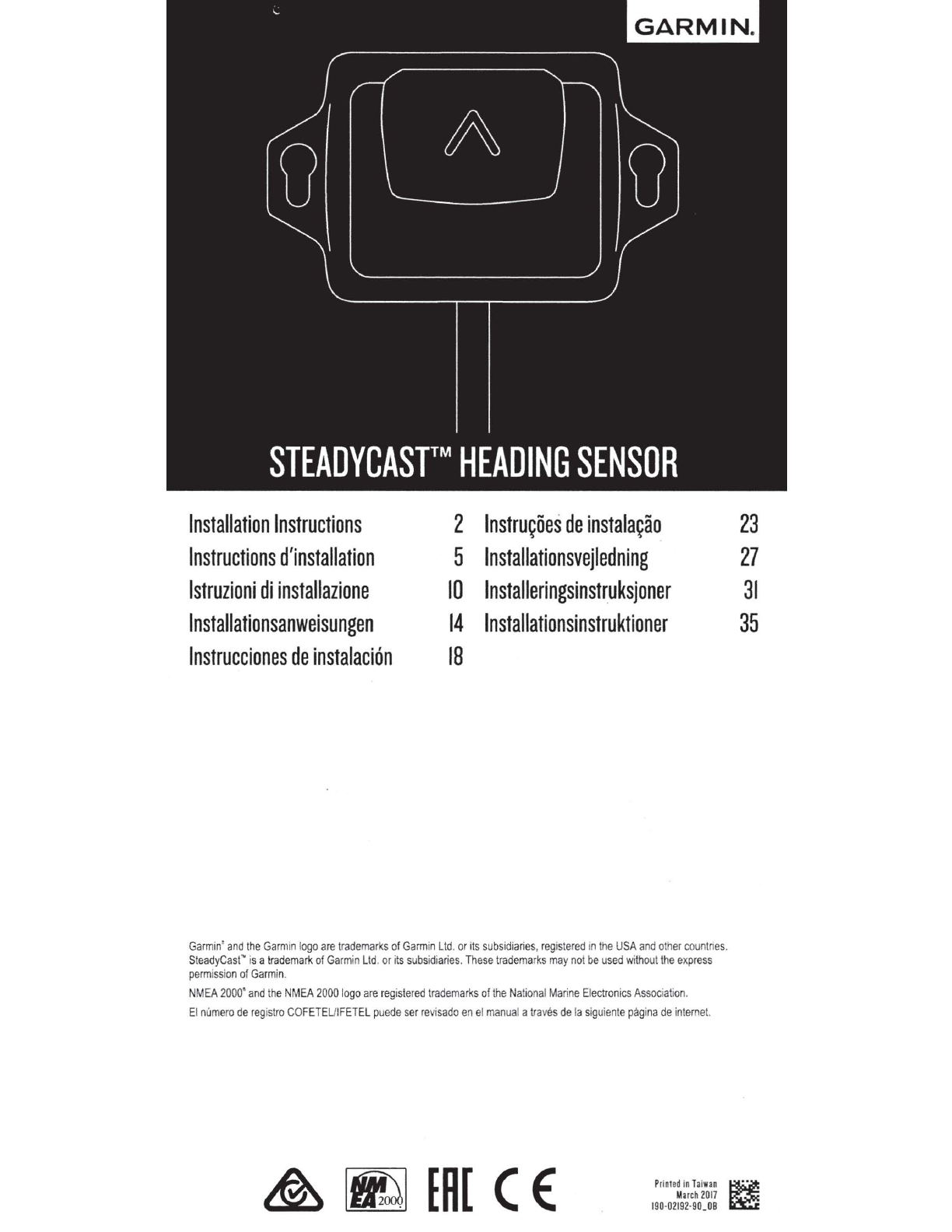

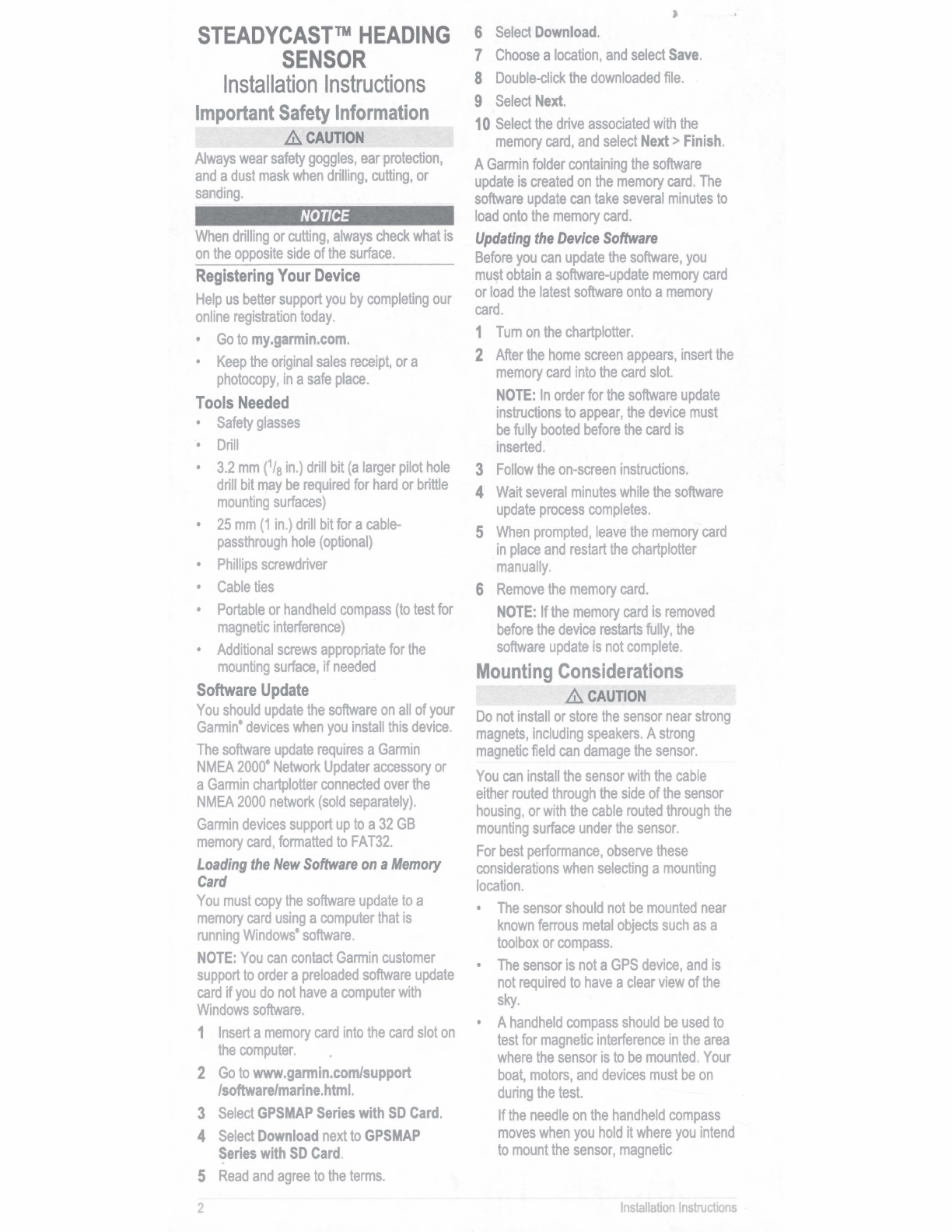

STEADYCAST™

HEADING

SENSOR

Installation

Instructions

Important

Safety

Info

r

ma

tion

,&CAUTION

AJways

wear

safety

goggles,

ear

protection,

and

a

dust

mask

when

drilling,

cutting,

or

sanding.

NOTICE

When

drilling

or

cutting,

always

check

what

is

on

the

opposite

side

of

the

surface.

Registering

Your

Device

Help

us

better

support

you

by

completing

our

online

registration

today.

•

Go

to

my

.garmin.com.

•

Keep

the

original

sales

receipt,

or

a

photocopy,

in

a

safe

place.

Tools

Needed

•

Safety

glasses

•

Drill

•

3.2

mm

(1/8

in.)

drill

bit

(a

larger

pilot

hole

drill

bit

may

be

required

for

hard

or

brittle

mounting

surfaces)

•

25

mm

(1

in.)

drill

bit

for

a

cable-

passthrough

hole

(

optional)

•

Phillips

screwdriver

•

Cable

ties

•

Portable

or

handheld

compass

(to

test

for

magnetic

interference)

•

Additional

screws

appropriate

for

the

mounting

surface,

if

needed

Software

Update

You

should

update

the

software

on

all

of

your

Garmin•

devices

when

you

install

this

device.

The

software

update

requires

a

Garmin

NMEA

2000•

Network

Updater

accessory

or

a

Garmin

chartplotter

connected

over

the

NMEA

2000

network

(sold

separately).

Garmin

devices

support

up

to

a

32

GB

memory

card,

formatted

to

FAT32.

Loading

the

New

Software

on

a

Memory

Card

You

must

copy

the

software

update

to

a

memory

card

using

a

computer

that

is

running

Windows•

software.

NOTE:

You

can

contact

Garmin

customer

support

to

order

a

preloaded

software

update

card

if

you

do

not

have

a

computer

with

Windows

software.

1

Insert

a

memory

card

into

the

card

slot

on

the

computer.

2

Go

to

www.gannin.com/support

/software/marine.html.

3

Select

GPSMAP

Series

with

SD

Card.

4

Select

Download

GPSMAP

Series

with

SD

Card.

5

Read

and

agree

to

the

terms.

2

)

6

Select

Download.

7

Choose

a

location,

and

select

Save.

8

Double-click

the

downloaded

file.

9

Select

Next.

1O

Select

the

drive

associated

with

the

memory

card,

and

select

Next>

Finish.

A

Garmin

folder

containing

the

software

update

is

created

on

the

memory

card.

The

software

update

can

take

several

minutes

to

load

onto

the

memory

card.

Updating

the

Device

Software

Before

you

can

update

the

software,

you

must

obtain

a

software-update

memory

card

or

load

the

latest

software

onto

a

memory

card.

1

Tum

on

the

chartplotter.

2

After

the

home

screen

appears,

insert

the

memory

card

into

the

card

slot.

NOTE:

In

order

for

the

software

update

instructions

to

appear,

the

device

must

be

fully

booted

before

the

card

is

inserted.

3

Follow

the

on-screen

instructions.

4

Wait

several

minutes

while

the

software

update

process

completes.

5

When

prompted,

leave

the

memory

card

in

place

and

restart

the

chartplotter

manually.

6

Remove

the

memory

card.

NOTE:

If

the

memory

card

is

removed

before

the

device

restarts

fully,

the

software

update

is

not

complete.

Mou

nti

ng

Considerations

,&CAUTION

Do

not

install

or

store

the

sensor

near

strong

magnets,

including

speakers.

A

strong

magnetic

field

can

damage

the

sensor.

You

can

install

the

sensor

with

the

cable

either

routed

through

the

side

of

the

sensor

housing,

or

with

the

cable

routed

through

the

mounting

surface

under

the

sensor.

For

best

performance,

observe

these

considerations

when

selecting

a

mounting

location.

•

The

sensor

should

not

be

mounted

near

known

ferrous

metal

objects

such

as

a

toolbox

or

compass.

•

The

sensor

is

not

a

GPS

device,

and

is

not

required

to

have

a

clear

view

of

the

sky.

• A

handheld

compass

should

be

used

to

test

for

magnetic

interference

in

the

area

where

the

sensor

is

to

be

mounted.

Your

boat,

motors,

and

devices

must

be

on

during

the

test.

If

the

needle

on

the

handheld

compass

moves

when

you

hold

it

where

you

intend

to

mount

the

sensor,

magnetic

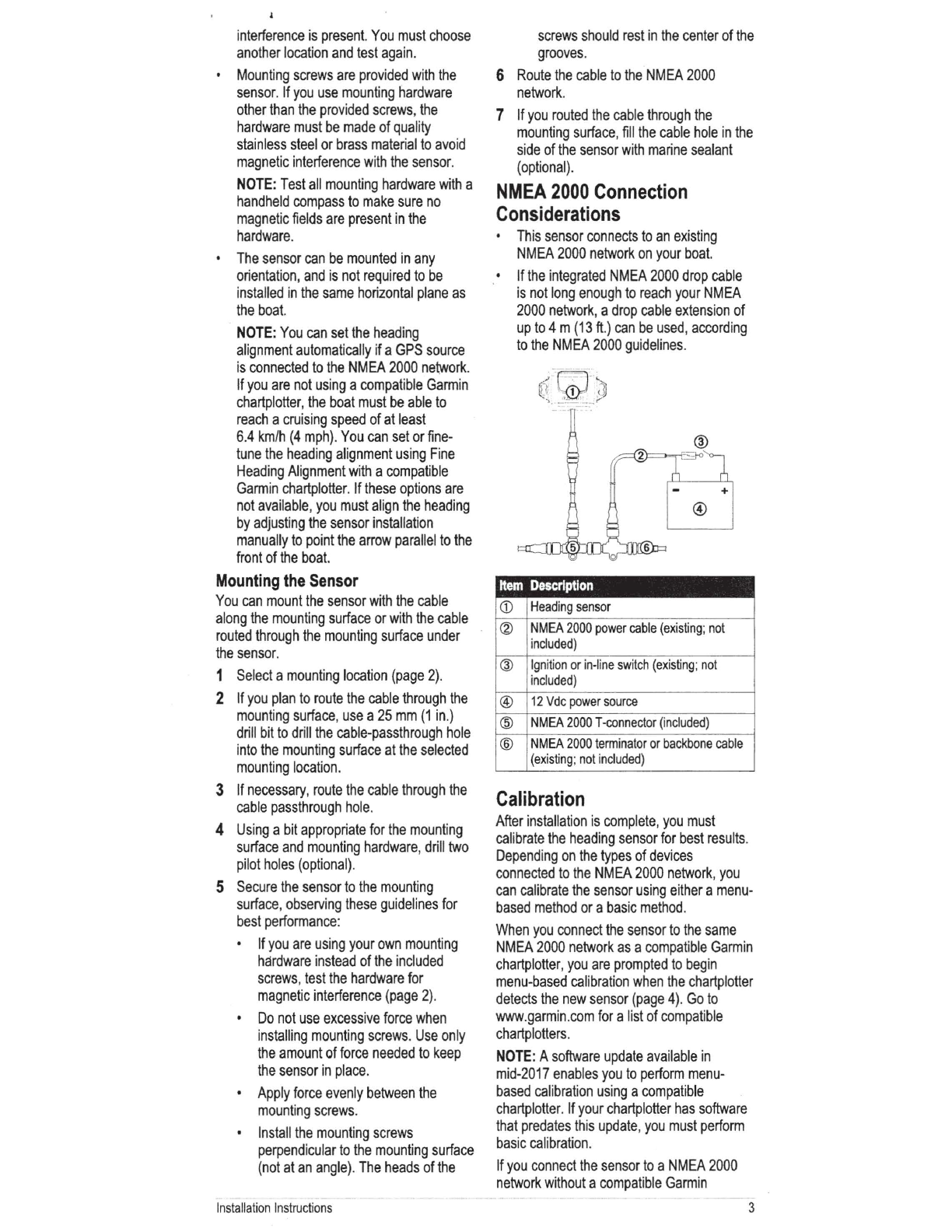

Installation

Instructions

interference

is

present.

You

must

choose

another

location

and

test

again

.

•

Mounting

screws

are

provided

with

the

sensor

.If

you

use

mounting

hardware

other

than

the

provided

screws,

the

hardware

must

be

made

of

quality

stainless

steel

or

brass

material

to

avoid

magnetic

interference

with

the

sensor.

NOTE:

Test

all

mounting

hardware

with

a

handheld

compass

to

make

sure

no

magnetic

fields

are

present

in

the

hardware

.

•

The

sensor

can

be

mounted

in

any

orientation,

and

is

not

required

to

be

installed

in

the

same

horizontal

plane

as

the

boat.

NOTE:

You

can

set

the

heading

alignment

automatically

ifa

GPS

source

is

connected

to

the

NMEA

2000

network.

If

you

are

not

using

a

compatible

Garmin

chartplotter,

the

boat

must

be

able

to

reach

a

cruising

speed

of

at

least

6.4

km/h

(4

mph}

.

You

can

set

or

fine-

tune

the

heading

alignment

using

Fine

Heading

Alignment

with

a

compatible

Gam1in

chartplotter

. If

these

options

are

not

available,

you

must

align

the

heading

by

adjusting

the

sensor

installation

manually

to

point

the

arrow

parallel

to

the

front

of

the

boat.

Mounting

the

Sensor

You

can

mount

the

sensor

with

the

cable

along

the

mounting

surface

or

with

the

cable

routed

through

the

mounting

surface

under

the

sensor.

1

Select

a

mounting

location

(page

2)

.

2 If

you

plan

to

route

the

cable

through

the

mounting

surface,

use

a

25

mm

(1

in

.}

drill

bit

to

drill

the

cable-passthrough

hole

into

the

mounting

surface

at

the

selected

mounting

location.

3 If

necessary,

route

the

cable

through

the

cable

passthrough

hole

.

4

Using

a

bit

appropriate

for

the

mounting

surface

and

mounting

hardware

,

drill

two

pilot

holes

(optional}

.

5

Secure

the

sensor

to

the

mounting

surf

ace,

observing

these

guidelines

for

best

performance

:

• If

you

are

using

your

own

mounting

hardware

instead

of

the

included

screws,

test

the

hardware

for

magnetic

interference

(page

2).

•

Do

not

use

excess

i

ve

force

when

installing

mounting

screws.

Use

on

ly

the

amount

of

force

needed

to

keep

the

sensor

in

place

.

•

Apply

force

evenly

between

the

mounting

screws

.

•

Inst

a

ll

the

mounting

screws

perpendicular

to

the

mounting

surface

(not

at

an

angle}

.

The

heads

of

the

In

sta

ll

a

tion

In

s

tru

ctions

screws

should

rest

in

the

center

of

the

grooves.

6

Route

the

cable

to

the

NMEA

2000

network.

7 If

you

routed

the

cab

le

through

the

mounting

surface,

fill

the

cable

hole

in

the

side

of

the

sensor

with

marine

sealant

(optional}.

NMEA

2000

Connection

Considerations

•

This

sensor

connects

to

an

existing

NMEA

2000

network

on

your

boat.

• If

the

integrated

NMEA

2000

drop

cable

is

not

long

enough

to

reach

your

NMEA

2000

network

,a

drop

cable

extension

of

up

to

4m

(13

ft

.)

can

be

used,

according

to

the

NMEA

2000

guidelines

.

(j)

Heading

sensor

®

NMEA

2000

power

cable

(existing

;

not

included)

@

Ignition

or

in-l

i

ne

switch

(existing

;

not

included)

©

12

Vdc

power

source

@

NMEA

2000

T-connector

(incl

uded)

@

NMEA

2000

terminator

or

backbone

cable

(exi

sting

;

not

i

ncluded)

Calibration

After

installation

is

complete,

you

must

calibrate

the

heading

sensor

for

best

r

esults

.

Depending

on

the

types

of

devices

connected

to

the

NMEA

2000

network

,

you

can

calibrate

the

sensor

using

either

a

menu-

based

method

or

a

basic

method

.

When

you

connect

the

sensor

to

the

same

NMEA

2000

network

as

a

compatible

Garmin

chartplotter,

you

are

prompted

to

begin

menu-based

cal

i

brat

i

on

when

the

chartplotter

detects

the

new

sensor

(page

4)

.

Go

to

www.garmin

.

com

for

a

list

of

compatible

chartplotters

.

NOTE:

A

software

update

available

in

mid

-

2017

enables

you

to

perform

menu

-

based

calibration

using

a

compatible

chartplotter.

If

your

chartplotter

has

software

t

hat

predates

th

is

update

,

you

must

perform

basic

cal

ibra

tion

.

If

you

conn

ec

t

the

sensor

toa

NM

EA

2000

network

without

a

compatible

Garmin

-3

chartplotter,

you

must

perform

basic

calibration

instead

of

menu-based

calibration

(page

4).

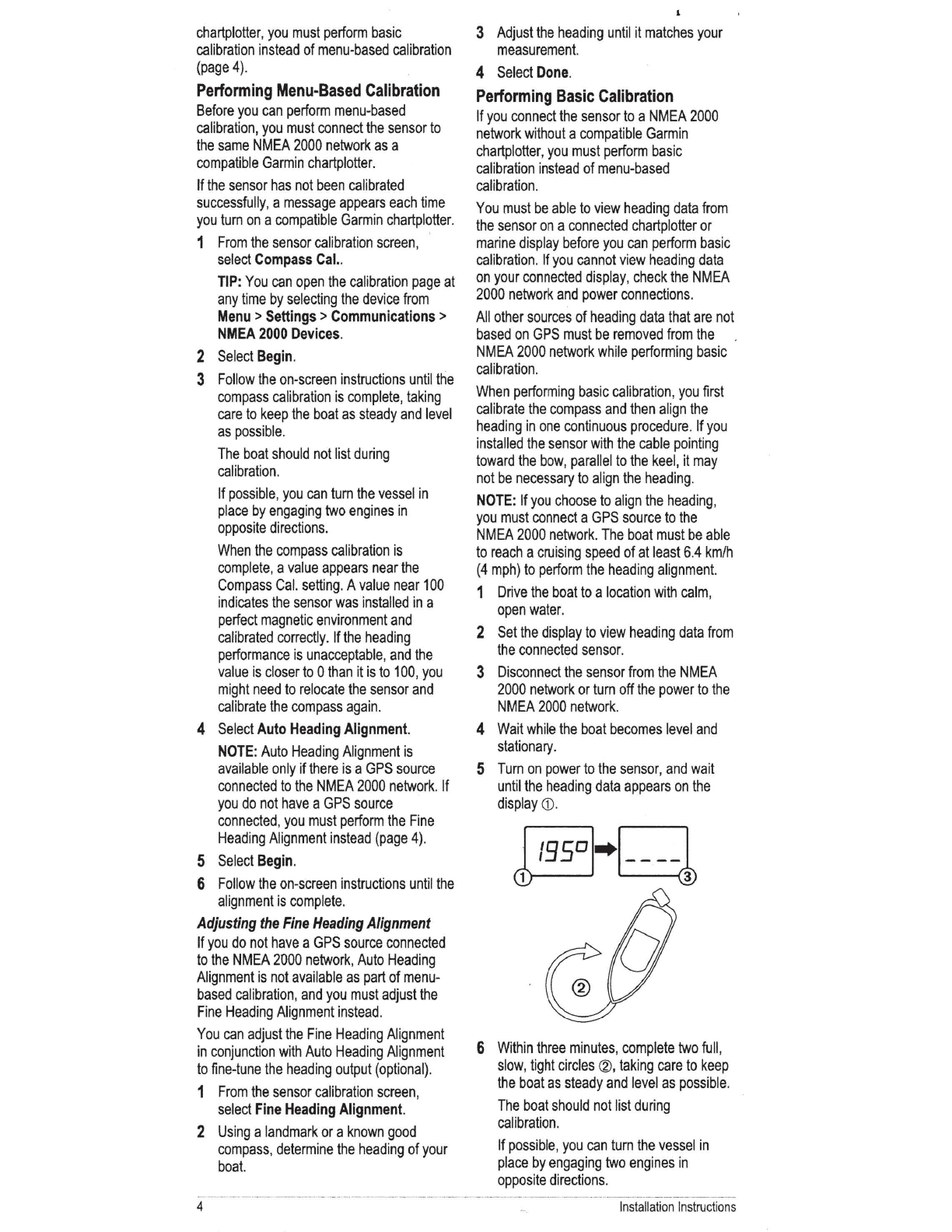

Performing

Menu-Based

Calibration

Before

you

can

perform

menu-based

calibration,

you

must

connect

the

sensor

to

the

same

NMEA

2000

network

as

a

compatible

Garmin

chartplotter.

If

the

sensor

has

not

been

calibrated

successfully

,a

message

appears

each

time

you

turn

on

a

compatible

Garmin

chartplotter

.

1

From

the

sensor

calibration

screen,

·

select

Compass

Cal

..

TIP:

You

can

open

the

calibration

page

at

any

time

by

selecting

the

device

from

Menu

>

Settings

>

Communications

>

NMEA

2000

Devices.

2

Select

Begin.

3

Follow

the

on-screen

instructions

until

the

compass

calibration

is

complete,

taking

care

to

keep

the

boat

as

steady

and

level

as

possible

.

The

boat

should

not

list

during

calibration.

If

possible,

you

can

turn

the

vessel

in

pl

ace

by

engag

i

ng

two

engines

in

opposite

directions.

When

the

compass

calibration

is

complete

,a

value

appears

near

the

Compass

Cal.

setting.

A

value

near

100

indicates

the

sensor

was

installed

in

a

perfect

magnetic

environment

and

calibrated

correctly.

If

the

heading

performance

is

unacceptable,

and

the

value

is

closer

to

0

than

it

is

to

100,

you

might

need

to

relocate

the

sensor

and

calibrate

the

compass

again

.

4

Select

Auto

Heading

Alignment.

NOTE:

Auto

Heading

Alignment

is

available

only

if

there

is

a

GPS

source

connected

to

the

NMEA

2000

network

.

If

you

do

not

have

a

GPS

source

connected

,

you

must

perform

the

Fine

Heading

Alignment

instead

(page

4)

.

5

Select

Begin

.

6

Follow

the

on-screen

instructions

until

the

alignment

is

complete.

Adjusting

the

Fine

Heading

Alignment

If

you

do

not

have

a

GPS

source

connected

to

the

NMEA

2000

network,

Auto

Heading

Alignment

is

not

available

as

part

of

menu-

based

calibration,

and

you

must

adjust

the

Fine

Heading

Alignment

instead

.

You

can

adjust

the

Fine

Heading

Alignment

in

conjunction

with

Auto

Heading

Alignment

to

fine-tune

the

heading

output

(

optional)

.

1

From

the

sensor

calibration

screen

,

select

Fine

Heading

Alignment.

2

Using

a

landmark

or

a

known

good

compass,

determine

the

heading

of

your

boat.

3

Adjust

the

heading

until

it

matches

your

measurement.

4

Select

Done

.

Performing

Basic

Calibration

If

you

connect

the

sensor

to

a

NMEA

2000

network

without

a

compatible

Garmin

chartplotter

,

you

must

perform

basic

calibration

instead

of

menu-based

calibration

.

You

must

be

able

to

view

heading

data

from

the

sensor

on

a

connected

chartplotter

or

marine

display

before

you

can

perform

basic

calibration

.

If

you

cannot

view

heading

data

on

your

connected

display,

check

the

NMEA

2000

network

and

power

connections.

All

other

sources

of

heading

data

that

are

not

based

on

GPS

must

be

removed

from

the

NMEA

2000

network

while

performing

basic

calibration.

When

performing

basic

calibration

,

you

first

calibrate

the

compass

and

then

align

the

heading

in

one

continuous

procedure.

If

you

insta

ll

ed

the

sensor

with

the

cable

pointing

toward

the

bow

,

parallel

to

the

keel,

it

may

not

be

necessary

to

align

the

heading.

NOTE

:If

you

choose

to

align

the

heading

,

you

must

connect

a

GPS

source

to

the

NMEA

2000

network

.

The

boat

must

be

able

to

reach

a

cruising

speed

of

at

least

6.4

km/h

(4

mph)

to

perform

the

heading

alignment.

1

Drive

the

boat

to

a

locat

i

on

with

calm

,

open

water.

2

Set

the

display

to

view

heading

data

from

the

connected

sensor

.

3

Disconnect

the

sensor

from

the

NMEA

2000

network

or

turn

off

the

power

to

the

NMEA

2000

network.

4

Wait

while

the

boat

becomes

level

and

stationary.

5

Turn

on

power

to

the

sensor

,

and

wait

until

the

heading

data

appears

on

the

di

splay

G)

.

6

Within

three

minutes

,

complete

two

full

,

slow,

tight

circles

@,

taking

care

to

keep

the

boa

t

as

steady

and

level

as

possible

.

The

boat

should

not

list

during

calibration

.

If

possible

,

you

can

turn

the

vessel

in

place

by

e

ngaging

two

engines

in

opposite

directions

.

-----

-

·--

·

·~-

---

----·- - -

-----

·

-----

--

-·-

---- -

--

·-

--

- -

4

Inst

a

ll

a

tio

n

Ins

tru

ctio

ns

When

the

sensor

is

prepared

to

calibrate

the

compass,

the

heading

data

disappears

from

the

display@

You

may

receive

an

error

message

that

the

heading

was

lost.

You

can

ignore

this

message.

7

Continue

turning

in

the

same

direction

at

the

same

speed

@

for

approximately

1

/2

rotations

until

the

heading

data

appears@.

When

the

heading

data

appears,

the

compass

has

been

calibrated

successfully,

and

you

can

align

the

heading

(optional).

8

Select

an

option.

•

If

you

want

to

align

the

heading

to

match

the

front

of

the

boat,

proceed

to

the

•

If

you

installed

the

sensor

with

the

arrow

pointing

parallel

to

the

front

of

the

boat,

and

do

not

want

to

align

the

heading,

stop

turning

and

wait,

keeping

the

boat

stationary.

Over

the

minutes

the

heading

data

should

disappear

and

then

reappear.

When

the

heading

data

reappears,

the

compass

should

be

calibrated

and

no

heading

offset

should

be

applied.

NOTE:

If

an

unwanted

heading

offset

is

applied,

you

must

disconnect

all

GPS

sources

from

the

NMEA

2000

network,

and

repeat

the

calibration.

If

the

only

available

heading

display

is

also

a

GPS

source,

you

must

repeat

the

calibration,

and

disconnect

the

sensor

after

step

7.

9

Continue

turning

in

the

same

direction

at

the

same

speed

for

approximately

ten

seconds,

until

the

heading

data

disappears

from

the

display

@.

10

When

it

is

safe,

straighten

the

boat

and

drive

in

a

straight

line

(J)

at

cruising

speed

(must

be

at

least

6.4

km/h

(4

mph))

until

the

heading

data

appears

®·

When

the

heading

appears,

the

compass

has

been

calibrated,

and

the

heading

has

been

aligned

on

the

sensor.

11

Test

the

results

of

the

calibration,

and

repeat

this

procedure

if

necessary.

Instructions

d'installatio·n

Restoring

Factory

Default

Settings

If

you

relocate

the

sensor

or

do

not

believe

the

calibration

was

successful,

you

can

delete

all

calibration

information

from

the

sensor,

and

restore

its

factory

default

settings.

After

restoring

the

factory

default

settings,

you

must

configure

the

sensor

before

you

can

use

it

with

your

system.

1

Select

Settings

>

Communications

>

NMEA

2000

Devices

>

Device

List.

2

Select

the

name

of

the

sensor.

3

Select

Review>

Factory

Defaults>

Yes.

Specifications

l

h.,,

:,

...

IW:liTt IC leY,1.c'i : •

i,

\;!{~f:::~;~!•(:"-

.,

,·,ai-.••·"

,,.,.:a~•

~:

-~

·'l.•--~~·_;j

[•~-

Dimensions

(L

xWx

87.35

x

53.84

x

34.29

mm

H)

(3.4

X

2.1

X

1.4

in.)

Weight

182

g

(6.4

oz.}

Temperature

range

From

-15°

to

70°C

(from

5°

to

158°F)

Material

Fully

gasketed,

high-

impact

plastic

Water

resistance

IEC

60529

IPX?*

NMEA

2000

input

From

9

to

32

Vdc

voltage

NMEA2000LEN

2

(100

mA)

Compass-safe

5

cm

(2

in.)

distance

*The

device

withstands

incidental

exposure

to

water

of

up

to

1m

for

up

to

30

min.

For

more

information,

go

to

www.garmin.com

/waterrating.

Limited

Warranty

The

Garmin

standard

limited

warranty

applies

to

this

accessory.

For

more

information,

go

to

www.garmin.com/support

/warranty.html.

GYROCOMPAS

STEADY

CAST™

Instructions

d'installation

Informations

importantes

relatives

a

la

securite

&ATTENTION

Portez

toujours

des

lunettes

de

protection,

un

equipement

antibruit

et

un

masque

anti-

poussiere

lorsque

vous

percez,

coupez

ou

poncez.

AVIS

Lorsque

vous

percez

ou

coupez,

commencez

toujours

par

verifier

la

nature

de

la

face

opposee

de

!'element.

Enregistrement

de

l'appareil

Aidez-nous

a

mieux

vous

servir

en

remplissant

des

aujourd'hui

notre

formulaire

d'enregistrement

en

ligne.

•

Rendez-vous

sur

my.garrnin.com.

5

The

included

NMEA

2000'

connector(s)

G)

are

compatible

with

existing

Gannin

NMEA

2000

backbones

®,

but

are

angled

by

45

degrees

when

connected.

If

you

have

issues

securing

this

in

an

existing

installation,

contact

Garmin

support

at

Marine.answers@

garmin.com

to

get

a

short

NMEA

2000

adapter

cable.

Le

ou

les

connecteurs

NMEA

2000

inclus

G)

sont

compatibles

avec

les

dorsales

Garmin

NMEA

2000

existantes

®,

mais

leur

angle

est

de

45

degres

lorsqu'ils

sont

connectes.

Si

vous

rencontrez

des

problemes

pour

securiser

une

installation

existante,

contactez

!'assistance

Garmin

a

l'adresse

Marine.

[email protected]

afin

d'obtenir

un

cable

adaptateur

NMEA

2000

court.

I

connettori

NMEA

2000

indusi

CD

sono

compatibili

con

i

backbone

Garmin

NMEA

.

2000

esistenti

®,

ma

hanno

un

angolo

di

45

gradi

quando

vengono

connessi.

In

caso

di

problemi

con

ii

fissaggio

nell

'

installazione

esistente

,

contatta

ii

supporto

Garmin

all'indirizzo

e-mail

Marine

.

answers@garmin

.

com

per

richiedere

un

cavo

adattatore

corto

NMEA2000

.

Die

mitgelieferten

NMEA

2000-Anschlusse

G)

sind

mlt

vorhandenen

Garmin

NMEA

2000-Backbones

®

kompatibel

,

aber

weisen

im

angeschlossenen

Zustand

einen

Winkel

von

45

Grad

auf.

Wenn

es

Probleme

beim

Sichem

in

einer

·

vorhandenen

Installation

gibt

,

wenden

Sie

sich

unter

Marine

.

answers@garmin

.

com

an

den

Support

von

Garmin,

um

ein

kurzes

NMEA

2000-Adapterkabel

zu

erhalten.
