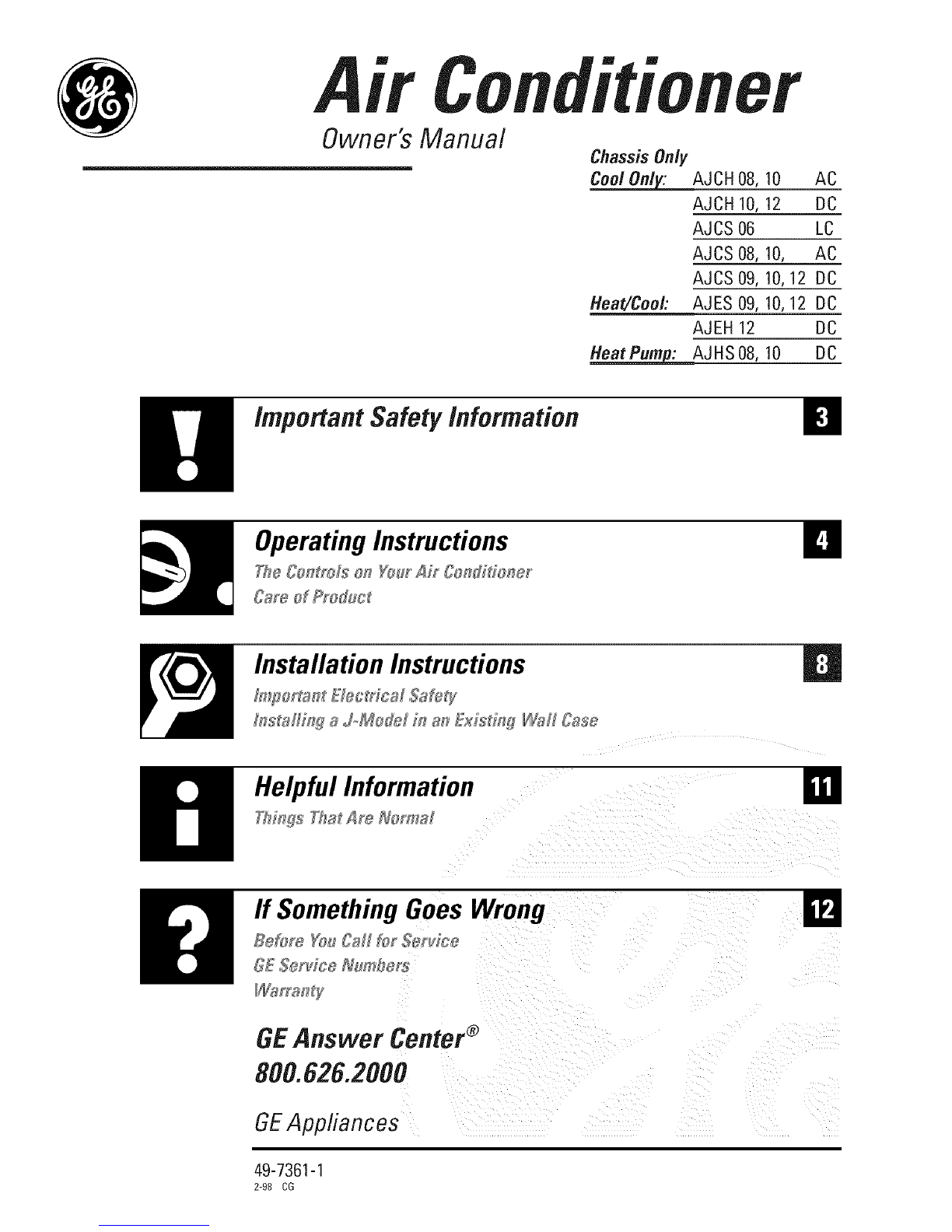

GE AJCH Series User manual

Air Conditioner
Owner's Manual Chassis On/y
Coo/Only: AJCH 08, 10 AC
AJCH 10,12 DC
AJCS 06 LC
Heat/Cool:
AJCS 08, 10, AC
AJCS 09, 10,12 DC
AJES 09, 10,12 DC
AJEH 12 DO
Heat PumP_LAJ HS 08, 10 DC
ImportantSafety Information
[]
Operating Instructions Igl
InstallationInstructions
fns_a_ffn_ a J-MoSe_ fn an fkL_#_ WMf Case
HelpfulInformation
Tbh_s Tba_Are _w_._ W

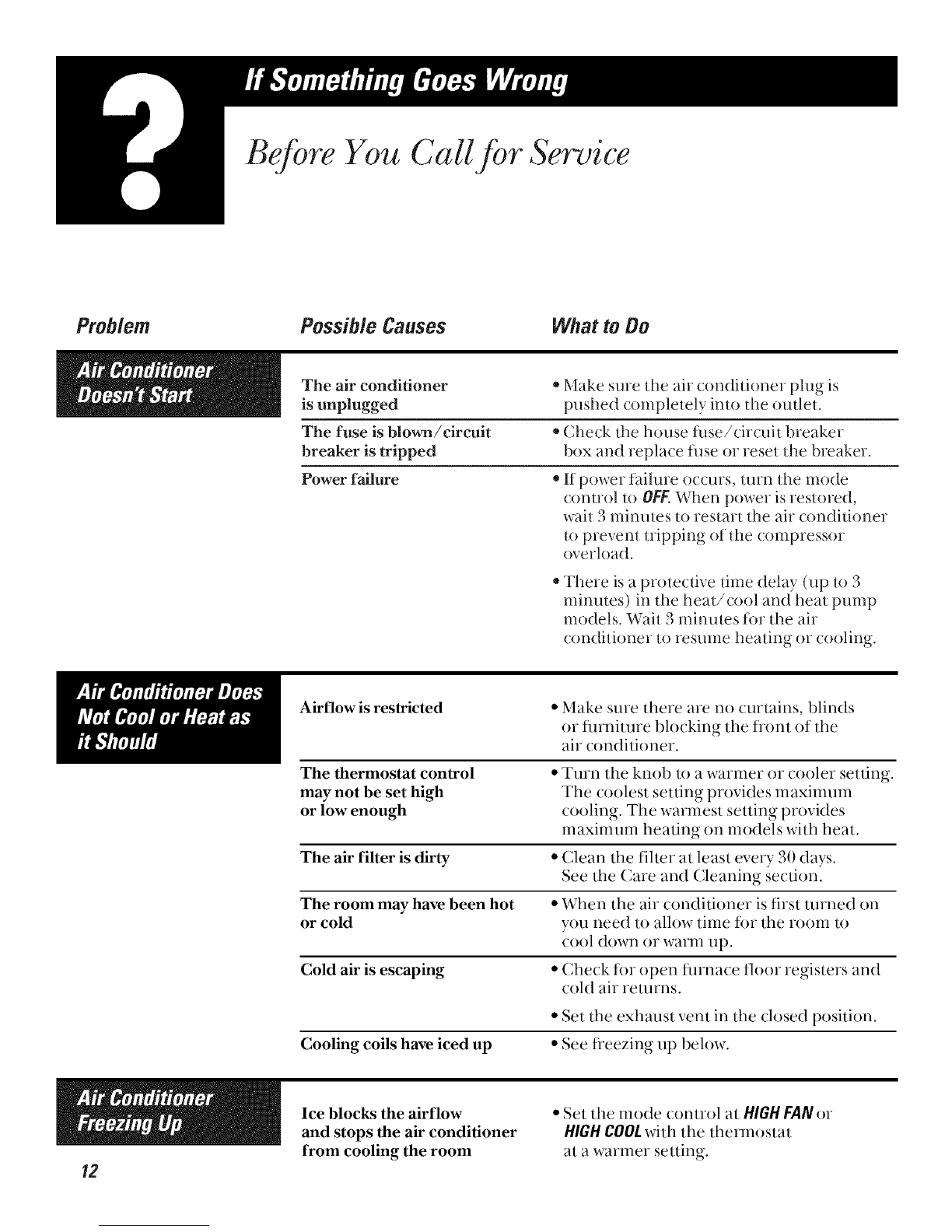

If SomethingGoesWrong
Beh_r_ Yo_ _v#;u
GEAnswer Center®
800.626.2000
GEAppfiances
49-7361-1
2-98 CG

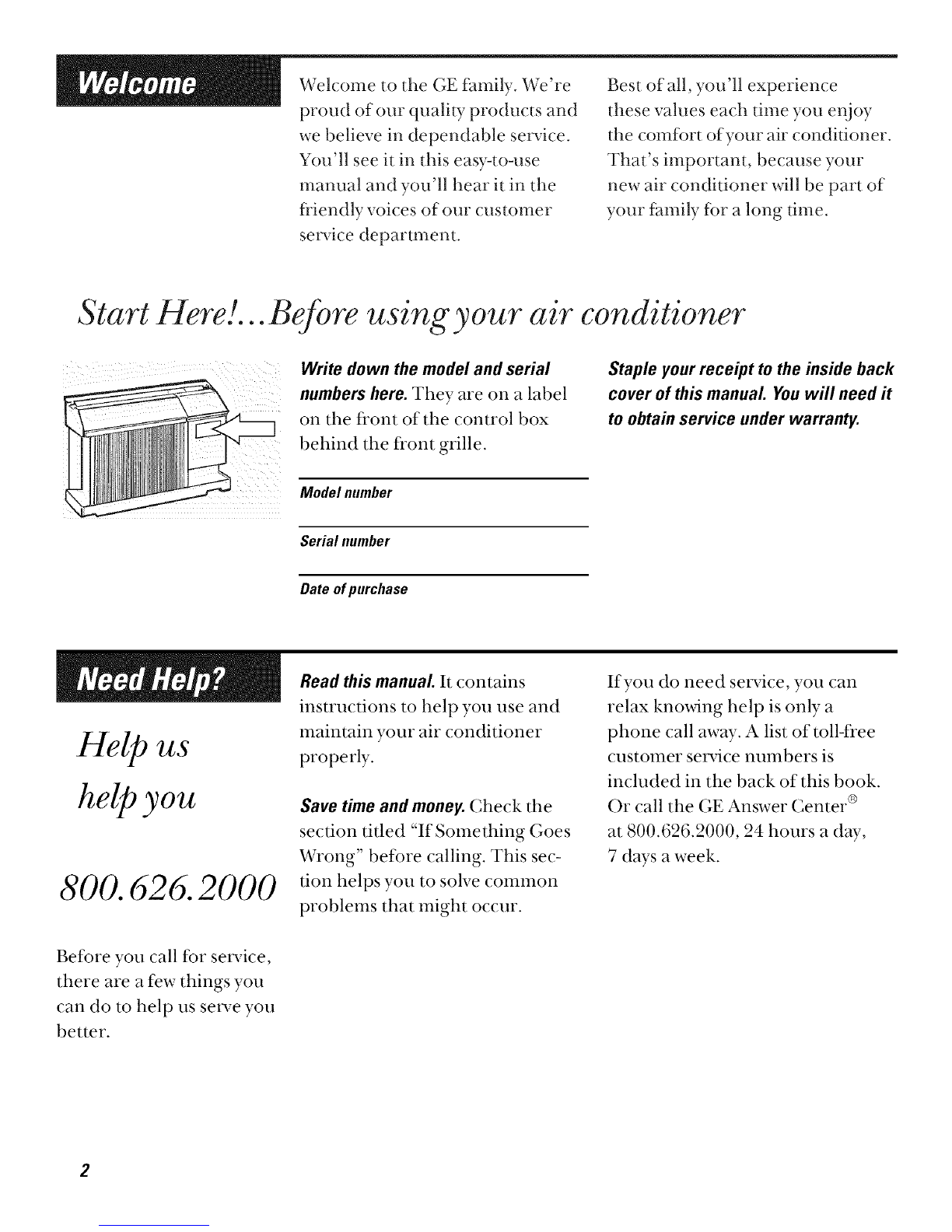

we believe in dependable sma_ice.
You'll see it in this easy-to-use
manual and you'll hear it in the
fi'iendly voices of our customer
sela,ice department.
the comfort of your air conditioner.
That's important, because your
new air conditioner will be part of
your f:amily for a long time.
Start Here!... re uszng your azr condztzoner
¸)¸7¸¸< )Q) Write down the model and serial
numbers here. They are on a label
on the front of the control box
behind the fi'ont grille.
Model number
Serial number
Date ofpurchase
Staple your receipt to the inside back
cover of this manual You will need it
to obtain service under warranty.
Help us
help you
800.626.2000
Readthismanual It contains
instructions to help you use and
maintain your air conditioner
properly.
Save time and money. Check the
section titled "If Something Goes
Wrong" before calling. This sec-
tion helps you to solve common
problems that might occur.
If you do need sm_Tice,you can
relax knowing help is only a
phone call away. A list of toll-flee
customer sm_ice numbers is
included in the back of this book.
Or call the GE Answer Center ®
at 800.626.2000, 24 hours a day,
7 days a week.
Before you call for sms_ice,
there are a few things you
can do to help us setsTeyou
better.

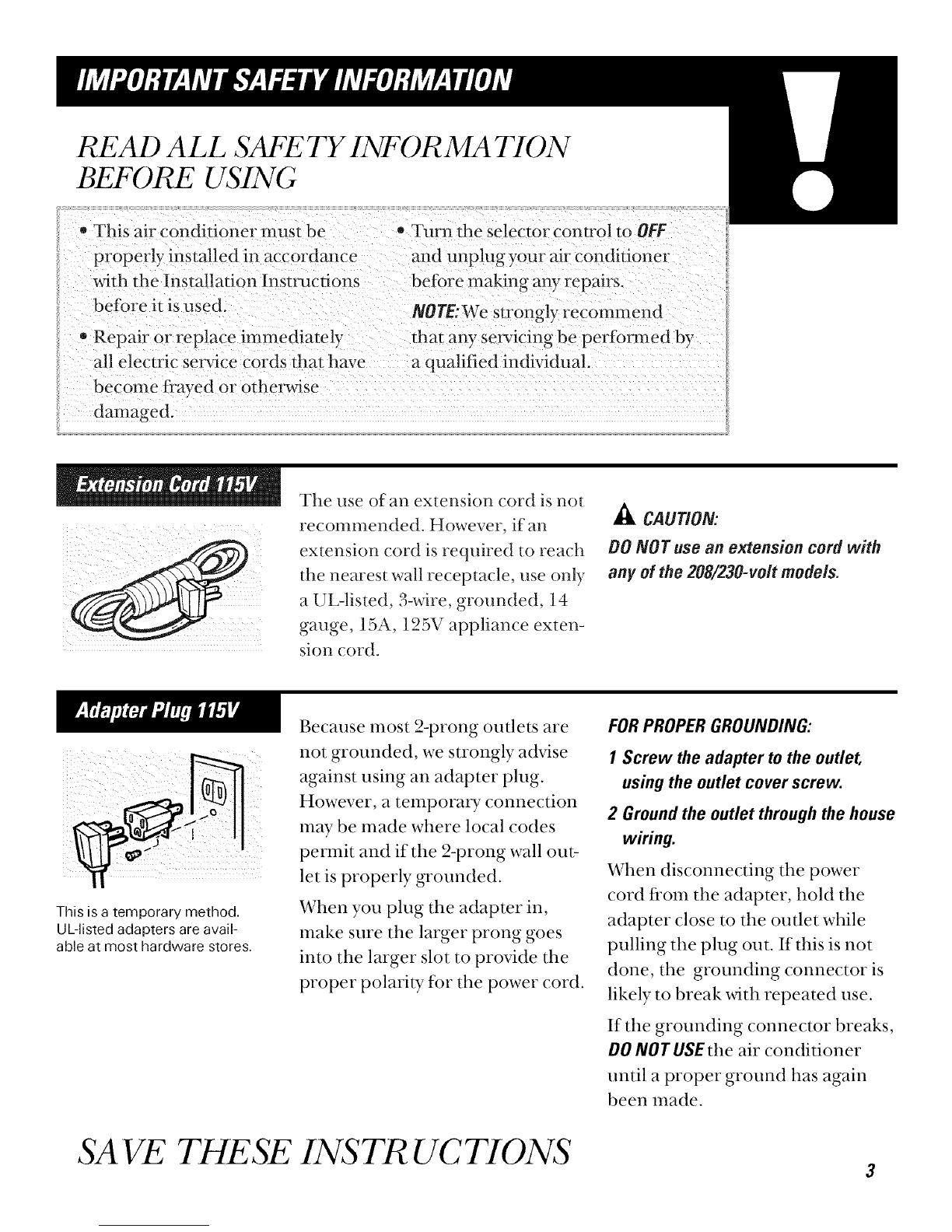

READ ALL SAFE TY INFORMATION
BEFORE USING
®This air condiuoner must be • Turn the selector control to OFF
properly installed in accordance and unplug your air conditioner
with the Installation Instructions before making aW repairs.
before it is used. NOTE:We strongly recommend
• Repair or replace immediately that any servicing be perfommd by
all electric seiwice cords that have a qualified indMdual.
become fl'ayed or otherwise
_iiii _ii i ii _
The use of an extension cord is not
recommended. However, if an
extension cord is required to reach
the nearest wall receptacle, use only
a UL-listed, 3-wire, grounded, 14
gauge, 15A, 125V appliance exten-
sion cord.
CAUTION:
DO NOT use an extension cord with
any of the 208/230-volt models.
This is a temporary method.
UL-listed adapters are avail-
able at most hardware stores.
Because most 2-prong outlets are
not grounded, we strongly advise
against using an adapter plug.
However, a tempora D, connection
may be made where local codes
permit and if the 2-prong wall out-
let is properly grounded.
When you plug the adapter in,
make sure the larger prong goes
into the larger slot to provide the
proper polarity, for the power cord.
FORPROPERGROUNDING:
1 Screw the adapter to the outlet,
using the outlet cover screw.
2 Groundthe outlet through the house
wMng.
When disconnecting the power
cord from the adapter, hold the
adapter close to the outlet while
pulling the plug out. If this is not
done, the grounding connector is
likely to break with repeated use.
If the grounding connector breaks,
DO NOT USE the air conditioner
until a proper ground has again
been made.
SAVE THESE INSTRUCTIONS 3

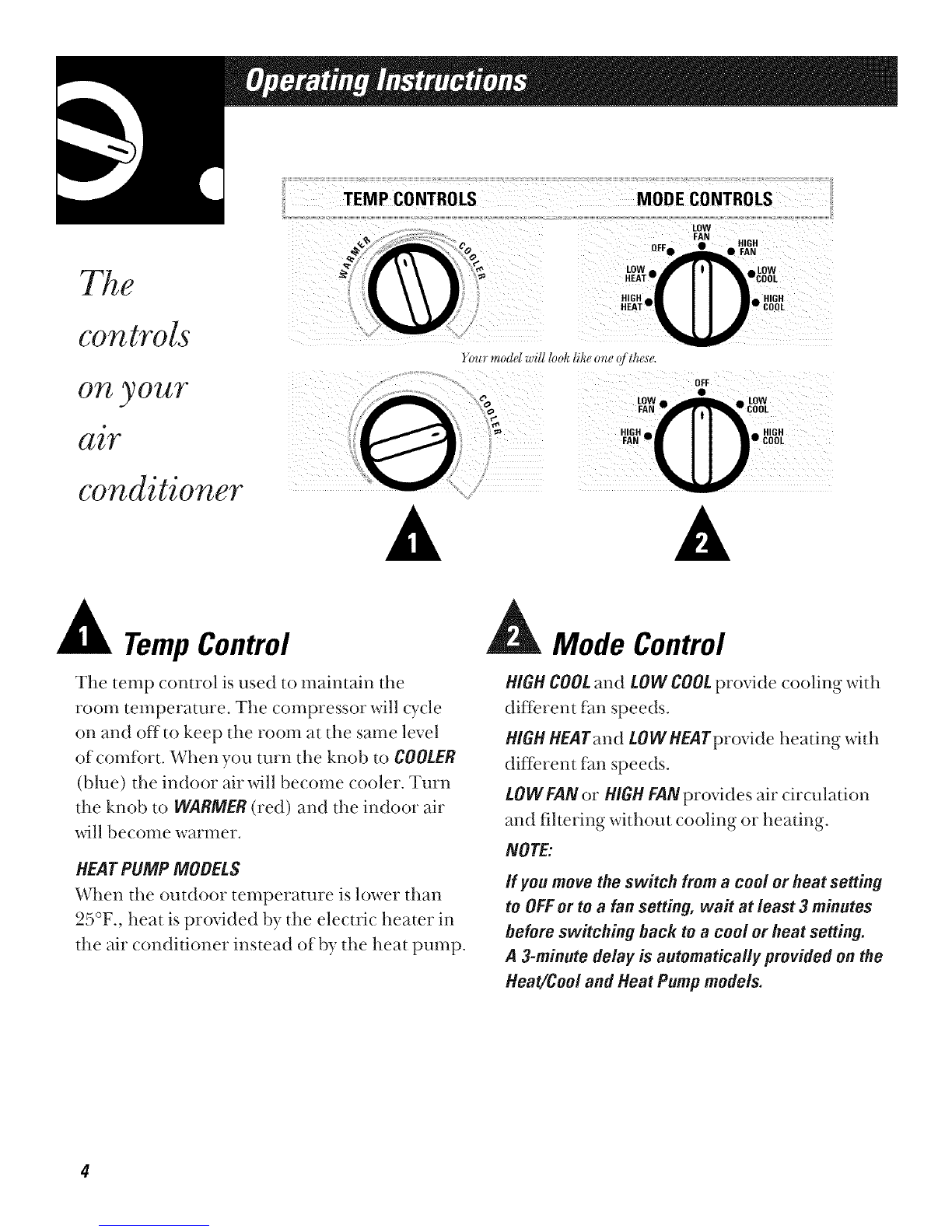

The
controls
on yOttr
air
conditioner
TEMP CONTROLS MODE CONTROLS
LOW
FAN HIGH
•FAN
LOW •
HEAT
HIGH ii IHIGIt
HEAT
You_ model will look like orte oJ'lhese.
_(_iiii(_iii I A
TempControl
The temp control is used to maintain the
room temperature. The compressor will cycle
on and offto keep the room at the same level
of comfbrt. When you turn the knob to COOLER
(blue) the indoor air will become cooler. Turn
the knob to WARMER (red) and the indoor air
will become warmer.
HEAT PUMP MODELS
When the outdoor temperature is lower than
25°F., heat is provided by the electric heater in
the air conditioner instead of by the heat pump.
AMode Control
HIGH COOL and LOW COOL provide cooling with
different tim speeds.
HIGH HEATand LOW HEATprovide heating with
diLL(rent fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling or heating.
NOTE:
If you move the switch from a cool or heat setting
to OFFor to a fan setting, wait at least 3 minutes
before switching hacR to a cool or heat setting.
A3-minute delay is automatically provided on the
Heat/Cool and Heat Pump models.

Cooling/Heating Descriptions
FOR NORMAL COOLING FORMAXIMUM COOLING FOR MAXIMUM HEATING FOR QuiETER&
HIGH COOLvfith se!ect HIGH HEATwlth NiGHTTiME COOLING
select HIGH C00£ or HIGH thermOstat at maximum thermostat at maximum select LOW COOLor Low
HEATwlth the the_OStat heat. HEAT_dth the thermoStat
b)¢atu_ and @pearance m@' vaU.
@ 0
O ®
• %.
®
Limits @ its
heat cool
[emp temp
Each position equals
approximately 3° F.
OPEN
Fan Switch
On Heat/Cool models, the tim switch lever is
located in a hole through the control panel. To
reach it, you need to remove the front grille.
Use a small screwdriver to change the setting.
Cool only models have a rocket" switch on the
fi'ont of the control box.
When set at CYCLE (clown) the tim cycles on and
offwhen cooling or heating. When set at CONT
(continuous, up) the fan runs all the time. The
unit is shipped in the CONTsetting.
AVentControl
The vent control is located behind the front
grille. When set at CLOSE, only the air inside
the room will be circulated and conditioned.
You may adjust it 1)?7removing the fi'ont grille.
When set at OPEN, some inside air is exhausted
outside.
NOTE: The vent lever is taped in the CLOSE
position when it leaves the factory. Remove
the tape before using.
TemperatureLimiting
Limiting the maximmn and mininmm settings
prevents users from turning the control to the
extreme heat or cool positions.
The normal range of the temp control is approx-
imately 60°F to 85 °F. The control range m W be
narrowed by the use of the temperature limiting
screws located behind the control panel.
A# Direction
Horizontal louvers on the front grille let you
control the air direction up and clown.
Remove the fi'ont grille to adjust the vertical
louvers side-to-side to direct the air left or right.

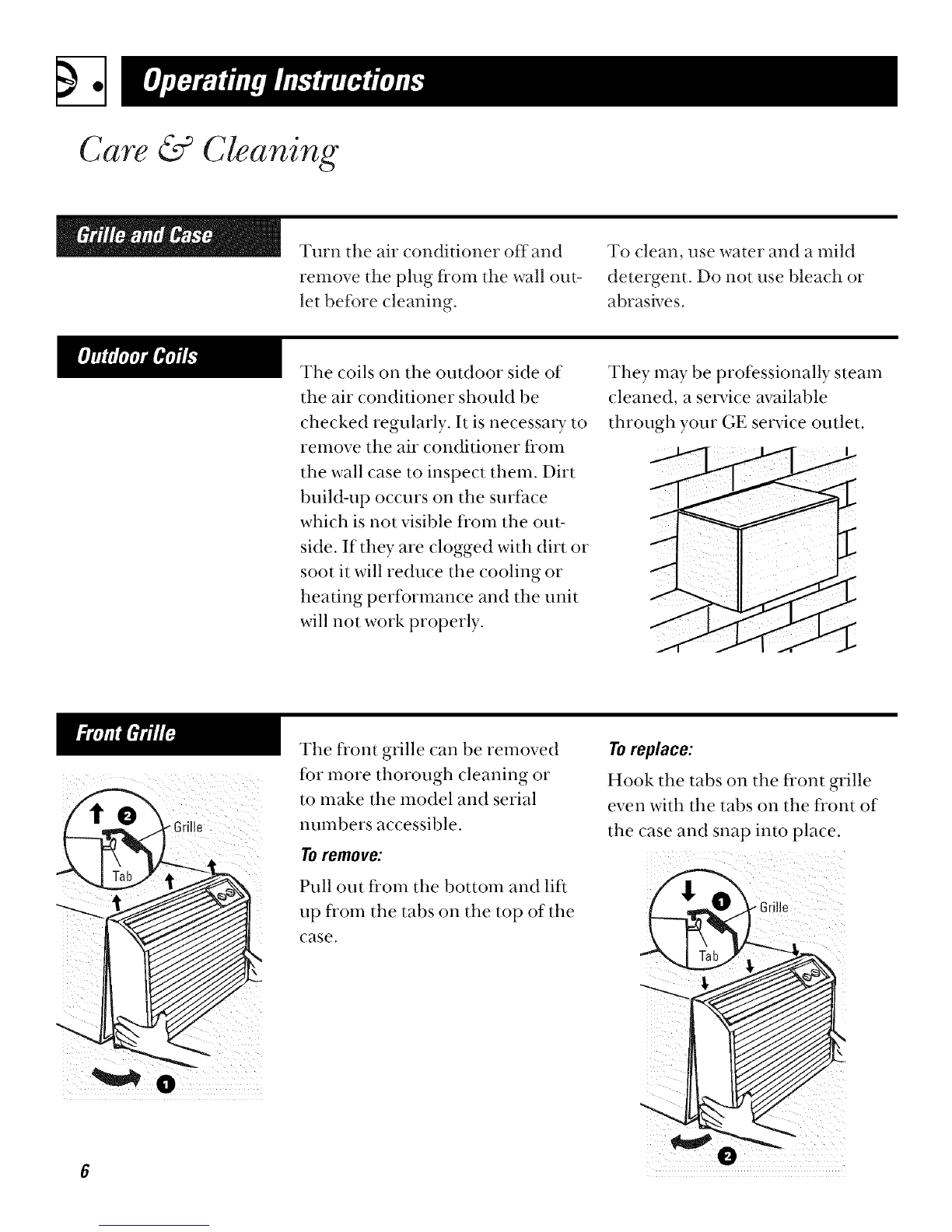

Care & Cleaning
Turn the air conditioner off anti
remove the plug from the wall out-
let be%re cleaning.
To clean, use water and a mild
detergent. Do not use bleach or
abrasives.
The coils on the outdoor side of
the air conditioner should be
checked regularly. It is necessa D, to
remove the air conditioner from
the wall case to inspect them. Dirt
build-up occurs on the surf>me
which is not visible from the out-
side. If they are clogged with dirt or
soot it will reduce the cooling or
heating performance anti the unit
will not work properly.
They may be professionally steam
cleaned, a sm_,ice m,ailable
through your GE sma_ice outlet.
_ Grille
Tile front grille can be removed
for more thorough cleaning or
to make the model and serial
numbers accessible.
Toremove:
Pull out fronl tile bottonl and lifk
up from the tabs on the top of the
case.
Toreplace:
Hook tile tabs on tile front grille
even with the tabs on the front of
the case and snap into place.
-Grille
!

i! every3Odays.
D_
Dirty filter_Needs cleaning
Clogged filter--Great!y
(educes cooling, heating
and airflow.
Turn the air conditioner off before Replace the clean filter 1)}7pushing
cleaning, it back into place.
The most important thing you can
do to maintain the air conditioner _._,_
is to clean the filter at least evm T 30 .<.
days. Clogged filters reduce cool-
ing, heating and airflow.
Keeping the filterclean will:
*Decrease cost ofoperation.
o Save energ T.
* Prevent clogged heat exchanger
coils.
"Reduce the risk of premature
component fidlure.
Toclean theair filter:
* Vacuum off the hea W soil.
* Run water d_rough the fiher
fl'om the back side.
* DUthoroughly be%re replacing.
Onsomemodels,carefully pull the
tab foi_vard, up and out.
CAUTION:
BONOToperate the air conditioner
without thefilter in place.If a filter
becomestomor damagedit should
bereplacedimmediately.
Operating wkhout tt_e filter in
place or with a damaged tilter will
allow dirt and dust to reach the in-
door coil and reduce the cooling,
headng, airflow and ef_icien W of
the unit.
Replacement filters are available
fl'om your salesperson, GE dealer,
GE Sin-vice and Parts Center
or authorized Customer Care ®
setwicers.
Onothermodels,pull it down.

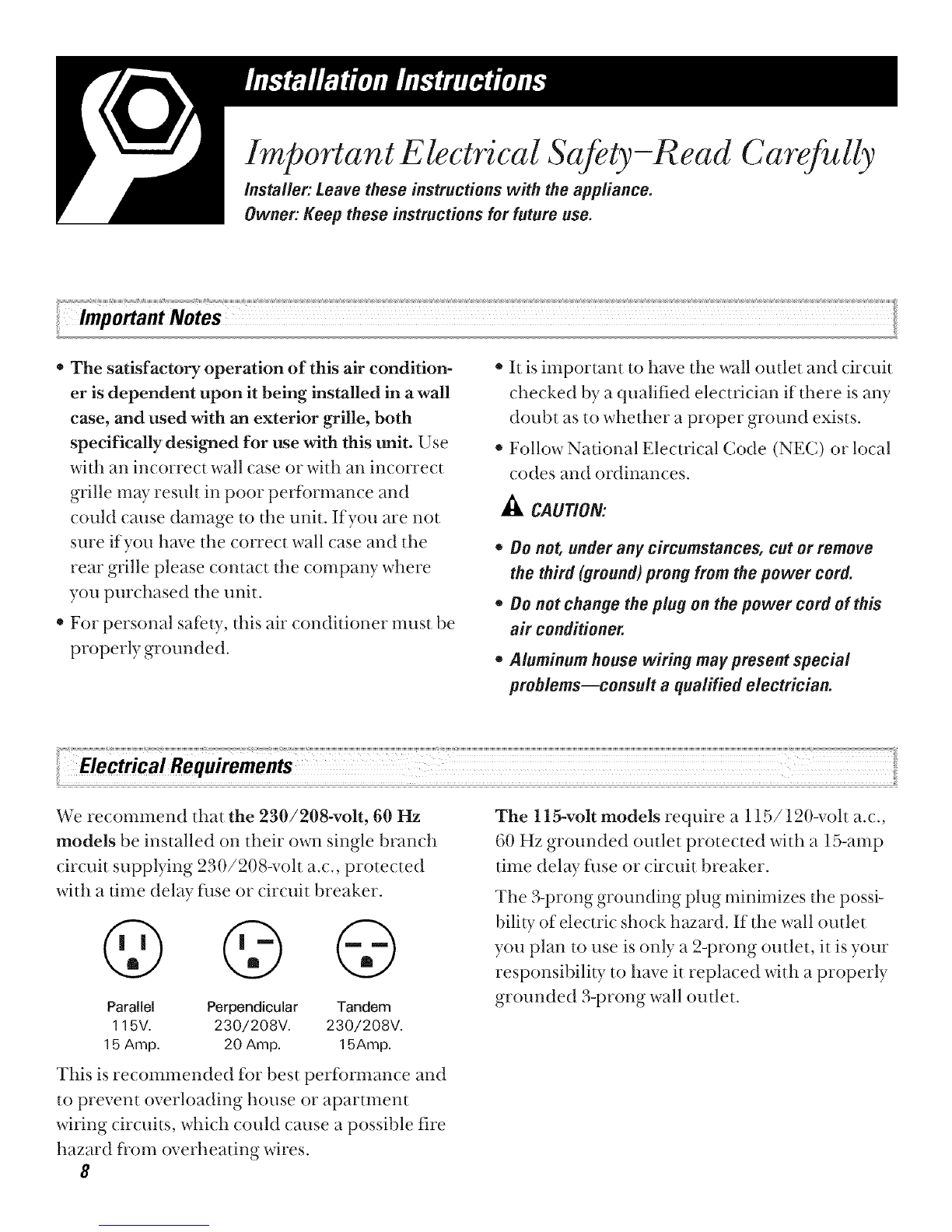

ImportantE S f ty-R d C ( lly
Installer: Leave these instructions with the appliance.
Owner: Keep these instructions for future use.
I::: o
*The satisfactory operation of this air condition-
er is dependent upon it being installed in a wall
case, and used with an exterior grille, both
specifically designed for use with this unit. Use
with an incorrect wall case or wkh an incorrect
grille may result in poor performance and
coukt cause damage to the unit. If yon are not
sure if you have the correct wall case and tt_e
rear grille please contact the compa W where
you purchased the unit.
*For personal safety, this air conditioner must be
properly grounded.
* It is important to have the wall oudet and circuit
checked by a qnalified electrician if there is any
doubt as to whether a proper ground exists.
*Follow National Electrical Code (NEC) or local
codes and ordinances.
CAUTION:
*Do not, under any circumstances, cut or remove
the third (ground)prong from the power cord.
*Do not change the plug on the power cord of this
air conditioner.
*Aluminum house wiring may present special
problems--consult a qualified electrician.
We recommend dmt the 230/208-volt, 60 Hz
models be installed on tt_eir own single branch
circuit supplying 230/208-volt a.c., protected
witt_ a time delay fllse or circuit breaker.
@ ©
Parallel Perpendicular Tandem
115V. 230/208V. 230/208V.
15 Amp. 20 Amp. 15Amp.
This is recommended %r best per%rmance and
to prevent overloading house or apartment
wiring circuits, which could cause a possible fire
hazard fi'om overheating wires.
8
The 115-volt models require a 115/120-volt a.c.,
60 Hz grounded outlet protected witt_ a 15-amp
time delay fhse or circuit breaker.
The 3-prong grounding plug minimizes the possi-
bility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced witt_ a properly
gronnded 3-prong wall oudet.

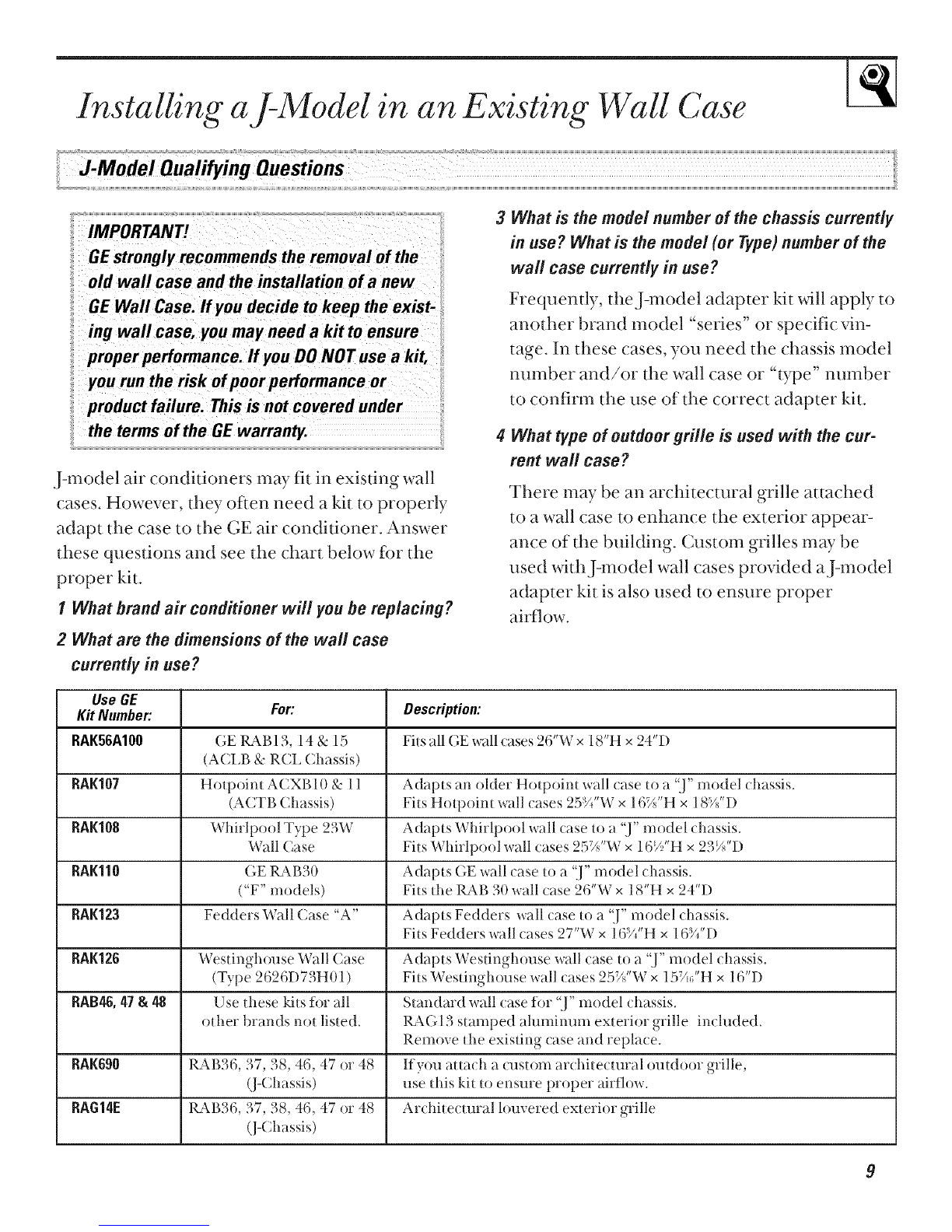

Installing aJ-Model in an Existing Wall Case
IMPORTANT!
GE strongly recommends the removal of the
old waft case and the installation of a new
GE Waft Case. ff you decide to keep the exist-
ing wall case, you may need a kit to ensure
proper performance, ff you DO NOT use a kit,
you run the risk of poor performance or
product failure. This is not covered under
the terms of the GE warranty. _4
J-model air conditioners may fit in existing wall
cases. However, they often need a kit to properly
adapt tl_e case to tt_e GE air conditioner. Answer
these questions and see the chart below for the
proper kit.
1 What brand air conditioner will you he replacing?
2 What are the dimensions of the wall case
currently in use ?
What is the model number of the chassis currently
in use ? What is the model (or Type) number of the
wall case currently in use ?
Frequendy, d_eJ-model adapter kit will apply to
anodmr brand model "series" or specific vin-
tage. In tt_ese cases, you need tt_e chassis model
number and/or the wall case or "type" number
to confirm the use of the correct adapter kit.
What type of outdoor grille is used with the cur-
rent wall case?
There may be an architectural grille attached
to a wall case to enhance the exterior appear-
ance of the building. Custom grilles may be
used with J-model wall cases provided aJ-model
adapter kit is also used to ensure proper
airflow.
UseGE
Kit Number: For: Description:
RAK56A100 GE RAB13, 14 & 15 Fits all GE wall cases 26"W x 18"H x 24"D
(ACLB & RCL Chassis)
RAR107 Ho_point ACXBI 0 & 11 Adapts an older Hotpoint wall (:ase to a ".]" model (hassis.
(ACTB Chassis) Fits Hotpoint wall cases 25g,"W x 16V,JH x 18%"D
RAR108 Whirlpool Type 23W Adapts WhMpool wall case to a ".]" model (hassis.
Wall Case Fits WhMpool wall cases 2,57/,,"Wx 16_/:"H x 23Ys"D
RAR110 GE P._4B30 Adapts (;E wall case to a "J" model chassis.
("F" models) Fits the RAB 30 wall case 26"W x 18"H x 24"D
RAK123 Fedders Wall Case "A" Adapts Fedders wall case to a "J" model chassis.
Fits Fedders wall (ases 27"W x 16:_Z"Hx 16:_A"D
RAR126 Westinghouse Wall Case Adapts Westinghouse wall case to a ".]"model chassis.
(Type 2626D73H01 ) Fits Westinghouse wall (ases 257,,"W x 157_;"H x 16"D
RAB4{I,47 &48 Use these kits for all Standard wall case for ".]" model chassis.
other brands not listed. RA(; 13 stamped aluminum exterior grille in( luded.
Remove the existing case and replace.
RAR_0 IL_B36, 37, 38, 46, 47 or 48 If you attach a custom architectural outdoor grille,
@Chassis) use this kit to ensure proper airflow.
RAGI4E P,_4B36, 37, 38, 46, 47 or 48 Archite_ rural louvered exterior grille
(]-Chassis)

IRemove the locking plate on the front left side.
plate- _ _"
4Reinstall the locking plate xdth the tab behind
the wall case flange. Tighten tt_e screw.
5Attach tt_e power cord to the base pan with
the clamp.
Clamp
2Remove the shipping pad inside the air
conditioner next to the compressor.
Shipping pad
3Careflflly slide the air condiuoner back into
the case. Make sure that the robing on the unit
does not touch the wall case and that the case
6When the wall outlet is to the left, extend the
cord under the unit and hold it in place with
the clamp.
_ Clam_OWercord
7Attach the fl'ont grille. An opening for the
power cord is on the bottom of the fl'ont grille.
installation is secure.
I0

Things That Are Normal
pl NG!
You may hear a pinging noise caused by water being picked up
and thrown against the condenser on rainy days or when the
humidity is high. This design feature helps relnove lnoisUlre
and improve efficiency.
" I K"€L C You may hear the thermostat click when the compressor cycles
on and oft\
Water will collect in the base pan during high humidity or on rainy
clays. The water m W overflow and drip fl'om the outdoor side
of the unit.
On the heat pump units, water _411drip to the outside when the
heat mode is being used. A RAD4 drain kit is available.
The fan may run even when the compressor is not.
11

B@re You Call for Service
Problem Possible Causes What to Do
The air conditioner
is unplugged
The fuse is blown/circuit
breaker is tripped
Power failure
* Make sure the air conditioner plug is
pushed coinpletely into the outlet.
* Check the house fuse/circuit 1)reaker
box and replace fuse or reset the breaker.
*If power failure occurs, turn the mode
control to OFF.When power is restored,
wait 3 minutes to restart the air conditioner
/o prevent tripping of the compressor
overload.
*There is a protective time delay (up to 3
minutes) in the heat/cool and heat pump
models. Wait 3 minutes fl)r the air
conditioner to resume heating or cooling.
Airflow is restricted • Make sure there are no curtains, blinds
or furniture blocking tim flont of tim
air conditioner.
The thermostat control
may not be set high
or low enough
The air filter is dirty • Clean the fiher at least ever), 30 days.
See tim (;are and Cleaning section.
The room may have been hot • When the air conditioner is first turned on
or cold you need to allow time for tim room to
cool down or warm up.
Cold air is escaping • Check for open furnace floor registers and
cold air returns.
• Set tim exhaust vent in tim closed position.
Cooling coils have iced up • See fleezing up below.
• Turn the knob to a warmer or cooler setting.
The coolest setting provides maximum
cooling. The warmest setting provides
maximum heating on models with heat.
Ice blocks the airflow
and stops the air conditioner
from cooling the room
• Set the mode control at HIGH FAN or
HIGH COOLwith the thermostat
at a warmer setting.

Notes
13

Notes
14

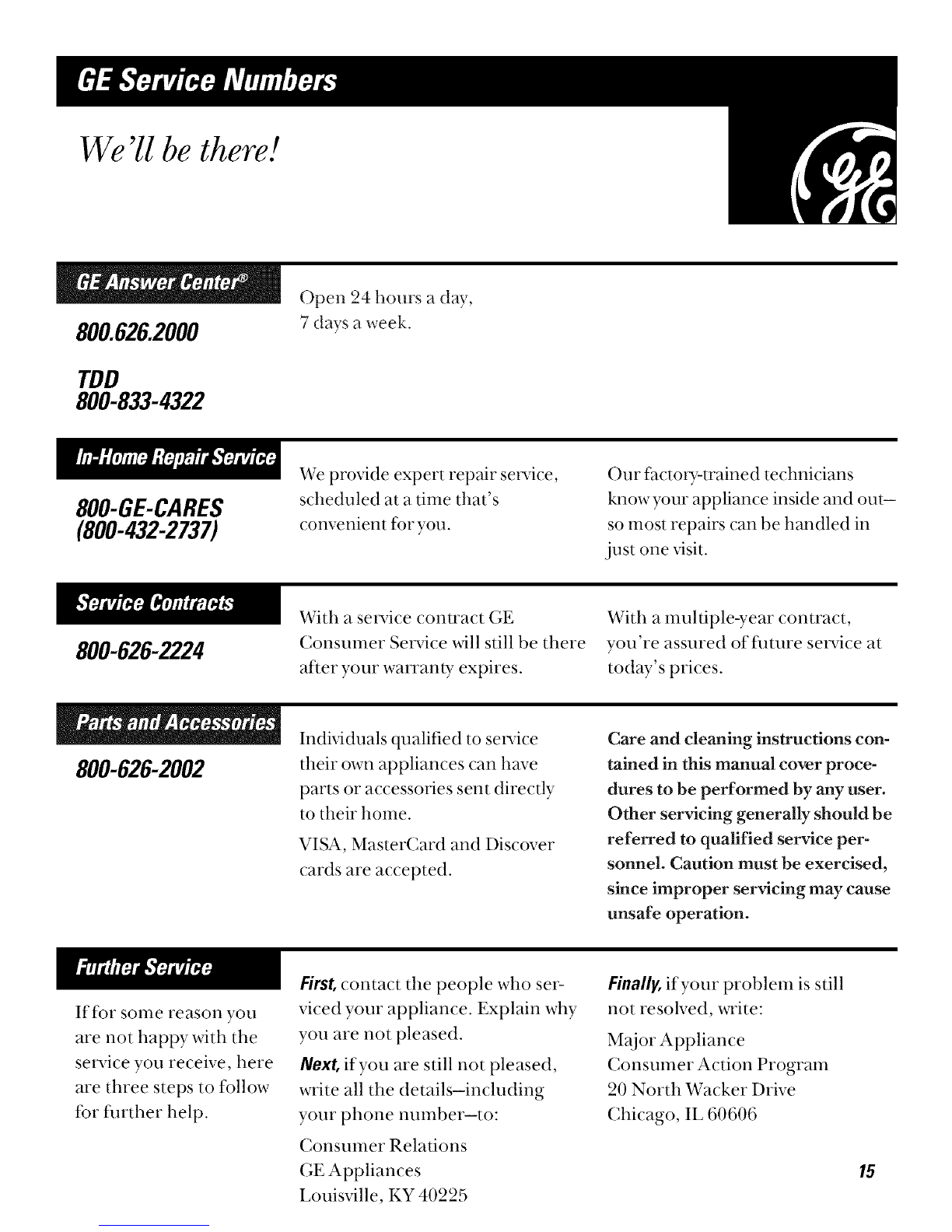

We'll be there!
800.626.2000
TDD
800-833-4322
Open 24 hours a day,
7 days a week.
800-GE-CARES
(800-432-2737)
800-626-2224
We provide expert repair se_Tice,
scheduled at a time that's
convenient for you.
Our factou-trained technicians
know your appliance inside and out-
so most repairs can be handled in
just one xdsit.
With a seIsdce contract GE With a multiple-year contract,
Consumer SeI_dce _dll still be there you're assured offimlre seI_dce at
after your warranty expires, today's prices.
800-626-2002 IndMduals qualified to sm_dce
their own appliances can have
parts oi"accessories sent directly
to their home.
VISA, MasterCard and Discover
cards are accepted.
Care and cleaning instructions con-
tained in this manual cover proce-
dures to be performed by any user.
Other servicing generally should be
referred to qualified service per-
sonnel. Caution must be exercised,
since improper servicing may cause
unsafe operation.
If for some reason you
are not happy with the
seI_dce you receke, here
are three steps to follow
for further help.
First,contact the people who ser-
viced your appliance. Explain why
you are not pleased.
Next, if you are still not pleased,
write all the details-including
your phone nuznber-to:
Consumer Relations
GE Appliances
Louisville, KY 40225
Finally, if your problem is still
not resolved, write:
Major Appliance
Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
15

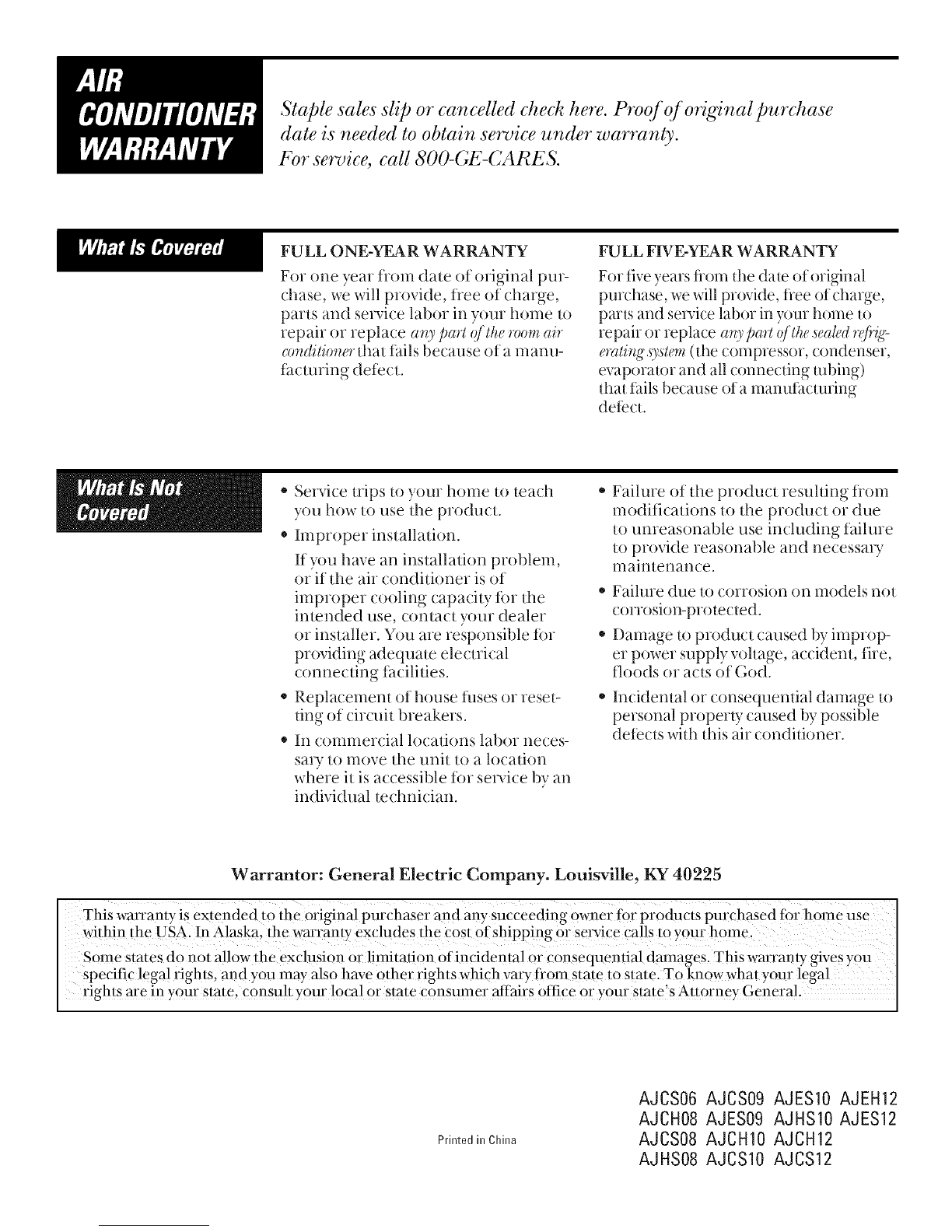

St@lesalessliporca,,celledchecl¢he, .Proofof p,,,rchase
date is needed to obtai'n service u'nder warranty.
For service, call 800-GE-CARES.
FULL ONE-YEAR WARRANTY
For one year fiom date of original pur-
chase, we will provide, fiee of charge,
parts and service labor in your home to
repair or replace a'rO,parl ol'the room air
amditio'm_rthat tails because of a mann-
facturing def>ct.
FULL FIVE-YEAR WARRANTY
For five years flom the date of original
pmvhase, we will provide, flee of cha_ge,
parts and se_s'icelabor in your home to
repair or replace a_9'parl of the.sealed_@_g-
e_rzti)_g.9'.stem(the compressor, condenser,
evaporau)r and all connecting robing)
that tidls because of a manufitcturing
detect.
.Service trips to yore home to teach
you how to use the product.
* hnproper installation.
If you have an installation problem,
or if the air conditioner is of
improper cooling capacity for the
intended use, contact your dealer
or installer. You are responsible tot
providing adequate electrical
connecting facilities.
* Replacement of house fuses or reset- ',
ring of circuit breakers.
* In conlmercial locations labor neces-
saUto move the unit to a location
where it is accessible for service by an
individual technician.
Failure of the product resulting flom
n_odifications to the product or due
to unreasonable use including failure
to provide reasonable and necessa U
maintenance.
* Failure due to corrosion on models not
corrosion-protected.
* Damage to product caused by improp-
er power supply voltage, accident, fire,
floods or acts of God.
Incidental or consequential dainage to
personal property caused by possible
detects with this air conditioner.
Warrantor: General Electric Company. Louisville, KY 40225
This waiTanty is extended to the o_iginal purchaser and any succeeding owner for products purchased for home use
Mthin t!ae USA. !n A!aska, the warranty excludes the cost 0f slfipping o!7selwice ca!!s to yore !10me,
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you
specific legal rights, and you ,nay also have other rights which VaUfiom state to state. To know what your legal
rights are in your Slat< Consult your local or State Consumer af*airs omce oryourState s Attorney General.
Printedin China
AJCS06 AJCS09 AJES10 AJEH12
AJCH08 AJES09 AJHS10 AJES12
AJCS08 AJCH10 AJCH12
AJHS08 AJCS10 AJCS12
