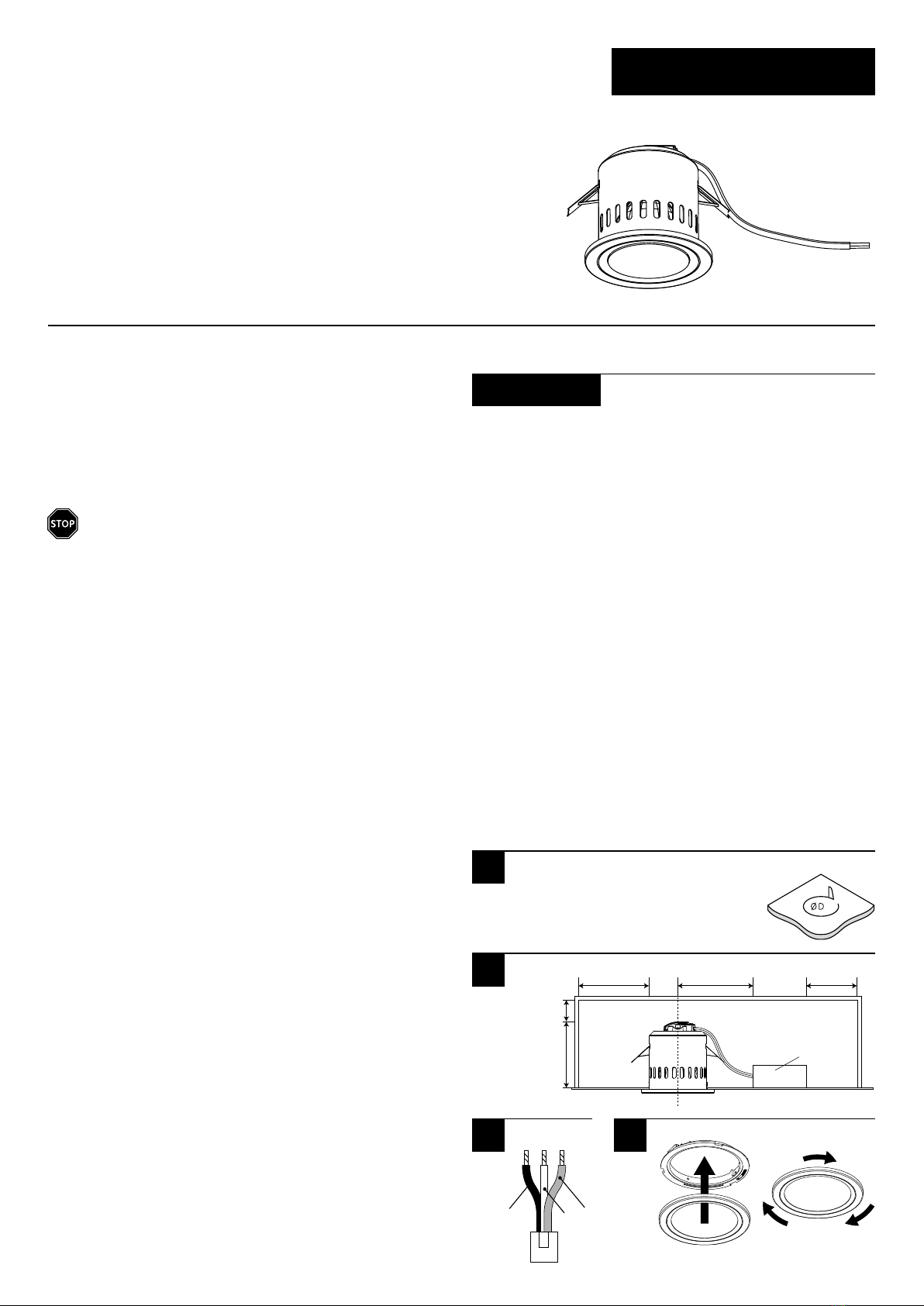

GE CMH User manual

Features
• Long life
• 3 years warranty
• IP20: Dry location rated
• Class I indoor recessed luminaire
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Light source type
CMH 20W/35W G8.5 lamps. For lamp designation,
see control gear.
For best performance use GE ConstantColorTM CMH light
source.
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
Unit Installation
• Prior to installation, isolate the mains supply.
• Carefully unpack unit from its packaging.
• Cut appropriate diameter circular hole at desired location
for luminaire. (Diagram A)
• Remove reector from luminaire and place in secure
location, taking care not to damage reector surface.
• Electrical termination to be carried out by qualied
electrician in accordance with latest edition of IEC 60364.
Diagram C: 3- core 230V AC mains cable supplied.
1: Line-Brown 2: Earth-Yellow/Green 3: Neutral-Blue
• Offer luminaire up into desired location, ensuring there is
the required minimum air space around the control gear
housing. (Diagram B)
• Lock the luminaire into place by means of the two
adjustable xing springs as detailed in Diagram E.
Hold luminaire in position, and press downward at point
indicated, until luminaire is fully secured. Check the
mechanical stability of the luminaire. Conrm with ceiling
manufacturer that ceiling tile can support luminaire weight.
• Carefully relocate reector into luminaire. (If reector is
vacuum metalised, use gloves.)
GE
Lighting Installation Guide
• The luminaire shall only be used complete with its
protective shield. Do not operate without the safety glass.
• Only to be installed outside arms reach.
• The luminaire is not suitable for covering with thermally
insulating material.
• For indoor use only.
• All install and uninstall shall be done by a certified
electrician.
• If the external flexible cable or cord of this luminaire is
damaged, it shall be replaced by the manufacturer or his
service agent or similar qualified person in order to avoid a
hazard.
RISK OF ELECTRIC SHOCK
• Do not operate luminaire with damaged parts.
• Turn power off before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all local codes.
• Use only appropriate IEC approved wire for connections,
minimum size: 3x1 mm2.
Warning
A
B
Cut out diameter: D= 110 mm
Ceiling thickness: min. 1 mm – max. 35 mm
C D
GE CMH
Downlight
GE CMH Fixed Downlight Range 3
1 2 3
L E N
L E N
210 mm
min 73 mm
115 mm
R = min 285 mm 210 mm
control gear

• Install appropriate GE lamp to gain the best performance.
Check the correct wattage and lamp base. Use of any
non-approved lamps may invalidate warranty and reduce
performance.
• Install the twist & lock bezel as detailed in Diagram D.
IMPORTANT: Luminaire must not be operated without or
damaged safety glass.
• Reinstate mains supply to luminaire.
Specifications
Environmental Specifications
Input Voltage (VAC) 220 – 240V
System Power Consumption (W) 23/43 W
Input Frequency (Hz) 50/60 Hz
Environmental Specifications
Operating Temperature Range -10°C to +25°C
Storage Temperature Range -40°C to +70°C
Humidity (non-condensing) 20-50% Non-condensing,
dry locations only
Physical Specifications
Dimensions Ø130mmx115mm
Weight max. 1,3 kg
Conforms to the following standards:
SAP 904595
E
GE Hungary Kft. 1044 Budapest, Váci út 77. Tel: [phone] GE Lighting is constantly developing and improving its products. For this reason,
all product descriptions in this brochure are intended as a general guide, and we may change specications from time to time in the interest of product
development, without prior notication or public announcement. All descriptions in this publication present only general particulars of the goods to which
they refer and shall not form part of any contract. Data in this guide has been obtained in controlled experimental conditions. However, GE Lighting cannot
accept any liability arising from the reliance on such data to the extent permitted. GE CMH Downlight Range 3 Fixed instruction sheet – January, 2013
www.gelighting.com/eu
