Genesis VS GMT16V User manual

GMT16V
Operator’s Manual
Manuel d’utilisation
Manual del Operario
VS Multi-Purpose Oscillating Tool
Outil oscillant à usages multiples de vitesse variable
Herramienta oscilante multiuso, velocidad variable

English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
VS MULTI-PURPOSE OSCILLATING TOOL
Operator’s Manual
SPECIFICATIONS
   
  
  
  



 WARNING:To reduce the risk of injury, user must read and understand
this operator’s manual before operating this tool. Save this Manual for future
reference.
Toll-Free Help Line: 1-888-552-8665
WARNING:






Look for this symbol to point out important safety
precautions. It means attention!!! Your safety is
involved.
GENERAL SAFETY RULES
 WARNING:Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
 
 
 
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.





3
English
 WARNING:READ AND UNDERSTAND ALL WARNINGS, CAUTIONS
AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure
to follow all instructions listed below may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY:
 Keep your work area clean and well lit

 Do not operate power tools in explosive atmospheres


 Keep bystanders, children, and visitors away while operating a power
tool.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. 






•Donotexposepowertoolstorainorwetconditions.

•Avoidbodycontactwithearthedorgroundedsurfacessuchaspipes,
radiators, ranges and refrigerators. 

•Donotabusethecord.


•Whenoperatingapowertooloutside,useanextensioncordsuitable
for outdoor use. 
•DonotuseAConlyratedtoolswithaDCpowersupply.


PERSONAL SAFETY
• Stay alert, 


•Usesafetyequipment.


•Dressproperly.



English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
•Avoidaccidentalstarting.


•Removeanyadjustingkeysorwrenchesbeforeturningthepower
tool on. 

•Donotoverreach.
.
•Ifdevicesareprovidedforconnectionofdustextractionand
collection facilities, ensure these are connected and properly used.

•Donotusealadderorunstablesupport.

•Keeptoolhandlesdry,cleanandfreefromoilandgrease.

TOOL USE AND CARE
• Secure the work piece. 


•Donotforcethepowertool.


•Usethecorrectpowertoolforthejob.

•Donotusetoolifswitchdoesnotturnitonoroff.

.
•Turnpowertooloff,anddisconnecttheplug

. 
.
•Storeidletooloutofreachofchildrenandotherinexerienced
persons. 
•Maintainpowertoolswithcare.



•Userecommendedaccessories.



•Keepcuttingtoolssharpandclean.
.

5
English
•Feedtheworkpieceinthecorrectdirectionandspeed.



•Neverleavethetoolrunningunattended,turnthepoweroff.

•Neverstartthepowertoolwhenanyrotatingcomponentisin
contact with the work piece.
 WARNING:USE OF THIS TOOL CAN GENERATE AND DISBURSE DUST
OR OTHER AIRBORNE PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE
SILICA DUST AND ASBESTOS. Direct particles away from face and body.
Always operate tool in a well-ventilated area and provide for proper dust
removal. Use dust collection system wherever possible. Exposure to the dust
may cause serious and permanent respiratory or other injury, including silicosis
(a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid
prolonged contact with the dust. Allowing dust to get into your mouth or eyes,
or lay on your skin may promote absorption of harmful material. Always use
properly fitting NIOSH/OSHA approved respiratory protection appropriate for
dust exposure, and wash exposed areas with soap and water.
SERVICE
 Have your power tool serviced by a qualified repair person using
only identical replacement parts. 

•Serviceyourpowertoolperiodically.

WARNING:READ AND UNDERSTAND ALL WARNINGS, CAUTIONS
AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure
to follow all instructions listed below may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
EXTENSION CORDS
Grounded tools require a three wire extension cord.










English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
Guidelines for Using Extension Cords
 

 

 
SPECIFIC SAFETY RULES FOR OSCILLATING
TOOLS
 WARNING:DO NOT LET COMFORT OR FAMILIARITY WITH PRODUCT
(GAINED FROM REPEATED USE) REPLACE STRICT ADHERENCE TO
PRODUCT SAFETY RULES. If you use this tool unsafe or incorrectly, you can
suffer serious personal injury!
WARNING:Hold tool by insulated gripping surfaces when performing
an operation where cutting tools may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed metal parts of the tool “live” and
shock the operator!
•Alwayswearsafetyglassesorgoggles.

•HoldtheOscillatingToolbyitsinsulatedgrippingsurfacestoavoid
electrical shock from unseen “live” wires.
•Alwaysholdthetoolrmly.DOnot
•Checkyourworkareaforproperclearancesbeforecutting.

•DOnotcutnailsorscrews
.
•Beforeswitchingonthetool,
•Donotusetoolifswitchdoesnotturnitonoroff.

•Wearcushionedprotectiveglovestominimizethevibration.

•Donotwet-sandwiththistool.

Recommended Minimum Wire Gauge for Extension Cords (120 Volt)
Nameplate
Amperes
(At Full Load)
Extension Cord Length
25 Feet 50 Feet 75 Feet 100 Feet 150 Feet 200 Feet
0–2.0      
2.1–3.4      
3.5–5.0      
5.1–7.0      
7.1–12.0     8 8
12.1–16.0     8
16.1–20.0   88 

7
English
•Always be sure that the tool is switched off and unplugged 

SAVE THESE INSTRUCTIONS
YOUR MULTI-PURPOSE OSCILLATING TOOL
UNPACKING AND CONTENT
IMPORTANT:Due to modern mass production techniques, it is unlikely
the tool is faulty or that a part is missing. If you find anything wrong, do not
operate the tool until the parts have been replaced or the fault has been
rectified. Failure to do so could result in serious personal injury.
CONTENTS IN PACKAGE
Description Q'TY Description Q'TY
   
 
 
  
  
   
  
 
 
 
 











FIG 1
98
7
65
4
3
2
1
10
11

English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
ASSEMBLY AND ADJUSTMENTS
  WARNING: To reduce the risk of serious personal injuries, read and
follow all important safety warning and instructions before using this tool.

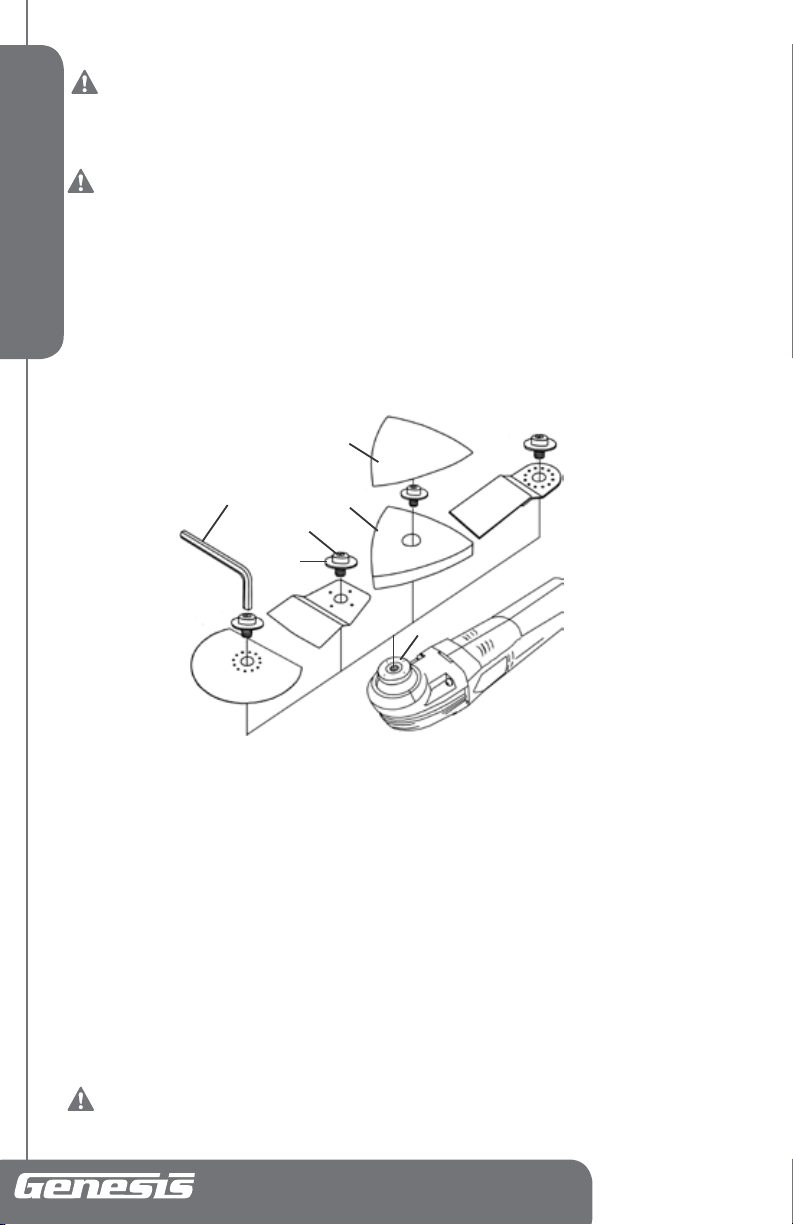

INSTALLING AND REMOVING ACCESSORIES (FIG 2)
 WARNING: Always be sure that the tool is switched off and unplugged
before adjusting, adding accessories, or checking a function on the tool.
To install the saw blade or scraper blade.







NOTE:Some accessories, such as a saw blade, may be mounted either
straight on the tool, or at an angle to enhance usability. Always make sure the 4
pins are engaged as in step 2 above.
To install the Sanding pad and Sandpaper








NOTE: For maximum sandpaper life, rotate the pad or sandpaper 120 degrees
when tip of sandpaper becomes worn.
WARNING: DO NOT tighten the cap screw unless the accessory is
properly seated on the shaft flange.
FIG 2
4
5
2
1
3
6

9
English
To remove accessories from the tool, 
ACCESSORY ADAPTOR (FIG 3)



NOTE:
        


OPERATION
 WARNING: To reduce the risk of serious personal injuries, read and
follow all important safety warning and instructions before using this tool.
WARNING: Always be sure the tool is disconnected from the power
source before making any adjustments or setting up prior to cutting. Failure
to disconnect or unplug the tool may cause accidental starting, resulting in
serious personal injury.
SWITCH ACTION (FIG 4)
To start the oscillating tool

To stop the oscillating tool

VARIABLE SPEED DIAL (FIG 5)





         






ACCESSORY
ADAPTOR
FIG 3
FIG 4


FIG 5

English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
APPLICATIONS
NOTE:Recommended oscillating tool accessories for this tool are the
GENESIS™ oscillating tool accessories. Please refer to "Genesis Oscillating
Tool Accessory Reference Guide" Sheet enclosed for details.





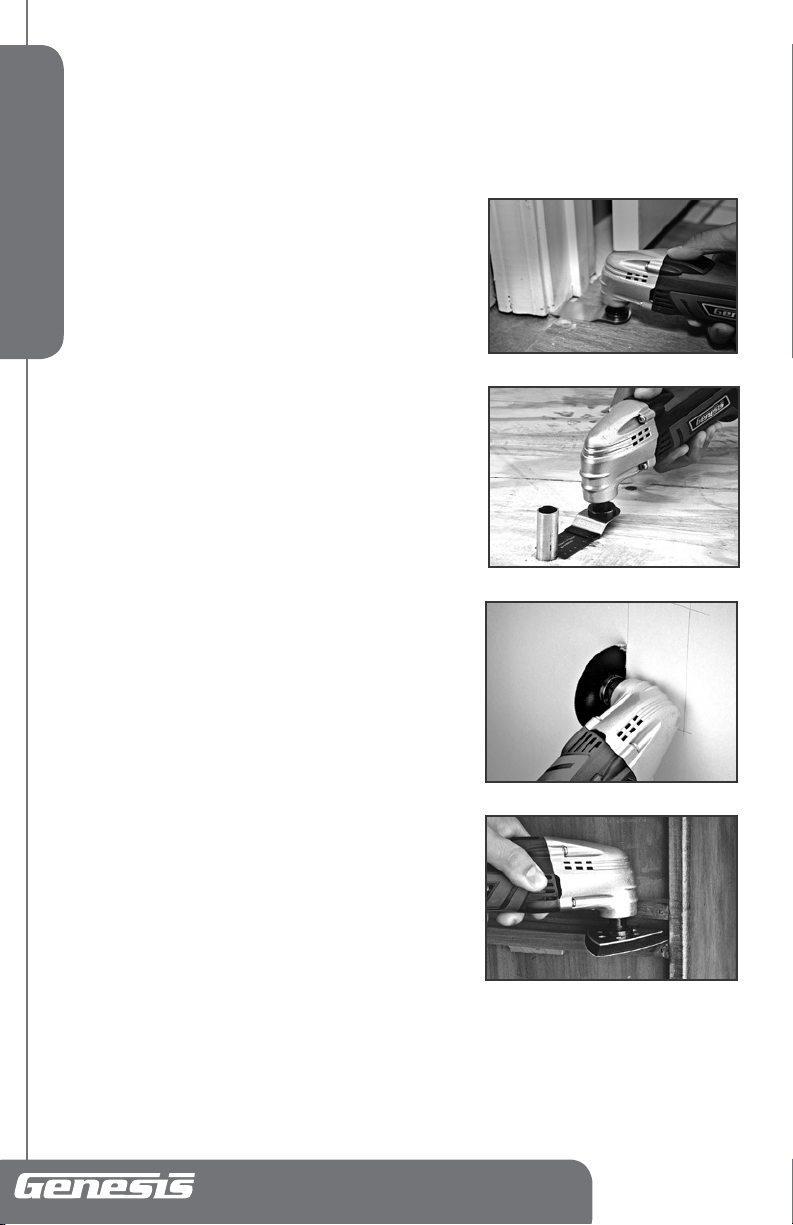

CUTTING (FIG 6,7,8)

           

         




NOTE:It is suggested that you have a piece
of scrap material supporting the blade when
making a flush cut. If you need to rest the
blade on a delicate surface, you need to use
cardboard or masking tape to protect the
surface.

       
      


SANDING (FIG 9)




Tips:






SCRAPING (FIG 10)




FIG 7
FIG 8
FIG 9
FIG 6

11
English
Tips:
      

       





GROUT REMOVAL (FIG 11)






ACCESSORIES
Recommended oscillating tool accessories for this tool are the GENESIS™
oscillating tool accessories- GAMT301, GAMT302, GAMT303, GAMT304,
GAMT305, GAMT306, GAMT307, and GAMT308.
Please refer to "Genesis Oscillating Tool Accessory Reference Guide" Sheet
enclosed for details.
MAINTENANCE
CLEANING



WARNING: Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact with plastic parts.
Chemicals can damage, weaken or destroy plastic which may result in serious
personal injury.





LUBRICATION

FIG 11
FIG 10

English
VS Multi-Purpose Oscillating Tool
Operator’s Manual GMT16V
TWO-YEAR WARRANTY




THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.
ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY.
TOLL-FREE HELP LINE
888-552-8665
www.genesispowertools.com
©Richpower Industries, Inc. All Rights reserved





13
Français
OUTIL OSCILLANT À USAGES MULTIPLES DE
VITESSE VARIABLE
Manuel d’utilisation
SPÉCIFICATIONS




Inclut


AVERTISSEMENT: Pour réduire le risque de blessure, l’utilisateur
doit lire et assimiler ce manuel d’utilisation avant de se servir de l’outil.
Conservezcemanuelcommeréférenceultérieure.
Numéro d’aide sans frais: 1-888-552-8665.
AVERTISSEMENT: 






Repérezcesymbolequisignaled’importantes
précautions de sécurité. Cela veut dire faites
attention ! Votre sécurité est en jeu.
RÈGLES GÉNÉRALES DE SÉCURITÉ
AVERTISSEMENT: Certaines poussières produites par des appareils
électriques de ponçage, sciage, meulage, perçage et autres travaux de
construction contiennent des produits chimiques connus pour causer cancer,
anomalies congénitales et autres atteintes à la reproduction. Voici quelques
exemples de ces produits nocifs :
 
 
 





É



Français
Outil oscillant à usages multiples
Manuel d’utilisation GMT16V
AVERTISSEMENT:LISEZ ET ASSIMILEZ TOUS LES AVERTISSEMENTS,
MISES EN GARDE ET INSTRUCTIONS D’UTILISATION AVANT DE VOUS SERVIR
DECETÉQUIPEMENT.Sinonvousrisquezcommotionélectrique,début
d’incendie et/ou blessures corporelles.
CONSERVEZ CES INSTRUCTIONS
LIEU DE TRAVAIL:
• Gardezproprelazonedetravail.

•Nepasutiliserd’outilsélectriquesdansdesatmosphèresexplosives,


•Garderlesbadauds,enfantsetvisiteursàl’écartpendantl’utilisation
d’un outil électrique. 
SÉCURITÉ ÉLECTRIQUE
• La puissance des bouchons outil doit correspondre à la prise
électrique. 






•NEPASexposerlesoutilsélectriquesàlapluieoul’humidité.

•Évitertoutcontactducorpsavecdessurfacesmisesàlaterre,


•NEPASmaltraiterlecordond’alimentation.




•Lorsquel'exploitationd'unpouvoirendehorsdesoutils,


•NEPASutiliserl'ACnotéeslesoutilsd'unealimentationencourant
continu. 

SÉCURITÉ PERSONNELLE
• Rester attentif, prêter attention au travail et faire prévue de bon sens
lors de l’utilisation de tout outil électrique. 



15
Français
•Utiliserl’équipementdesécurité.Toujoursporteruneprotection
oculaire. 

•Portezunetenueappropriée.



•Évitezd'undémarrageaccidentel.S


•Enlevezlesclésetoutilsderéglageavantdemettreenmarche.


•NEtravaillezpasàboutdebras.


•SIdispositifssontprévuspourlaconnexiond'extractiondes
poussières et des installations de collecte, 


.
•Maintenezl’outilsec,propreetsanshuileougraisse.


UTILISATION ET ENTRETIEN DE L’OUTIL
• Sécurisation de la pièce à travailler. 



• NEforcezpassurl’outil.


•Utilisezlebonoutilpourlatâche.


•N’utilisezpasl’outilsisoninterrupteurdemarche/arrêtfonctionne
mal. 

•Débrancherl’outilavantd’effectuerdesréglages,

•Rangerlesoutilsnonutiliséshorsdeportéedesenfantsetdes
personnes n’ayant pas reçu de formation adéquate. 


Français
Outil oscillant à usages multiples
Manuel d’utilisation GMT16V
•Entretenirsoigneusementlesoutils.



•N’utilisezquedesaccessoiresrecommandés.



•Maintenirdesoutilsdecoupenetteetpropre.

•Poussezlapièceàtravaillerdanslabonnedirectionàlabonne
vitesse. 


•NEjamaislaisserl'outilenmarchesanssurveillance.

•NEdémarrezjamaisunoutilquanduncomposantrotatifestdéjàen
contact avec la pièce travail lée.
AVERTISSEMENT: L’UTILISATION DE CET OUTIL PEUT GÉNÉRER
ET BRASSER DE LA POUSSIÈRE ET D’AUTRES PARTICULES EN SUSPENSION
DANSL’AIR,COMMESCIURE,SILICECRISTALLINEETAMIANTE.Dirigez
le flot de particules hors de votre visage et de votre corps. Faites toujours
fonctionnerl’outildansunezonebienventilée,etveillezàunebonne
évacuationdelapoussière.Utilisezunsystèmedecollectedepoussières
dans la mesure du possible. L’exposition aux poussières peut causer des
troubles respiratoires ou autres sérieux et permanents, incluant la silicose
(unesérieuseaffectiondespoumons),lecanceretlamort.Évitezderespirer
lapoussièreetévitezuncontactprolongéavecelle.Sivouslaissezentrerla
poussière dans votre bouche ou vos yeux, ou se déposer sur votre peau, vous
risquezdeprovoquerl’absorptiondematièresdangereuses.Porteztoujours
une protection respiratoire approuvée NIOSH/OSHA bien ajustée convenant à
laprotectioncontrelespoussières,etlavezlessurfacesdepeauexposéesà
l’eau et au savon.
SERVICE
•Demandezàvotreoutilélectriqueàêtredesservieparunepersonne
qualifiée en utilisant 
.
•L'entretiendevotreoutilélectriquepériodiquement


AVERTISSEMENT: LISEZ ET ASSIMILEZ TOUS LES
AVERTISSEMENTS, MISES EN GARDE ET INSTRUCTIONS D’UTILISATION
AVANTDEVOUSSERVIRDECETÉQUIPEMENT.Sinonvousrisquez
commotion électrique, début d’incendie et/ou blessures corporelles.
CONSERVEZ CES INSTRUCTIONS

17
Français
CORDONS RALLONGES
Les outils mis à la terre nécessitent un cordon rallonge à trois fils.











Conseils d’utilisation de cordons rallonges
 

 


 

RÈGLES DE SÉCURITÉ SPÉCIFIQUES POUR
OUTIL OSCILLANT À USAGES MULTIPLES
AVERTISSEMENT: NElaissezPASunefaussesécurités’installer
provoquée per confort et familiarité avec le produit (suite à des utilisations
répétées) remplacer la stricte application des règles de sécurité pour la scie
àonglets.Sivousutilisezcetoutildangereusementetincorrectement,vous
pouvezsubirdesérieusesblessures.
AVERTISSEMENT: Maintenezl’outilparlessurfacesdepriseisolées
quandvouseffectuezuneopérationoùl’outildecoupepeutcouperdesls
électriques cachés ou son propre cordon. Le contact avec un fil sous tension
peut également mettre sous tension des parties métalliques exposées de l’outil,
et provoquer une commotion électrique pour l’opérateur!
Calibre de fil minimum recommandé pour cordons de rallonge (en 120 Volts)
Ampérage
nominal
(à pleine
charge)
Longueur du cordon de rallonge
7.6 m
25 Feet
15.2 m
50 Feet
22.9 m
75 Feet
30.5 m
100 Feet
45.7 m
150 Feet
61.0 m
200 Feet
0–2.0      
2.1–3.4      
3.5–5.0      
5.1–7.0      
7.1–12.0     8 8
12.1–16.0     8
16.1–20.0   88 

Français
Outil oscillant à usages multiples
Manuel d’utilisation GMT16V
 Porteztoujoursdelunettesdesécuritéouavecdesprotections
latérales
 Maintenezlasciealternativeparsessurfacesdepriseisoléespour
éviter 
 Teneztoujoursfermementl’outil.

 Vérierdansvotrezonedetravail

 NecoupezPASdeclousoudevis,saufsivousutilisezunelame
spécialement conçue pour cela

 Avant de mettre la scie en marche, 

Ne pas utiliser l'outil si l'interrupteur ne l'allumer ou éteindre.

Porter des gants rembourrés afin de minimiser les vibrations

 Neponcezpasparvoiehumideàl'aidedecetteoutil.

Toujours s'assurer que l'outil est éteint et débranché 

CONSERVEZ CES INSTRUCTIONS

19
Français
VOTRE OUTIL OSCILLANT À USAGES MULTIPLES
OUVERTURE DE L`EMBALLAGE ET CONTENU
IMPORTATNT:Grâceàdestechniquesmodernesdeproductionde
masse, il est peu probable que l'outil est défectueux ou qu'une pièce est
manquante.Sivoustrouvezquelquechosedemal,nepasfairefonctionner
l'outil jusqu'à ce que les parties ont été remplacés ou la faute a été corrigée.
Le fait de ne pas le faire pourrait entraîner des blessures graves.
CONTENU DE CARTON DE PIÈCES EN VRAC
Description QUAN Description QUAN

   

  

 

 
   
   
 

 
  












FIG 1
98
7
65
4
3
2
1
10
11

Français
Outil oscillant à usages multiples
Manuel d’utilisation GMT16V
MONTAGE ET RÉGLAGES
AVERTISSEMENT: Pour réduire le risque de graves blessures
corporelles,lisezetsuiveztouteslesinstructionsetavertissementsdesécurité
avant d'utiliser cet outil.
INSERTION ET RETRAIT DES ACCESSOIRES (FIG 2)
AVERTISSEMENT: Assurez-voustoujoursquel'outilestàl'arrêtet
déconnecté du secteur avant de régler, d'ajouter des accessoires ou de vérifier
une fonction de l'outil.
Pour installer la lame de scie ou la lame de raclage








REMARQUE:Certains accessoires, comme une lame de scie, peuvent
être montées droites sur l'outil ou avec un certain angle pour accroître son
utilisation.Vousdeveztoujoursvousassurerqueles4brochessontengagées
comme stipulé à l'étape 2 ci-dessus.
Pour installer le patin de ponçage et le papier de verre









FIG 2
4
5
2
1
3
6
