Genie GS-2668 RT Setup guide

Operator’s Manual
with Maintenance Information
Third Edition
Second Printing
Part No. 82414

GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition · Second Printing
Copyright © 1998 by Genie Industries
First Edition: Ninth Printing, October 2000
Second Edition: Second Printing, March 2002
Third Edition: Second Printing, July 2004
"Genie" is a registered trademark of
Genie Industries in the U.S.A. and many other
countries. "GS" is a trademark of Genie
Industries.
Thesemachinescomply with
ANSI/SIA 92.6-1999.
Printed on recycled paper
Printed in U.S.A.
Important
Read,understandandobeythesesafetyrulesand
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual
should be considered a permanent part of your
machine and should remain with the machine at all
times. If you have any questions, please call Genie
Industries.
Contents
Page
Safety ........................................................................ 1
Legend ....................................................................... 9
Controls .................................................................... 10
Pre-operationInspection ........................................... 12
Maintenance ............................................................. 14
Function Tests.......................................................... 17
WorkplaceInspection................................................ 20
OperatingInstructions............................................... 21
TransportandLifting Instructions .............................. 25
Decals ...................................................................... 28
Specifications ........................................................... 32
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 1
Operator's Manual
Third Edition • Second Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
Knowandunderstandthesafetyrulesbefore
going on to the next section.
2 Alwaysperformapre-operationinspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Youread,understandandobeythe
manufacturer'sinstructionsandsafety rules—
safetyandoperator'smanualsandmachine
decals
Youread,understandandobeyemployer's
safetyrules and worksite regulations
Youread,understandandobeyallapplicable
governmentalregulations
Youareproperlytrainedtosafelyoperate the
machine.

2 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
SAFETY RULES

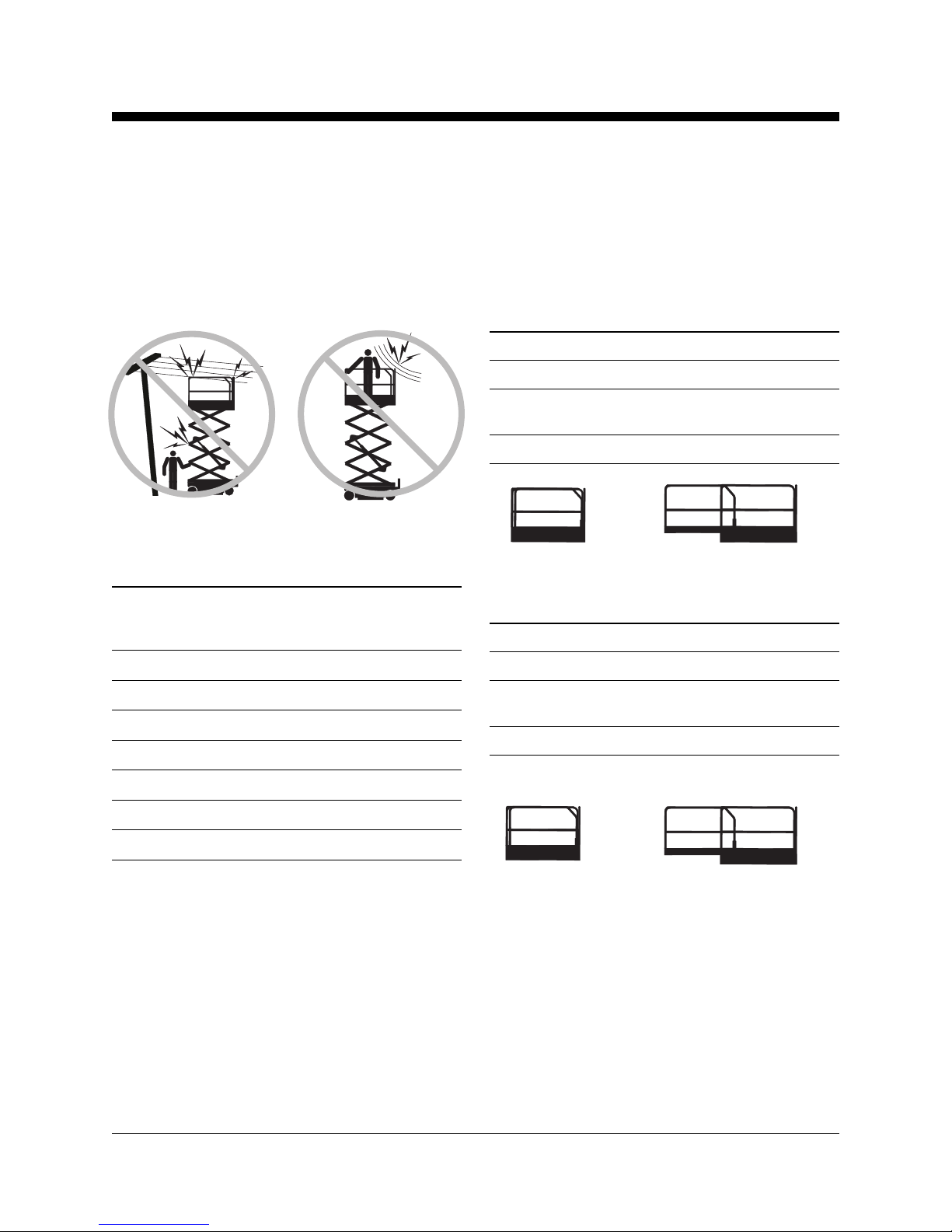

ElectrocutionHazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase Approach Distance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.05
50KV to 200KV 15 4.60
200KV to 350KV 20 6.10
350KV to 500KV 25 7.62
500KV to 750KV 35 10.67
750KV to 1000KV 45 13.72
Allow for platform movement, electrical line sway
or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground
or in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants,equipment and materials shall not
exceed the maximum platform capacity or the
maximum capacity of the platform extension.
Maximum capacity - GS-2668 RT
Platform retracted 1250 lbs 567 kg
Platform extended - Platform only 950 lbs 431 kg
Platform extended - Extension only 300 lbs 136 kg
Maximum occupants 4
Maximum capacity - GS-3268 RT
Platform retracted 1000 lbs 454 kg
Platform extended - Platform only 700 lbs 318 kg
Platform extended - Extension only 300 lbs 136 kg
Maximum occupants 4
1250 lbs / 567 kg Platform only
950 lbs / 431 kg
Extension only
300 lbs / 136 kg
1000 lbs / 454 kg Platform only
700 lbs / 318 kg
Extension only
300 lbs / 136 kg

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 3
Operator's Manual
Third Edition • Second Printing
SAFETY RULES
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis and in the
platform when the machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Donotdrivethe machine on or near uneven terrain,
unstablesurfaces orotherhazardousconditions
with the platform raised.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain,debris,unstableor slippery surfaces and
nearholesanddrop-offs.
Do not alter or disable the limit switches.
Do not drive over 0.5 mph / 0.8 km/h with the
platformraised.
Do not raise the platform unless the machine is on
a firm, level surface.
Do not use the platform controls to free a platform
thatiscaught,snagged or otherwiseprevented
from normal motion by an adjacent structure. All
personnelmustberemovedfromtheplatform
before attempting to free the platform using the
groundcontrols.
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.

4 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
SAFETY RULES
Do not push off or pull
towardanyobject outside
of the platform.
Maximum side force
GS-2668 RT
ANSI & CSA - 4 person 200 lbs / 890 N
Australia - Indoor use only - 4 person 90 lbs / 400 N
Australia - Outdoor use - 4 person 90 lbs / 400 N
GS-3268 RT
ANSI & CSA - 4 person 200 lbs / 890 N
Australia - Indoor use only - 4 person 90 lbs / 400 N
Australia - Outdoor use - 2 person 90 lbs / 400 N
Do not transport tools and materials unless they are
evenly distributed and can be safely handled by
person(s)intheplatform.
Do not modify or alter an aerial work platform
withoutpriorwritten permissionfromthe
manufacturer.Mountingattachmentsforholding
toolsor other materials onto the platform, toeboards
or guard rail system can increase the weight in the
platform and the surface area of the platform or the
load.
Do not place or attach fixed or overhanging loads to
any part of this machine.
Do not place ladders or scaffolds in the platform or
against any part of this machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
areproperlytightenedandcotterpinsareproperly
installed.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 5
Operator's Manual
Third Edition • Second Printing

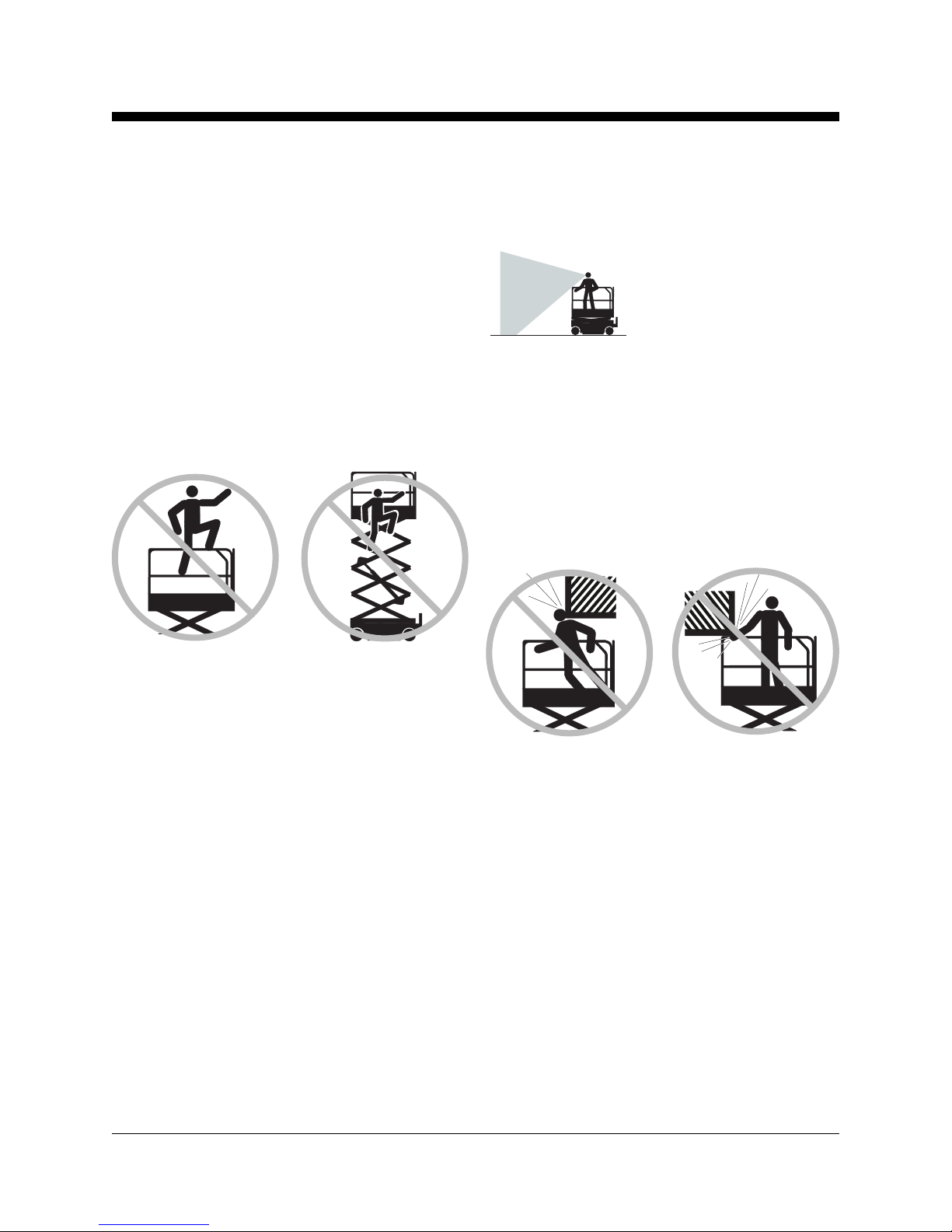

Fall Hazards
The guard rail system provides fall protection. If
occupant(s)oftheplatformarerequired towear
personalfallprotectionequipment (PFPE) dueto
job site or employer rules, PFPE equipment and its
use shall be in accordance with the PFPE
manufacturer’sinstructionsandapplicable
governmentalrequirements.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform floor at
all times.
Do not climb down from the platform when raised.
Keep the platform floor clear of debris.
Closethe entrygatebeforeoperating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Collision Hazards
Be aware of limited sight
distance and blind spots
whendrivingoroperating.
Beawareoftheextended platform position when
movingthemachine.
The machine must be on a level surface or secured
beforereleasingthebrakes.
Operators must comply with employer, job site and
governmentalrulesregardinguseofpersonal
protectiveequipment.
Checktheworkareafor overhead obstructions or
otherpossiblehazards.
Beawareofcrushinghazards whengraspingthe
platformguardrail.
Observeandusecolor-codeddirectionarrowson
the platform controls and platform decal plate for
drive and steer functions.
Do not operate a machine in the path of any crane
ormovingoverheadmachineryunlessthecontrols
of the crane have been locked out and/or
precautionshave been taken to prevent any
potentialcollision.
SAFETY RULES

6 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
SAFETY RULES
Nostuntdrivingorhorseplay while operating a
machine.
Do not lower the platform unless the area below is
clearofpersonnel and obstructions.
Limit travel speed according to the condition of the
ground surface, congestion, slope, location of
personnel and any other factors which may cause
collision.
Component Damage Hazards
Do not use any battery or charger greater than 12V
tojump-starttheengine.
Do not use the machine as a ground for welding.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleumgas(LPG),gasoline,dieselfuelor other
explosive substances.
Donotrefuelthemachinewiththe engine running.
Refuel the machine and charge the battery only in
anopen,well-ventilated area awayfromsparks,
flames and lighted tobacco.
Donotoperatethemachineinhazardouslocations
orlocationswherepotentiallyflammableor
explosive gases or particles may be present.
Donotsprayether into enginesequippedwithglow
plugs.
Damaged Machine Hazards
Donotuseadamagedormalfunctioningmachine.
Conductathoroughpre-operationinspectionofthe
machine and test all functions before each work
shift. Immediately tag and remove from service a
damagedormalfunctioningmachine.
Besureallmaintenancehasbeenperformedas
specifiedinthismanualand the appropriate Genie
servicemanual.
Be sure all decals are in place and legible.
Be sure the operator’s, safety and responsibilities
manualsarecomplete, legible and in the storage
containerlocatedontheplatform.
Crushing Hazards
Keep hands and limbs out of scissors.
Usecommonsenseandplanningwhenoperating
the machine with the controller from the ground.
Maintainsafedistancesbetweenthe operator, the
machine and fixed objects.
Maintain a firm grasp on the platform rail when
pulling the rail pins. Do not allow the platform guard
rails to fall.
Bodily Injury Hazard
Alwaysoperatethemachineinawell-ventilated
areatoavoidcarbonmonoxidepoisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/orburn skin.
Impropercontactwithcomponents under anycover
will cause serious injury. Only trained maintenance
personnel should access compartments. Access
by the operator is only advised when performing a
pre-operationinspection.Allcompartmentsmust
remainclosedandsecuredduringoperation.

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 7
Operator's Manual
Third Edition • Second Printing
SAFETY RULES
Outrigger Safety
Tip-over Hazards
Do not lower the outriggers unless the machine is
on a firm surface. Avoid drop-offs, holes, unstable
orslipperysurfacesand other possible hazardous
conditions.
When the auto level function is not being used and
theoutriggersarebeingloweredindividually,the
steer-endoutriggers mustbeloweredfirst.
Do not raise the platform unless the machine is
level. Do not set the machine up on a surface
where it cannot be leveled using only the
outriggers.
Do not raise the platform unless all four outriggers
areproperlylowered, the footpadsareinfirm
contact with the ground and the machine is level.
Do not adjust the outriggers while the platform is
raised.
Donot drivewhiletheoutriggersarelowered.
Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective
clothingandeyewearwhenworking withbatteries.
Avoid spilling or contacting battery acid. Neutralize
battery acid spills with baking soda and water.
Explosion Hazard
Keep sparks, flames and lighted tobacco away
from batteries. Batteries emit explosive gas.
Electrocution Hazard
Avoid contact with electrical terminals.

8 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicatethe
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
seriousinjury.
Orange—usedtoindicatethe
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
seriousinjury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentiallyhazardoussituation
which, if not avoided, may cause
minorormoderateinjury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedtoindicateoperation
ormaintenanceinformation.
SAFETY RULES

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 9
Operator's Manual
Third Edition • Second Printing

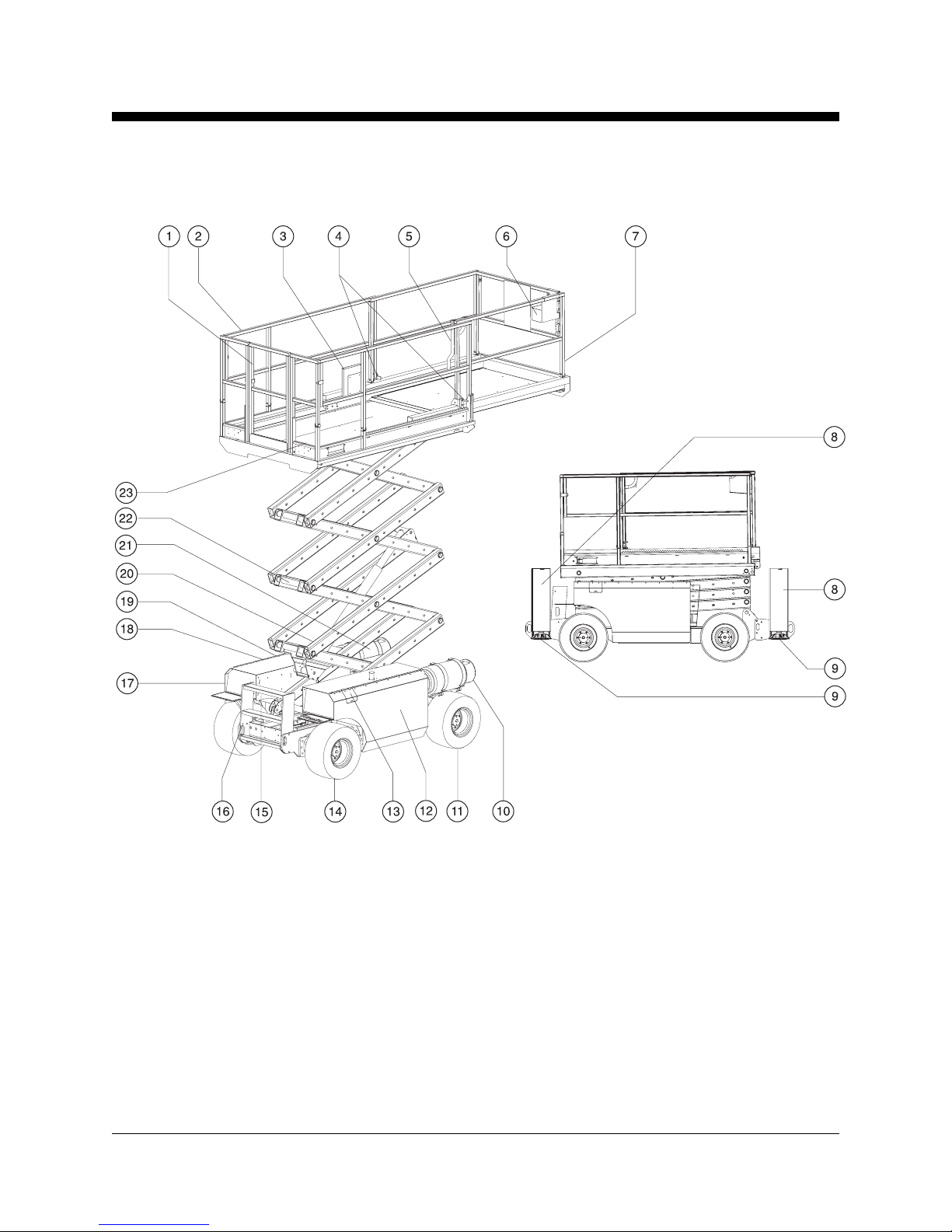

Legend
1 Platform entry gate
2 Platformguardrails
3 Manualstoragecontainer
4 Lanyardanchoragepoint
5 Platform extension lock
handle
6 Platformcontrols
7 Platformextension
8 Outriggerhousing(ifequipped
withoutriggers)
9 Outriggerfootpad(ifequipped
withoutriggers)
10 LPG tank
11 Steertire
12 Enginesidecover
13 Fuel tank
14 Non-steertire
15 Tiltalarm(undercover)
16 Entryladder/transport
tie-down
17 GroundcontrolswithLCD
readoutscreen
18 Groundcontrolsside cover
19 Hydraulic oil level indicator
(undercover)
20 Brakereleasepumpknoband
brakereleaseknob(hidden
from view in this picture)
21 LPGtank(optional)
22 Safety arm
23 GFCIoutlet

10 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
GroundControlPanel
1 Hourmeter
2 Enginestartbutton
3 Gasoline/LPG models: LPG select button with
indicatorlight
4 Engine idle select button with indicator light
5 20 amp circuit breaker for controls circuit
6 LCDreadoutscreen
7 Gasoline/LPGmodels:Chokebutton
Dieselmodels:Glowplug button
8 Platformupbutton
9 Liftfunction enable button
10 Backupauxiliaryfunctionenablebutton
11 Backupauxiliarydown button
12 Platformdownbutton
13 Key switch for platform/off/ground control
selection
14 RedEmergencyStopbutton
Controls

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 11
Operator's Manual
Third Edition • Second Printing
CONTROLS
1 Outriggerfunctionenable
buttonwith indicator light
2 Outriggerautolevelbutton
3 Enginestartbutton
4 Engine idle select button with
indicatorlight
5 Gasoline/LPGmodels:
Chokebutton
Dieselmodels:Glow plug
button
6 Gasoline/LPGmodels:LPG
operationbuttonwith
indicatorlight
13 Proportionalcontrolhandlefor
drivefunction
14 Thumb rocker switch for steer
function
15 Wrist rest
16 Lift function enable button
withindicatorlight
17 Proportionalrockerswitchfor
outriggerup/downand
platformup/down
PlatformControls
7 Hornbutton
8 Generatorselectbuttonwith
indicatorlight
9 Machineoninclinebutton
withindicator light: Low
speedoperationforinclines
10 Greenpowerlight/
Rederrorindicatorlight
11 RedEmergencyStopbutton
12 Functionenableswitch

12 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
2 Alwaysperformapre-operation
inspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a
pre-operationinspectionandroutinemaintenance.
Thepre-operationinspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
isapparentlywrongwithamachine before the
operator performs the function tests.
Thepre-operationinspectionalsoservesto
determineifroutinemaintenanceproceduresare
required.Onlyroutinemaintenanceitemsspecified
in this manual may be performed by the operator.
Refer to the list on the next page and check each
of the items.
Ifdamageor any unauthorizedvariationfrom
factory delivered condition is discovered, the
machinemustbetaggedandremoved from
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer'sspecifications. Afterrepairsare
completed,theoperator mustperforma
pre-operationinspectionagainbeforegoingonto
the function tests.
Scheduledmaintenanceinspectionsshallbe
performedbyqualifiedservicetechnicians,
accordingtothemanufacturer'sspecifications and
the requirements listed in the responsibilities
manual.

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 13
Operator's Manual
Third Edition • Second Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
oBe sure that the operator’s, safety and
responsibilitiesmanualsarecomplete,legible
and in the storage container located in the
platform.
oBe sure that all decals are legible and in place.
See Decals section.
oCheck for engine oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
oCheck for hydraulic oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
oCheckforengine coolant leaks and proper level
of coolant. Add coolant if needed. See
Maintenancesection.
oCheck for battery fluid leaks and proper fluid
level. Add distilled water if needed. See
Maintenancesection.
Checkthefollowingcomponentsorareasfor
damage,improperlyinstalledor missing parts and
unauthorizedmodifications:
oElectricalcomponents,wiringandelectrical
cables
oHydraulic hoses, fittings, cylinders and
manifolds
oFuel and hydraulic tanks
oDrivemotors
oWearpads
oTiresandwheels
oEngineandrelatedcomponents
oLimit switches, alarms and horn
oNuts, bolts and other fasteners
oPlatform entry gate
oBeaconandalarms(ifequipped)
oBrakereleasecomponents
oSafety arm
oPlatformextension
oScissor pins and retaining fasteners
oPlatform control joystick
oGenerator(ifequipped)
oOutriggerhousingsandfootpads(ifequipped)
Checkentiremachinefor:
oCracks in welds or structural components
oDentsordamage to machine
oBe sure that all structural and other critical
componentsarepresentand all associated
fastenersand pins are in place and properly
tightened
oSide rails are installed and snap pins and bolts
arefastened

14 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
Observe and Obey:
Only routine maintenance items specified in this
manualshall beperformedbytheoperator.
Scheduledmaintenanceinspectionsshallbe
completed by qualified service technicians,
accordingtothemanufacturer's specifications
andtherequirements specified in the
responsibilitiesmanual.
MaintenanceSymbolsLegend
Thefollowingsymbolshavebeen
used in this manual to help
communicate the intent of the
instructions. When one or more of
the symbols appear at the
beginningofamaintenance
procedure,itconveysthemeaning
below.
Indicates that tools will be required to
performthisprocedure.
Indicates that new parts will be required to
performthisprocedure.
Indicates that a cold engine is required
beforeperformingthisprocedure.
Check the Engine Oil Level
Maintaining the proper engine oil level is essential
togoodengineperformanceand service life.
Operatingthemachinewith an improperoillevel
candamageenginecomponents.
Check the oil level with the
engineoff.
1 Check the oil level dipstick. Add oil as needed.
Kubota DF 752-E2 Engine
Oil Type SAE 10W to 10W-30
Kubota D-905 Engine
Oil Type SAE 10W to 10W-30
Perkins 403C-11
Oil Type SAE 15W-40
Maintenance

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 15
Operator's Manual
Third Edition • Second Printing
Check the Hydraulic Oil Level
Maintaining the hydraulic oil at the proper level is
essentialtomachineoperation.Improperhydraulic
oil levels can damage hydraulic components. Daily
checks allow the inspector to identify changes in oil
level that might indicate the presence of hydraulic
system problems.
Performthisprocedure withthe
platform in the stowed position and
the engine off.
1 Visually inspect the sight gauge located on the
side of the hydraulic oil tank.
Result: The hydraulic oil level should be within
the top 2 inches / 5 cm of the sight gauge.
2 Add oil if necessary. Do not overfill.
Hydraulic oil specifications
Hydraulic oil type Chevron Rykon
Premium MV equivalent
Check the Batteries
Proper battery condition is essential to good engine
performanceandoperationalsafety.Improperfluid
levels or damaged cables and connections can
resultinenginecomponentdamageandhazardous
conditions.
Thisproceduredoesnotneedto
beperformedonmachineswith
sealedormaintenance-free
batteries.
Electrocutionhazard.Contact with
hot or live circuits may result in
death or serious injury. Remove all
rings,watchesandother jewelry.
Bodily injury hazard. Batteries
contain acid. Avoid spilling or
contactingbatteryacid.Neutralize
battery acid spills with baking soda
andwater.
1 Put on protective clothing and eye wear.
2 Be sure that the battery cable connections are
tight and free of corrosion.
3 Be sure that the battery hold-down brackets are
secure.
4 Remove the battery vent caps.
5 Check the battery acid level. If needed,
replenish with distilled water to the bottom of the
battery fill tube. Do not overfill.
6 Install the vent caps.
Addingterminal protectorsanda
corrosionpreventativesealantwill
helpeliminatecorrosiononthe
battery terminals and cables.
MAINTENANCE

16 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
Check the Engine Coolant Level
Maintaining the engine coolant at the proper level is
essential to engine service life. Improper coolant
level will affect the engine's cooling capability and
damageengine components. Daily checks will
allow the inspector to identify changes in coolant
level that might indicate cooling system problems.
1 Check the fluid level in the coolant recovery
tank. Add fluid as needed.
Bodily injury hazard. Fluids in the
radiatorareunderpressureand
extremely hot. Use caution when
removingcapandadding fluids.
MAINTENANCE
Scheduled Maintenance
Maintenanceperformedquarterly,annuallyand
every two years must be completed by a person
trainedandqualified toperformmaintenanceon this
machineaccordingtotheproceduresfoundinthe
service manual for this machine.
Machines that have been out of service for more
than three months must receive the quarterly
inspection before they are put back into service.

PartNo.82414 GenieGS-2668RTandGenieGS-3268RT 17
Operator's Manual
Third Edition • Second Printing
1 Select a test area that is firm, level and free of
obstruction.
At the Ground Controls
2 PullouttheplatformandgroundredEmergency
Stop buttons to the on position.
3 Turn the key switch to ground control.
Result: The LCD screen will come on and
displaySYSTEMREADY.
Note: In cold climates, the LCD readout screen will
needtowarmupbeforethedisplayappears.
5 Startthe engine. See Operating Instructions
section.
TestEmergencyStop
6 Push in the ground red Emergency Stop button
to the off position.
Result: The engine should turn off and no
functionsshouldoperate.
7 Pull out the red Emergency Stop button to
the on position and restart the engine.
TesttheUp/DownFunctions
Theaudiblewarningsonthismachineandthe
standard horn all come from the same central
alarm. The horn is a constant tone. The descent
alarm sounds at 60 beeps per minute. The alarm
that goes off when the machine is not level sounds
at180 beeps per minute.
8 Do not push the lift function
enablebutton.Push and hold the
platformupbutton.
Result: The platform should not raise.
9 Push and hold the lift function enable button.
Push and hold the platform up button.
Result: The platform should raise.
Function Tests
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
2 Alwaysperformapre-operation
inspection.
3 Alwaysperformfunctiontestspriorto
use.
Knowandunderstandthefunctiontests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into service.
Theoperatormustfollow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician,accordingtothemanufacturer's
specifications.
Afterrepairsarecompleted,theoperatormust
performapre-operationinspectionandfunction
tests again before putting the machine into service.

18 GenieGS-2668RTandGenieGS-3268RT PartNo.82414
Operator's Manual Third Edition • Second Printing
FUNCTIONTESTS
TestUp/Down Functionsand FunctionEnable
19 Starttheengine.
20 Activate the up/down rocker switch in the
directionindicatedbythe blue arrow.
Result: The platform should not
raise.
21 Push and hold the lift function
enablebutton.
22 Activate the up/down rocker switch in the
directionindicatedbythe blue arrow.
Result: The platform should raise.
23 Push and hold the lift function enable button.
24 Activate the up/down rocker switch in the
directionindicatedbytheyellowarrow.
Result:The platform should lower. The descent
alarm should sound while the platform is
lowering.
TesttheSteering
Note:Whenperforming the steeranddrivefunction
tests, stand in the platform facing the steer end of
themachine.
25 Press and hold the function enable switch on the
controlhandle.
26 Depress the thumb rocker switch on top of the
control handle in the direction identified by the
bluetriangleonthe control panel.
Result: The steer wheels should turn in the
direction that the blue triangle points on the
controlpanel.
27 Depress the thumb rocker switch in the direction
identified by the yellow triangle on the control
panel.
Result: The steer wheels should turn in the
direction that the yellow triangle points on the
controlpanel.
10 Push and hold the lift function enable button.
Pushand hold the platform down button.
Result:The platform should lower. The descent
alarm should sound while the platform is
lowering.
Test the Auxiliary Lowering
11 Push and hold the lift function enable button and
raise the platform approximately 2 feet / 60 cm.
12 Push in the red Emergency Stop button to shut
off the engine.
13 Pull out the red Emergency Stop button to the
onposition.
14 Push and hold the lift function enable button.
Pushand hold the platform down button.
Result:Theplatform shouldlower.
15 Turn the key switch to platform control and
restarttheengine.
At the Platform Controls
TestEmergencyStop
16 Push in the platform red Emergency Stop button
to the off position.
Result: The engine should shut off and no
functionsshouldoperate.
17 Pull the red Emergency Stop button out to the
onposition.
Result: The indicator light should
begreen.
TesttheHorn
18 Push the horn button.
Result:Thehorn should sound.
