Genie Z-80/60 User manual

Operator's Manual
Serial Number Range
Z
-
80/60 from 3158 AUS
Australia
with
Maintenance
Information
Sixth Edition
Sixth Printing
Part No. 226482

Operator's Manual Sixth Edition • Sixth Printing
Z-80/60 Part No. 226482
Front Matter
Important
Read, understand and obey these safety rules and
operating instructions before operating this
machine. Only trained and authorized personnel
shall be permitted to operate this machine. This
manual should be considered a permanent part of
your machine and should remain with the machine
at all times. If you have any questions, contact us.
Contact Us:
Internet: www.genielift.com
E-mail: [email protected]
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 3
Personal Safety..................................................... 5
Personal Safety..................................................... 9
Work Area Safety................................................ 10
Legend ................................................................ 20
Controls............................................................... 21
Inspections.......................................................... 29
Operating Instructions......................................... 42
Transport and Lifting Instructions ....................... 54
Maintenance ....................................................... 57
Specifications...................................................... 61
Copyright © 2002 by Terex Corporation
Sixth Edition: Sixth Printing, May 2017
Genie and "Z" are registered trademarks of
Terex South Dakota, Inc. in the U.S.A. and many
other countries.
These machines comply with
AS 1418.10

Sixth Edition • Sixth Printing Operator's Manual
Introduction
Part No. 226482 Z-80/60 1
Introducti on
Owners, Users and Operators:
Thank you for choosing our machine for your
application. Our number one priority is user safety,
which is best achieved by our joint efforts. We feel
that you make a major contribution to safety if you,
as the equipment users and operators:
1 Comply with employer, job site and
governmental rules.
2 Read, understand and follow the instructions
in this and other manuals supplied with this
machine.
3 Use good safe work practices in a
commonsense way.
4 Only have trained/certified operators,
directed by informed and knowledgeable
supervision, running the machine.
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.

Operator's Manual Sixth Edition • Sixth Printing
Introduction
2 Z-80/60 Part No. 226482
Hazard Classification
Decals on this machine use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.
Intended Use
This machine is intended to be used only to lift
personnel, along with their tools and materials to
an aerial work site.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
DANGER
WARNING
CAUTION
NOTICE

Sixth Edition • Sixth Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 226482 Z-80/60 3
Symbol and Hazard P ictorials Definiti ons
Crush hazard Keep away from
moving parts
Explosion hazard No smoking
No flame
Stop engine
Electrocution hazard
Maintain required
clearance
Crush hazard Keep away from path
of moving platform
Fall hazard Keep off this surface.
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Replace tires with
tires of same
specification.
Lanyard anchorage
points
Read the operator’s
manual
Only trained
maintenance
personnel should
access
compartments
Wheel load Have fire
extinguisher near.

Operator's Manual Sixth Edition • Sixth Printing
Symbol and Hazard Pictorials Definitions
4 Z-80/60 Part No. 226482
Explosion / Burn
hazard
Keep open flames
away.
Explosion hazard Do not use ether or
other high energy
starting aids on
machines equipped
with glow plugs.
Read the service
manual
Electrocution hazard Avoid contact Voltage rating for
power to platform
Pressure rating for air
line to platform
Access by trained
and authorized
personnel only
Maximum capacity Manual force Weight of welder
reduces capacity
Tie-down instructions Tie-down instructions
Recovery procedure if tilt alarm sounds while
elevated.
Platform uphill:
1Lower primary.
2Lower secondary.
Retract primary.
Platform downhill:
1Retract primary.
2Lower secondary.
Lower primary.
+
+

Sixth Edition • Sixth Printing Operator's Manual
Personal Safety
Part No. 226482 Z-80/60 5
Personal Safety

Operator's Manual Sixth Edition • Sixth Printing
Personal Safety
6 Z-80/60 Part No. 226482

Sixth Edition • Sixth Printing Operator's Manual
Personal Safety
Part No. 226482 Z-80/60 7

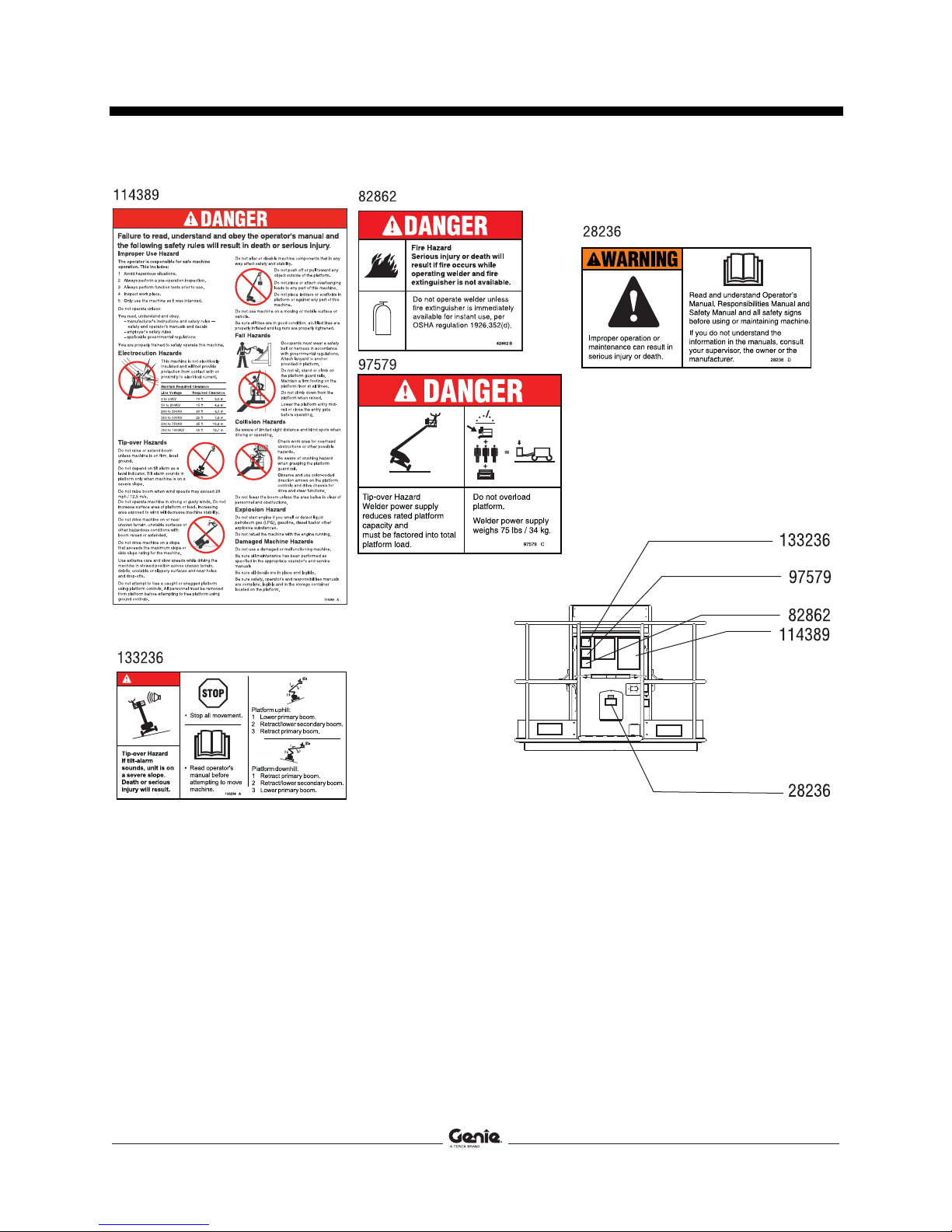

31060
31060
97602
28161
114390
28175
28177
97875
31788
31060
82237
28177
31060
28161
28161 C
Crush Hazard
Contact with moving parts can
result in death or serious
injury.
WARNING
Keep away from moving parts.
Crush Hazard
Death or serious
injury may result
from platform
crushing
personnel
against boom.
WARNING
28177 C
Keep away from
path of moving
platform.
114390
DANGER
97602

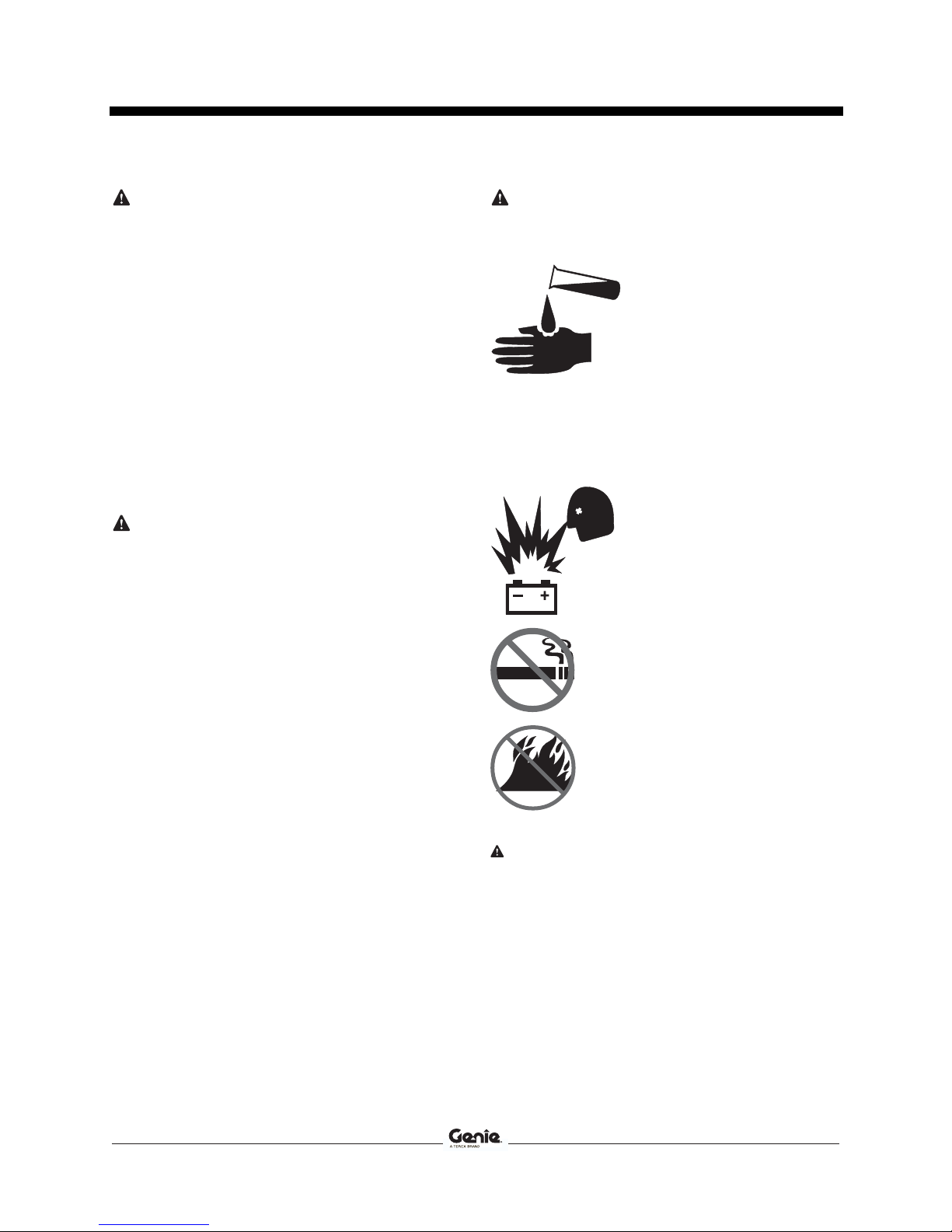

Explosion Hazard
Death or serious injury can
result from the use of ether or
other high energy starting
aids. 97602 B
WARNING
Do not use ether or
other high energy
starting aids on
machines equipped
with glow plugs.
97875
DANGER
Explosion / Burn Hazard
Ignition of explosive gases or contact with corrosive
acid will cause death, burns or blindness
31788 C
Keep all open flames and sparks away. Wear
personal protective equipment, including face
shield, gloves and long sleeve shirt.
READ MANUALS
Read all manuals prior to operation.
DO NOT OPERATE equipment if you do not
understand the information in the manuals.
Consult your supervisor, the owner or the
manufacturer.
31788
28175
WARNING
Tip-over Hazard
Altering or disabling limit
switches can result in machine
tip-over. Machine tip-over will
result in death or serious injury.
DANGER
Do not alter or disable limit
switch(s).
31060 C
Electrocution
Hazard
Contact with
energized
components can
result in death or
serious injury.
82237 B
DANGER
Avoid contact
with energized
components.
82237

Operator's Manual Sixth Edition • Sixth Printing
Personal Safety
8 Z-80/60 Part No. 226482

Sixth Edition • Sixth Printing Operator's Manual
Personal Safety
Part No. 226482 Z-80/60 9
Personal Safety

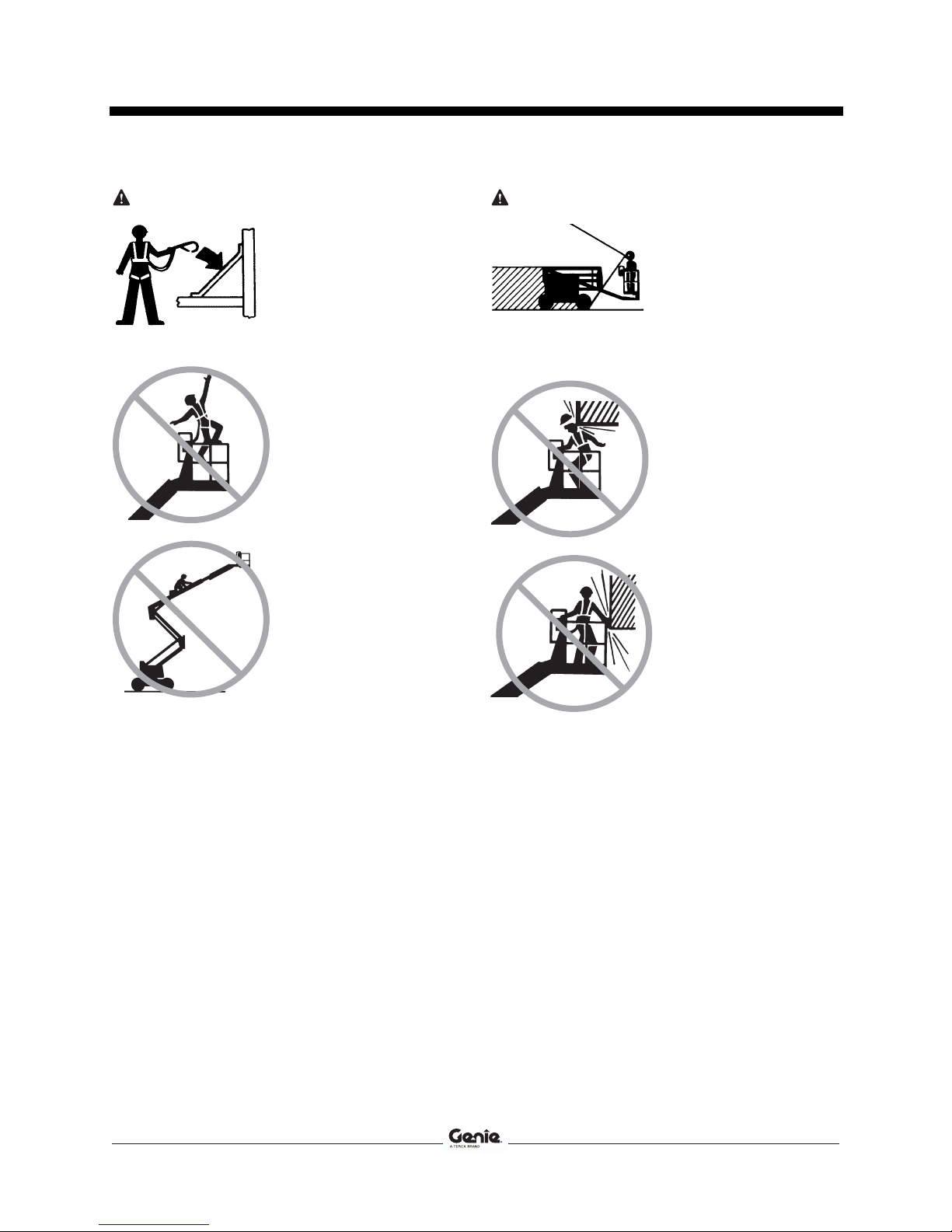

Personal Fall Protection
Personal fall protection equipment (PFPE) is
required when operating this machine.
Occupants must wear a safety belt or harness in
accordance with governmental regulations. Attach
the lanyard to the anchor provided in the platform.
Operators must comply with employer, job site and
governmental rules regarding the use of personal
protective equipment.
All PFPE must comply with applicable
governmental regulations, and must be inspected
and used in accordance with the PFPE
manufacturer’s instructions.

Operator's Manual Sixth Edition • Sixth Printing
Work Area Safety
10 Z-80/60 Part No. 226482

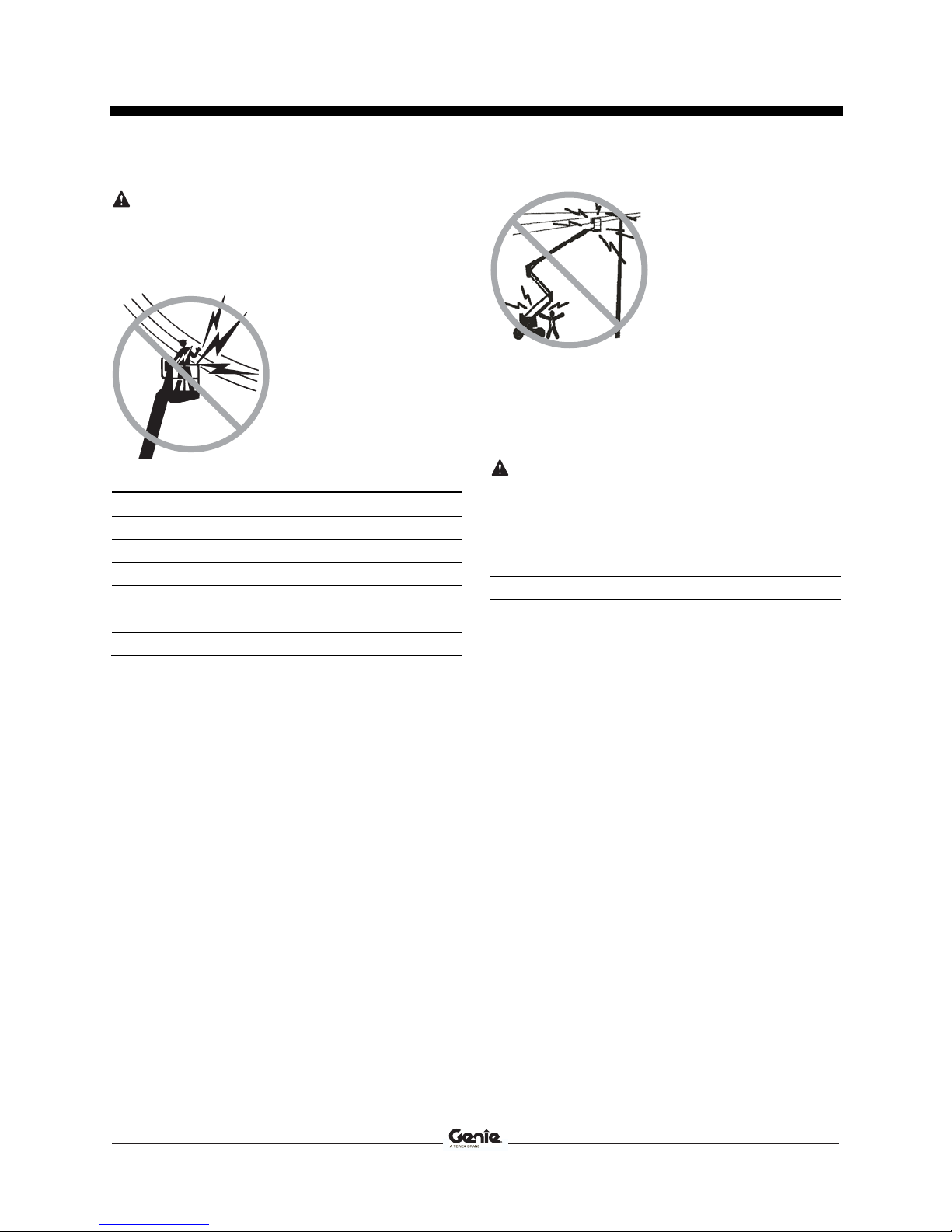

WorkArea Safety Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.

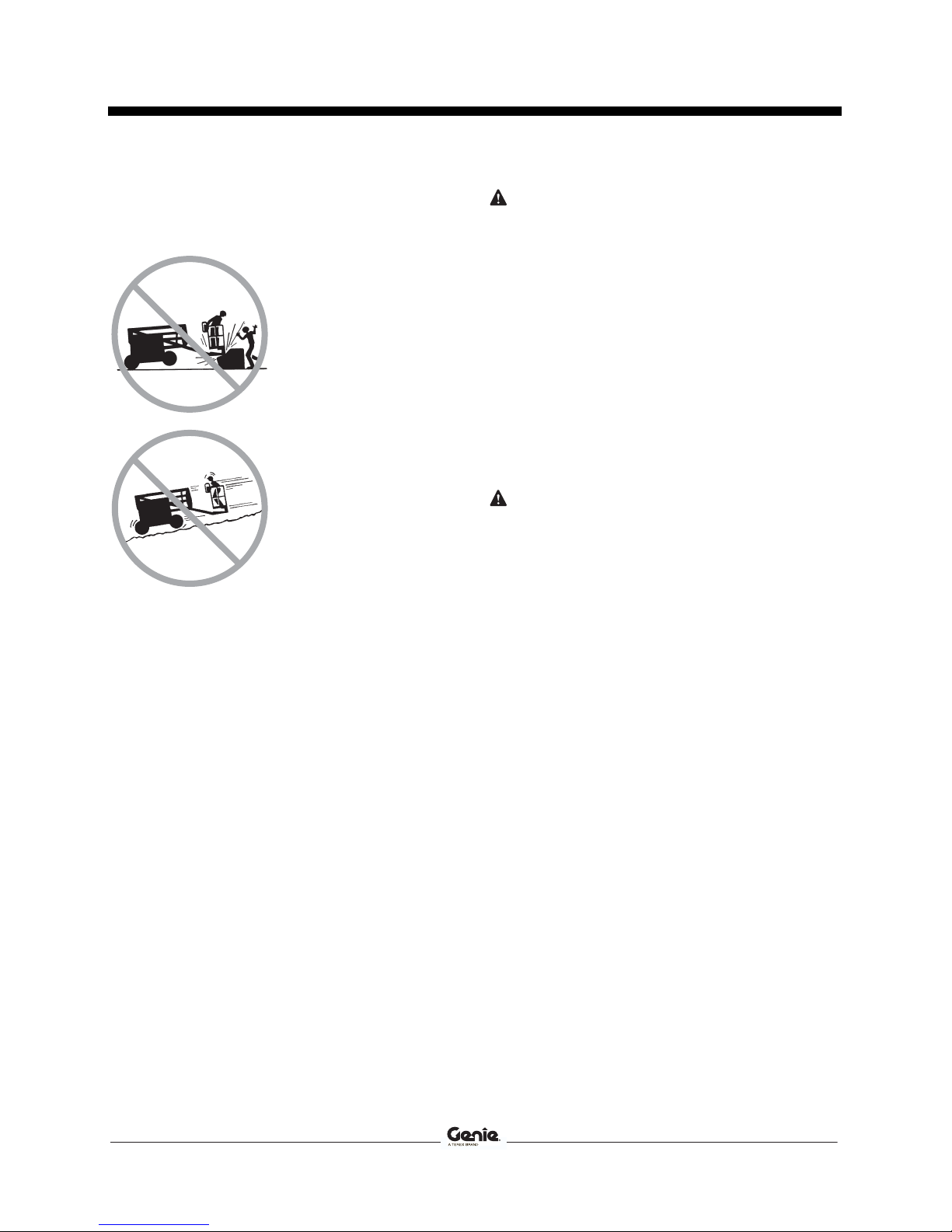

Obey all local and
governmental regulations
regarding required
clearance from electrical
power lines. At a
minimum, the required
clearance contained in the
chart below must be
followed.
Line Voltage Required Clearance
0 to 50KV 3.05 m
50 to 200KV 4.60 m
200 to 350KV 6.10 m
350 to 500KV 7.62 m
500 to 750KV 10.67 m
750 to 1000KV 13.72 m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must not
touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum platform capacity 227 kg
Maximum occupants 2
The weight of options and accessories, such as
pipe cradles, panel cradles and welders, will
reduce the rated platform capacity and must be
subtracted from the platform capacity. See the
decals with the options and accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.

Sixth Edition • Sixth Printing Operator's Manual
Work Area Safety
Part No. 226482 Z-80/60 11

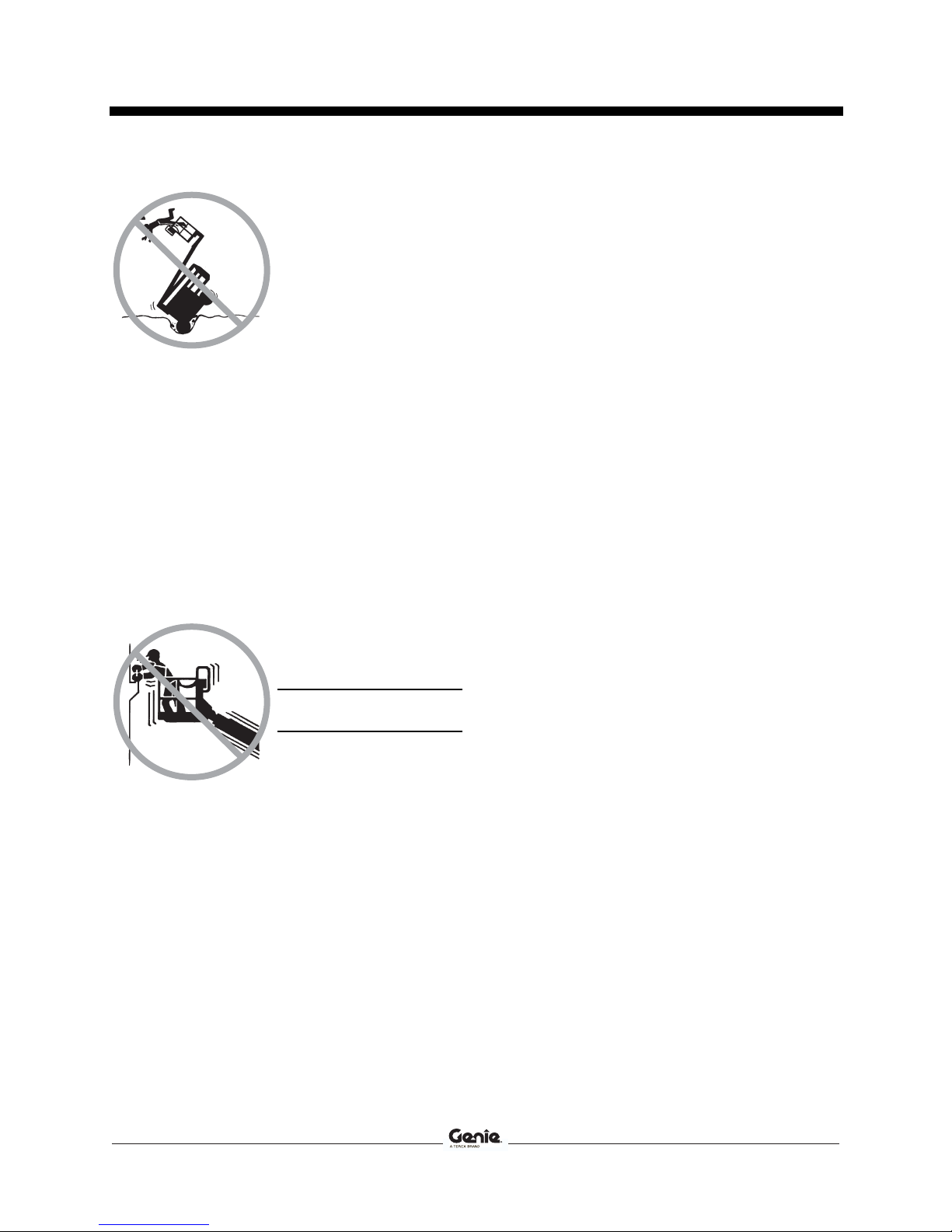

Do not raise or extend the
boom unless the machine
is on a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds while the boom is lowered:
Do not extend, rotate or raise the boom above
horizontal. Move the machine to a firm, level
surface before raising the platform.
If the tilt alarm sounds when the platform is raised,
use extreme caution. The Machine Not Level
indicator light will come on and the drive function in
one or both directions will not operate. Identify the
condition of the boom on the slope as shown
below. Follow the steps to lower the boom before
moving to a firm, level surface. Do not rotate the
boom while lowering.
The recovery mode should be used only by trained
and authorized personnel.
If the tilt alarm sounds
with the platform uphill:
1Lower the primary
boom.
2Retract/lower the
secondary boom.
3Retract the primary
boom.
If the tilt alarm sounds
with the platform
downhill:
1Retract the primary
boom.
2Retract/lower the
secondary boom.
3Lower the primary
boom.
Do not raise the boom
when wind speeds may
exceed 12.5 m/s. If wind
speeds exceed 12.5 m/s
when the boom is raised,
lower the boom and do
not continue to operate
the machine.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed
to the wind will decrease machine stability.

Operator's Manual Sixth Edition • Sixth Printing
Work Area Safety
12 Z-80/60 Part No. 226482
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop-offs.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the boom raised or extended.
Do not use the machine as a crane.
Do not push the machine or other objects with the
boom.
Do not contact adjacent structures with the boom.
Do not tie the boom or platform to adjacent
structures.
Do not place loads outside the platform perimeter.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable
manual force – 400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not replace factory-installed tires with tires of
different specification or ply rating.
Do not replace factory-installed foam-filled tires
with air-filled tires. Wheel weight is critical to
stability.
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.

Sixth Edition • Sixth Printing Operator's Manual
Work Area Safety
Part No. 226482 Z-80/60 13
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled
tires are properly inflated and lug nuts are properly
tightened.
Do not use the platform controls to free a platform
that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating of
the machine. Slope rating applies only to machines
in the stowed position.
Maximum slope rating, stowed position, 2WD
Platform downhill 30% (17°)
Platform uphill 15% (9°)
Side slope 25% (14°)
Maximum slope rating, stowed position, 4WD
Platform downhill 45% (24°)
Platform uphill 35% (19°)
Side slope 25% (14°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.

Operator's Manual Sixth Edition • Sixth Printing
Work Area Safety
14 Z-80/60 Part No. 226482
Fall Hazards
Occupants must wear a
safety belt or harness in
accordance with
governmental regulations.
Attach the lanyard to the
anchor provided in the
platform.
Do not sit, stand or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Lower the platform entry mid-rail or close the entry
gate before operating.
Do not enter or exit the platform unless the
machine is in the stowed position and the platform
is at ground level.
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of the boom position and tailswing when
rotating the turntable.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.
Operators must comply with employer, job site and
governmental rules regarding use of personal
protective equipment.

Sixth Edition • Sixth Printing Operator's Manual
Work Area Safety
Part No. 226482 Z-80/60 15
Observe and use the color-coded direction arrows
on the platform controls and drive chassis for drive
and steer functions.
Do not lower the boom
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the ground surface,
congestion, slope,
location of personnel, and
any other factors which
may cause collision.
Do not operate a boom in the path of any crane
unless the controls of the crane have been locked
out and/or precautions have been taken to prevent
any potential collision.
No stunt driving or horseplay while operating a
machine.
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain closed
and secured during operation.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine or charge the battery
in hazardous locations or locations where
potentially flammable or explosive gases or
particles may be present.
Do not spray ether into engines equipped with
glow plugs.

Operator's Manual Sixth Edition • Sixth Printing
Work Area Safety
16 Z-80/60 Part No. 226482
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator's, safety and responsibilities
manuals are complete, legible and in the storage
container located on the machine.
Component Damage Hazards
Do not use any battery or charger greater than 12V
to jump-start the engine.
Do not use the machine as a ground for welding.
Do not operate the machine in locations where
extremely high magnetic fields may be present.
Battery Safety
Burn Hazards
Batteries contain acid.
Always wear protective
clothing and eye wear when
working with batteries.
Avoid spilling or contacting
battery acid. Neutralize
battery acid spills with
baking soda and water.
Explosion Hazards
Keep sparks, flames and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
Electrocution Hazard
Avoid contact with electrical terminals.

Sixth Edition • Sixth Printing Operator's Manual
Work Area Safety
Part No. 226482 Z-80/60 17
Pipe Cradle Safety
Read, understand and obey all warnings and
instructions provided with the pipe cradles.
Do not exceed the rated platform capacity. The
pipe cradle assembly and the weight in the pipe
cradles will reduce rated platform capacity and
must be factored into total platform load.
The pipe cradle assembly weighs 9.5 kg.
The maximum capacity of the pipe cradle
assembly is 91 kg.
The weight of the pipe cradle assembly and the
load in the pipe cradles may limit the maximum
number of occupants in platform.
Center the load within the perimeter of the
platform.
Secure the load to the platform.
Do not obstruct the entrance or the exit of the
platform.
Do not obstruct the ability to operate the platform
controls or the red Emergency Stop button.
Do not operate unless you are adequately
instructed and are aware of all of the hazards
associated with movement of the platform with an
overhanging load.
Do not cause a horizontal force or side load to
machine by raising or lowering a fixed or
overhanging load.
Electrocution Hazard: Keep pipes away from all
energized electrical conductors.
Panel Cradle Safety
Read, understand and obey all warnings and
instructions provided with the panel cradles.
Do not exceed the rated platform capacity. The
combined weight of the cradles, panels, occupants,
tools and any other equipment must not exceed
rated capacity.
The panel cradle assembly weighs 13.6 kg.
The maximum capacity of the panel cradles is
113 kg.
The weight of the panel cradles and the load in the
panel cradles may limit the maximum number of
occupants in platform to one person.
Secure the cradles to the platform. Secure the
panel(s) to the platform railing using the straps
provided.
Do not operate unless you are adequately
instructed and are aware of all hazards associated
with lifting panels.
Do not cause a horizontal force or side load to
machine by raising or lowering a fixed or
overhanging load.
Maximum vertical height of panels: 1.2 m
Maximum wind speed: 6.7 m/sec
Maximum panel area: 3 m2

Operator's Manual Sixth Edition • Sixth Printing
Work Area Safety
18 Z-80/60 Part No. 226482
Welder Safety
Read, understand and obey all warnings and
instructions provided with the welding power unit.
Do not connect weld leads or cables unless the
welding power unit is turned off at the platform
controls.
Do not operate unless the weld cables are properly
connected and the welder is properly grounded.
The weight of the welder will reduce the rated
platform capacity and must be factored into the
total platform load. The welder power supply
weighs 34 kg.
Do not operate the welder unless a fire
extinguisher is immediately available for instant
use, per OSHA regulation 1926.352(d).
Weld Line to Platform Safety
Read, understand and obey all warnings and
instructions provided with the welding power unit.
Do not connect weld leads or cables unless the
welding power unit is turned off at the platform
controls.
Do not operate unless the weld cables are properly
connected.
Connect the positive lead to the twist-lock
connector at the turntable and platform.
Clamp the negative lead to the ground post at the
turntable and platform.
