Genie GTH-4013 EX User manual

Operator’s Manual
Serial number range
GTH 4013 EX
GTH 4514 EX From s/n: 20011
to s/n: 20143
With Maintenance
Information
Second Edition
Second Printing
Part No. 57.0009.0454
From s/n: 19272
to s/n: 20200
GTH 4017 EX From s/n: 19608
to s/n: 19450
Courtesy of Crane.Market

Operator’s Manual
2 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
Contact us:
ZONA INDUSTRIALE I-06019 UMBERTIDE
(PG) - ITALY
Telephone [phone] - Telefax +39 075
9415382
Technical Assistance Service
Telephone: [phone]
[phone]
e-mail: [email protected]
Important
Read, understand and obey these safety rules
and operating instructions before operating the
machine. Only trained and qualified personnel
shall be authorized to operate the machine.
This manual shall be kept with the machine at
all times.
For any further information, please call
Terexlift.
Contents
Introduction..........................................Page 3
Machine Identification..........................Page 5
Symbols Used On The Machine..........Page 7
Labels And Plates Applied On The
Machine...............................................Page 9
Safety Precautions ..............................Page 15
Description Of The Main Components...Page 23
Controls And Instruments....................Page 25
Inspections ..........................................Page 43
Operating Instructions .........................Page 47
Transporting The Machine...................Page 61
Maintenance........................................Page 65
Faults And Troubleshooting.................Page 99
Optional Attachments ..........................Page 105
Specifications ......................................Page 117
Load Charts.........................................Page 119
Diagrams And Schemes......................Page 157
Warranty ..............................................Page 179
Second Edition: Second Printing, January 2009
Copyright ©2008 TEREXLIFT srl - All rights
reserved.
Produced by:
TEREXLIFT Technical Literature Dept.
Umbertide (PG) Italy
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 3
Operator’s ManualSecond Edition - Second Printing
Introduction
Symbols
Safety alert symbol: used to
alert you to potential personal
injury hazards. Obey all safety
messages that follow this
symbol to avoid possible
injury or death
DANGER
Red: indicates a hazardous
situation which, if not avoided,
will result in death or serious
injury.
WARNING
Orange: indicates a hazardous
situation which, if not avoided,
could result in death or serious
injury.
CAUTION
Yellow : indicates a hazardous
situation which, if not avoided,
could result in minor or
moderate injury.
NOTICE
Blue: indicates a property
damage message.
PROTECT THE
ENVIRONMENT
Green: used to draw the
attention to important
information on environment
protection.
Courtesy of Crane.Market

Operator’s Manual
4 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
Intentionally blank page
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 5
Operator’s ManualSecond Edition - Second Printing
Machine Identification
Check that the operator handbook refers to the
delivered machine.
MODEL AND TYPE
Handler with telescopic boom:
GTH-4013EX - GTH-4514EX - GTH-4017EX
MANUFACTURER
TEREXLIFT srl
Zona Industriale - I-06019 UMBERTIDE (PG) -
ITALY
Enrolled in the register of companies at the Court of
Perugia under no. 4823
C.C.I.A.A. 102886
Fiscal Code/V.A.T. no. 00249210543
APPLICABLE STANDARDS
For the operator’s safety, the following standards were
obeyed during the risk assessment of the handler
fitted with telescopic boom norme:
Directive Title
98/37/CE Machinery Directive
89/336/CEE Electromagnetic compatibility
2000/14/CE Environment Acoustic Emissions
Standard Title
EN 1459:1988 Harmonised standard. Safety of
industrial trucks - Self- propelled
variable reach trucks.
EN 281:1988 Self-propelled industrial trucks sit-
down rider-controlled. Rules for the
construction and layout of pedals.
EN 1175-2:1998 Electrical requirements - General
requirements of internal combustion
engine powered trucks.
ISO 2330:1995 Fork-lift trucks - Fork arms - Technical
characteristics and testing.
ISO 3287: 1999 Powered industrial trucks - Symbols
for operator controls.
ISO 3449:1992 Earth-moving machinery - Falling-
object protective structures -
Laboratory tests and performance
requirements.
EN 13510: 2002 Earth-moving machinery - Roll-over
protectivestructures-Laboratorytests
and performance requirements.
ISO 6292:1996 Poweredindustrialtrucksandtractors
- Brake performance and component
strength.
EN 13059:2002 Safety of Industrial trucks- Test
methods for measuring vibration
ISO 2867:1994 Earth-moving machinery - Access
systems
EN ISO 6683:2005 Earth-moving machinery - Seat
belts and seat belt anchorages
- Performance requirements and
tests
ISO 11112: 1995 Earth-moving machinery -
+ AMD 1: 2001 Operator’s seat - Dimensions and
requirements
MACHINE IDENTIFICATION PLATES
The following data plates are applied on the
machine:
Machine data plate
The identification plate contains the main identification
data of the machine like model, serial number and
year of manufacture.
On machines destined for the Italian market, the data
plate is installed in the driving cab, on the right, and
is well-visible when the door is opened.
On the machines destined for foreign markets, the
data plate is applied on the front right side of the
chassis.
Courtesy of Crane.Market

Operator’s Manual
6 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
Machine Identification
Road traffic data plate
The road traffic data plate is installed on the front
right side of the chassis (only on machines destined
for the Italian market).
This plate shows the road traffic related data and the
weights of the specific machine model.
ROPS-FOPS cab type-approval plate
The ROPS - FOPS type-approval plate is located
inside the driving cab above the rear glass.
Fork data plate
Placed on the left side of the fork frame.
This plate shows the identification data of fork such
as model, serial number, year of manufacture, weight,
nominal payload, centre of the load and model of the
machine on which the forks are installed.
CE MARKING
This machine fulfils the safety requirements of
the Machinery Directive.The conformity has been
certified and the placing of the CE marking on the
machine demonstratescompliance withthe regulatory
requirements.
The CE marking is placed directly on the identification
plate of the machine.
CHASSIS SERIAL NUMBER
The chassis serial number is punched on the front
left part of the chassis side member.
IDENTIFICATION PLATES OF THE MAIN
PARTS
The plates of the main components, not directly
manufactured by TEREXLIFT srl (for instance,
engines, pumps, etc.), are located where originally
applied by the manufacturers.
HOW TO READ
YOUR SERIAL
NUMBER
Chassis serial number
(The chassis serial number is punched on the front left
part of the chassis side member)
Machine data plate
(On machines destined for the Italian market, the machine data plate is
installed in the driving cab, on the right, and is well-visible when the door
is opened. On the machines destined for foreign markets, the data plate
is applied on the front right side of the chassis)
GTH-4514 P 07 17882
MODEL
ENGINE
TYPE
YEAR OF
MANIFACTURER
SERIAL
NUMBER
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 7
Operator’s ManualSecond Edition - Second Printing

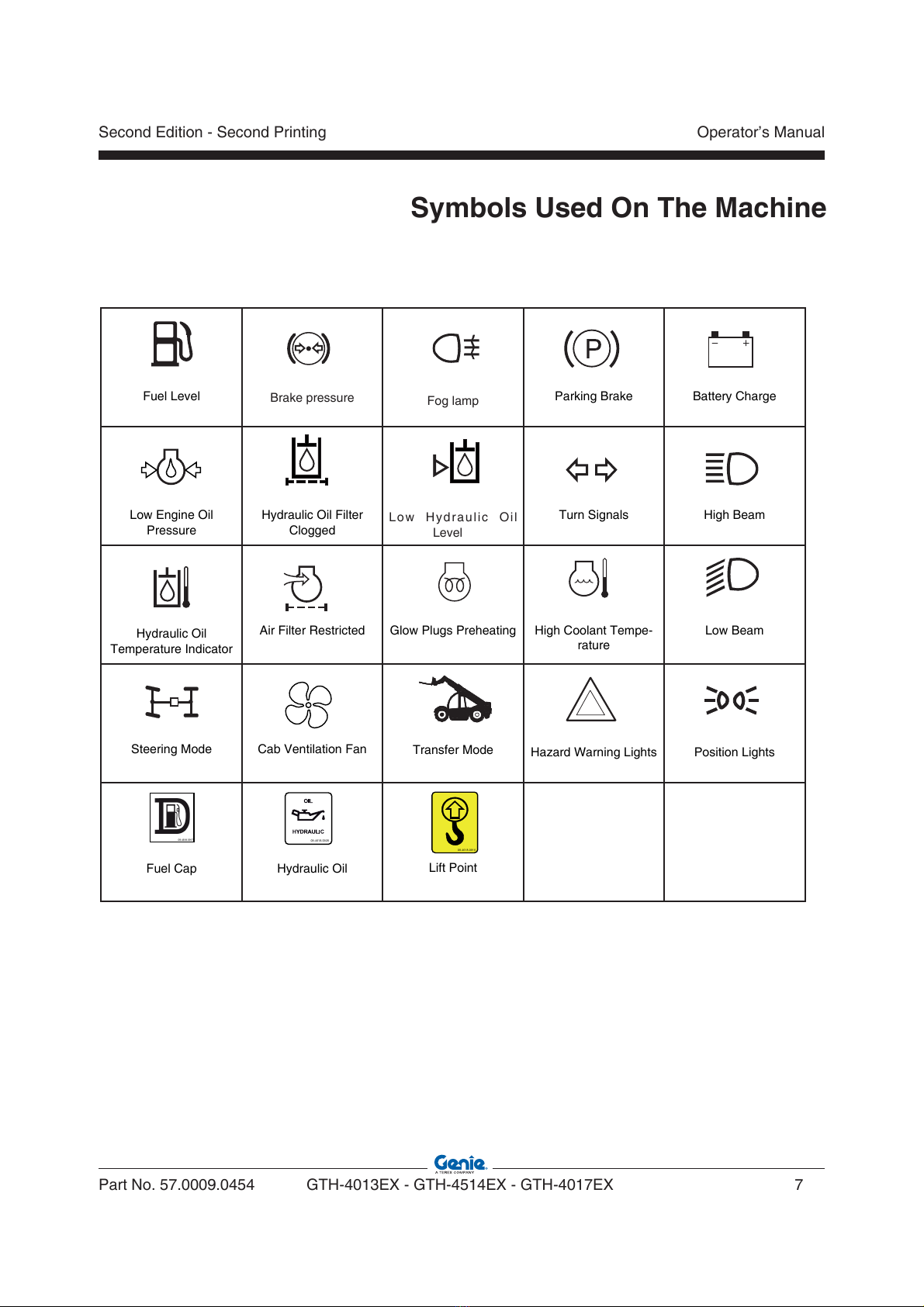

Symbols Used On The Machine
Fuel Level Brake pressure Fog lamp Parking Brake Battery Charge
Low Engine Oil
Pressure
Hydraulic Oil Filter
Clogged
Low Hydraulic Oil
Level
Turn Signals High Beam
Hydraulic Oil
Temperature Indicator
Air Filter Restricted Glow Plugs Preheating High Coolant Tempe-
rature
Low Beam
Steering Mode Cab Ventilation Fan Transfer Mode Hazard Warning Lights Position Lights
Fuel Cap Hydraulic Oil Lift Point
09.4618.0916
09.4618.0917
09.4618.0928
Courtesy of Crane.Market

Operator’s Manual
8 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
Symbols Used On The Machine
HAZARD PICTORIAL DESCRIPTIONS
Crush Hazard
Support boom
when performing
maintenance.
No riders.
Fall Hazard
Maintain required
clearance.
Electrocution
Hazard
No people under
load.
Falling Object
Hazard
Read the operator's
manual.
Burn Hazard
Burn Hazard
Explosion/Burn
Hazard No smoking. No
open flame.
Allow system to
cool.
Allow surfaces to
cool.
Crush Hazard Keep away from
moving parts. Crush Hazard Keep clear of
moving parts.
Allow compartment
access
Crush Hazard Keep clear of
moving outriggers.
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 9
Operator’s ManualSecond Edition - Second Printing
Labels And Plates Applied On The Machine
11
15
27
420
19
7
3
3
B C
14
18
12
6
20
514
31
28
5
33
24
26
30
35
36
17
1
25
25
18
8
3
3
A
16
13
23
34
14
13
9
14
5
32
10
27
14
5
4
21
29
22
4
9
2
D
Courtesy of Crane.Market

Operator’s Manual
10 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
Labels And Plates Applied On The Machine
Use the pictures on these pages to verify that all decals are legible and in place.
The following chart shows quantities and description too.
Ref. Decal Code Description Qt.
109.4618.0791 Safety pin operation 1
209.4618.0784 The capacity of the truck and attachment
combination shall be complied with. 1
3
09.4618.0061
09.4618.0547
Tyre inflat. P=4.5bar GTH-4017 EX
Tyre inflat. P=5.5bar GTH-4013EX & GTH-
4514EX
4
4
409.4618.0918 Falling Object Hazard 3
509.4618.0919 Crush Hazard 4
609.4616.0041 Guaranteed sound power level 1
709.4618.0920 Compartment Access 1
8
09.4616.0040
09.4618.0373
Max Cap. GTH-4013EX & GTH-4017EX
Max Cap. GTH-4514EX
1
1
WORKING POSITION STORAGE POSITION
SAFETY PIN
09.4618.0791
P= 4.5 bar
65 psi
Use the pictures on these pages to verify that all decals are legible and in place.
The following chart shows quantities and description too.
103
09.4616.0041
Kg 4000
09.4618.0918
09.4618.0919
09.4618.0920
Kg 4500
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 11
Operator’s ManualSecond Edition - Second Printing

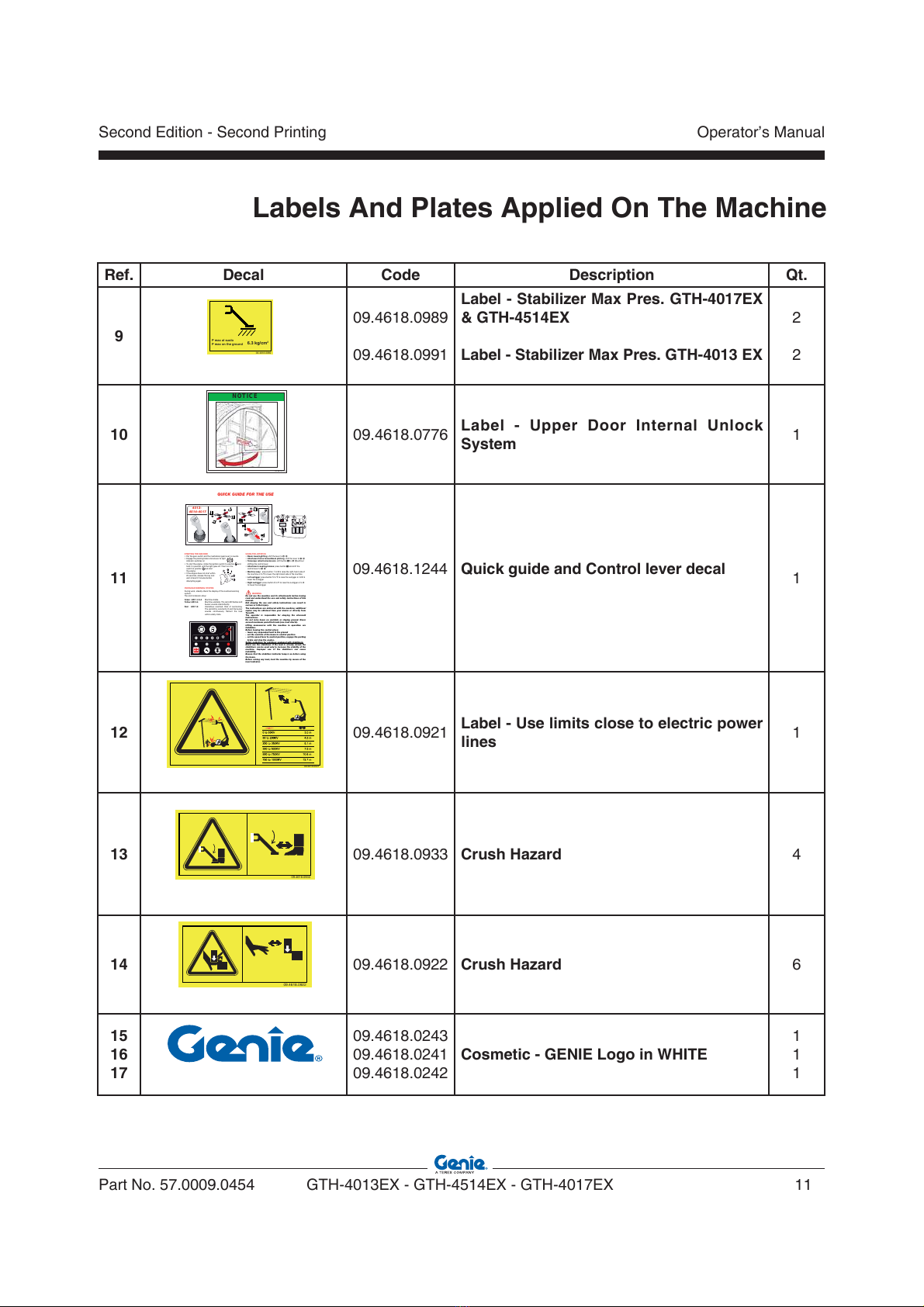

Labels And Plates Applied On The Machine
Ref. Decal Code Description Qt.
9
09.4618.0989
09.4618.0991
Label - Stabilizer Max Pres. GTH-4017EX
& GTH-4514EX
Label - Stabilizer Max Pres. GTH-4013 EX
2
2
10 09.4618.0776 Label - Upper Door Internal Unlock
System 1
11 09.4618.1244 Quick guide and Control lever decal 1
12 09.4618.0921 Label - Use limits close to electric power
lines 1
13 09.4618.0933 Crush Hazard 4
14 09.4618.0922 Crush Hazard 6
15
16
17
09.4618.0243
09.4618.0241
09.4618.0242
Cosmetic - GENIE Logo in WHITE
1
1
1
09.4618.0776
NOTICE
USINGTHE JOYSTICK
฀Boom lowering/lifting฀฀฀฀฀฀฀฀฀Attachment frame forward/back pitching฀฀฀฀฀฀฀฀Telescope retraction/extension฀฀฀฀฀฀฀฀฀฀฀฀฀฀Attachment coupling/release฀฀฀฀฀฀฀฀฀฀฀฀฀Machine sway฀฀฀฀
1 ฀฀X฀฀฀฀฀฀฀฀฀฀฀Y฀฀฀฀฀฀฀฀฀Left outrigger฀฀฀
5 ฀฀Y฀฀฀฀฀฀฀X฀฀฀฀฀Right outrigger฀฀฀
6 ฀฀Y฀฀฀฀฀฀฀X
฀฀฀
WARNING
Do not use the machine and its attachments before having
read and understood the use and safety instructions of this
manual.
Not obeying the use and safety instructions can result in
serious or lethal injury.
The instructions are delivered with the machine; additional
copies may be obtained from your dealer or directly from
Terexlift.
The operator is responsible for obeying the aforesaid
instructions.
Do not raise boom on unstable or sloping ground. Never
exceed maximum permitted loads (see load charts).
Lifting manoeuvres with the machine in operation are
forbidden.
Before leaving the control place:
- lower any suspended load to the ground
- set the controls of the boom to neutral position
- set the speed lever to neutral position, engage the parking
brake and stop the engine.
Safety guidelines for machines equipped with stabilizers:
Never use the stabilizers if the load is already raised; the
stabilizers can be used only to increase the stability of the
machine. Improper use of the stabilizers can cause
instability.
Ensure that the stabilizer indicator lamp is on before using
the boom.
Before raising any load, level the machine by means of the
level indicator.
STARTINGTHE MACHINE
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀OVERLOADWARNING SYSTEM
฀฀฀฀฀฀฀฀฀฀฀8 LED ฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀Green LED 1-2-3-4
YellowLED 5-6
Red LED 7-8
QUICK GUIDE FOR THE USE
4
4013-
4514-4017
3

09.4618.0921
09.4618.0922
09.4618.0989
P max al suolo
P max on the ground 6.3 kg/cm2
09.4618.0933
Courtesy of Crane.Market

Operator’s Manual
12 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing

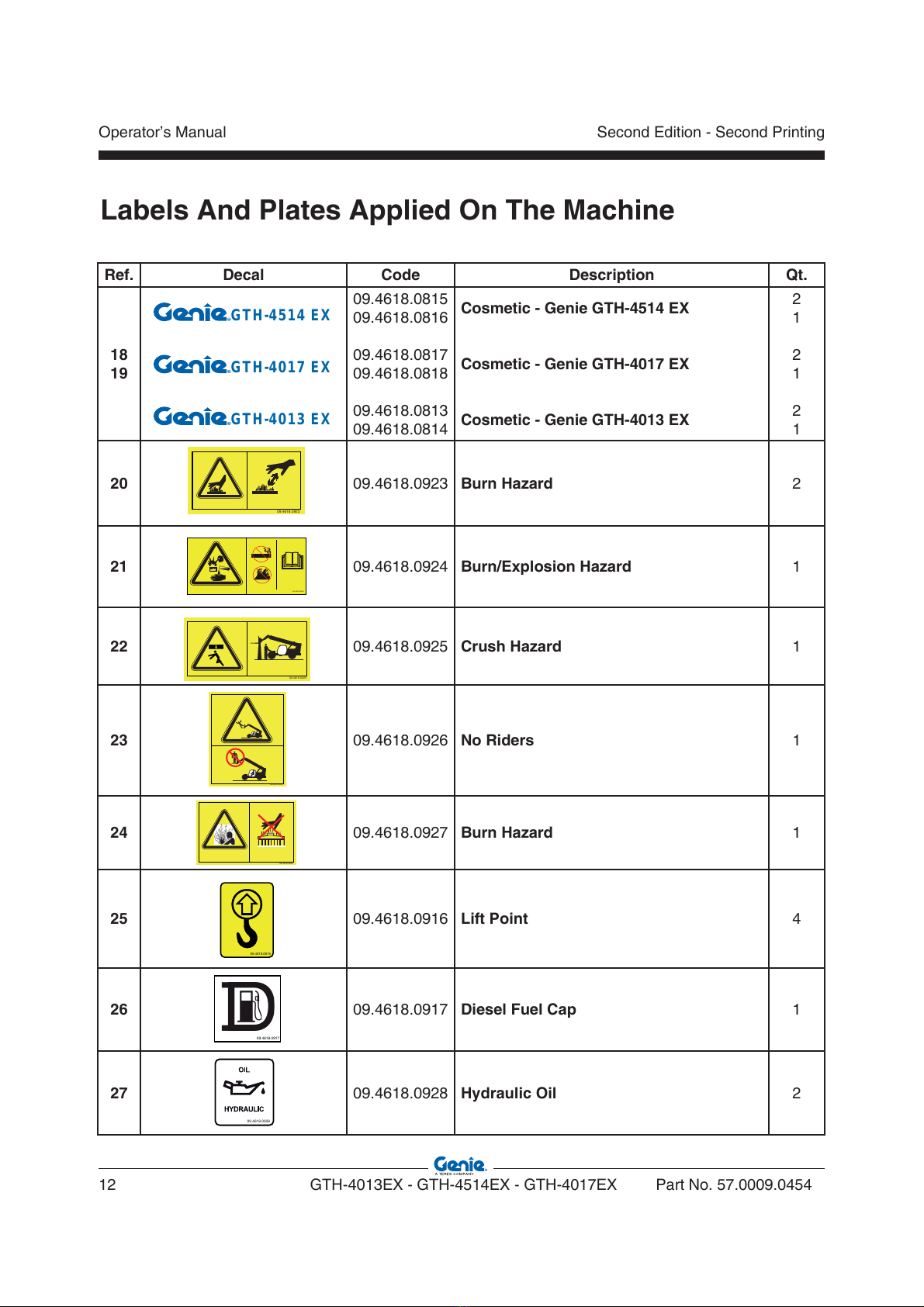

Ref. Decal Code Description Qt.
18
19
09.4618.0815
09.4618.0816
09.4618.0817
09.4618.0818
09.4618.0813
09.4618.0814
Cosmetic - Genie GTH-4514 EX
Cosmetic - Genie GTH-4017 EX
Cosmetic - Genie GTH-4013 EX
2
1
2
1
2
1
20 09.4618.0923 Burn Hazard 2
21 09.4618.0924 Burn/Explosion Hazard 1
22 09.4618.0925 Crush Hazard 1
23 09.4618.0926 No Riders 1
24 09.4618.0927 Burn Hazard 1
25 09.4618.0916 Lift Point 4
26 09.4618.0917 Diesel Fuel Cap 1
27 09.4618.0928 Hydraulic Oil 2
GTH-4514 EX
09.4618.0923
09.4618.0925
09.4618.0926
09.4618.0927
09.4618.0916
09.4618.0924
09.4618.0917
09.4618.0928
GTH-4013 EX
Labels And Plates Applied On The Machine
GTH-4017 EX
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 13
Operator’s ManualSecond Edition - Second Printing
Ref. Decal Code Description Qt.
28 09.4618.1181 Label - Engine Fuses & Relays Board 1
29 09.4618.1001 Label - Maintenance Collar 1
30 09.4618.1124 Label - Emergency Manual Controls Of
The Main Valve 1
31 09.4618.0986 Crush Hazard 1
32 09.4618.1028 Label - Parking Brake 1
33 09.4618.0171
Re-sequencing the telescopic boom
extension. If, during normal operation, a
change in the boom extended lengths is
noticed, proceed with re-sequencing as
indicated in the operator’s manual.
ONLY FOR GTH 4013 EX
1
34
09.4618.1182
09.4618.1180
Label - Cabin Fuses & Relays Board GTH-
4013 EX
Label - Cabin Fuses & Relays Board
GTH-4017EX & GTH-4514EX
1
1
35 09.4618.1033 Label - Mechanical Gear Instructions 1
36 09.4618.1122 Tip-over Hazard 1
TO PREVENT DAMAGE OF INTERNAL
BOOM HOSES BOOM SECTIONS NEED
TO BE EXTENDED EQUALLY OTHERWISE
RE-SEQUENCING WILL BE REQUIRED.
SEE OPERATORS MANUAL FOR MORE
DETAILS.
09.4618.0171
NOTICE
Labels And Plates Applied On The Machine
09.4618.1181
F1G F4 G K04 K01
F2G F3 G
K03 F5G K02
F6G F5 G
Ref. Description
K01 Engine Start
K02 Glow Plugs Preheating
K03 Fuel Pump
K04 Emergency Pump
F1G Starter Enabling Switch
F2G Engine Ignition Key
F3G Cabin Fuse-Relay Board
F4G Glow Plugs
F5G Fuel Pump
F6G Emergency Pump
09.4618.1001
09.4618.0986
K1
K9
K4
K11
K3
K21
K6
K18
F22
F23
F24
F25
F26
F27
F16
F17
F18
F19
F20
F21
F13
F14
F15
F7
F8
F9
F10
F11
F12
F1
F2
F3
F4
F5
F6
K19
K24
J3 J2 J1
K8
K7
K10
K2
K23
09.4618.1180
.feR Circuit
F1 Front Wiper
F2 Heating - A/C
F3 Stop Light Micro-Switch
F4 Rear/Roof Wiper
F5 Optional
F6 Low Beam
F7 Position Lights
F8 Instrument Lighting
F9
Indicator Lights Power Supply
F10 Road Lights Switch
F11 Flashing Beacon
F12 Stop Light
F13 Jobsite/Manplatform Sel.
F14 Backwards Light
F15 High Beam
F16 Hazard Warning Light
F17 Road Lights
F18 Outriggers Micro-Switch
F19 Transmission Contr. Unit
F20 +12v On The Boom
F21 Horn
F22 Manplatform Power Sup.
F23 Cab Interior Lights
F24 Jobsite/Manplatform Sel.
F25 LMI Control Unit
F26 2° Hydr. Circuit Switch
F27 Work Lights
Ref. Circuit Ref. Circuit Ref. Circuit
K1 High Beam K9 -------------- K17 --------------
K2 Low Beam K10 -------------- K18 Outriggers
K3 Horn K11 Start-Up Enabling Command K19
K4 Light Power Supply K12 Emergency Pump Enabling Com. K20
K5 Shift 1°/2° Mechanical Speed K13 Emergency Pump K21
K6 Backwards Buzzer K14 -------------- K22
K7 -------------- K15 Boom Out Enabling (LMI) K23
K8 -------------- K16 Boom Down Enabling (LMI) K24
K5
K16 K15
K12
K13
Warning Lights
Mechanical Gear Unit
Optional
Rear Axle Lock
--------------
LMI Control
09.4618.1028
09 4618 1124
INSTRUCTIONS
INSTRUCTIONS
CHANGE MECHANICAL GEAR ONLY
WHEN THE MACHINE IS STATIONARY
AND THE FOWARD/REVERSE GEAR
SELECTOR IS ON NEUTRAL POSITION
09.4618.1033
DANGER
Tip-over Hazard
Incorrect
emergency
lowering sequence
will result in
machine tip-over
Read, understand
and obey the
instructions below or
in the
Operator’s Manual
before lowering
09.4618.1122
Courtesy of Crane.Market

Operator’s Manual
14 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing

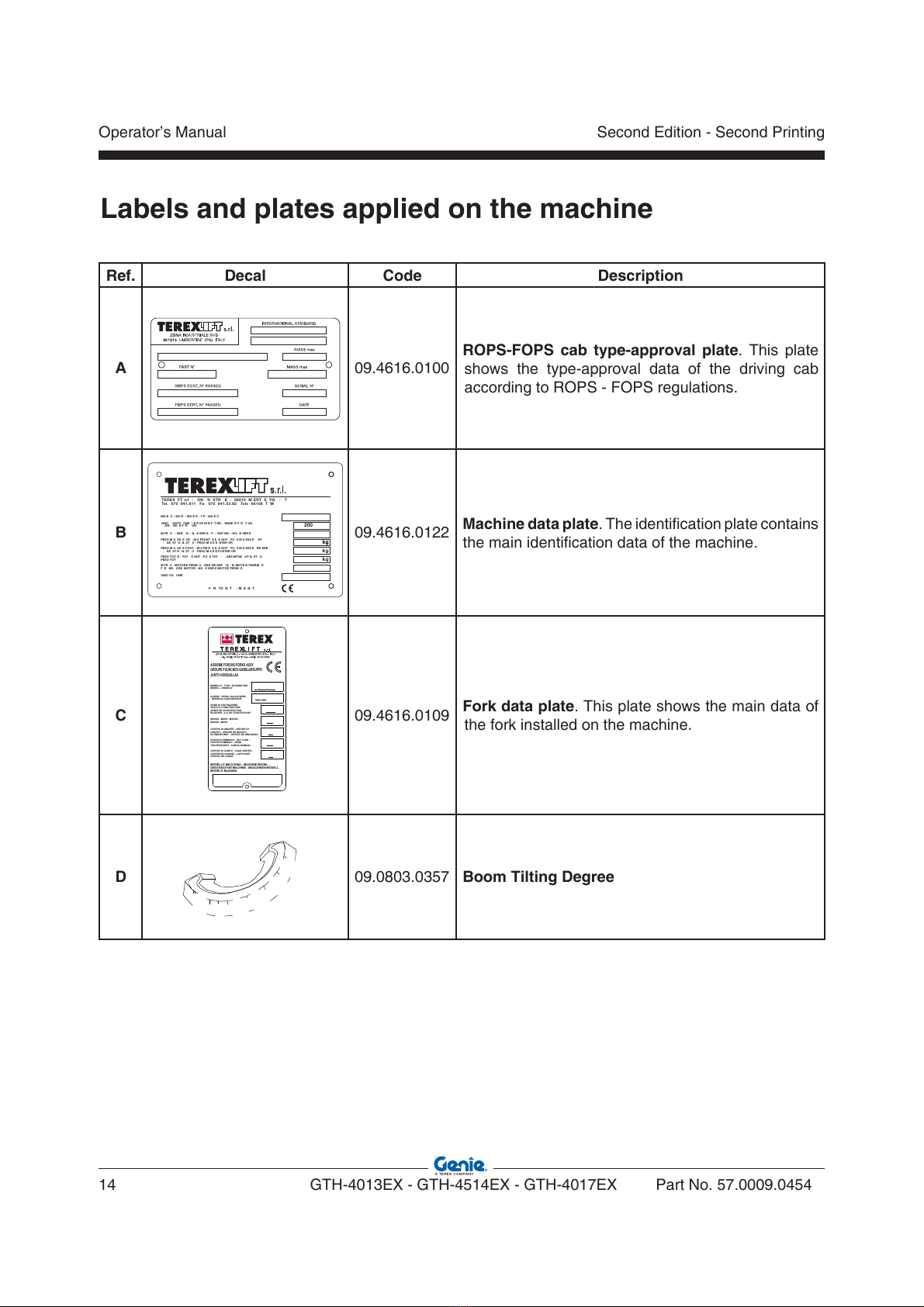

Labels and plates applied on the machine
Ref. Decal Code Description
A09.4616.0100
ROPS-FOPS cab type-approval plate. This plate
shows the type-approval data of the driving cab
according to ROPS - FOPS regulations.
B09.4616.0122 Machine data plate. The identification plate contains
the main identification data of the machine.
C09.4616.0109 Fork data plate. This plate shows the main data of
the fork installed on the machine.
D09.0803.0357 Boom Tilting Degree
200
kgkg
kg
kg
TEREX FT srl - ON N STR E - 06019 M ERT E PG - T
Tel. [phone] Fa 075 941.53.82 Tele 66106 T M
MO E O - MO E - MO E E - T P - MO E O
NNO OSTR ONE - E R OF M N F T RE - NNEE E F R T ON
HR - ÑO E F R ÓN
M TR O - SER N. - N. E SER E - F .- ENT NR. - NO. E SER E
OMO OG ONE
F R TO N T - M E N T
PESO M X SS E NT. - M X FRONT X E E GHT - PO S M X ESS E NT
. HS ST O. N. ST O - PESO M X E E NTER OR
PESO M X SS E POST. - M X RE R X E E GHT - PO S M X ESS E RR ERE
. HS ST H . N. ST O - PESO M X E E POSTER OR
PESO TOT E - TOT E GHT - PO S TOT - . GES MTGE HT N. ST O
PESO TOT
M TR O MOTORE TERM O - ENG NE SER N. - N. MOTE R THERM E
F R NR. ESE MOTOR - NO. E SER E MOTOR TERM O
MODELLO - TYPE - DƒSIGNATION
MODELL - MODELO
ANNO DI COSTRUZIONE -
YEAR OF CONSTRUCTION -
ANNƒE DE CONSTRUCTION -
BAUJHAR - A„O DE CONSTRUCCIîN
MASSA - MASS - MASSE -
MASSE - MASA
PORTATA NOMINALE - P AY LOAD -
PORTEE NOMINALL - NENN
TRAGF€HIGKEIT - CARGA NOMINAL
CENTRO DI GRAVITË - CENTER OF
GRAVITY - CENTRE DE GRAVITƒ -
SCHWERPUNKT - CENTRO DE GRAVEDAD
CENTRO DI CARICO - LOAD CENTER -
CENTRE DE CHARGE - LASTPUNKT -
CENTRO DE CARGA
MODELLO MACCHINA - MACHINE MODEL -
DESOGNATION MACHINE - MASCHINEN MODELL
MODELO MçQUINA
N¡SERIE - SERIAL N¡-N¡DE SERIE
- SERIEN N¡- N¡DE BASTIDOR
JUNTO HORQUILLAS
GROUPE FOURCHES-GABELGROUPPE
ASSIEME FORCHE-FORKS ASSY
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 15
Operator’s ManualSecond Edition - Second Printing
DAMAGED MACHINE HAZARDS
• Do not use a damaged or defective machine.
• Do a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Tag and remove from service a damaged
or defective machine.
• Make sure that all maintenance jobs have been
carried out as specified in this manual and the
appropriate service manual.
• Make sure that all decals are in place and
legible.
• Make sure that the operator’s is intact, legible
and placed in the special container located in the
machine.
PERSONAL INJURY HAZARDS
• Do not operate the machine in case of hydraulic
oil or air leak. Air or hydraulic oil leaks can
penetrate or burn the skin.
• Always operate the machine in a well ventilated
area to avoid carbon monoxide poisoning.
• Do not lower the boom if the area underneath is
not clear of personnel or obstructions.
SAFETY DEVICES
Several safety devices have been fitted to the
machine. They must never be tampered with or
removed.
Regularly check the efficiency of such devices.
In case of faults, stop working immediately and
proceed in replacing the defective device.
For the checking procedures, read chap.
"Maintenance"
MOMENT LIMITING SYSTEM
The moment limiting system has been developed to
help the operator to maintain the machine longitudinal
stability. Audible and visual messages are provided
when the limits of longitudinal stability are being
approached.
However this device cannot replace the experience
of the operator. It is up to the user to adopt the
necessary safety measures to work within the rated
limits of the machine.
Safety Precautions
Courtesy of Crane.Market

Operator’s Manual
16 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing
GENERAL REMARKS
Most accidents occurring while working, repairing or
maintaining machines, are caused by not complying
with the basic safety precautions.
Therefore, it is necessary to pay steady attention to
the potential hazards and the effects that may come
of operations carried out on the machine.
If you recognise hazardous situations, you can
prevent accidents!
DANGER
The instructions given in this handbook are the
ones established by TEREXLIFT. They do not
exclude other safe and most convenient ways
for the machine installation, operation and
maintenance that take into account the available
spaces and means.
If you decide to follow instructions other than those
given in this manual, you shall absolutely:
be sure that the operations you are going to carry•
out are not explicitly forbidden;
be sure that the methods are safe, say, in•
compliance with the rules and provisions given
in this section;
be sure that the methods cannot damage the•
machine directly or indirectly or make it unsafe;
contact TEREXLIFT Assistance Service for•
any suggestion and the necessary written
permission.
Not observing the instructions
and safety rules in this manual
may result in death or serious
injury.
Do not operate the machine unless:
You learn and practice the principles of safe•
machine operation contained in this operator’s
manual.
Avoid hazardous situations.1. Read and
understand the safety instructions before
going on to the next chapter.
Always perform a pre-operation2.
inspection.
Always test the machine functions prior3.
to use.
Inspect the work place.4.
Only use the machine for the intended5.
application.
Read, understand and obey the manufacturer’s•
instructions and the safety rules, the safety and
operator’s manuals, and the decals applied on
the machine.
Read, understand and obey the employer’s•
safety rules and worksite regulations.
Read, understand and obey the applicable•
national regulations.
Only trained personnel informed on the safety•
rules can operate the machine.
Safety Precautions
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 17
Operator’s ManualSecond Edition - Second Printing
REQUISITES OF THE PERSONNEL IN CHARGE
Requisites of the MACHINE OPERATORS
The operators who use the machine regularly or
occasionally (i.e. for transport reasons) shall have
the following prerequisites:
health:
before and during any operation, operators shall
never take alcoholic beverages, medicines or other
substances that may alter their psycho-physical
conditions and, consequently, their working
abilities.
physical:
good eyesight, acute hearing, good co-ordination
and ability to carry out all required operations in
a safe way, according to the instructions of this
manual.
mental:
ability to understand and apply the enforced rules,
regulations and safety precautions. They shall be
careful and sensible for their own as well as for the
others’ safety and shall desire to carry out the work
correctly and in a responsible way.
emotional:
they shall keep calm and always be able to evaluate
their own physical and mental conditions.
training:
they shall read and be familiar with this handbook,
its enclosed graphs and diagrams, the identification
and hazard warning plates. They shall be skilled and
trained about the machine use.
The operator shall have a licence (or a driving
licence) when provided for by the laws enforced
in the country where the machine works. Please,
ask the competent bodies. In Italy the operator
must be at least 18 year old.
Requisites of the SERVICEMEN
Thepersonnelchargedwiththemachinemaintenance
shall be qualified, specialised in the maintenance
of telehandlers, and shall have the following
prerequisites:
physical:
good eyesight, acute hearing, good co-ordination
and ability to carry out all required maintenance
operations in a safe way, according to this manual.
mental:
ability to understand and apply the enforced rules,
regulations and safety precautions. They shall be
careful and sensible for their own as well as for the
others’ safety and shall desire to carry out the work
correctly and in a responsible way.
training:
they shall read and be familiar with this handbook,
its enclosed graphs and diagrams, the identification
and warning plates. They shall be skilled and trained
about the machine functioning.
NOTICE
From a technical point of view, the ordinary
maintenance of the machine is not a complex
intervention and can be carried out by the
machine operator, too, provided he has a basic
knowledge of mechanics.
Safety Precautions
Courtesy of Crane.Market

Operator’s Manual
18 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing

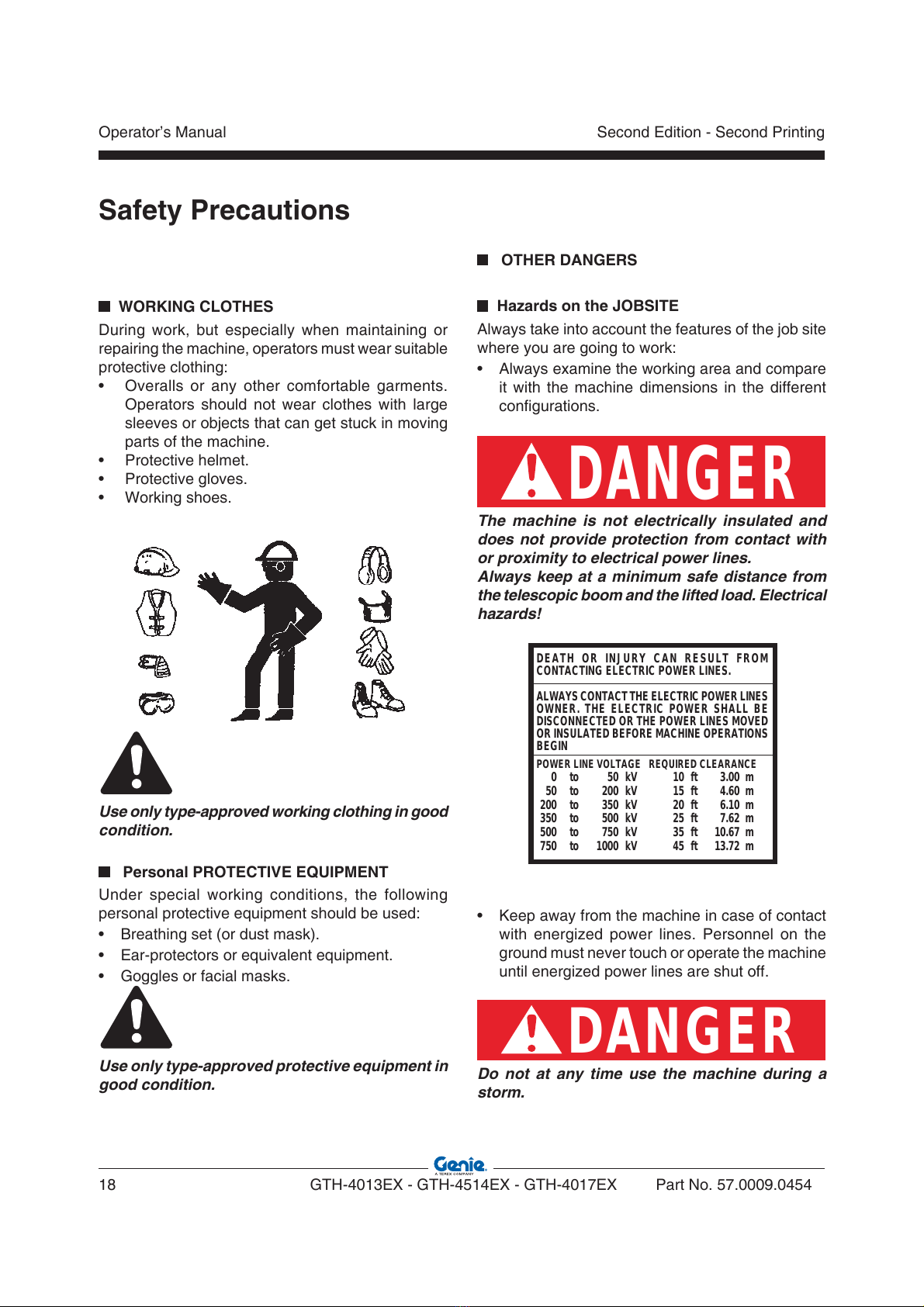

WORKING CLOTHES
During work, but especially when maintaining or
repairing the machine, operators must wear suitable
protective clothing:
• Overalls or any other comfortable garments.
Operators should not wear clothes with large
sleeves or objects that can get stuck in moving
parts of the machine.
• Protective helmet.
• Protective gloves.
• Working shoes.
OTHER DANGERS
Hazards on the JOBSITE
Always take into account the features of the job site
where you are going to work:
• Always examine the working area and compare
it with the machine dimensions in the different
configurations.
DANGER
The machine is not electrically insulated and
does not provide protection from contact with
or proximity to electrical power lines.
Always keep at a minimum safe distance from
the telescopic boom and the lifted load. Electrical
hazards!
• Keep away from the machine in case of contact
with energized power lines. Personnel on the
ground must never touch or operate the machine
until energized power lines are shut off.
DANGER
Do not at any time use the machine during a
storm.
Use only type-approved working clothing in good
condition.
Personal PROTECTIVE EQUIPMENT
Under special working conditions, the following
personal protective equipment should be used:
• Breathing set (or dust mask).
• Ear-protectors or equivalent equipment.
• Goggles or facial masks.
Use only type-approved protective equipment in
good condition.
DEATH OR INJURY CAN RESULT FROM
CONTACTING ELECTRIC POWER LINES.
ALWAYS CONTACT THE ELECTRIC POWER LINES
OWNER. THE ELECTRIC POWER SHALL BE
DISCONNECTED OR THE POWER LINES MOVED
OR INSULATED BEFORE MACHINE OPERATIONS
BEGIN
POWER LINE VOLTAGE REQUIRED CLEARANCE
0 to 50kV 10ft 3.00m
50 to 200 kV 15 ft 4.60 m
200 to 350 kV 20 ft 6.10 m
350 to 500 kV 25 ft 7.62 m
500 to 750 kV 35 ft 10.67 m
750 to 1000 kV 45 ft 13.72 m
Safety Precautions
Courtesy of Crane.Market

Part No. 57.0009.0454 GTH-4013EX - GTH-4514EX - GTH-4017EX 19
Operator’s ManualSecond Edition - Second Printing
WARNING
Make sure the machine (wheels and stabilisers)
rests on a firm ground to prevent hazardous unstable
conditions.
If the ground is not firm enough, position some
supporting planks under the stabilisers or the
wheels.
• Look for the best route to the job site.
• When the machine is running, nobody can enter
its working range.
• While working, keep the working area in order.
Never leave objects scattered: they could hinder
the machine movements and represent a danger
for personnel.
• In presence of trenches, lower the outriggers at
a safe distance from the trench edge.
OPERATION or MAINTENANCE hazards
Before any operation, following precautions should
be taken:
• First of all, make sure that the maintenance
interventions have been carried out with care
according to the established schedule.
WARNING
Set the machine to working configuration and sway
it. Use the special inclinometer to the right of the
driving place to check that the machine is level
before operating it.
• Ensure you have enough fuel to avoid a sudden
stop of the engine, especially during a crucial
manoeuvre.
• Clean instruments, data plates, lights and the
cab windscreen thoroughly.
• Check the correct functioning of all the safety
devices installed on the machine and in the job
site.
• In case of troubles or difficulties, inform the
foreman at once. Never start working under
unsafe conditions.
• Do not carry out any repair work in a makeshift
way to start working!
During work, and especially maintenance, always
pay the greatest attention:
• Do not walk or stop under raised loads or
machine parts supported by hydraulic cylinders
or ropes only.
• Keep the machine handholds and access steps
always clean from oil, grease or dirt to prevent
falls or slips.
A ³ B
A
B
Safety precautions
Courtesy of Crane.Market

Operator’s Manual
20 GTH-4013EX - GTH-4514EX - GTH-4017EX Part No. 57.0009.0454
Second Edition - Second Printing

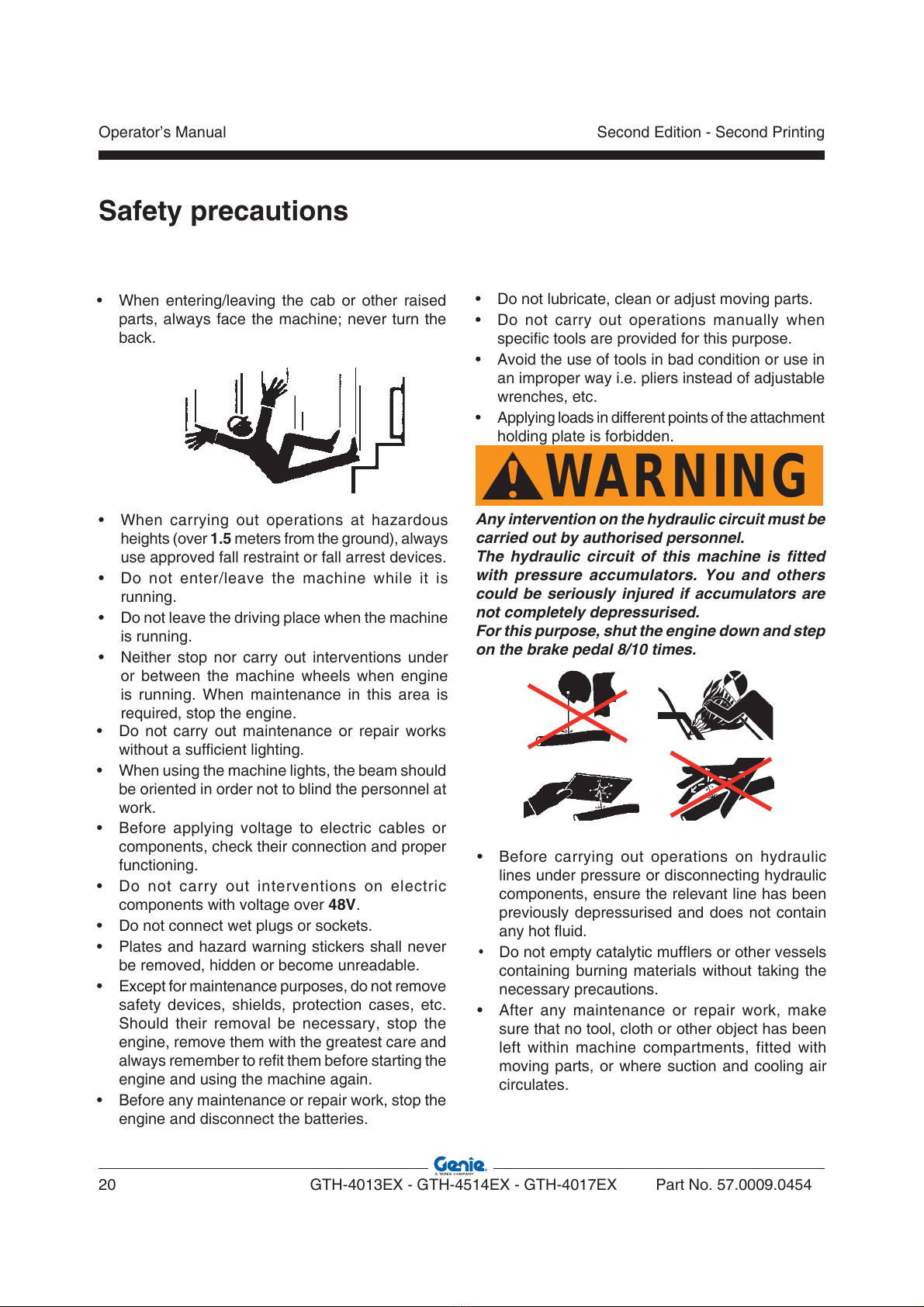

• When entering/leaving the cab or other raised
parts, always face the machine; never turn the
back.
• Do not lubricate, clean or adjust moving parts.
• Do not carry out operations manually when
specific tools are provided for this purpose.
• Avoid the use of tools in bad condition or use in
an improper way i.e. pliers instead of adjustable
wrenches, etc.
• Applying loads in different points of the attachment
holding plate is forbidden.
WARNING
Any intervention on the hydraulic circuit must be
carried out by authorised personnel.
The hydraulic circuit of this machine is fitted
with pressure accumulators. You and others
could be seriously injured if accumulators are
not completely depressurised.
For this purpose, shut the engine down and step
on the brake pedal 8/10 times.
• When carrying out operations at hazardous
heights (over 1.5 meters from the ground), always
use approved fall restraint or fall arrest devices.
• Do not enter/leave the machine while it is
running.
• Do not leave the driving place when the machine
is running.
• Neither stop nor carry out interventions under
or between the machine wheels when engine
is running. When maintenance in this area is
required, stop the engine.
• Do not carry out maintenance or repair works
without a sufficient lighting.
• When using the machine lights, the beam should
be oriented in order not to blind the personnel at
work.
• Before applying voltage to electric cables or
components, check their connection and proper
functioning.
• Do not carry out interventions on electric
components with voltage over 48V.
• Do not connect wet plugs or sockets.
• Plates and hazard warning stickers shall never
be removed, hidden or become unreadable.
• Except for maintenance purposes, do not remove
safety devices, shields, protection cases, etc.
Should their removal be necessary, stop the
engine, remove them with the greatest care and
always remember to refit them before starting the
engine and using the machine again.
• Before any maintenance or repair work, stop the
engine and disconnect the batteries.
Safety precautions
• Before carrying out operations on hydraulic
lines under pressure or disconnecting hydraulic
components, ensure the relevant line has been
previously depressurised and does not contain
any hot fluid.
• Do not empty catalytic mufflers or other vessels
containing burning materials without taking the
necessary precautions.
• After any maintenance or repair work, make
sure that no tool, cloth or other object has been
left within machine compartments, fitted with
moving parts, or where suction and cooling air
circulates.
Courtesy of Crane.Market
