Genie WIPX4EBVAF User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference.
4MP H.265 IP IR Eyeball
Camera with 2.8-12mm
Auto Focus Lens and Facial
Recognition
WIPX4EBVAF

ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
centre. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid into the camera while in use.
• When using the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device needs to be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Contents ......................................................................................................4
1.4 Specification ................................................................................................5
2.0 Overview..............................................................................................................7
3.0 Installation............................................................................................................9
4.0 Network Connection ...........................................................................................11

4
The Genie WIPX4EBVAF is a 4MP IP IR eyeball camera with a 2.8–12mm auto focus lens. The
camera features intelligent analytics as well as facial recognition when paired with any
Genie AI NVR.
1.1 Product Features
• 4MP (2592 × 1520) H.265 full real-time coding
• Maximum resolution: 2592 × 1520
• ICR auto switch, true day / night vision
• 30 ~ 50m IR night view distance
• Motorised zoom lens
• Supports image distortion correction 3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart
IR and ROI coding
• Built-in micro SD card slot, up to 128GB
• DC12V/PoE power supply
• IP67 ingress protection
• Supports three streams
• Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
• Intelligent analytics
• Onvif compliant

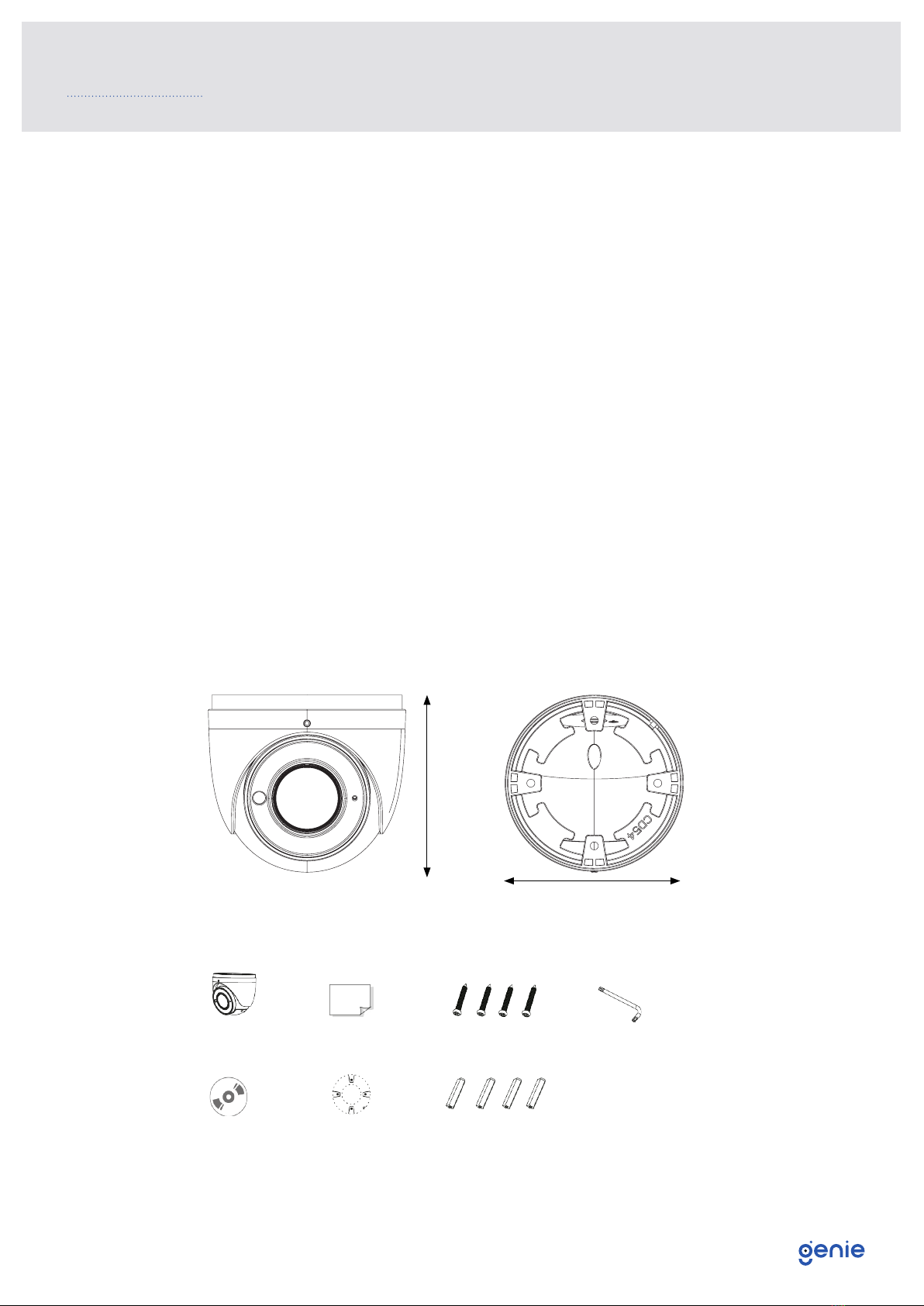

1.2 Product Dimensions
1.3 Contents
1.0 Introduction
Camera Quick Start Guide Tapping Screw x4
CD Drill Template
L-Wrench
Plastic Plug x4
99.6mm
111.5mm

Quick Start Guide 4MP H.265 IP IR Eyeball Camera with 2.8-12mm Auto Focus Lens and Facial Recognition
5
1.4 Specification
Camera
Image Sensor 1 / 3” CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type DC Iris
Minimum Illumination 0.0038 Lux @ F1.4, AGC ON, 0 Lux with IR
0.0028 Lux @ F1.2, AGC ON, 0 Lux with IR
Lens 2.8~12mm @ F1.4, motorised
Lens Mount Φ14
Field of View Horizontal: 94.2°~29.8°, Vertical: 62.4°~17, Diagonal: 102°~33.9°
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°, Tilt: 0°~80°, Rotation: 0°~360°
Video Compression Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264,
MJPEG
H.265 Compression
Standard Baseline Profile, Main Profile, High Profile
Resolution 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296),
1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240
Main Stream 4MP, 2K, 3MP, 1080p, 720p (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
HFR mode: 1080p, 720p (60Hz : 1 ~ 60fps, 50Hz: 1~50fps)
Sub Stream 720p, D1, CIF, 480 × 240 (60Hz: 1~30fps, 50Hz: 1~25fps)
Third Stream D1, CIF, 480 × 240 (60Hz: 1~30fps, 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
Sharpen, NR, etc. Adjustable through client software or web
browser
ROI Each ROI to be configured separately.
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Supports simultaneous monitoring for up to 10 users. Supports
multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
SNMP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol Onvif compatible
Intelligent Analytics
Line crossing
Region entrance / exiting / intrusion (human / motor vehicle
/ non-motor vehicle classification)
Line crossing human / motor vehicle /non-motor vehicle
counting scene change
Video blur and video colour cast detection
Face recognition and face capture
Storage Network remote storage, Micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full
General Function Watermark, IP address filtering, video mask, heartbeat,
password protection
PoE Yes (IEEE802.3af)
IR Distance 30 ~ 50 m

Quick Start Guide 4MP H.265 IP IR Eyeball Camera with 2.8-12mm Auto Focus Lens and Facial Recognition
6
Interface
Network RJ45
Video Output No
Audio 1CH audio input, 1CH built-in MIC
Alarm No
Storage Built-in micro SD card slot, up to 128GB
Hardware Reset Yes
Others
Ingress Protection IP67
Power Supply DC12V / PoE
Power Consumption < 9.5W
Operating Environment - 30 °C ~ 60°C (-22°F~140°F)
Humidity: Less than 95% (Non-condensing)
Dimensions 111.5 × 99.6 mm
Weight Approximately 0.67Kg

7

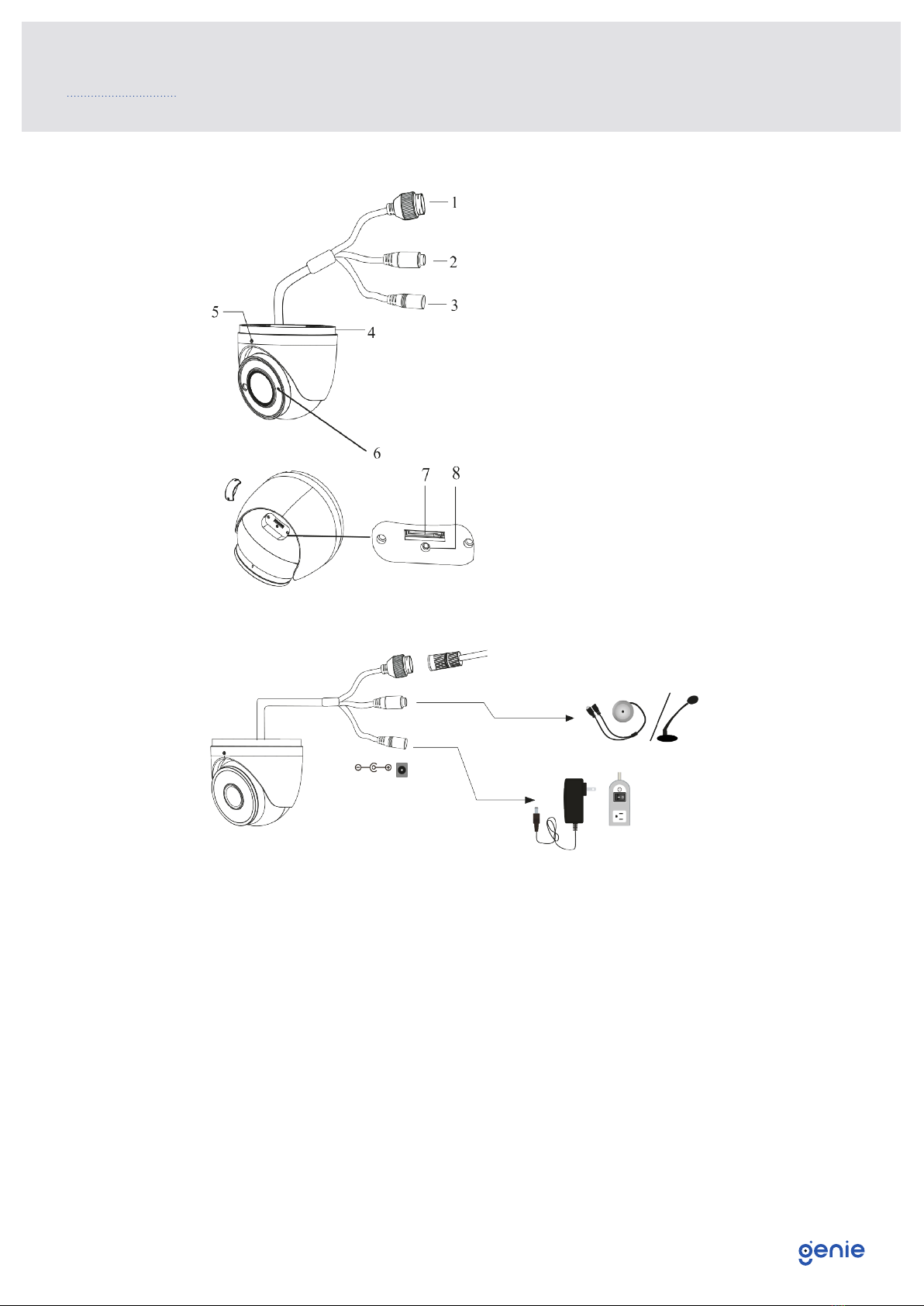

2.0 Overview
Security Cap
DC12V
1. Ethernet Connector
2. Audio Input Connector
3. Power Connector
4. Mounting Base
5. Fixed Screw
6. Microphone
7. Micro SD Card Slot
8. Reset
• It is recommended to install the security cap for outdoor installation.
• If the PoE switch is used to power the camera that supports PoE power supply, DC12V
power supply is not required.

Quick Start Guide 4MP H.265 IP IR Eyeball Camera with 2.8-12mm Auto Focus Lens and Facial Recognition
8

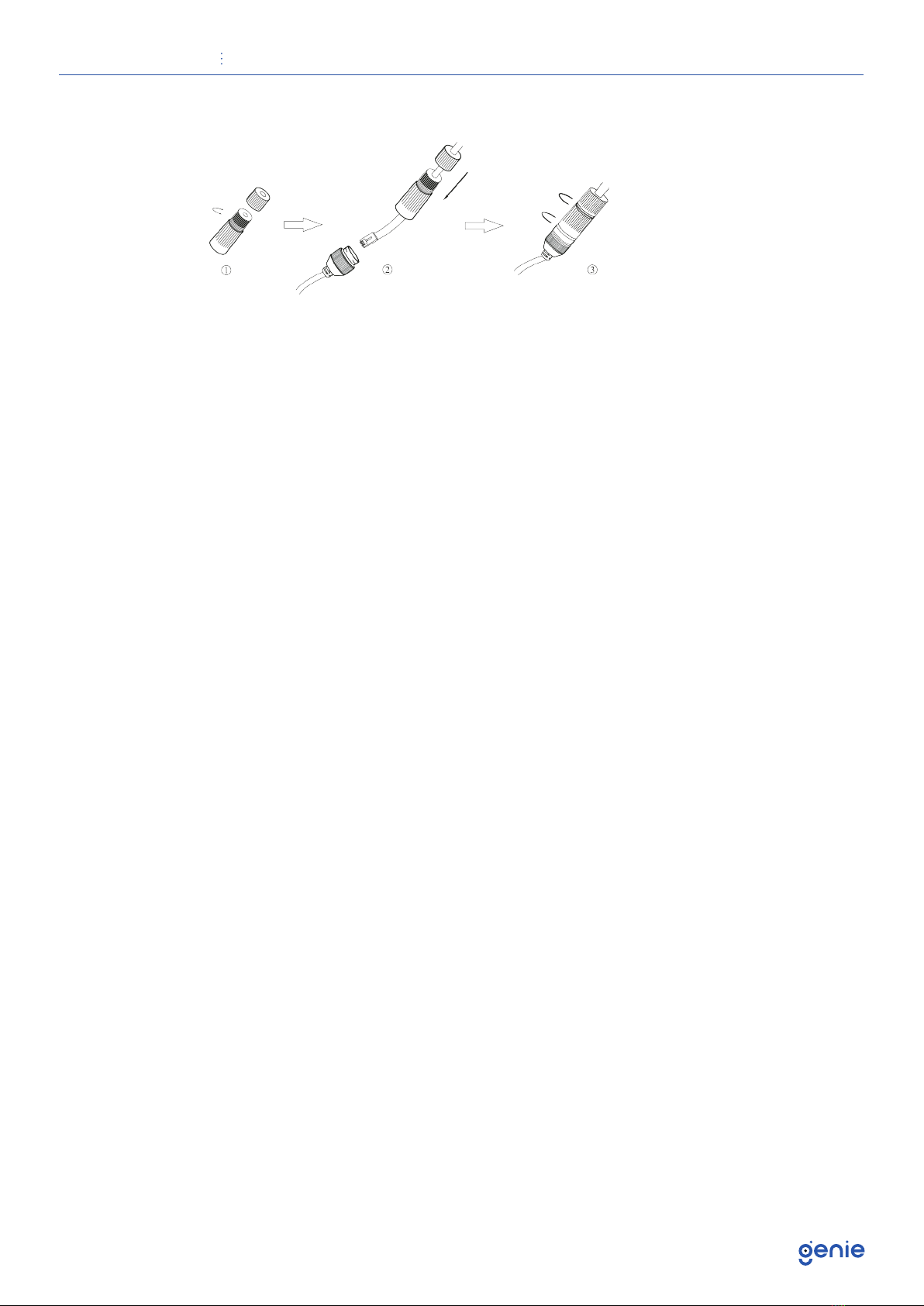

1. Loosen the nut from the main element.
2. Run the network cable (without RJ 45 connector) through both elements. Then crimp
the cable with RJ 45 connector.
3. Connect the cable to the hermetic connector. Then tighten the nut and the main
cover.
Connecting Network Cable

9
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight
of the camera. Please install the camera in and under a dry environment.
1. Loosen the fixed screw to disassemble the camera.
2. Open the cover of the dome and then insert a micro SD card.
3. Drill the screw holes and the cable hole on the wall according to the drill template.
4. Route and connect the cables. Then secure the mounting base to the ceiling or wall
with the screws provided.
3.0 Installation
Fixed Screw Mounting Base
Enclosure
Dome
Insert a Micro SD Card
Cover

Quick Start Guide 4MP H.265 IP IR Eyeball Camera with 2.8-12mm Auto Focus Lens and Facial Recognition
10
5. Install the cover back to the camera and fix it with the screws firmly. Please
note that the cover should not be installed unevenly.
6. Install the dome and enclosure to the mounting base and then adjust the
dome to obtain an optimum view angle. Finally, fix the camera with the fixed
screw.

11
In LAN, there are two ways to access the camera:
1. Access Through IP-Tool
2. Direct Access Through Web Browser
Access the Camera through the IP Tool
1. Make sure that the camera and the PC are well connected via LAN.
2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP
Tool as shown below.
3. Modify the IP address. The default IP address of this camera is 192.168.226.201.
Click the information of the camera listed in the above table to show the network
information on the right hand. Modify the IP address and gateway of the camera and
make sure its network address is in the same local network segment as that of the
computer. Please modify the IP address of your device according to the practical
situation.
4. Double-click the camera listed in the IP-Tool or manually enter the IP address in
the address bar of the web browser to connect IP-CAM. Then follow directions to
download and install the plugin. Enter the username and password in the login
interface. The default username is admin; the default password is 123456.
4.0 Network Connection
For example, the IP address of your computer is 192.168.1.4. So the IP address of the
camera shall be changed to 192.168.1.X and the gateway shall be changed to 192.168.1.1.
After modification, please enter the password of the administrator and click “Modify”
button to modify the settings. The default password of the administrator is “123456”.

Quick Start Guide 4MP H.265 IP IR Eyeball Camera with 2.8-12mm Auto Focus Lens and Facial Recognition
12
Access the Web Browser
The default network settings are as shown below:
• IP address: 192.168.226.201
• HTTP:80
• Subnet Mask: 255.255.255.0
• Data Port:9008
• Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for the first time.
1. Set the IP address of the PC and make sure the network segment should be as the
same as the default settings of IP-CAM. Open the network and share center. Click
“Local Area Connection” to pop up the following window. Select “Properties” and
then select Internet protocol according to the actual situation (for example: IPv4).
Next, click “Properties” button to set the network of the PC.
2. Open a browser and enter the default address of IP-CAM and confirm.
3. Download and run the plugin in the computer.
4. Enter the default username and password in the login interface to log in.

Sales [phone]
Enquiries [email protected]o.uk
Website www.genieproducts.co.uk
