GeoVision GV- RK1352 User manual

GV- RK1352 Card Reader
The GV-RK1352 is a card reader with keypad, designed to recognize PIN codes,
identification cards or both. Featured with the Wiegand and RS-485 outputs, the unit can be
connected to any standard access control panel. GV-RK1352 comes with a weather sealed
and IP66 compliant housing for outdoor use.
1. Packing List
1. GV-RK1352 Card Reader x 1
2. Screw x 2
3. Screw Anchor x 2
4. GV-RK1352 Software CD x 1
5. GV-RK1352 Installation Guide x 1
6. Front Cover Plate x 2
Front View
2. Electric Wire
Wire Color Function
Red DC 7.5 ~ 12 V
Black GND
Yellow Beeper
Orange Green LED
Light Red Red LED
Green Wiegand Data 0
White Wiegand Data 1
Blue RS-485 +
Light Blue RS-485 -
Rear View
February 5, 2014 1

3. Keypad
When accessing an entry, you can enter the door’s PIN code on the keypad or present the
card and then enter the card’s PIN code on the keypad to be granted access. The access
mode is defined on GV-ASManager.
1. 0~9 Number Keys: Press the number keys to enter the PIN code.
2. # Key: Press the # key to confirm the PIN code.
3. ﹡Key: Press the ﹡key to cancel the PIN code.
4. LED Indicator and Beeper
In standby mode, the LED is blue. When a card is read, the LED flashes green and the
beeper beeps once.
GV-RK1352 comes with the external control wires of Green LED, Red LED and Beeper.
When these control wires are connected to GV-AS Controller, the status of LED and Beeper
can be defined by GV-AS Controller. For details on how to configure the settings, refer to
6.Configuring the Beeper and LED Indicator later in this installation guide.
5. Connecting GV-RK1352 to GV-AS Controller
The connection between GV-RK1352 and GV-AS Controller varies with different controller
models. The following diagrams illustrate how to connect GV-RK1352 to GV-AS400
Controller through Wiegand or RS-485 interface.
Note: GV-RK1352 is compatible with GV-AS100/110/120/210/400/410/810 Controllers.
However, to enable the keypad function, you can only connect GV-RK1352 to GV-
AS100/110/120 Controllers through the Wiegand interface. For GV-AS210/400/410/810
Controller, the connection through either Wiegand or RS-485 interface is workable for the
keypad function.
February 5, 2014 2

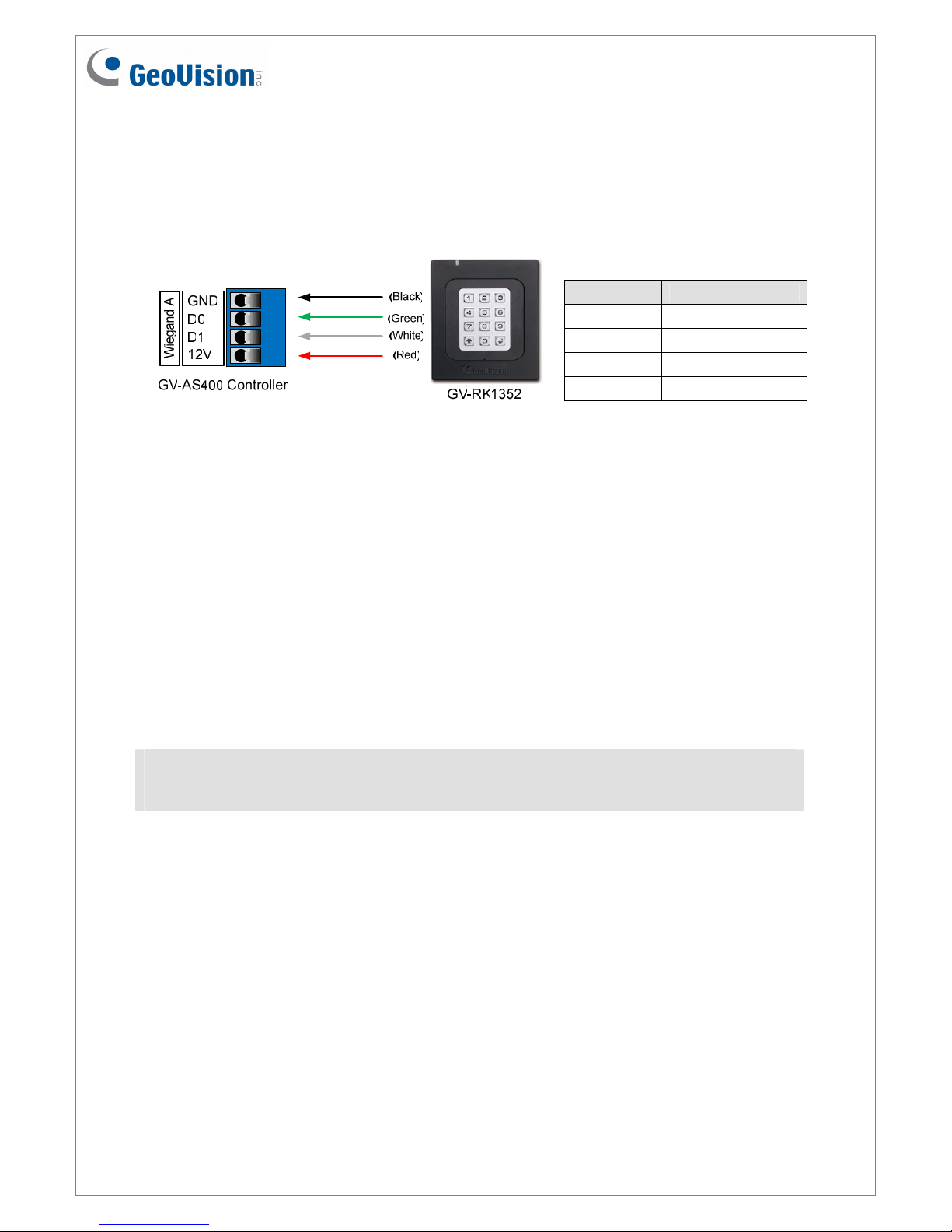

5.1 Connecting through Wiegand Interface
Up to eight GV-RK1352 readers can be connected to GV-AS400 Controller through the
controller’s Wiegand interface.
Wire Color Function
Black GND
Green Wiegand Data 0
White Wiegand Data 1
Red DC 12 V
5.2 Connecting through RS-485 Interface
Up to eight GV-RK1352 readers can be connected together to the RS-485 interface on GV-
AS400 Controller. When multiple readers are connected to the same RS-485 interface, you
need to specify each reader an ID so that the controller can distinguish one reader from
another. You will need to:
1. Connect GV-RK1352 readers to a computer to access the GV-RK1352 Config AP.
2. Define the ID number of each GV-RK1352 reader on the GV-RK1352 Config AP.
3. Wire GV-RK1352 readers to GV-AS Controller.
Note: If only one GV-RK1352 reader is connected to GV-AS Controller through RS-485
interface, you can skip steps 1 and 2, and the default ID number for the reader will be 0.
5.2.1 Connecting GV-RK1352 to a Computer to Access GV-RK1352 Config AP
Using the GV-RK1352 Config AP included in the software CD, you can define the ID
numbers of multiple readers connected through RS-485 interface.
February 5, 2014 3

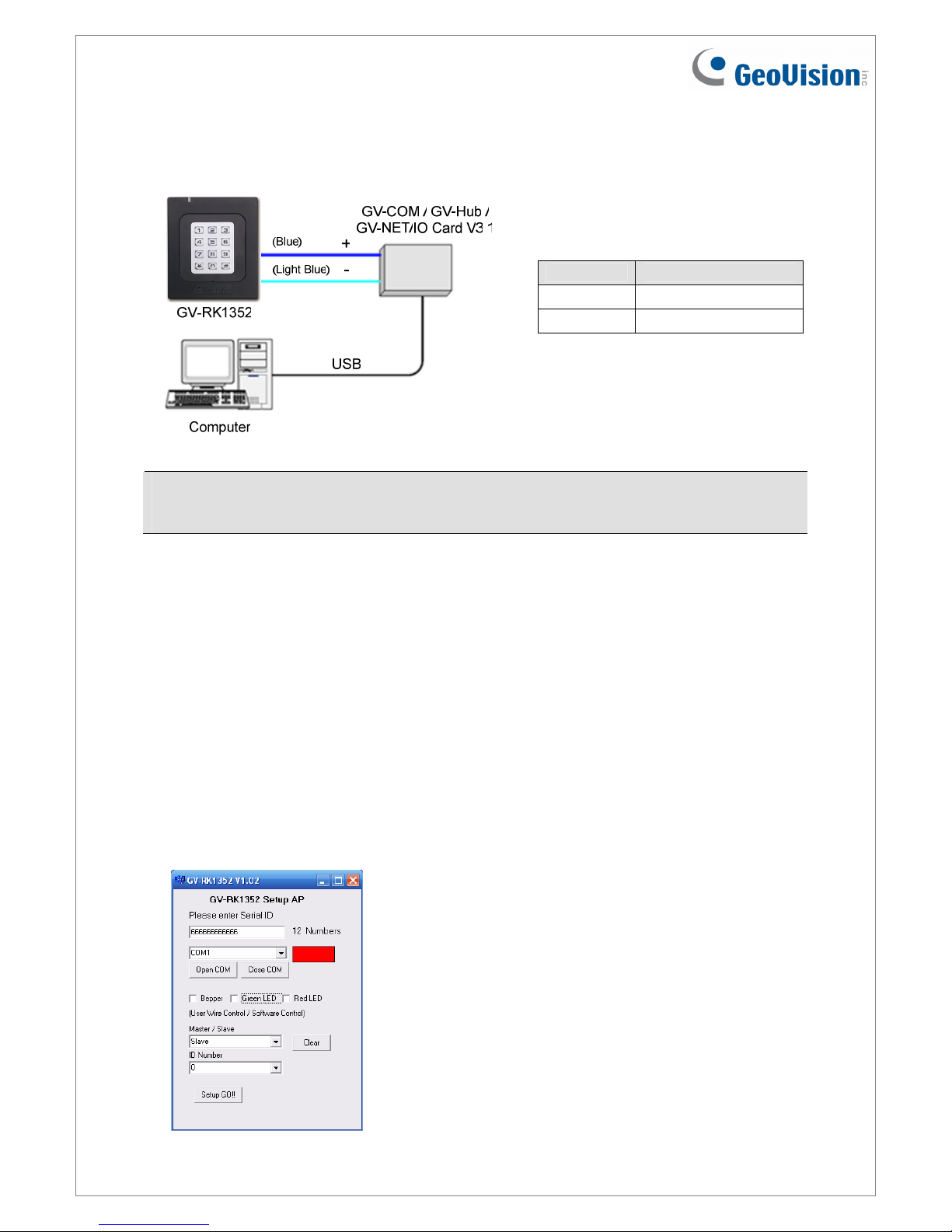

To start the GV-RK1352 Config AP, you have to connect GV-RK1352 to a computer through
GV-COM, GV-Hub or GV-NET/IO Card V3.1.
Wire Color Function
Blue RS-485 +
Light Blue RS-485 -
Note: GV-RK1352 is not compatible with GV-NET Card and GV-NET/IO Card of versions
earlier than V3.
5.2.2 Defining ID Numbers of Readers
After GV-RK1352 readers are connected to a computer, follow the steps below to define the
ID number of each GV-RK1352 reader:
1. Insert the software CD and the Install Program window will pop up automatically.
2. Select Install GeoVision USB Devices Driver.
3. In the GeoVision USB Driver Installer window that appears, select Install.
4. Go back to the Install Program window, and select Run GV-RK1352 Config Utility. This
dialog box appears.
February 5, 2014 4

5. Type the serial number of GV-RK1352 in the Serial ID box. The serial number is on the
rear panel of GV-RK1352.
6. Select the COM port that is connected to GV-RK1352 and click Open COM. The red
square ne xt to the COM port box should change to blue to indicate the COM port is
correct.
Note: If the COM port is incorrect, an “Error opening serial port”message will appear.
To verify the COM port that is connected to GV-RK1352, go to Windows Device Manager.
In the Ports (COM & LPT) field, you should see the entry for Prolific USB-to-Serial Comm
Port. The COM port showing in the entry indicates the COM number currently in use.
7. Click Setup GO. The settings are sent to GV-RK1352.
Note: If you select the wrong COM port of GV-RK1352, a “Fail. Please check Serial ID
and comport” message will appear when you click the Setup GO button. Go to Windows
Device Manager to find out the COM port of GV-RK1352.
February 5, 2014 5

5.2.3 Wiring GV-RK1352 to GV-AS Controller
After defining the ID number of the readers, you can connect the wires of GV-RK1352 to GV-
AS Controller. Here we use GV-AS400 Controller as example to illustrate the wiring.

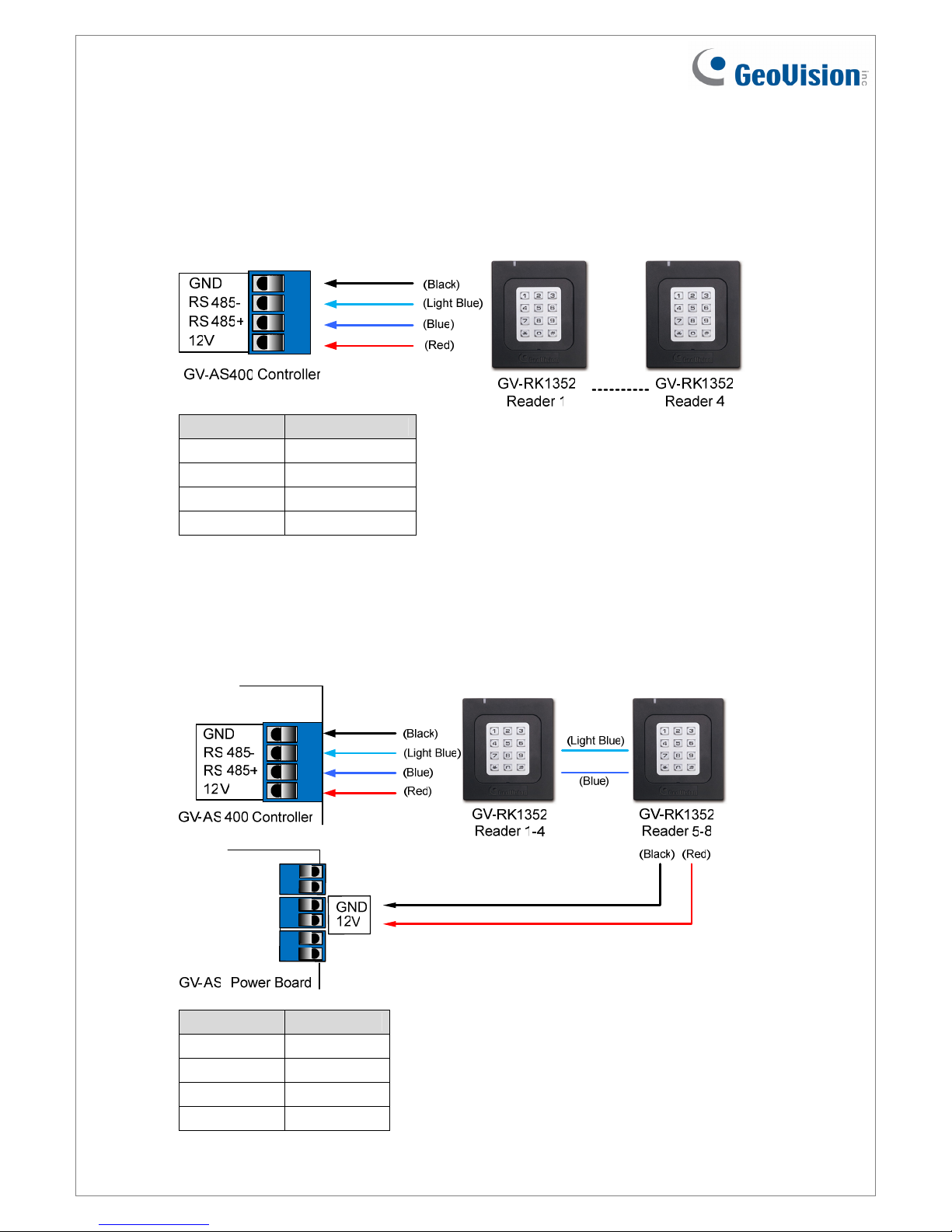

zConnecting four or less readers to GV-AS400 Controller:
Wire Color Function
Black GND
Light Blue RS-485 -
Blue RS-485 +
Red DC 12 V
zConnecting five or more readers to GV-AS400 Controller:
For readers five to eight, connect the RS-485 cable to the RS-485 interface on GV-
AS400 Controller and then connect the 12V power output and GND of the reader to a
10V to 13V DC power output on the GV-AS Power Board.
10-13V DC
February 5, 2014 6
Wire Color Function
Black GND
Light Blue RS-485 -
Blue RS-485 +
Red DC 12 V

6. Defining Readers on GV-AS Controller Web Interface
Follow the steps below to define readers on the Web interface of GV-AS Controller. Since
GV-AS210 can control multiple doors, you also need to specify which door each reader
controls. Here we use GV-AS210 Controller as example.

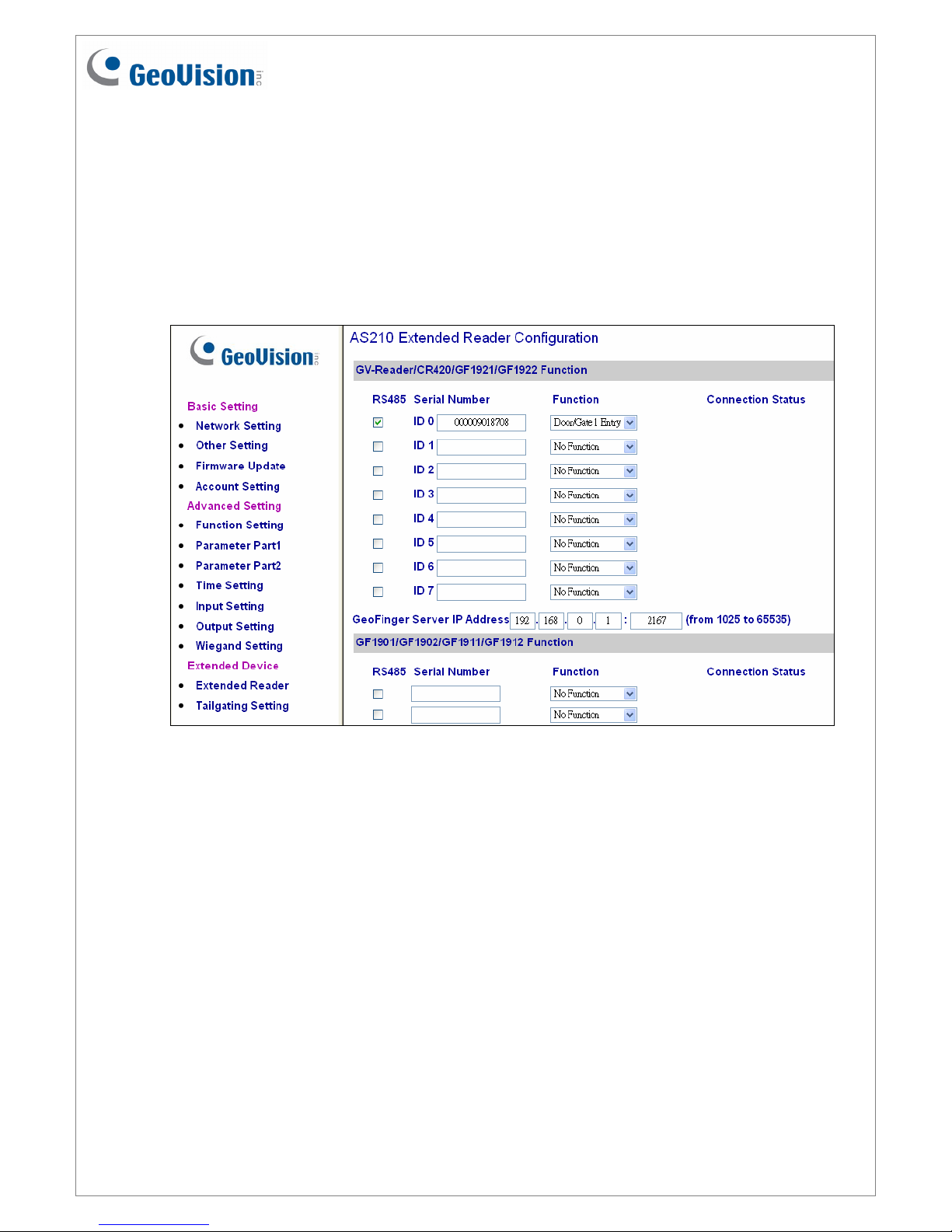

1. On the GV-AS210 Web interface, click Extended Reader. This dialog box appears.
2. Select the RS485 checkbox in front of the ID number and type the Serial Number of the
reader. The ID number should be the same with the one you configured through the GV-
RK1352 Config AP.
3. Select a door/gate for the reader from the Function drop-down list. Click Submit.
February 5, 2014 7

7. Configuring the Beeper and LED Indicator
You can configure the settings of the LED and the beeper by enabling the GV-AS Controller
to externally control the LED and Beeper. You will have to:
1. Set up the Beeper and LED settings of the reader by using the GV-RK1352 Config AP.
2. Wire the Beeper, Red LED and Green LED from GV-RK1352 to GV-AS Controller.
3. Specify the Beeper and LED settings for each door through the Web interface of GV-AS
Controller.
7.1 Setting up Beeper and LED on GV-RK1352 Config AP
To enable the external controls of the Beeper and LED, start the GV-RK1352 Config AP
according to the instructions in Accessing the GV-RK1352 Config AP earlier in this
installation guide.
After GV-RK1352 Config AP is started, you have to enable the external controls and set the
GV-RK1352 to be slave.
1. Start the GV-RK1352 Config AP. Type the serial number and the COM port of GV-
RK1352. The serial number is on the rear panel of GV-RK1352. Refer to Defining ID
Numbers of Readers earlier in this installation guide on how to determine the COM port
of GV-RK1352.
February 5, 2014 8

2. To enable external control of Beeper or LED, select Beeper, Green LED or Red LED.
Beeper: Enables the external control of Beeper.
Green LED: Changes the standby color to green.
Red LED: Changes the standby color to red.
3. Select Slave from the Master / Slave drop-down list and select an ID number for the
reader. The ID number is ranging from 0 to 7.
4. Click Setup GO. The settings are sent to GV-RK1352.
After the above settings, you need to connect the Beeper, Red LED and Green LED wires
from GV-RK1352 to GV-AS Controller
7.2 Wiring the Beeper and LED to GV-AS Controller
To wire the beeper and LED to GV-AS Controller:
Connect the control wires of GV-RK1352’s Beeper, Red LED or Green LED to any of outputs
9 ~ 16 on GV-AS Controller. The following diagram is an example on connecting the beeper
wire of GV-RK1352 to GV-AS400 Controller.
Wire Color Function
Black GND
Yellow Beeper
February 5, 2014 9

7.3 Configuring the Beeper and LED Settings for Each Door/Gate
After connecting the wires for Beeper or LED, specify the Beeper or LED settings for each
door/gate on the GV-AS Web interface.
1. On the GV-AS Controller Web interface, click Output Setting. The page below appears.
2. From the output 9~12, select a door and select Beeper, Green LED, Red LED or Invert
Red LED. Click Submit.
Beeper: Enables the external control of Beeper.
Green LED: Changes the standby color to blue. When a card is read, the LED
flashes green.
RED LED: Changes the standby color to red. When a card is read, the LED flashes
blue.
Invert Red LED: Changes the standby color to blue. When a card is granted access,
the LED flashes red.
February 5, 2014 10

8. Firmware Upgrade
GeoVision will periodically release the updated firmware on the website. The new firmware
can be simply loaded into GV-RK1352 by using Update Utility included in the Software CD.
Important Notes before You Start
Before you start updating the firmware, please read these important notes:
1. While the firmware is being updated, the power supply must not be interrupted.
2. Do not turn the power off within 10 minutes after the firmware is updated.
WARNING: The interruption of power supply during updating causes not only update
failures but also damages to the device. In this case, please contact your sales
representative and send your device back to GeoVision for repair.

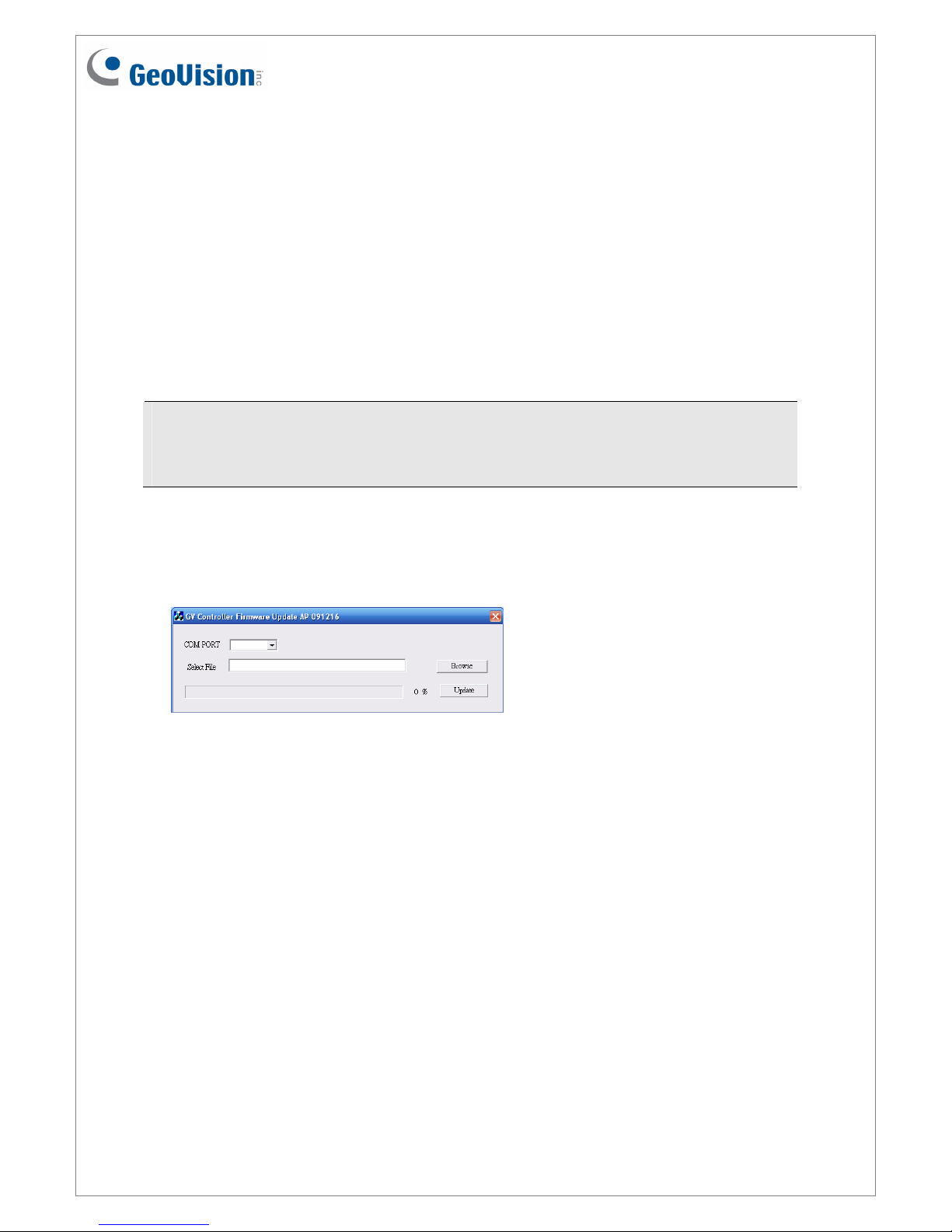

To upgrade firmware:
1. Insert the Software CD and select Run Firmware Update Utility. This dialog box
appears.
2. Select the COM port of GV-RK1352.
3. Click the Browse button to locate the firmware file (.img) saved at your local computer.
4. Click Update.
5. The LED indicator should flash purple during the process of firmware upgrading. When
the process is complete, GV-RK1352 will be sounded twice and the LED indicator will
change to green.
February 5, 2014 11

February 5, 2014 12
9. Specifications
CPU 8 bit microprocessor
Frequency 13.56 MHz for ISO14443A (Mifare DESFire, Mifare
Plus and Mifare Class)
Wiegand Interface Wiegand 26 / 34 bit, distance 30 m / 98.43 ft
RS-485 9,600 bps, connect up to 8 GV-RK1352 units
Power DC 7.5 V ~ 12 V
LED Red, Green and Blue LED
Beeper Buzzer
Reader Color Black
Operating Temperature -35 °C ~ 65 °C / -31 °F ~ 149 °F
Operating Humidity 10% ~ 90% (no condensation)
Dimensions (W x H x D) 95 x 108 x 23 mm / 3.74 x 4.25 x 0.91 in
Weight 260 g / 0.57 lb
Certification IP66, CE, FCC, RoHS
10. The number of GV-RK1352 supported by GV-AS
trollersCon
GV-RK1352 Interface
GV-AS Controller Model
Wiegand RS-485
GV-AS100 11
GV-AS110 / 120 1 Not supported
GV-AS100 / 110 / 120 with GV-ASBox 24
GV-AS100 / 110 / 120 with GV-ASNet Not supported 2
GV-AS210 4 8
GV-AS400 88
GV-AS410 / 810 8 8
