Gewa UP405 User manual

Read these operating instructions before use and observe the
safety information!
Keep the instruction manual for future reference.
Bedienungsanleitung | Owners manual | Mode d’emploi | Manual de instrucciones
www.gewakeys.com
USER MANUAL
GEWA Digital Piano UP405

Manufacturer:
GEWA music GmbH
Oelsnitzer Str. 58
08626 Adorf
GERMANY
www.gewamusic.com
Version 1.0
Last update: 18.07.2022

3
1 SAFETY INFORMATION ................................................................................................................. 4
1.1 Key ......................................................................................................................................... 4
1.2 Intended use .......................................................................................................................... 5
1.3 Improper use ......................................................................................................................... 5
1.4 Precautions ............................................................................................................................ 6
1.5 CE mark ................................................................................................................................. 7
1.6 Disposal ................................................................................................................................ 7
2 PARTS SUPPLIED WITH THE PIANO............................................................................................ 8
3 ASSEMBLY INSTRUCTIONS ......................................................................................................... 9
4 GETTING STARTED...................................................................................................................... 13

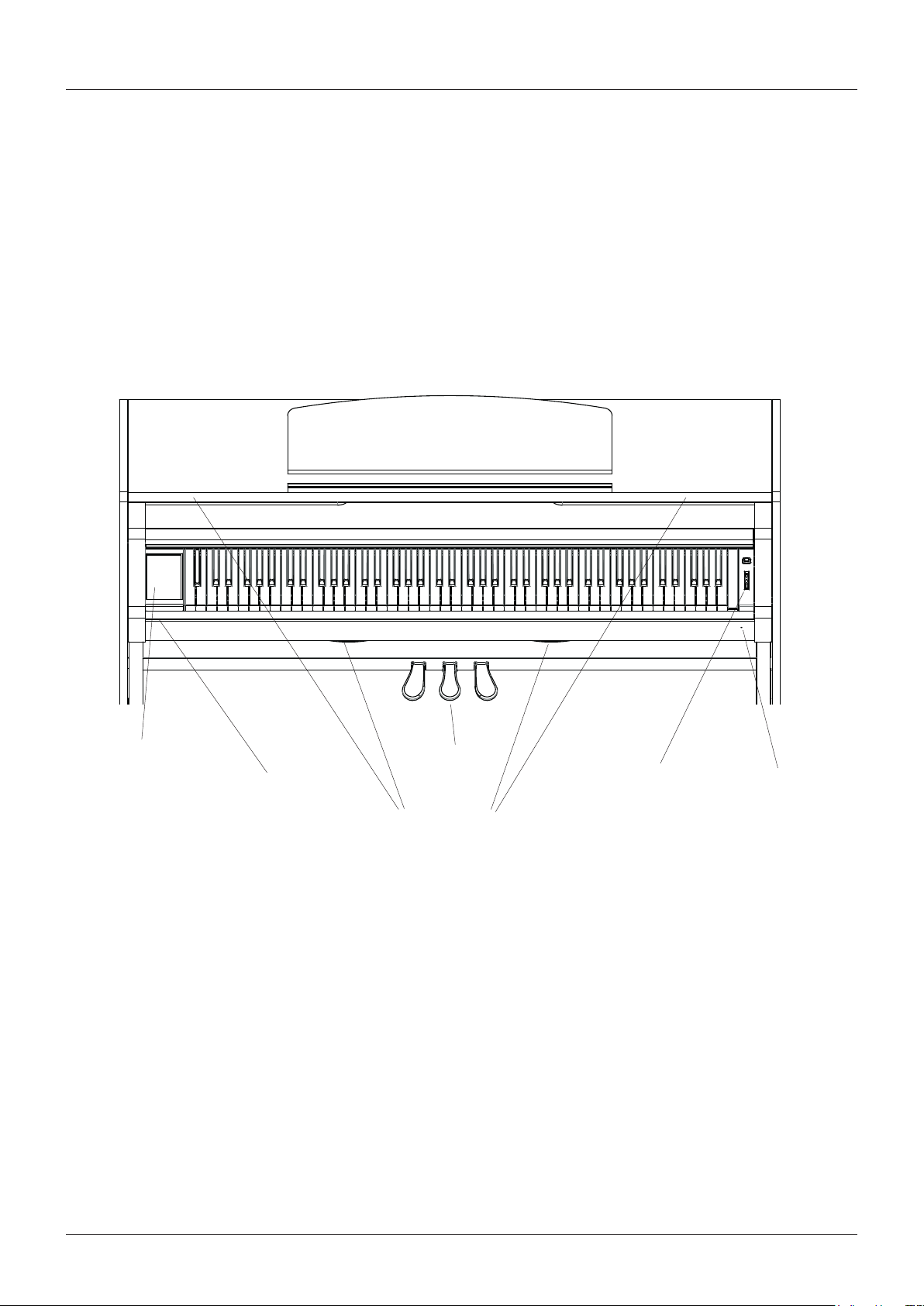

4.1 The controls of your digital piano ........................................................................................ 13

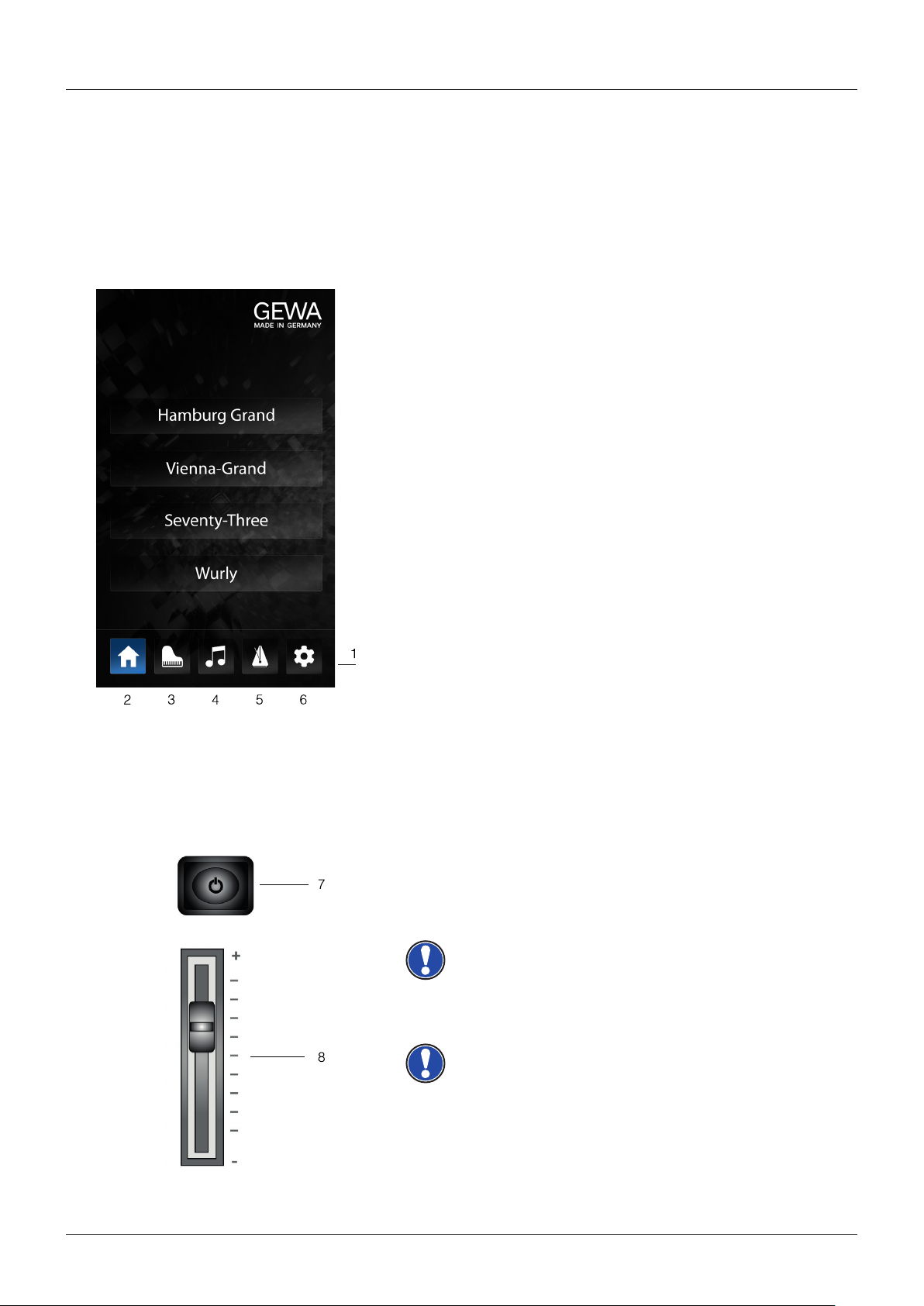

4.2 Function Keys / Touch Display.............................................................................................. 14
Pedals ................................................................................................................................... 15
4.3 Keyboard Connections ....................................................................................................... 15
5 OPERATING USE ......................................................................................................................... 17

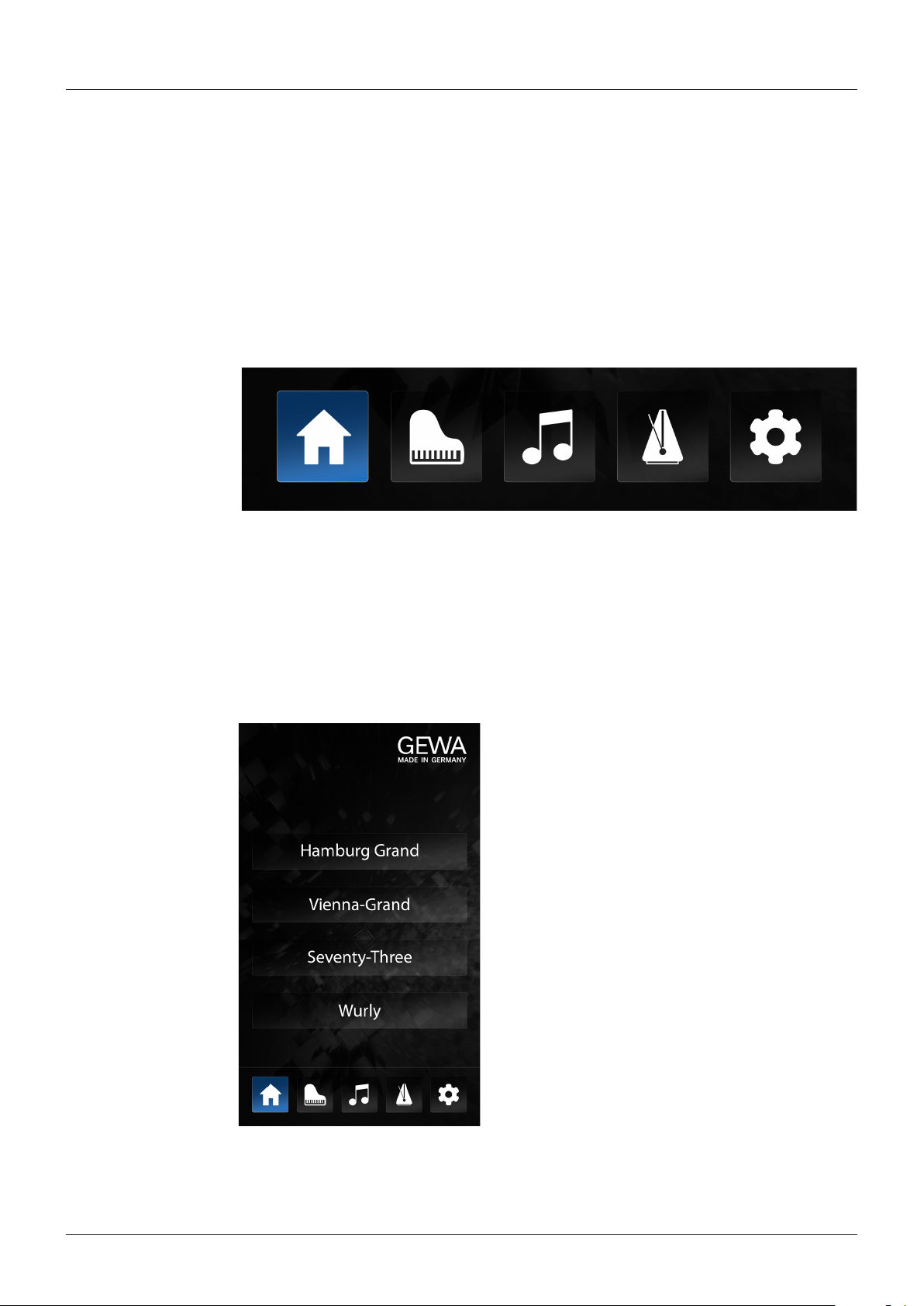

5.1 Toolbar ................................................................................................................................ 17
5.2 Favorites .............................................................................................................................. 17

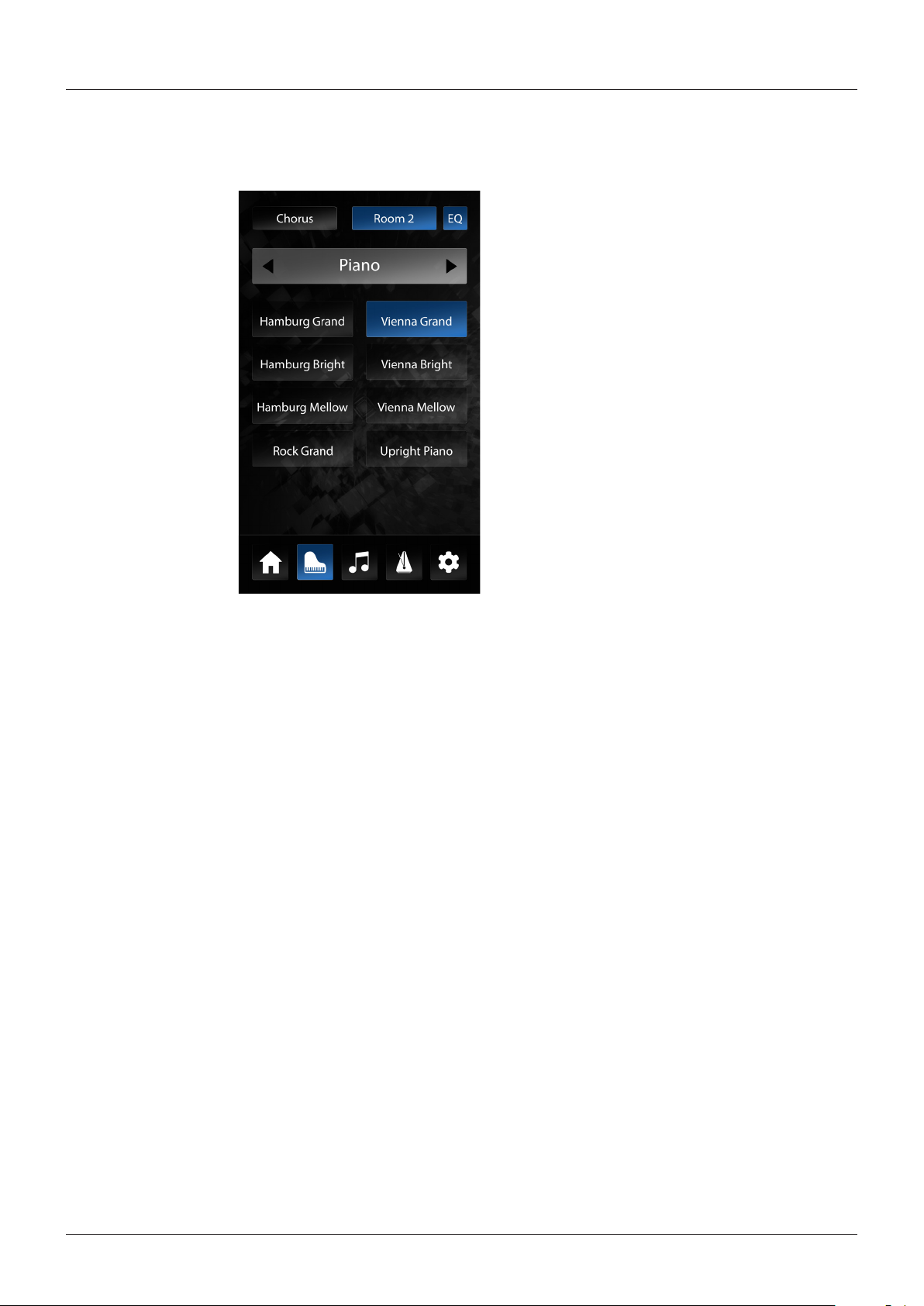

5.3 Sounds / Sound selection ................................................................................................... 18

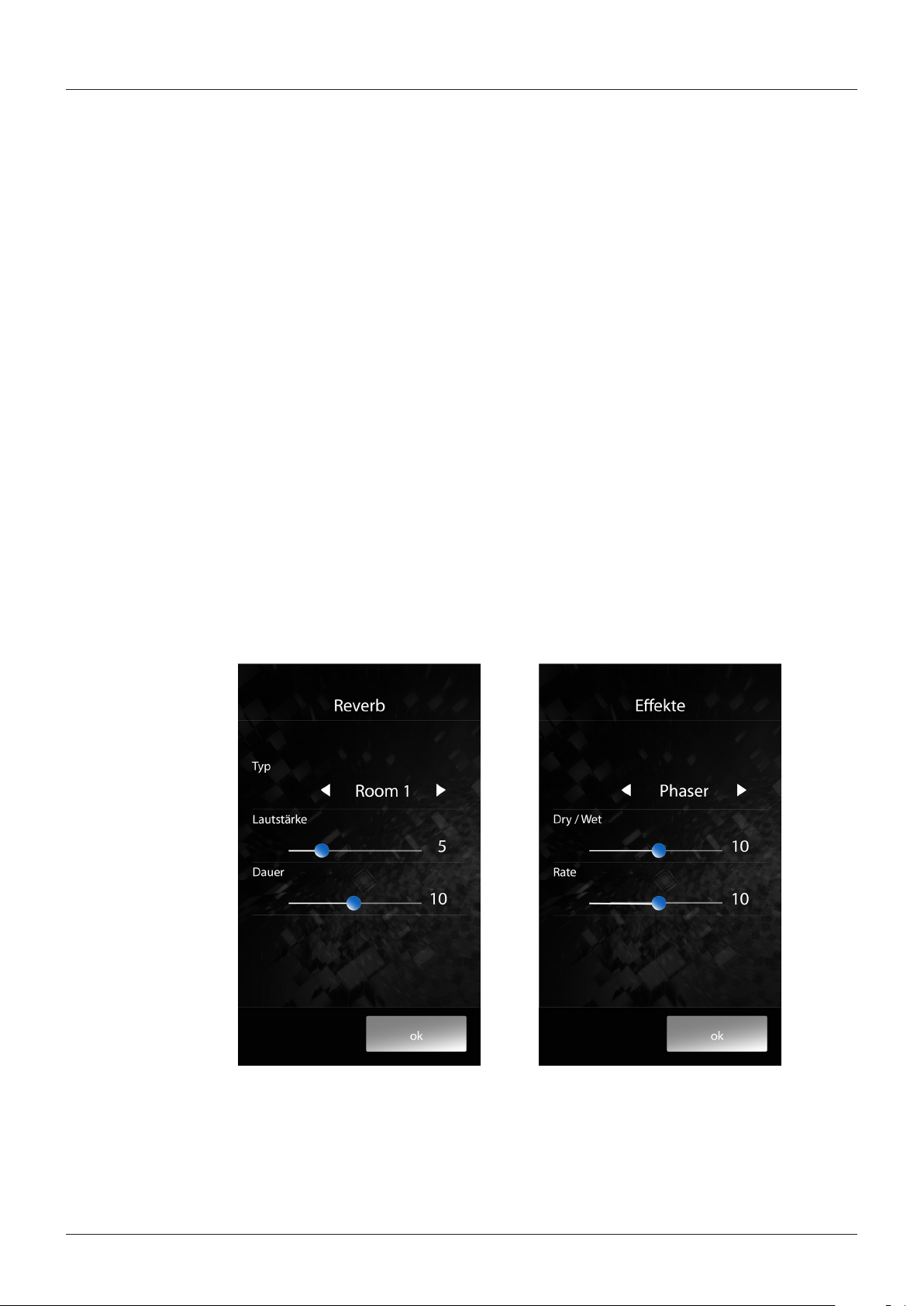

5.4 Effects ................................................................................................................................. 19
5.4.1 Effect Settings ............................................................................................................ 19
5.4.2 Reverb ........................................................................................................................ 20
5.4.3 Modulation effects........................................................................................................ 20
5.5 Sound Adjustment (EQ) ...................................................................................................... 21
5.5.1 Combinations ............................................................................................................... 22
5.6 Music.................................................................................................................................... 24
5.6.1 Demo Player................................................................................................................ 24
5.6.2 Internal Player ............................................................................................................ 25
5.6.3 Internal Recorder ....................................................................................................... 25
5.6.4 USB Player ................................................................................................................... 26
5.6.5 USB Recorder ............................................................................................................. 27
5.7 Metronome / Rhythms ........................................................................................................... 28
5.8 Settings ................................................................................................................................. 29
6 CONNECTING EXTERNAL DEVICES ......................................................................................... 34
6.1 Connecting headphones ................ ..................................................................................... 34
6.2 Connecting a playback device ............................................................................................ 34
 6.3 Connectinganamplier ........................................................................................................ 34
6.4 Connecting a PC .................................................................................................................. 34
6.5 Bluetooth Audio .................................................................................................................... 35
6.6 Bluetooth MIDI ...................................................................................................................... 36
7 USEFUL INFORMATION .............................................................................................................. 37
7.1 Index ................................................................................................................................... 37
7.2 Warranty .............................................................................................................................. 38
8 TROUBLESHOOTING AND REPAIR ........................................................................................... 38
9 TECHNICAL DATA ....................................................................................................................... 39
CONTENTS

4
SAFETY INFORMATION
KEY
Level of danger Symbol Importance Denition
Severe injury WARNING Severe to fatal injuries if
disregarded
Severe injury through
electric shock WARNING Additional symbol for danger of
electric shock
Slight injury and property
damage CAUTION
Slight injury and / or property
damage can occur if the safety
instructions are disregarded.
Note NOTE
Crucial information
concerning the handling of
the device
Tip TIP Application tips
Dear Customer,
Thank you for choosing a digital piano from GEWA music!
You have chosen a high-quality digital piano that will give you an impressive sound
experience and lots of fun.
Additional functions extend the capabilities of your digital piano far beyond piano
playing.
Your safety is very important to us!
Please read the safety information carefully and pay close attention to it. Retain this
manual and hand it over to the respective user.
1SAFETY INFORMATION
The manufacturer is not liable for personal injury or property damage resulting from
improper use of the device!
Only use your digital piano as directed!
1.1 KEY
The following symbols are used in this operating manual to identify hazards and notes.
NOTE

5
1.2 INTENDED USE
The digital piano is intended for use in dry rooms.
• Devices for audio playback (as input or output) or for data communication can be
connected.However,therespectivetechnicalspecicationsmustbecompliedwith
(see the section “Technical data“).
• The electrical connection may only be made to correctly installed power supplies,
fulllingtherespectiveregulations.Themainsvoltageontheidenticationplatemust
correspond to the mains voltage of the country of use.
• The digital piano is only to be used in the original delivery condition described below.
Conversions of any kind are not permitted and cause the immediate loss of the warranty
claim.
• The digital piano must be placed on securely fastened and weight-suitable, stable and
leveloorsorplatforms.
1.3 IMPROPER USE – EXAMPLES:
• Use outdoors or in rain
• Use in damp rooms
• Connection to incorrect supply voltage or improperly installed electrical power supplies.
• Use in close proximity to electrical or electronic equipment such as stereos, televisions,
radios or mobile phones.
• These devices may cause interference and affect the sound quality.
• Electrical leads that are too long can also affect sound quality.
• Transport and installation in places or vehicles with strong vibration, dust and strong heat
e.g. direct sunlight.
The manufacturer accepts no liability for damage for the following reasons:
• Disregard of the safety instructions
• Improper handling
• Use with devices that are not compatible with the technical data listed below
NOTE
SAFETY INFORMATION
INTENDED USE

6
SAFETY INFORMATION
PRECAUTIONS
1.4 PRECAUTIONS
Please follow the the precautions listed here. Disregard of precautionary measures can
have serious consequences:
• Severe injury or even fatal accidents
• Electric shock
• Short circuit
• Damage
• Fire
Other threats are conceivable; this is not an exhaustive list.
WARNING Fatal electric shocks
• Even low electrical currents can lead to serious injuries and death.
• Never open the digital piano’s casing.
• Never use damaged power cables.
• Lay the power cable in such a way that it can not be damaged.
  •Neverplacecontainers(vases,glassesetc)lledwithwateroruidsonthepiano.
• Never pour water or liquids on to the digital piano or keyboard.
• Never clean the digital piano with a wet cloth.
• Never plug in or pull out the mains plug with wet hands. Never pull on the cable; it can
cause damage.
• If liquid accidentally gets into the digital piano, immediately unplug the power.
Then have your digital piano checked by your GEWA service representative.
WARNING Unusual circumstances
• Turn off the digital piano or unplug the power cable if:
- There is a sudden loss of sound while using the digital piano
- The digital piano generates an unusual smell or smoke
• Be sure to have the digital piano checked by your GEWA service representative
 WARNING Protectionagainstre
  •Openamessuchascandlesortealightscantipoverandcauseare
  •Neverplaceobjectswithopenamesonthedigitalpiano!

7
SAFETY INFORMATION
CE MARK
CAUTION Damage to the digital piano
• Inappropriate electrical voltages can damage the digital piano.
• Only operate the digital piano in the permissible voltage range (as indicated on the
respectiveidenticationplate).
• Only use the supplied power cable.
• Never place the power cable near to sources of heat, such as radiators or freestanding
heaters.
• Do not bend or kink the power cable, or damage it in any other way.
• Lay the power cable so that nobody can step on it, trip on it or roll over it.
• Do not place objects on the power cable.
• Regularly check the power cable and remove any dust or dirt that may be present.
CAUTION Damage to the digital piano through thunderstorms
• Thunderstorms can generate electrical surges that can damage electrical equipment.
• In the event of a thunderstorm or long periods of non-use (such as travel), unplug the
appliance from the mains.
1.5 CE MARK
CE MARK
This device complies with EU directive requirements: Directive 2014/53/EU
EN55020:2007+A11:2011
EN55024:2010
EN55032:2012
EN61000-3-2:2014
EN61000-3-3:2013
EN301489-17:V2.2.1
EN301489-17:V3.2.0
EN62479:2010
EN300328:V2.1.1
 TheconformitywiththeregulationslistedaboveisconrmedbytheCEsignonthedevice.
The declaration of conformity can be viewed at the following address:
GEWA music GmbH, Werkstraße 1, 08626 Adorf, GERMANY
1.6 DISPOSAL
To dispose of the old device, please take it to your local waste management authority
(e.g. disposal company or recycling centre).
The adjacent symbol indicates that the device must be disposed of separately from
household waste. In accordance with the Electrical and Electronic Equipment Act, owners
of old appliances are legally required to dispose of old electrical and electronic appliances
at a separate and designated waste disposal point.
Please help in contributing to protect the environment by not disposing of the old device
in household waste.

8
ITEMS SUPPLIED
2PARTS SUPPLIED WITH THE PIANO
Check the content of the package for completeness before starting with the assembly.
1a
1
1b
2
3
4
6
5

9
ASSEMBLY INSTRUCTIONS
3
Pos. Description Pcs.
1 Keyboard 1
1a Music desk 1
1b Rollable keyboard lid 1
2 Rear panel 1
3 Pedal board / subwoofer housing 1
4 Left side panel 1
5 Right side panel 1
6 Subwoofer cover 1
7 Power cable 1
8a Phillips screw M6 x 16 2
8b Phillips screw M6 x 30 6
9a Phillipsscrewwithspringandatwasher 6
9b Phillips wood screw 3.5 x 16 4
10 Pedal adjustment screw 1
11 Pedal connection cable (4 pin) 1
12 Subwoofer conneciton cable (5 pin) 1
13 Headphone hanger + phillips screw M6 x 16 1
14 Quick Start Guide 1
not shown Cable clips 2
ASSEMBLY INSTRUCTIONS
In this section we will show you how to easily set up your GEWA digital piano.
For the assembly you need:
• size 2 Phillips screws
• second assisting person
Do not rmly tighten the recessed head screws until all parts of your digital piano are
aligned. Make sure you assemble your digital piano on level ground.
Now lets start assembling your GEWA digital piano:

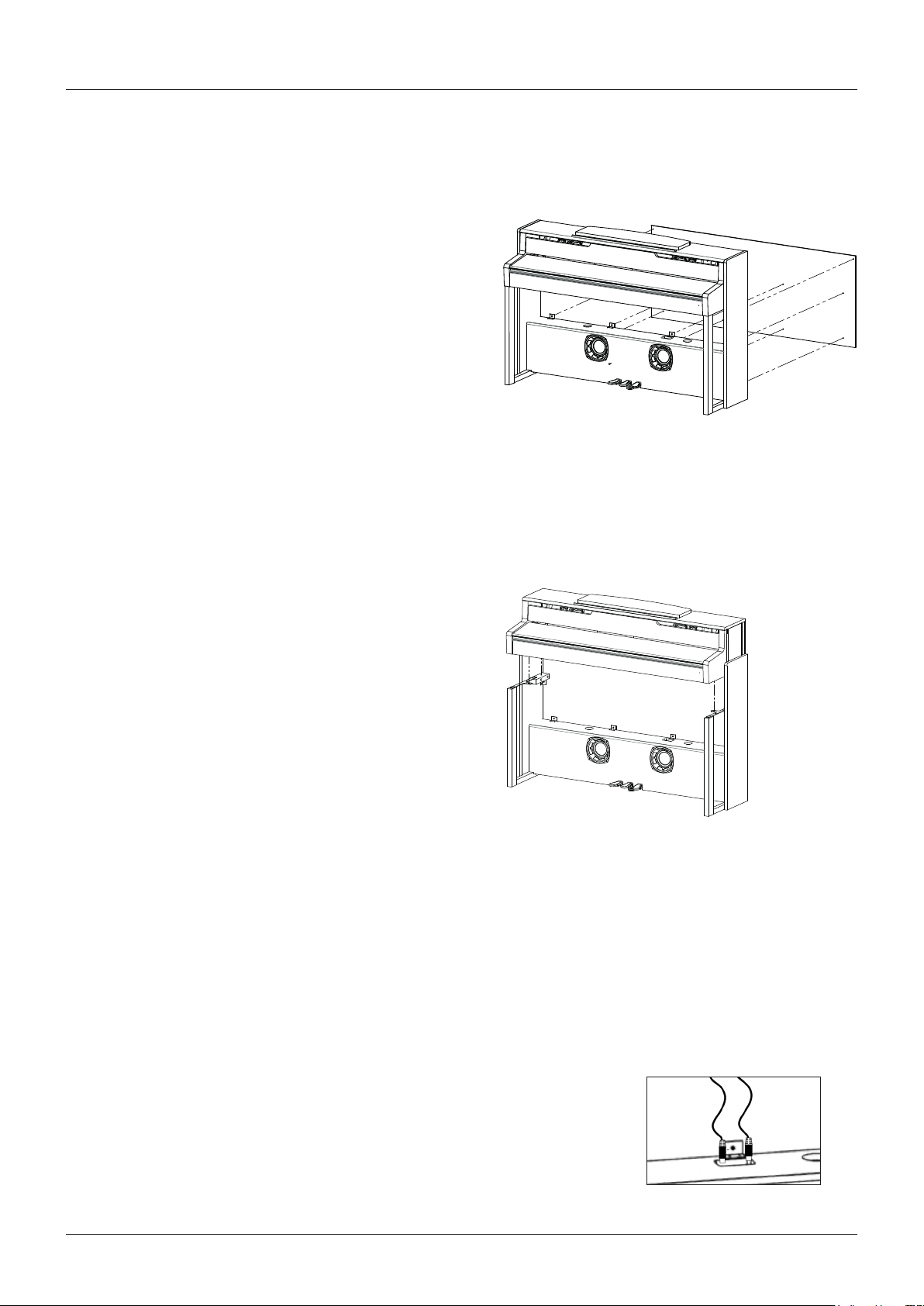

1. Screw the adjustment screw (10) into the thread on the bottom of the pedal.
2. By using the phillips screws (8B), connect the side panels (4 and 5) to the pedal board /
subwoofer housing (3).
NOTE

10
4. Now place the keyboard (1) onto the base from above. The metal guides of the side
panels have to slide into the respective groove and the counterpart. Make sure that the
angles of the side panels are guided into the millings of the keyboard.
5. Secure the keyboard with 2 screws M6x16 (8A) and 2 screws M6 x 30 (8B).
3. Then attach the rear panel with phillips screws (9A and 9B) at the angle brackets of the
side panels and the pedalboard/subwoofer housing.
6. Now plug the cables for pedal and subwoofer (11 and 12) into the connectors on the
pedalboard and keyboard.

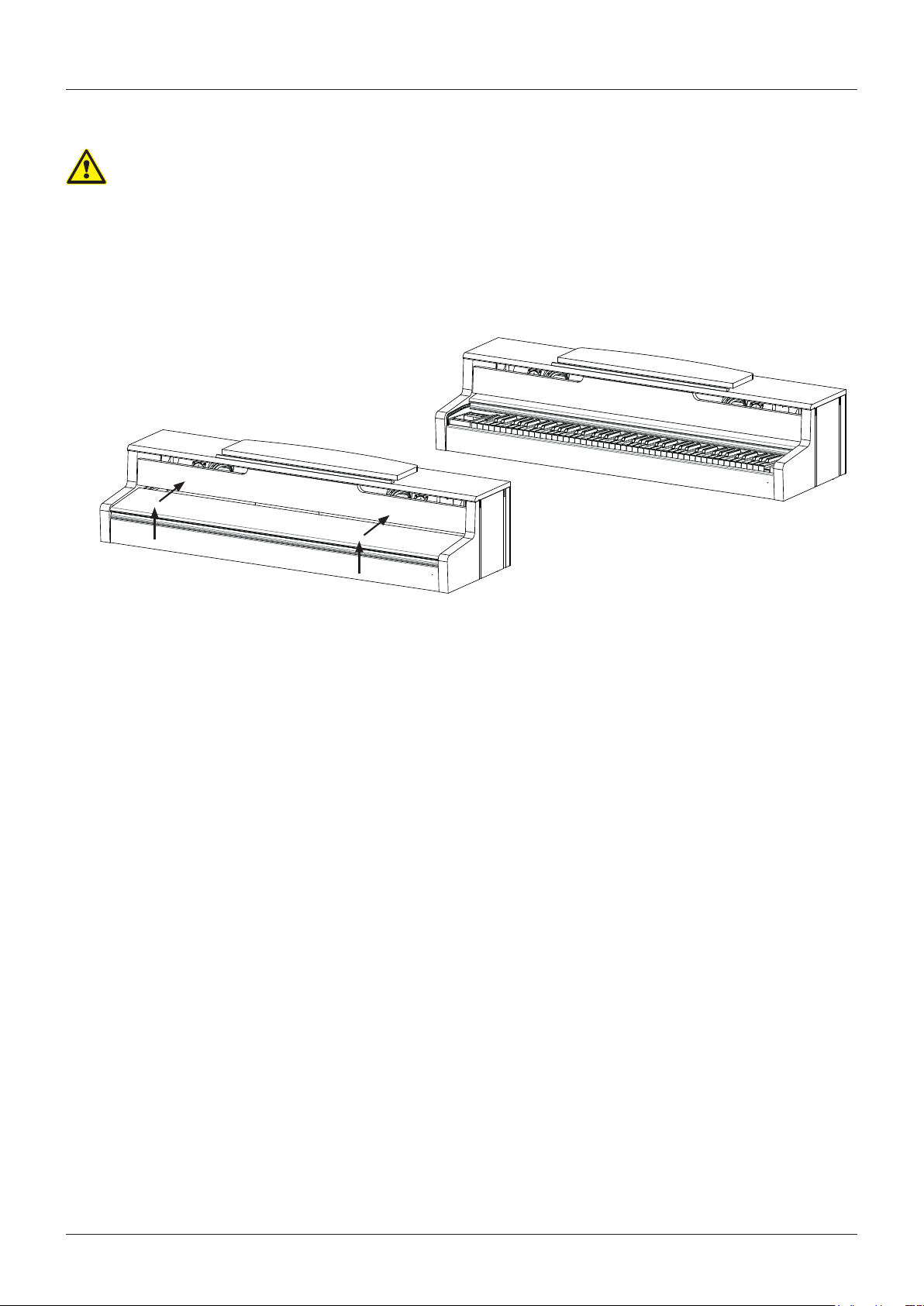

ASSEMBLY INSTRUCTIONS
