Gilson CENTRY 103 Minicentrifuge User manual

User’s Guide
EN
CENTRY™ 103 Minicentrifug
e

TABLE OF CONTENTS
| CENTRY™ 103 MINICENTRIFUGE
TABLE OF CONTENTS
INTRODUCTION | 3
Ordering Information | 3
Specifications | 3
Description | 4
SAFETY AND USER PRECAUTIONS | 5
General Safety Precautions | 5
Rotor and Microtubes | 5
Batteries | 5
OPERATION | 6
Installing | 6
Connecting to the Power Source and Turning On | 6
Installing the Rotor | 7
Preparing the Microtubes | 8
Starting and Ending Operation | 8
Using Batteries | 8
MAINTENANCE | 9
Routine Maintenance | 9
TROUBLESHOOTING | 10
Troubleshooting Table | 10
Return for Repair | 10
SPARE PARTS | 11
Accessories | 11
DECLARATION OF CONFORMITY | 12
Related Standards | 12
WARRANTY | 13

INTRODUCTION
3
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Chapter 1
INTRODUCTION
CENTRY™ 103 Minicentrifuge is an easy of use and portable benchtop device ideal for a
quick separation of particles from a supernatant according to a density gradient.
It also enables a spin down of a drop of liquid from the walls of tubes.
Equipped with robust and easy to change rotors, the CENTRY 103 Minicentrifuge can be
used either with microtubes or tube-strips. The round rotor has a capacity of eight
1.5 mL or 2.0 mL microtubes, and the rectangular shaped rotor capacity is two lines of
eight connected 0.2 mL tube-strips.
Due to its small footprint and a battery compartment, the CENTRY 103 Minicentrifuge
can be used anywhere, from small benches to laminar flow cabinets, or even if there is no
power supply available, the Minicentrifuge is convenient and easy to transport.
To start or stop centrifugation, simply press down in the lid.
The CENTRY 103 Minicentrifuge will automatically decelerate to a stop after six minutes of
continuous spinning.
Ordering Information
DESCRIPTION PART NUMBER
CENTRY™ 103 Minicentrifuge F110736
Specifications
ROTOR 8 TUBES
1.5–2.0 mL (PN F1077310)
ROTOR 2 TUBE-STRIPS
8 x 0.2 mL (PN F1077311)
Dimensions
(W X D X H) 150 x 163 x 113 mm
Weight 600 g (excluding rotor and batteries)
Max. Capacity 8 microtubes:
2.0 mL or 1.5 mL
2 PCR strips:
0.2 mL x 8 connected tubes
Speed 6 000 rpm (+/- 20%) 6 200 rpm (+/- 20%)
Relative Centrifugal
Force (RCF)
1.310 ~ 2.960G (2.0 mL)
1.260 ~ 2.840G (1.5 mL)
Max. 1.200 ~ 2.690G
Min. 810 ~ 1.820G
Safety
Automatic stop after six minutes (fixed timer)
Lid opening interlocks brake
Overcurrent fuse and motor overcurrent detector
(Motor locks when the rotor is unbalanced)
Power
AC adapter with five dierent plugs (1 SKU)
Input: 1-Phase AC 100-240V | 50/60Hz | 0.6A
Or four AA alkaline batteries
Autonomy with
batteries (approx.
indication)
●about 170 cycles of
10 seconds spinning
●about 7 cycles of
6 minutes spinning
●about 500 cycles of
10 seconds spinning
●about 15 cycles of 6 minutes
spinning
Warranty 12 months

INTRODUCTION
4INTRODUCTION | CENTRY™ 103 MINICENTRIFUGE
Description
3
1
28
10
4
567
9
12
14
13
11
15
1Lid
2Chamber
3Motor shaft boss
4Power indicator light
5Main power switch
6AC adapter connector
7Battery compartment
4 AA size / LR6, alkaline
batteries (1.5V)
8Rotor for microtubes:
8 microtubes of 1.5 mL or 2.0 mL
9Rotor for tube–strips:
2 lines of 8 connected 0.2 mL microtubes
10 AC adapter
Input voltage: AC 100–240V, 50/60 Hz
11 Type C (EU)
12 Type A (Japan/USA)
13 Type A (China)
14 Type G (UK)
15 Type I (Australia)

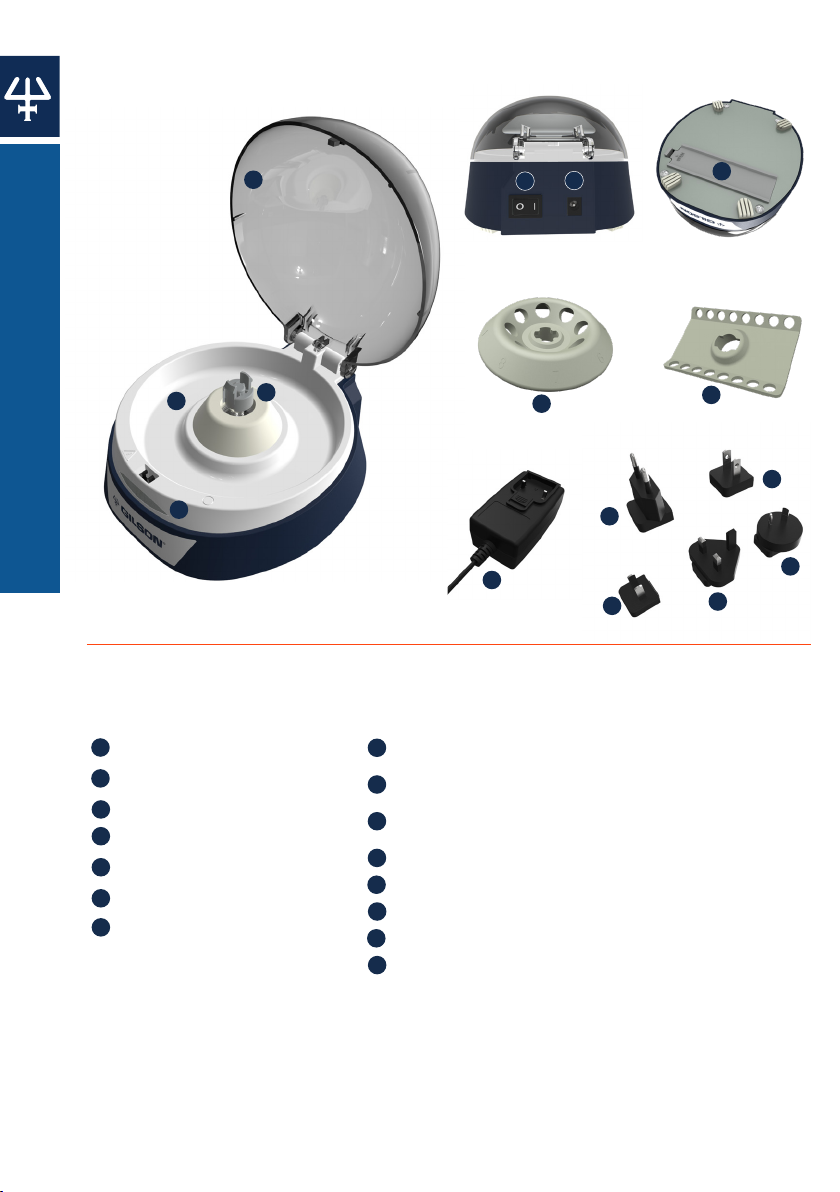

Figure 1
CENTRYTM 103 Minicentrifuge components

SAFETY AND USER PRECAUTIONS
5
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Chapter 2
SAFETY AND USER PRECAUTIONS
Read the User’s Guide carefully before operating the instrument and follow all safety norms.
General Safety Precautions
NOTICE
When the CENTRY 103 Minicentrifuge is not in use, ensure the power is switched o
(position “O”). When the power is switched on (position “I”), the red, indicator light turns on.
When disposing of the instrument, please follow the relevant laws and local or state
regulations for the waste disposal.
Rotor and Microtubes
NOTE
After the operation, remove the microtubes immediately from the rotor. If the tubes
are left inside the chamber after a run, the remaining heat of the motor may increase
the temperature of the samples.
WARNING
Do not modify or alter the instrument or any parts of the instrument, it may cause
serious accident or malfunction.
Do not use accessories or parts other than those specified in this User’s Guide , which
may cause serious accident or malfunction.
Do not touch the power plug with a wet hand, it may cause a serious or deadly
electrical shock.
Do not use any damaged power cord, plug, or loose outlet. It may cause an
accidental fire, short circuit, or malfunction.
Never open the lid while the rotor is spinning, accidental contact with the spinning
rotor may cause serious injury.
When leaving the instrument out of use for a long period of time, be sure to
remove the power plug from the wall outlet for safety. Otherwise the insulation
could deteriorate, thereby causing an electrical shock, short circuit, or fire.
WARNING
Ensure the rotor is securely installed, otherwise it may fall o during spinning and
cause unexpected accidents, or injury.
Do not use any damaged, deformed, or corroded centrifuge microtubes. Ensure
that the microtubes used are compatible with the maximum RCF of the instrument,
otherwise they could break while spinning and cause a serious injury.
The load of the microtubes must be appropriately balanced. By applying excessive
force to the motor shaft, unbalanced load may cause damage to the instrument,
resulting in a serious injury.
Batteries
NOTE
As the battery life decreases, the rotating speed also decreases. For an optimal use of
the instrument, replace the batteries with new ones.
WARNING
For using the instrument with batteries, ensure that the positive (+) and the negative
(-) terminals are correctly oriented, as represented in the battery compartment.
Otherwise, the battery may cause heating, leakage, or explosion and could result in
damage to the instrument, or personal injury.

OPERATION
6OPERATION | CENTRY™ 103 MINICENTRIFUGE
Chapter 3
OPERATION
Before operating the CENTRY 103 Minicentrifuge, ensure that the following conditions are met:
●Environmental requirements:
○Ambient temperature from 5°C to 35°C (no dew condensation allowed)
○Relative humidity: 75% or less
○Altitude: not exceeding 2000 m
○Ratings : overvoltage category II, pollution degree 2
●Indoor use
NOTICE
Maintain a 300 mm clearance boundary around the CENTRY 103 Minicentrifuge
during operation, the instrument could get damaged or moved due to an impact.
Do not hold the CENTRY 103 Minicentrifuge by the rotor or the lid, which may
damage the instrument.
Installing
●Place the CENTRY 103 Minicentrifuge on a flat and level surface such as a laboratory bench.
●The location must be well-ventilated and free of direct sunlight.
●Avoid installing the minicentrifuge on a slippery surface or surface prone to vibration.
WARNING
Do not install the instrument in facilities that store chemicals that could generate
flammable gases or fumes.
Connecting to the Power Source and Turning On
1. Connect the type of plug 11 , 12 , 13 , 14 , or 15 compatible with the local power socket
to the AC adapter 10 . (Refer to Figure 1 on page 4.)
WARNING
Only use the AC adapter provided with this product. It may cause fire or electrical
shock.
2. Insert the other end of the AC adapter 10 into the connector 6on the back of the
CENTRY 103 Minicentrifuge and connect the plug to the power source.
3. To open the lid, lightly push down on the lid to release the lock.
CAUTION
If the power switch is turned on while the lid is closed, the rotor will start spinning
immediately, which may cause damage to the CENTRY 103 Minicentrifuge.
4. Press the main power switch 5to its ON position (“I” side) to turn the unit on.
The red, power indicator light turns on.

OPERATION
7
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Installing the Rotor
NOTE
Before the initial use, turn the rotor slowly by hand, five to six revolutions.
1. Install the rotor 8or 9onto the motor shaft boss 3.
2. Push down until it clicks. (Refer to Figure 2.) Make sure that the tabs of the boss are blocked
inside the hole of the rotor.
For dismounting the rotor, hold it by both hands and push the tabs inward with two thumbs
to disconnect them from the rotor, and then pull the rotor out from the motor shaft boss.
WARNING
Do not use any damaged, deformed, or corroded rotors. It may break the rotor while
spinning and cause unexpected accidents or injury.
Figure 4
Balanced rotor with
2 tube-strips
Figure 3
Balanced sample microtubes setting
Figure 2
Install the rotor onto the motor shaft boss
3
8
9

OPERATION
8OPERATION | CENTRY™ 103 MINICENTRIFUGE
Preparing the Microtubes
●Prepare microtubes that are compatible with the rotor in use.
WARNING
Do not use the instrument to centrifuge explosive or flammable samples. It may
cause fatal or serious accidents. The instrument does not provide adequate
protection against explosion or ignition.
Do not use the instrument to centrifuge infectious samples. It may cause a serious
hazard to laboratory personnel. The instrument is not a biohazard safety model.
If there is the need to handle any potentially infectious or radioactive samples, or other
hazardous materials, implement appropriate safety measures.
●Load the microtubes in the rotor symmetrically. Always ensure that the microtubes
are appropriately balanced, as described in Figures 3 and 4 on page 7 (black circles
indicate different possible tube placement).
NOTICE
Imbalanced loads will significantly reduce the life of the motor and minicentrifuge.
WARNING
In severe cases, imbalances may damage the Minicentrifuge and injure the operator.
CAUTION
Do not overfill microtubes. The sample volume should not exceed 70% of the maximum
allowable volume of the tube in use. The sample may spill during run and damage the
minicentrifuge.
Always use capped microtubes. The sample may spill during run.
Starting and Ending Operation
●By closing the lid 1, the rotor instantly starts spinning. After six minutes of spinning,
the rotor will automatically decelerate to a stop.
WARNING
Ensure that there is no foreign material in the rotor or in the chamber before
operating the instrument. It may break a sample during spinning and the broken
pieces may scatter, resulting in a serious accident.
●For ending the operation, lightly press down on the lid 1. The rotor will decelerate
and the lid will lift automatically.
●The operation ends when the rotor is completely stopped, and the sample tubes can be
unloaded.
WARNING
Never open the lid while the rotor is spinning. Accidental contact with the spinning
rotor may cause a serious injury.
Using Batteries
The instrument can be operated using battery power when there is no power supply available.
●Install four AA alkaline batteries of the same brand in the battery compartment 7.
(Refer to Figure 1 on the first page.)
●The AC adapter is given first priority if connected.
WARNING
Do not mix batteries by age or by brand type. The battery may cause heating, leakage, or
explosion and could result in damage to the instrument or personal injury.
When leaving the instrument out of use for a long period of time, be sure to remove the
batteries for safety. The battery may cause leakage and could result in damage to the
instrument or personal injury.
Do not attempt to replace the batteries immediately after use, touching them could result in burns.

MAINTENANCE
9
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Chapter 4
MAINTENANCE
Routine Maintenance
NOTICE
Ensure that the instrument or any parts of the instrument have been carefully
decontaminated after exposure to infectious, radioactive, or other harmfull substances.
WARNING
Unplug the instrument before performing maintenance procedures. It may cause a
serious electrical shock.
Cleaning and Disinfecting
For cleaning the CENTRY 103 Minicentrifuge, wipe the unit with a soft cloth moistened
with a neutral detergent. The unit can be disinfected with ethanol.
CAUTION
Do not sterilize the rotors by autoclave or with UV, it could damage them. The rotors
can be disinfected with ethanol.
Inspecting and Maintaining
●Check the rotor, main body, and lid for damage, deformation, and corrosion.
●Check the lid to make sure it opens and closes smoothly. Press down on the lid to
make sure it is locked into place.
●Slowly rotate the rotor by hand to ensure it rotates smoothly and does not contact
any other component.
●Operate the minicentrifuge with no microtubes in the rotor and make sure it is running
safely without excessive vibration.
●Check the brake for wear. Verify if it takes an abnormally long time for the rotor to
come to a complete stop or if it takes longer to stop than it used to.
●Check the AC adapter for damage, cracks, or broken cable.
NOTE
Inspection is recommended to be performed on a monthly basis.

TROUBLESHOOTING
10 TROUBLESHOOTING | CENTRY™ 103 MINICENTRIFUGE
Chapter 6
TROUBLESHOOTING
Troubleshooting Table
The following table may help you to identify and correct the potential problem you might
encounter.
SYMPTOM POSSIBLE CAUSES ACTION
The rotor does not
rotate.
The instrument is not correctly
plugged. Verify and plug in the instrument properly.
The batteries are close to
dying. Replace the batteries or use the AC adapter.
Foreign substances are
deposited on the axis of the
rotor.
Remove the foreign
substances.
Coating on the surface of the
motor commutator caused by
prolonged storage.
Turn the rotor by
hand slowly five or six
revolutions.
Motor’s overcurrent is
detected, and the overcurrent
protection circuit is activated.
Turn o the power switch
and wait at least one
minute.
The rotor stops while it is
spinning.
Motor’s overcurrent is
detected by unbalanced load,
and the overcurrent protection
circuit is activated.
Balance the load
Turn o the power switch
and wait at least one
minute.
Excessive vibration and
noise occur.
The load is unbalanced. Balance the load.
Foreign substances adhere to
the rotor or the inside of the
chamber.
Remove the foreign
substances.
Return for Repair
If any problem persists, please contact your local Gilson Service Center.
Forced opening of the instrument invalidates any warranty claim. Enclose with the
returned instrument a description of the issue that has occurred and specify how the
instrument was used (duration, microtubes used, load of the rotor, etc.)
CAUTION
Returned instruments can only be checked and repaired if they have been carefully
cleaned and decontaminated by the customer.

SPARE PARTS
11
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Chapter 5
SPARE PARTS
Accessories
DESCRIPTION PART NUMBER
CENTRY 103 ROTOR 8 TUBES 1.5-2.0 mL F1077310
CENTRY 103 ROTOR 2 TUBE-STRIPS 8 X 0.2 mL F1077311
CENTRY 103 MOTOR SHAFT BOSS F1077312
CENTRY 103 AC ADAPTER WITH 5 PLUGS F1077313
Chapter 6
TROUBLESHOOTING
Troubleshooting Table
The following table may help you to identify and correct the potential problem you might
encounter.
SYMPTOM POSSIBLE CAUSES ACTION
The rotor does not
rotate.
The instrument is not correctly
plugged. Verify and plug in the instrument properly.
The batteries are close to
dying. Replace the batteries or use the AC adapter.
Foreign substances are
deposited on the axis of the
rotor.
Remove the foreign
substances.
Coating on the surface of the
motor commutator caused by
prolonged storage.
Turn the rotor by
hand slowly five or six
revolutions.
Motor’s overcurrent is
detected, and the overcurrent
protection circuit is activated.
Turn o the power switch
and wait at least one
minute.
The rotor stops while it is
spinning.
Motor’s overcurrent is
detected by unbalanced load,
and the overcurrent protection
circuit is activated.
Balance the load
Turn o the power switch
and wait at least one
minute.
Excessive vibration and
noise occur.
The load is unbalanced. Balance the load.
Foreign substances adhere to
the rotor or the inside of the
chamber.
Remove the foreign
substances.
Return for Repair
If any problem persists, please contact your local Gilson Service Center.
Forced opening of the instrument invalidates any warranty claim. Enclose with the
returned instrument a description of the issue that has occurred and specify how the
instrument was used (duration, microtubes used, load of the rotor, etc.)
Returned instruments can only be checked and repaired if they have been carefully
cleaned and decontaminated by the customer.

DECLARATION OF CONFORMITY
12 DECLARATION OF CONFORMITY | CENTRY™ 103 MINICENTRIFUGE
Chapter 7
DECLARATION OF CONFORMITY
Related Standards
The CENTRY 103 Minicentrifuge conforms to the following safety standards:
EU Directives
●Low voltage equipment: 2014/35/EU
●Electromagnetic compatibility: 2014/30/EU
●Restriction of hazardous substances: 2011/65/EU
Standards for EU
Safety requirements for electrical equipment for measurement, control, and laboratory use.
●General requirements: EN61010-1: 2001
●Particular requirements for laboratory centrifuges: EN61010-2-020: 2006
●Electrical equipment for measurement, control, and laboratory use – EMC
requirements: EN61326-1: 2013

WARRANTY
13
CENTRY™ 103 MINICENTRIFUGE |USER’S GUIDE
Chapter 8
WARRANTY
Gilson warrants the CENTRY 103 Minicentrifuge against defects in material under normal
use and service for 12 months from the date of purchase. This warranty is valid only if the
instrument is used in the manner described in this guide and for the purpose for which it is
designed. Gilson is not responsible for consequential damages resulting from the misuse or
bad cleaning or decontamination of this instrument. Should warranty service be required,
repair or replacement will be provided by your local Gilson service center. Freight shipping
the unit to Gilson will be the responsibility of the purchaser.

www.gilson.com/contactus
LT801606/A | ©03/2019 Gilson, Inc. All rights reserved.
