Gilson Aqua-Check MA-26X User manual

Gilson Aqua-Check Moisture Tester
MA-26X
OPERATING MANUAL
Rev: 01/2019
PHONE: [phone] P.O. Box 200, Lewis Center, Ohio 43035-0200
740-548-7298 E-mail: [e-mail] Product Web Page: www.globalgilson.com
FAX: [phone]
740-548-5314

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 2
SAFETY INSTRUCTIONS
Review and completely understand the operating and safety instructions before using this unit.
WARNING!
The calcium carbide reagent used with this test must be handled with great care. When
exposed to water, calcium carbide produces highly ammable or explosive acetylene gas.
• Usersmustunderstand and followlocalregulationsandcalcium carbide MaterialSafetyDataSheet
(MSDS) guidelines and procedures regarding transportation, storage, handling and disposal.
• Users of this apparatus must read and understand the operating instructions in this manual.
• Testing must not be performed in confined spaces or in the vicinity of an open flame, lighted
cigarettes, embers or any other potential source of ignition.
• When releasing the gas from the apparatus, take care to direct it away from the face and body.
• Care should be taken not to store, dispose of, or place the calcium carbide reagent where it may
come into contact with water, because it will produce explosive acetylene gas.
• Any application not specically covered in this manual will be considered improper use and will
void the warranty.
• Testing excessively wet material, adding water to the testing chamber, or improper use of the
equipment could cause pressures to exceed the safe level for the apparatus. This may damage
the device and create an unsafe condition for the operator.
• Long sleeves, gloves, eye protection and dust masks should be worn when performing this test.

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 3
TABLE OF CONTENTS
Page
Safety Instructions ..................................... 2
Table of Contents....................................... 3
1.0 Unpacking & Set-Up .................................... 4
2.0 Introduction ........................................... 4
3.0 Operating Instructions.................................. 5
4.0 Accuracy ............................................... 8
5.0 Troubleshooting ....................................... 9
6.0 Accessories ............................................ 9

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 4
1.0 UNPACKING & SETUP
NOTE: Each Gilson Aqua-Check is carefully inspected
prior to packaging and shipment. Upon receipt of the
shipment, immediately unpack and inspect the ap-
paratus for signs of damage. Report damage imme-
diately to the shipping company. Retain all shipping
records and packing materials until proper operation
is conrmed.
The complete MA-26 Aqua-Check Kit consists of the follow-
ing components:
• Cast aluminum Sample Chamber Vessel with integral
0—20% Pressure Gauge
• 200 x 0.1g Electronic Balance for weighing of test speci-
mens
• (2) 1.25in (32mm) Steel Pulverizing Balls
• Long-handled Reagent Scoop
• Large, coarse clean-out Brush
• Small, ne-bristle Brush
• Sample Cup
• Heavy-duty plastic Case
The MA-26X inlcudes all of the components listed, except
the Calcium Carbide Reagent*. Any components or accesso-
ries are available individually from Gilson. Model numbers
to order are listed separately in this manual.
*Calcium Carbide Reagent is available separately from Gilson as MAA-44 in
a 10lb can.
2.0 INTRODUCTION
The Gilson Aqua-Check Moisture Tester is designed to mea-
sure the water (moisture) content of soils, aggregates, and
other non-reactive materials. The Aqua-Check apparatus
consists of an aluminum sample chamber vessel with inte-
gral pressure gauge, electronic balance for sample weigh-
ing, two steel pulverizing balls, and assorted brushes and
containers as required for proper completion of the test.
Pulverized calcium carbide is used as a reagent, and reacts
when combined with available water in the sample material
to form acetylene gas. The increase of gas pressure in the
sealed sample chamber is proportional to the water con-
tent, and is shown on the pressure gauge. The most accu-
rate results are obtained when pressure gauge readings are
correlated with data from oven-dry methods. When testing
soils for example, ASTM Standard Test Method D 4944 pro-
vides a procedure to correlate Aqua-Check results directly
with laboratory oven drying methods.
MA-26X

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 5
3.0 OPERATING INSTRUCTIONS
NOTE: Following these procedures closely and consistently will increase the accuracy and repeatability of your test
results.

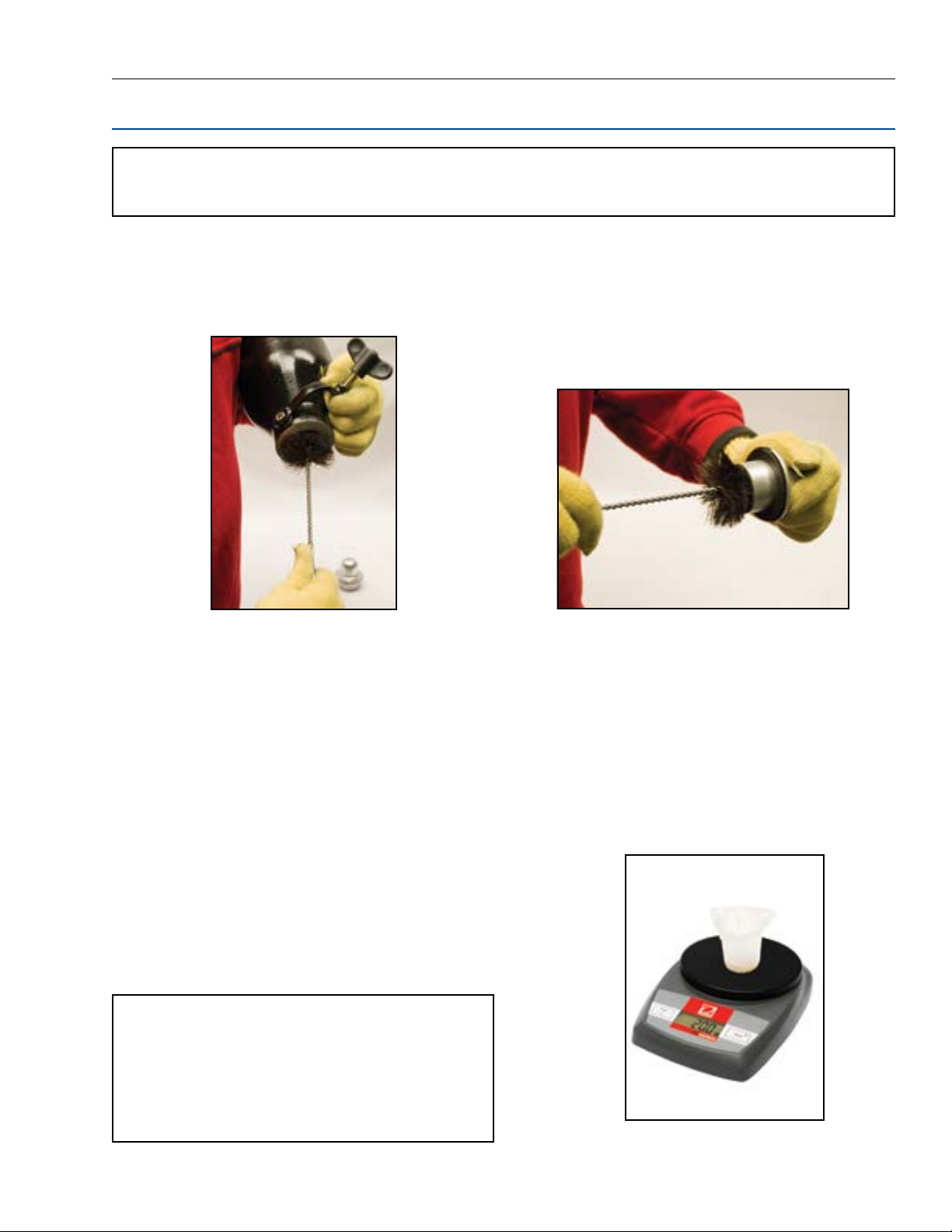

Step 1.
Use the dry, coarse-bristle brush to thoroughly clean all residue from the Aqua-Check vessel and chamber cap.
Step 2. Select a representative sample of the test material. Cohesive materials that do not readily separate into individual
particles, such as clay or silt soils, should be reduced by hand into small clumps.
Step 1: Cleaning residue from Vessel
Step 3: Sample material at 20g
Step 1: Cleaning residue from Chamber Cap
Step 3. Referring to separate instructions for the electron-
ic balance, set-up and zero the balance. Place the
plastic sample cup on the balance and zero again.
Carefully add small amounts of sample material to
the cup until the balance shows the required 20g.
NOTE: If the moisture content of the material is
expected to exceed 20%, a 10g sample should be
used, but the value read on the gauge must then be
doubled. It is also possible to obtain better resolu-
tion of drier materials (<10%) by doubling the sam-
ple size and halving the gauge reading.

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 6

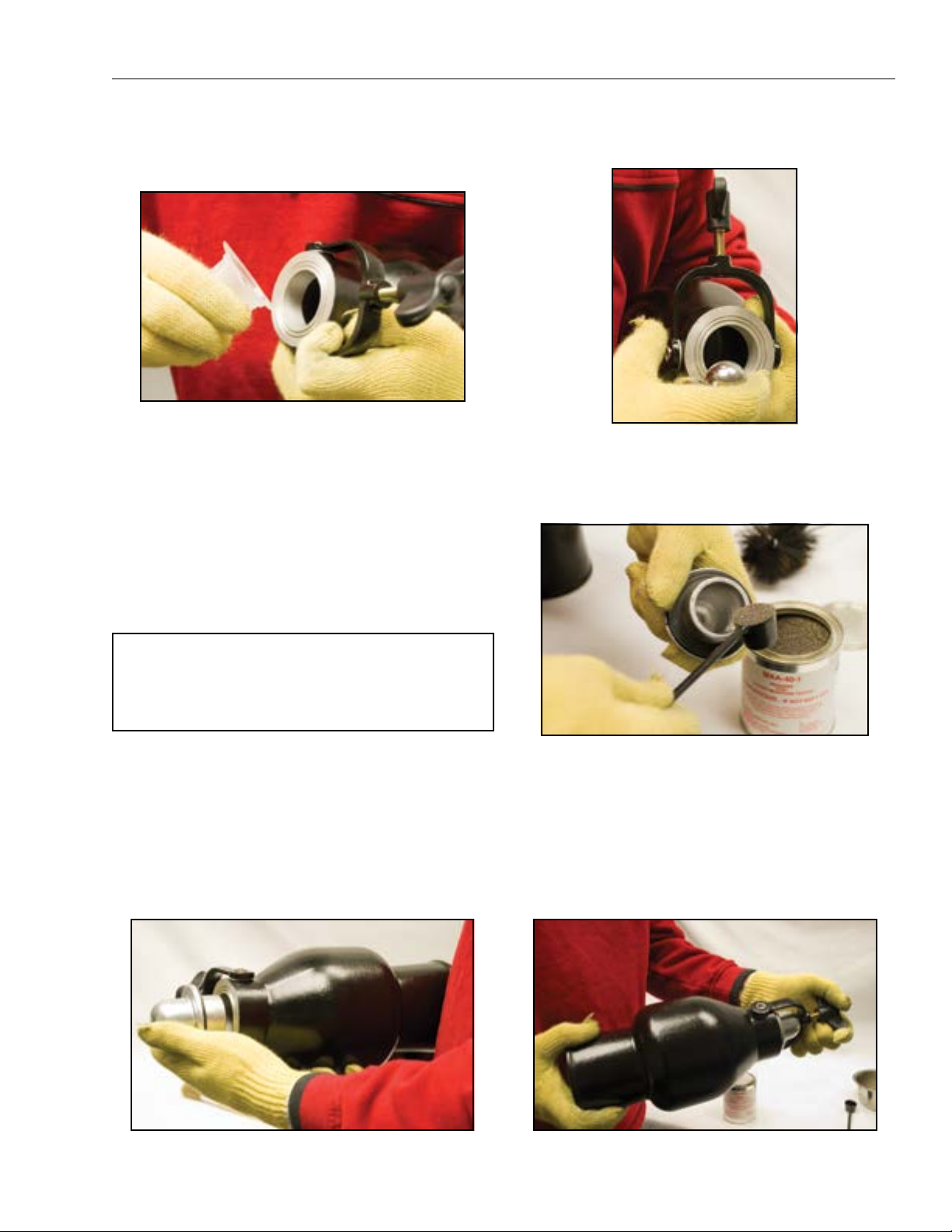

Step 4. Place the prepared and weighed sample into the Aqua-Check vessel. For cohesive samples as described above,
also place the two steel pulverizing balls into the vessel.
Step 4: Placing steel Pulverizing Balls into vessel
Step 4: Placing sample into vessel
Step 5: Adding calcium carbide reagent to Chamber Cap
Step 6: Placing Chamber Cap on the end of the chamber Step 6: Tightening the top screw to seal the chamber
Step 6. Holding the Aqua-Check vessel horizontally, place the chamber cap on the end of the chamber. Position the black
dot on the cap so that it will be facing away from your body when the pressure is released. Move the stirrup into
place over the cap and tighten the top screw to seal the chamber. Use care during this step not to mix the reagent
and sample before the chamber is sealed.
Step 5. Using the Long-Handled reagent Scoop, add at
least two full scoops of calcium carbide reagent to
the Chamber Cap.
NOTE: Make sure you have read and understand the
Material Safety Data Sheet (MSDS) included with each
container of calcium carbide reagent.

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 7
Step 9: Loosening top screw to vent pressurized gas

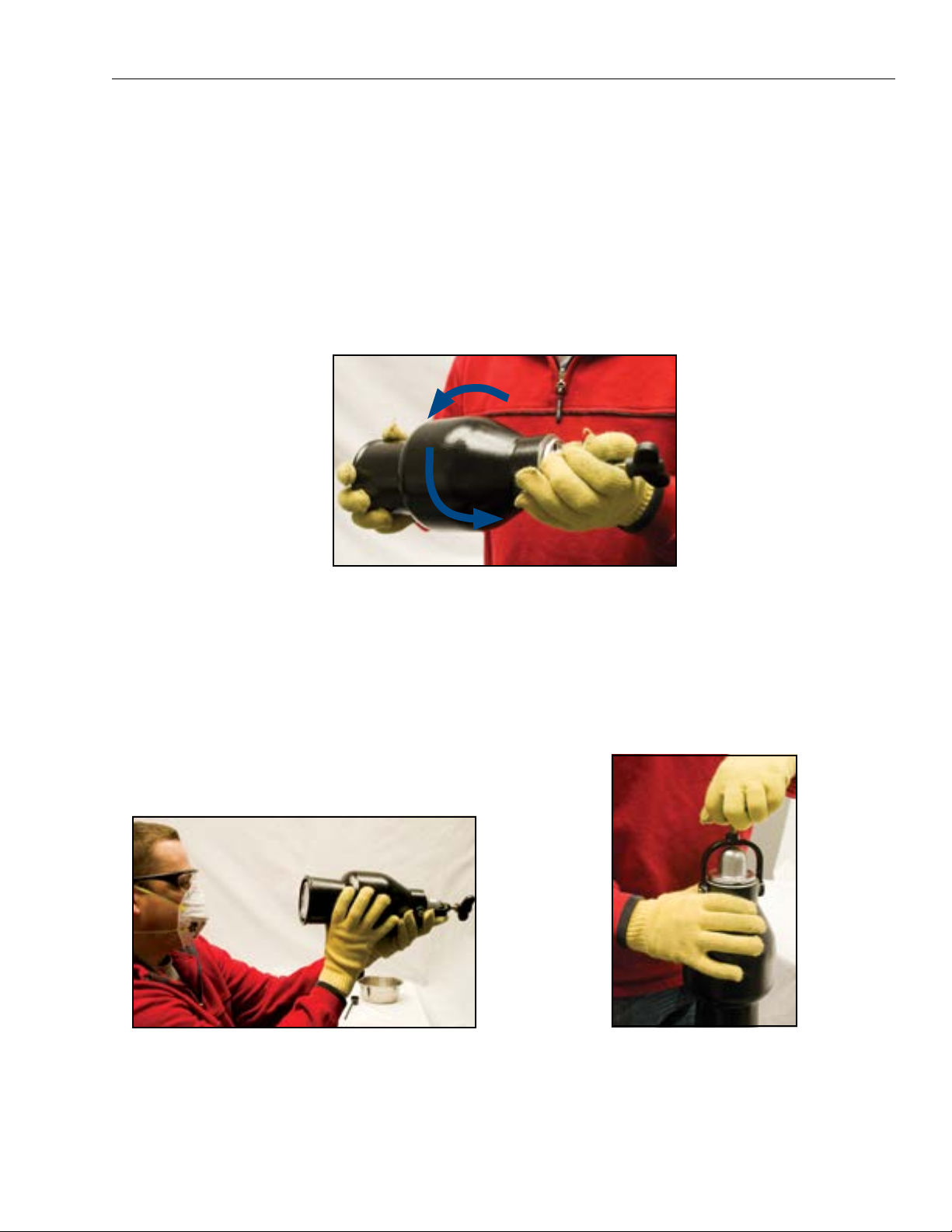

Step 7. Agitating the sample:
a.
Without Pulverizing Balls: Hold the Aqua-Check vertically with the gauge facing down and agitate vigorously for
5—10 seconds. Turn the Aqua-Check around, and with the gauge facing up agitate again for 5—10 seconds. Tap the
sides so that the sample falls into the chamber cap. This process should be repeated for 1—3 minutes, or until the
gauge reading in Step 8 has stabilized.
b. With Pulverizing Balls: Hold the Aqua-Check horizontally and use an orbital motion to spin the balls around
inside the chamber, pulverizing the sample. Agitate for 20 seconds and rest for 20 seconds, repeating the process
at least three times. Periodically check the position of the gauge indicator. Continue the agitation cycle until the
indicator has stabilized. Some highly plastic clays may require 3 minutes or more of agitation.
Step 8: Reading the pressure gauge at eye level
Step 7b: Using an orbital motion to spin the balls
around inside the chamber
Step 8. Read the pressure gauge at eye level while hold-
ing the vessel horizontally. Wait for the indicator
needle to stop moving. The gauge reads directly
in percent water content of wet weight. Accuracy
may be improved by establishing a correction
chart as shown in ASTM D 4944.
Step 9. Taking great care that the black dot on the chamber
cap is facing away from your face and body, slowly
loosen the top screw to vent pressurized gas from
the vessel.
Step 10. Place the used sample/reagent mixture and residue in an open dry container and dispose of in accordance with
local regulations or Section 13 of the MSDS. Use the coarse bristle brush to clean the vessel and prepare for the
next test.

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 8
Exceptionally cool or warm ambient temperatures may cause uctuations in test results. Repeated testing or hot weather
may heat up the vessel body, and show test results that are articially high. Allow the vessel to cool down before further
testing. In cold weather, it may help to run two or three tests in rapid succession to warm up the vessel.
The maximum recommended particle size is 3/4in (20mm). Some test methods may have a smaller size limit.
Typical Calibration Curve
Calcium Carbide Tester
Water Content in Percent of Dry Mass
by D 2216 (Oven Dry)
Gauge Reading, Calcium Carbide Tester
4.0 ACCURACY
When testing soils, it is recommended that the procedures in ASTM D 4944, Standard Test Method for Field Determination
of Water (Moisture) Content of Soil by the Calcium Carbide Gas Pressure Tester Method be followed. This will insure accurate
and reliable results. For optimum accuracy with most materials, the Aqua-Check results should be correlated with oven-dry
tests for each material as shown in this summary. This simple procedure is outlined in detail in D 4944.
1. Select several samples of the material to be tested having a wide range of water content.
2. Carefully Divide each sample into two representative specimens.
3. Taking care to not lose moisture during handling, run a test on one specimen in the Aqua-Check, and record the gauge
reading. Oven dry the other specimen according to the procedure and calculate the percent moisture.
4. Plot the oven-dry moistures on a graph vs. the gauge readings and draw a best-t curve through the points. A wide
scatter in the points may indicate operation errors or that the material is not suitable for this comparison.
5. When testing, nd the point on the graph where the gauge reading intersects the correlation curve and record that
value as the corrected percent.

Gilson Company, Inc. Gilson Aqua-Check Moisture Tester: MA-26X
Page 9
For help with operation or technical issues, E-mail: [email protected] or Call: 800.444.1508!

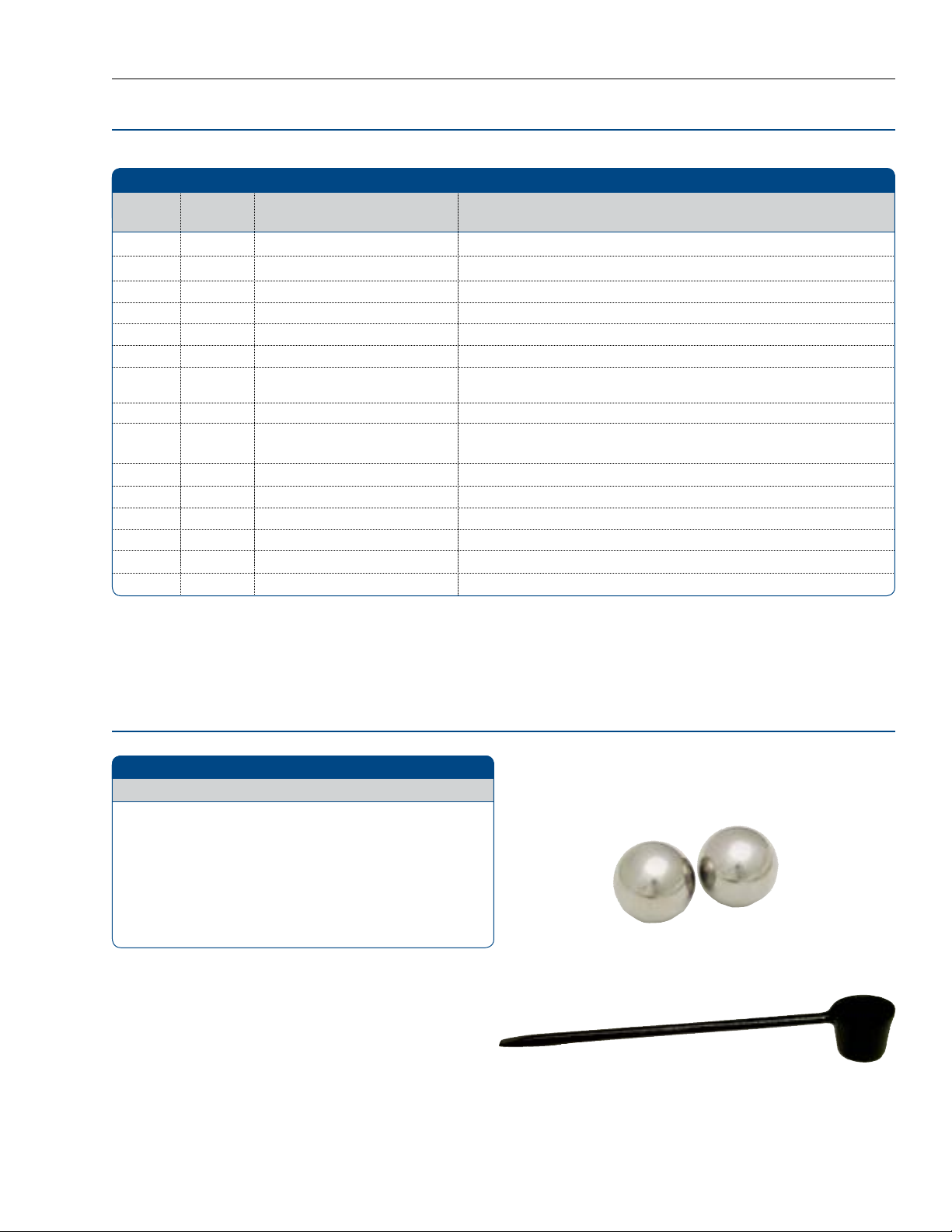

GILSON AQUA-CHECK ACCESSORIES
Description Model
Calcium Carbide Reagent, 10lb can¹ MAA-44
Aqua-Check 0—20% Pressure Gauge MAA-45
Electronic Balance, 200 x 0.1g AD-25
1.25in (32mm) Steel Balls, pkg. 2 MAA-47
Long-Handle Reagent Scoop MAA-48
Large, Coarse-Bristle Clean-Out Brush MAA-51
Small, Fine-Bristle Brush MAA-50
Sample Cup MAA-52
Heavy-Duty Waterproof Plastic Case MAA-46
¹ Due to shipping restrictions, additional reagent is sold in 10lb (4.5kg) cans. Material
from these larger cans can be used to replenish smaller containers for eld use.
MAA-47
MAA-48
5.0 TROUBLESHOOTING
6.0 ACCESSORIES
Low High Possible
GILSON AQUACHECK TROUBLESHOOTING
X X Testing procedure errors Review instructions and procedures.
X X Incorrect sample weights Check balance operation and re-zero.
X X Errors in corrected values Change in material type. Repeat correlation procedure with new material.
X Insucient agitation Some cohesive materials may require 3 minutes or more. Use steel pulverizing balls.
X Insucient quantity of reagent Add an additional scoop of reagent.
X Ineective reagent Replace with fresh MAA-44 reagent.
XPremature contact between reagent Insure vessel is held horizontal when mating with cap.
and specimen
X Insucient sample preparation Break cohesive material into ner sizes and use pulverizing balls.
X
Inadequate pressure seal Check and clean chamber cap gasket. Inspect vessel, cap and stirrup for damage or
cracks. Replace gasket if necessary.
X X Defective gauge Gauge needle should rest at zero and move smoothly. Replace if defective.
X Low temperature Run two or three test cycles to warm up vessel.
X High temperature Allow vessel to cool o.
X Moisture inside vessel prior to testing Insure vessel and cap are completely dry before testing.
X X Gauge reading error Hold vessel horizontally at eye level when reading gauge.
X Residue from previous tests Use included coarse-bristle brush to clean vessel thoroughly between tests.
