Gima LIBRA User manual

PROFESSIONAL MEDICAL PRODUCTS
M27088-M-Rev.1-10.20
Produttore/Manufacturer/Fabricant/
Fabricante/Fabricante/Producent:
ZHONGSHAN TRANSTEK ELECTRONICS CO., LTD
No.23, Jin'an Road, Minzhong, Zhongshan,
528441, Guangdong, China
Made in China
27088 - 27089
BILANCIA BODY FAT LIBRA
LIBRA BODY FAT SCALE
ANALYSEUR DE GRAISSE CORPORELLE
ESCALA DE GORDURA LIBRA BODY
BÁSCULA GRASA CORPORAL LIBRA
LIBRA WAGA Z POMIAREM TKANKI
TŁUSZCZOWEJ
Importato da / Imported by / Importé par /
Importado por / Importado por / Importowane przez:
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]
www.gimaitaly.com

15
Thank you very much for selecting the Glass Body Fat Analyzer GBF-835.
Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product,
and keep the manual well for further reference in case you have problems.
Index
SAFETY INFORMATION ..................................................................................................................... 16
Safety and Usage Information........................................................................................................... 16
Tips.................................................................................................................................................... 17
OVERVIEW ........................................................................................................................................... 17
Device Components .......................................................................................................................... 17
List..................................................................................................................................................... 17
Display LCD ...................................................................................................................................... 18
INITIAL START-UP ............................................................................................................................... 18
General Instructions .......................................................................................................................... 18
Take out the Insulating Strip .............................................................................................................. 19
Replace the Batteries ........................................................................................................................ 19
Select Measurement Unit .................................................................................................................. 20
Initialising Your Scale ........................................................................................................................ 20
Weight Only Operation ...................................................................................................................... 21
Set Up Your Prole ............................................................................................................................ 21
START MEASURING............................................................................................................................ 22
First Measurement ............................................................................................................................ 22
Daily Measurement ........................................................................................................................... 23
TROUBLESHOOTING.......................................................................................................................... 24
Error Prompt...................................................................................................................................... 24
When Measuring... ............................................................................................................................ 24
SPECIFICATIONS................................................................................................................................. 25
MAINTENANCE.................................................................................................................................... 25
APPENDIX ............................................................................................................................................ 26
Health Tips - About Body Fat............................................................................................................. 26
Health Tips - About Body Water ........................................................................................................ 26
Health Tips - About Muscle Mass ...................................................................................................... 27
Health Tips - About Bone Mass ......................................................................................................... 27
EMC Guidance .................................................................................................................................. 27
ENGLISH

16
SAFETY INFORMATION
Safety and Usage Information
The warning signs and symbols are essential to ensure your correct and safe use of this product and
protect you and others from injury.
CAUTION
The Body Fat Analyzer GBF-835 offers you a seamless way to manage your health.
Please be aware that this device is designed for healthy population over 10 years old self-measuring
and self-monitoring body compositions. Any information provided by this device is in no way meant
to treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician.
This device is contraindicated for any female subject who may be suspected of, or is pregnant.
Otherwise, the effects of this device on the fetus are unknown.
This device is contraindicated for any person who is connected to a wearable or implantable elec-
tronic device or instrument such as a pacemaker or debrillator.
This device should not be used for anyone who is acutely or chronically ill because of suffering from
a disease or taking medications that affect your water levels. The accuracy of readings for these
patients has not been veried. Specic medical advice should be obtained from a physician.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modications of this equipment is allowed. This may result in increased EMISSIONS
or decreased IMMUNITY of GBF-835.
Please use the device according to the user manual. Any misuse can cause electric shock,burns,
re and other unexpected hazards.
Please use and storage the device under the environment which was provided in the user manual.
Don’t expose the device to extreme temperatures, direct sunlight, moist or corrosive environment.
Do not step on the scale when your body or feet are wet, especially after bathing or showering to
prevent slipping.
Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of
small parts is dangerous or even fatal.
Please don't use the device out of lifetime any more because degraded sensors and electrodes, or
loosened electrodes can degrade performance or cause other problems.
If you have an allergy to stainless steel，please avoid to contact to the electrodes of the device.
The patient is an intended operator. The patient can measure, and charge battery under normal
circumstances and maintain the device and its accessories according to the user manual.
INDICATIONS FOR USE
• The Body Fat Analyzer measures weight and uses bio-electrical impedance analysis (BIA) technol-
ogy to estimate body fat, total body water percentage, bone mass and muscle mass in generally
generally healthy children 10-17 years old and healthy adults.
• It is intended for use in the domestic setting only.
ENGLISH

17
Tips
To ensure the accuracy of measurement, please follow below instructions when you start meas-
urement.
• Place the scale on a at, hard surface. Soft surface such as carpet will affect the performance of the
scale.
• Step onto the platform with bare feet. Stand still and keep full contact with the electrodes until the meas-
urement is complete.
• Start measurement at least two hours after Getting up or Dinning.
• Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning.
• Always start measurement in the same time slot and on the same scale located on the same at, hard
surface.
• For maximum accuracy and repeatability , it is recommended that you should use the device in the
same time of the day and on the same location.
• The condition of the skin on the bottom of your feet can affect the reading. The natural effects of aging
or activity can make this skin hard. Take the reading with clean, slightly damp feet for best accuracy. If
you are having a problem on operating this scale please contact customer service.
• Body fat percentage estimates will vary with the amount of water in the body, and can be affected by de-
hydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense
exercise, etc.
OVERVIEW
Device Components
List
1. Glass Body Fat Analyzer GBF-835
2. Two CR2032 Batteries (3V per each)
3. User Manual
LCD Display
Electrode
Up Key
Set Key
Down Key
Electrode
UNIT Button
Battery Compartment
ENGLISH

18

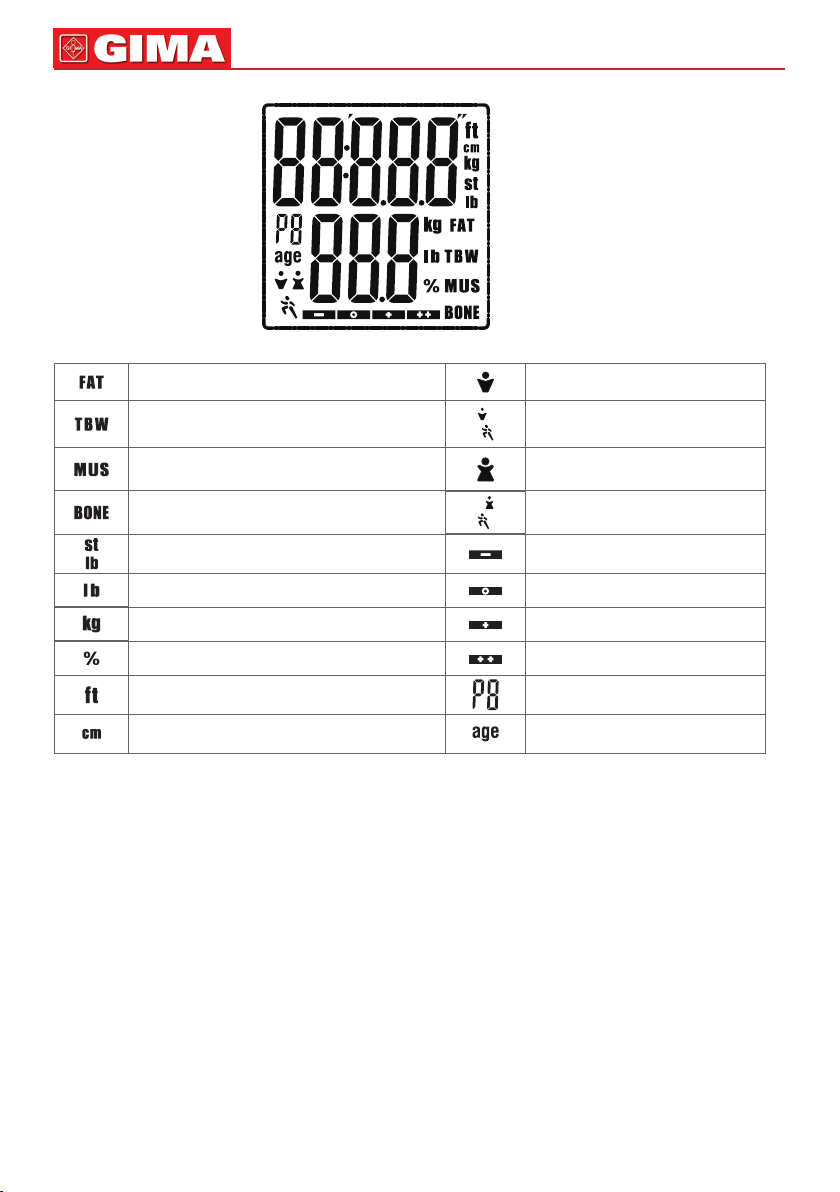

Display LCD
INITIAL START-UP
General Instructions
The Body Fat Analyzer GBF-835 applies BIA (Bio-impedance Analysis) technology.
A small amount of weak current ows through the human body so as to detect the bio-impedance and
estimate body fat, body water, muscle mass and bone mass. The electrical current is small and may not
be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also possesses the charac-
teristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone with an wear-
able or implantable medical electronic instrument, such as a pacemaker, must avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults.
Body Fat Analysis Result Male
Total Body Water Analysis Result Male Athlete
Muscle Mass Analysis Result Female
Bone Mass Analysis Result Female Athlete
Stone Underfat
Pound Healthy
Kilogram Overfat
Percentage Obese
Foot User ID (Range from P1 to P8)
Centimeter Age
ENGLISH

19
Take out the Insulating Strip
• Open the battery door in the back of the scale.
• A new set of batteries had been installed in the battery compartment according to the correct polarity.
Please just remove the plastic strip before rst use. Take out the insulating strip along the direction(-
shown on insulating strip).
• Close the battery door and wait until the digits “0.0” are shown on the LCD.

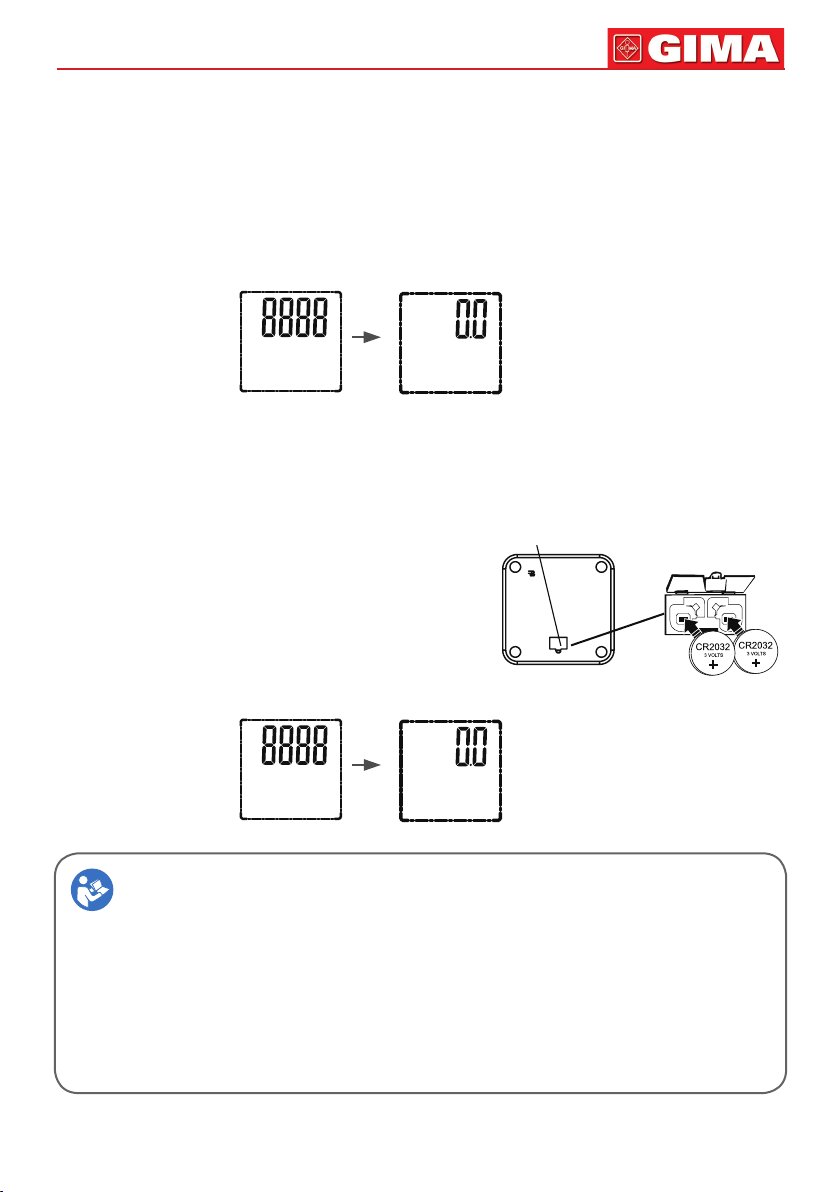

Replace the Batteries
• Open the battery door in the back of the scale.
• Insert the batteries (2x CR2032) into the battery com-
partment according to the polarity indications marked
inside the compartment.
* The digits 8888 will be shown on the LCD.
• Close the battery door and wait until the digits “0.0” are
shown on the LCD.
CAUTION
• When the symbol “Lo ” appears, the device will power off soon. Then you shall replace with a new
set of batteries. Please replace both two batteries at the same time. Do NOT mix the old batteries
with the new one.
• Worn batteries are hazardous waste. Do NOT dispose of them together with the household gar-
bage. Please refer to the local ordinances and recycling instructions regarding disposal of the
worn batteries and scrapped device.
• If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the
batteries before storing.
• Please properly keep the micro battery, in case the children swallowed.
Open the battery door
Direction of the 2
CR2032 batteries
ENGLISH

20

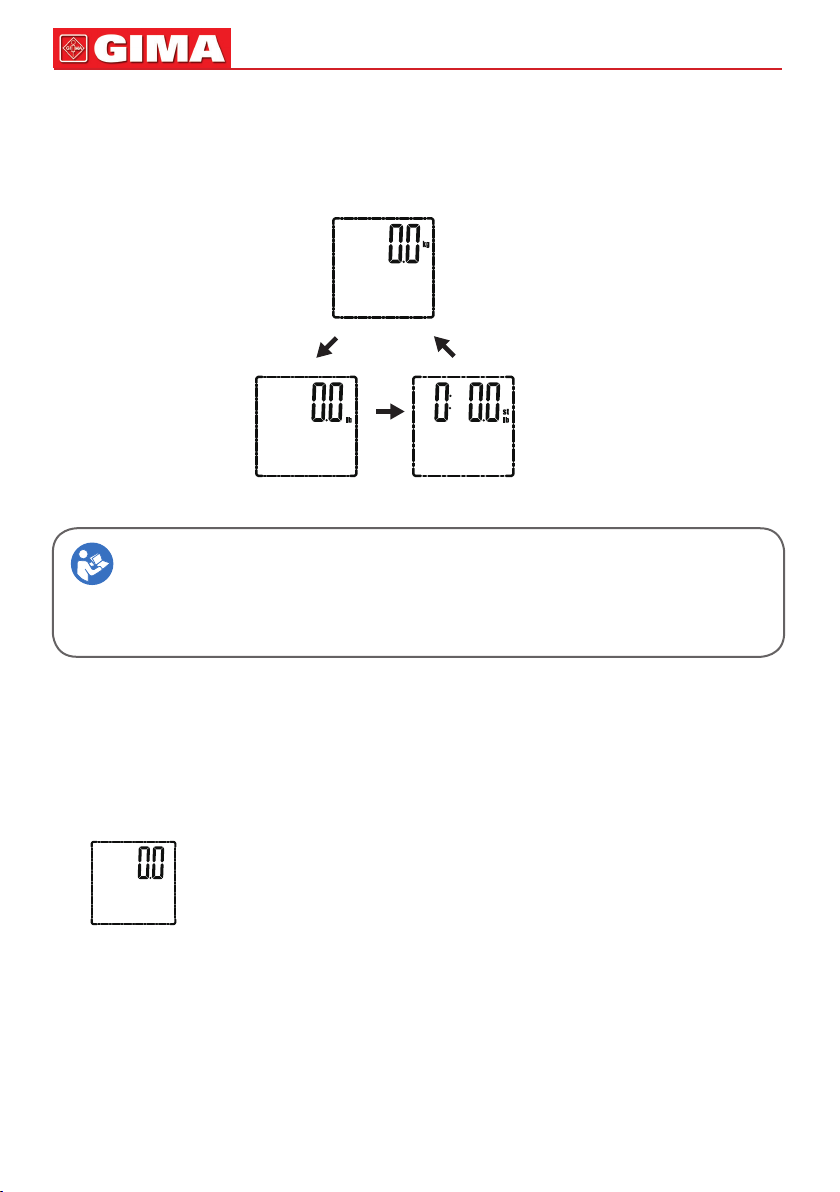

Select Measurement Unit
With batteries correctly installed, press “UNIT” button in the back of the scale to select measurement
unit. The default measurement unit is “kg”. You may press “UNIT” button to choose between kilogram,
pound and stone.
CAUTION
Please put the scale on at hard ground when nishing the unit selection. Wait for a few seconds,
then you may start measuring according to the measuring procedure below. If there is not any oper-
ation in weighing mode, the scale will turn off after a few seconds.
Initialising Your Scale
1. Press the platform centre and remove your foot.
2. “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
This initialisation process must be repeated if the scale is moved. At all other times step straight on the
scale.
ENGLISH

21
Weight Only Operation
The Body Fat Analyzer will operate as a conventional weight - reading scale. No special programming
steps are required.
Once the scale is initialized, as previously described, you may simply step on the scale to measure your
current weight. For only weight reading.
1. Position the scale on a at, hard surface.
Carpeted or uneven oors may affect accu-
racy.
2. Step onto the scale platform and remain still
while the scale computes your weight.
3. The scale will display your weight value.
4. The scale will turn off after a few seconds
Set Up Your Prole
The body fat analyzer GBF-835 supports multiple users (Up to Eight). You may follow below instructions
to assign User ID and set up your own prole, including Gender, Stature, and Age.
1. Assigning User ID
• With batteries correctly installed, press “SET” key to enter setting when the scale
is off.
• The system will request User ID selection rst. As pictured below, “P1” blinks.
The operator may press the function key or  to select User ID among P1 to
P8.
• Press “SET” key to conrm User ID.
2. Setting Gender
• After conrming User ID, the system will divert to Gender setting.
• As pictured below, the portrait blinks. The operator may press the function key or to select
Gender( Male/Female/Male Athlete/ Female Athlete).
• Press “SET” key to conrm Gender.
Athlete Mode:
An athlete is considered as a person who does 10 hours or more per week of aer-
obic activity and has a resting heart rate of 60 beats per minute. These individuals
should select Athlete Mode for the most accurate measurement results. The body
fat analyzer are not calibrated for professional athletes or body builders.
3. Setting Stature
• After conrming Gender, the system will divert to Stature setting automatically.
• As pictured below, the digits “ 165 ”blinks. The operator may press the function
key or to increase or decrease the numeral.
• You may press and hold the function key or for fast changing the numer-
al.
• Press “SET” key to conrm.
ENGLISH

22
4. Setting Age
• After conrming Stature, the system will divert to Age setting.
• As pictured below, the digits “30” blinks. The operator may press the function
key or to increase or decrease the numeral.
• You may press and hold the function key or for fast changing the numer-
al.
• Press “SET” key to conrm Age.
5. After conrming the Age, the LCD will display “0.0”, then you can start measur-
ing.
6. Repeat procedure for a second user, or to change user details.
Note: To update or overwrite the memorised data, follow the same procedure,
making changes as required.
START MEASURING
First Measurement
• Position scale on a rm at surface.
• Press SET key.
• While the user number of the latest measurement is ashing, select your user number by pressing 
or key. After 3s, the selected number is locked, the scale shows zero reading.
(Note: When the user number is ashing, if you press SET key again, it will enter the setting mode,
after all the settings are nished, it will display zero reading. )

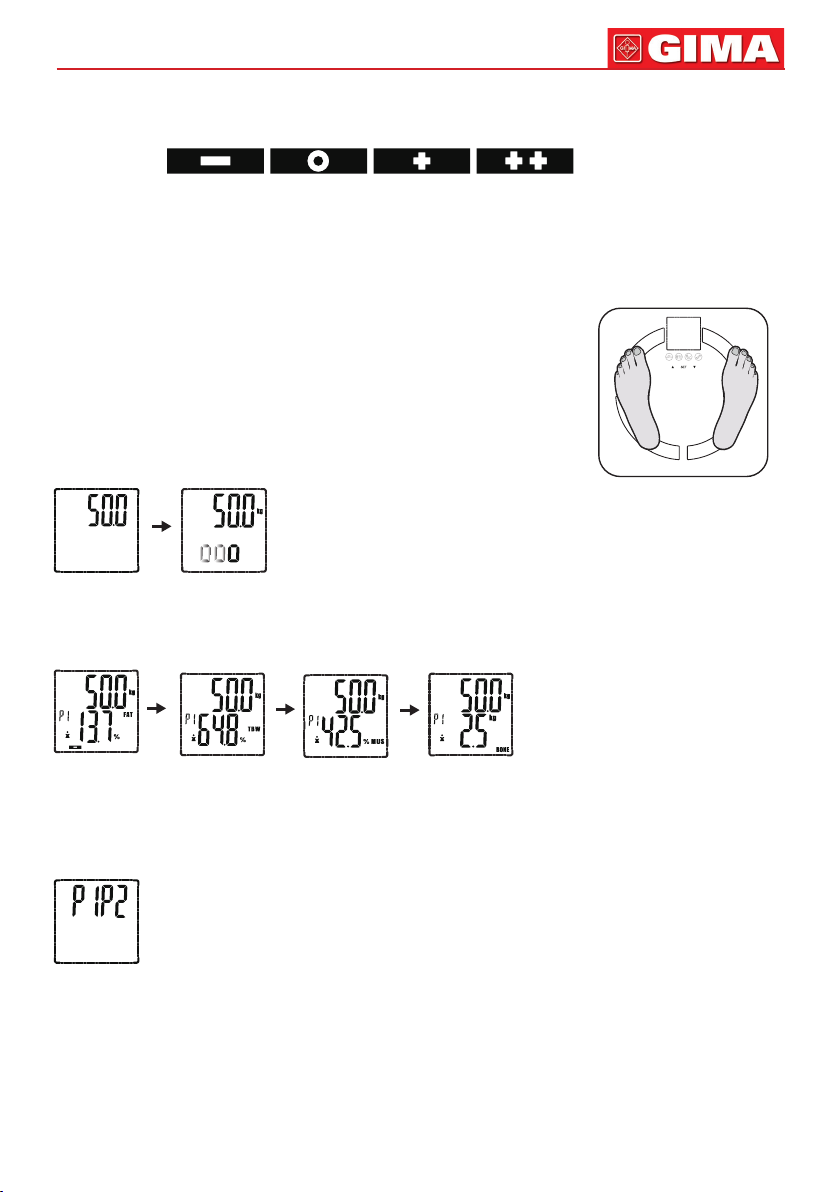

STEP 1: Step on the platform barefooted when the LCD displays
“0.0”.
STEP 2: Stand still and the weight data will be locked automatically with showing the unit when stable.
Keep full contact with the electrodes until the LCD stop displaying moving “ ”.
STEP 3: Your weight will be displayed followed by Body Fat, Total Body Water, Muscle Mass ,and
Bone Mass. The data will be displayed three times and then turn off.
ENGLISH

23
* When the body fat ratio is displayed, a symbol also appears on the LCD. This symbol ranks your gen-
eral body fat level: Underfat to Obese.
Underfat Healthy Overfat Obese
* If it fails to complete the analysis, the LCD will only display the weight data.
(To nd out the solutions, please refer to Troubleshooting for more details.)
Daily Measurement
With original SENSE ON patent technology,GBF-835 will automatically
switch on as you step on the platform barefooted.
Stand still and keep full contact with the electrodes until the LCD stops
displaying moving “o”.
According to the analysis results, the system will identify the possible User ID with most similar history
records. Then the measuring results will be displayed sequentially three times .
When the system nds out two or more users with similar history records, it will notify you to choose be-
tween, for example, P1 and P2. You may press key for P1 and or key for P2. The measuring results
will then be sorted into the User ID you selected and displayed sequentially three times,then turn off. If
you don’t select the User ID, the User ID will display sequentially a few seconds ,then turn off.
If it fails to identify the possible User ID, the LCD will only display the weight data. (To nd out the solu-
tions, please refer to Troubleshooting for more details.)
ENGLISH

24
TROUBLESHOOTING
Error Prompt
When Measuring...
Error Description Solution
Overload. The device will power off . Stop using this scale for measurement.
Low Battery. The device will power off in
four seconds Replace both two CR2032 batteries at the same time. Please purchase the authorized batteries for
replacement.
Problem Root Cause Solution
Abnormal measuring re-
sults:
- Too high; OR
- Too low; OR
- Huge difference between
two recent measurement.
Incorrect posture Please step on the platform barefoot-
ed and stand still.
The device is located on the
soft ground such as a carpet
OR on a rugged surface.
Please place the device on a at, hard
surface.
Your feet are too dry. Wipe your feet with a damp cloth, keeping them slightly damp when
starting measurement.
No display on LCD when
the device powers on.
Batteries not yet installed. Install the batteries.
(Please refer to Replace the Batteries)
Worn batteries. Replace both two CR2032 batteries at the same time. Please purchase the
authorized batteries for replacement.
CANNOT proceed to ana-
lyze body fat, total body wa-
ter, muscle mass and bone
mass.
Step onto the platform wearing
socks or shoes.
Please keep barefooted during the
measurement, and keep full contact
with the electrodes as well.
The system cannot identify
the possible User ID with most
similar data.
Please assign a User ID following the
instruction in Set Up Your Prole.
The user fails to select the
User ID from what the system
found.
Please assign a User ID following the
instruction in Set Up Your Prole.
The device powers off. Low battery. Replace both two CR2032 batteries at the same time. Please purchase the
authorized batteries for replacement.
ENGLISH

25
SPECIFICATIONS
About the Accuracy of This Product
• This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the
manufacturer.
Please refer to the above table for the descriptions on accuracy.
• This product is specially designed for body fat analysis as well as weight measurement. It should NOT
be used by anyone during the process of transaction for verication of goods’ weight.
MAINTENANCE
When carrying out usual maintenance, please ensure practice of the following Do’s and Don’ts:
• DO use a dry soft cloth to wipe the dust.
• DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to
dry up the device.
• DON’T wash the device with water or immerse it in water.
• DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or malfunc-
tion.
• DON’T disassemble this device. If you have any problems, please contact Gima. (Please refer to War-
ranty for contact information).
Product Name Glass Body Fat Analyzer
Dimension Scale: 310x310x18.8mm (Approx.)
Net Weight Approximately 1.9 kg (Excluding the cells)
Display Digital LCD
Measurement Unit Kilogram / Pound / Stone
Measurement Range 5 kg to 150 kg/ 0 st : 11 lb to 23 st : 8 lb/ 11 lb to 330.7 lb
Division 0,1 kg / 0,2 lb / 0,2 lb
Accuracy 50 ±0,3 kg;
100 ±0,4 kg;
150 ±0,5 kg;
Working Environment Temperature: 5℃ to 40℃
Relative Humidity: ≤90% RH
Atmospheric pressure: 86kPa to 106kPa
Storage Environment Temperature: -20℃ to 60℃
Relative Humidity: ≤90% RH
Atmospheric pressure: 50kPa to 106kPa
Power Source 6V (2xCR2032 Batteries)
Turn on Method SENSE ON technology
Auto-OFF The scale will turn off after about 10s if there is no operation.
Accessories 1. 2xCR2032 Batteries
2. User Manual
Mode of Operation Continuous Operation
ENGLISH

26
APPENDIX
Health Tips - About Body Fat
Human body is made up of, amongst other things, a percentage of fat. Body fat is vital for a healthy,
functioning body, protects vital organs, helps regulate body temperature, stores vitamins and helps the
body sustain itself when food is scarce. However, too much body fat or indeed too little body fat will dam-
age to your health. It is difcult to gauge how much body fat we have in our bodies simply by looking at
ourselves in the mirror.
This is why it is important to measure and monitor your body fat percentage. Body fat percentage gives
you a better measure of tness than weight alone–the composition of your weight loss could mean you
are losing muscle mass rather than fat-you could still have a high percentage of fat even when a scale
indicates ‘normal weight’.
The table as follows may be used as a guide:
The body fat ratio (Unit: %) :
Health Tips - About Body Water
Body water is the single most important component of body weight. It represents over half of your total
weight and almost two thirds of your lean body mass (predominantly muscle). Water performs a number
of important roles in the body:
All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else, can only function
properly if they have enough water. Water also plays a vital part in regulating the body’s temperature
balance, particularly through perspiration.
The combination of your weight and fat measurement could appear to be ‘normal’ but your body hydra-
tion level could be insufcient for healthy living.
The table as follows may be used as a guide:
The body water ratio (Unit: %) :
Age Female Male
Underfat Healthy Overfat Obese Underfat Healthy Overfat Obese
<39 <21 21,1-33 33,1-39 >39 <8 8,1-20 20,1-25 >25
40-59 <23 23,1-34 34,1-40 >40 <11 11,1-22 22,1-28 >28
>59 <24 24,1-36 36,1-42 >42 <13 13,1-25 25,1-30 >30
Age Female Male
Low Normal High Low Normal High
10-15 <57 57,1-67 >67 <58 58,1-72 >72
16-30 <47 47,1-57 >57 <53 53,1-67 >67
31-60 <42 42,1-52 >52 <47 47,1-61 >61
61-80 <37 37,1-47 >47 <42 42,1-56 >56
ENGLISH

27
Health Tips - About Muscle Mass
According to the American College of Sports Medicine (ACSM), lean muscle mass may decrease by
nearly 50 percent between the age of 20 and 90. If you do nothing with it you’re losing muscle and in-
creasing fat. It is also important to know your muscle mass % during weight reduction. At rest, the body
burns approximately 110 additional calories for each kilo of muscle gained. Benits of gaining muscle
mass include:
• Reversing the decline in strength, bone density and muscle mass with aging
• Maintenance of exible joints
• Guide weight reduction when combined with a healthy diet.
The table as follows may be used as a guide:
The body muscle ratio (%):
Health Tips - About Bone Mass
Regular exercise and a balanced diet can help maintain healthy bones. Like muscle, bone is a living
tissue that can respond to exercise by becoming stronger. For most people, bone mass peaks in their
thirties. Then people begin to lose bone. Regular exercise can help prevent that loss.
Calcium and vitamin D, good sources of which are dairy products, green leafy vegetables and sh, con-
tribute to healthy bones.
The bone mass readings given by this product are anestimation of the amount of bone in your body.
Those with osteoporosis or low bone densities may not get accurate estimations. If you have any concern
regarding your bones please consult your doctor timely.
The bone range (kg)≤ 10.0kg
EMC Guidance
1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be
installed and put into service according to the EMC information provided in the ACCOMPANYING
DOCUMENTS.
2. Wireless communications equipment such as wireless home network devices, mobile phones, cord-
less telephones and their base stations, walkie-talkies can affect this equipment and should be kept
at least a distance d = 3,3 m away from the equipment. (Note. As indicated in Table 6 of IEC 60601-1-
2:2007 for ME EQUIPMENT, a typical cell phone with a maximum output power of 2 W yields d = 3,3
m at an IMMUNITY LEVEL of 3 V/m).
Disposal: The product must not be disposed of along with other domestic waste. The users must
dispose of this equipment by bringing it to a specic recycling point for electric and electronic
equipment.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
Female Male
Healthy >34 >40
ENGLISH
