Glacier bay SP-4452 User manual

THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this SINGLE DOOR MEDICINE CABINET. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Glacier Bay!
USE AND CARE GUIDE
SINGLE DOOR MEDICINE CABINET
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Item #1000 117 067
Model #SP-4452

2
Table of Contents
Table of Contents ................................... 2
Safety Information .................................. 2
Warranty .......................................... 2
Pre-Installation..................................... 3
Planning Installation ............................... 3
Tools Required .................................... 3
Hardware Included................................. 3
Package Contents ................................. 4
Installation ...................................... 5-7
Surface Mounting Only ........................... 5-6
Recess Mounting Only .............................. 7
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Care and Cleaning .................................. 8
Safety Information
Save these installation instructions for future reference. WARNING: Safety discard all packing material. Keep
plastic bags and small parts away from children.
CAUTION: Accessories are installed in both top & bottom
poly-foam. Please ensure all the accessories are removed
from the packing before discard.
CAUTION: Safety glasses should be worn at all times.
Warranty
This product is guaranteed to operate a minimum of 1 year from the original date of purchase. If, under
normal use and for the full time period, your product fails to operate, please return it to: Service Dept .,
Prokonian Inc.. USA (with your original proof of purchase receipt) and we will refund it.
This warranty is considered void if the product fails from misuse. Contact the Customer
Service Team at 1-855-HD-GLACIER or visit www.homedepot.com/glacierbay.

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation
PLANNING INSTALLATION
□Unpack your medicine cabinet carefully, and close the sink drain to prevent any dropped parts from falling into the drain.
□Before installing your medicine cabinet, decide whether you want to install your cabinet using a surface or a recess mount and
determine which direction you want the door to open.
□You will not install the side mirrors(B). additional framing may be required to secure the cabinet.
TOOLS REQUIRED
Measuring
tape Level Phillips screwdriver
Electric drill
for surface
mounting
Stud

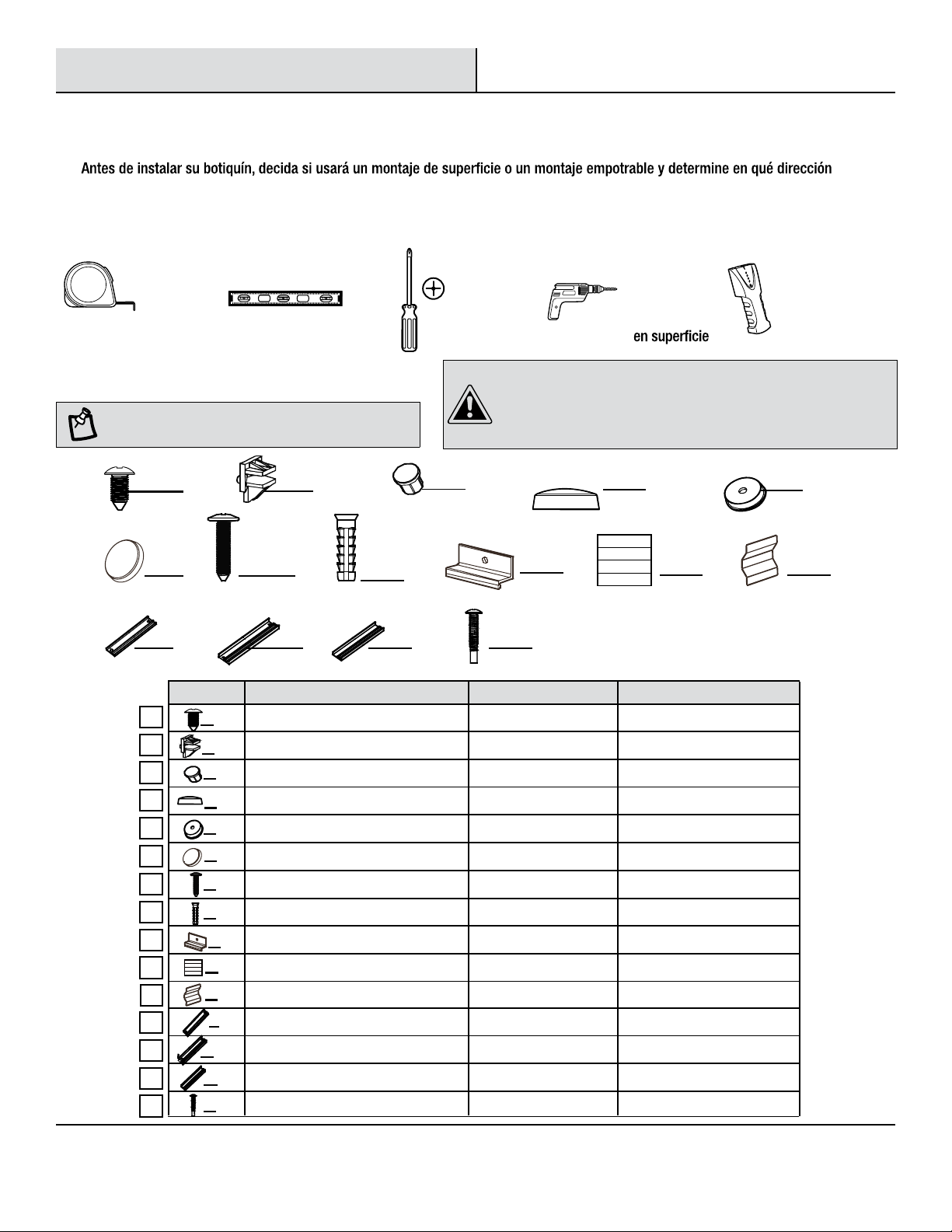

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
GG II JJ KK
BB CC
AA DD EE
FF HH
MMLL NN OO
LL
MM
NN
OO
Hinge side recess frame
Open side recess frame
Top and bottom recess frames
Phillips head screws (#6 x 1 in.) 4
FF
KK
Part Description Original Part QTY Spare Part QTY
Philips head screws (#8x0.375 in.) 4 2
Shelf clip 8 2
Shelf hole plug 2
Snap cap 4 2
Washer 4 2
AA
BB
CC
DD
EE
Side mirror bracket 0
Philips head screws (#8x1.5 in.) 4 2
Wall anchor 4 2
Top clip 2 0
Side mirror bracket tape 2 0
GG
HH
II
JJ
Bumper
4
2
1
1
20
0
0
0
12
2
CAUTION: The included plastic wall anchors (HH) are intended for use
with solid wall applications only (tile and concrete). DO NOT USE WITH
DRYWALL OR OTHER HOLLOW WALL APPLICATIONS. Refer to additional
warning information on Page 5 of this instruction manual.

4
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
E
D
F
Part Description Quantity
A Hinge 1
B Side mirror 2
C Cabinet 1
D Door 1
E Shelf glass 2
F Bottom bracket 1

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

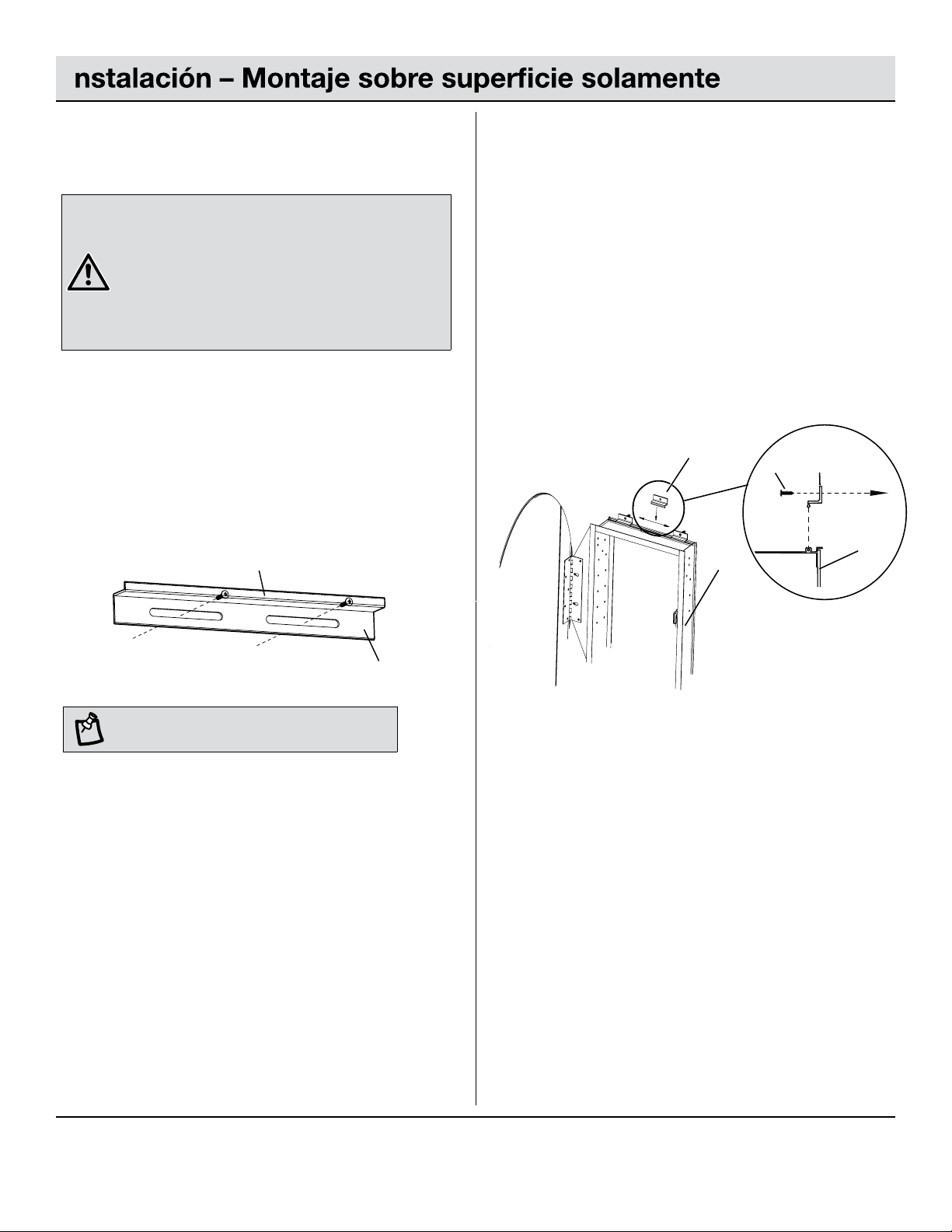

Installation - Surface Mounting Only
1a
Installing the bottom bracket
NOTE: The height of the bottom bracket (F)
should be a minimum of 2 in. above the faucet.
□Using a level and measuring tape, ensure the bottom
bracket (F) is level and positioned accordingly.
□Mount the bottom bracket (F) to the wall using the 1.5 in.
Phillips head screws (GG). See the Warning regarding the
fastening of the bracket (F).
□Carefully position the cabinet (C)
onto the bottom bracket (F).
2a
Installing the top clips
WARNING: If installing the cabinet on drywall or other
hollow wall applications, the bottom mounting bracket (F)
and top clips (II) must be fastened to studs, headers, or
other structural wall members. The included plastic wall
anchors are intended for use with solid wall applications
only (tile or concrete). DO NOT USE WITH DRYWALL OR
OTHER HOLLOW WALL APPLICATIONS.
□Install the top clips (II) by inserting the rounded ends into
the cabinet (C) rear top slot.
□See Warning regarding fastening of Top Clips(II).
□Slide one top clip (II) to the left and one to the right.
□Mount the top clips (II) to the wall by installing two 1.5 in.
screws (GG) through the top clips to secure the cabinet.
F
GG
GG II
CC
II

6
Installation - Surface Mounting Only
3a
Preparing the side mirror brackets
□Adhere the side mirror bracket tape (JJ) to the side mirror
brackets (KK) as shown. Make sure the bracket (KK) surface
is clean.
4a
Attaching the side mirrors
JJ
KK
Unable to assembling it as the
mounting bracket is turned upside
down not correctly.
KK
Side view
The hole is off center, the side
mirror mounting brackets only
one side can be assembled
KKKK
Side view
□Attach four side mirror brackets (KK) to the cabinet (C)
sides with screws (AA) and washers (EE). Cover the screw
heads with snap caps (DD).
□Remove the paper on the side mirror bracket tape (JJ), and
stick the side mirrors (B) to the side mirror brackets (KK).
NOTE: Please make sure the side mirrors are
aligning with the cabinet (C) before attaching the
side mirrors (B).
KK
Rotary the side mirror
mounting bracket of
clockwise 180 degree.
.
DD AA EE
CKK B

7
Installation - Recess Mounting only
1b
Cut away the drywall
NOTE: For recess mount, do not install side mirrors and
brackets.
□Cut away the drywall. The rough opening dimension is
12-5/8in x 16-3/4in x 3in.
12-5/8in
16-3/4in
2b
Frame out the wall cavity
□Mark the opening size of the framing.
□Construct rough opening as illustrated.
3b
Assembling the recess frame
□Insert cabinet into rough opening and make sure cabinet
is level and plumb. (Use wood shims as required)
□Secure both sides of the cabinet at the designated
mounting hole locations
□Use 1.5 inch long screws (GG) and clear washers (EE) as
shown in illustration.
□Snap the caps (DD) as illustrated below.
EE GG DD
4b
Mounting the cabinet into a recess
□Examine the frame pieces, cabinet, and your wall
required.
□Attach the top and bottom recess frames (NN) to the
hinge side frame (LL) and the open side frame (MM)
around the cabinet (C), using the 1 in. Phillips head
screws (OO).
LL
NN
NN MM
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

8
1 Installing the shelves
□Install the glass shelves (E) to your desired positions with
shelf clips (BB) as illustrated below.
E
C
BB
2 Plugging the empty holes
□Use the shelf hole plugs (CC) to seal the empty holes.
CC
C
3 Adding the bumpers
□Stick the bumpers (FF) at the two corners of the cabinet (C)
opposite the door hinges (A).
FF
C
A
FF
C
Care and Cleaning
□Use a household liquid glass cleaner to keep the mirror and glass surfaces clean.
□Do not use abrasive cleaners containing ammonia.
Assembly

Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
