GLARE WHEEL EB-X5 User manual

Electric Bike-12"
Glare Wheel EB-X5
USERMANUAL

Table of Content
1. EB-X5 Packing List.............................................................................................................03
2. Manual Overview................................................................................................................05
2.1 About the Manual.........................................................................................................05
2.2 Relevant Instructions...................................................................................................05
3 Product Overview...............................................................................................................05
3.1 Product S/N.................................................................................................................06
3.2 EB-X5 Product Dimensions..........................................................................................06
3.3 EB-X5 Product Parameters..........................................................................................07
3.4 EB-X5 Product Structure.............................................................................................08
Differences between High- and Low-level Configurations:................................................09
3.5 EB-X5 Folding Demonstration.....................................................................................09
4.3 Riding of Glare Electric Bicycle....................................................................................11
4.4 Precautions before Riding...........................................................................................11
4 Safe Operation Instructions...............................................................................................10
4.1 Charging......................................................................................................................10
Solution to Shaking of Battery Holder..................................................................................10
4.2 Safe Charging Instructions...........................................................................................11
Installation of Rear Mudguard............................................................................................04
4.5 Safe Riding Precautions...............................................................................................12
01

5. Maintenance.......................................................................................................................13
5.2 Cleaning.......................................................................................................................13
5.3 Disposal.......................................................................................................................13
6 Legal Statement.................................................................................................................14
6.1 Statement of Use.........................................................................................................14
6.2 Personal Information Statement..................................................................................16
6.3 Intellectual Property Statement....................................................................................17
7.3 Glare ’s Three-guarantee Standards for Micro Electric Bicycle..................................18
7.4 Warranty Disclaimer.....................................................................................................20
7 Warranty.............................................................................................................................17
7.1 Warranty Scope...........................................................................................................17
7.2 7-day Return without Any Reason................................................................................18
5.1 Storage.........................................................................................................................13
7.5 Maintenance Service Policy.........................................................................................20
5.4 Tire Inflation and Replacement....................................................................................14
7.6 Limited Warranty Liability.............................................................................................21
7.7 Warranty Card..............................................................................................................22
02

1.EB-X5 Packing List
03
The Glare Wheel EB-X5 electric bicycle (hereinafter referred to as the EB-X5
electric bicycle) delivered includes the following parts. Please check them after
unpacking. If any part is missing, consult the dealer or the after-sales department of
Glare Wheel
•The use of non-approved parts or improper installation of parts may lead to damage
to the EB-X5 electric bicycle and even personal injuries. To ensure the quality and
safety, all parts and accessories need to be approved by EB-X5 Technology LLC ,and
installed properly on the EB-X5 electric bicycle.
•Do not ride a Glare Wheel electric bicycle that is not assembled properly.
•Do not disassemble or modify the EB-X5 electric bicycle without permission; other
wise, irreparable damage to the EB-X5 electric bicycle and even personal injuries
may be caused.
Model
S/N
1
2
3
EB-X5
Name
Bicycle
Charger
User Manual
Quantity
1
1
1

2.1 About the Manual
For your safety, please carefully read this manual before riding the EB-X5 electric bicycle, and follow the instructions
while riding the EB-X5 electric bicycle.
05
● Be familiar with all safety warnings and precautions listed in this manual, which is helpful to ride the EB-X5 electric
bicycle.
● This manual applies to EB-X5 electric bicycles produced by Glare Technology USA Inc
● If you have any doubt or cannot obtain the desired information from this manual, please contact the authorized agent or
after-sales department of Glare Wheel in a timely manner.
2. Manual Overview
2.2 Relevant Instructions
The following instructions apply to the User Manual. Pay special attention of “Warning” and “Tips”
Warn that your action or behavior may cause personal injury.
Indicate the precautions, function prompt, etc.
3. Product Overview
EB-X5 electric bicycle is a small, efficient and economical personal transport tool. It fashionable and high-tech style,
light structure and powerful lithium battery can provide you with a pleasant riding experience.

06
3.1 Product S/N
The product S/N, which is the unique identifier, is used for quality tracking and after-sales services
of the product. Please keep the product S/N properly. You can obtain it on the packing box, warranty
card and bicycle body (on the side face of the controller box).

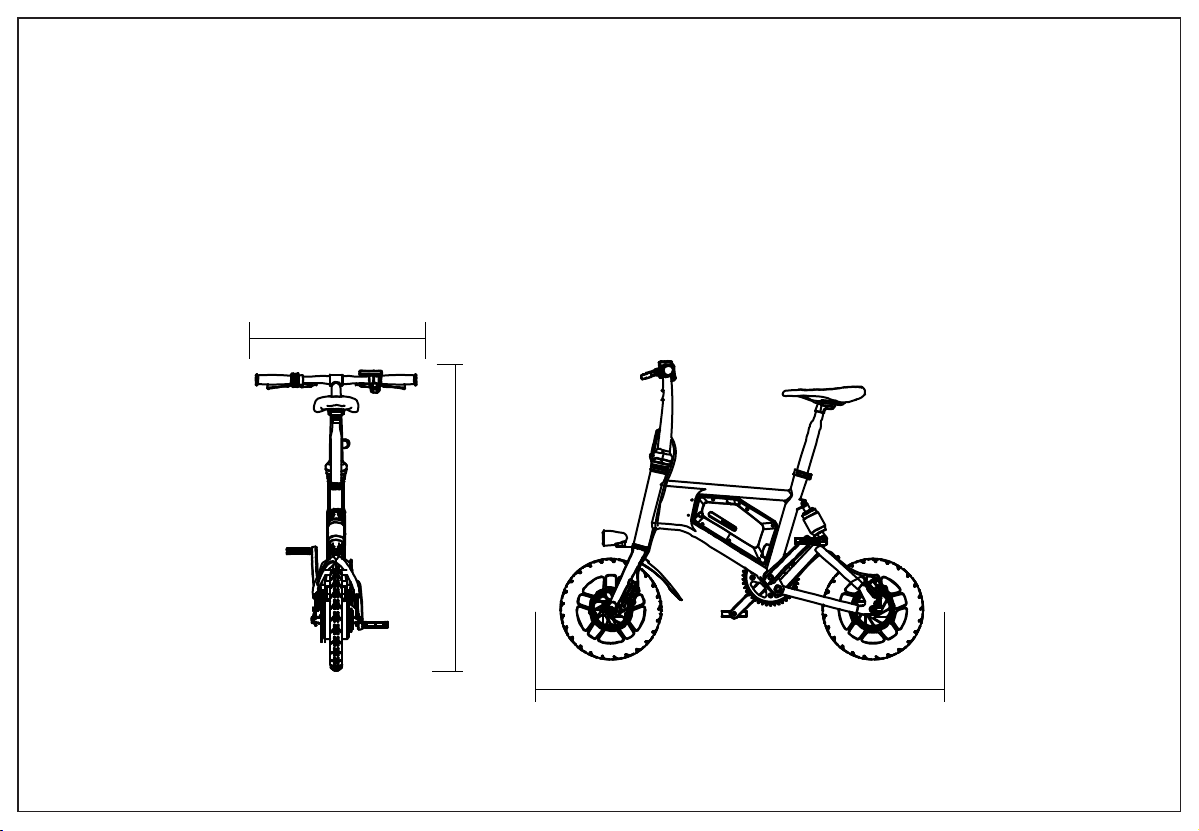

3.2 EB-X5 Product Dimensions
L:44.09 inch
W:20.87 inch
H:41.34 inch
Unit：inch

07
3.3 EB-X5 Product Parameters
Parameter Value
Body size
EB-X5
Folding size
Net weight
Tire type
Maximum load
Brake type
Drive mode
Electric endurance
Power-assisted endurance
Maximum speed
Motor power
Motor type
Battery type
Model
Battery capacity
Charging time
Accelerator type
1. The endurance mileage is associated
with the rider ’s weight, weather,
pavement, etc.
2. Maximum speed: 15.53 mile/h for a
165.35 lb rider, as specified in the
national standards. The maximum speed
may vary from the weight.
Remarks
L44.09×H26.78×W11.81 inch
L44.09×H41.34×W20.87 inch
37.92 lb (low-level configuration)
Inflatable tire: 12-inch respectively
220.46 lb
Front and rear disc brakes
6AH: 15.53-18.64mi;
Electric/power-assisted
6AH: 21.75-27.96mi;
15.53 mile/h
36V/250W
Brushless energy-saving motor
18650 lithium ion battery
6.0Ah
3-4H
Handle
Folding method Half-folding

08
3.4 EB-X5 Product Structure
Display
Brake lever
Controller
Front light
Front disc brake
Front wheel
Battery
Pedal
Rear motor wheel
Rear modguard
Rear shock absorber
Rear brake light
Cushion
Throttle lock
Throttle lever
Charging port

Differences between High- and Low-level Configurations:
09
(I) Push up the lock;
(ii) Hold the inner groove by hand, and pull the lock outward;
(iii) Fold the handlebar and stem as a whole down to the right.
professional conduct about product maintenance and service.
Low-level configuration: no meter or gear shifting,
but with power display
The shelf is optional
Front switch
Horn switch
3.5 EB-X5 Folding Demonstration

4. Safe Operation Instructions
10
Step 1: Find the charging port on the side face of the battery, as shown below.
Step 2: Insert the charging terminal of the charger into the charging port (make sure that the
charging port is dry).
Step 3: The battery is being charged when the charger indicator turns red and fully charged
when the indicator turns green.
Stop charging when the battery is fully charged. Otherwise, the battery life may be affected.
Step 4: After charging, cover the charging port to avoid water.
The battery holder shown below may slightly shake after riding of about half a month. Please tighten corresponding
screws according to the following instructions.
Step 1: Remove the screw cover with a tool such as a small screwdriver, as indicated by the arrow.
Step 2: Tighten two hex screws with the hex wrench.
Step 3: Install the screw cover and slowly press it in place.
(i) Screw cover (it is not fixed by screws but can be directly pushed and pulled.)
(ii) Hexagon socket screw
4.1 Charging
Charging port
Solution to Shaking of Battery Holder
