Fusion Par FP7
User Manual
Software version 1.0.0.4

GLP® Fusion Par FP7 User Manual – Revision A
This document covers fixture software version 1.0.0.4
© 2019-2020 German Light Products GmbH. All rights reserved.
The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German
Light Products GmbH in Germany, in the United States of America and in other countries.
The information contained in this document is subject to change without notice. German Light
Products GmbH and all affiliated companies disclaim liability for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to
use or reliance on the information contained in this document.
Manufacturer’s head office:
German Light Products GmbH (GLP), Industriestrasse 2, 76307 Karlsbad, Germany
Tel (Germany): [phone] - 0
Service & Support EMEA:
GLP, Industriestrasse 2, 76307 Karlsbad, Germany
Tel. (Germany): [phone]
Email: [email protected]
www.glp.de
Service & Support USA:
GLP USA, 1145 Arroyo St., Ste. A, 91340 San Fernando, California
Tel (USA): [phone]
Support (US): [e-mail]
www.germanlightproducts.com

Table of Contents
1. Safety........................................................................................................... 4
Key to symbols....................................................................................... 4
GLP Service and Support..................................................................... 5
General safety information.................................................................. 6
Electrical safety..................................................................................... 6
Fire safety and protection from burns................................................ 7
Eye safety............................................................................................... 8
Strobe safety.......................................................................................... 8
Installation safety and protection from personal injury.................... 9
2. Avoiding damage ................................................................................... 10
Transportation and storage ............................................................... 10

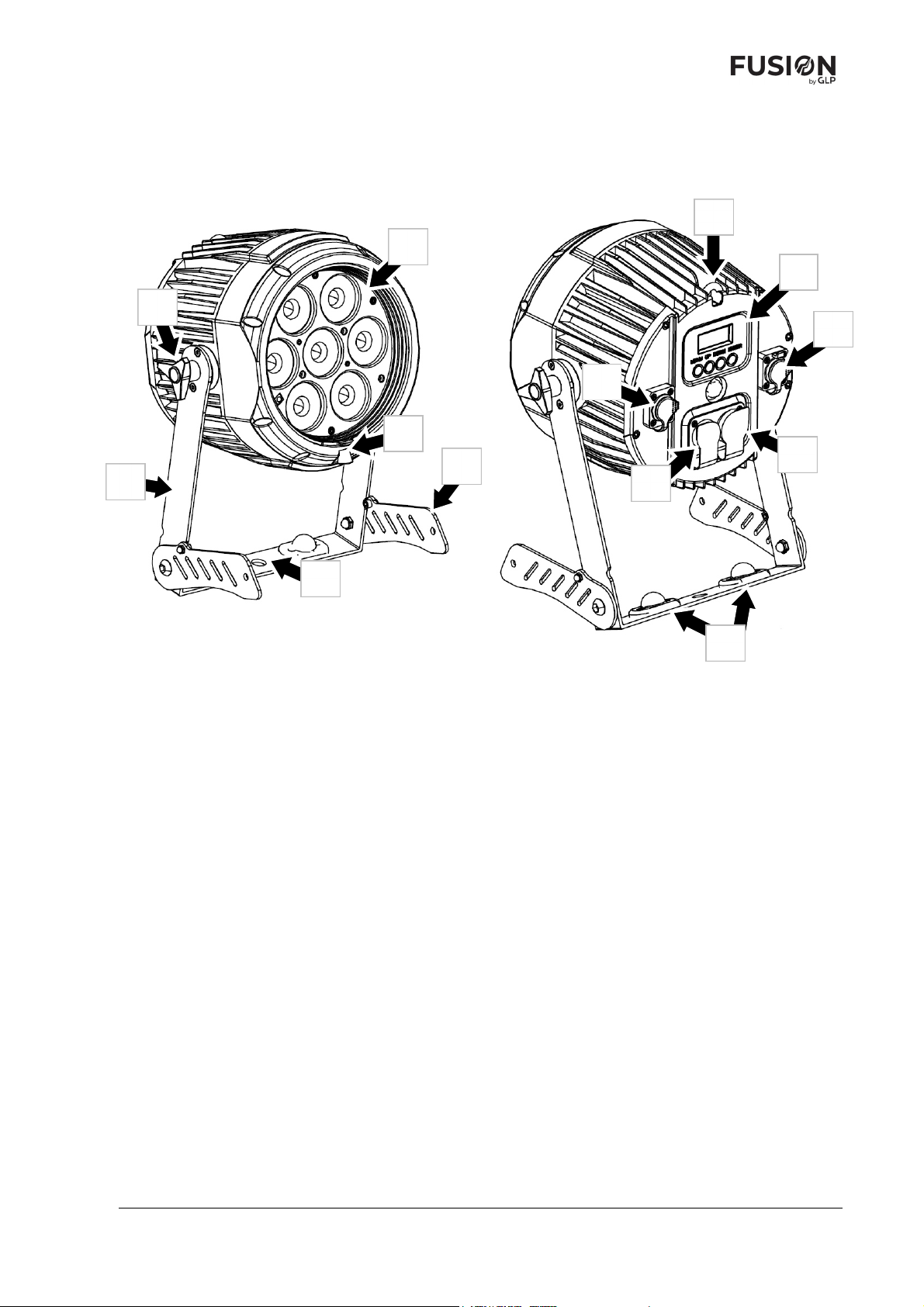

3. FP7 overview............................................................................................. 11
4. Features..................................................................................................... 12
Virtual color wheel.............................................................................. 12
RGBW color mixing ............................................................................. 12
Shutter effect....................................................................................... 13
Color temperature.............................................................................. 13
5. Preparation for use .................................................................................. 14
Included Items..................................................................................... 14
Installation............................................................................................ 14
Connecting to power ........................................................................ 16
Connecting to a DMX control data link........................................... 18
6. Control menus and onboard display .................................................... 19
Control menus..................................................................................... 19
7. IR Remote.................................................................................................. 25
8. Service....................................................................................................... 26
Cleaning .............................................................................................. 26
Optical accessories ............................................................................ 26
9. Control menu layout ............................................................................... 27
10. DMX control modes overview ................................................................ 31
11. DMX control channel layout tables....................................................... 33
12. Technical specifications.......................................................................... 37
13. Dimensions ................................................................................................ 39

www.glp.de
4 Fusion Par FP7 User Manual Rev. A
1. Safety
Key to symbols
The following symbols are used in the Fusion Stick FP7 lighting fixture’s user
documentation:
Warning! Read the precautions in this user manual before installing,
operating or servicing the fixture. If you fail to read this information you may
create a safety hazard with a risk of injury, death or damage.
This user manual is supplied with products and available for download from the GLP®
website at www.glp.de. It contains important safety information and installation
instructions that the installer and user must read. It also contains dimensions drawings
and technical specifications and it explains features and control of FP7 fixtures.
The DMX control channel index tables included in this user manual are also available
as a separate file: the FP7 DMX Channel Index, that is also available for download from
www.glp.de.
The FP7 is intended for use by experienced professionals with the knowledge and skills
to set up, operate, and maintain high-powered, remotely controlled lighting
equipment safely and efficiently. These operations require expertise that may not be
provided in this manual.
● Respect all warnings and directions given in this user manual and on the fixture.
Read and familiarize yourself with the safety precautions in this chapter before
installing, using or servicing the fixture. GLP and affiliated companies will take no
responsibility for damage or injury resulting from disregard for the information in the
user documentation.
● Check the GLP website at www.glp.de and make sure that you have the latest
versions of this user manual.
Warning! Safety hazard.
Risk of severe injury or
death.
Warning! Hazardous voltage.
Risk of lethal or severe
electric shock.
Warning! See user
manual for important
safety information.
Warning! Fire hazard.
Warning! Risk of eye
injury.

German Light Products®
Fusion Par FP7 User Manual Rev. A 5
● Check the fixture software (firmware) version indicated on page 2 of this user
manual and then use the fixture’s control panel to check the version installed in the
fixture. If the versions are not the same, the user manual may still cover the fixture
because software updates do not always affect the use of the fixture. However, it is
possible that this manual does not match the fixture perfectly. Software release
notes can help clarify this question. You can consult software release notes and
download the correct version of this user manual on the GLP website if necessary.
● Make this user manual available to all persons who will install, operate or service the
fixture. Save this user manual for future reference.
● If you have any questions about the safe operation of the fixture, please contact an
authorized GLP distributor (see list of distributors at www.glp.de).
GLP Service and Support
Contact information for the nearest GLP Service and Support is available online at
www.glp.de/en/service, by email at [email protected], or by telephone at the following
numbers:
● GLP Germany: [phone]
● GLP N. America: [phone]
● GLP UK: [phone]
● GLP Asia: [phone]
● GLP Nordic: [phone]

www.glp.de
6 Fusion Par FP7 User Manual Rev. A
General safety information
Read this section carefully before installing or using the product. If you have any
doubts or questions about how to use the product safely, contact your GLP® supplier
for assistance. Your GLP supplier will be happy to help.
The FP7 and this user manual are intended for use by experienced professionals with
the knowledge and skills to set up, operate, and maintain high-powered, remotely
controlled lighting equipment safely and efficiently. These operations require expertise
that may not be provided in this manual.
● Respect all warnings and directions given in this user manual and on the product.
Read this manual and familiarize yourself with the safety precautions it contains
before installing or using the product. The manufacturer will take no responsibility for
damages or harm resulting from disregard for the information in this manual.
● Check the GLP website at www.glp.de and make sure that you have the latest
version of this user manual. Check also that the software version indicated on page
2 of the user manual matches the version installed in the product. You can
download the correct version of this user manual if necessary.
● Make the user manual available to all installers and operators and save the manual
for future reference.
● If you have questions about the safe operation of the FP7, please contact an
authorized GLP distributor (see list of distributors at www.glp.de).
● Use the product only as directed in this user manual. Observe all markings in this user
manual and on the product.
● The product does not contain any user-serviceable parts. Refer any service
operation not described in this manual and refer all repairs to a technician
authorized by GLP.
● The light source in this product must not be changed by the end user.
● Read and follow the user documentation for all additional equipment.
Electrical safety
● Use only a source of AC mains power that complies with local building and
electrical codes and has both overload and ground fault (earth fault) protection.
● Ensure that the product is electrically connected to ground (earth).
● Disconnect the product from AC mains power before carrying out any installation or
maintenance work and when the product is not in use.
● The product is IP65-rated, but do not expose it to high-pressure water jets and do not
allow it to become immersed in water.

German Light Products®
Fusion Par FP7 User Manual Rev. A 7
● Use only Neutrik powerCON TRUE1 IP65-rated connectors to make power
connections to the fixture.
● Line up the keys and keyways in Neutrik powerCON TRUE1 power connectors
carefully before inserting a cable connector. If a cable connector is difficult to insert
or twist, do not force it. Instead, remove it and check to make sure that keys and
keyways are lined up correctly.
● Use only IP65-rated XLR connectors to make data connections to the fixture.
● Keep the rubber connector seals correctly installed on all unused connectors at all
times.
● Do not expose the cable connectors to bending forces (by allowing the weight of
cables to hang from connectors, for example) as this may affect their ingress
protection and allow water to enter the connections.
● Disconnect the product from power immediately if the power plug or any seal,
cover, cable, or other component is damaged, defective, deformed, wet or
showing signs of overheating. Do not reapply power until the product has been
repaired and made safe by a technician authorized by GLP.
● Before using the product, check that all power distribution equipment and cables
are in perfect condition and rated for the electrical requirements of all connected
devices.
● Use minimum 14 AWG or 1.5 mm2power input and relay cables that are minimum
16 A rated and temperature-rated to suit the application. In the USA and Canada
the cables must be UL-listed, type SJT or equivalent. In the EU the cables must be
type H05VV-F or equivalent.
● Do not connect devices to power in a chain using their power throughput
connectors if the total maximum current draw of all the devices in the chain when
added together will exceed the current rating of any cable or connector used at
any point in the chain. The supplied power input cable is rated as follows:
- US power cable: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft.
- EU power cable: 16 A, 1.5 mm², H05VV-F, 1.5 m
Do not connect more than six (6) FP7 fixtures to power in a chain at 100-120 V, 60 Hz.
Do not connect more than twelve (12) FP7 fixtures to power in a chain at 200-240 V,
50 Hz.
● The voltage and frequency at the MAINS THRU socket are the same as the voltage
and frequency applied to the MAINS IN socket. Only connect devices to the MAINS
THRU socket that accept this voltage and frequency.
● If you suspect that a fuse has blown, disconnect the product from power and send
it to a technician authorized by GLP for repair.
Fire safety and protection from burns
● Do not operate the product if the ambient temperature (Ta) exceeds 45° C (115° F).

www.glp.de
8 Fusion Par FP7 User Manual Rev. A
● Depending on ambient temperatures and the presence of sunlight, the surface of
the product’s casing can reach up to 90° C (194° F) during operation. Avoid
contact by persons and materials. Do not install the product in a location where
there is a risk of accidental contact. Allow the product to cool for at least 20 minutes
before handling
● Keep the product well away from flammable materials.
● Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm (4 in.)
away from the product.
● Ensure that there is free and unobstructed airflow around the product. Provide a
minimum clearance of 100 mm (4 in.) around fans and air vents.
● Do not illuminate surfaces within 500 mm (19.7 in.) of the product.
● Do not stick filters, masks or other materials onto optical components.
● The product’s optical components can focus the sun’s rays, creating a risk of fire
and damage. Do not expose the front of the product to sunlight or any other
intense light source, even from an angle.
Eye safety
● The FP7 is classified as a Risk Group 2 product according to EN 62471. Possibly
hazardous radiation emitted.
● Do not stare into the light output from the product. May be harmful to the eyes.
● Do not look at the product’s light output with optical instruments or any device that
may concentrate the light output.
● Make sure that persons working on or near the product are not looking directly into
the light output when the product lights up suddenly. This can happen when power
is applied, when the product receives a DMX signal, or when certain control menu
items are selected.
● Provide well-lit conditions to reduce the pupil diameter of anyone working on or
near the product.
Strobe safety
● Flashing light, particularly at 5 - 30 Hz, may cause seizures in persons with
photosensitive epilepsy. Do not use strobe effects for extended periods.
● Comply with local regulations on the use of strobe lighting and notify the public in
advance with highly visible warning signs when strobe effects are used.

German Light Products®
Fusion Par FP7 User Manual Rev. A 9
● If a seizure occurs, stop using strobe effects. Seek professional medical help. Note
the time that the seizure starts and finishes. Call emergency medical help urgently if
the seizure lasts more than five minutes, if it is the person’s first seizure, or if the person
is injured. While waiting for help to arrive, consider the following general advice for
caring for a person who is having a seizure: Protect the affected person from injuring
themselves on hard or sharp objects. If necessary, move the person to a safe place.
Lay them on their side with their head supported to prevent it from hitting the floor.
Loosen any tight clothing around their neck. Do not use force to hold the person or
restrict their movements. Do not put anything in their mouth, including your fingers.
Installation safety and protection from personal injury
● Installation must be performed by qualified personnel only and carried out in
accordance with applicable regulations such as DIN VDE 0711-217.
● The product is not portable when installed.
● Ensure that the supporting structure and installation hardware used can hold at least
10 times the weight of the load that they support.
● Suspend the product with hardware specifically designed and rated for the
purpose. Check that the hardware is in perfect condition. Fasteners must be steel
grade 8.8 strength or better. Rigging clamps must be half-coupler type that
completely encircle the rigging truss chord.
● If the product is installed in a location where it may cause injury or damage if it falls,
install as directed in this manual a safety cable or similar secondary attachment that
will hold the product if a primary attachment fails. The secondary attachment must
be approved by an official body such as TÜV as a safety attachment for the weight
that it secures, it must comply with EN 60598-2-17 Section 17.6.6, and it must be able
to support a static suspended load that is ten times the weight that it secures.
● Either stand the product on a safe surface or fasten the product to a structure or
surface as directed in this user manual. Do not use a safety cable as the primary
means of support.
● Check that all covers and rigging hardware items are secure.
● Do not operate the product with missing or damaged covers, shields or any optical
component.
● Restrict access below the work area and work from a stable platform whenever
installing, servicing or moving the product.
● If the product becomes damaged, stop using it immediately and disconnect it from
power. Do not attempt to use a product that is obviously damaged.
● Do not modify the product in any way not described in this user manual.
● Install genuine GLP parts only.

www.glp.de
10 Fusion Par FP7 User Manual Rev. A
2. Avoiding damage
Do not point the front of the fixture towards the sun or other strong light sources. The
LED lenses focuses and concentrate light just like magnifying glasses. Strong light can
cause internal damage to the fixture, melting components or starting an internal fire
within seconds.
Figure 1. Avoiding damage from light sources
Damage can occur whether the fixture is powered on or off. See Figure 1.Damage
can also occur if the light hits the front of the fixture at an angle: the fixture does not
need to be pointing directly at the sun or other light source.
To avoid problems from strong light sources:
● Do not expose the front of a fixture to sunlight or any other strong light source.
● For outdoor applications during daylight, make sure that the front face of any fixture
is shielded or points away from the sun, even when not in use.
● Avoid pointing other high-powered beam lights directly at the fixture.
Do not pick up or carry the fixture by the front bezel. The LCD display is also fragile.
Picking up or supporting the fixture in these spots could result in damage that is not
covered by the product warranty.
Use only original spare parts. Any structural modification of the system will void the
product warranty.
Inspect the fixture regularly and clean it if necessary. Clean the fixture only as directed
in this manual. Oils, solvents, and other chemicals commonly used for cleaning can
damage surfaces.
Do not drop the fixture or expose it to mechanical stress.
Do not expose the fixture to heat (from other lighting fixtures for example).
Transportation and storage
Transport the FP7 either in a flightcase or in its original packaging to protect the fixture
from damage caused by shocks during transportation.
Store the fixture in a dry location when not in use.

German Light Products®
Fusion Par FP7 User Manual Rev. A 11
3. FP7 overview
A – LED array
B – Tilt adjustment locking screw
C – Floorstand / Mounting Bracket
D – Hole that accepts M10 bolt for rigging clamp
E – Spring-loaded optical accessory retaining latch
F – Fold-out foot
G – Safety cable attachment point
H – Control panel and display
I – DMX OUT/THRU (5-pin XLR), IP65-rated
J – AC mains power IN (Neutrik powerCON TRUE1 TOP)
K – AC mains power THRU (Neutrik powerCON TRUE1 TOP)
L – DMX IN (5-pin XLR)
M – Quarter-turn lock mounting points for 100 mm omega clamp
Figure 2. Fusion Par FP7 overview
I
L
G
J
K
D
F
B
A
C
M
H
E

www.glp.de
12 Fusion Par FP7 User Manual Rev. A
4. Features
The Fusion Par FP7 from GLP® is a compact but powerful LED-based strobe/color
mixing effect lighting fixture.
The fixture features an array of 7 x 30 watt RGBW LEDs that produce a powerful beam
with a 6° beam angle.
You can either vary color continuously using RGBW color mixing or select preset colors
on the fixture’s virtual color wheel.
A shutter channel gives variable pulse and strobe effects running at up to 20 Hz, and a
master dimmer channel gives 0-100% continuous dimming. The fixture offers a choice
of four dimming curves and two dimming modes that are optimized for dimming
speed or slow dimming smoothness.
A separate CTO channel is available in DMX Mode 1, letting you quickly adjust the
color temperature of the white light output.
Fixtures can be connected to power and data in daisy-chains, reducing the number of
cable runs required in installations with multiple fixtures.
Besides indoor use in permanent and temporary installations, the FP7’s IP65 rating and
rugged construction mean that it can also be used outdoors in temporary installations
if precautions are taken to prevent immersion in water and damage from direct
sunlight.
Using the Floorstand / Mounting bracket that is supplied with the fixture, the FP7 can be
placed upright on a level surface, fastened to a secure surface in any orientation or
suspended from a suitable structure such as a rigging truss by means of an omega
clamp and rigging clamp (optional accessories).
A spring-loaded latch on the front of the fixture allows quick and easy mounting of
optical accessories.
The FP7 is not suitable for household use, for use in any location where unattended
children have access to it, or for use in permanent outdoor installations.
Virtual color wheel
The FP7’s virtual color wheel effect gives you quick access to a range of 33 LEE-
referenced color presets. You can select a static color or run a dynamic sequence of
regular or random colors.
The virtual color wheel takes priority over RGBW control in DMX Mode 1. If you want to
use RGBW color mixing, set the virtual color wheel channel to zero.
Color temperature presets from a warm tungsten emulation to a very cool 8000 K white
are available on the color wheel DMX channel.
RGBW color mixing
RGBW color mixing gives you complete control of color. In DMX Mode 1, which has
both RGBW color mixing and a virtual color wheel effect, you must set the virtual color
wheel channel to zero before the RGBW channels become active.
RGB color mixing is available in DMX mode 5 which has a DMX footprint of only three
channels.

German Light Products®
Fusion Par FP7 User Manual Rev. A 13
Shutter effect
The FP7’s electronic shutter effect provides ramp up and ramp down effects, a
variable speed strobe with strobe pause effects and instant blackout and full intensity.
Color temperature
Color temperature can be varied continuously from 2700 K to 8000 K on a separate CT
channel in DMX Mode 1.

www.glp.de
14 Fusion Par FP7 User Manual Rev. A
5. Preparation for use
Warning! Read ‘Safety’ starting on page 4 for important safety information
that you must understand before you install or operate the fixture.
Included Items
The Fusion Par FP7 is supplied with a power cord with powerCON connector and a
Floorstand / Mounting Bracket that accepts an M10 bolt for fastening to a rigging
clamp.
Installation
Orientation and location
The FP7 can be installed:
● indoors in temporary or permanent installations, or
● outdoors in temporary installations.
In outdoor installations you must protect the front of the fixture from direct sunlight. The
fixture is IP65 rated so it will withstand rain and water projections, but do not expose the
fixture to high-pressure water jets or allow the fixture to become immersed in water.
The FP7 can be used when placed on a level surface, fastened to a surface in any
orientation or fastened to a structure such as a rigging truss in any orientation.
Keep the fixture at least 0.5 m (20 in.) away from combustible materials (including
curtains and stage scenery) when the fixture is installed.
Placing on a surface
You can stand the impression FP7 upright on its Floorstand
/ Mounting bracket on a flat, stable, horizontal surface.
To use the floorstand, see Figure 3. Fold the feet on the
floorstand around so that they lock into the position
shown and form feet.
If necessary to prevent the fixture from moving or falling
(in a location that is subject to vibrations for example),
loop a ratchet strap, webbing or other bracing strap
around the legs of the floorstand and fasten it to secure
anchoring points.
Loosen the tilt adjustment handscrews (arrowed) on both
sides of the floorstand, set the fixture to the required
angle and retighten the handscrews.
Figure 3. Deploying
feet on Floorstand

German Light Products®
Fusion Par FP7 User Manual Rev. A 15
Securing with a safety cable
If the FP7 can cause injury or damage if it falls,
secure it with a safety cable that is approved for the
weight that it secures and capable of catching the
fixture safely if the primary means of attachment
fails.
To secure the fixture with a safety cable:
See Figure 4. Pass a carabiner hook (arrowed) or
similar means of attachment around the safety
cable attachment point in the fixture housing
above the control panel.
Secure the fixture by adding a safety cable that
is fastened to a secure anchoring point. Remove
as much slack as possible from the safety cable
(by looping more than once around a rigging
truss chord, for example).
Mounting on a rigging truss or similar structure
The Floorstand / Mounting bracket has two
attachment points with a center-to-center distance
of 100 mm / 3.94 ins for the quarter-turn fasteners on
an omega bracket. It also has a hole that accepts
an M10 bolt.
Before installing, check that all mounting
hardware and fasteners are approved for the
weight that they will support and in perfect
condition. Fasteners must be high-tensile steel.
To mount the fixture on a rigging truss, either:
Bolt a rigging clamp to a suitable omega
bracket.
Fasten the omega bracket to the fixture’s
mounting bracket with quarter-turn
fasteners, turning the handles on both
quarter-turn fasteners a full 90° to lock
them.
Fasten the rigging clamp around a truss
chord to mount the fixture on the rigging
truss.
Secure the fixture with a safety cable as
directed above.
Or:
Bolt a rigging clamp to the fixture’s mounting bracket using a high-strength M10
bolt passed through the hole in the center of the mounting bracket yoke (see Din
‘FP7 overview’ on page 11) and self-locking nut.
Figure 5. FP7 flown from rigging truss with
omega bracket and rigging clamp
Figure 4. Safety cable
attachment

www.glp.de
16 Fusion Par FP7 User Manual Rev. A
Fasten the rigging clamp around a truss chord to mount the fixture on the rigging
truss.
Secure the fixture with a safety cable as directed on page 15.
Fastening to a surface
You can use the Floorstand / Mounting bracket to fasten the FP7 to a suitable secure
surface at any angle.
To mount the FP7 on a surface:
Prepare a suitable hole in the mounting surface, adding a means of anchoring the
fastener such as a screwplug if necessary.
Pass a high-strength M10 bolt or screwbolt through the hole in the center of the
mounting bracket yoke (see D in ‘FP7 overview’ on page 11) and fasten it into the
surface.
Secure the fixture with a safety cable as directed on page 15.
Connecting to power
Warning! Read ‘Safety’ starting on page 4 for important safety information
that you must understand before you connect the fixture to power.
The AC mains power supply must include a connection to ground / protective earth. It
must be protected against ground / earth leakage and overload. The autosensing
power supply accepts AC power at 100-240 V, 50/60 Hz. Do not connect the fixture to
power at any other voltage or to an external dimmer.
The Fusion FP7 does not have a power ON/OFF switch. Power is applied to the fixture as
soon as the power cord / power cable that is connected to the fixture becomes live.
The FP7 has a 3-conductor IP65-rated Neutrik powerCON socket that accepts AC
power from a Neutrik powerCON TRUE1 IP65-rated female cable connector.
To connect the fixture to power:
Check that power to the power input cable is shut down.
See Figure 2 on page 11. Connect the power input cable to the MAINS IN socket
by lining up the key (tab) on the cable connector carefully with the keyway (slot) in
the MAINS IN connector, then inserting and twisting the cable connector clockwise
to lock. You should hear a ‘click’ when the connector is locked. Do not force the
cable connector – if it feels excessively stiff, remove it and check that the key and
keyway are correctly lined up.
Do not expose the cable connector to bending forces by letting cable hang from
the connector, for example, as this may affect its ingress protection and allow
water to enter the connection.
To remove the power input connector, pull the locking latch towards you to release it,
then twist the connector counterclockwise and remove it from the socket.
Install the rubber connector seals on any unused connectors.

German Light Products®
Fusion Par FP7 User Manual Rev. A 17
Connecting multiple fixtures to power in a chain
You can connect fixtures to power in a daisy-chain to simplify your power circuit
layout.
Warning! The power input cable supplied with the fixture is rated 16 A
maximum. Add together the maximum current draw ratings of all the
devices that you intend to connect to power in a daisy chain and do not
create a chain with a total maximum current draw of more than 16 A, or
you will create a risk of fire and electric shock. Respect the following safety limits:
● Do not connect more than six (6) FP7 fixtures to power in a chain at 100-120 V,
60 Hz.
● Do not connect more than twelve (12) FP7 fixtures to power in a chain at 200-240 V,
50 Hz.
To connect fixtures to power in a chain:
Obtain power relay cables that have male and female IP65-rated Neutrik
powerCON connectors. Cables must be minimum 14 AWG or 1.5mm2, rated
minimum 16 A and suitable for the environment and application.
Check that the total current draw of all the devices in the chain will not exceed
16 A.
Check that power is not applied to the input cable.
Connect the power input cable to the MAINS IN socket (see Figure 2 on page 11)
following the instructions given in the previous section.
Connect a relay cable to the MAINS OUT socket (see Figure 2 on page 11) of the
first fixture and to the MAINS IN socket of the next fixture in the chain. Continue until
the chain is complete.
Do not expose cable connectors to bending forces, by letting cable hang from a
connector for example, as this may affect its ingress protection and allow water to
enter the connection.
Before applying power, check that that nobody is looking directly into the front of a
fixture.
Connecting to a power circuit
If using the fixture outdoors, make sure that all cable connections are protected from
water and moisture.
It is possible to install a cord cap / mains power plug that is suitable for your local
convenience receptacles / power sockets on the supplied power input cable. If you
do this, check that the cord cap / plug is rated minimum 250 V, 16 A, that it has a
connection to ground / earth and that it has an integral cable grip. Follow the cord
cap / plug manufacturer’s assembly instructions.
If you need to install a Neutrik powerCON connector on a power cable, follow the
instructions given in the Support area of the Neutrik website at www.neutrik.com.

www.glp.de
18 Fusion Par FP7 User Manual Rev. A
Respect the color coding used in the supplied power cable and in your local mains
power wiring system. US and EU systems use the color coding shown below:
Live or L Neutral or N Ground / Earth or
US system Black White Green
EU system Brown Blue Yellow/green
Connecting to a DMX control data link
The Fusion FP7 has 5-pin XLR DMX IN and DMX THRU sockets for connection to a USITT
DMX512 data link.
Connectors use standard DMX pinout:
● Pin 1 = Ground
● Pin 2 = -ve / data cold
● Pin 3 = +ve / data hot.
● Pins 4 and 5 are not used.
If using the fixture outdoors, use only IP67-rated Neutrik 5-pin XLR connectors.
If you would like any advice with planning and installing a DMX link, your GLP supplier
will be happy to provide assistance.
Install the rubber connector seals on any unused connectors.

German Light Products®
Fusion Par FP7 User Manual Rev. A 19
6. Control menus and onboard display
Warning! DMX control is disabled when the control menus are active. Be
prepared for the fixture to emit strong light as soon as you exit the control
menus.
The control panel and onboard display provide access to user settings, readouts and
utilities.

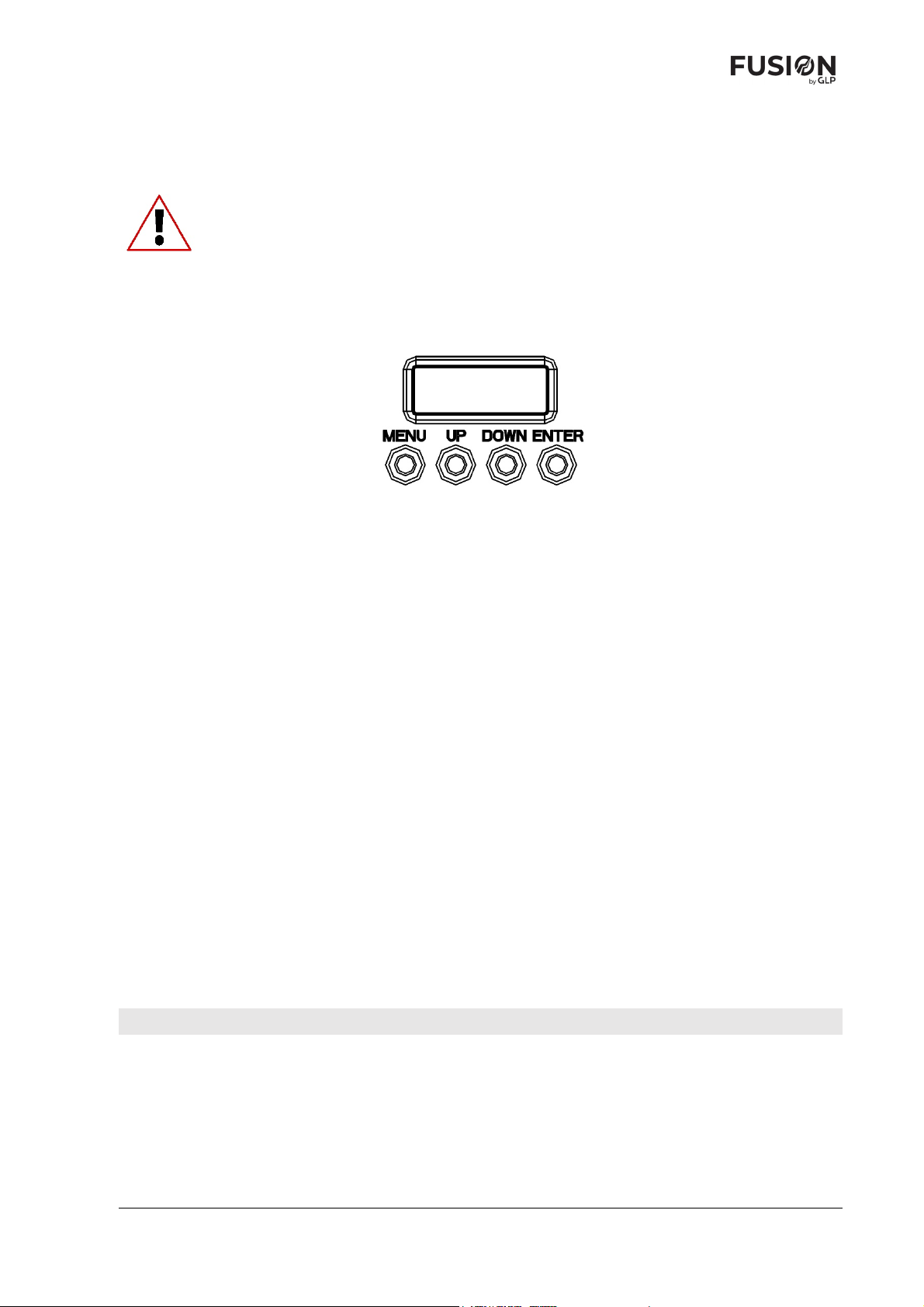

Figure 6. Onboard display
The four control buttons have the following functions:
MENU: Activate the menus or go back one level towards the top of the menu.
UP: Scroll up or increase a number.
DOWN: Scroll down or reduce a number.
ENTER: Activate the control panel if it is in sleep mode. Then enter a menu, select
a setting or implement a command.
After you have applied power to the fixture and the fixture has booted, the panel
displays the default screen with the fixture’s DMX mode and DMX address.
DMX control is disabled when the control menus are active.
Control menus
This section explains the functions of the commands available in the FP7 control
menus.
DMX
DMX address
Sets the DMX start address of the fixture. The DMX address is 001 by default.
Mode
Selects the fixture’s DMX control mode. See ‘DMX control modes overview’ on page
31.

www.glp.de
20 Fusion Par FP7 User Manual Rev. A
No DMX
You can set the fixture to react in three different ways if no DMX signal is present (if the
fixture is being controlled by DMX but the DMX signal stops, or if you apply power to
the fixture when no DMX signal is present):
● Shut off sets the fixture to black out. This is the default setting.
● Hold sets the fixture to continue obeying the last DMX values it received.
If no DMX signal was being received, the fixture will black out.
● Play P1 / P2 / P3 sets the fixture to show the program that has been stored in the
St Alone P Edit menu (see ‘P Edit’ on page 23).
To avoid any possibility of unexpected behavior from a powerful strobe light if the DMX
signal fails, we recommend that you set the fixture to Shut off when you are not running
a stand-alone program.
DMX Live
DMX Live lets you view the current refresh rate of the DMX signal that the fixture is
receiving.
It also lets you see the DMX values that the fixture is receiving for each individual
effect.
Personal
D Curve
See Figure 7. You can select from four dimming curves using the control panel or the
Control / Settings DMX channel:
● Linear sets dimming so that it appears to increase and decrease evenly throughout
the dimming range.
● Theatrical (Theat) is an S-shaped curve that gives finer control at low and at high
light levels.
● Square Law (Square) gives finer control at low light levels and coarser control at high
light levels.
Figure 7. Dimming curves
